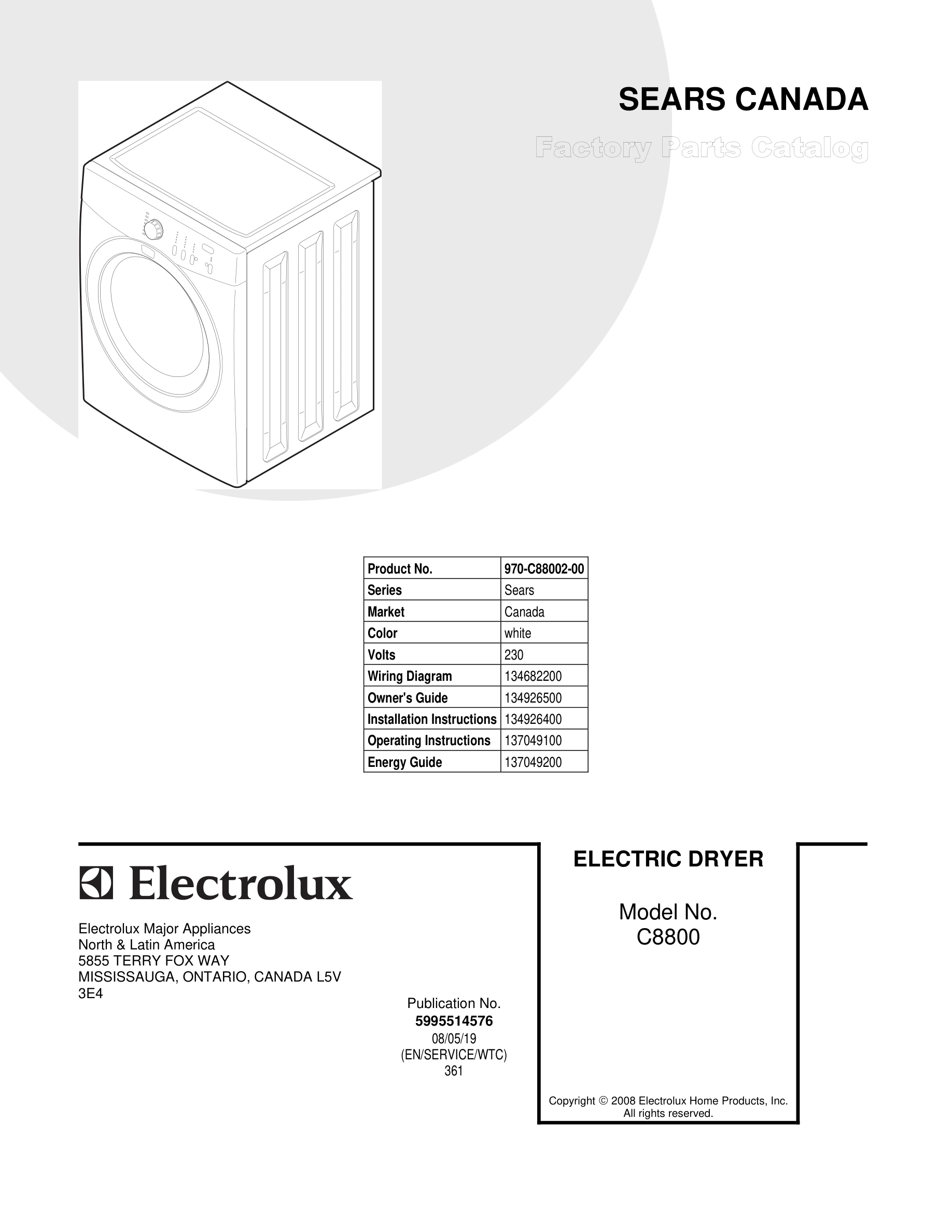

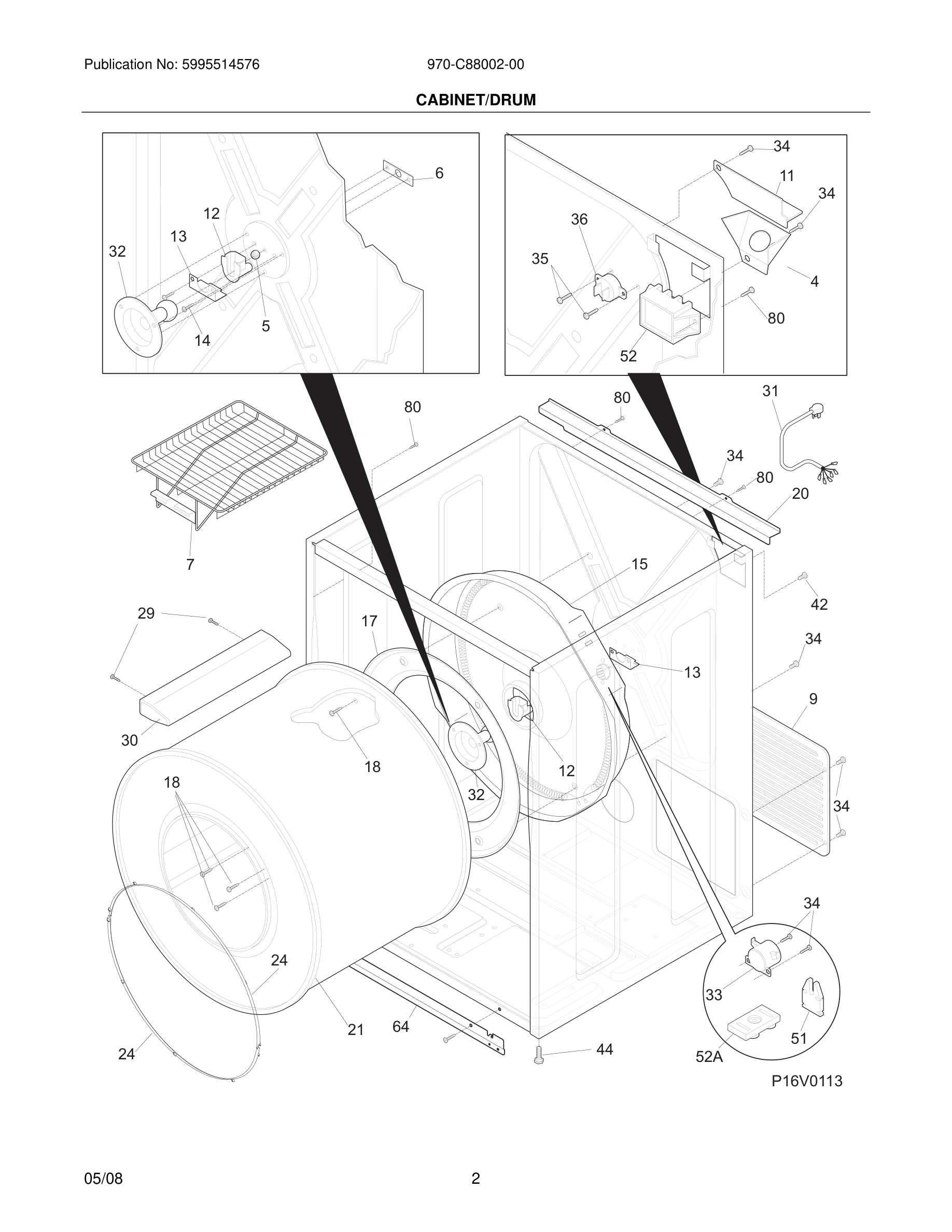

Kenmore 970-C88002-00 DRYER Parts List

*#

5303281153 Frigidaire Dryer Rear Drum Bearing In Stock WCI 5303281153 $9.49

View on Model

1

134417000 Frigidaire Seal Backorder WCI 134417000 $5.88

View on Model

3

Knob, program, chrome WCI 134551225 Contact Us For Availability

View on Model

4

131435200 Frigidaire Fan Housing Lock Backorder WCI 131435200 $45.28

View on Model

4

Bracket, elec power cord, knock out WCI 131785200 Contact Us For Availability

View on Model

4

Light Pipe, program WCI 134553100 Contact Us For Availability

View on Model

5

5303281019 Frigidaire Ball Assembly Backorder WCI 5303281019 $10.39

View on Model

5#

134556500NH Frigidaire UIB In Stock WCI 134556500NH $20.43

View on Model

6

5303281020 Frigidaire Ball Clip In Stock WCI 5303281020 $10.85

View on Model

6

Pin, program knob WCI 134347700 Contact Us For Availability

View on Model

6

Duct, air WCI 134382900 Contact Us For Availability

View on Model

7

Tube, exhaust, rear, w/mtg bracket WCI 131451600 Contact Us For Availability

View on Model

7*

Tube, exhaust, side/bottom, Optional Kit WCI 131456800 Contact Us For Availability

View on Model

8#

Cover, lint housing, w/moist sensor WCI 131845802 Contact Us For Availability

View on Model

9

131633200 Frigidaire Plug Assembly Backorder WCI 131633200 $9.95

View on Model

10#

131775600 Frigidaire Dryer Blower Wheel and H In Stock WCI 131775600 $73.74

View on Model

11

131749800 Frigidaire Spacer Backorder WCI 131749800 $28.07

View on Model

11

Cover, terminal block WCI 5303211428 No Longer Available

View on Model

12

131825900 Frigidaire Dryer Rear Drum Bearing In Stock WCI 131825900 $2.81

View on Model

12

Spring, push button WCI 134884900 Contact Us For Availability

View on Model

13

131724301 Frigidaire Dryer Drum Bearing Brack In Stock WCI 131724301 $8.14

View on Model

13

Light Pipe, start group WCI 134557501 Contact Us For Availability

View on Model

14

131205400 Frigidaire Screw Backorder WCI 131205400 $8.15

View on Model

15

Light Pipe, 5 x 4 WCI 134552800 Contact Us For Availability

View on Model

15#

131553900 Frigidaire Heater Element Assembly In Stock WCI 131553900 $80.54

View on Model

15#

134587700 Frigidaire Washer Control Thermisto In Stock WCI 134587700 $35.32

View on Model

16

Light Pipe, row of 5 WCI 134600000 Contact Us For Availability

View on Model

16

Clip, U-nut WCI 134440100 Contact Us For Availability

View on Model

17

3204254 Frigidaire Baffle Assembly Backorder WCI 3204254 $81.58

View on Model

18

131168200 Frigidaire Dryer Screw In Stock WCI 131168200 $9.04

View on Model

19

134402900 Frigidaire Screw Backorder WCI 134402900 $19.01

View on Model

20

131017900 Frigidaire Screw Backorder WCI 131017900 $9.06

View on Model

20

134440200 Frigidaire Seal Felt Drum In Stock WCI 134440200 $21.78

View on Model

20

Bracket, top panel mtg., rear WCI 134166500 Contact Us For Availability

View on Model

20*

5308027429 Frigidaire Dryer High Temperature In Stock WCI 5308027429 $38.09

View on Model

21

Drum, dryer, stainless steel, service kit WCI 134122552 Contact Us For Availability

View on Model

22

131601000 Frigidaire Idler Spring Assembly In Stock WCI 131601000 $33.06

View on Model

22

Panel, front, white, w/lamp hole WCI 134684310 Contact Us For Availability

View on Model

22#

Wiring Harness, interface board WCI 134602100 Contact Us For Availability

View on Model

23#

131863007 Frigidaire Dryer Idler Pulley Assem In Stock WCI 131863007 $27.04

View on Model

23*#

Wiring Harness, main WCI 134394200 Contact Us For Availability

View on Model

25#

134503600 Frigidaire Dryer Belt In Stock WCI 134503600 $6.44

View on Model

26#

134813601 Frigidaire Dryer Door Switch 3-Wire In Stock WCI 134813601 $12.22

View on Model

27

131450300 Frigidaire Dryer Lint Screen Filter In Stock WCI 131450300 $13.48

View on Model

27

134242400 Frigidaire Washer Clamp Assembly In Stock WCI 134242400 $11.76

View on Model

28#

Motor & Pulley Assy WCI 131560100 No Longer Available

View on Model

29

131382300 Frigidaire Vane Screw Backorder WCI 131382300 $8.58

View on Model

30

Vane, straight, gray WCI 5304405283 Contact Us For Availability

View on Model

32

131777700 Frigidaire Dryer Bearing Drum In Stock WCI 131777700 $58.71

View on Model

32*

5303307893 Frigidaire HI TEMP Rear Bearing Lu In Stock WCI 5303307893 $21.73

View on Model

33

Guide, door WCI 134737200 Contact Us For Availability

View on Model

33#

3204267 Frigidaire Dryer Safety Thermostat In Stock WCI 3204267 $34.85

View on Model

35

131892100 Frigidaire Screw Backorder WCI 131892100 $6.32

View on Model

36#

134120900 Frigidaire Dryer Limiter Thermal In Stock WCI 134120900 $3.43

View on Model

39

131205100 Frigidaire Screw In Stock WCI 131205100 $9.06

View on Model

39

134178901 Frigidaire Screw Backorder WCI 134178901 $9.50

View on Model

42

134154100 Frigidaire Screw 10-32 x 0.375 Co In Stock WCI 134154100 $8.62

View on Model

43

Bracket, door glass WCI 134559300 Contact Us For Availability

View on Model

44

Leveling Leg, screw WCI 134344900 No Longer Available

View on Model

46

134580300 Frigidaire Gasket Backorder WCI 134580300 $41.22

View on Model

46

Bracket, motor mtg WCI 134203400 Contact Us For Availability

View on Model

47

Seal, exhaust tube WCI 131633300 Contact Us For Availability

View on Model

48

Panel, outer door, chrome WCI 134854300 Contact Us For Availability

View on Model

48*

Pad, outer door WCI 134554500 Contact Us For Availability

View on Model

51

131472100 Frigidaire Dryer Insulator Heater C Backorder WCI 131472100 $37.19

View on Model

52

131202300 Frigidaire Screw Backorder WCI 131202300 $8.60

View on Model

52

131243700 Frigidaire Screw In Stock WCI 131243700 $2.16

View on Model

52#

134101400 Frigidaire Dryer Kit Terminal Block Backorder WCI 134101400 $35.78

View on Model

52A#

3202786 Frigidaire Terminal Block Backorder WCI 3202786 $40.78

View on Model

55

Lens, digital display WCI 134553200 Contact Us For Availability

View on Model

56

Light Pipe, digital display WCI 134557300 Contact Us For Availability

View on Model

57#

Display, digital WCI 134503300 Contact Us For Availability

View on Model

60

134430300 Frigidaire Screw Backorder WCI 134430300 $9.50

View on Model
