Kenmore 970-C49992-00 WASHER Parts List

*

134591500 Frigidaire Transport Plug Kit Backorder WCI 134591500 $29.90

View on Model

2

131168200 Frigidaire Dryer Screw In Stock WCI 131168200 $9.04

View on Model

2

Bracket, top front WCI 134364800 Contact Us For Availability

View on Model

3

Bolt, carriage, 1/4-20 x 2.60 WCI 131793303 Contact Us For Availability

View on Model

4

Light Pipe, program WCI 134553100 Contact Us For Availability

View on Model

4*#

Wiring Harness, motor control WCI 134547600 Contact Us For Availability

View on Model

5#

134556500NH Frigidaire UIB In Stock WCI 134556500NH $20.43

View on Model

6

Pin, program knob WCI 134347700 Contact Us For Availability

View on Model

6

Counterweight, front, one piece WCI 134362200 Contact Us For Availability

View on Model

7

134365300 Frigidaire Spring In Stock WCI 134365300 $39.00

View on Model

7

Push Button, round, #2 WCI 134891500 Contact Us For Availability

View on Model

8*#

Wiring Harness, door switch WCI 134606800 Contact Us For Availability

View on Model

11

131276900 Frigidaire Washer Spring Assembly Backorder WCI 131276900 $13.59

View on Model

11

134366400 Frigidaire Panel In Stock WCI 134366400 $176.84

View on Model

12

134550700 Frigidaire Inner Door Panel In Stock WCI 134550700 $81.97

View on Model

12

Spring, push button WCI 134884900 Contact Us For Availability

View on Model

13

131302901 Frigidaire Screw In Stock WCI 131302901 $3.16

View on Model

13

134362000 Frigidaire Front Outer Tub Backorder WCI 134362000 $296.13

View on Model

14

131763302 Frigidaire Washer Door Strike In Stock WCI 131763302 $18.80

View on Model

14#

Spring Assy, suspension WCI 137099300 Contact Us For Availability

View on Model

15

131303900 Frigidaire Screw In Stock WCI 131303900 $9.95

View on Model

15

Hinge, door, with bushings WCI 134550800 Contact Us For Availability

View on Model

15

Light Pipe, 5 x 4 WCI 134552800 Contact Us For Availability

View on Model

16

Drum Assy, spin basket WCI 137105900 Contact Us For Availability

View on Model

16

Light Pipe, row of 5 WCI 134600000 Contact Us For Availability

View on Model

17

134361602 Frigidaire Vane Assembly In Stock WCI 134361602 $74.84

View on Model

17

134638700 Frigidaire Clip Backorder WCI 134638700 $6.34

View on Model

17#

134762000 Frigidaire Pressure Switch Backorder WCI 134762000 $70.36

View on Model

18

131302800 Frigidaire Drum Vane Screw In Stock WCI 131302800 $8.65

View on Model

19

134402900 Frigidaire Screw Backorder WCI 134402900 $19.01

View on Model

20

131303500 Frigidaire Screw Backorder WCI 131303500 $7.67

View on Model

20

Bracket, LS panel, reinforcement WCI 134434901 Contact Us For Availability

View on Model

21

134407900 Frigidaire Dampener Assembly Backorder WCI 134407900 $10.85

View on Model

21

5304520351 Frigidaire Washer O-Ring In Stock WCI 5304520351 $60.96

View on Model

22

134507120 Frigidaire Shell In Stock WCI 134507120 $411.18

View on Model

22

Bracket-spring, retainer WCI 134648500 Contact Us For Availability

View on Model

22#

Wiring Harness, interface board WCI 134602100 Contact Us For Availability

View on Model

23#

Wiring Harness, controls WCI 134436600 Contact Us For Availability

View on Model

23L

Panel, left side, white WCI 134775310 Contact Us For Availability

View on Model

23R

Panel, right side, white WCI 134775210 Contact Us For Availability

View on Model

25#

Belt, drive, 6-rib WCI 134051003 Contact Us For Availability

View on Model

27

134550900 Frigidaire Hinge Bracket In Stock WCI 134550900 $37.63

View on Model

28

131205300 Frigidaire Screw In Stock WCI 131205300 $7.56

View on Model

28

Panel, service access, rear WCI 134364300 Contact Us For Availability

View on Model

29

134408400 Frigidaire Screw In Stock WCI 134408400 $11.32

View on Model

29

Panel, front, white WCI 137021811 Contact Us For Availability

View on Model

31

131268300 Frigidaire Leveling Pin In Stock WCI 131268300 $7.67

View on Model

31#

5304505407 Frigidaire Cord Backorder WCI 5304505407 $54.67

View on Model

32

134363200 Frigidaire Bracket Backorder WCI 134363200 $12.20

View on Model

32

5303209428 Frigidaire Serv.Cord Bushing Backorder WCI 5303209428 $10.87

View on Model

32

Hose, disp-to-bellows WCI 134586500 Contact Us For Availability

View on Model

33

134160900 Frigidaire Screw Backorder WCI 134160900 $7.69

View on Model

36

134548800 Frigidaire Washer Leg Levelling In Stock WCI 134548800 $9.04

View on Model

36#

134371220 Frigidaire Dispenser Fill Valve In Stock WCI 134371220 $29.72

View on Model

36*

134178901 Frigidaire Screw Backorder WCI 134178901 $9.50

View on Model

37

134372300 Frigidaire Hose Assembly Backorder WCI 134372300 $41.47

View on Model

38

134372400 Frigidaire Clamp Backorder WCI 134372400 $40.78

View on Model

39*

134371300 Frigidaire Washer Gasket In Stock WCI 134371300 $22.43

View on Model

40

Tube, disp-to-overflo WCI 134372100 Contact Us For Availability

View on Model

41

134372200 Frigidaire O-Ring Backorder WCI 134372200 $8.60

View on Model

41

134455900 Frigidaire Washer Tub to Pump Hose In Stock WCI 134455900 $43.93

View on Model

42

134737300 Frigidaire Clamp Assembly Backorder WCI 134737300 $12.85

View on Model

44

134370200 Frigidaire Washer Dispenser Drawer Backorder WCI 134370200 $26.27

View on Model

45

134370000 Frigidaire Washer Detergent Dispens In Stock WCI 134370000 $40.47

View on Model

45

Clamp, hose WCI 131306202 Contact Us For Availability

View on Model

48

134550500 Frigidaire White Outer Door Panel Backorder WCI 134550500 $125.04

View on Model

48

5304536802 Frigidaire Hose Clamp Backorder WCI 5304536802 $2.42

View on Model

48*

Pad, outer door WCI 134554500 Contact Us For Availability

View on Model

49

134527100 Frigidaire Washer Clamp Assembly In Stock WCI 134527100 $25.37

View on Model

50

134409320 Frigidaire Dispenser Assembly In Stock WCI 134409320 $225.12

View on Model

50

Bracket, tub suspension WCI 134645600 Contact Us For Availability

View on Model

51

134655800 Frigidaire Protector Backorder WCI 134655800 $2.81

View on Model

52

131202300 Frigidaire Screw Backorder WCI 131202300 $8.60

View on Model

52

131931202 Frigidaire Dampener Backorder WCI 131931202 $10.85

View on Model

53

134551300 Frigidaire Ring Backorder WCI 134551300 $43.01

View on Model

55

Lens, digital display WCI 134553200 Contact Us For Availability

View on Model

55#

134889600 Frigidaire Drain Hose Backorder WCI 134889600 $38.46

View on Model

56

Light Pipe, digital display WCI 134557300 Contact Us For Availability

View on Model

57

134641100 Frigidaire Bracket Assembly Backorder WCI 134641100 $12.68

View on Model

57#

Display, digital WCI 134503300 Contact Us For Availability

View on Model

58

Hanger, drain hose WCI 134440700 Contact Us For Availability

View on Model

60

134372000 Frigidaire Grommet In Stock WCI 134372000 $19.49

View on Model

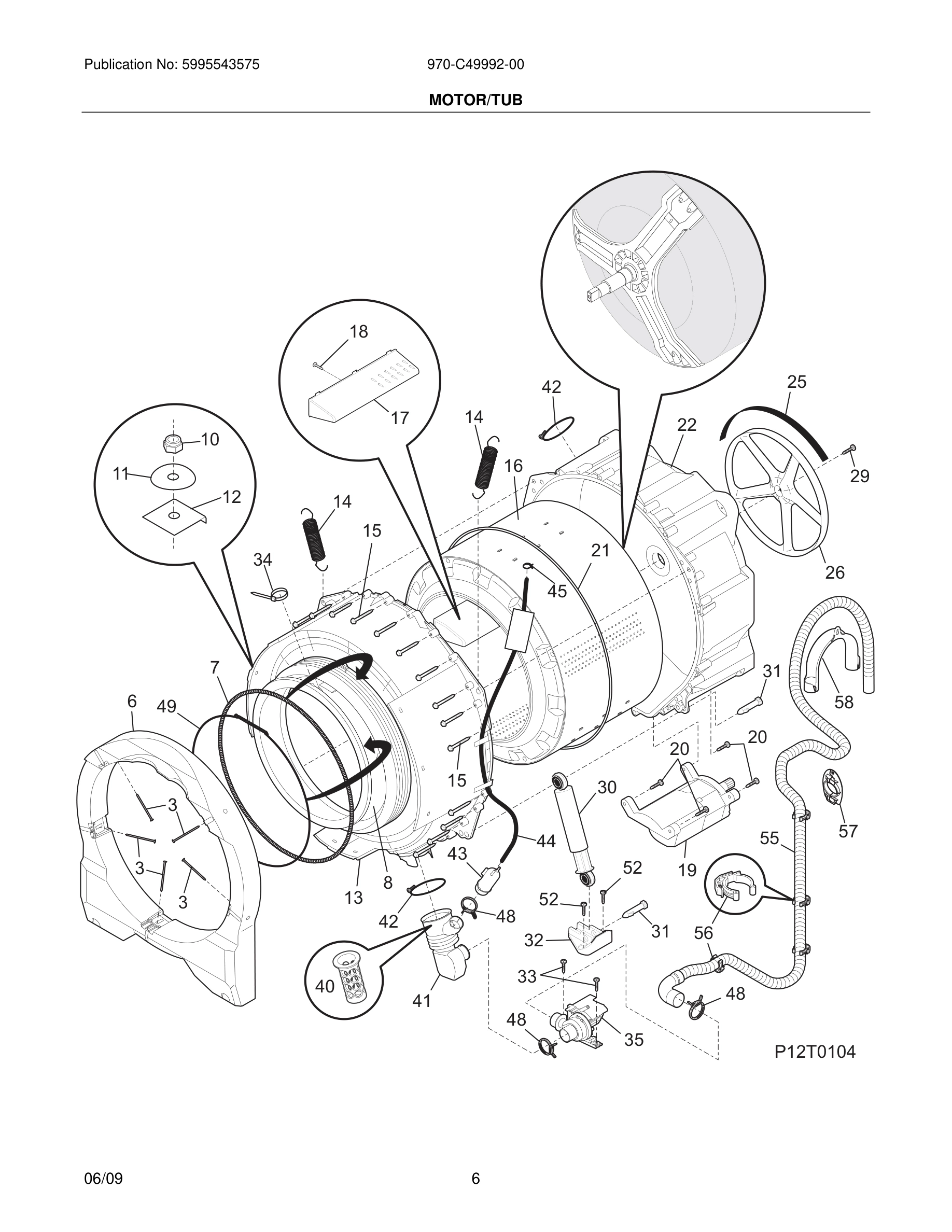

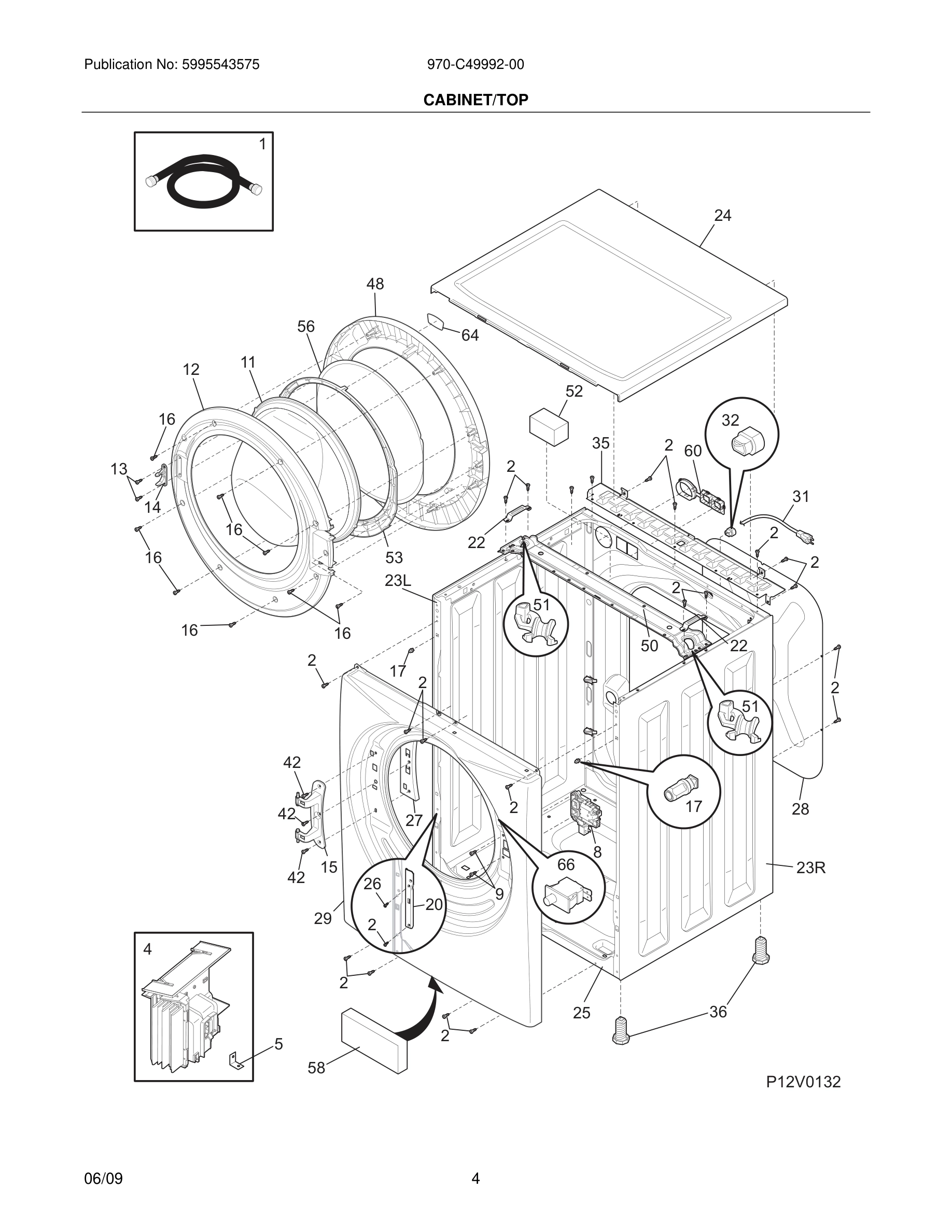

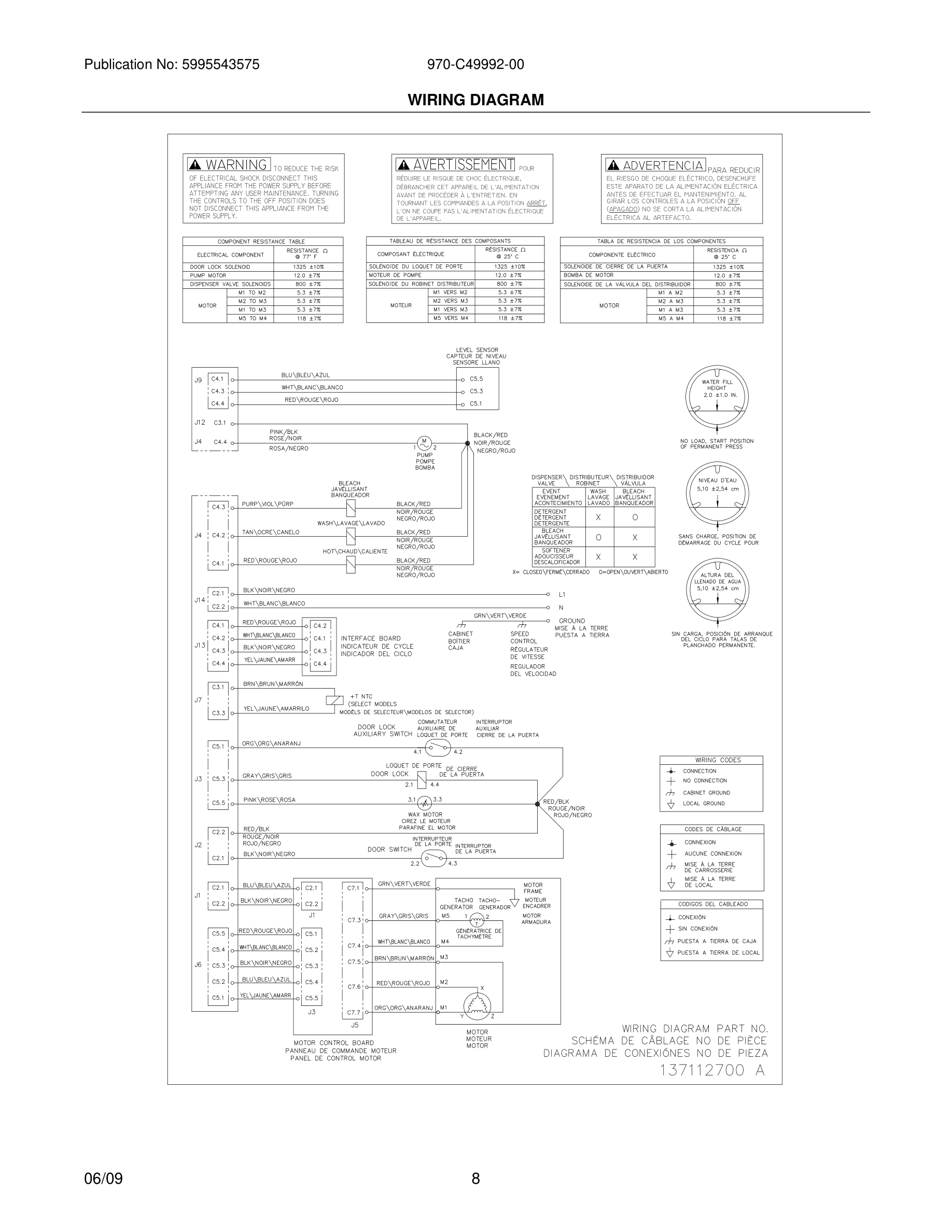

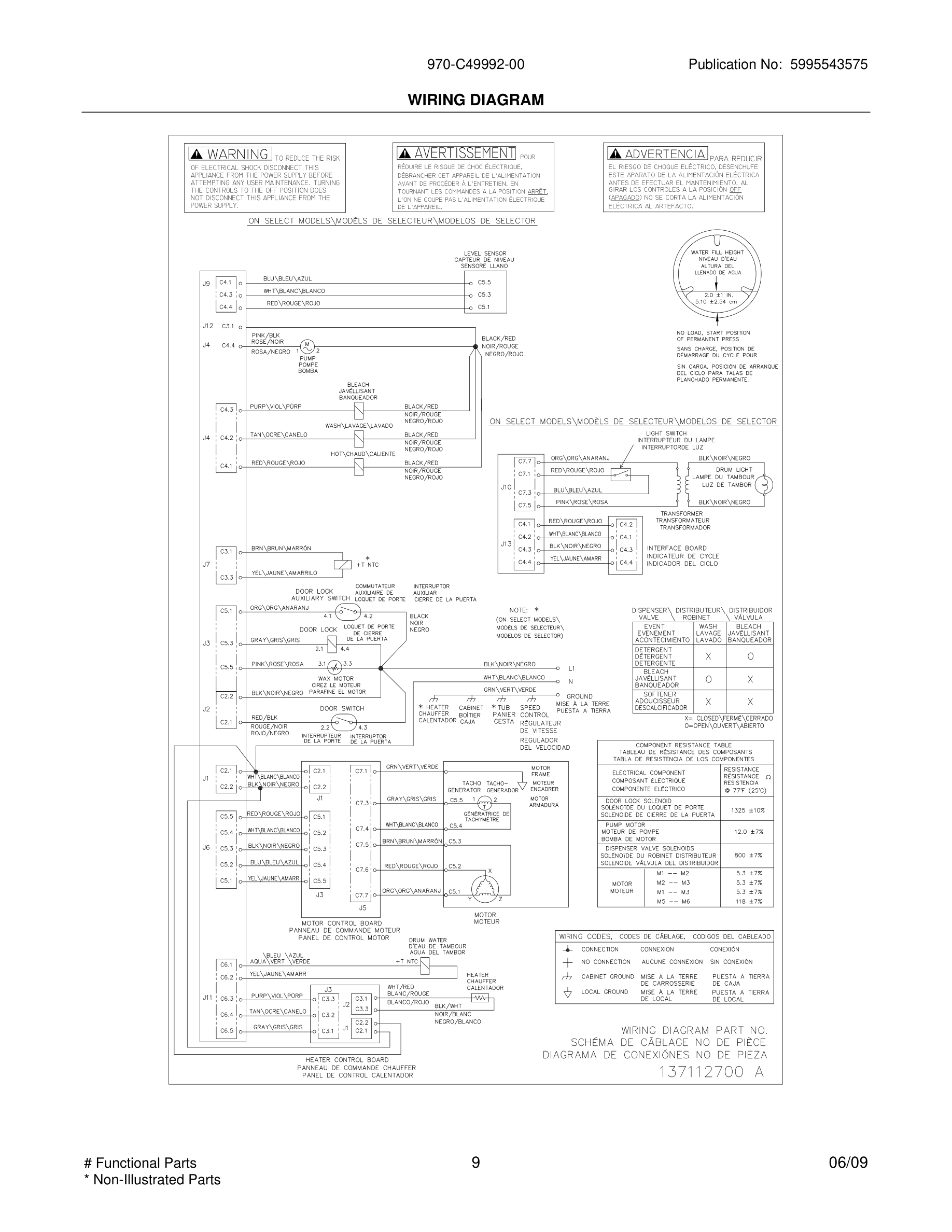

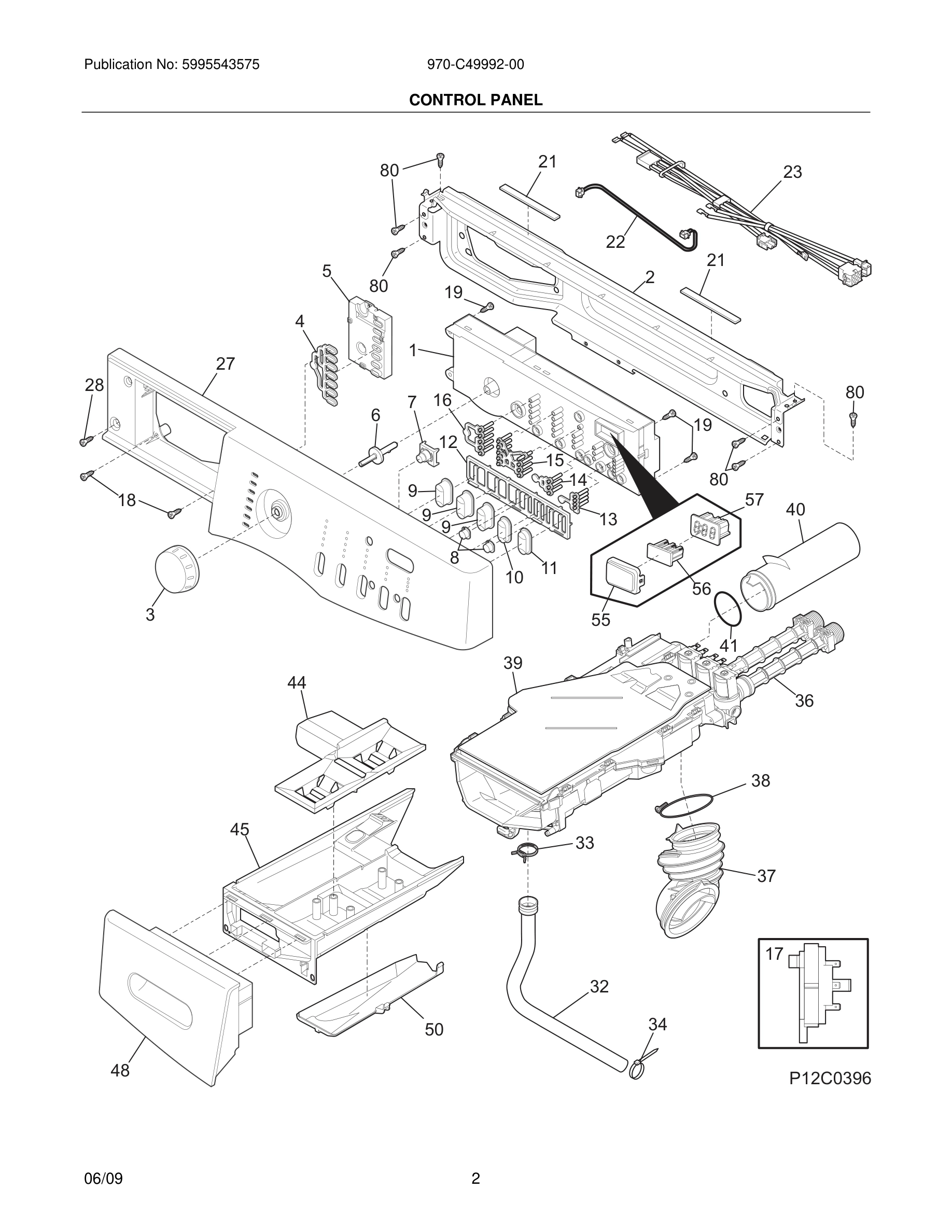

Model Kenmore 970-C49992-00 WASHER – Common Parts & Diagrams

Common parts from model Kenmore 970-C49992-00 WASHER
