Model Kenmore 970-C48102-30 WASHER – Common Parts & Diagrams

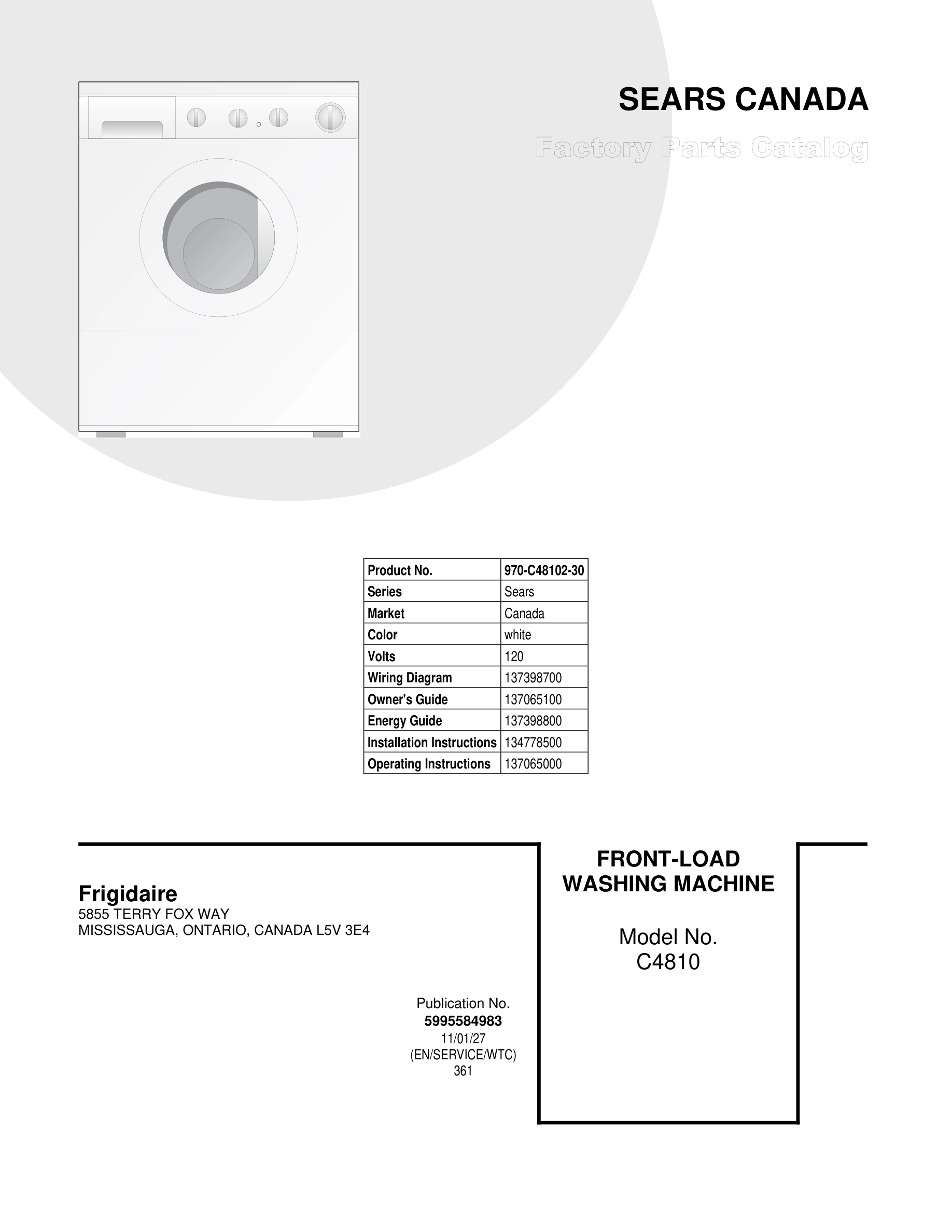

01 - COVER

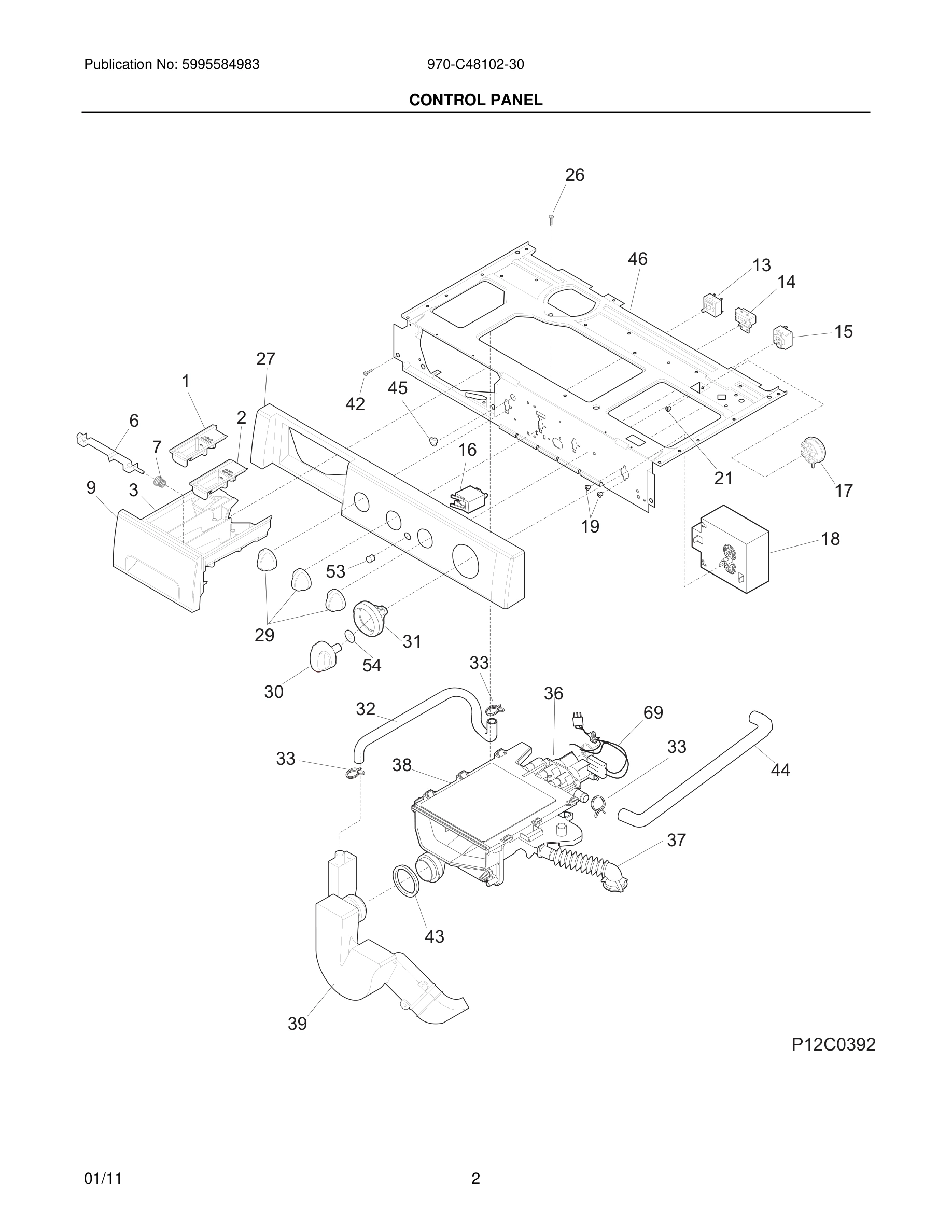

03 - CONTROL PANEL
05 - CABINET/TOP
07 - MOTOR/TUB
08 - WIRING DIAGRAM
09 - WIRING DIAGRAM
Common parts from model Kenmore 970-C48102-30 WASHER
*
Shipping Brace Kit WCI 5303937142 No Longer Available
1
Cover, bleach WCI 131272100 Contact Us For Availability
2
Cover, softener WCI 131272000 Contact Us For Availability
3
Drawer, dispenser WCI 131271910 Contact Us For Availability
3
Bolt, carriage, 1/4-20 x 4.00 WCI 131793302 Contact Us For Availability
4#
Controller Assy, speed, w/base & shield WCI 134149220 Contact Us For Availability
6
Latch, disp drawer hdl WCI 131374500 Contact Us For Availability
6
Counterweight, one piece WCI 131975300 Contact Us For Availability
7
Spring, boot retainer WCI 131277300 Contact Us For Availability
7
Spring WCI 131427500 Contact Us For Availability
9
Handle, dispenser, white, w/trim WCI 131691250 Contact Us For Availability
10
Frame, outer door, white WCI 131278700 Contact Us For Availability
11
Panel, door glass WCI 131278800 Contact Us For Availability
13
Screw, flat head, 10-16 x 0.600, quadrex WCI 134227100 Contact Us For Availability
13#
Switch, water temp, 4 position WCI 134399000 Contact Us For Availability
14#
Buzzer, adjustable WCI 134126700 Contact Us For Availability
15#
Switch, temp selector, 2 posn rotary WCI 134892900 Contact Us For Availability
16#
Lamp, status light WCI 131724700 Contact Us For Availability
17
Pin, panel locator WCI 131346400 Contact Us For Availability
17#
Switch, pressure, single level WCI 134818201 Contact Us For Availability
18
Panel, service, white, front WCI 131279300 Contact Us For Availability
19#
Motor WCI 134869400 Contact Us For Availability
20
Bracket, top panel mtg., front WCI 131460900 Contact Us For Availability
21
O-ring, tub WCI 134146100 No Longer Available
22
Retainer, spring steel WCI 131279500 No Longer Available
23
Counterweight, drum rear WCI 134125900 Contact Us For Availability
24
Panel, white, top WCI 134086842 Contact Us For Availability
25
Bracket, top panel mtg. WCI 131668200 Contact Us For Availability
26#
Pulley, drum drive, large, rear WCI 131883400 Contact Us For Availability
27
Washer, 0.41 x 1.50, 0.12 thick WCI 131304400 Contact Us For Availability
28
Washer, lock, 3/8 WCI 131304500 Contact Us For Availability
29
Screw, pulley mtg., m10 x 0.92, metric WCI 131303700 Contact Us For Availability
31
Pointer, bezel, white/gray, timer knob WCI 131853800 Contact Us For Availability
32
Bracket, shock mtg. WCI 131268100 Contact Us For Availability
32
Hose, siphon/valve WCI 137207300 Contact Us For Availability
38
Dispenser Assy WCI 131803710 Contact Us For Availability
39
Siphon WCI 131863300 Contact Us For Availability
43
Gasket, seal WCI 131749200 Contact Us For Availability
43
Chamber, air WCI 131277500 Contact Us For Availability
44
Hose, dispenser WCI 137207200 Contact Us For Availability
46
Panel, control mtg., wing bend WCI 134191412 Contact Us For Availability
53
Lens, status light, clear WCI 131724800 Contact Us For Availability
54
Spacer, washer, timer shaft WCI 5308015493 Contact Us For Availability
× ![]()
