Model Electrolux 970-339631 30" Free-Standing Range – Common Parts & Diagrams
COVER
BACKGUARD

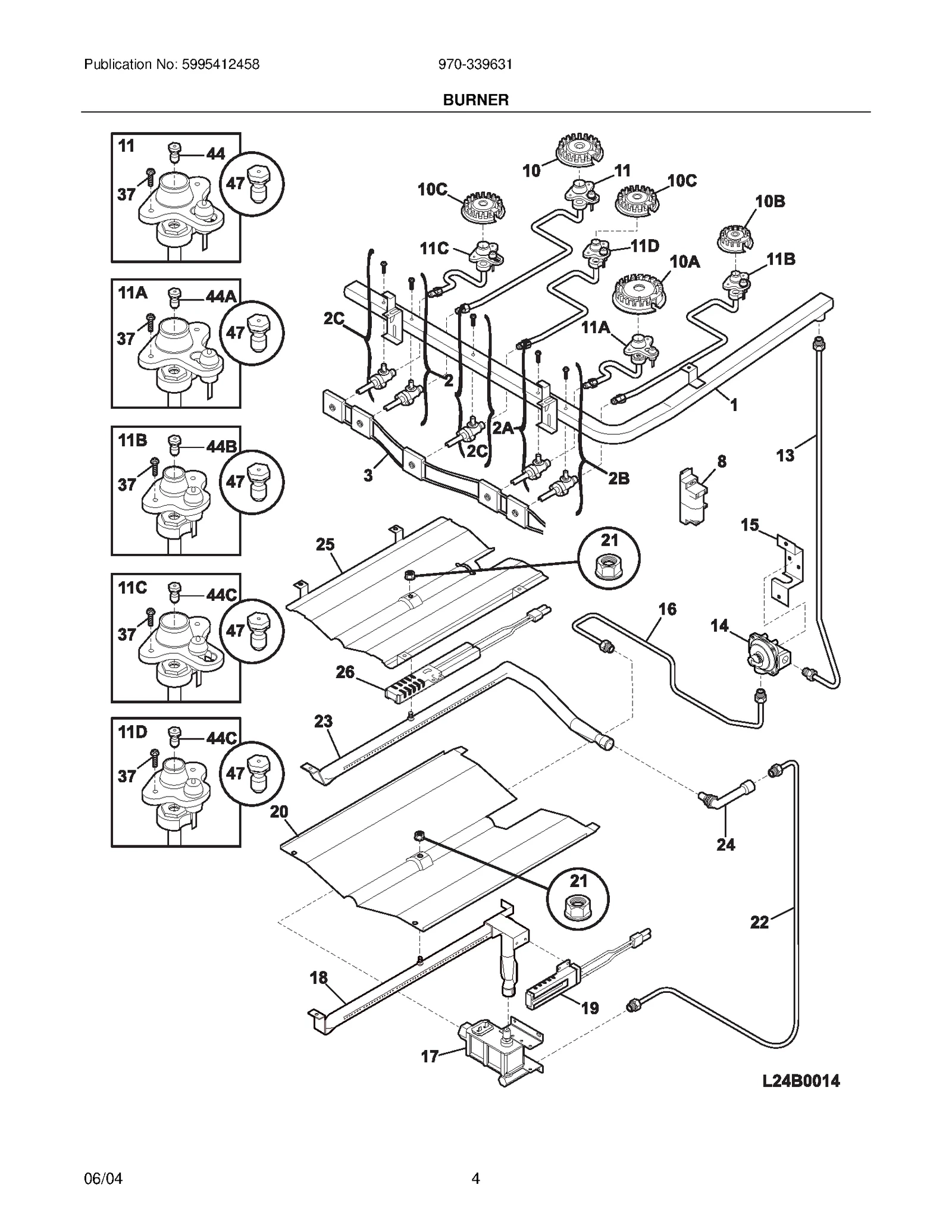

BURNER

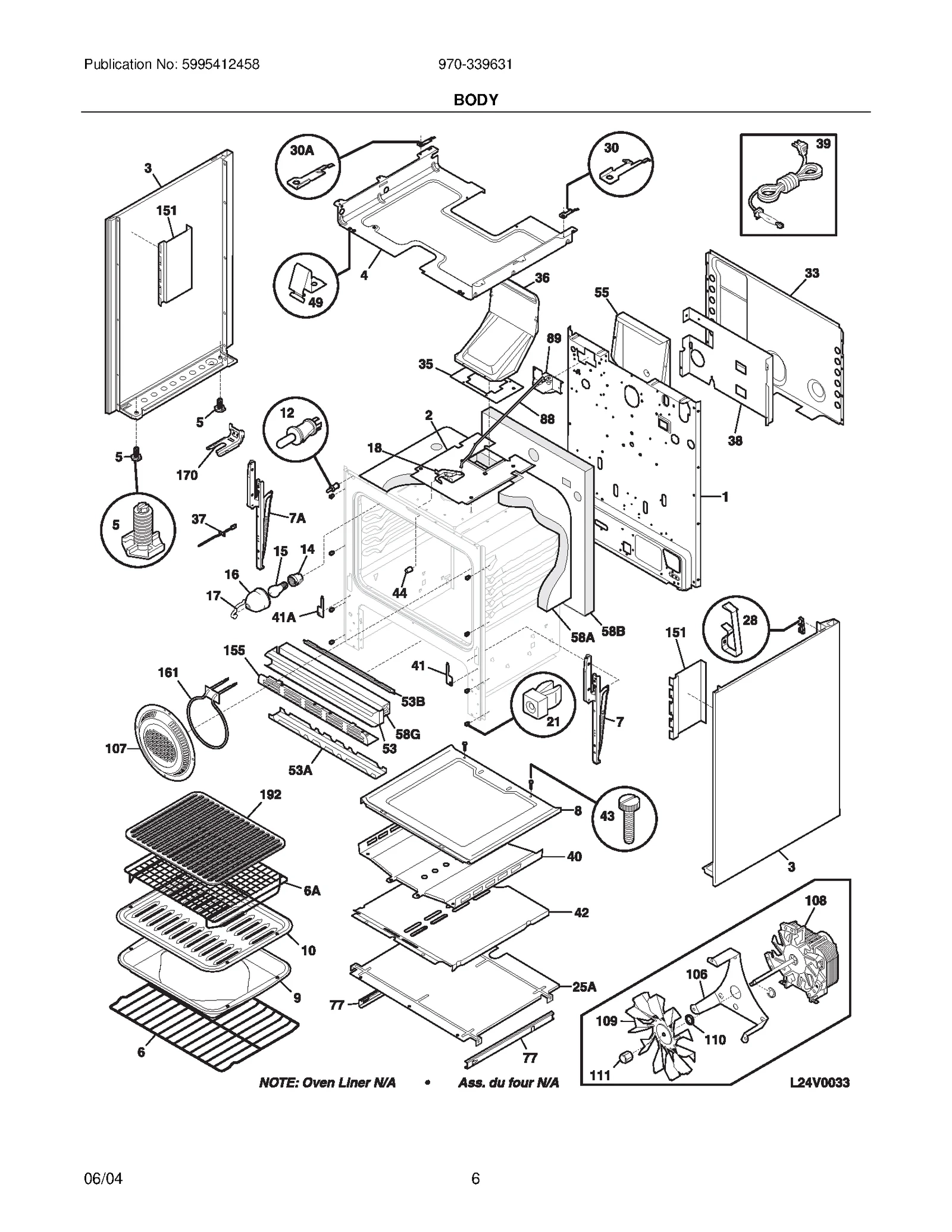

BODY
BODY

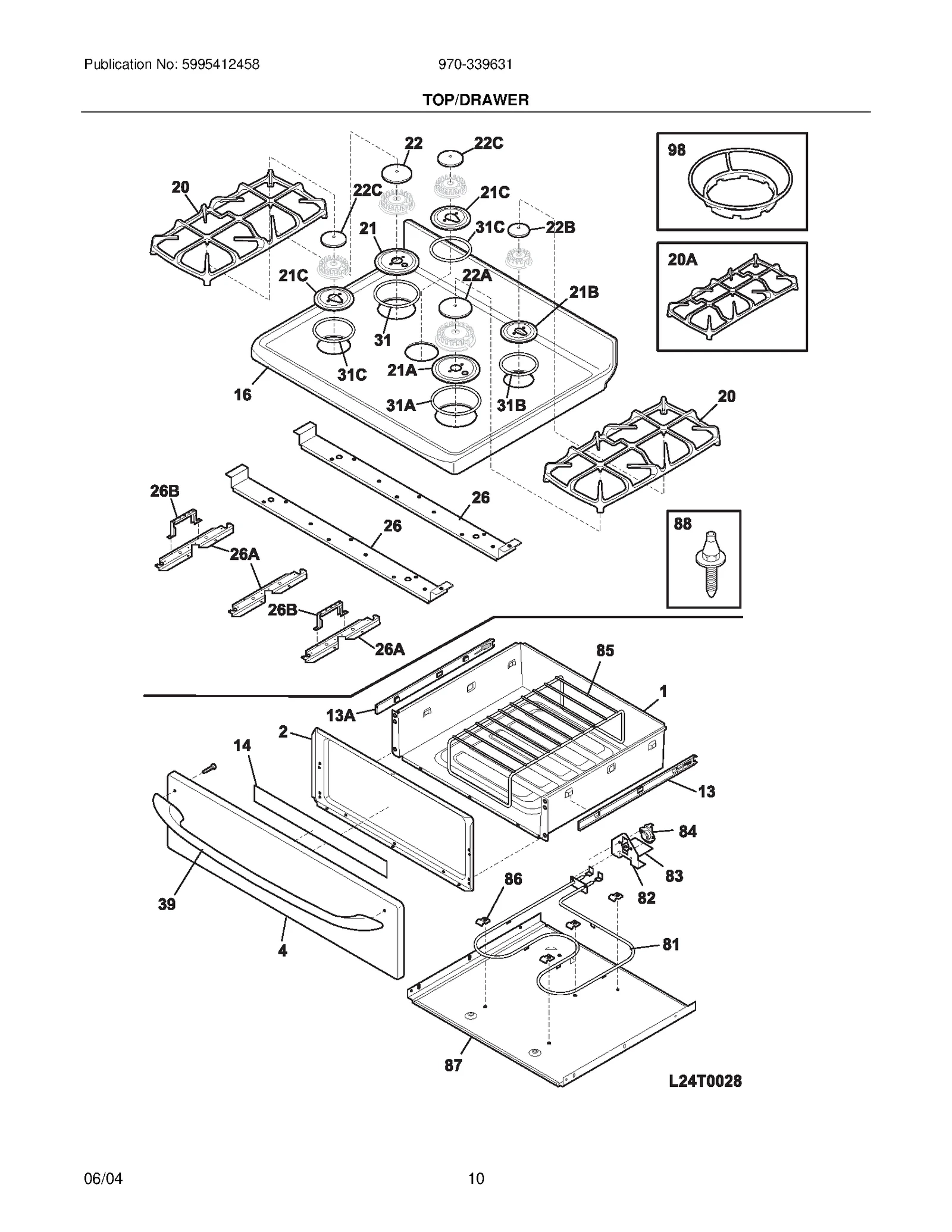

TOP/DRAWER

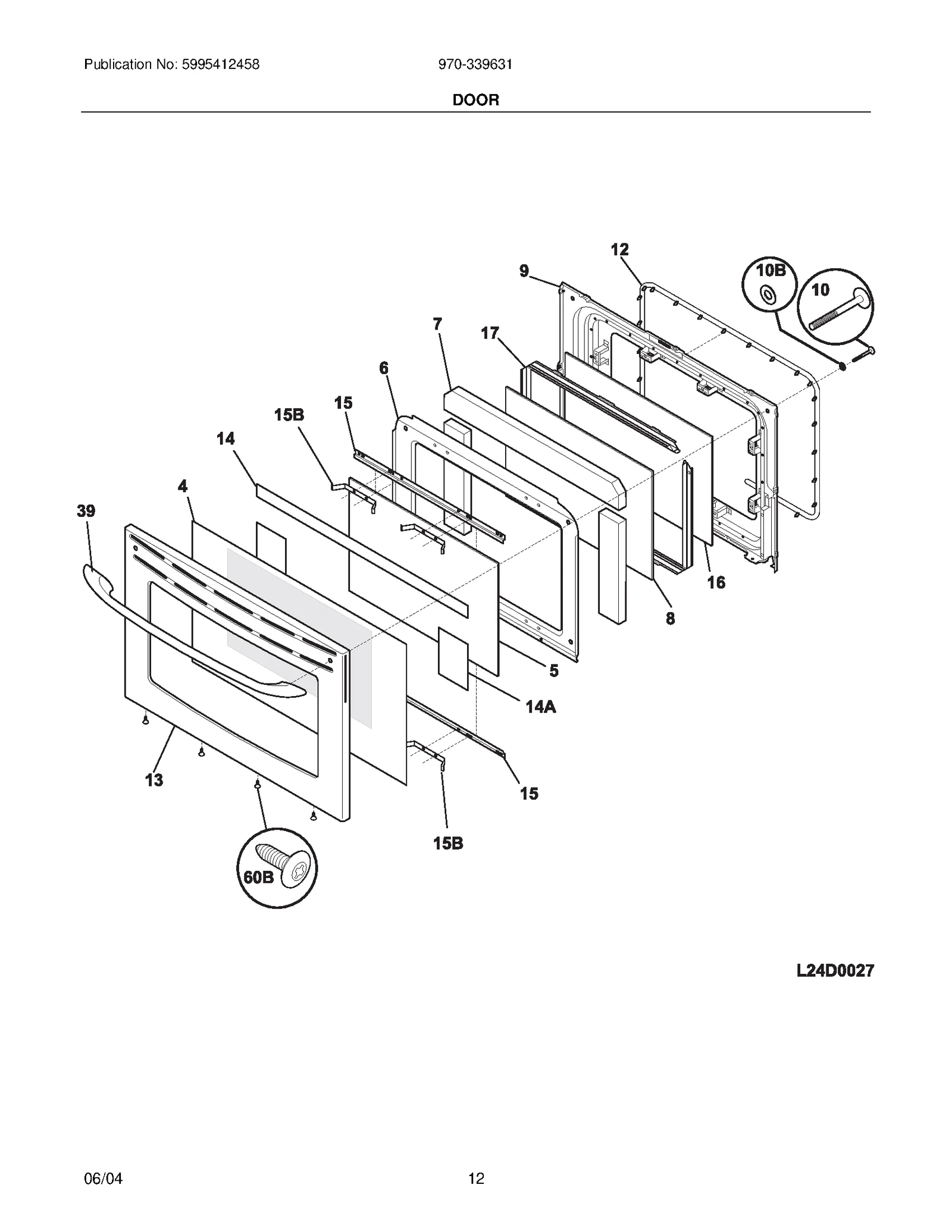

DOOR

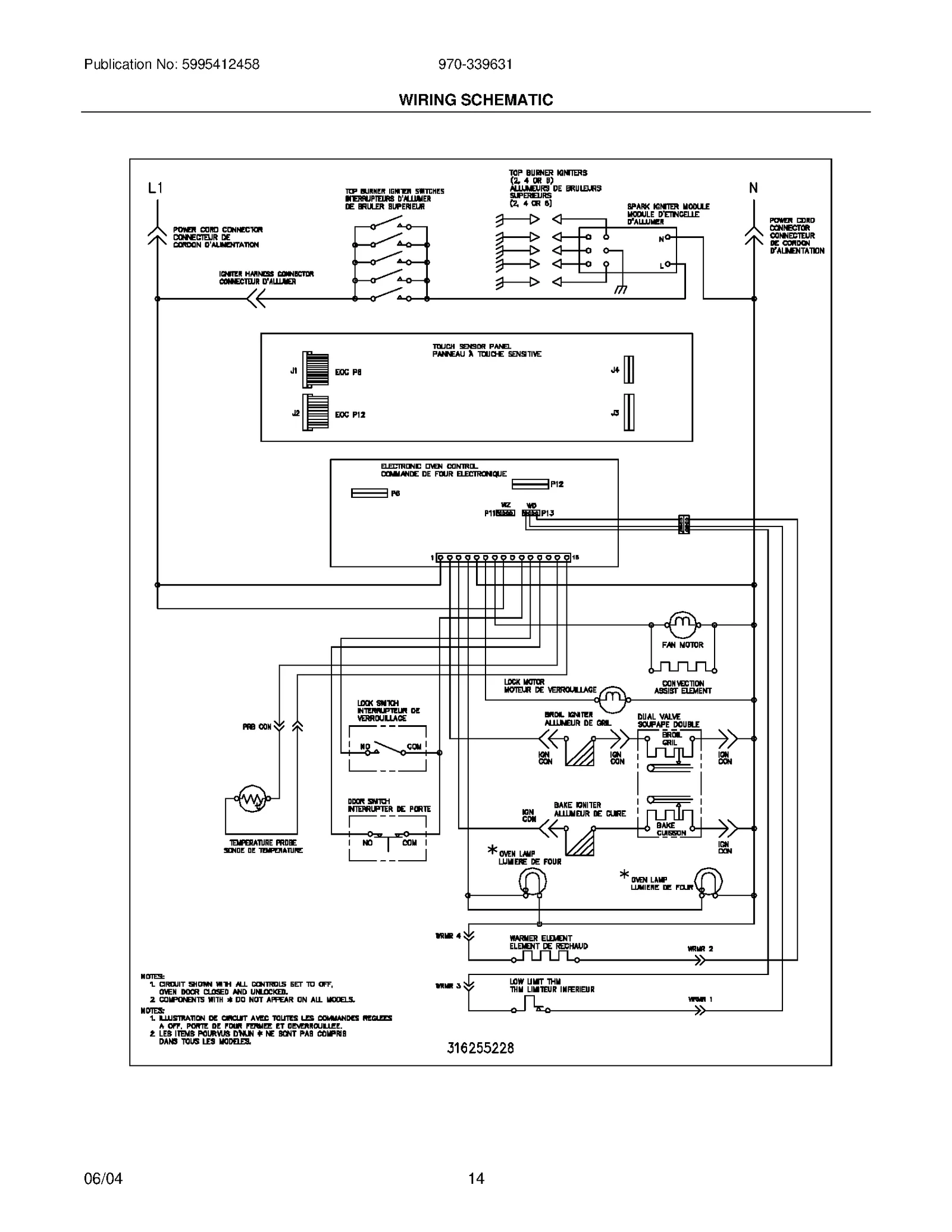

WIRING SCHEMATIC

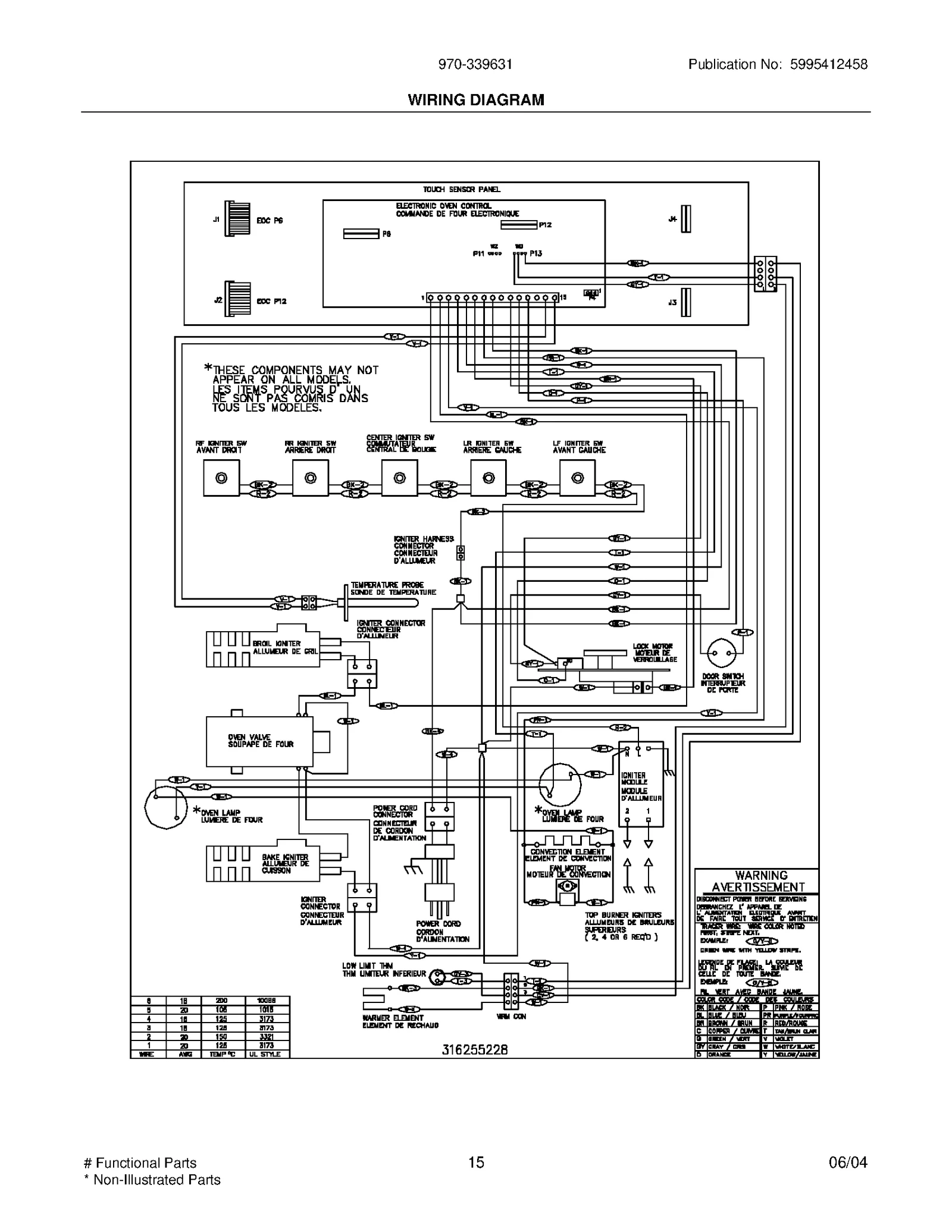

WIRING DIAGRAM
Common parts from model Electrolux 970-339631 30" Free-Standing Range
*
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
*
Wiring Harness, ignitor module WCI 316253702 Contact Us For Availability
*
Screw, wafer hd sq dr, 10-32 x 0.312 WCI 5303280311 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*
Label, anti-tip WCI 316221002 Contact Us For Availability
2A
Valve, 17K burner, w/mtg screw WCI 5303935233 Contact Us For Availability
2B
Valve, 5K burner, w/mtg screw WCI 5303935235 Contact Us For Availability
2C
Valve, 9.5K burner, w/mtg screw WCI 5303935234 Contact Us For Availability
3
Wiring Harness, w/igntr switch WCI 316219006 Contact Us For Availability
4
Glass, oven door, black, outer WCI 316268900 Contact Us For Availability
5
Screw, leveling, plastic, with stop WCI 316129200 Contact Us For Availability
5
Glass, oven door, air wash WCI 316237000 Contact Us For Availability
6
Shield, wool, oven door WCI 316222707 Contact Us For Availability
7
Insulation, oven door WCI 316236700 Contact Us For Availability
7A
Hinge, oven door, LH WCI 316216501 Contact Us For Availability
9
Pan, broiler WCI 316081900 Contact Us For Availability
9
Liner, oven door WCI 316230617 Contact Us For Availability
10
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
10
Insert, broiler pan WCI 316082000 Contact Us For Availability
10A
Burner, sealed, 17K WCI 316223300 Contact Us For Availability
11C
Ignitor/orifice assy., top burner, front, 9.5 WCI 316230300 Contact Us For Availability
12
Switch, oven light/door WCI 316209903 Contact Us For Availability
13
Tube, 3/8, aluminum, rgltr to manf, with fitt WCI 316207000 Contact Us For Availability
13
Glide, drawer, RH inner WCI 316231700 Contact Us For Availability
13
Panel, oven door, stainless, outer WCI 316268100 Contact Us For Availability
13A
Glide, drawer, LH inner WCI 316231701 Contact Us For Availability
15
Bracket, glass support, (2) WCI 316237201 Contact Us For Availability
15B
Bracket, glass support WCI 316085501 Contact Us For Availability
17
Spacer, door glass, (2) WCI 316117701 Contact Us For Availability
18
Burner, oven WCI 316269000 Contact Us For Availability
18
Latch, oven door WCI 316213900 Contact Us For Availability
20
Clock/Timer, electronic, ES550 WCI 316272700 Contact Us For Availability
21
Spacer, bodyside WCI 3014099 Contact Us For Availability
21
Skirt, 12K burner, black WCI 316241701 Contact Us For Availability
21B
Skirt, 5K burner, black WCI 316241901 Contact Us For Availability
21C
Skirt, 9.5K burner, black WCI 316241801 Contact Us For Availability
22
Tube, valve to mixer WCI 316065002 Contact Us For Availability
22
Cap, 12K burner, black WCI 316242800 Contact Us For Availability
22B
Cap, 5K burner, black WCI 316206500 Contact Us For Availability
22C
Cap, 9.5K burner, black WCI 316242900 Contact Us For Availability
23
Burner, broiler WCI 08067935 Contact Us For Availability
30
Bracket, hinge, RH, main top WCI 316217700 Contact Us For Availability
36
Knob, top valve, grey WCI 316121820 Contact Us For Availability
39
Handle, door, graphite WCI 316268303 Contact Us For Availability
41
Cover, hinge cutout, RH WCI 316233400 Contact Us For Availability
44
Spacer, oven door WCI 316246500 Contact Us For Availability
44A
Orifice, top burner, 17K WCI 316237909 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
84
Thermo disc, warmer drawer WCI 316093501 Contact Us For Availability
98
Grate, WOK WCI 316241400 Contact Us For Availability
108
Motor, fan WCI 316234601 Contact Us For Availability
× ![]()
