Model Whirlpool 9622XUB ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - BODY

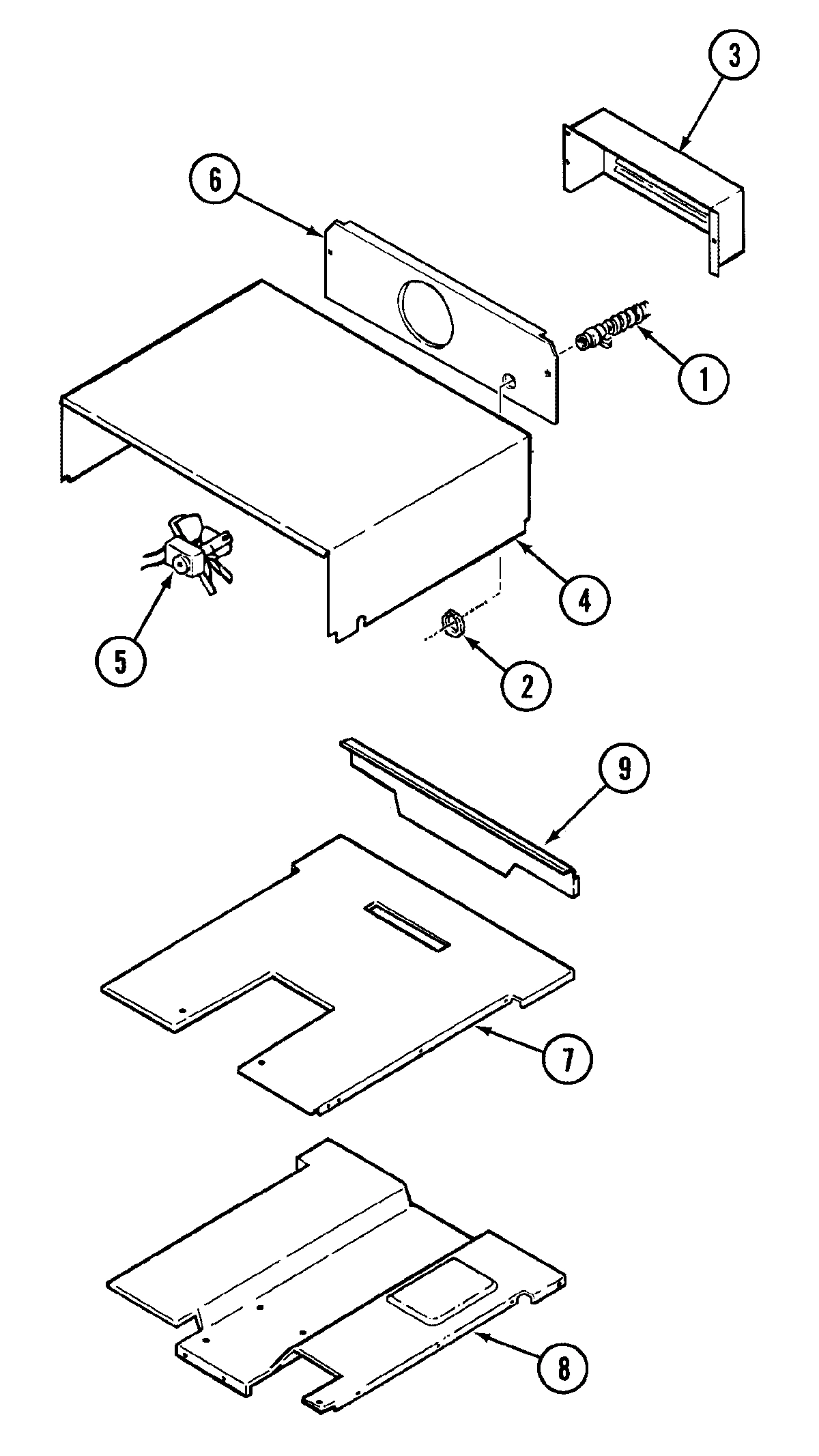

04 - INTERNAL CONTROLS
02 - CONTROL PANEL

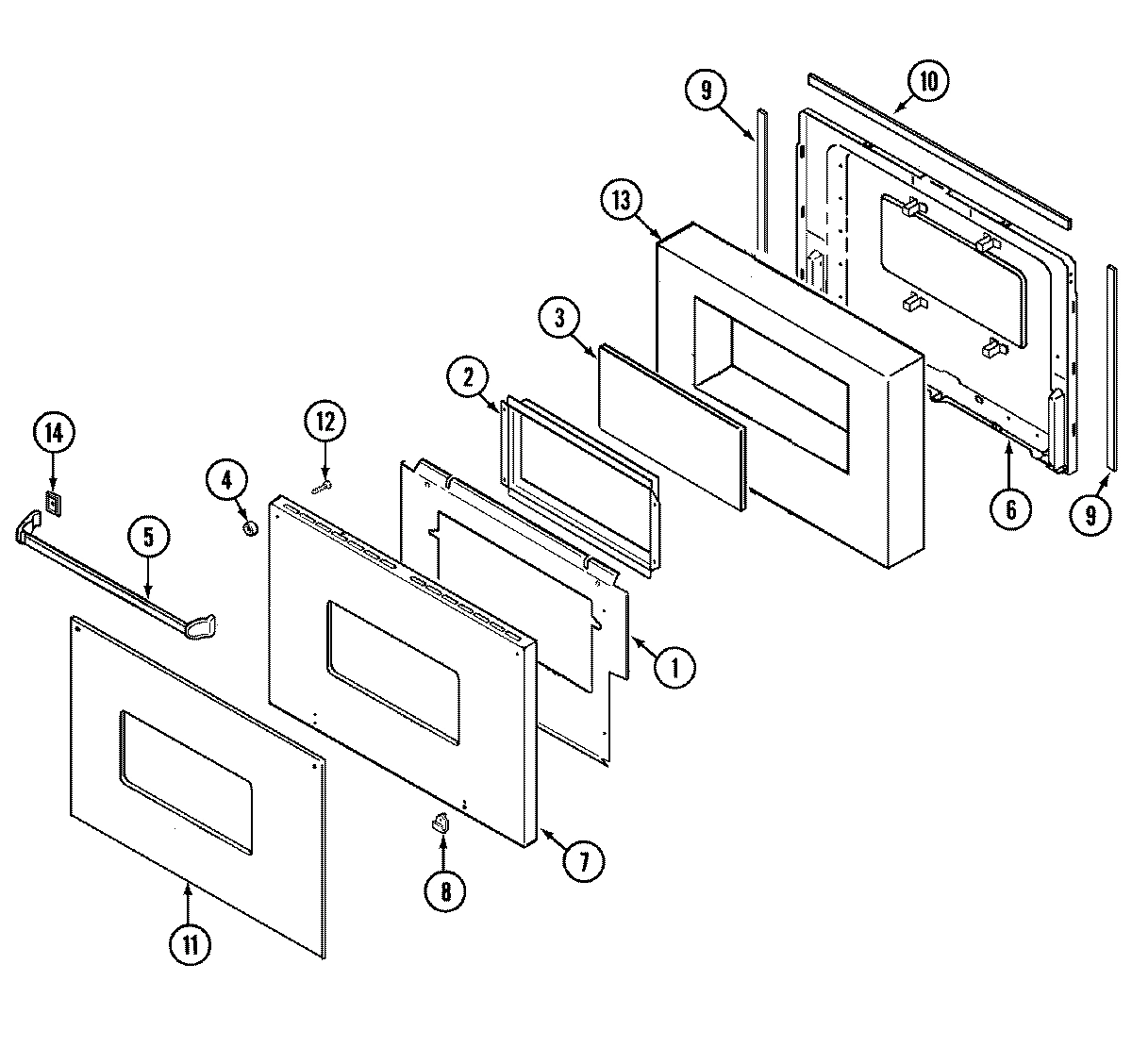

03 - DOOR (UPPER & LOWER)

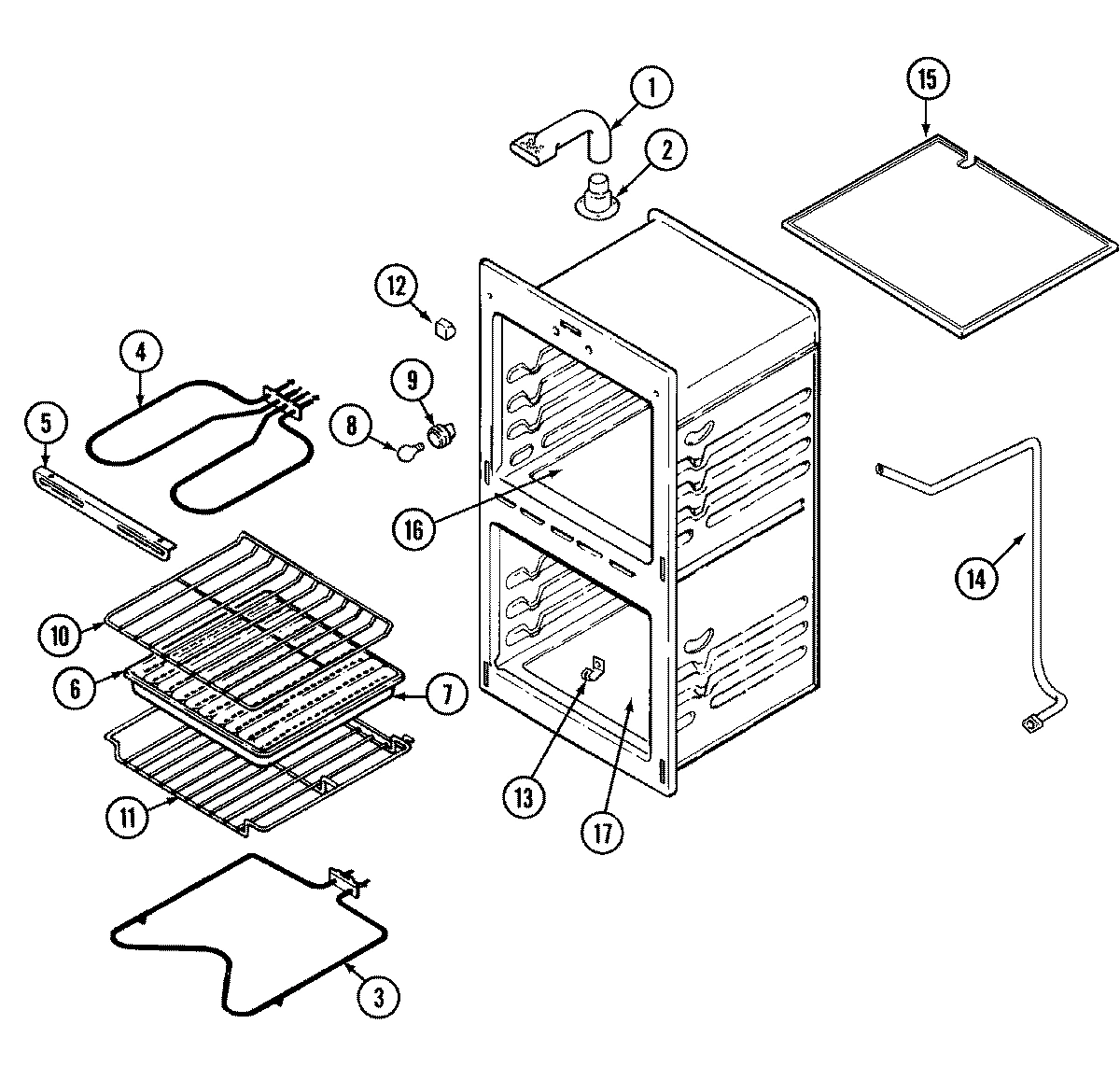

05 - OVEN
06 - WIRING INFORMATION
Common parts from model Whirlpool 9622XUB ELECTRIC WALL OVEN
1
BACK, MAIN WPL 4002F14351 Contact Us For Availability
1
TUBING, 1/2 X 48`` FLEXIBLE WPL 3414F03744 Contact Us For Availability
1
WIRES, TUBING WPL 74001547 Contact Us For Availability
1
GROMMET WPL 8008P01760 Contact Us For Availability
1
SCREW WPL 7101P07560 Contact Us For Availability
1
CLOCK (BLK) WPL 7602P11860 Contact Us For Availability
1
BAFFLE, UPPER DOOR WPL 3601F10251 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F10351 Contact Us For Availability
1
TUBE, OVEN VENT WPL 8026P02260 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00561 Contact Us For Availability
2
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
2
PANEL, CONTROL (BLK) WPL 74001893 Contact Us For Availability
2
FELT, DISC WPL 8010P05060 Contact Us For Availability
2
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
2
VENT, OVEN WPL 74001860 Contact Us For Availability
3
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
3
BASE, OVEN WPL 74001845 Contact Us For Availability
3
COVER, FAN WPL 4005F26251 Contact Us For Availability
3
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
3
GLASS, INNER WPL 7902P38660 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P07560 Contact Us For Availability
4
EXTRUSION, BOTTOM (BLK) WPL 74001846 Contact Us For Availability
4
COVER, WIRE WPL 4005F15051 Contact Us For Availability
4
KNOB (CHR) WPL 7711P29160 Contact Us For Availability
4
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
4
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
5
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
5
TRIM, SIDE (RT-BLK) WPL 74001902 Contact Us For Availability
5
TRIM, SIDE (LT-BLK) WPL 74001903 Contact Us For Availability
5
SCREW WPL 7101P07960 Contact Us For Availability
5
FAN ASSEMBLY WPL 7427P00660 Contact Us For Availability
5
GROMMET WPL 8008P00460 Contact Us For Availability
5
PLATE, SUPPORT WPL 74001837 Contact Us For Availability
5
HANDLE, DOOR (BLK) WPL 7701P02460 Contact Us For Availability
5
SUPPORT, BROIL ELEMENT WPL 3807F17619 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
PLATE, CONDUIT WPL 3605F16451 Contact Us For Availability
6
SCREW WPL 7101P30960 Contact Us For Availability
6
SWITCH, SELECTOR WPL 7403P17260 Contact Us For Availability
6
LINING, DOOR WPL 74001851 Contact Us For Availability
6
LINING, DOOR WPL 74001905 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
PANEL, SIDE (RT) WPL 2618F11551 Contact Us For Availability
7
PANEL, SIDE (LT) WPL 2618F11651 Contact Us For Availability
7
COVER, BOX WPL 4005F45251 Contact Us For Availability
7
THERMOSTAT, OVEN WPL 7404P04960 Contact Us For Availability
7
PANEL, DOOR (BLK) WPL 2401F10470 Contact Us For Availability
7
SCREW (BLK) WPL 7101P27660 Contact Us For Availability
7
PANEL, DOOR (BLK) WPL 74001862 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
8
RETAINER, BOTTOM INSULATION WPL 3804F10451 Contact Us For Availability
8
INSULATION, BOTTOM WPL 7002P00660 Contact Us For Availability
8
RETAINER, TOP WPL 3804F11851 Contact Us For Availability
8
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
8
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
8
COVER WPL 3604F03744 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
9
RETAINER, REAR WPL 3804F10551 Contact Us For Availability
9
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
9
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
9
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
9
SEAL, DOOR (VERTICAL) WPL 7212P00760 Contact Us For Availability
9
RECEPTACLE, OVEN BULB WPL 7408P03560 Contact Us For Availability
10
SUPPORT WPL 3807F13580 Contact Us For Availability
10
CLAMP, WIRE 3/4 WPL 7112P00260 Contact Us For Availability
10
EXTRUSION, TOP FRONT (BLK) WPL 74001854 Contact Us For Availability
10
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
10
RACK WPL 7801P00560 Contact Us For Availability
11
INSULATION, TOP & BACK WPL 74001849 Contact Us For Availability
11
INSULATION, WRAPPER WPL 74001883 Contact Us For Availability
11
EXTRUSION, VENT WPL 7756P07160 Contact Us For Availability
11
GLASS, OUTER (BLK) WPL 7902P33560 Contact Us For Availability
11
GLASS, DOOR (BLK) WPL 7902P35760 Contact Us For Availability
11
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
12
CLIP, OVEN FRONT WPL 7112P02060 Contact Us For Availability
12
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
12
THERMOSTAT, LOWER WPL 7404P04260 Contact Us For Availability
12
SCREW WPL 7101P06860 Contact Us For Availability
12
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
13
NUT, SNAP WPL 7103P05160 Contact Us For Availability
13
INSULATION, DOOR WPL 7002P01560 Contact Us For Availability
13
INSULATION, DOOR LOWER WPL 7002P01960 Contact Us For Availability
13
COVER, CAP HOLE WPL 4005F01135 Contact Us For Availability
13
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
14
MANUAL, USE & CARE WPL 74001838 Contact Us For Availability
14
SPACER, HANDLE (BLK) WPL 8010P01560 Contact Us For Availability
14
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
14
TUBE, OVEN VENT WPL 8026P01460 Contact Us For Availability
15
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
15
RETAINER, INSULATION WPL 3804F05451 Contact Us For Availability
16
BOTTOM, OVEN DOOR WPL 2205F00316 Contact Us For Availability
17
BOTTOM, OVEN (LOWER) WPL 74001906 Contact Us For Availability
18
SCREW WPL 7101P35660 Contact Us For Availability
18
CLAMP, WIRE WPL 7111P00760 Contact Us For Availability
18
STRAP, WIRE TIE WPL 8019P00460 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001505 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003402 Contact Us For Availability
× ![]()
