Model Whirlpool 958AJ-ZW ELECTRIC RANGE – Common Parts & Diagrams

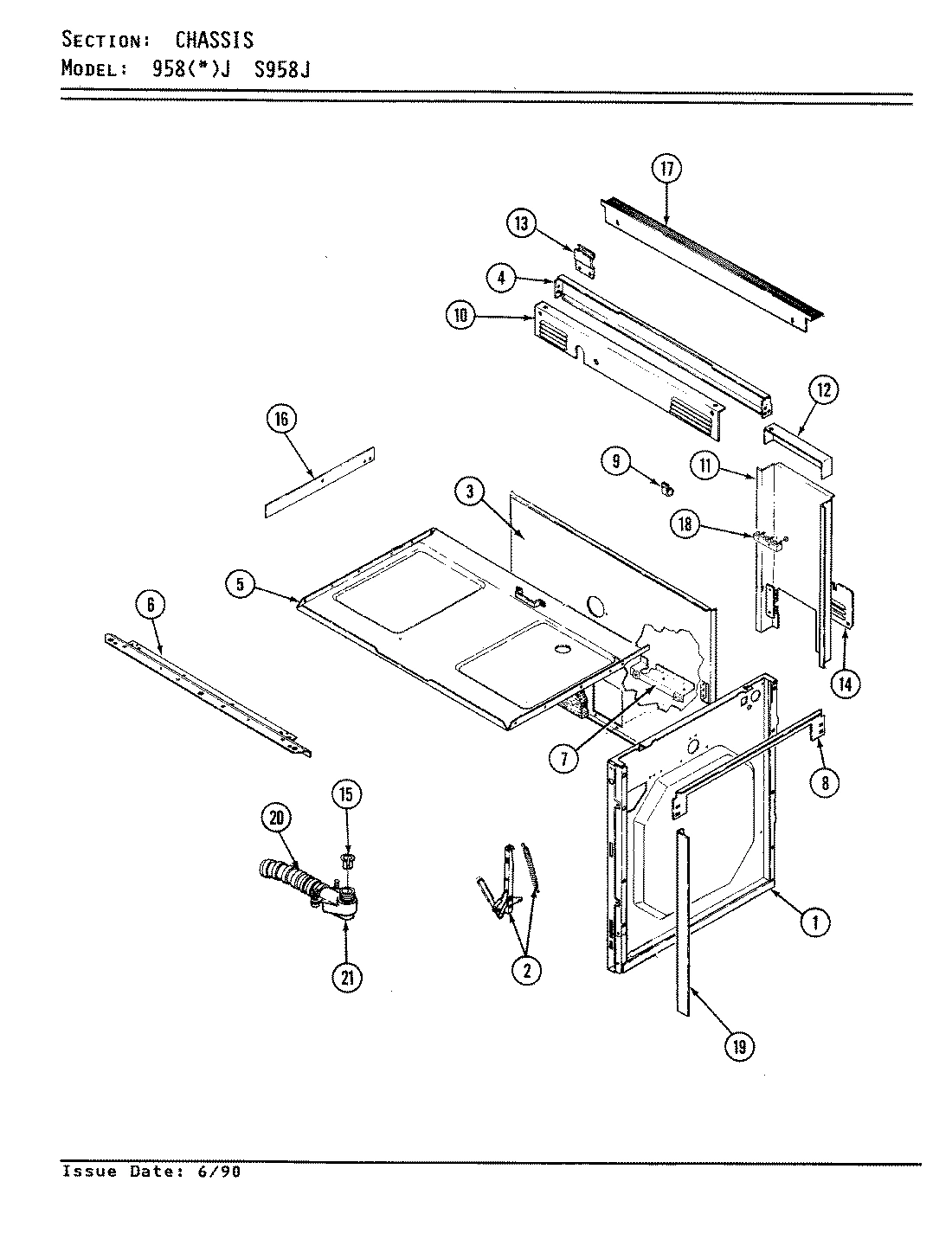

03 - OVEN

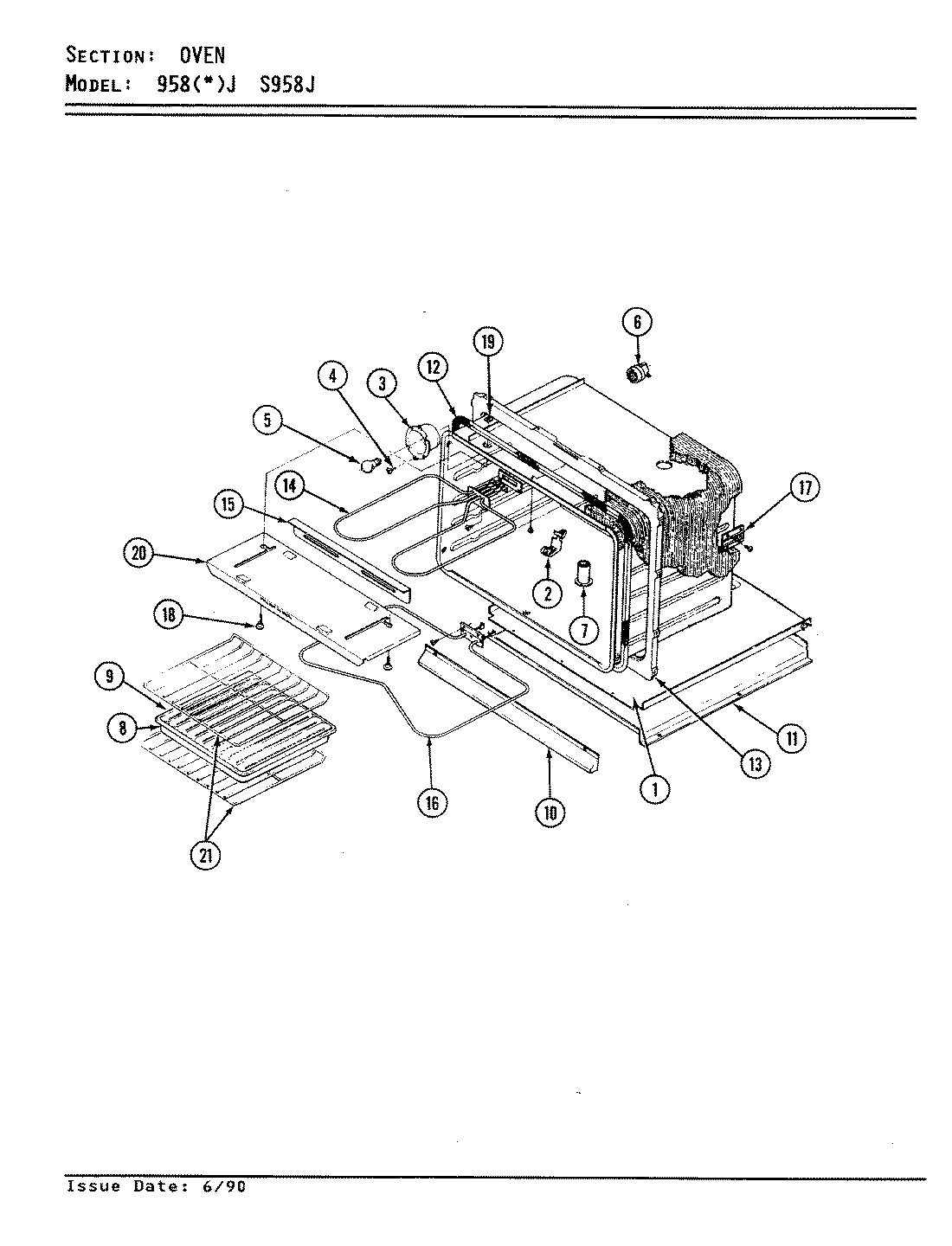

02 - OVEN

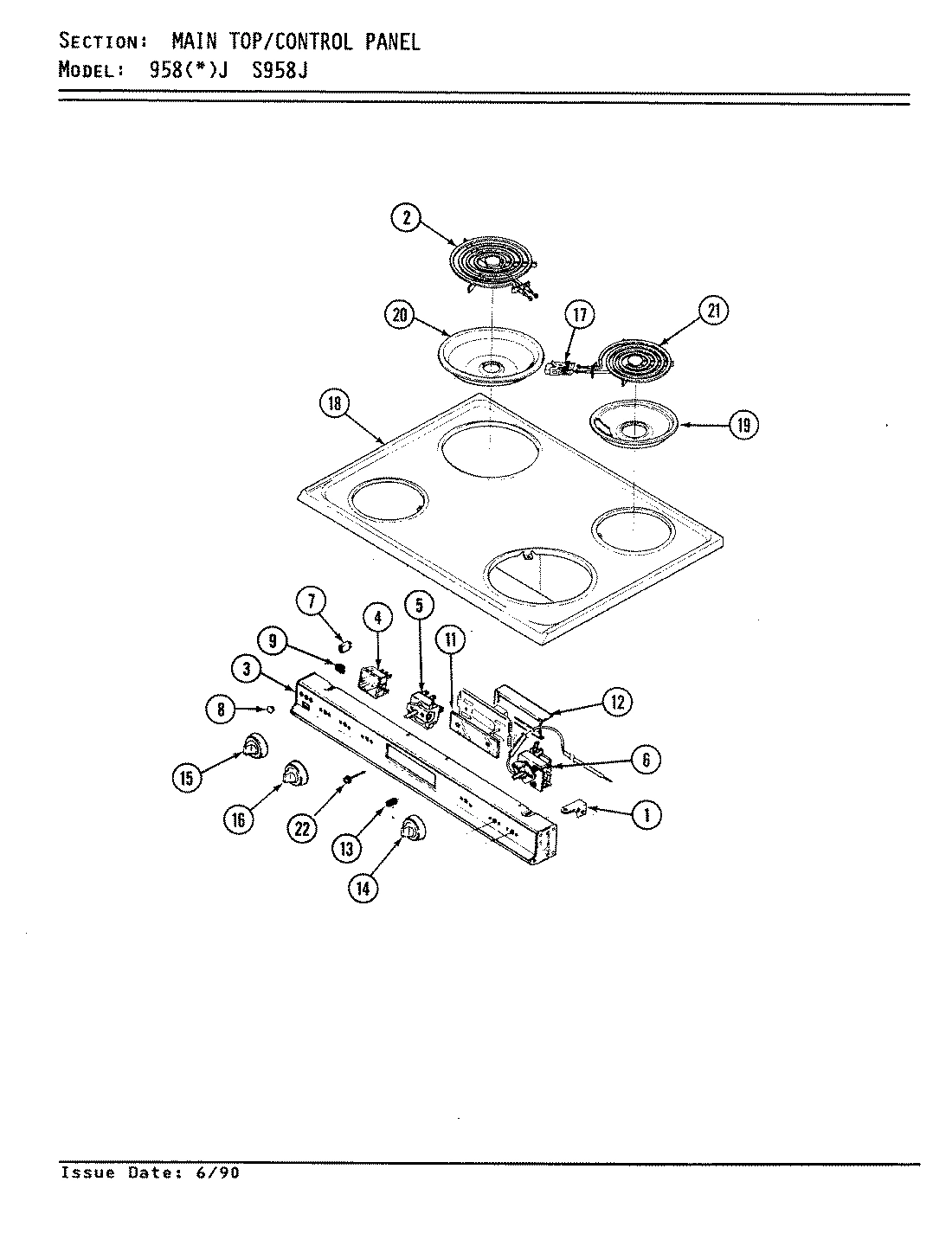

04 - TOP ASSEMBLY

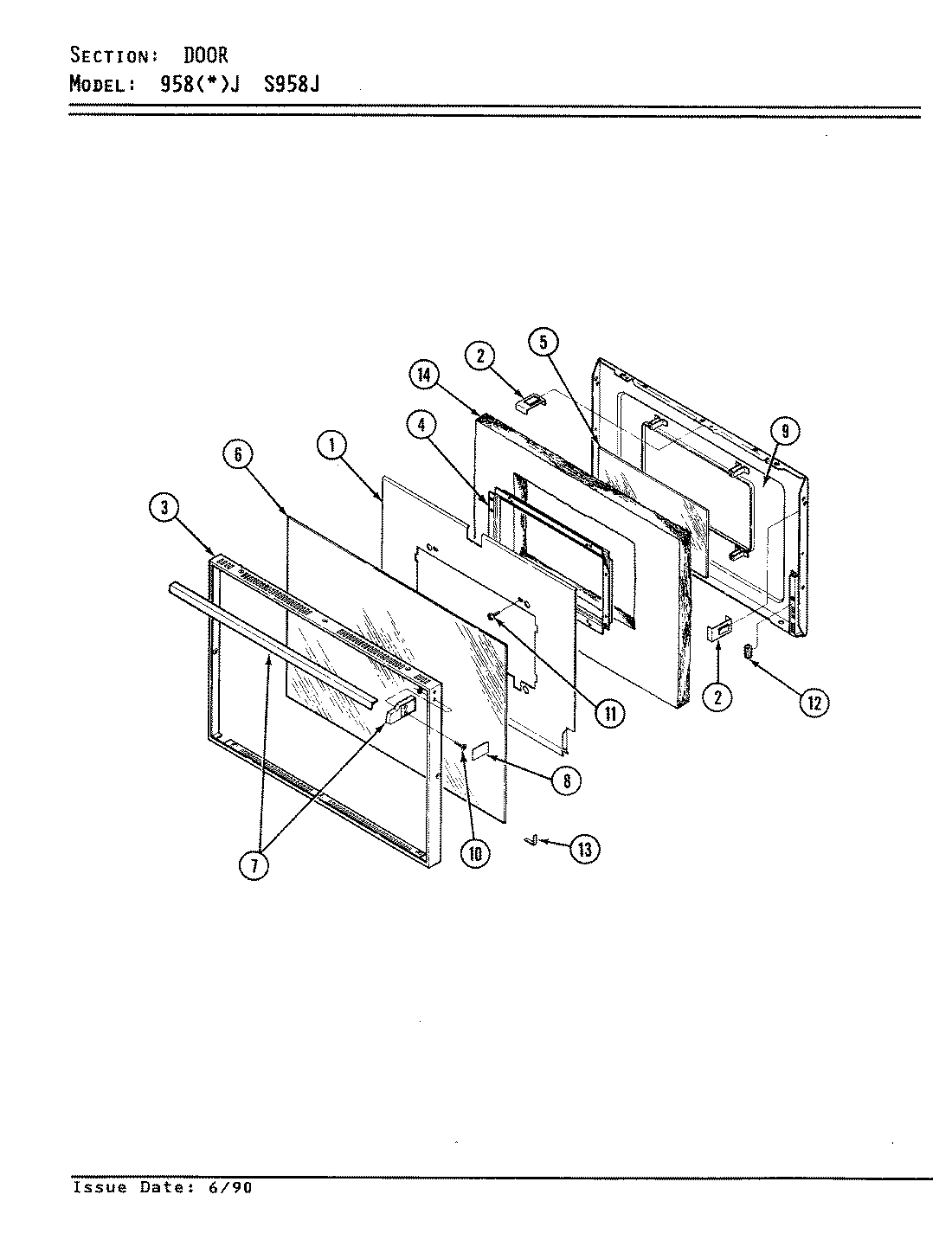

01 - DOOR
Common parts from model Whirlpool 958AJ-ZW ELECTRIC RANGE
1
LINING,INNER SIDE(L) WPL 4009W06680 Contact Us For Availability
1
NUT, SNAP (WHT) WPL 7103P04060 Contact Us For Availability
1
NUT, NYLON WPL 7103P04560 Contact Us For Availability
1
RETAINER, BOTTOM INSULATION WPL 3804F10280 Contact Us For Availability
1
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
1
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
2
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
2
HINGE WPL 7106P02360 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
2
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
BACK, MAIN WPL 4002F10880 Contact Us For Availability
3
SCREW WPL 7118P00460 Contact Us For Availability
3
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
3
PANEL MANIFOLD BLK WPL 2614F01790 Contact Us For Availability
3
SHIELD WPL 3604F06751 Contact Us For Availability
3
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
BRACE, MAIN TOP WPL 3802F07180 Contact Us For Availability
4
SHIELD WPL 3604F01745 Contact Us For Availability
4
SWITCH, INF. 250V WPL 7403P18160 Contact Us For Availability
4
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
5
BOX, BURNER WPL 4011F08223 Contact Us For Availability
5
BULB, OVEN WPL 7407P02660 Contact Us For Availability
5
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
5
SWITCH, SELECTOR WPL 7403P03160 Contact Us For Availability
5
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
6
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
6
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
6
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
6
THERMOSTAT WPL 7404P02960 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
7
PLATE CONDUIT WPL 3605F16380 Contact Us For Availability
7
TUBE WPL 8026P00160 Contact Us For Availability
7
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
7
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
8
SUPPORT, PANEL UNIT WPL 3807F19480 Contact Us For Availability
8
PAN, BROIL WPL 3401F00423 Contact Us For Availability
8
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
8
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
9
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
9
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
9
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
9
LINING ASSY, OV DR WPL 2402W09116 Contact Us For Availability
9
LINING DOOR WPL 2402W15119 Contact Us For Availability
9
LINING DOOR WPL 2402W15123 Contact Us For Availability
10
SHIELD, HOUSING WPL 3604F05680 Contact Us For Availability
10
SHIELD,LOWER VENT (BLK) WPL 3604W15270 Contact Us For Availability
10
SHIELD, LOWER VENT (BLK) WPL 3604W15570 Contact Us For Availability
10
CLOCK WPL 7602P09760 Contact Us For Availability
10
SHAFT, BIT GENERATOR WPL 8312P01960 Contact Us For Availability
10
SCREW WPL 7101P12360 Contact Us For Availability
11
SCREW WPL 7101P06160 Contact Us For Availability
11
HOUSING, WIRE WPL 4011F05151 Contact Us For Availability
11
SHIELD, BOTTOM WPL 3604F00380 Contact Us For Availability
11
GLASS, CLOCK WPL 7902P31460 Contact Us For Availability
12
COVER, HOUSING WPL 4005F08280 Contact Us For Availability
12
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
12
BRACKET, CLOCK WPL 3801F19345 Contact Us For Availability
12
SCREW WPL 7101P07460 Contact Us For Availability
12
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
12
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
13
HINGE, MAIN TOP WPL 7706P17060 Contact Us For Availability
13
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
13
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
13
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
14
COVER ACCESS WPL 4005F30251 Contact Us For Availability
14
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
14
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
14
KNOB, THERMOSTAT WPL 7735P01660 Contact Us For Availability
14
INSULATION WPL 4804F00760 Contact Us For Availability
15
WASHER WPL 7109P00260 Contact Us For Availability
15
SLEEVE, TUBE WPL 8018P00260 Contact Us For Availability
15
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
15
KNOB, SURFACE SWITCH WPL 7737P01560 Contact Us For Availability
16
BAFFLE, SIDE PANEL WPL 3601F10651 Contact Us For Availability
16
SCREW WPL 7101P10460 Contact Us For Availability
16
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
16
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
16
KNOB, SELECTOR WPL 7739P01960 Contact Us For Availability
17
FILLER, STRIP WPL 7706P00960 Contact Us For Availability
17
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
17
SCREW WPL 7118P01060 Contact Us For Availability
17
BLOCK, SURFACE UNIT WPL 7401P01460 Contact Us For Availability
18
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
18
SCREW WPL 7101P00560 Contact Us For Availability
18
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
18
TOP MAIN ALMOND WPL 2002W04984 Contact Us For Availability
19
PANEL, SIDE RIGHT WPL 2618F07180 Contact Us For Availability
19
PANEL, SIDE LEFT WPL 2618F07280 Contact Us For Availability
19
NUT, KEPS BLACK WPL 7103P06260 Contact Us For Availability
19
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
20
TUBING, CONDUIT WPL 3414F06651 Contact Us For Availability
20
SHIELD, BROIL WPL 3604F09245 Contact Us For Availability
20
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
21
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
21
RACK, OVEN WPL 7801P03060 Contact Us For Availability
21
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
22
KNOB, CLOCK WPL 7711P42260 Contact Us For Availability
× ![]()
