Model Whirlpool 9524WPW ELECTRIC WALL OVEN – Common Parts & Diagrams

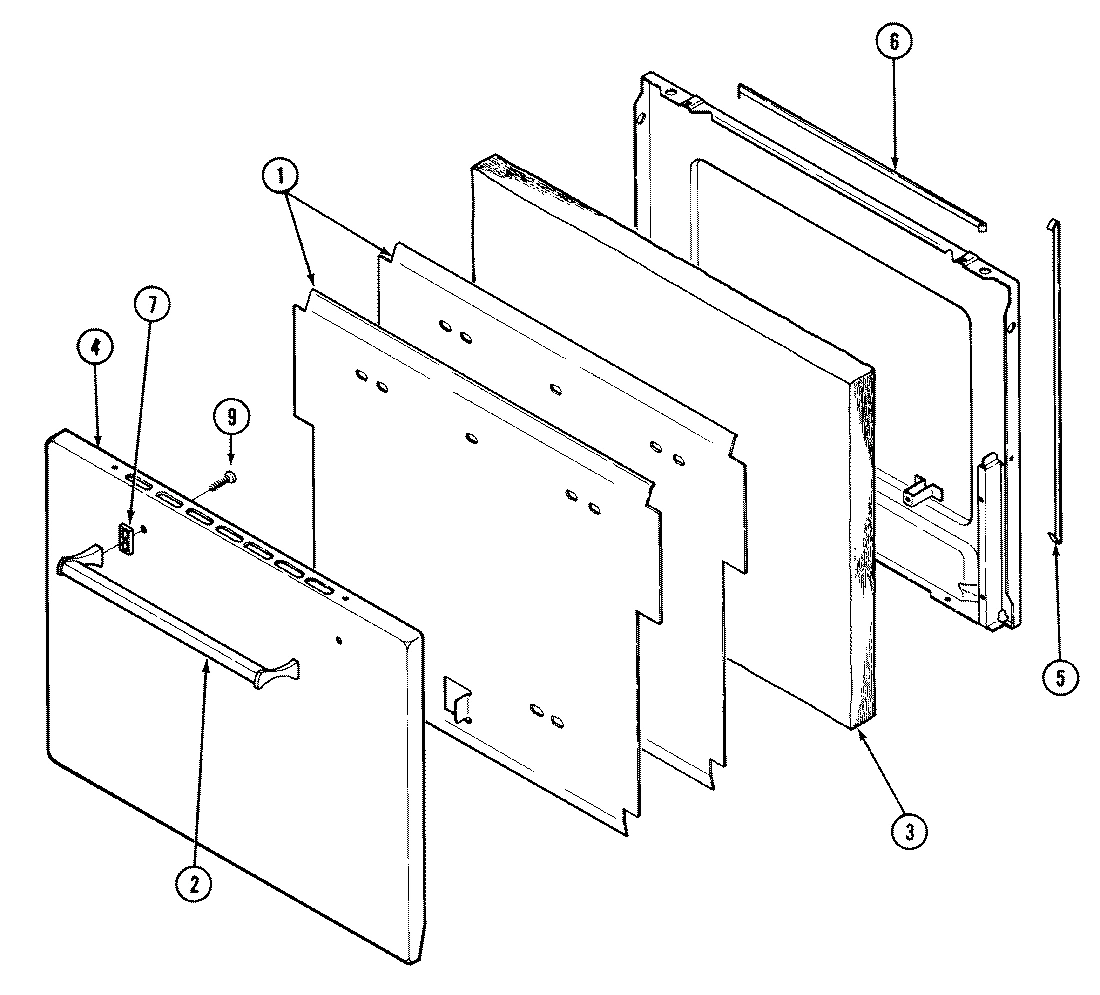

03 - DOOR-LOWER

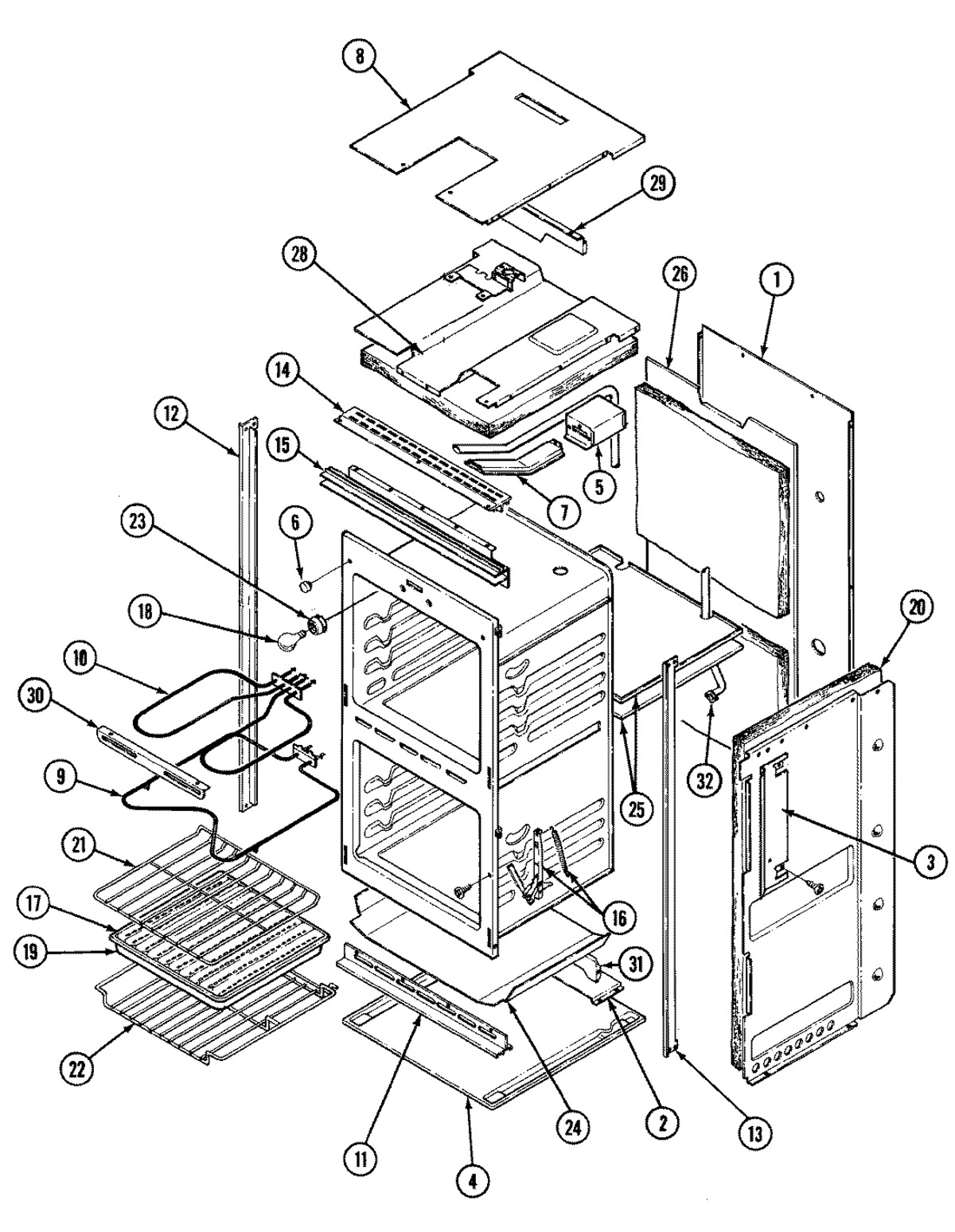

01 - BODY

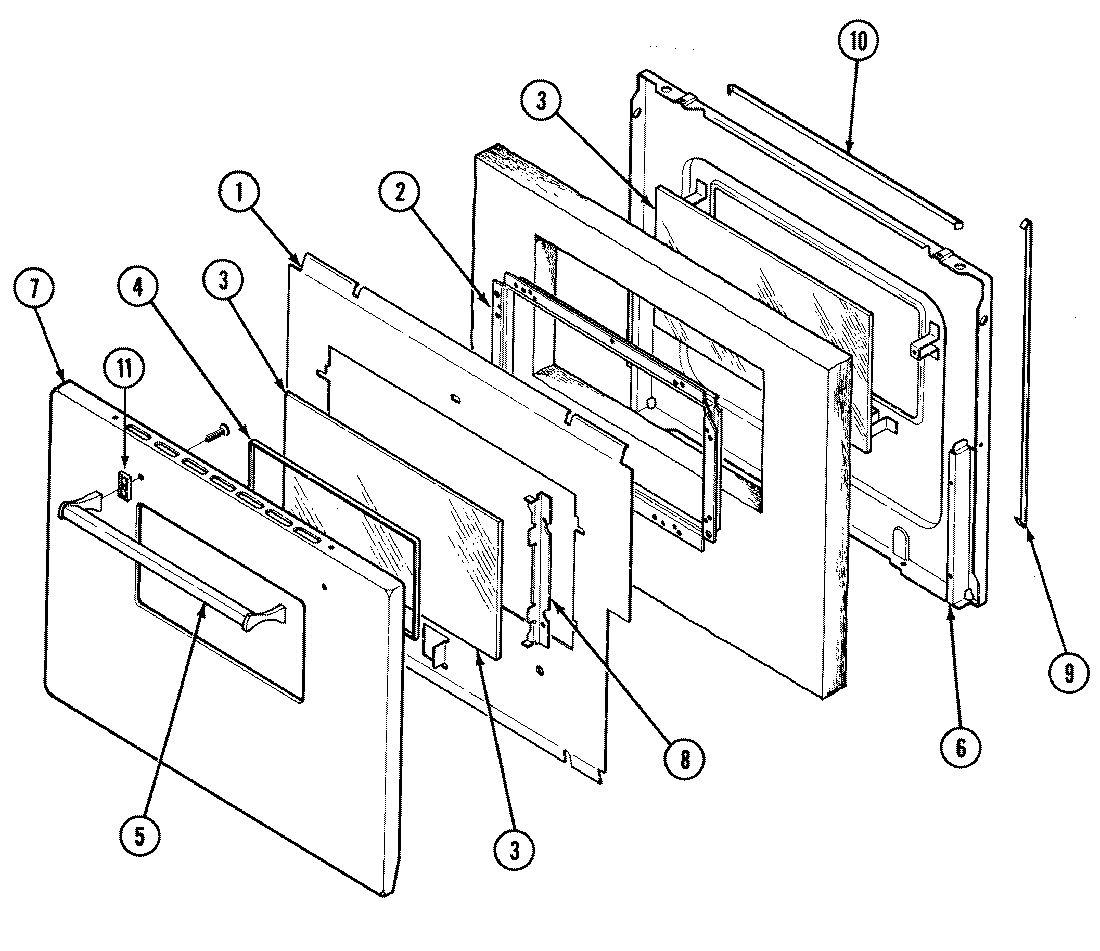

04 - DOOR-UPPER

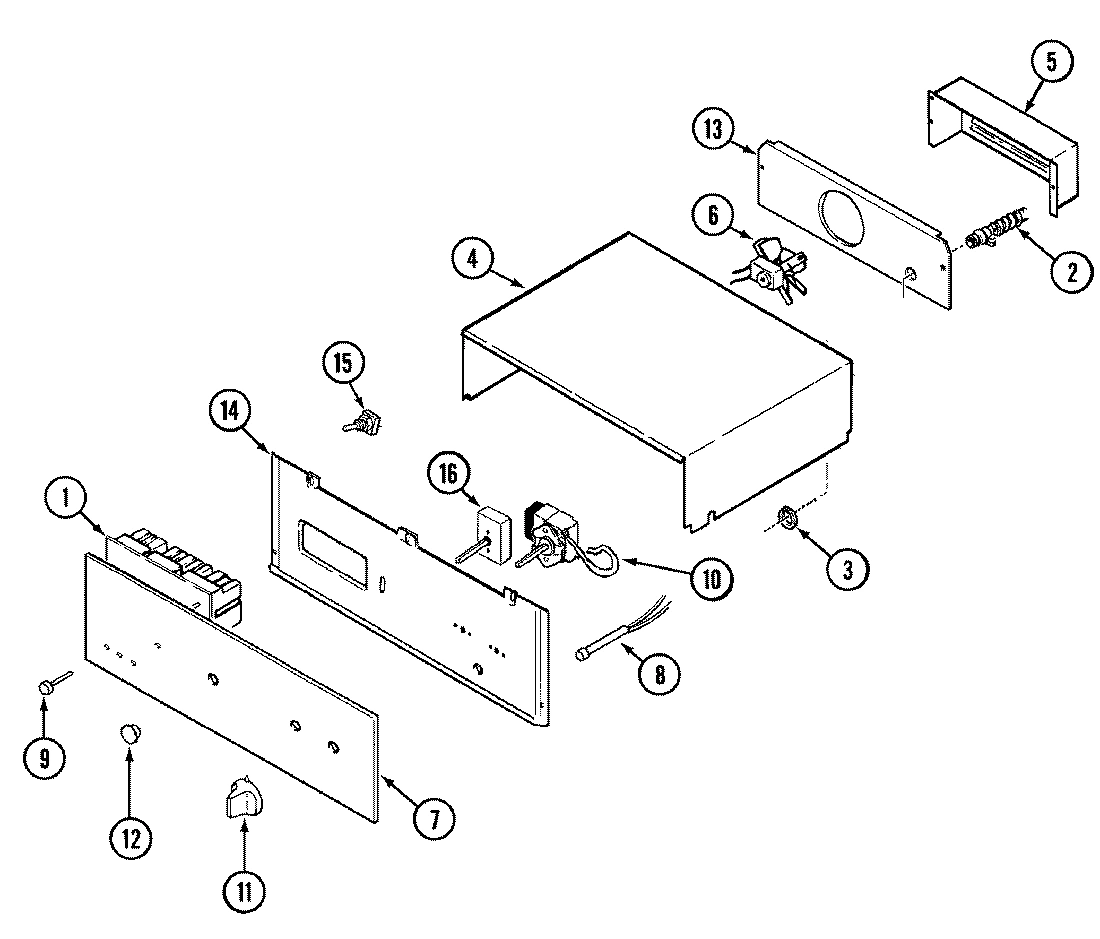

02 - CONTROL PANEL
Common parts from model Whirlpool 9524WPW ELECTRIC WALL OVEN
1
BACK, MAIN WPL 4002F14351 Contact Us For Availability
1
BAFFLE, UPPER DOOR WPL 3601F10251 Contact Us For Availability
1
CLOCK WPL 7601P09860 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00580 Contact Us For Availability
2
FRAME, WINDOW WPL 3603F01370 Contact Us For Availability
2
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
2
CONDUIT, FLEXIBLE WPL 7434P00560 Contact Us For Availability
3
LINING DOOR WPL 2402W13119 Contact Us For Availability
3
BAFFLE, SIDE WPL 3601F13051 Contact Us For Availability
3
GLASS WPL 7902P01760 Contact Us For Availability
3
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
4
PANEL, OVEN DOOR WHITE WPL 2401F03971 Contact Us For Availability
4
BASE, WALL OVEN WPL 4003F01120 Contact Us For Availability
4
GLASS WPL 7902P05160 Contact Us For Availability
4
COVER, WIRE WPL 4005F15051 Contact Us For Availability
5
HANDLE, DOOR (BLK) WPL 7701P12260 Contact Us For Availability
5
BOX, VENT WPL 4006W04615 Contact Us For Availability
5
COVER, FAN WPL 4005F17751 Contact Us For Availability
6
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
6
LINING, DOOR WPL 2402W13319 Contact Us For Availability
6
FAN ASSEMBLY WPL 7427P00660 Contact Us For Availability
7
SPACER WPL 8010P00660 Contact Us For Availability
7
CHANNEL, VENT ASSEMBLY WPL 3818W00215 Contact Us For Availability
7
PANEL, O.D. WHITE WPL 2401F05271 Contact Us For Availability
7
GLASS, CONTROL PNL WPL 04000015 Contact Us For Availability
8
COVER, BOX WPL 4005F20251 Contact Us For Availability
8
RETAINER WPL 3804F05080 Contact Us For Availability
8
LIGHT, INDICATOR----NA WPL 7407P00760 Contact Us For Availability
9
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
9
KNOB, CLOCK WPL 7711P00760 Contact Us For Availability
10
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
10
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
10
SPACER, DOOR HANDLE WPL 8010P02860 Contact Us For Availability
10
THERMOSTAT, LOWER WPL 7404P04260 Contact Us For Availability
10
THERMOSTAT, OVEN WPL 7404P04960 Contact Us For Availability
11
EXTRUSION, BOTTOM (BLK) WPL 7706P15360 Contact Us For Availability
11
KNOB (CHR) WPL 7711P29160 Contact Us For Availability
12
EXTENSION, SIDE (LEFT) WPL 7750P02960 Contact Us For Availability
12
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
13
EXTENSION, SIDE (RIGHT) WPL 7750P03060 Contact Us For Availability
13
PLATE, CONDUIT WPL 3605F16451 Contact Us For Availability
14
EXTRUSION, TOP (BLK) WPL 7706P19960 Contact Us For Availability
14
EXTRUSION, TOP FRONT (BLK) WPL 7756P00960 Contact Us For Availability
14
PLATE, SWITCH WPL 74001455 Contact Us For Availability
15
EXTRUSION, VENT WPL 7756P07160 Contact Us For Availability
15
SWITCH, OVEN LAMP WPL 7403P10460 Contact Us For Availability
16
HINGE WPL 7106P03660 Contact Us For Availability
16
HINGE, DOOR WPL 7106P04260 Contact Us For Availability
16
SWITCH, SELECTOR WPL 7403P17260 Contact Us For Availability
17
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
18
COVER WPL 3604F03744 Contact Us For Availability
18
BULB, OVEN WPL 7407P09560 Contact Us For Availability
19
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
20
PANEL, SIDE LF. WPL 2618F08851 Contact Us For Availability
20
PANEL, SIDE RIGHT WPL 2618F08951 Contact Us For Availability
21
RACK WPL 7801P00560 Contact Us For Availability
22
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
23
RECEPTACLE, OVEN LIGHT WPL 7408P03460 Contact Us For Availability
23
RECEPTACLE, OVEN BULB WPL 7408P03560 Contact Us For Availability
24
RETAINER, BOTTOM INSULATION WPL 3804F10451 Contact Us For Availability
25
RETAINER, INSULATION WPL 3804F05451 Contact Us For Availability
26
RETAINER, INSUL-R WPL 3804F00751 Contact Us For Availability
28
RETAINER,TOP WPL 3804F05351 Contact Us For Availability
29
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
30
SUPPORT, BROIL ELEMENT WPL 3807F17619 Contact Us For Availability
31
SUPPORT WPL 3807F13780 Contact Us For Availability
32
TUBE, OVEN VENT WPL 8026P01460 Contact Us For Availability
35
HARNESS, LOWER WPL 5185A10660 Contact Us For Availability
35
INSULATION, BOTTOM WPL 7002P00660 Contact Us For Availability
35
INSULATION, WRAPPER WPL 7002P10760 Contact Us For Availability
35
INSULATION, TOP & BACK WPL 7002P11160 Contact Us For Availability
× ![]()
