Model Whirlpool 9512WUV ELECTRIC WALL OVEN – Common Parts & Diagrams

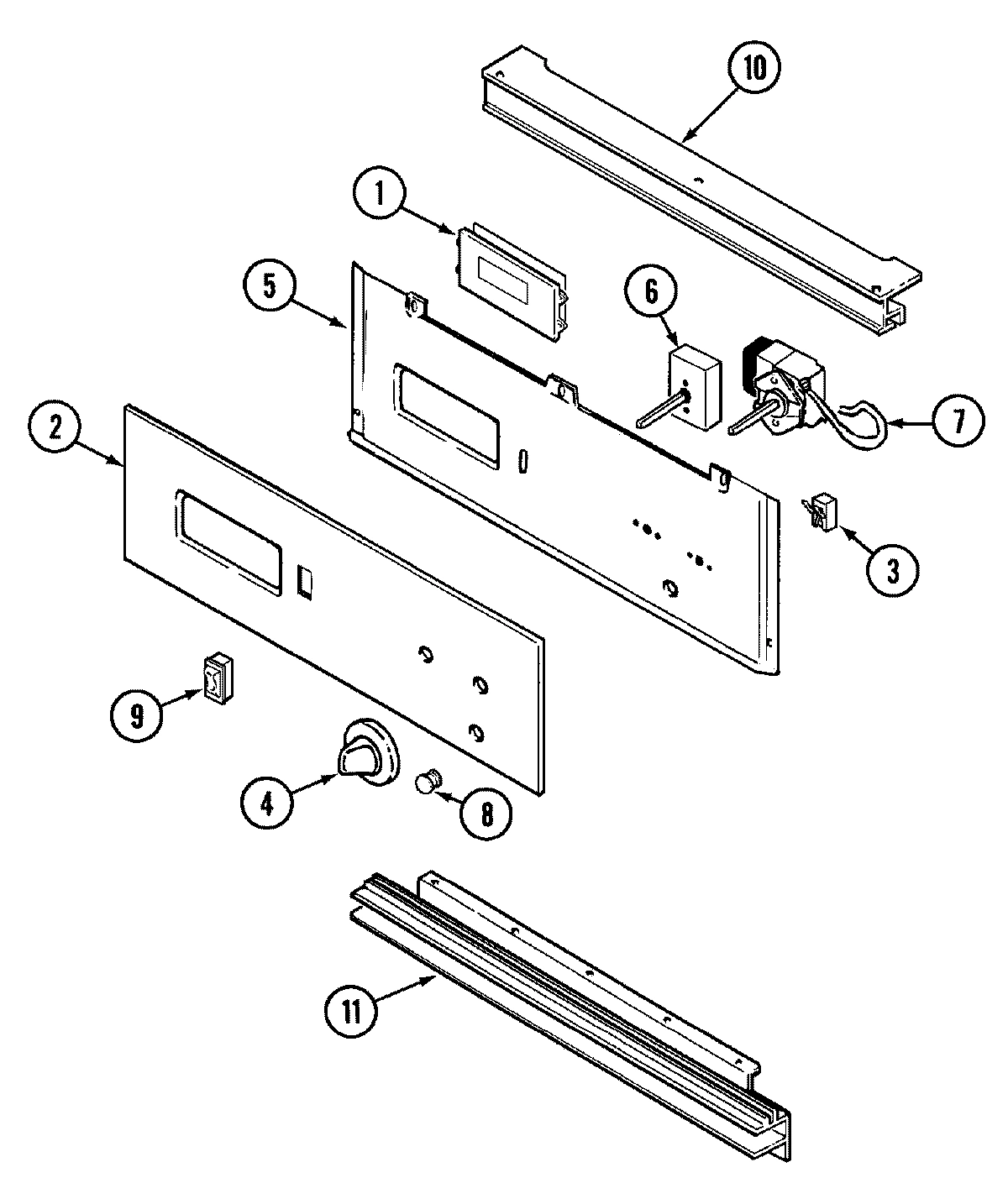

02 - CONTROL PANEL

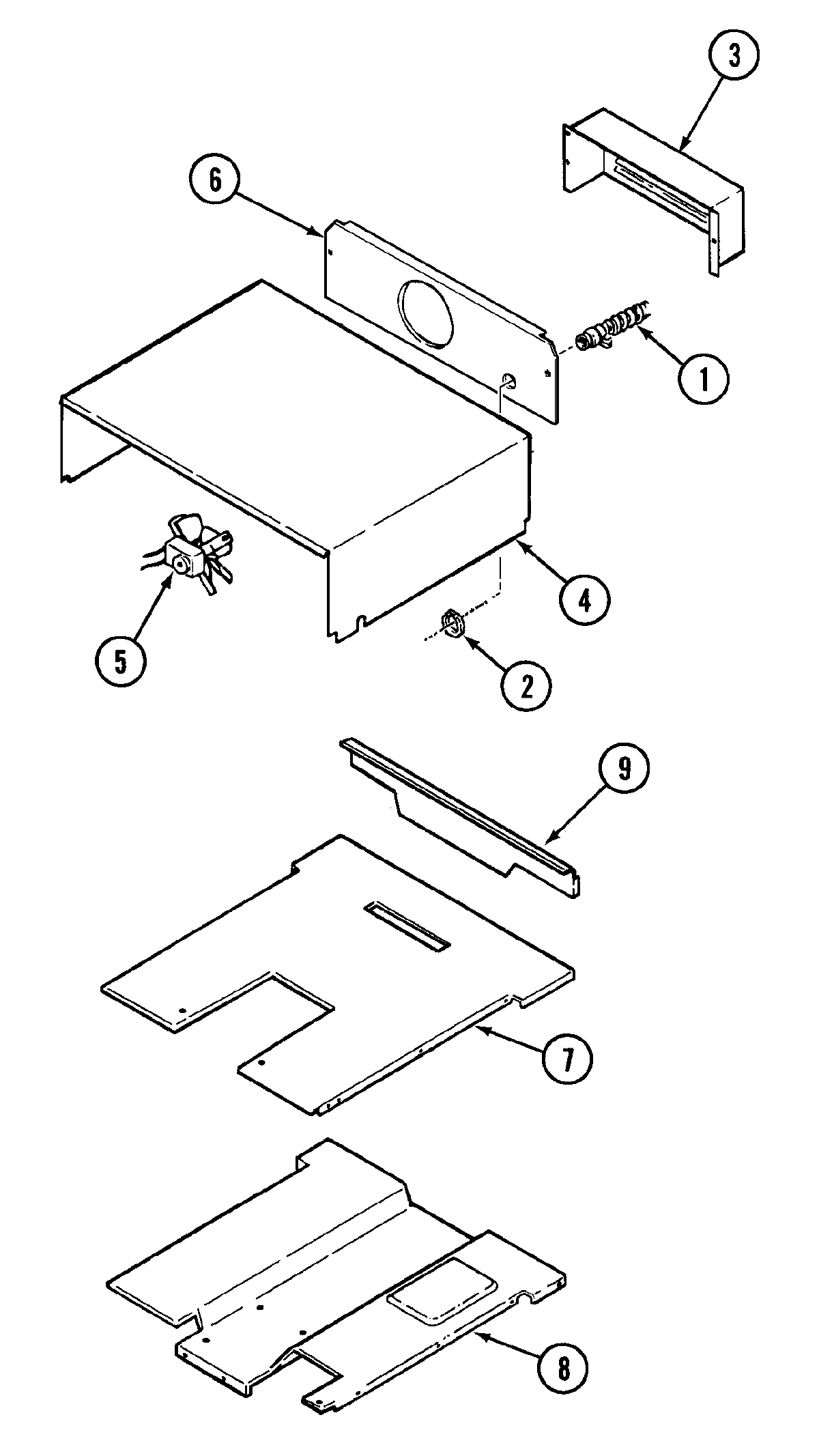

04 - INTERNAL CONTROLS

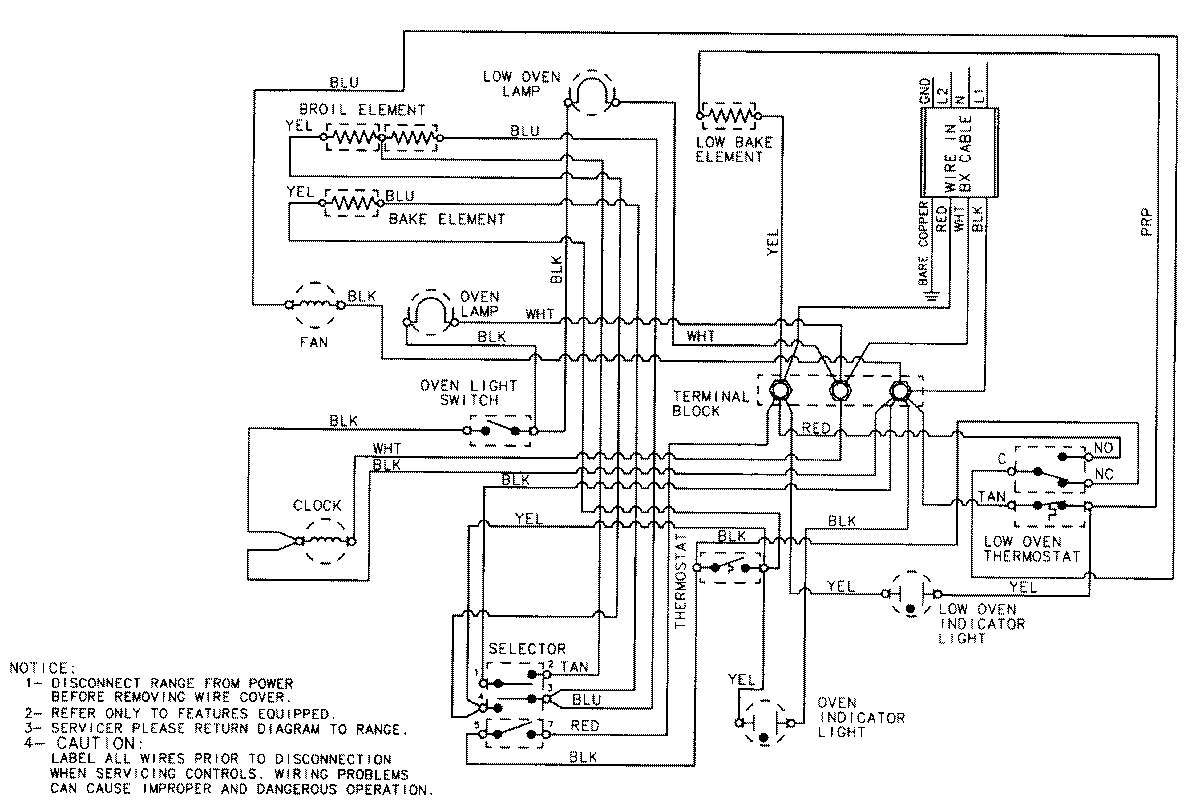

06 - WIRING INFORMATION

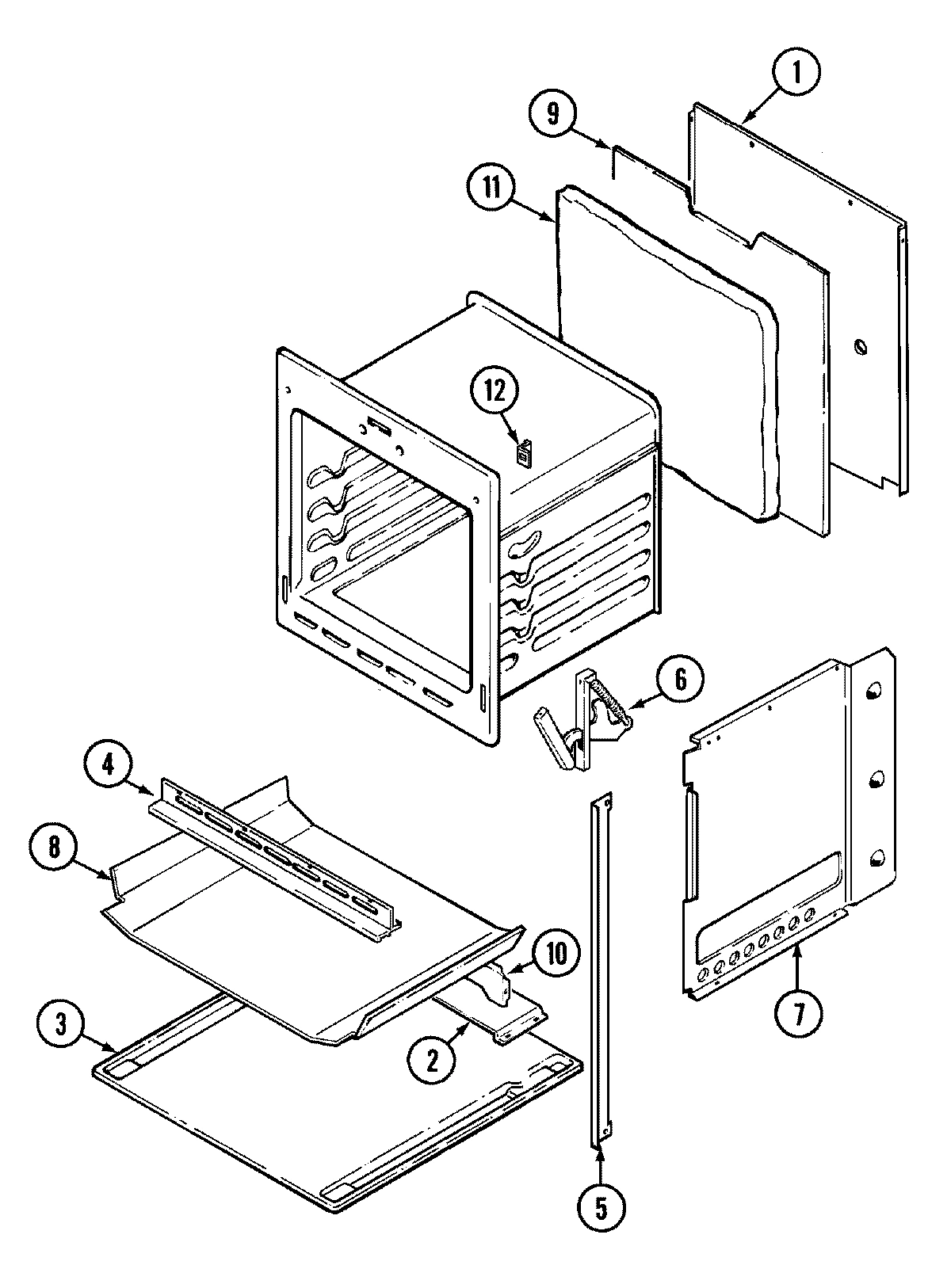

01 - BODY

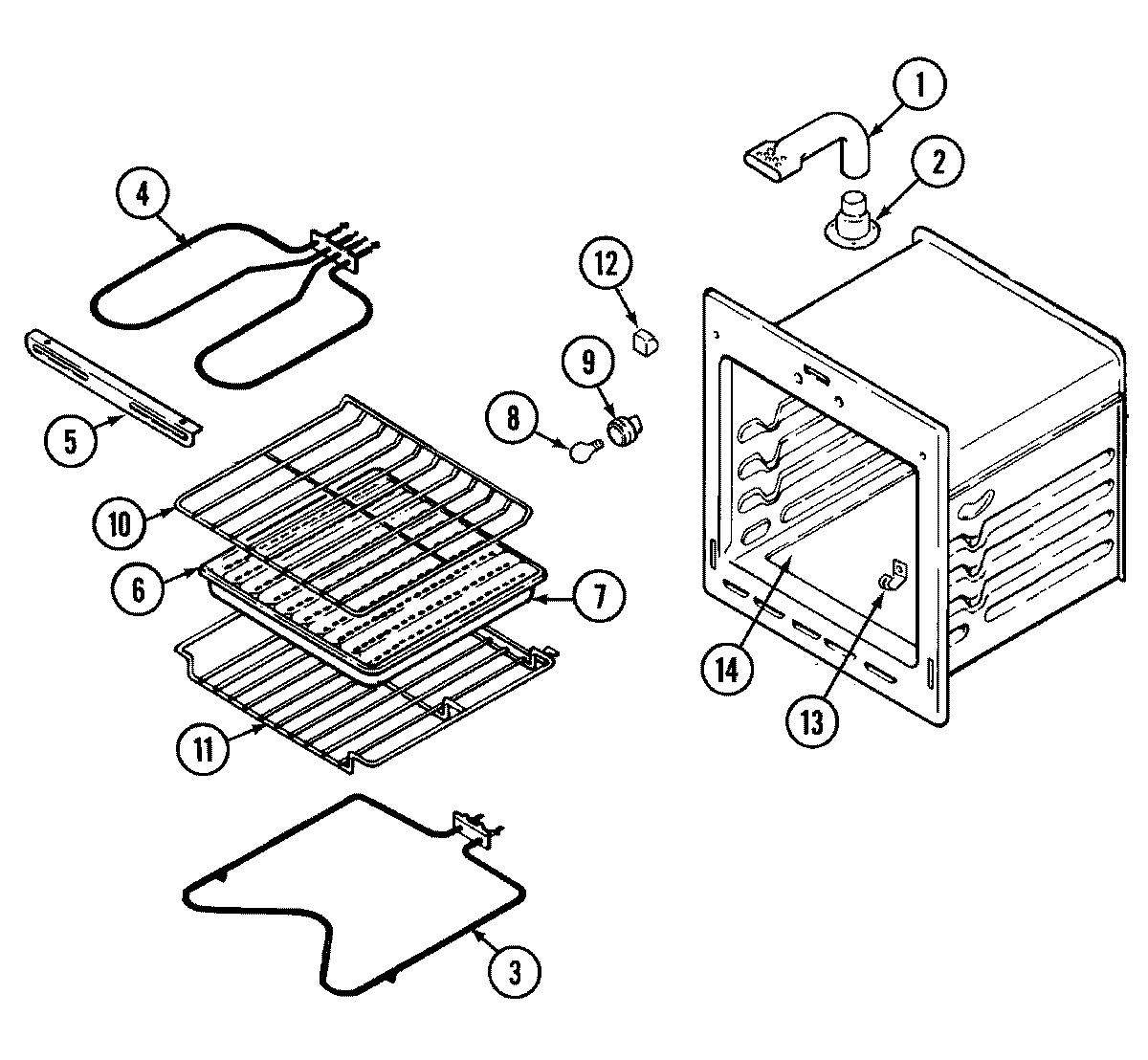

05 - OVEN

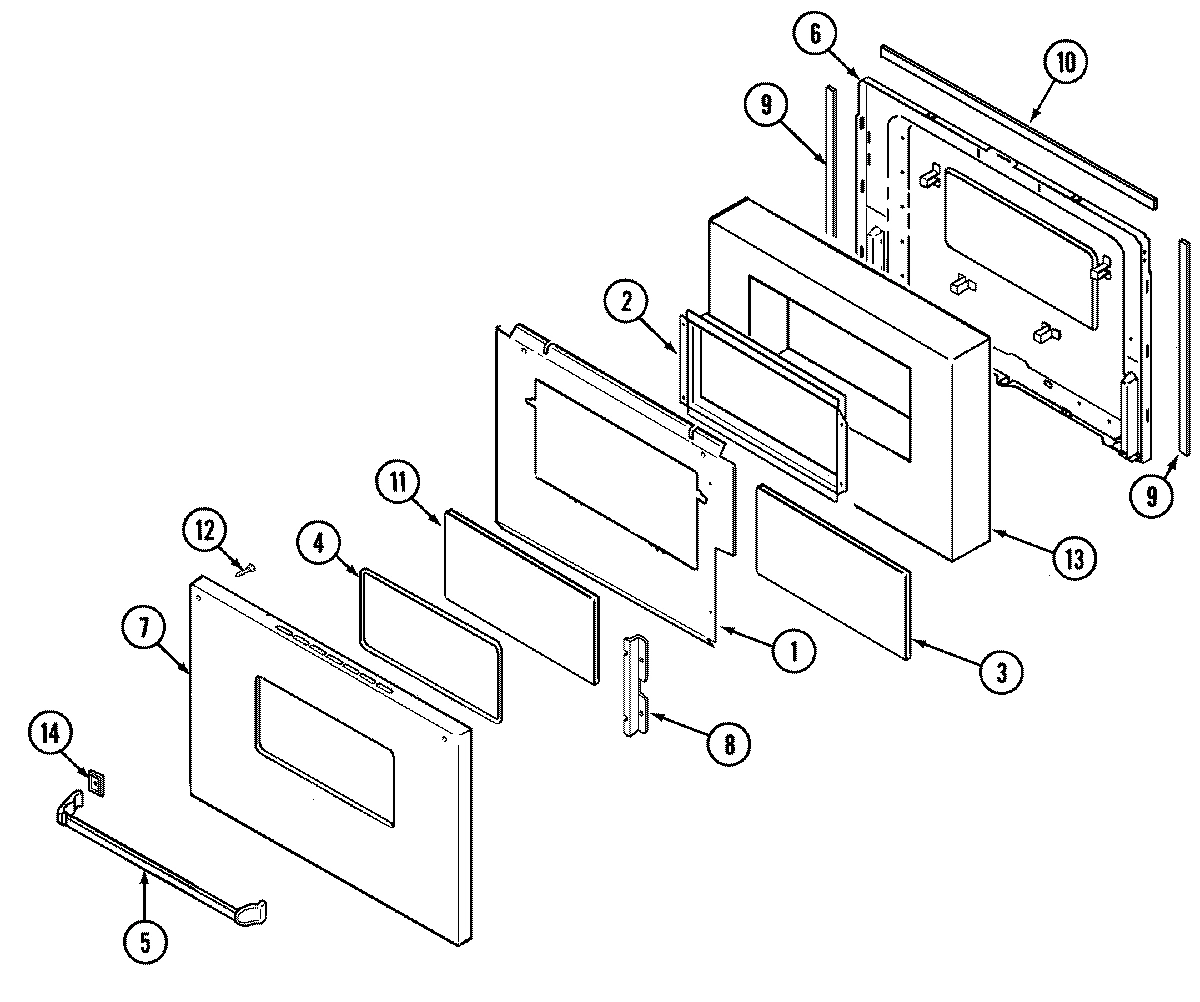

03 - DOOR (9512WUx)
Common parts from model Whirlpool 9512WUV ELECTRIC WALL OVEN
1
CLOCK (WHT) WPL 7602P11760 Contact Us For Availability
1
TUBING, 1/2 X 48`` FLEXIBLE WPL 3414F03744 Contact Us For Availability
1
WIRES, TUBING WPL 74001546 Contact Us For Availability
1
GROMMET WPL 8008P01760 Contact Us For Availability
1
BACK, MAIN WPL 4002F12151 Contact Us For Availability
1
TUBE, OVEN VENT WPL 8026P02260 Contact Us For Availability
1
BAFFLE, UPPER DOOR WPL 3601F10251 Contact Us For Availability
2
PANEL, CONTROL (WHT) WPL 74001853 Contact Us For Availability
2
FELT, DISC WPL 8010P05060 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00561 Contact Us For Availability
2
VENT, OVEN WPL 74001860 Contact Us For Availability
2
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
3
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
3
COVER, FAN WPL 4005F26251 Contact Us For Availability
3
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
3
BASE, OVEN WPL 74001845 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P07560 Contact Us For Availability
3
GLASS, INNER DOOR WPL 74009406 Contact Us For Availability
3
GLASS, INNER WPL 7902P38660 Contact Us For Availability
4
KNOB, SWITCH (WHT) WPL 7737P01160 Contact Us For Availability
4
COVER, WIRE WPL 4005F15051 Contact Us For Availability
4
EXTRUSION, BOTTOM (CHR) WPL 74001859 Contact Us For Availability
4
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
4
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
5
PLATE, SUPPORT WPL 74001837 Contact Us For Availability
5
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
5
SCREW WPL 7101P07960 Contact Us For Availability
5
FAN ASSEMBLY WPL 7427P00660 Contact Us For Availability
5
GROMMET WPL 8008P00460 Contact Us For Availability
5
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
5
EXTRUSION, SIDE (LT-CHR) WPL 74001857 Contact Us For Availability
5
EXTRUSION, SIDE (RT-CHR) WPL 74001858 Contact Us For Availability
5
SUPPORT, BROIL ELEMENT WPL 3807F17619 Contact Us For Availability
5
HANDLE, DOOR (WHT) WPL 74001861 Contact Us For Availability
6
SCREW WPL 7101P30960 Contact Us For Availability
6
SWITCH, SELECTOR WPL 7403P17260 Contact Us For Availability
6
PLATE, CONDUIT WPL 3605F16451 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
LINING, DOOR WPL 74001851 Contact Us For Availability
7
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
7
THERMOSTAT, OVEN WPL 7404P04960 Contact Us For Availability
7
COVER, BOX WPL 4005F45251 Contact Us For Availability
7
COVER, BOX WPL 74009403 Contact Us For Availability
7
PANEL, SIDE (LT) WPL 2618F11351 Contact Us For Availability
7
PANEL, SIDE (RT) WPL 2618F11451 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
PANEL, O.D. WHITE WPL 2401F05271 Contact Us For Availability
7
SCREW WPL 7101P26160 Contact Us For Availability
7
SCREW WPL 74005226 Contact Us For Availability
8
SCREW WPL 7101P35660 Contact Us For Availability
8
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
8
RETAINER, TOP WPL 3804F11851 Contact Us For Availability
8
RETAINER, BOTTOM INSULATION WPL 3804F10451 Contact Us For Availability
8
INSULATION, BOTTOM WPL 7002P00660 Contact Us For Availability
8
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
8
COVER WPL 3604F03744 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
RETAINER, GLASS WPL 3804F09580 Contact Us For Availability
9
SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability
9
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
9
RETAINER, REAR WPL 3804F09651 Contact Us For Availability
9
RECEPTACLE, OVEN BULB WPL 7408P03560 Contact Us For Availability
9
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
10
EXTRUSION, TOP FRONT (CHR/GRY) WPL 74001855 Contact Us For Availability
10
EXTRUSION, TOP FRONT (WHT) WPL 74001953 Contact Us For Availability
10
CLAMP, WIRE 3/4 WPL 7112P00260 Contact Us For Availability
10
SUPPORT WPL 3807F13780 Contact Us For Availability
10
RACK WPL 7801P00560 Contact Us For Availability
10
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
11
EXTRUSION, VENT (WHT) WPL 7756P02460 Contact Us For Availability
11
INSULATION, TOP & BACK WPL 74001849 Contact Us For Availability
11
INSULATION, WRAPPER WPL 74001850 Contact Us For Availability
11
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
11
GLASS, DOOR WPL 74001886 Contact Us For Availability
11
GLASS, DOOR (WHT) WPL 74005582 Contact Us For Availability
12
HARNESS, WIRE (CNTRL PNL) WPL 74001840 Contact Us For Availability
12
CLIP, OVEN FRONT WPL 7112P02060 Contact Us For Availability
12
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
12
SCREW WPL 7101P06860 Contact Us For Availability
13
MANUAL, USE & CARE WPL 74001838 Contact Us For Availability
13
MANUAL, USE & CARE WPL 74005224 Contact Us For Availability
13
NUT, SNAP WPL 7103P05160 Contact Us For Availability
13
COVER, CAP HOLE WPL 4005F01135 Contact Us For Availability
13
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
13
INSULATION, DOOR WPL 7002P01560 Contact Us For Availability
14
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
14
BOTTOM, OVEN WPL 2205F00319 Contact Us For Availability
14
SPACER, DOOR HANDLE WPL 8010P02860 Contact Us For Availability
15
CLAMP, WIRE WPL 7111P00760 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001505 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003402 Contact Us For Availability
× ![]()
