Model Electrolux 95-2497-57-02 REFRIGERATOR – Common Parts & Diagrams

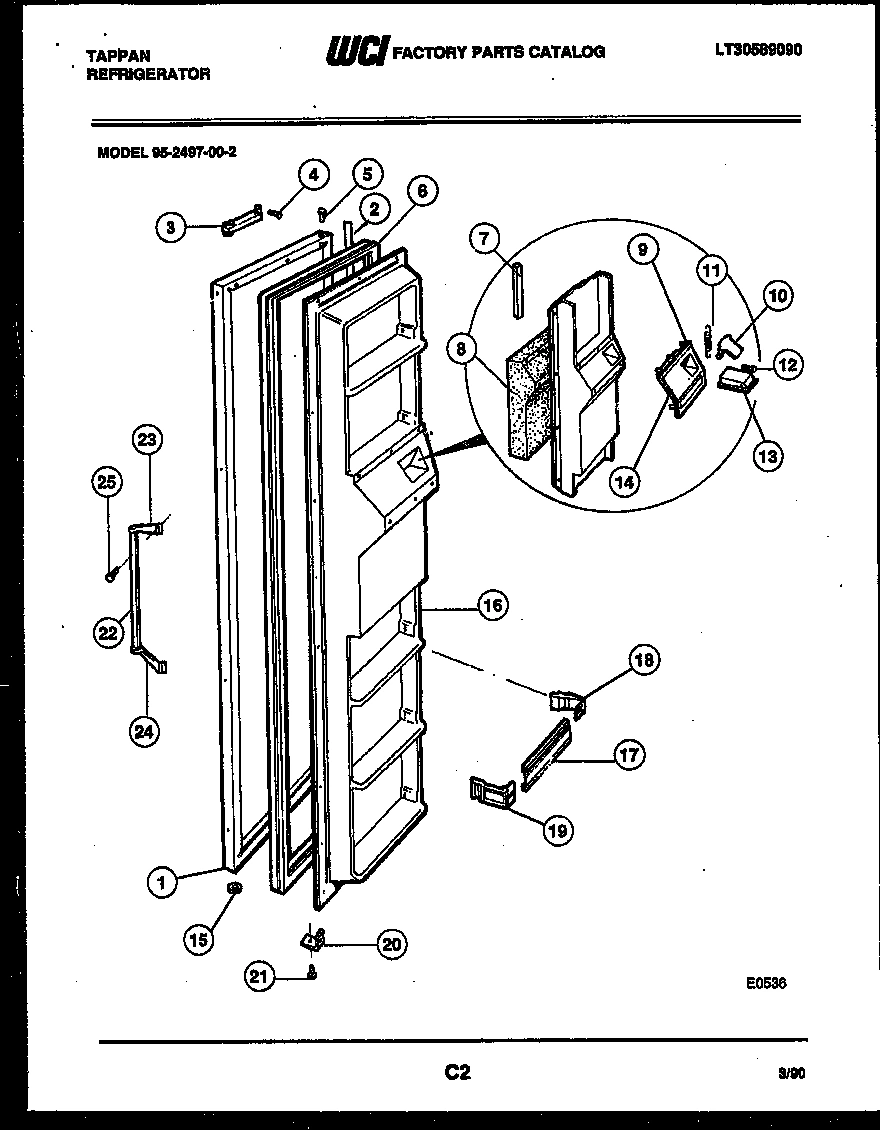

02 - FREEZER DOOR PARTS

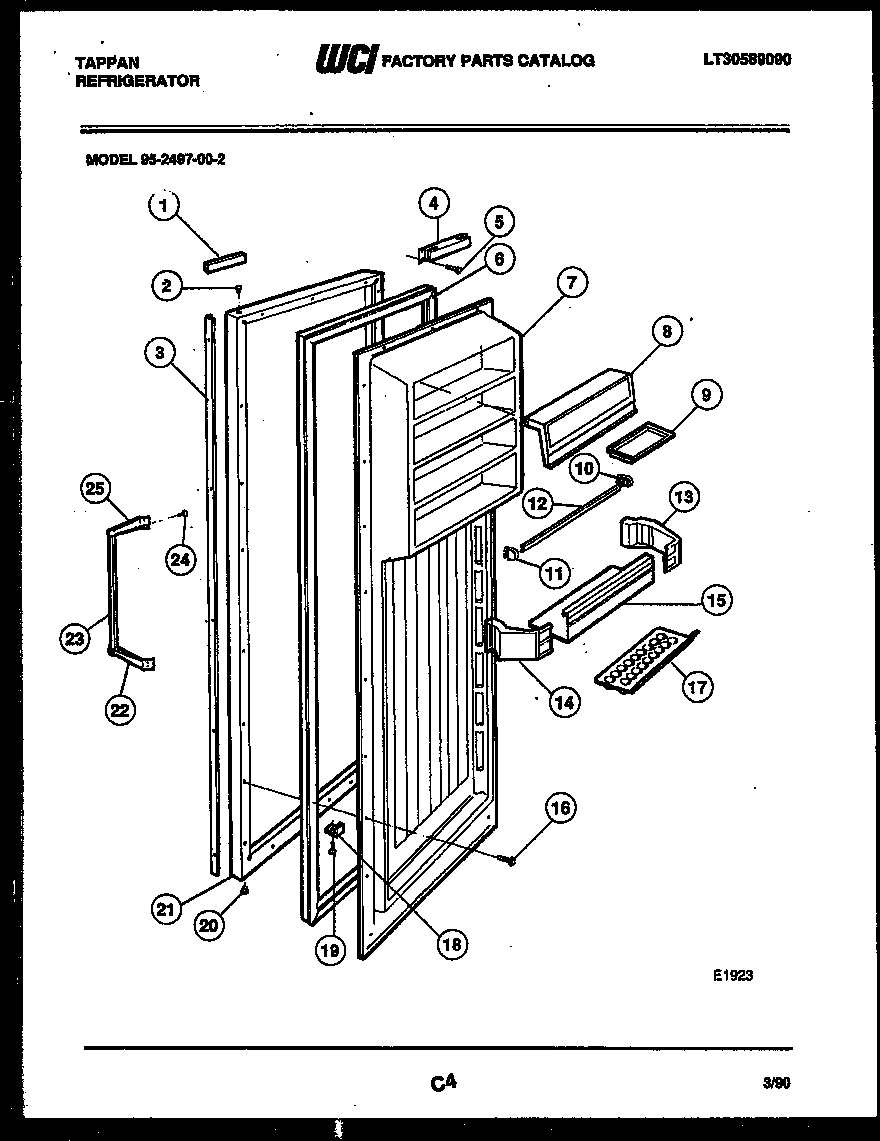

03 - REFRIGERATOR DOOR PARTS

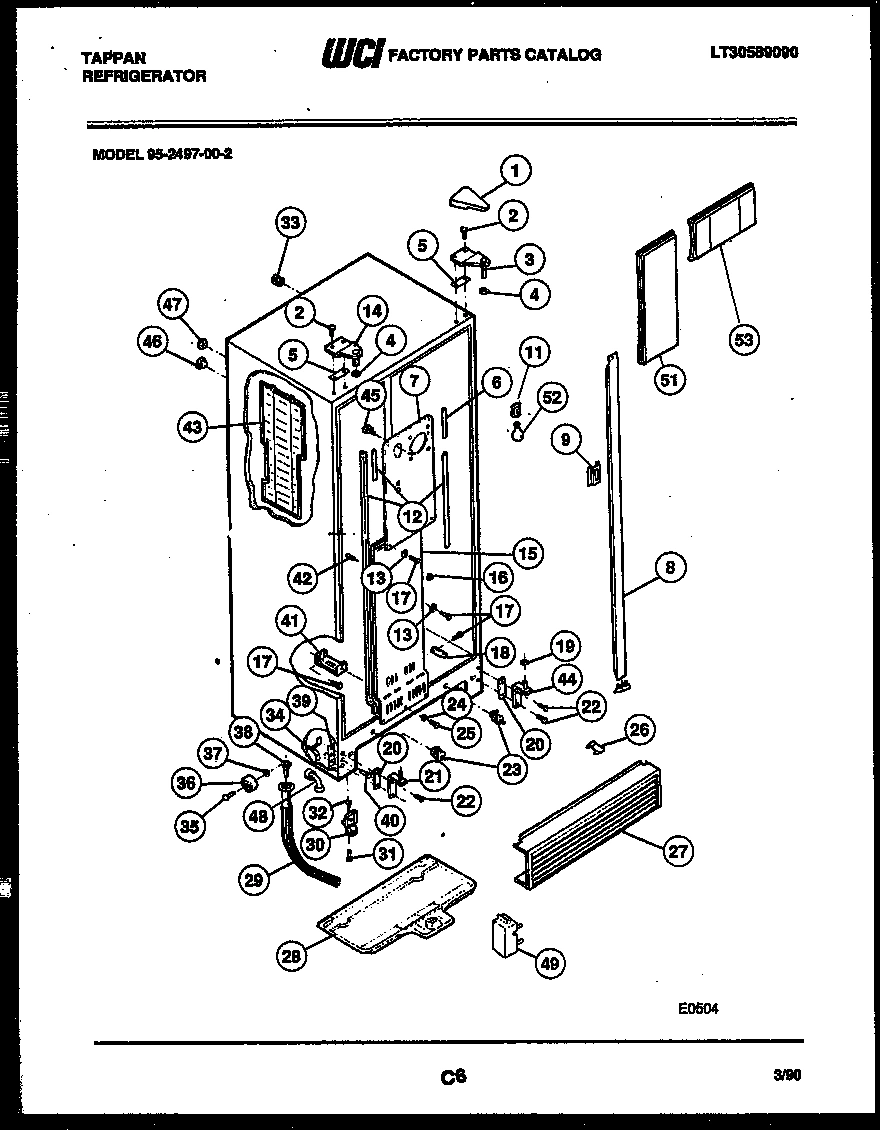

04 - CABINET PARTS

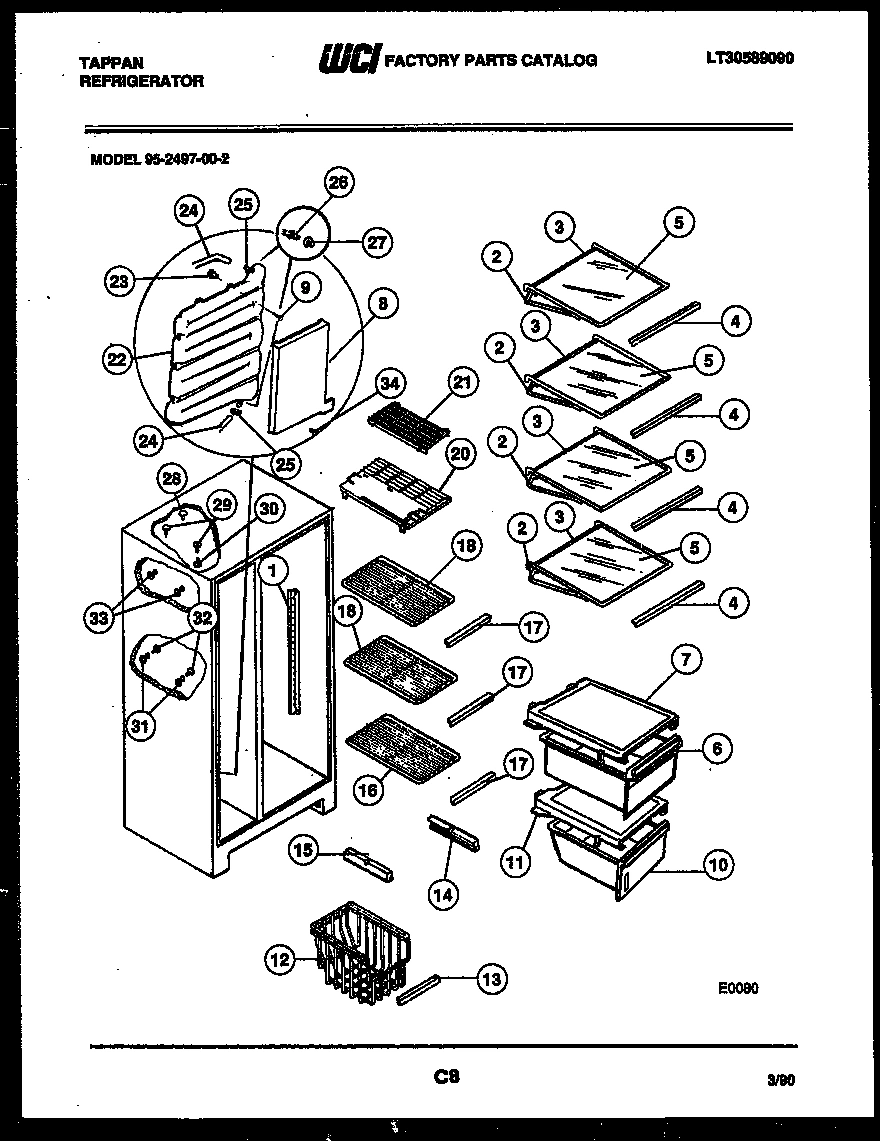

05 - SHELVES AND SUPPORTS

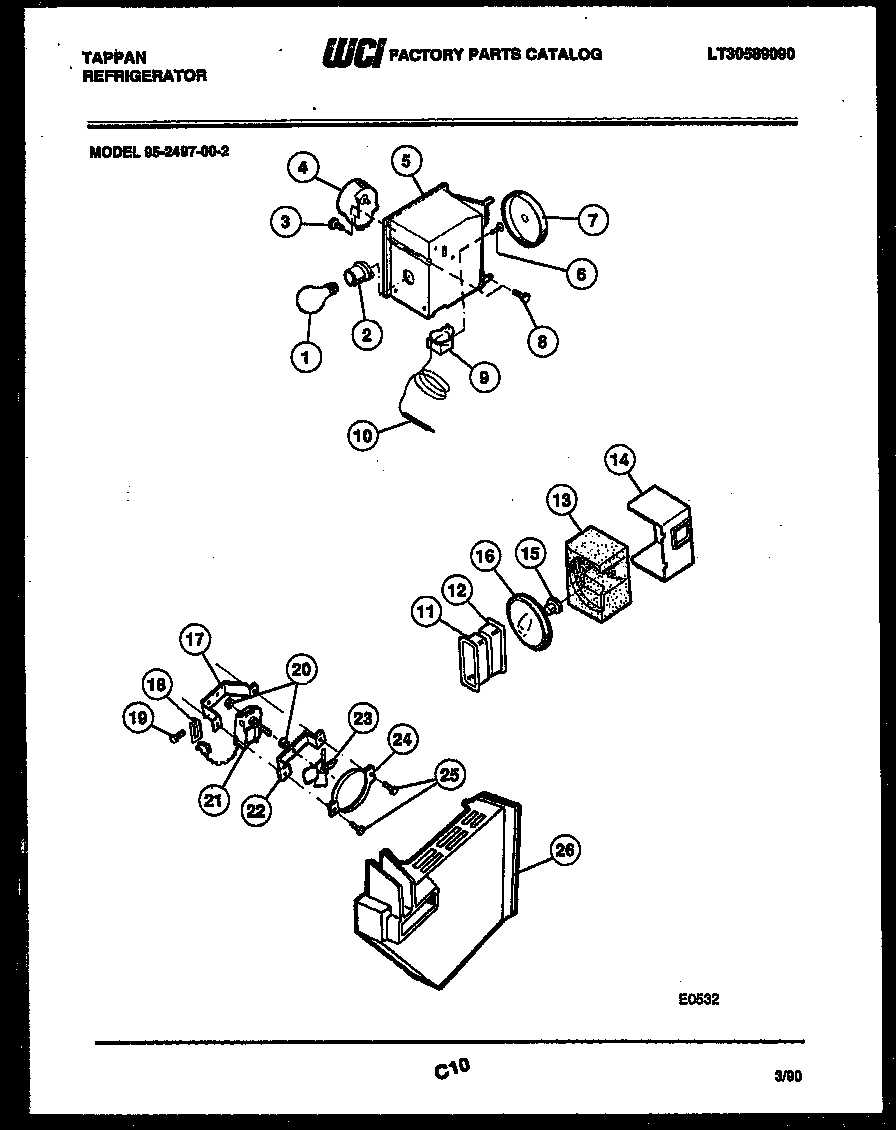

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

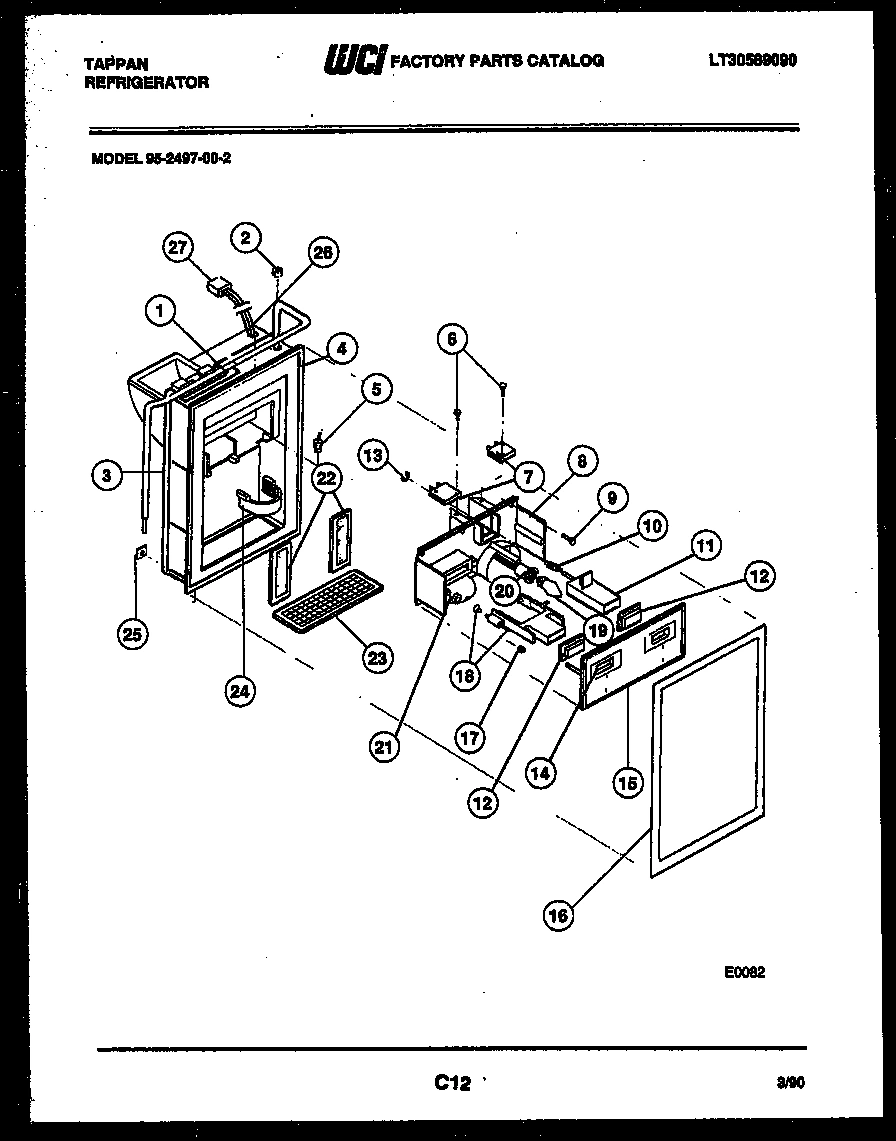

07 - ICE DOOR, DISPENSER AND WATER TANK

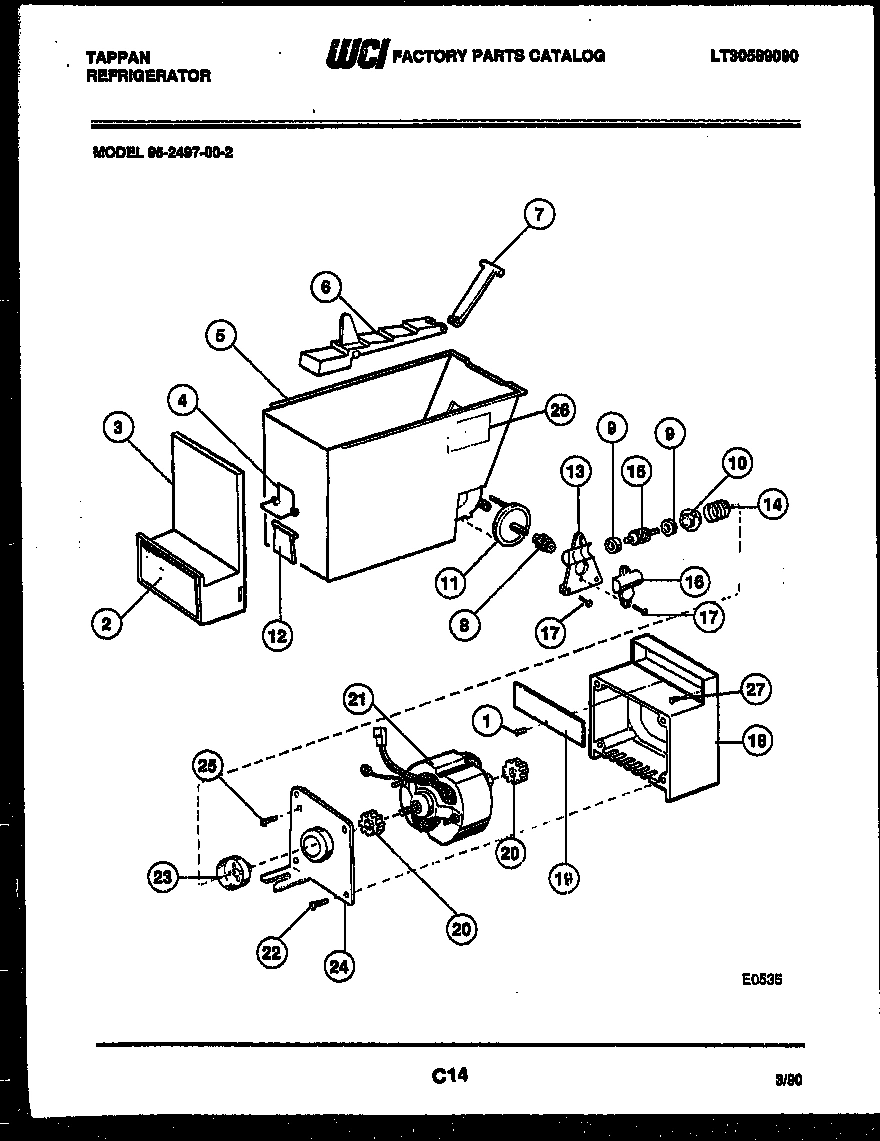

08 - ICE DISPENSER

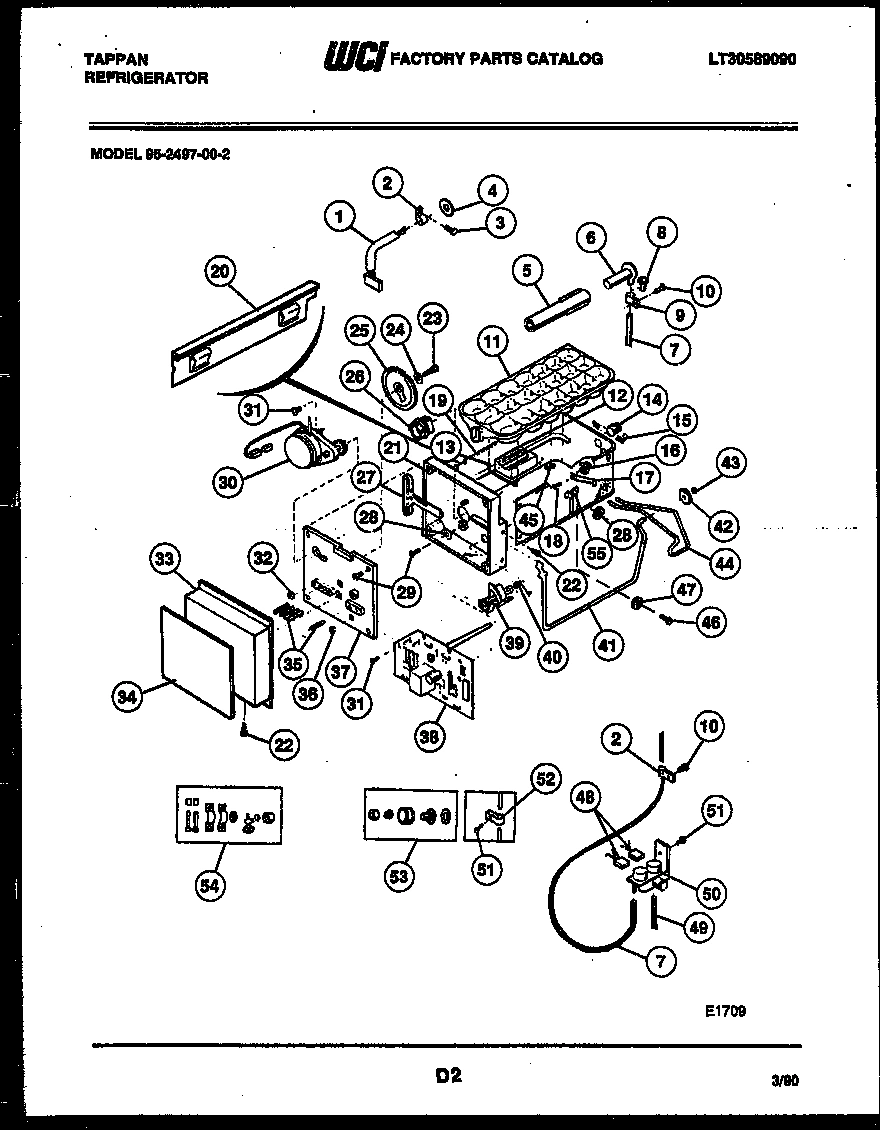

09 - ICE MAKER AND INSTALLATION PARTS

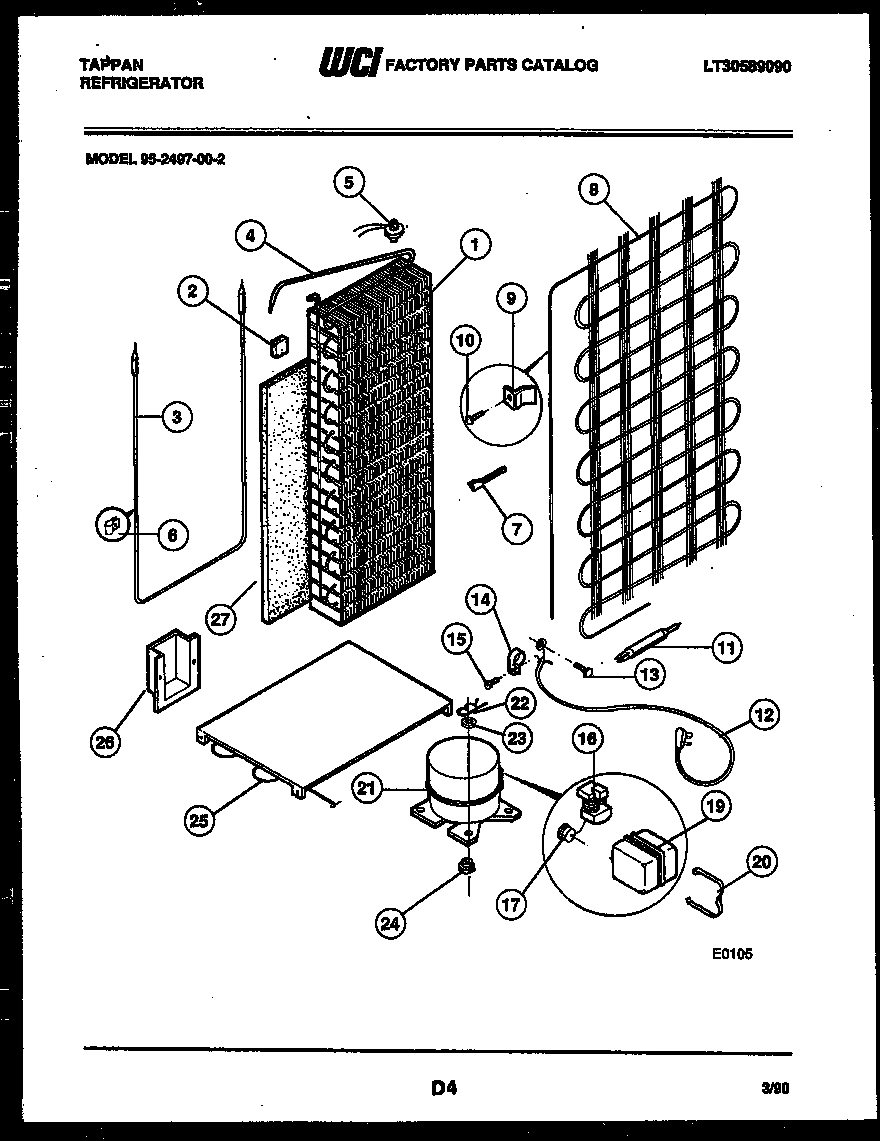

10 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux 95-2497-57-02 REFRIGERATOR
*36843
INSULATION, BULK WCI 5303007739 Contact Us For Availability
*36852
SUPPORT-SPEC BARREL-REFR LIGHT SHIELD (2) WCI 5303001213 Contact Us For Availability
*36852
BUSHING-PROTECTOR-LWR LH HINGE WIRING WCI 5308010374 Contact Us For Availability
*36852
TAPPING-PLATE (2) WCI 5308012296 Contact Us For Availability
*36856
WCI G170910 WCI G170910 Contact Us For Availability
*36859
WCI 5308000808 WCI 5308000808 Contact Us For Availability
*36860
WIRING HARNESS, CONTROLS WCI 5303015098 Contact Us For Availability
*36860
WCI 5308000809 WCI 5308000809 Contact Us For Availability
*36862
WCI G186533-01 WCI G186533-01 Contact Us For Availability
*36865
WCI 3001247 WCI 3001247 Contact Us For Availability
*36871
WCI 5303207333 WCI 5303207333 Contact Us For Availability
*36876
HOT TUBE REPAIR KIT WCI 5300189379 Contact Us For Availability
*36876
WIRING HARNESS-COMPRESSOR & LIGHTS WCI 5308009616 Contact Us For Availability
*36876
INSULATOR-FRZR COIL-TOP WCI 5308009619 Contact Us For Availability
1
NAMEPLATE ASSY WCI 3001312 Contact Us For Availability
1
HINGE COVER-AVOC (2) WCI 5303001664 Contact Us For Availability
1
CHANNEL-RH AND LH WCI G170694 Contact Us For Availability
1
WCI G188233 WCI G188233 Contact Us For Availability
1
WIRING HARNESS-ICE & WATER ICE MAKER WCI 5303001245 Contact Us For Availability
1
EVAPORATOR WCI 5303916605 Contact Us For Availability
2
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
2
BEARING-UPPER HINGE WCI G183139 Contact Us For Availability
2
WCI G171608-08 WCI G171608-08 Contact Us For Availability
2
WCI G175246 WCI G175246 Contact Us For Availability
2
LABEL-ICE CONTAINER WCI 3001171 Contact Us For Availability
2
BLOCK COIL (4) WCI G169493 Contact Us For Availability
3
WCI 5303007568 WCI 5303007568 Contact Us For Availability
3
TRIM-REFRIGERATOR DOOR WCI 3001012 Contact Us For Availability
3
HINGE TOP, RH WCI 5308012934 Contact Us For Availability
3
WCI G172436-16 WCI G172436-16 Contact Us For Availability
3
WCI G182738 WCI G182738 Contact Us For Availability
3
FRONT-ICE CONTAINER WCI 3001160 Contact Us For Availability
4
WASHER-NYLON (2) WCI 5308000186 No Longer Available
4
CLOSER-DOOR WCI 5303200272 Contact Us For Availability
4
WCI 5303001175 WCI 5303001175 Contact Us For Availability
4
WCI 3001710 WCI 3001710 Contact Us For Availability
4
WCI G184853 WCI G184853 Contact Us For Availability
4
WCI 5308017565 WCI 5308017565 Contact Us For Availability
5
SCREW, CLOSER WCI G169729 Contact Us For Availability
5
SHIM-UPPER HINGE (2) WCI 5303001037 Contact Us For Availability
5
WCI G171654-15 WCI G171654-15 Contact Us For Availability
5
WCI 5308017561 WCI 5308017561 Contact Us For Availability
5
WCI G179999 WCI G179999 Contact Us For Availability
5
ICE CONTAINER WCI 3001161 Contact Us For Availability
5
WCI 5308015765 WCI 5308015765 Contact Us For Availability
5A
WCI 3001269 WCI 3001269 Contact Us For Availability
6
WCI 3200473 WCI 3200473 Contact Us For Availability
6
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
6
WCI G171260-15 WCI G171260-15 Contact Us For Availability
6
WCI 5303001260 WCI 5303001260 Contact Us For Availability
6
WCI G177686 WCI G177686 Contact Us For Availability
6
WCI 5303001159 WCI 5303001159 Contact Us For Availability
6
WCI G167363 WCI G167363 Contact Us For Availability
7
WCI G179555-01 WCI G179555-01 Contact Us For Availability
7
COVER-COIL UPPER WCI 5303001222 Contact Us For Availability
7
WCI G169711-04 WCI G169711-04 Contact Us For Availability
7
WCI 5308010380 WCI 5308010380 Contact Us For Availability
7
WCI G185542 WCI G185542 Contact Us For Availability
7
WCI 5317769703 WCI 5317769703 Contact Us For Availability
7A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI 5308000126 Contact Us For Availability
8
WCI G173014-07 WCI G173014-07 Contact Us For Availability
8
MULLION-AVOC WCI 3916445 Contact Us For Availability
8
WCI 5308010332 WCI 5308010332 Contact Us For Availability
8
WCI 5303204878 WCI 5303204878 Contact Us For Availability
8
WCI G174702 WCI G174702 Contact Us For Availability
8
WCI 5303001191 WCI 5303001191 Contact Us For Availability
8
WCI 5300188643 WCI 5300188643 Contact Us For Availability
9
WCI 5308000068 WCI 5308000068 Contact Us For Availability
9
CLIP-MULLION (3) WCI 5300169100 Contact Us For Availability
9
WCI G185567 WCI G185567 Contact Us For Availability
9
WCI G177695 WCI G177695 Contact Us For Availability
9
WCI G169666-01 WCI G169666-01 Contact Us For Availability
9A
WCI 5303001281 WCI 5303001281 Contact Us For Availability
9A
WASHER, NO. 10 EXT TOOTH LOCK (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
10
WCI G171301-14 WCI G171301-14 Contact Us For Availability
10
WCI G174700 WCI G174700 Contact Us For Availability
10
WCI G189278 WCI G189278 Contact Us For Availability
11
TRAY-ICE W/INSUL & RETAINER WCI 5302832432 Contact Us For Availability
11
WCI G169724-04 WCI G169724-04 Contact Us For Availability
11
WCI 5303001276 WCI 5303001276 Contact Us For Availability
11
WCI G185063-01 WCI G185063-01 Contact Us For Availability
11
WCI G177694 WCI G177694 Contact Us For Availability
12
RACK-DOOR (2) WCI 3001005 Contact Us For Availability
12
WCI G169661 WCI G169661 Contact Us For Availability
12
WCI 5303001277 WCI 5303001277 Contact Us For Availability
12
WCI G187106-01 WCI G187106-01 Contact Us For Availability
12
WCI 5317440701 WCI 5317440701 Contact Us For Availability
12
WCI 5303001141 WCI 5303001141 Contact Us For Availability
12
WCI G162549-01 WCI G162549-01 Contact Us For Availability
12A
WCI 5303001280 WCI 5303001280 Contact Us For Availability
12A
LABEL-ACTUATOR BUTTON (NON-ILLUSTRATED) WCI 3001155 Contact Us For Availability
13
SUPPORT-SHELF RH (3) WCI 5303206696 Contact Us For Availability
13
WCI G168625-08 WCI G168625-08 Contact Us For Availability
13
WCI 5308000771 WCI 5308000771 Contact Us For Availability
13
WCI G174411 WCI G174411 Contact Us For Availability
13
WCI G174408 WCI G174408 Contact Us For Availability
13
WCI 5301138379 WCI 5301138379 Contact Us For Availability
14
SUPPORT-SHELF LH (3) WCI 5303206695 Contact Us For Availability
14
HINGE-TOP LH WCI 5303001062 Contact Us For Availability
14
WCI G168986 WCI G168986 Contact Us For Availability
14
WCI 5303001252 WCI 5303001252 Contact Us For Availability
14
WCI G182654-03 WCI G182654-03 Contact Us For Availability
14
WCI G174701 WCI G174701 Contact Us For Availability
14
WCI 5300618683 WCI 5300618683 Contact Us For Availability
15
WCI G175070 WCI G175070 Contact Us For Availability
15
WCI 5303206699 WCI 5303206699 Contact Us For Availability
15
COVER-COIL LOWER WCI 5308017223 Contact Us For Availability
15
WCI G168987 WCI G168987 Contact Us For Availability
15
WCI 5308013429 WCI 5308013429 Contact Us For Availability
15
WCI G182643-01 WCI G182643-01 Contact Us For Availability
15
WCI G174406 WCI G174406 Contact Us For Availability
15
WCI 5303001132 WCI 5303001132 Contact Us For Availability
15A
PLUG-SHORT TEST HOLE (NON-ILLUSTRATED) WCI 5303203044 Contact Us For Availability
16
WCI 5303007173 WCI 5303007173 Contact Us For Availability
16
WCI G179972-01 WCI G179972-01 Contact Us For Availability
16
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
16
SHELF-FREEZER-BOTTOM WCI 5303207191 Contact Us For Availability
16
WCI 5308010379 WCI 5308010379 Contact Us For Availability
16
LABEL-DOOR HOUSING WCI 5317772106 Contact Us For Availability
16
WCI G174412 WCI G174412 Contact Us For Availability
16
WCI 5300174436 WCI 5300174436 Contact Us For Availability
17
DOOR RACK (5) WCI 5303206707 Contact Us For Availability
17
TRIM-SNAP ON (3) WCI 3017910 Contact Us For Availability
17
BRACKET-MOTOR REAR WCI 5303001227 Contact Us For Availability
17
WCI G174414 WCI G174414 Contact Us For Availability
17
WCI 5301121700 WCI 5301121700 Contact Us For Availability
17
WCI 5308017526 WCI 5308017526 Contact Us For Availability
18
WCI 5308000107 WCI 5308000107 Contact Us For Availability
18
SUPPORT-RH (5) WCI 5303206366 Contact Us For Availability
18
BUMPER SWITCH WCI G165376 Contact Us For Availability
18
DAMPER, MEAT KEEPER WCI 5316491203 Contact Us For Availability
18
WCI 5303207192 WCI 5303207192 Contact Us For Availability
18
WCI G177725 WCI G177725 Contact Us For Availability
18
WCI G175019 WCI G175019 Contact Us For Availability
18
WCI 5301121694 WCI 5301121694 Contact Us For Availability
19
SUPPORT-LH (5) WCI 5303206720 Contact Us For Availability
19
WASHER-NYLON-5/16 X 5/8 OD WCI 5303001038 Contact Us For Availability
19
WCI G177710 WCI G177710 Contact Us For Availability
19
WCI 5301138166 WCI 5301138166 Contact Us For Availability
20
BEARING-LOWER HINGE WCI G183138 Contact Us For Availability
20
SHIM-LOWER HINGE (3) WCI 5303001272 Contact Us For Availability
20
WCI G174571-01 WCI G174571-01 Contact Us For Availability
20
WCI 5300157666 WCI 5300157666 Contact Us For Availability
20
WCI G177729 WCI G177729 Contact Us For Availability
20
WCI G177711 WCI G177711 Contact Us For Availability
20
WCI 01124226 WCI 01124226 Contact Us For Availability
20A
WCI G177706-02 WCI G177706-02 Contact Us For Availability
21
WCI G183031-08 WCI G183031-08 Contact Us For Availability
21
HINGE-BOTTOM LH WCI 5303001043 Contact Us For Availability
21
WCI G174556-01 WCI G174556-01 Contact Us For Availability
21
WCI G177724 WCI G177724 Contact Us For Availability
21
MOTOR-ICE DISPENSER RAM WCI 3001111 Contact Us For Availability
21
WCI 5303001143 WCI 5303001143 Contact Us For Availability
21
COMPRESSOR WITH ELECTRICALS WCI 5303916009 Contact Us For Availability
21A
DOOR PLUG-BOTTOM (NON-ILLUSTRATED) WCI G152308-01 Contact Us For Availability
21A
WCI G177706-01 WCI G177706-01 Contact Us For Availability
21A
CAPACITOR ASSY (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
22
HANDLE-END BOTTOM WCI G175810 Contact Us For Availability
22
SCREW-HINGE MTG (4) WCI 5303001041 Contact Us For Availability
22
WCI 5308950104 WCI 5308950104 Contact Us For Availability
22
BRACKET-MOTOR FRONT WCI 5303001226 Contact Us For Availability
22
WCI G182929 WCI G182929 Contact Us For Availability
22
WCI 5306588927 WCI 5306588927 Contact Us For Availability
22
CLIP-COMPR (4) WCI 5308003596 Contact Us For Availability
23
HANDLE-REFR DOOR WCI 3001013 Contact Us For Availability
23
WCI G163938 WCI G163938 Contact Us For Availability
23
WCI 5303208909 WCI 5303208909 Contact Us For Availability
23
WCI G174409 WCI G174409 Contact Us For Availability
23
WCI 5303001119 WCI 5303001119 Contact Us For Availability
23
WASHER-COMPR (4) WCI G164634 Contact Us For Availability
23A
CLIP-LIGHT SW CABLE (2) WCI 08009775 Contact Us For Availability
24
RING, ORIFICE WCI 5308000124 Contact Us For Availability
24
WCI G185566 WCI G185566 Contact Us For Availability
24
WCI G180004-02 WCI G180004-02 Contact Us For Availability
24
WCI G174403 WCI G174403 Contact Us For Availability
24
WCI 5303001117 WCI 5303001117 Contact Us For Availability
25
NUT-SELF THREADING (12) WCI G188218 Contact Us For Availability
25
WCI G175809 WCI G175809 Contact Us For Availability
25
SCREW-8-32 X 9/16 WCI 5303001230 Contact Us For Availability
25
WCI 5303204887 WCI 5303204887 Contact Us For Availability
25
WCI 5301124984 WCI 5301124984 Contact Us For Availability
25
DEFROST PLATE WCI 5308017118 Contact Us For Availability
25A
WCI G171111 WCI G171111 Contact Us For Availability
25C
WCI G171123 WCI G171123 Contact Us For Availability
26
WCI 5308000847 No Longer Available
26
WCI G186058 WCI G186058 Contact Us For Availability
26
WCI 5308015764 WCI 5308015764 Contact Us For Availability
26
WCI G185226 WCI G185226 Contact Us For Availability
26
LABEL-IM DISPENSER WCI 5303016895 Contact Us For Availability
26
WCI 5301124972 WCI 5301124972 Contact Us For Availability
26
WCI G183584 WCI G183584 Contact Us For Availability
27
GRILLE WCI 5303208904 Contact Us For Availability
27
WCI G186057 WCI G186057 Contact Us For Availability
27
WCI G177742 WCI G177742 Contact Us For Availability
27
WCI 5303001136 WCI 5303001136 Contact Us For Availability
27
WCI G169641 WCI G169641 Contact Us For Availability
28
DEFROST PAN WCI 5303001026 Contact Us For Availability
28
WCI G177641 WCI G177641 Contact Us For Availability
28
WCI 5301124979 WCI 5301124979 Contact Us For Availability
29
WCI G184666 WCI G184666 Contact Us For Availability
29
WCI 5308010350 WCI 5308010350 Contact Us For Availability
30
ROLLER ASSY-FRONT (2) WCI 5308000118 Contact Us For Availability
30
SCREW-DIVIDER SUPTS (2) WCI 3001212 Contact Us For Availability
30
WCI 5301124982 WCI 5301124982 Contact Us For Availability
31
SCREW-ROLLER MTG (2) WCI 5308017044 Contact Us For Availability
31
WCI G163105 WCI G163105 Contact Us For Availability
31
WCI 5301124507 WCI 5301124507 Contact Us For Availability
32
SCREW-ROLLER ADJ (2) WCI 5308009568 Contact Us For Availability
32
WCI G187527 WCI G187527 Contact Us For Availability
32
NUT-HEX 10-32 LH THD WCI 5303001118 Contact Us For Availability
33
TUBE-RUBBER (4) WCI 5303001198 Contact Us For Availability
33
WCI G175103 WCI G175103 Contact Us For Availability
33
WCI 5303001148 WCI 5303001148 Contact Us For Availability
33A
WCI G187533 WCI G187533 Contact Us For Availability
34
SPEED NUT (2) WCI 5300077210 Contact Us For Availability
34
LABEL-ICE MAKER WCI 3001151 Contact Us For Availability
35
PIN-REAR ROLLER (2) WCI 5308000266 Contact Us For Availability
35
WCI 5301124987 WCI 5301124987 Contact Us For Availability
36
WCI 5303001030 WCI 5303001030 Contact Us For Availability
36
WCI 5308010348 WCI 5308010348 Contact Us For Availability
37
PUSH NUT (2) WCI 5303001028 Contact Us For Availability
37
WCI 5301124981 WCI 5301124981 Contact Us For Availability
38
WCI 5308000853 WCI 5308000853 Contact Us For Availability
38
WCI 5308011238 WCI 5308011238 Contact Us For Availability
39
TWIN NUT-SPECIAL (4) WCI 5303001273 Contact Us For Availability
39
WCI 5301124983 WCI 5301124983 Contact Us For Availability
40
SHOULDER PIN (2) WCI 5308000013 Contact Us For Availability
40
WCI 5303001139 WCI 5303001139 Contact Us For Availability
41
BRACKET-COIL COVER WCI 5308000738 Contact Us For Availability
41
SENSING ARM WCI 5301124988 Contact Us For Availability
42
SUPPORT-COIL COVER (4) WCI 5303001250 Contact Us For Availability
42
WCI 5301123459 WCI 5301123459 Contact Us For Availability
43
WCI 5308010353 WCI 5308010353 Contact Us For Availability
43
WCI 5301138171 WCI 5301138171 Contact Us For Availability
44
HINGE-BOTTOM-RH WCI 5303001271 Contact Us For Availability
44
WCI 5301138222 WCI 5301138222 Contact Us For Availability
45
SUPPORT-COIL COVER WCI 5308000097 Contact Us For Availability
45
WCI 5303001125 WCI 5303001125 Contact Us For Availability
46
FERRULE-INNER (2) WCI 5303001286 Contact Us For Availability
46
SCREW-ICE MAKER MTG WCI 5308012819 Contact Us For Availability
47
WASHER-SCREW WCI 5303001216 Contact Us For Availability
47
FERRULE-OUTER (2) WCI 5303001287 Contact Us For Availability
48
WCI 5308010289 WCI 5308010289 Contact Us For Availability
48
WIRING HARNESS-ICE & WATER (LOWER) WCI 5308017050 Contact Us For Availability
48A
NUT-NYLON (2) (NON-ILLUSTRATED) WCI 5308000200 Contact Us For Availability
49
COVER-BOTTOM HINGE WCI 5317465801 Contact Us For Availability
49B
PUSH NUT (NON-ILLUSTRATED) WCI 5308010293 Contact Us For Availability
50
WATER VALVE-DUAL SOLENOID WCI 5308017599 Contact Us For Availability
50A
CAP-WATER VALVE (NON-ILLUSTRATED) WCI 5303015102 Contact Us For Availability
51
LIGHT SHIELD WCI 3001177 Contact Us For Availability
53
WATER SUPPLY ADAPTER KIT WCI 3206360 Contact Us For Availability
53
WCI 3203855 WCI 3203855 Contact Us For Availability
54
WCI 5308000247 WCI 5308000247 Contact Us For Availability
55
WCI 5308012818 WCI 5308012818 Contact Us For Availability
× ![]()
