Model Electrolux 95-2191-32-00 REFRIGERATOR – Common Parts & Diagrams

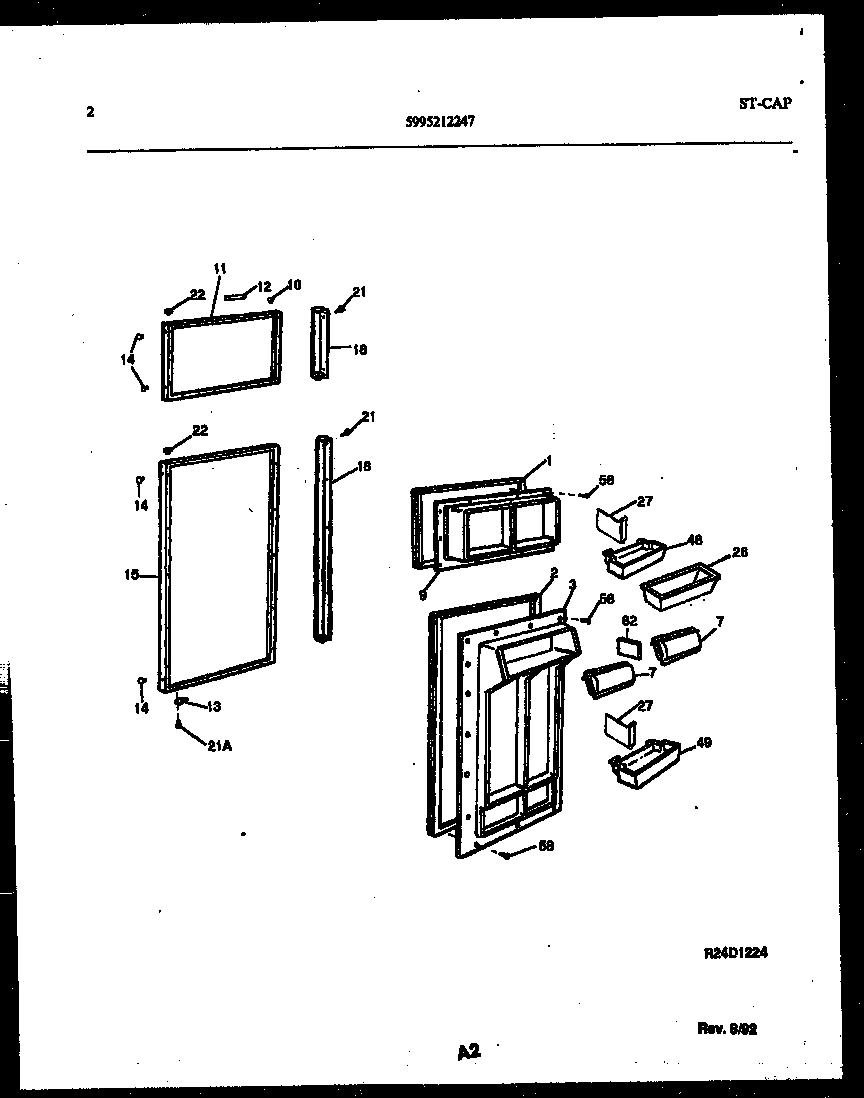

02 - DOOR PARTS

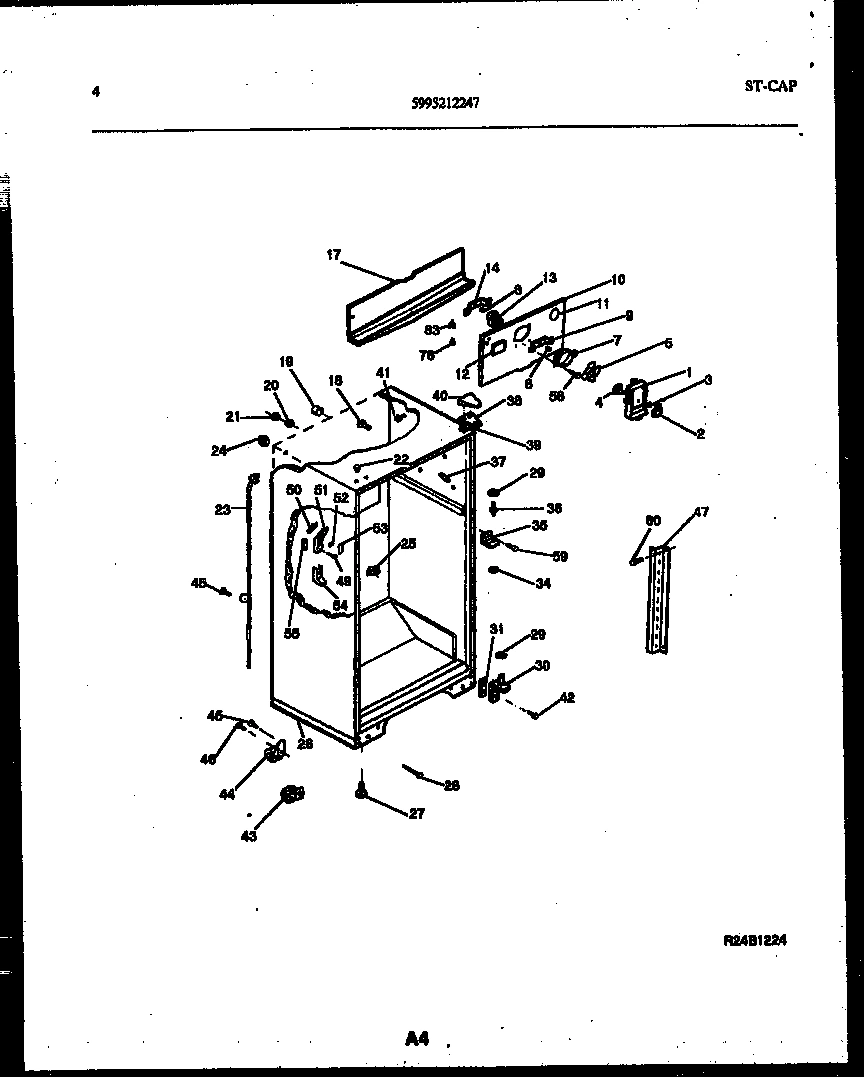

03 - CABINET PARTS

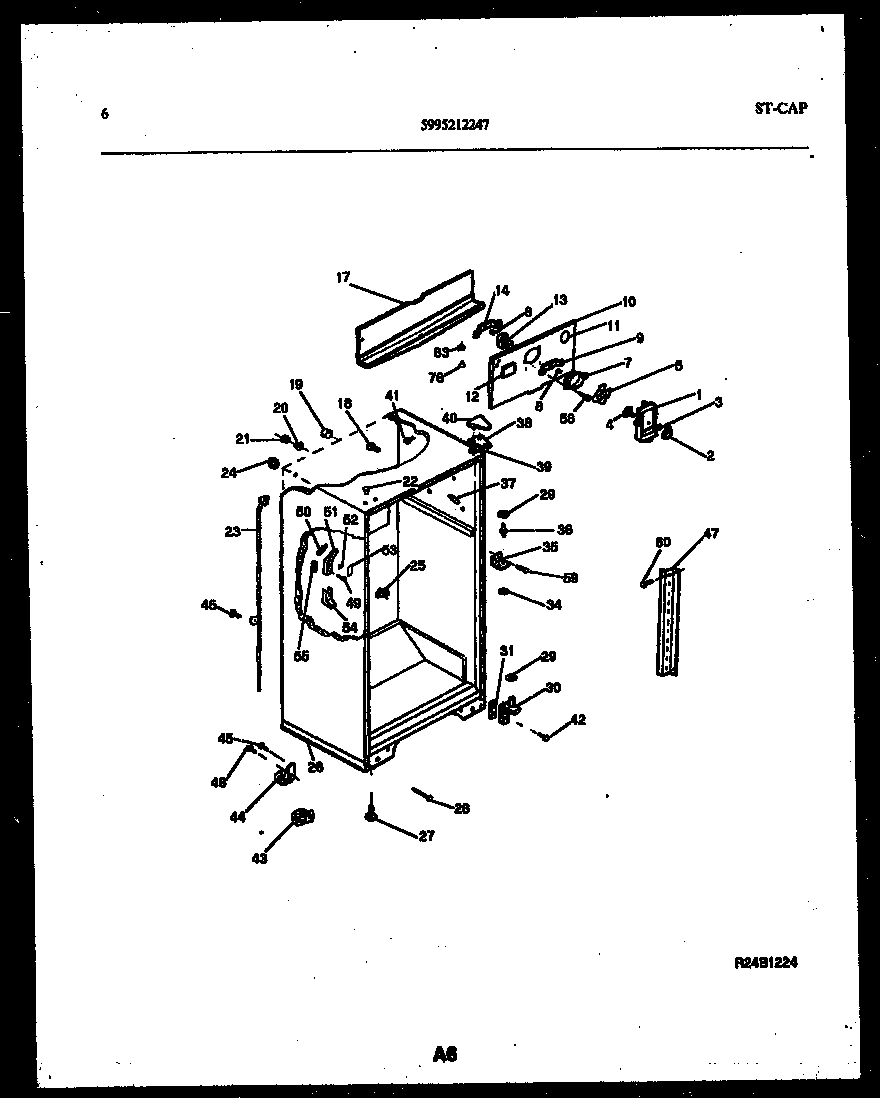

04 - CABINET PARTS

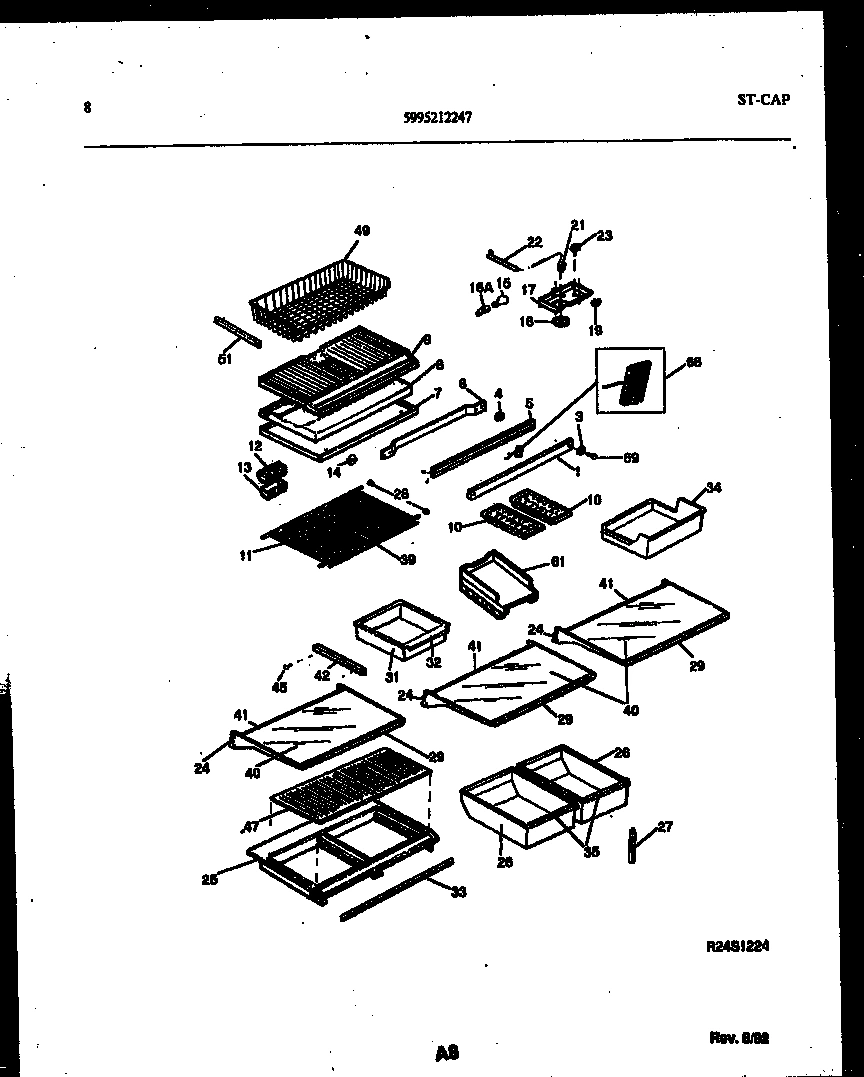

05 - SHELVES AND SUPPORTS

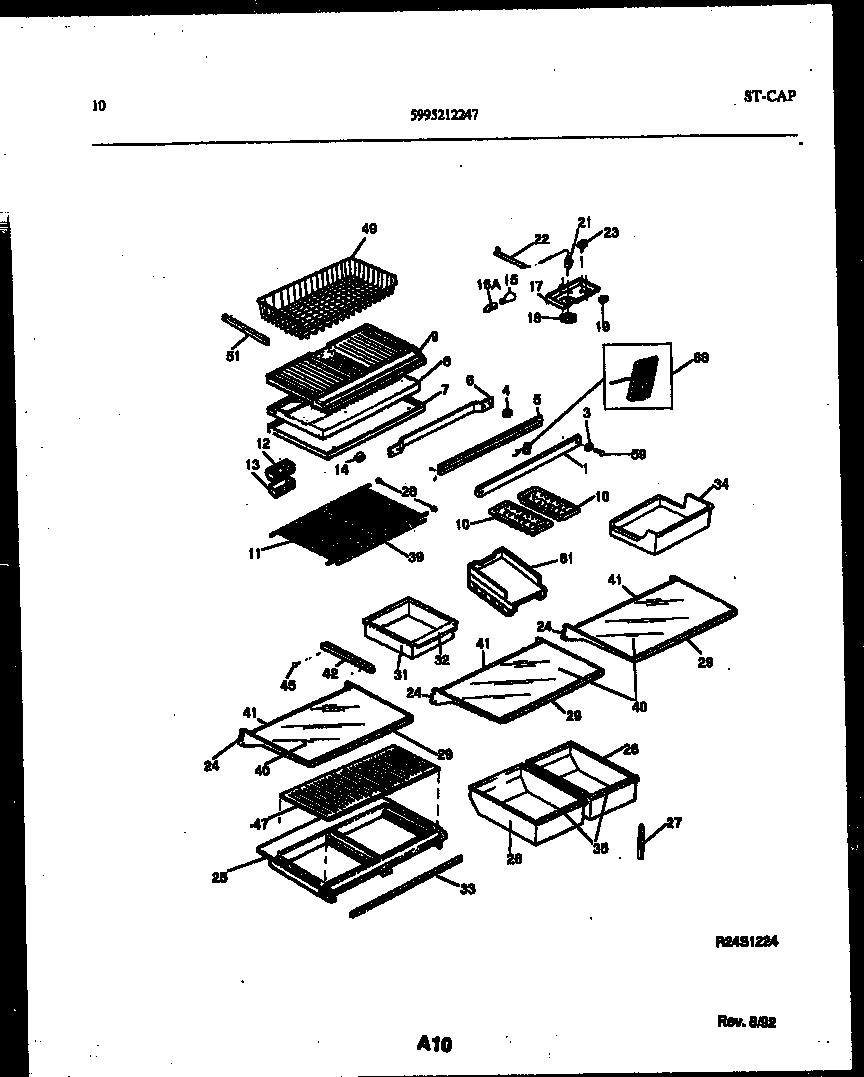

06 - SHELVES AND SUPPORTS

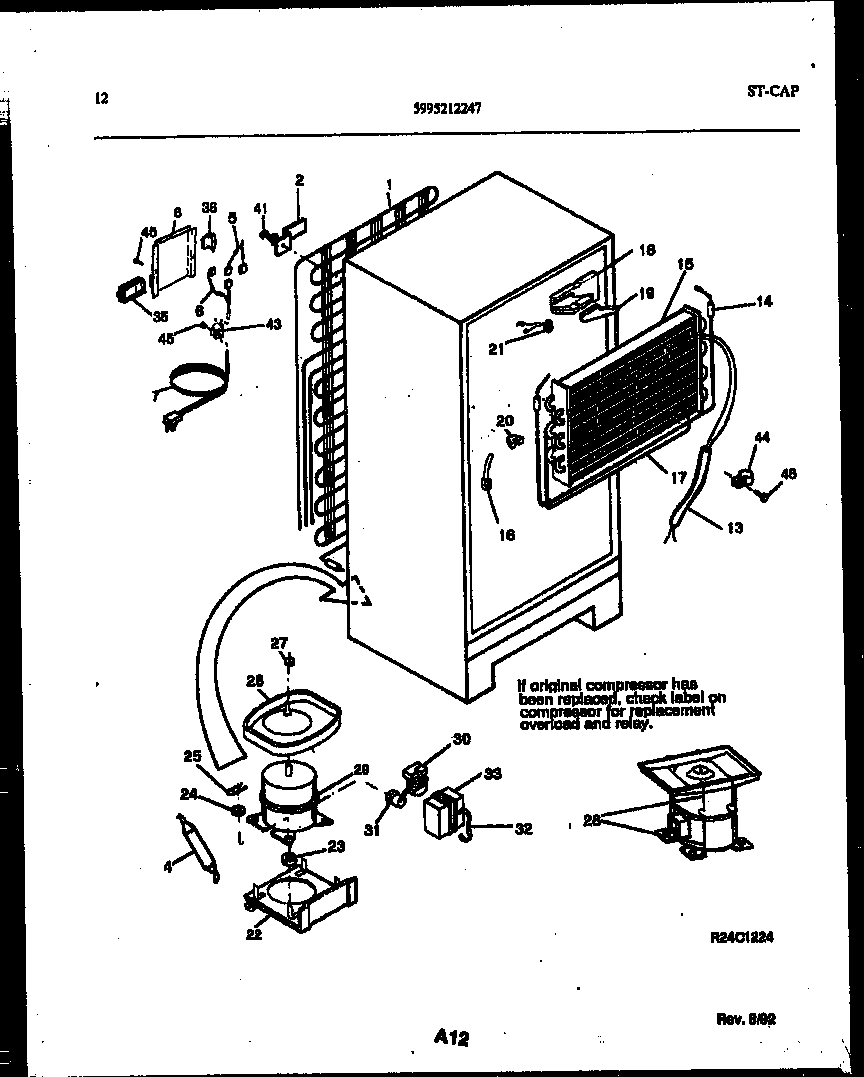

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux 95-2191-32-00 REFRIGERATOR
*60773
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*60779
WCI 5303211925 WCI 5303211925 Contact Us For Availability
*60779
WCI 5303272424 WCI 5303272424 Contact Us For Availability
*60782
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
COVER-FAN WCI 5303272419 Contact Us For Availability
1
WCI 5303272430 WCI 5303272430 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
1A
WCI 5303272420 WCI 5303272420 Contact Us For Availability
1B
WCI 5303272421 WCI 5303272421 Contact Us For Availability
2
WCI 5303272422 WCI 5303272422 Contact Us For Availability
2
BRACKET, COND MTG WCI 5303001342 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
NUT, PUSH WCI 5303001028 Contact Us For Availability
3
WCI 5303206754 WCI 5303206754 Contact Us For Availability
4
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
4
WCI 5303200464 WCI 5303200464 Contact Us For Availability
5
WCI 5303210351 WCI 5303210351 Contact Us For Availability
5
WIRING HARNESS, CONT/DOOR AJAR WCI 5303211926 Contact Us For Availability
6
WCI 5308010008 WCI 5308010008 Contact Us For Availability
6
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3019038 WCI 3019038 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
WCI 5303019039 WCI 5303019039 Contact Us For Availability
8
WCI 5303211914 WCI 5303211914 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
BOTTOM PANEL-FREEZER WCI 5303210641 Contact Us For Availability
10
WCI 5308013665 WCI 5308013665 Contact Us For Availability
10A
NUT, ``U`` TYPE, NO. 8(A), EVAP COVER, (2) (N WCI 5303209814 Contact Us For Availability
11
WCI 5303206648 WCI 5303206648 Contact Us For Availability
12
WCI 5308013636 WCI 5308013636 Contact Us For Availability
12
WCI 5308014667 WCI 5308014667 Contact Us For Availability
12B
WCI 5303200590 WCI 5303200590 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
WCI 5303271578 WCI 5303271578 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
17
WCI 5303272425 WCI 5303272425 Contact Us For Availability
18
SUPPORT, EVAP COVER, (2) WCI 5308000097 Contact Us For Availability
18
WCI 5303272423 WCI 5303272423 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 5303272426 WCI 5303272426 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG-BUTTON,BLACK ,UPR HINGE HOLES WCI 5303272427 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
DRAIN TUBE, W/ SEAL RING WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
FRAME, FULL SHELF, CANTILEVER WCI 5303209276 Contact Us For Availability
24
FRAME-MEAT KPR SHELF, CANTILEVER WCI 5303211349 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
24A
CLIP-CANTILEVER SHLF (NON-ILLUSTRATED) WCI 5300170910 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
COVER-CRISPER PAN WCI 5303272414 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
WCI 5303001361 WCI 5303001361 Contact Us For Availability
25A
WCI 5303272415 WCI 5303272415 Contact Us For Availability
26
WCI 5303212487 WCI 5303212487 Contact Us For Availability
26
WCI 5303272409 WCI 5303272409 Contact Us For Availability
26
WCI 5303272413 WCI 5303272413 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
26A
CONTROL-HUMIDITY (NON-ILLUSTRATED) WCI 5303209280 Contact Us For Availability
27
SCREW-LEVELING WCI 5303212922 Contact Us For Availability
27
WCI 5303206505 WCI 5303206505 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
WCI 5303271412 WCI 5303271412 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
TRIM-REFR SHELF, (3) WCI 5303272407 Contact Us For Availability
29
COMPRESSOR, W/ELEC, SERVICE WCI 5303916012 Contact Us For Availability
29A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/ HINGE PIN WCI 5303212489 Contact Us For Availability
30A
WCI 5303212597 WCI 5303212597 Contact Us For Availability
30B
WCI 5303212596 WCI 5303212596 Contact Us For Availability
31
WCI 5303212488 WCI 5303212488 Contact Us For Availability
31
WCI 5303280682 WCI 5303280682 Contact Us For Availability
31
WCI 5303272819 WCI 5303272819 Contact Us For Availability
32
WCI 5303272417 WCI 5303272417 Contact Us For Availability
33
GASKET - CRISPER COVER WCI 5303200329 Contact Us For Availability
33
GASKET-CRISPER COVER WCI 5308009647 Contact Us For Availability
34
WCI 5308000186 No Longer Available
35
WCI 5303272429 WCI 5303272429 Contact Us For Availability
35
WCI 5303272410 WCI 5303272410 Contact Us For Availability
35
WCI 5303272412 WCI 5303272412 Contact Us For Availability
35
WCI 5303211915 WCI 5303211915 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
36
WCI 5303211916 WCI 5303211916 Contact Us For Availability
36A
SCREW-TRANSFORMER, CR PAN HEAD, 6-20(AB) X 1/ WCI 5303212893 Contact Us For Availability
37
TRIM-CABINET CORNER, BLACK, (4) WCI 5303272428 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
39
TRIM-FRZR SHELF WCI 5303272405 Contact Us For Availability
40
COVER-UPPER HINGE, BLACK WCI 5303272392 Contact Us For Availability
40
SHELF-GLASS, (3) WCI 5303272406 Contact Us For Availability
40A
WCI 5303209274 WCI 5303209274 Contact Us For Availability
41
TRIM,FULL SHELF (SNAP,ON REAR) WCI 5303210045 Contact Us For Availability
41A
WCI 5303211351 WCI 5303211351 Contact Us For Availability
42
HANGER, MEAT PAN, LH WCI 5303210016 Contact Us For Availability
42A
HANGER, MEAT PAN, RH (NON ILLUSTRATED) WCI 5303210017 Contact Us For Availability
43
WCI 5303212490 WCI 5303212490 Contact Us For Availability
44
WCI 5308009773 WCI 5308009773 Contact Us For Availability
45
WCI 08014528 WCI 08014528 Contact Us For Availability
46
WCI 5308009762 WCI 5308009762 Contact Us For Availability
47
WCI 5308000302 WCI 5308000302 Contact Us For Availability
47
WCI 5303272416 WCI 5303272416 Contact Us For Availability
48
BIN-DOOR, 2 LITER, (6) WCI 5303280853 Contact Us For Availability
49
WCI 5303280842 WCI 5303280842 Contact Us For Availability
49
WCI 5308016568 WCI 5308016568 Contact Us For Availability
49
BASKET-SLIDING, FULL, FRZR WCI 5303206649 Contact Us For Availability
50
INSULATION-AIR DUCT, UPPER WCI 5308009765 Contact Us For Availability
51
WCI 3203820 WCI 3203820 Contact Us For Availability
51
WCI 5303206521 WCI 5303206521 Contact Us For Availability
51A
HANGER-BASKET, LH (NON-ILLUSTRATED) WCI 5303206522 Contact Us For Availability
52
CONTROL-DAMPER, MEAT KPR DUCT WCI 5303001445 Contact Us For Availability
53
WCI 5303280963 WCI 5303280963 Contact Us For Availability
54
DUCT-MEAT KEEPER, LOWER WCI 5303001443 Contact Us For Availability
55
INSULATION-AIR DUCT, LOWER WCI 5308009764 Contact Us For Availability
59
WCI 5308012258 WCI 5308012258 Contact Us For Availability
61
WCI 5318609501 WCI 5318609501 Contact Us For Availability
62
WCI 5303275673 WCI 5303275673 Contact Us For Availability
68
WCI 5303211924 WCI 5303211924 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
