Model Electrolux 95-2190-32-01 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

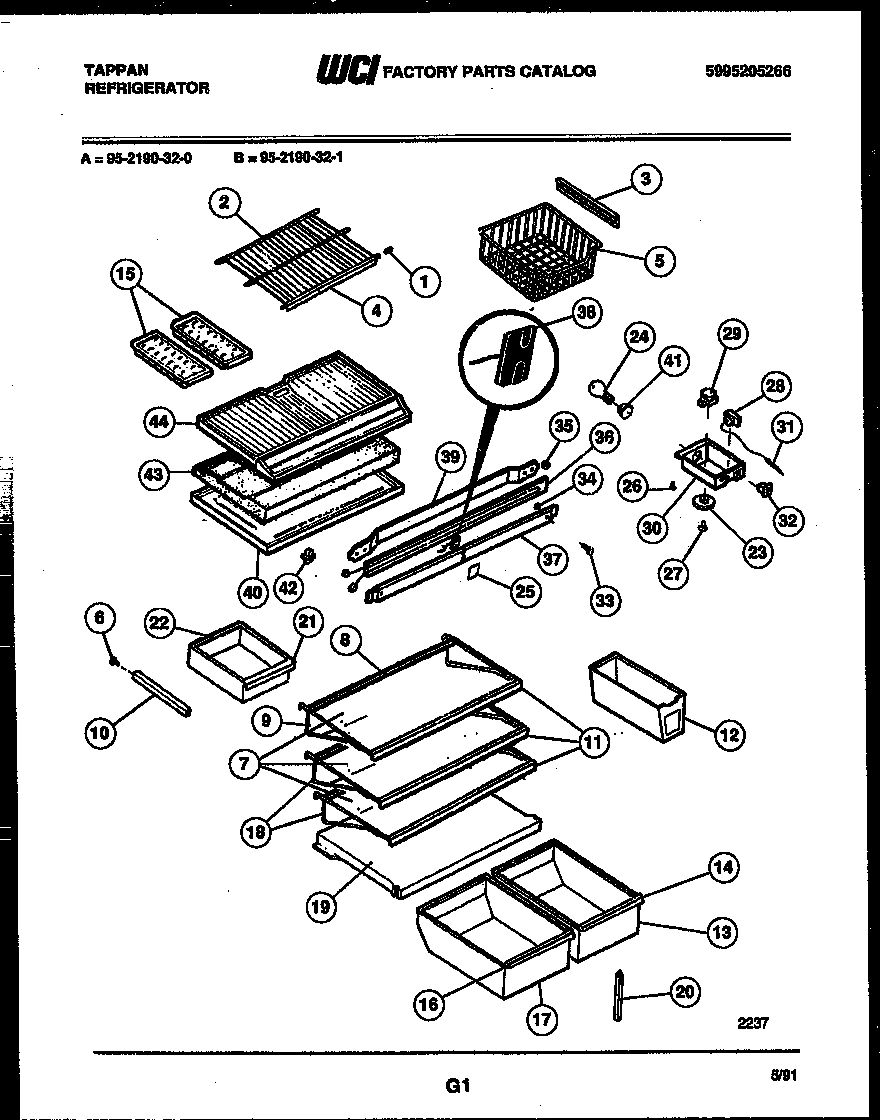

04 - SHELVES AND SUPPORTS

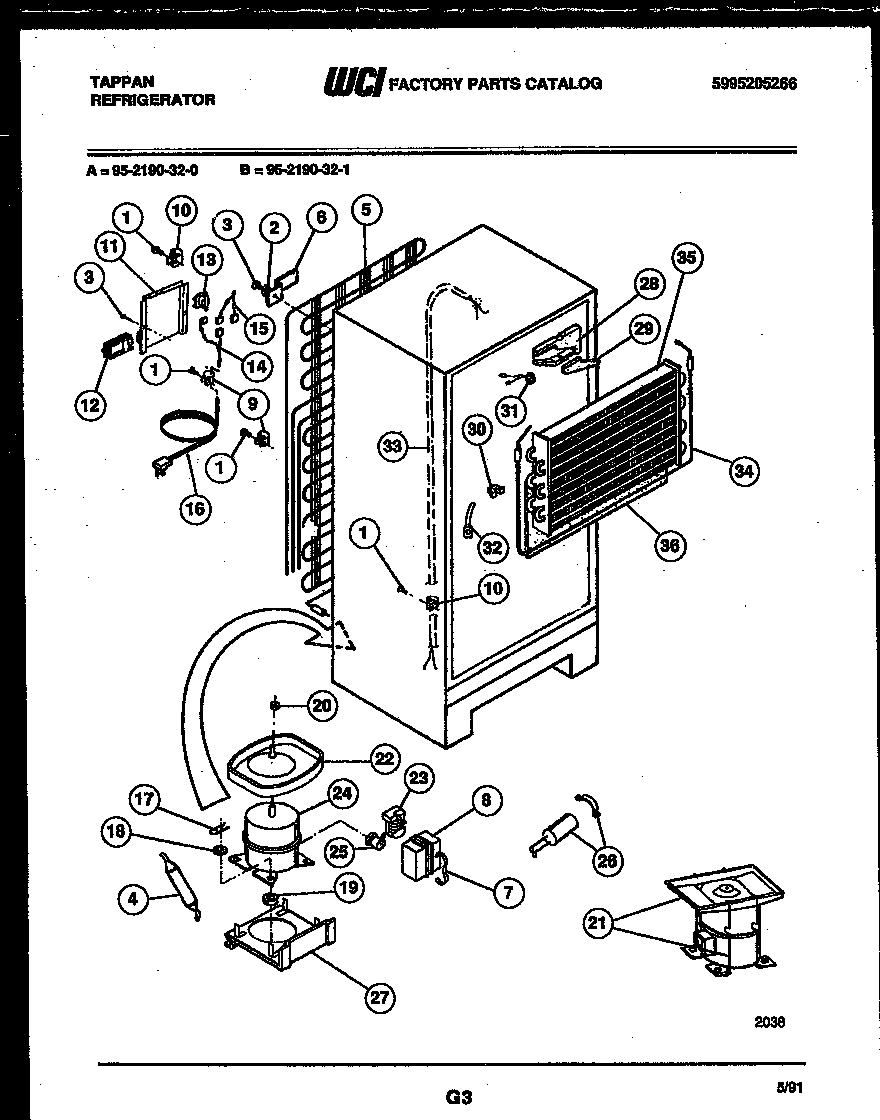

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux 95-2190-32-01 REFRIGERATOR
*50997
BUTTON-PLUG (3) WCI 5308016571 Contact Us For Availability
*51013
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
1
CAP PROTECTOR (2) WCI 3201150 No Longer Available
2
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
2
WCI 5303206648 WCI 5303206648 Contact Us For Availability
2
WASHER-NO. 10 EXT TOOTH LOCK (2) WCI 5308009617 Contact Us For Availability
3
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
3
WCI 5303206521 WCI 5303206521 Contact Us For Availability
3A
WCI 5303206522 WCI 5303206522 Contact Us For Availability
4
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
4
WCI 5303272405 WCI 5303272405 Contact Us For Availability
5
WASHER, NYLON WCI 5308000186 Contact Us For Availability
5
WCI 5303206649 WCI 5303206649 Contact Us For Availability
5
WCI 5300163133 WCI 5300163133 Contact Us For Availability
6
SUPPORT DOOR RACK RH (4) WCI 5317828701 Contact Us For Availability
6
WCI 5303212489 WCI 5303212489 Contact Us For Availability
6
SCREW 8 X 1/2 (2) WCI 08014528 Contact Us For Availability
6
BRACKET-CONDENSER (4) WCI 5303001342 Contact Us For Availability
6A
SUPPORT DOOR RACK LH (4) WCI 5317828401 Contact Us For Availability
6A
GUSSET-TAPPING PLATE RH (NON-ILLUSTRATED) WCI 5303212597 Contact Us For Availability
6B
GUSSET-TAPPING PLATE (LH) (NON-ILLUSTRATED) WCI 5303212596 Contact Us For Availability
7
WCI 5303272406 WCI 5303272406 Contact Us For Availability
7
WCI 5303211232 WCI 5303211232 Contact Us For Availability
7A
RETAINER-GLASS (3) WCI 5303209274 Contact Us For Availability
8
WCI 5303212488 WCI 5303212488 Contact Us For Availability
8
REAR-TRIM SHELF (3) WCI 5303210045 Contact Us For Availability
8
WCI 5303209254 WCI 5303209254 Contact Us For Availability
9
WCI 5303212490 WCI 5303212490 Contact Us For Availability
9
WCI 5303211349 WCI 5303211349 Contact Us For Availability
10
BOLT-ROLLER ADJ (2) WCI 5303271412 Contact Us For Availability
10
HANGER, MEAT PAN, LH WCI 5303210016 Contact Us For Availability
10
WCI 53080000133 WCI 53080000133 Contact Us For Availability
10A
HANGER-MEAT PAN RH WCI 5303210017 Contact Us For Availability
11
WCI 5308009773 WCI 5308009773 Contact Us For Availability
11
WCI 5303272407 WCI 5303272407 Contact Us For Availability
11
WCI 5303211914 WCI 5303211914 Contact Us For Availability
12
EGG-CONTAINER WCI 5303272408 Contact Us For Availability
12
WCI 5303211915 WCI 5303211915 Contact Us For Availability
12A
SCREW 6-20AB X 1/2`` (NON-ILLUSTRATED) WCI 5303212893 Contact Us For Availability
13
BOLT-ROLLER ADJ (2) WCI 5308009762 Contact Us For Availability
13
WCI 5303272409 WCI 5303272409 Contact Us For Availability
13
TRANSFORMER-DOOR AJAR WCI 5303211916 Contact Us For Availability
14
WCI 5308000184 WCI 5308000184 Contact Us For Availability
14
TRIM-PAN CRISPER RH WCI 5303272410 Contact Us For Availability
14
HARNESS-COMPRESSOR WCI 5303001347 Contact Us For Availability
15
WCI 5303001448 WCI 5303001448 Contact Us For Availability
15
HARNESS-DIVIDER WCI 5303211926 Contact Us For Availability
16
AIR DEFLECTOR WCI 5308014667 Contact Us For Availability
16
TRIM-PAN CRISPER LH WCI 5303272412 Contact Us For Availability
16
WCI 5316254901 WCI 5316254901 Contact Us For Availability
16A
EXTENSION & INSULATION AIR DEFLECTOR (NON-ILL WCI 5303200590 Contact Us For Availability
17
BUTTON - DECORATIVE PLUG WCI 5308013636 Contact Us For Availability
17
TRIM-PAN CRISPER LH WCI 5303272413 Contact Us For Availability
17
CLIP-COMP MTG (4) WCI 5308003596 Contact Us For Availability
18
WCI 5303209276 WCI 5303209276 Contact Us For Availability
18
WASHER-COMP MTG (4) WCI 5308003633 Contact Us For Availability
19
WCI 5303272419 WCI 5303272419 Contact Us For Availability
19
WCI 5303272414 WCI 5303272414 Contact Us For Availability
19A
WCI 5303272420 WCI 5303272420 Contact Us For Availability
19A
WCI 5308009647 WCI 5308009647 Contact Us For Availability
19B
WCI 5303272421 WCI 5303272421 Contact Us For Availability
19B
GASKET-CRISPER COVER (NON-ILLUSTRATED) WCI 5303200329 Contact Us For Availability
19C
CONTROL-HUMIDITY (NON-ILLUSTRATED) WCI 5303209280 Contact Us For Availability
19D
WCI 5303272415 WCI 5303272415 Contact Us For Availability
19E
GLASS-CRISPER COVER (NON-ILLUSTRATED) WCI 5303272416 Contact Us For Availability
20
WCI 5303001331 WCI 5303001331 Contact Us For Availability
20
ADJ-CRISPER COVER SUPPORT WCI 5303206505 Contact Us For Availability
20
NUT-LOCK WCI 5303001348 Contact Us For Availability
21
PAN DEFROST-KIT-RETAINER WCI 5303916001 Contact Us For Availability
21
WCI 5303001028 WCI 5303001028 Contact Us For Availability
21
WCI 5303272417 WCI 5303272417 Contact Us For Availability
22
WCI 5303272422 WCI 5303272422 Contact Us For Availability
22
WCI 5303272418 WCI 5303272418 Contact Us For Availability
22
PAN DEFROST-SERVICE COMP ONLY MODEL B WCI 5300184715 Contact Us For Availability
22A
PAN DEFROST-ORIGINAL COMP WCI 5300171129 Contact Us For Availability
23
WCI 5303007173 WCI 5303007173 Contact Us For Availability
23
CHANNEL-SHELF (2) WCI 5308000302 Contact Us For Availability
23
KNOB-COLD CONTROL WCI 5303272423 Contact Us For Availability
24
WCI 5303916012 WCI 5303916012 Contact Us For Availability
25
LABEL-DOOR AJAR WCI 5303272424 Contact Us For Availability
25
WCI 5303270294 WCI 5303270294 Contact Us For Availability
26
WCI 5303001286 WCI 5303001286 Contact Us For Availability
26
CAPACITOR WCI 5303916391 Contact Us For Availability
27
WCI 5303001287 WCI 5303001287 Contact Us For Availability
27
WCI 5303001260 WCI 5303001260 Contact Us For Availability
27
PLATE-COMPRESSOR MTG WCI 5308013663 Contact Us For Availability
28
WCI 5303272427 WCI 5303272427 Contact Us For Availability
28
COLD CONTROL WCI 5303018894 Contact Us For Availability
28
BLOCK INSULATION-RH WCI 5308013648 Contact Us For Availability
29
PLUG-INSULATION RH WCI 5303007287 Contact Us For Availability
30
WCI 5303272428 WCI 5303272428 Contact Us For Availability
30
CONTROL BOX WCI 5303272425 Contact Us For Availability
30
BLOCK INSULATION-LH WCI 5308017227 Contact Us For Availability
31
WCI 5303212487 WCI 5303212487 Contact Us For Availability
31
HOUSING - CONTROL CAP TUBE WCI 3018891 Contact Us For Availability
32
WCI 5308000056 WCI 5308000056 Contact Us For Availability
32
SWITCH-ROCKER WCI 5303272426 Contact Us For Availability
33
DRAIN TUBE & RING SEAL WCI 5303210377 Contact Us For Availability
33
WCI 5308012258 WCI 5308012258 Contact Us For Availability
33
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
34
RING - SEAL WCI 5303207353 Contact Us For Availability
34
WASHER-NO. 10 STEEL (2) WCI 5303206754 Contact Us For Availability
35
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
35
EVAPORATOR WCI 5303271578 Contact Us For Availability
36
INSULATOR, PLASTIC WCI 5316651102 Contact Us For Availability
36
PIN, PUSH, (2) WCI 5303001361 Contact Us For Availability
36
WCI 5303210351 WCI 5303210351 Contact Us For Availability
37
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
37
WCI 5303272430 WCI 5303272430 Contact Us For Availability
38
WCI 5308000107 WCI 5308000107 Contact Us For Availability
38
WCI 5303211924 WCI 5303211924 Contact Us For Availability
38A
RETAINER - SENSOR (NON-ILLUSTRATED) WCI 5303211925 Contact Us For Availability
39
STRAP-MULLION WCI 5308010008 Contact Us For Availability
40
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
40
TOP, REFRIGERATOR WCI 3019038 Contact Us For Availability
40A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
41
WCI 5303205119 WCI 5303205119 Contact Us For Availability
43
WCI 530309039 WCI 530309039 Contact Us For Availability
44
COVER, COIL WCI 5308013665 Contact Us For Availability
44
BOTTOM, FREEZER WCI 5303210641 Contact Us For Availability
44A
NUT-``U`` TYPE (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
45
WCI 5303001198 WCI 5303001198 Contact Us For Availability
48
WCI 5303272429 WCI 5303272429 Contact Us For Availability
49
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
50
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
× ![]()
