Model Electrolux 95-2187-57-06 REFRIGERATOR – Common Parts & Diagrams

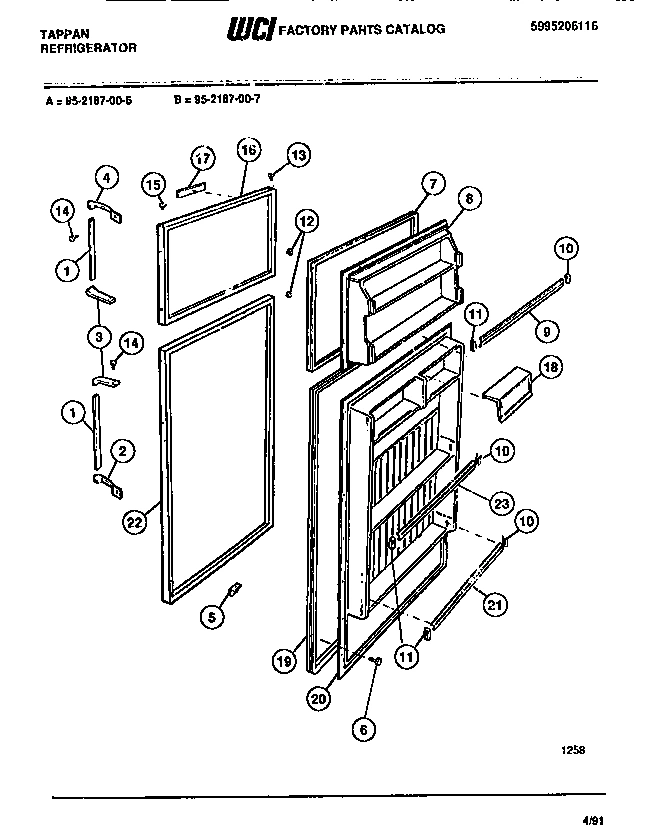

02 - DOOR SECTION

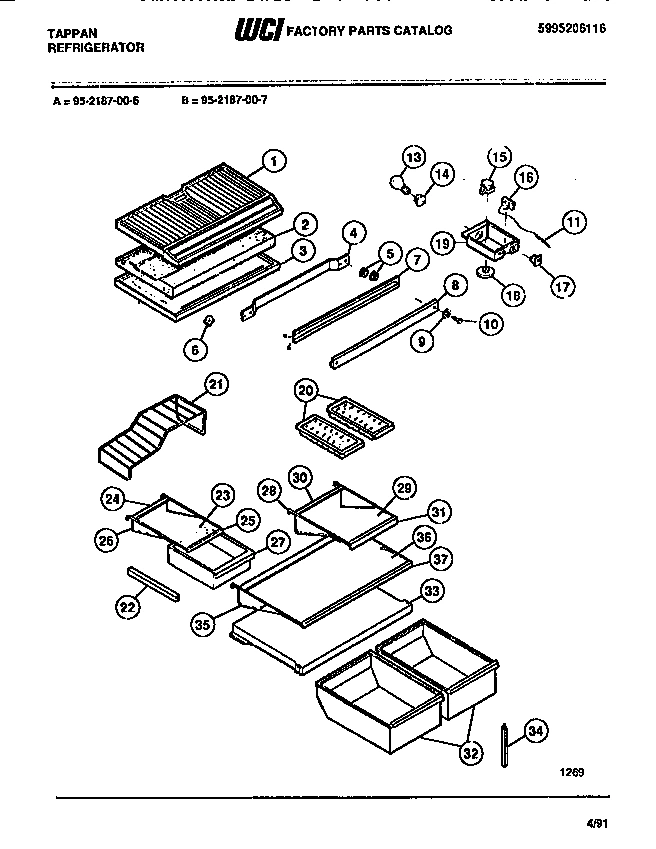

03 - SHELVES, CONTROLS, DIVIDER, MULLION

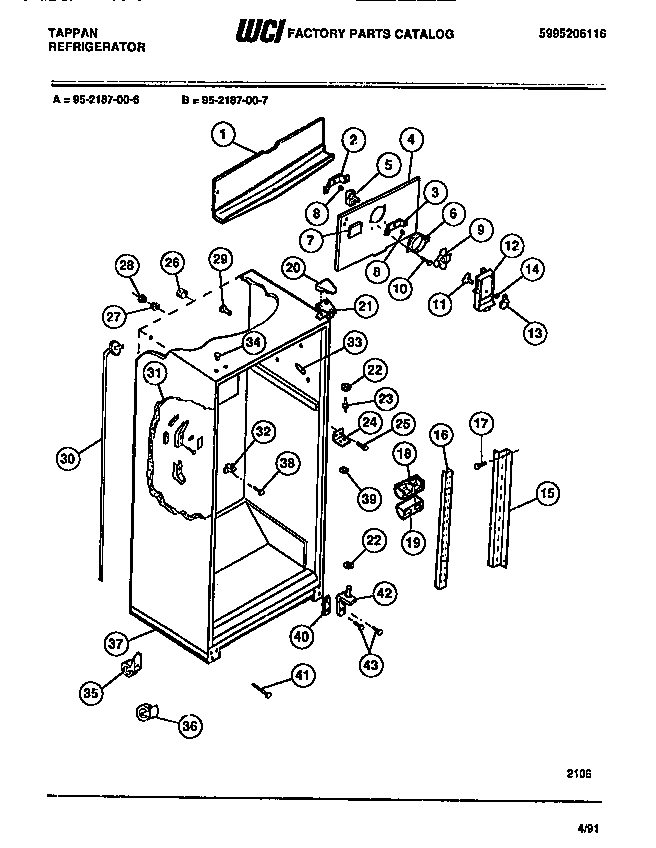

04 - CABINET W/FAN ASSEMBLY

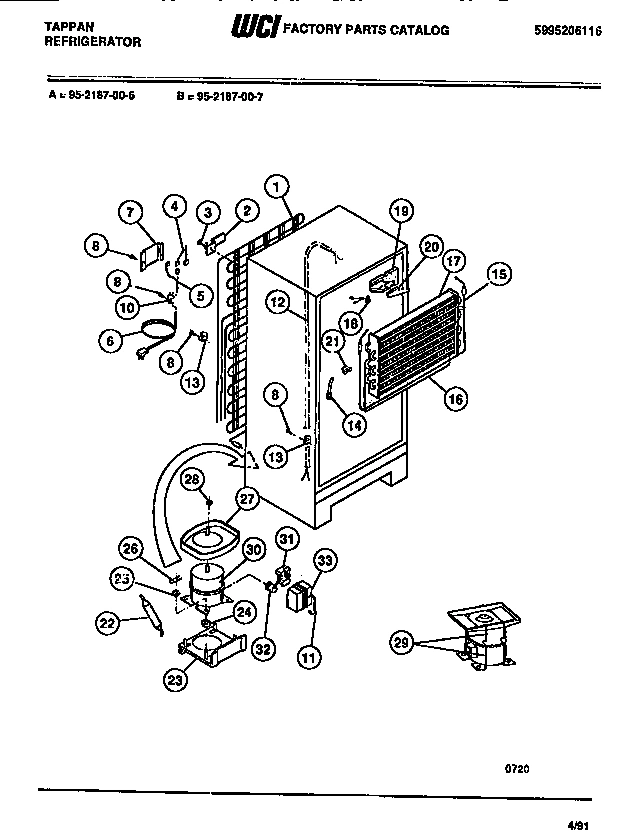

05 - COOLING SYSTEM
Common parts from model Electrolux 95-2187-57-06 REFRIGERATOR
1
FREEZER BOTTOM WCI 5303210641 Contact Us For Availability
1
WCI 5303001470 WCI 5303001470 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
DIVIDER WCI 5308013674 Contact Us For Availability
2
BRACKET-FAN MTR- REAR WCI 5303205119 Contact Us For Availability
2
WCI 5308000296 WCI 5308000296 Contact Us For Availability
3
END-HANDLE WCI 5303001296 Contact Us For Availability
3
REFRIGERATOR TOP WCI 5303001651 Contact Us For Availability
3
BRACKET-FAN MTR-FRNT WCI 5303205118 Contact Us For Availability
3A
WCI 5308000107 WCI 5308000107 Contact Us For Availability
3A
WCI 5308009617 WCI 5308009617 Contact Us For Availability
4
WIRING HARNESS-CONTROL WCI 3001475 Contact Us For Availability
4
WCI 5308010008 WCI 5308010008 Contact Us For Availability
4
COLL COVER WCI 5308013665 Contact Us For Availability
4A
NUT-``U`` TYPE WCI 5303209814 Contact Us For Availability
5
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
5
WCI 5303001347 WCI 5303001347 Contact Us For Availability
6
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
6
WCI 5316254901 WCI 5316254901 Contact Us For Availability
7
WCI 5303210351 WCI 5303210351 Contact Us For Availability
7
DECORATIVE PLUG WCI 5308013636 Contact Us For Availability
7
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
WCI 5303200367 WCI 5303200367 Contact Us For Availability
9
WASHER (2) WCI 5303206754 Contact Us For Availability
11
DAMPER WCI 5303001331 Contact Us For Availability
12
WCI 3001451 WCI 3001451 Contact Us For Availability
12
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
13
KNOB-DAMPER WCI 5308011762 Contact Us For Availability
14
LIGHT SOCKET WCI 5308000129 Contact Us For Availability
14
NUT, PUSH WCI 5303001028 Contact Us For Availability
15
CHANNEL-SHELF MTG (2) WCI 5308000302 Contact Us For Availability
16
WCI 5316651102 WCI 5316651102 Contact Us For Availability
16
CONTROL WCI 5308015762 Contact Us For Availability
16
CENTER CHANNEL WCI 5303015409 Contact Us For Availability
16A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
17
SWITCH-ENERGY WCI 5303001670 Contact Us For Availability
17
WCI 5303271578 WCI 5303271578 Contact Us For Availability
18
KNOB-COLD CONTROL WCI 3001335 Contact Us For Availability
18
AIR DEFLECTOR WCI 5308014667 Contact Us For Availability
18A
EXTENSION & INSULATION AIR DEFLECTOR (NON-ILL WCI 5303200590 Contact Us For Availability
19
CONTROL BOX WCI 3001454 Contact Us For Availability
19
WCI 5303001448 WCI 5303001448 Contact Us For Availability
19
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19A
WCI 5303001339 WCI 5303001339 Contact Us For Availability
20
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20A
COVER-TOP HINGE-AVOC WCI 5303001664 Contact Us For Availability
21
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
21
SHELF-FREEZER WCI 3001422 Contact Us For Availability
21
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21A
SHIM (NON-ILLUSTRATED) WCI 5303001037 Contact Us For Availability
22
HANGER-PAN LH WCI 5303211236 Contact Us For Availability
22
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
22A
HANGER-PAN RH (NON-ILLUSTRATED) WCI 5303211237 Contact Us For Availability
22B
SCREW-8X1/2 (2) (NON-ILLUSTRATED) WCI 08014528 Contact Us For Availability
23
CENTER PIN WCI 5308000184 Contact Us For Availability
23
PLATE-COMRP MTG WCI 5308013663 Contact Us For Availability
24
TRIM-SHELF (REAR) WCI 3001427 Contact Us For Availability
24
HINGE-CENTER WCI 5303001369 Contact Us For Availability
25
WCI 5308012258 WCI 5308012258 Contact Us For Availability
25
WASHER (4) WCI 5308003633 Contact Us For Availability
25A
SHIM (NON-ILLUSTRATED) WCI 5303001323 Contact Us For Availability
26
FRAME-MEAT KEEPER SHELF WCI 3001430 Contact Us For Availability
26
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
26
CLIP (4) WCI 5308003596 Contact Us For Availability
27
PAN-MEAT KEEPER WCI 3001440 Contact Us For Availability
27
WCI 5303001286 WCI 5303001286 Contact Us For Availability
27
PAN-DEFROST WCI 5300184715 Contact Us For Availability
28
FRAME-CANTILEVER SHELF (2) WCI 3001423 Contact Us For Availability
28
WCI 5303001287 WCI 5303001287 Contact Us For Availability
28
WCI 5303001348 WCI 5303001348 Contact Us For Availability
29
PAN RETAINER KIT-SERVICE COMPR WCI 5303916001 Contact Us For Availability
29
SHELF-GLASS (2) WCI 3001424 Contact Us For Availability
29
SUPPORT-COIL COVER WCI 5308000097 Contact Us For Availability
30
SEAL-RING (NON-ILLUSTRATED) WCI 5303207353 Contact Us For Availability
30
TRIM-REAR SHELF (2) WCI 3001425 Contact Us For Availability
30
COMPRESSOR W/ELECTRICALS-SERVICE WCI 5303916012 Contact Us For Availability
30A
TUBE DRAIN & SEAL RING WCI 5303210377 Contact Us For Availability
30A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
31
WCI 5303007173 WCI 5303007173 Contact Us For Availability
31
TRIM-SHELF (2) WCI 3001426 Contact Us For Availability
31
DUCT-MEAT KEEPER, LOWER WCI 5303001443 Contact Us For Availability
31A
INSULATION-MEAT KEEPER DUCT-LWR WCI 5308009764 Contact Us For Availability
31B
DAMPER-MEAT KEEPER DUCT WCI 5303001445 Contact Us For Availability
31C
LABEL-MEAT KEEPER WCI 3001446 Contact Us For Availability
31D
DUCT-MEAT KEEPER (UPPER) WCI 08017510 Contact Us For Availability
31E
INSULATION-MEAT KEEPER DUCT-UPPER WCI 5308009765 Contact Us For Availability
31F
SCREW 8A-1-1-1/2`` (NON-ILLUSTRATED) WCI 5308016568 Contact Us For Availability
32
SPOUT DRAIN WCI 5308000056 Contact Us For Availability
32
PAN CRISPER-LARGE WCI 5303001437 Contact Us For Availability
32
WCI 5308017532 WCI 5308017532 Contact Us For Availability
32A
PAN CRISPER-SMALL WCI 5303001436 Contact Us For Availability
33
CRISPER COVER WCI 5349006408 Contact Us For Availability
33A
TRIM-CABINET CORNER-AVOCADO WCI 5303202337 Contact Us For Availability
33B
HOT TUBE REPAIR KIT, SERVICE (NON-ILLUSTRATED WCI 5300189383 Contact Us For Availability
34
SUPPORT-CRISPER COVER WCI 5303205987 Contact Us For Availability
34A
BUTTON-PLUG-AVOC (2) WCI 5303001677 Contact Us For Availability
35
FRAME-CANTILEVER SHELL WCI 3001432 Contact Us For Availability
35
ROLLER ASSY-REAR WCI 5308009773 Contact Us For Availability
35B
BOLT-1/4-28X1/2 (2) (NON-ILLUSTRATED) WCI 5308009762 Contact Us For Availability
36
WCI G171654-11 WCI G171654-11 Contact Us For Availability
36
ROLLER ASSY-FRONT WCI 5303212490 Contact Us For Availability
37
TRIM-FRONT (SNAP-ON) WCI 3001435 Contact Us For Availability
37
WCI 5303212487 WCI 5303212487 Contact Us For Availability
37A
TRIM-REAR (NON-ILLUSTRATED) WCI 5317243605 Contact Us For Availability
38
PUSH PIN WCI 5303001361 Contact Us For Availability
39
WASHER, NYLON WCI 5308000186 No Longer Available
40
SHIM WCI 5303212488 Contact Us For Availability
41
BOLT-1/4-20-ROLLER ADJ (2) WCI 5303271412 Contact Us For Availability
42
BRACKET-HINGE LOWER WCI 5303212489 Contact Us For Availability
43A
GUSSET-TAPPING PLATE (LH) (NON-ILLUSTRATED) WCI 5303212596 Contact Us For Availability
43B
GUSSET-TAPPING PLATE RH (NON-ILL WCI 5303212597 Contact Us For Availability
43C
WCI 5308012296 WCI 5308012296 Contact Us For Availability
× ![]()
