Model Electrolux 95-2187-00-01 REFRIGERATOR – Common Parts & Diagrams

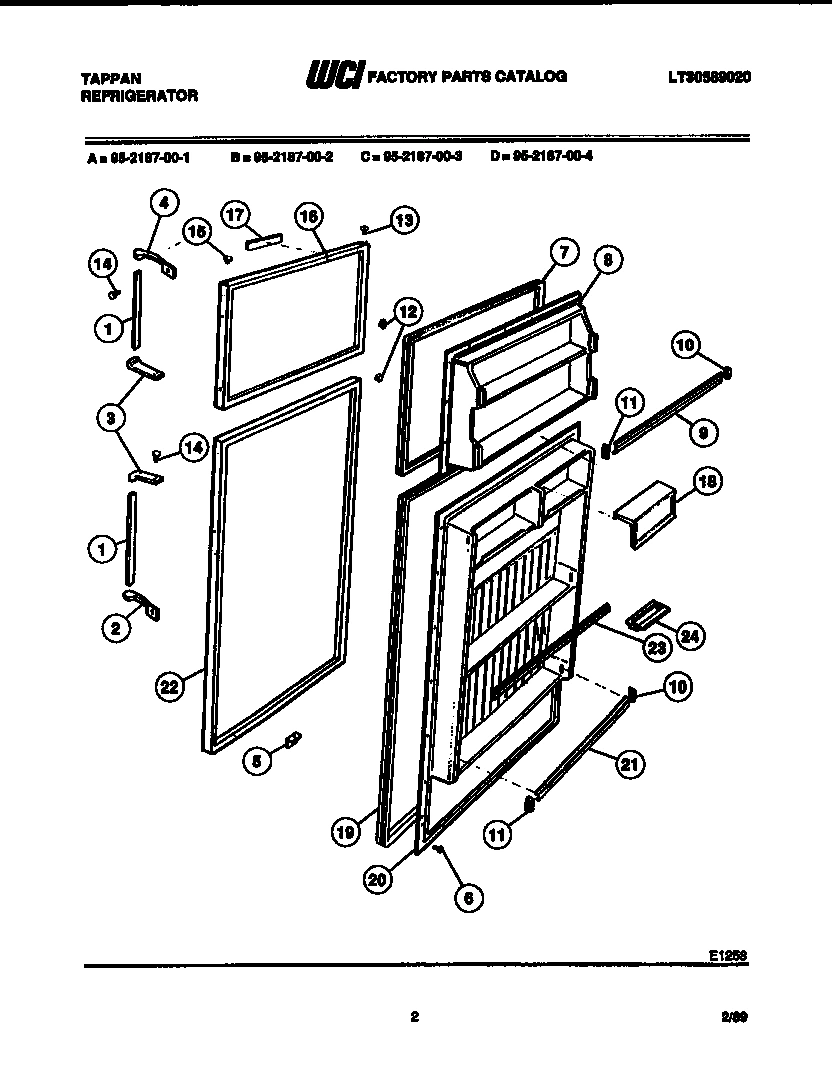

02 - DOOR PARTS

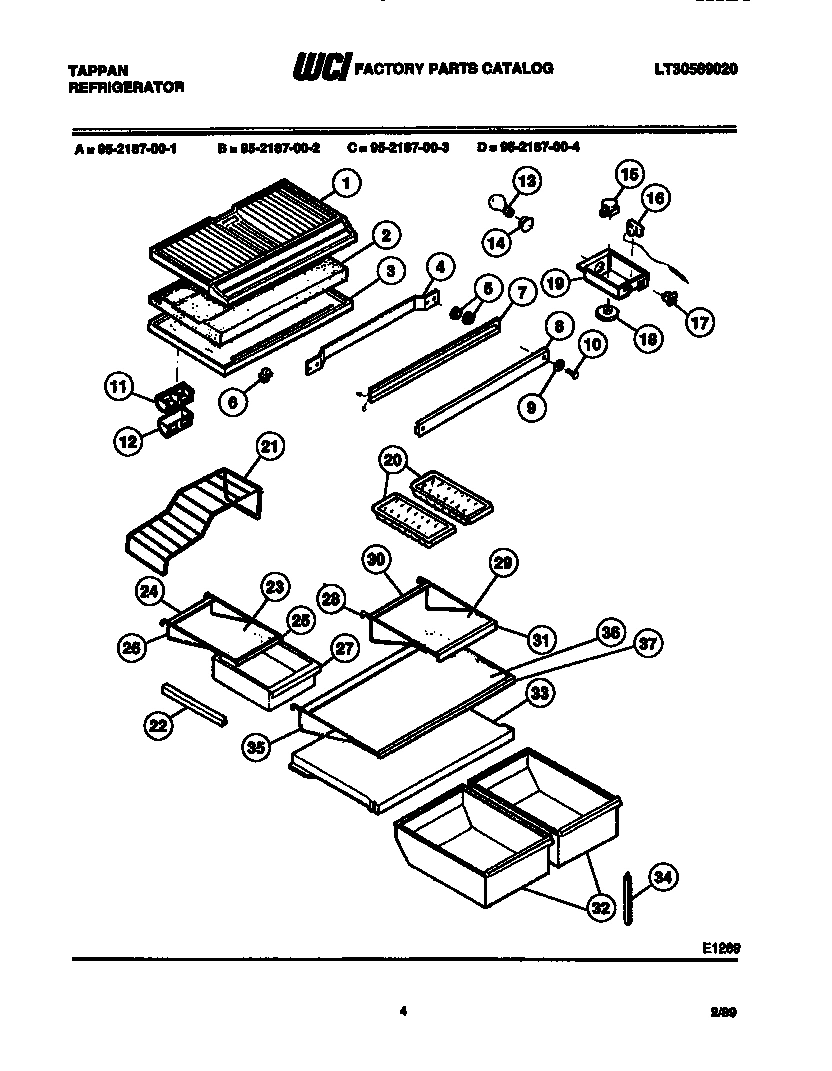

03 - SHELVES AND SUPPORTS

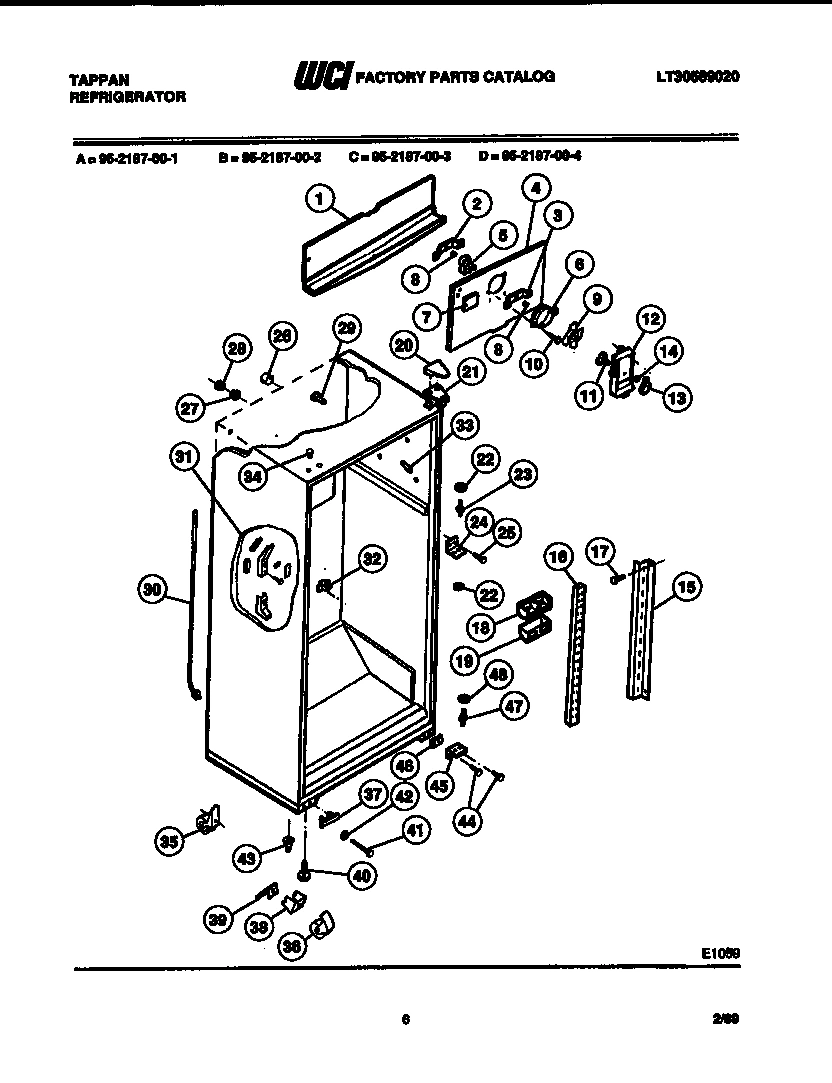

04 - CABINET PARTS

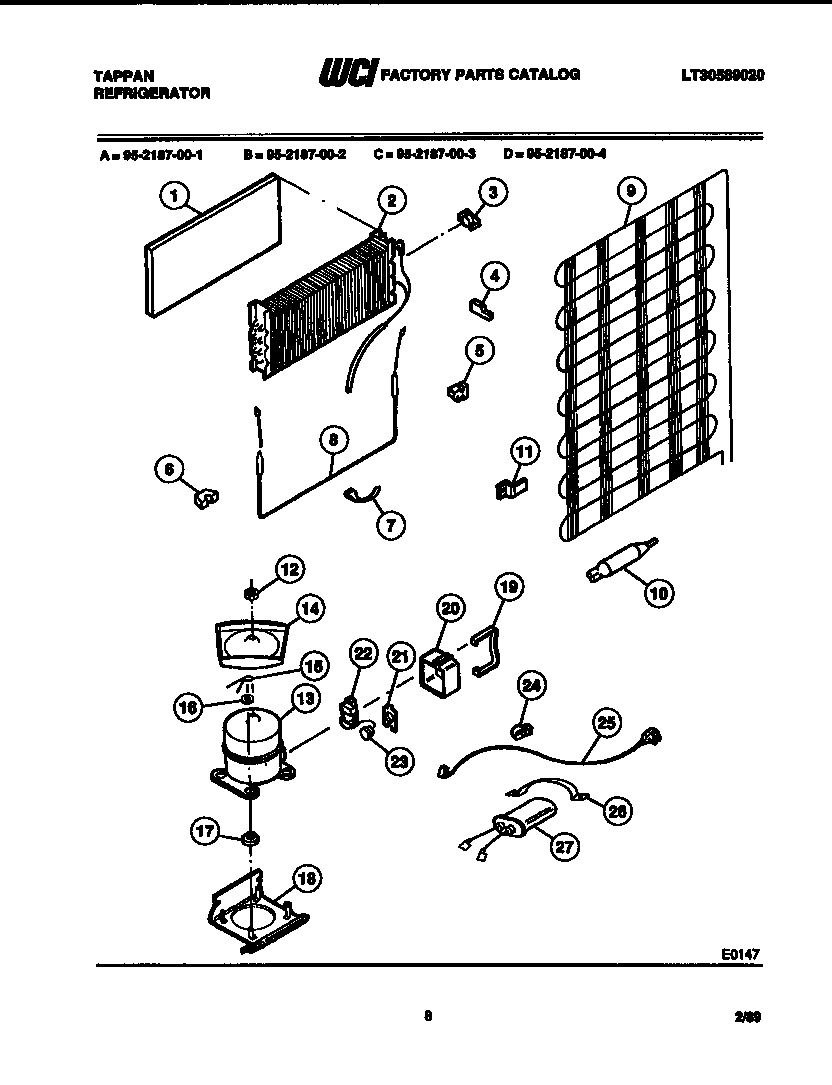

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux 95-2187-00-01 REFRIGERATOR
*44005
TRIM-REAR WCI 3001434 Contact Us For Availability
*44043
TAPPING PLATE WCI 3007090 Contact Us For Availability
*44064
SLEEVE-VINYL HEAT EXCHANGER WCI 3001365 Contact Us For Availability
*44064
HOT TUBE REPAIR KIT WCI 3001498 Contact Us For Availability
1
GRIP-HANDLE (2) WCI 3001294 Contact Us For Availability
1
WCI 3001472 WCI 3001472 Contact Us For Availability
1
TROUGH DRAIN WCI 3001470 Contact Us For Availability
1
INSULATION-EVAPORATOR WCI 3001471 Contact Us For Availability
2
END-HANDLE WCI 3001295 Contact Us For Availability
2
WCI 3001474 WCI 3001474 Contact Us For Availability
2
BRACKET-FAN MOTOR, REAR WCI 3001227 Contact Us For Availability
2
WCI 3001464 WCI 3001464 Contact Us For Availability
2A
WIRING HARNESS-DIVIDER (NON-ILLUSTRATED) WCI 3001475 Contact Us For Availability
3
END, HANDLE WCI 3001296 Contact Us For Availability
3
WCI 3001651 WCI 3001651 Contact Us For Availability
3
BRACKET-FAN MOTOR, FRONT WCI 3001226 Contact Us For Availability
3A
CLIP (NON-ILLUSTRATED) WCI 3001220 Contact Us For Availability
4
END, HANDLE WCI 3001297 Contact Us For Availability
4
STRAP-MULLION MTG. WCI 3001469 Contact Us For Availability
4
WCI 3001463 WCI 3001463 Contact Us For Availability
4
WCI 3001360 WCI 3001360 Contact Us For Availability
4A
NUT-``U`` TYPE (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
5
STOP-DOOR (2) WCI 3001405 Contact Us For Availability
5
SPACER MULLION WCI 3001370 Contact Us For Availability
5
PLUG-EVAP. BLOCK RS WCI 3007287 Contact Us For Availability
6
RING, FAN ORIFICE WCI 3001217 Contact Us For Availability
6
BLOCK-EVAP. LS WCI 3001684 Contact Us For Availability
7
WCI 3001407 WCI 3001407 Contact Us For Availability
7
HEATER-MULLION WCI 3001467 Contact Us For Availability
7
DECORATIVE PLUG WCI 3001328 Contact Us For Availability
8
INNER DOOR PANEL-FRZR WCI 3001408 Contact Us For Availability
8
WCI 3200366 WCI 3200366 Contact Us For Availability
8A
HEAT-EXCHANGER (NON-ILLUSTRATED) WCI 3001465 Contact Us For Availability
9
WASHER WCI 3006446 Contact Us For Availability
9
WCI 3001455 WCI 3001455 Contact Us For Availability
10
SUPPORT-RACK RS (4) WCI 3001410 Contact Us For Availability
11
SUPPORT-RACK LS (4) WCI 3001411 Contact Us For Availability
11
WCI 3001331 WCI 3001331 Contact Us For Availability
11
BRACKET-CONDENSER WCI 3001195 Contact Us For Availability
12
WCI 3001451 WCI 3001451 Contact Us For Availability
12
NUT-DEFROST PAN WCI 3001348 Contact Us For Availability
13
WCI G169332-01 WCI G169332-01 Contact Us For Availability
13
WCI 3001452 WCI 3001452 Contact Us For Availability
13
WCI 3916018 WCI 3916018 Contact Us For Availability
13A
WCI 3001456 WCI 3001456 Contact Us For Availability
14
SCREW-HANDLE MTG. WCI 3001040 Contact Us For Availability
14
WCI 3001267 WCI 3001267 Contact Us For Availability
14
NUT, PUSH WCI 3001028 Contact Us For Availability
14
DEFROST PAN WCI 3001397 Contact Us For Availability
15
BEARING, HINGE WCI 3001021 Contact Us For Availability
15
CHANNEL-SHELF MTG. (2) WCI 3001476 Contact Us For Availability
15
CLIP, COMPR. MTG WCI 3001350 Contact Us For Availability
16
WCI G188158 WCI G188158 Contact Us For Availability
16
CONTROL WCI 3001336 Contact Us For Availability
16
CENTER CHANNEL WCI 3015409 Contact Us For Availability
16
WASHER, COMPR MTG WCI 3001351 Contact Us For Availability
17
NAMEPLATE ASSY WCI 3001312 Contact Us For Availability
17
SWITCH WCI 3001670 Contact Us For Availability
18
DAIRY DOOR (2) WCI 3001415 Contact Us For Availability
18
AIR DEFLECTOR WCI 3001447 Contact Us For Availability
18
KNOB-COLD CONTROL WCI 3001335 Contact Us For Availability
18
PLATE-COMPR MTG WCI 3001462 Contact Us For Availability
19
WCI 3001416 WCI 3001416 Contact Us For Availability
19
CONTROL BOX WCI 3001454 Contact Us For Availability
19
COVER-AIR DEFLECTOR WCI 3001448 Contact Us For Availability
19A
LABEL, CONTROL BOX (NON-ILLUSTRATED) WCI 3001339 Contact Us For Availability
20
PANEL-INNER DOOR WCI 3001417 Contact Us For Availability
20
COVER-TOP HINGE, WHITE WCI 3001035 Contact Us For Availability
21
DOOR RACK-BOTTOM WCI 3001418 Contact Us For Availability
21
SHELF-FREEZER WCI 3001422 Contact Us For Availability
21
BRACKET UPPER HINGE WCI 3001298 Contact Us For Availability
21
WCI 3001394 WCI 3001394 Contact Us For Availability
21A
SHIM (NON-ILLUSTRATED) WCI 3001037 Contact Us For Availability
21B
WASHER-NYLON (3) WCI 3001299 Contact Us For Availability
22
REFR PANEL-OUTER, WHITE WCI G178694 Contact Us For Availability
22
HANGER-PAN LS WCI 3001428 Contact Us For Availability
22
WCI 3001459 WCI 3001459 Contact Us For Availability
22A
HANGER-PAN RS WCI 3001429 Contact Us For Availability
23
RACK-REFR DOOR WCI 3001409 Contact Us For Availability
23
CENTER PIN WCI 3001313 Contact Us For Availability
23
WCI 3001460 WCI 3001460 Contact Us For Availability
24
HINGE-CENTER WCI 3001369 Contact Us For Availability
25
SCREW-CENTER HINGE WCI 3001368 Contact Us For Availability
25
TRIM-SHELF WCI 3001426 Contact Us For Availability
25
WCI 3001200 WCI 3001200 Contact Us For Availability
26
FRAME-MEAT KEEPER SHELF WCI 3001430 Contact Us For Availability
26
TUBE, RUBBER WCI 3001198 Contact Us For Availability
26
CAPACITOR-STRAP WCI 3001391 Contact Us For Availability
27
MEAT KEEPER PAN WCI 3001440 Contact Us For Availability
27
WCI 3001286 WCI 3001286 Contact Us For Availability
27
WCI 3001510 WCI 3001510 Contact Us For Availability
28
FRAME-CANTILEVER SHELF (2) WCI 3001423 Contact Us For Availability
28
WCI 3001287 WCI 3001287 Contact Us For Availability
29
SHELF-GLASS (2) WCI 3001424 Contact Us For Availability
29
SUPPORT COIL COVER WCI 3001249 Contact Us For Availability
30
TRIM-REAR SHELF (2) WCI 3001427 Contact Us For Availability
30
TUBE DRAIN WCI 3001458 Contact Us For Availability
31
DUCT-MEAT KEEPER, LOWER WCI 3001443 Contact Us For Availability
31A
INSULATION-MEAT KEEPER DUCT, LOWER WCI 3001444 Contact Us For Availability
31B
DAMPER-MEAT KEEPER DUCT WCI 3001445 Contact Us For Availability
31C
LABEL-MEAT KEEPER WCI 3001446 Contact Us For Availability
31D
DUCT-MEAT KEEPER, UPPER WCI 3001441 Contact Us For Availability
31E
INSULATION-MEAT KEEPER DUCT, UPPER WCI 3001442 Contact Us For Availability
32
PAN CRISPER-LARGE WCI 3001437 Contact Us For Availability
32
WCI 3001457 WCI 3001457 Contact Us For Availability
32A
PAN CRISPER-SMALL WCI 3001436 Contact Us For Availability
33
WCI 3001438 WCI 3001438 Contact Us For Availability
33
TRIM-CABINET CORNER, WHITE WCI 3001480 Contact Us For Availability
34
SUPPORT-CRISPER COVER WCI 3001439 Contact Us For Availability
34
BUTTON, PLUG, WHITE (2) WCI 3001388 Contact Us For Availability
35
FRAME-CANTILEVER SHELF WCI 3001432 Contact Us For Availability
35
ROLLER ASSY-REAR WCI 3001401 Contact Us For Availability
36
WCI G171654-11 WCI G171654-11 Contact Us For Availability
36
ROLLER ASSY-FRONT WCI 3001400 Contact Us For Availability
37
TRIM-FRONT (SNAP-ON) WCI 3001435 Contact Us For Availability
37
PLUG-BUTTON WCI 3001478 Contact Us For Availability
38
SUPPORT-BASE CABINET WCI 3001406 Contact Us For Availability
39
WCI 3001402 WCI 3001402 Contact Us For Availability
40
SCREW-LEVELING (2) WCI 3001301 Contact Us For Availability
41
BOLT 1/4-20-ROLLER ADJ WCI 3001403 Contact Us For Availability
42
WCI 3001404 WCI 3001404 Contact Us For Availability
43
ANCHOR-NUT (2) WCI 3001412 Contact Us For Availability
45
BRACKET-HINGE, LOWER WCI 3001322 Contact Us For Availability
46
SHIM WCI 3001323 Contact Us For Availability
48
WASHER-NYLON WCI 3001038 Contact Us For Availability
× ![]()
