Model Electrolux 95-2181-23-00 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

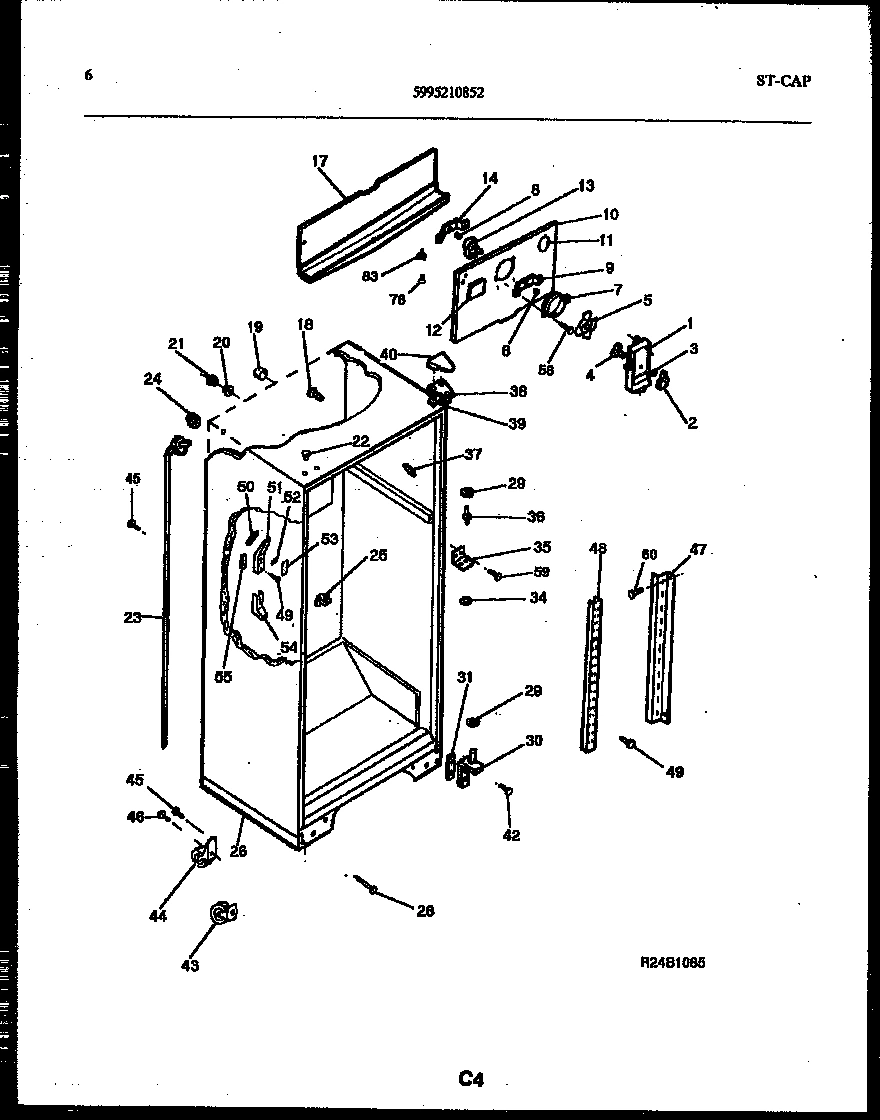

04 - CABINET PARTS

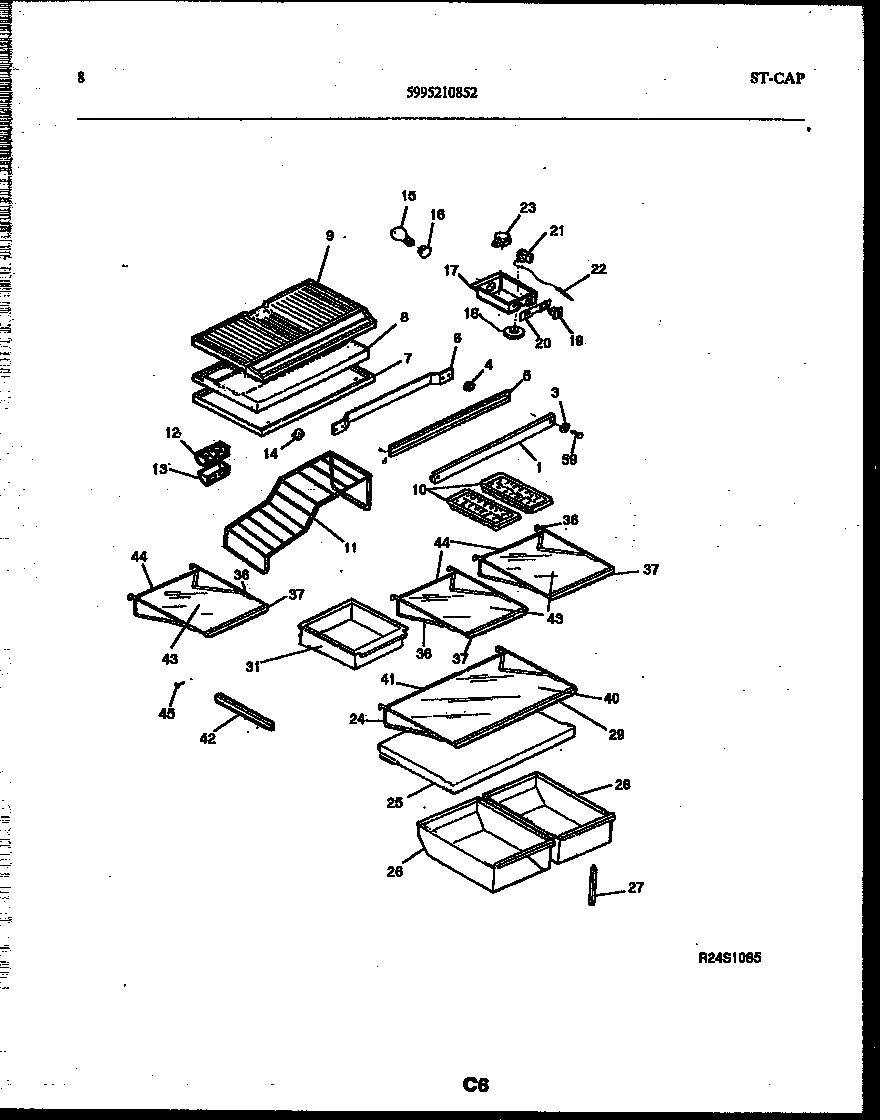

05 - SHELVES AND SUPPORTS

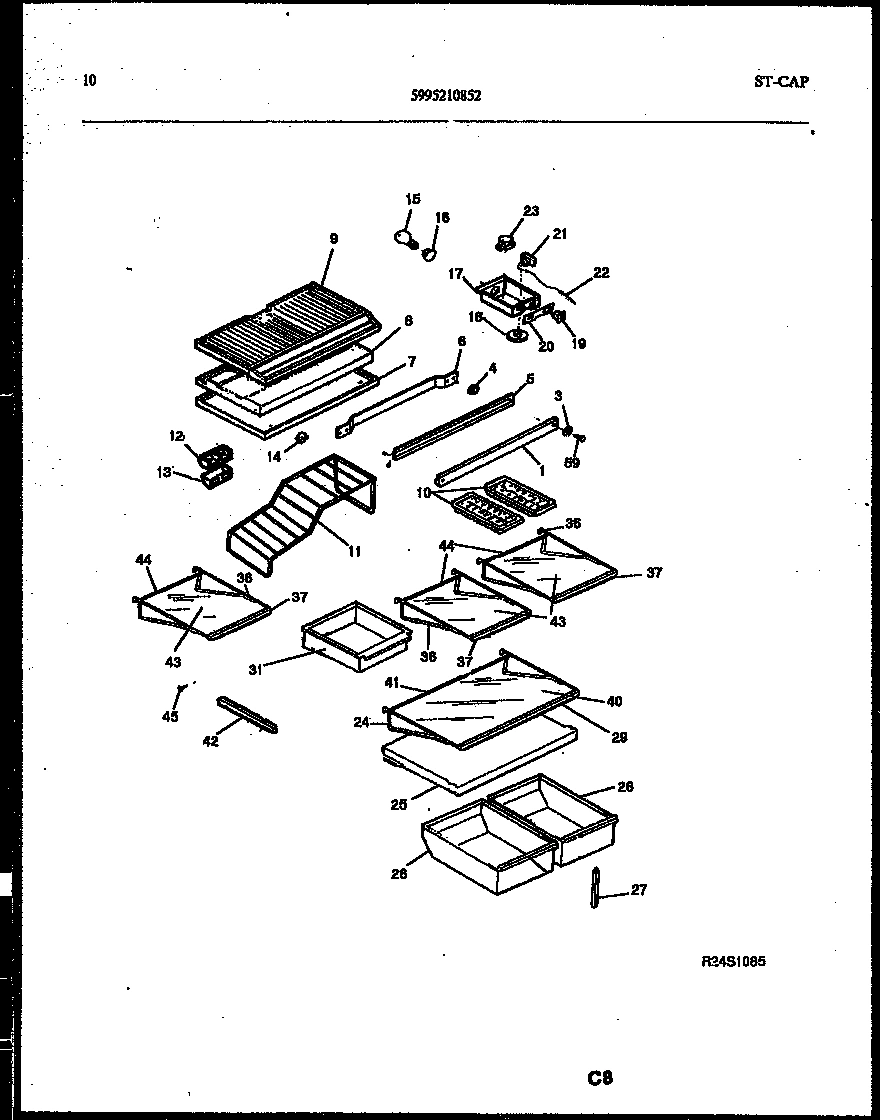

06 - SHELVES AND SUPPORTS

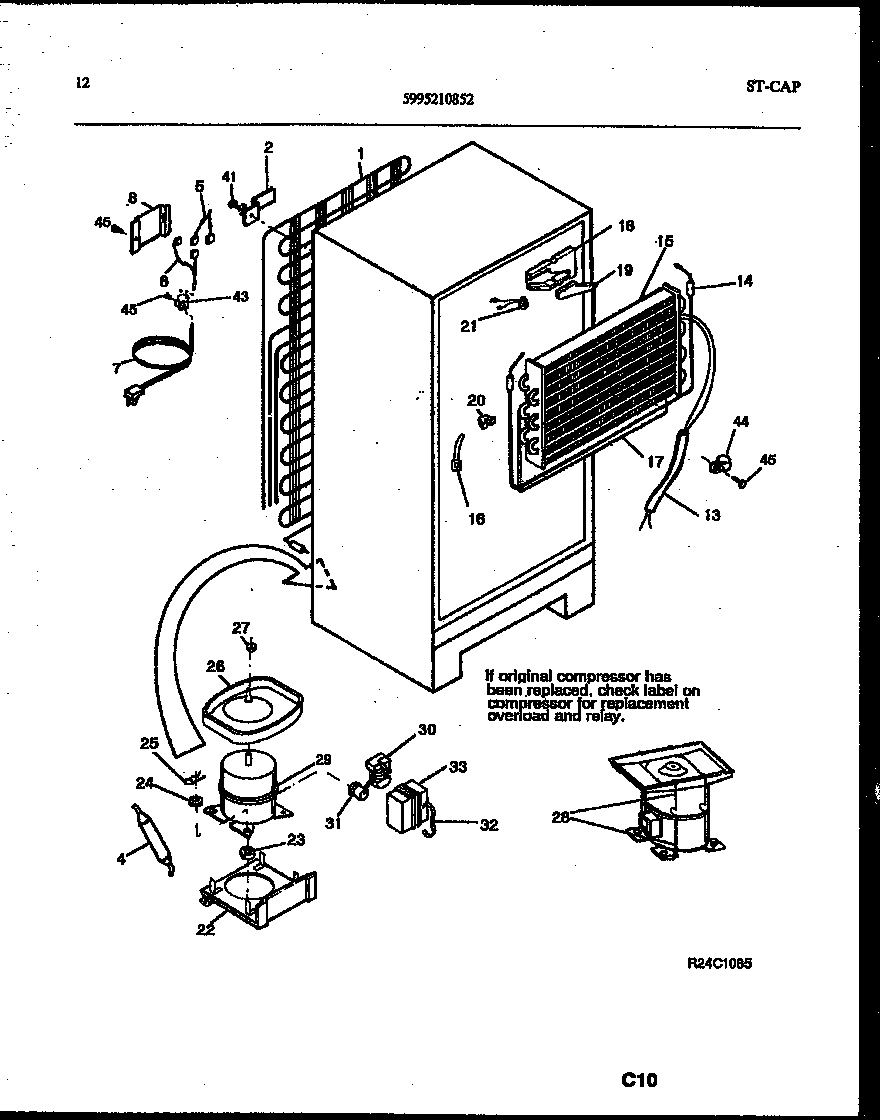

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux 95-2181-23-00 REFRIGERATOR
*56463
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*56472
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
WCI 5303200370 WCI 5303200370 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 5308000296 WCI 5308000296 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
NUT, PUSH WCI 5303001028 Contact Us For Availability
3
WCI 5303206754 WCI 5303206754 Contact Us For Availability
4
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
4
WCI 5303200464 WCI 5303200464 Contact Us For Availability
5
WCI 5303210351 WCI 5303210351 Contact Us For Availability
5
WIRING HARNESS, CONTROL/DIVIDER WCI 3001475 Contact Us For Availability
6
WCI 5308010008 WCI 5308010008 Contact Us For Availability
6
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 5303001651 WCI 5303001651 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
7B
BUSHING, SNAP-IN, PLASTIC (NON-ILLUSTRATED) WCI 5303212518 Contact Us For Availability
8
WCI 5308013674 WCI 5308013674 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
BOTTOM PANEL-FREEZER WCI 5303210641 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
10
WCI 5308013665 WCI 5308013665 Contact Us For Availability
10A
NUT, ``U`` TYPE, NO. 8(A), EVAP COVER, (2) (N WCI 5303209814 Contact Us For Availability
11
WCI 3001422 WCI 3001422 Contact Us For Availability
12
WCI 5308013636 WCI 5308013636 Contact Us For Availability
12
WCI 5308014667 WCI 5308014667 Contact Us For Availability
12B
WCI 5303200590 WCI 5303200590 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
WCI 5303271578 WCI 5303271578 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
17
WCI 3001454 WCI 3001454 Contact Us For Availability
18
SUPPORT, EVAP COVER, (2) WCI 5308000097 Contact Us For Availability
18
KNOB-TEMP CONTROL WCI 3001335 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
WCI 5303001296 WCI 5303001296 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 5303001670 WCI 5303001670 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
LABEL-CONTROL BOX WCI 5303001339 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5308015762 WCI 5308015762 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG-BUTTON, ALMOND, UPR HINGE HOLES WCI 5303001389 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
DRAIN TUBE, W/ SEAL RING WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 3001432 WCI 3001432 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
24A
CLIP-CANTILEVER SHLF (NON-ILLUSTRATED) WCI 5300170910 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
WCI 5349006408 WCI 5349006408 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
WCI 5303001361 WCI 5303001361 Contact Us For Availability
26
WCI 5303212487 WCI 5303212487 Contact Us For Availability
26
PAN-CRISPER, LH WCI 5303001436 Contact Us For Availability
26
PAN-CRISPER, RH WCI 5303001437 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
27
SUPPORT-CRISPER CVR, ADJUSTABLE WCI 5303205987 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
WCI 5303271412 WCI 5303271412 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
WCI 3001435 WCI 3001435 Contact Us For Availability
29
COMPRESSOR, W/ELEC, SERVICE WCI 5303916012 Contact Us For Availability
29A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/ HINGE PIN WCI 5303212489 Contact Us For Availability
30A
WCI 5303212597 WCI 5303212597 Contact Us For Availability
30B
WCI 5303212596 WCI 5303212596 Contact Us For Availability
31
WCI 5303212488 WCI 5303212488 Contact Us For Availability
31
WCI 3001440 WCI 3001440 Contact Us For Availability
31
WCI 5303272819 WCI 5303272819 Contact Us For Availability
34
WCI 5308000186 No Longer Available
35
WCI 5303001369 WCI 5303001369 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
36
WCI 3001423 WCI 3001423 Contact Us For Availability
36
WCI 3001430 WCI 3001430 Contact Us For Availability
37
WCI 5303202340 WCI 5303202340 Contact Us For Availability
37
WCI 3001426 WCI 3001426 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
COVER-UPPER HINGE, ALMOND WCI 5308012933 Contact Us For Availability
40
WCI 5303279498 WCI 5303279498 Contact Us For Availability
41
WCI 5317243605 WCI 5317243605 Contact Us For Availability
42
HANGER-MEAT PAN, RH WCI 5303211237 Contact Us For Availability
42A
HANGER-MEAT PAN, LH (NON-ILLUSTRATED) WCI 5303211236 Contact Us For Availability
43
WCI 5303212490 WCI 5303212490 Contact Us For Availability
43
WCI 3001424 WCI 3001424 Contact Us For Availability
44
WCI 5308009773 WCI 5308009773 Contact Us For Availability
44
WCI 3001425 WCI 3001425 Contact Us For Availability
44
TRIM-MEAT KPR SHELF, REAR WCI 3001427 Contact Us For Availability
45
WCI 08014528 WCI 08014528 Contact Us For Availability
46
BOLT-ROLIER MTG, HX WSHR HD MACH, 1/4-28 X 1/ WCI 5308009762 Contact Us For Availability
47
WCI 5308000302 WCI 5308000302 Contact Us For Availability
48
CHANNEL-SHELF MTG, CENTER WCI 5303015409 Contact Us For Availability
49
WCI 5308016568 WCI 5308016568 Contact Us For Availability
50
INSULATION-AIR DUCT, UPPER WCI 5308009765 Contact Us For Availability
51
DUCT-MEAT KEEPER (UPPER) WCI 08017510 Contact Us For Availability
52
CONTROL-DAMPER, MEAT KPR DUCT WCI 5303001445 Contact Us For Availability
53
LABEL-MEAT KPR DUCT WCI 3001446 Contact Us For Availability
54
DUCT-MEAT KEEPER, LOWER WCI 5303001443 Contact Us For Availability
55
INSULATION-AIR DUCT, LOWER WCI 5308009764 Contact Us For Availability
59
WCI 5308012258 WCI 5308012258 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
