Model Electrolux 95-1987-45-03 REFRIGERATOR – Common Parts & Diagrams

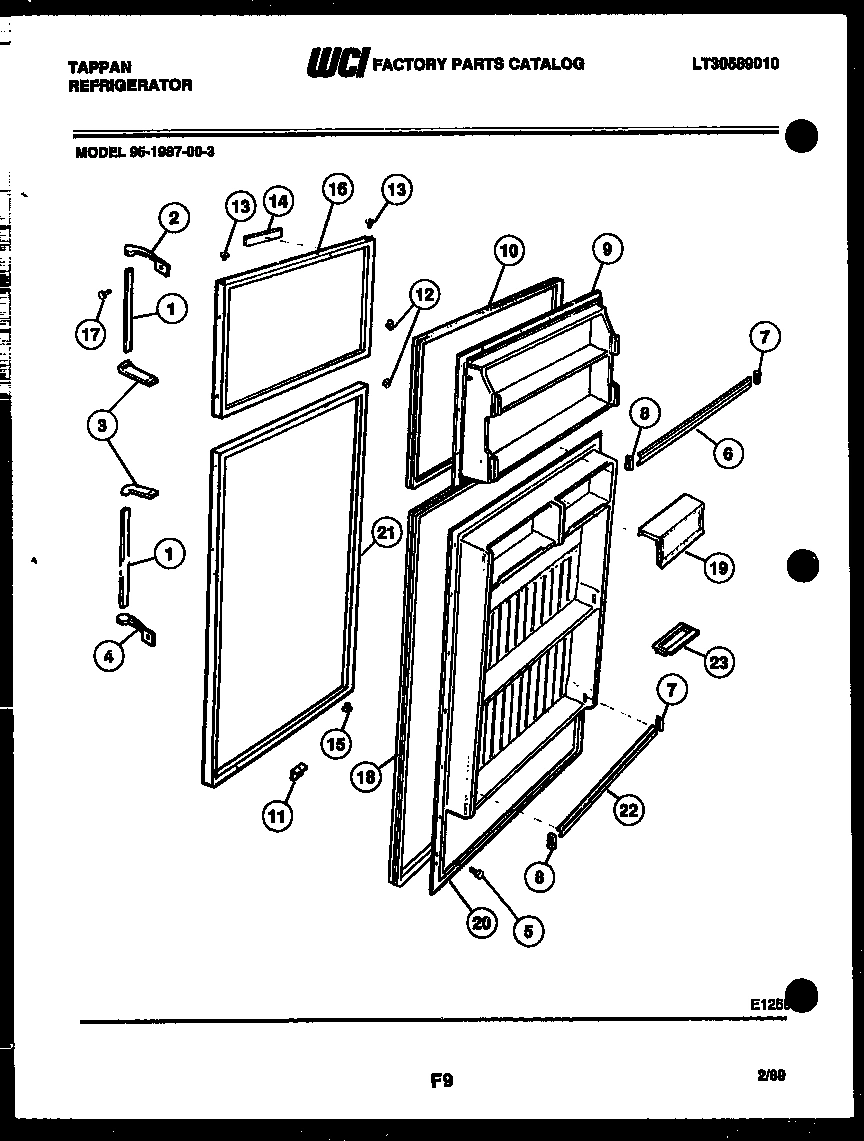

02 - DOOR PARTS

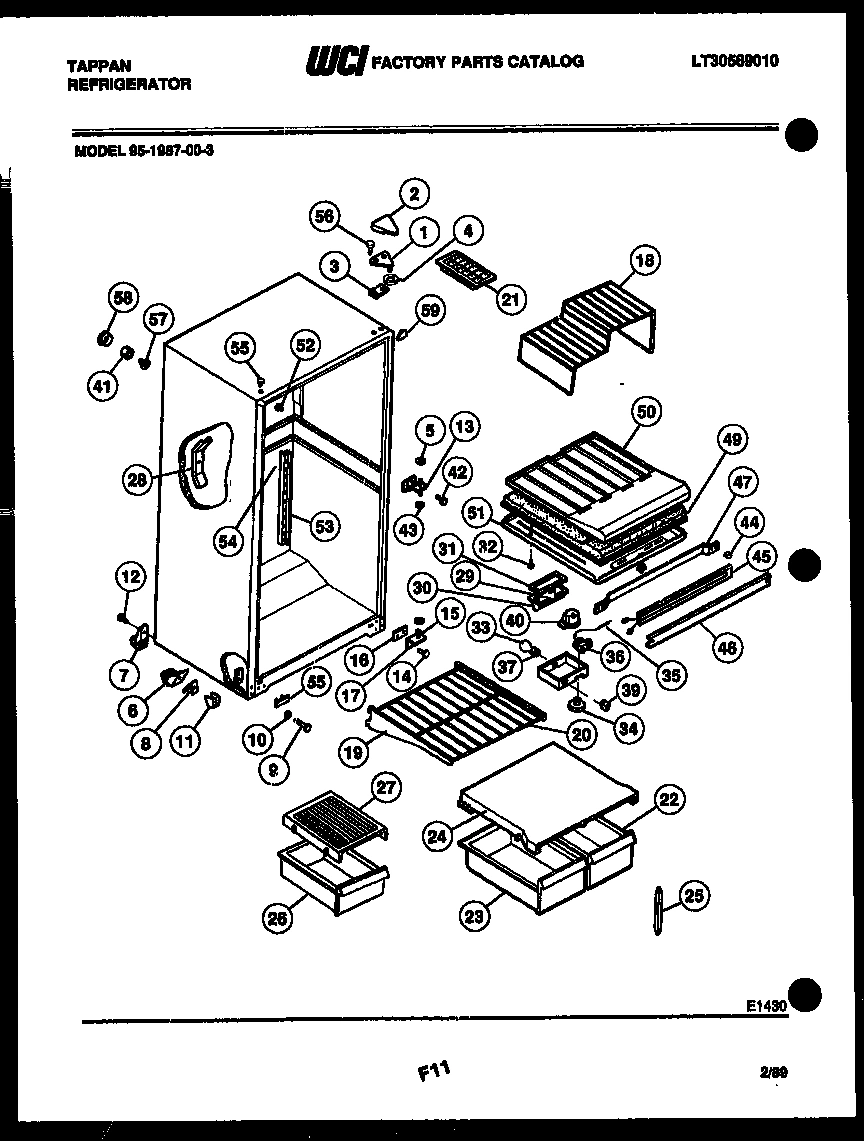

03 - CABINET PARTS

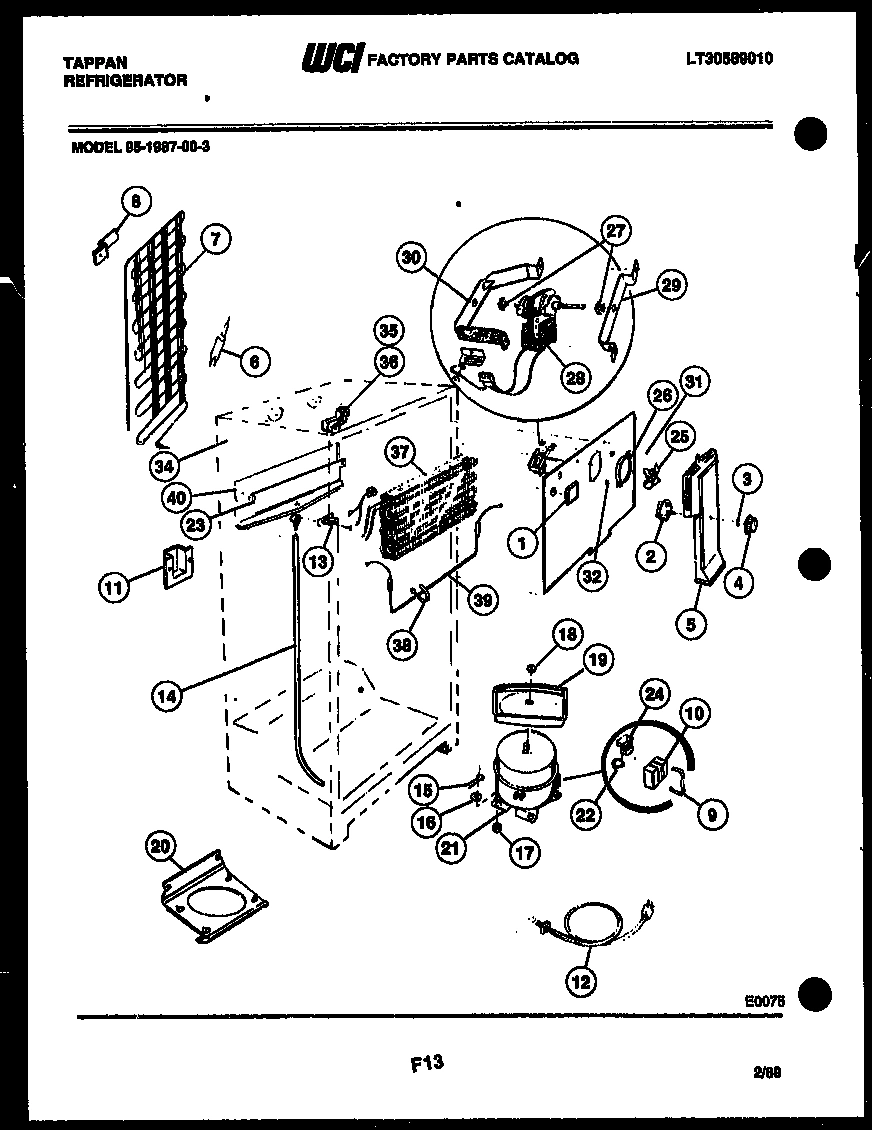

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux 95-1987-45-03 REFRIGERATOR
*20983
DEFROST PAN RETAINER KIT-SERVICE COMPR WCI 3916001 Contact Us For Availability
1
WCI 3001294 WCI 3001294 Contact Us For Availability
1
HINGE WCI 3001298 Contact Us For Availability
1
BUTTON-DECOR PLUG WCI 3001328 Contact Us For Availability
2
END, HANDLE WCI 3001297 Contact Us For Availability
2
COVER HINGE-COFFEE WCI 3001666 Contact Us For Availability
2
WCI 3001331 WCI 3001331 Contact Us For Availability
3
END, HANDLE WCI 3001296 Contact Us For Availability
3
SHIM, HINGE WCI 3001037 Contact Us For Availability
3
WCI 3001332 WCI 3001332 Contact Us For Availability
4
END-HANDLE WCI 3001295 Contact Us For Availability
4
WASHER, NYLON 1/4 X 5/8 WCI 3001299 Contact Us For Availability
4
WCI 3001452 WCI 3001452 Contact Us For Availability
5
WASHER, NYLON 5/16 X 5/8 WCI 3001038 Contact Us For Availability
5
WCI 3001496 WCI 3001496 Contact Us For Availability
6
RACK-DOOR (2) WCI 3001484 Contact Us For Availability
6
ROLLER ASSEMBLY, FRONT WCI 3001400 Contact Us For Availability
7
SUPPORT-DR RACK RS (2) WCI 3001410 Contact Us For Availability
7
ROLLER ASSEMBLY, REAR WCI 3001401 Contact Us For Availability
7
WCI 3001497 WCI 3001497 Contact Us For Availability
8
SUPPORT-DR RACK LS (2) WCI 3001411 Contact Us For Availability
8
WCI 3001402 WCI 3001402 Contact Us For Availability
8
BRACKET-CONDENSER MTG (4) WCI 3001195 Contact Us For Availability
8A
HOT TUBE REPAIR KIT WCI 3001498 Contact Us For Availability
9
PANEL INNER DOOR WCI 3001485 Contact Us For Availability
9
BOLT 1/4-20-ROLLER ADJ WCI 3001403 Contact Us For Availability
9
STRAP-BALE WCI 08016584 Contact Us For Availability
10
GASKET-DOOR FREEZER WCI 3001486 Contact Us For Availability
10
WCI 3001404 WCI 3001404 Contact Us For Availability
10
WCI 3200714 WCI 3200714 Contact Us For Availability
11
WCI 3001405 WCI 3001405 Contact Us For Availability
11
SUPPORT-BASE TO CAB WCI 3001406 Contact Us For Availability
11
WCI 3001197 WCI 3001197 Contact Us For Availability
11A
HARNESS-COMPR WIRING WCI 3001347 Contact Us For Availability
12
BUTTON PLUG, HANDLE HOLE-COFFEE WCI 3001654 Contact Us For Availability
12
SCREW 1/4-28 X 1/2 WCI 3001483 Contact Us For Availability
12
SERVICE CORD WCI 3001200 Contact Us For Availability
13
BUTTON-PLUG HINGE HOLE-COFFEE WCI 3001657 Contact Us For Availability
13
PIN, HINGE WCI 3001313 Contact Us For Availability
13
WCI 3001457 WCI 3001457 Contact Us For Availability
14
WCI 3001312 WCI 3001312 Contact Us For Availability
14
TUBE DRAIN WCI 3001458 Contact Us For Availability
15
BEARING, HINGE WCI 3001021 Contact Us For Availability
15
CLIP, COMPR. MTG WCI 3001350 Contact Us For Availability
16
WCI 3001732 WCI 3001732 Contact Us For Availability
16
SHIM-LOWER HINGE WCI 3001323 Contact Us For Availability
16
WASHER, COMPR MTG WCI 3001351 Contact Us For Availability
17
SCREW-HANDLE MTG. WCI 3001040 Contact Us For Availability
17
WCI 3001667 WCI 3001667 Contact Us For Availability
18
WCI 3001416 WCI 3001416 Contact Us For Availability
18
SHELF-FREEZER STEP WCI 3001490 Contact Us For Availability
18
NUT-DEFROST PAN MTG WCI 3001348 Contact Us For Availability
19
DOOR-COMPARTMENT (2) WCI 3001415 Contact Us For Availability
19
WCI 3001491 WCI 3001491 Contact Us For Availability
19
DEFROST PAN, ORIGINAL COMPRESSOR WCI 3001349 Contact Us For Availability
19A
WCI 08012951 WCI 08012951 Contact Us For Availability
20
PANEL-INNER DOOR WCI 3001489 Contact Us For Availability
20
TRIM, SHELF (3) WCI 3001492 Contact Us For Availability
20
MOUNTING PLATE-COMPRESSOR WCI 3001462 Contact Us For Availability
21
WCI 3001729 WCI 3001729 Contact Us For Availability
21
COMPRESSOR WCI 3916020 Contact Us For Availability
22
WCI 3001418 WCI 3001418 Contact Us For Availability
22
WCI 3001437 WCI 3001437 Contact Us For Availability
22
WCI 3201563 WCI 3201563 Contact Us For Availability
23
WCI 3001436 WCI 3001436 Contact Us For Availability
23
INSULATION-EVAPORATOR WCI 3001471 Contact Us For Availability
24
WCI 3001493 WCI 3001493 Contact Us For Availability
24
WCI 3201562 WCI 3201562 Contact Us For Availability
25
SUPPORT-CRISPER COVER WCI 3001439 Contact Us For Availability
26
PAN-MEAT WCI 3001494 Contact Us For Availability
26
RING, FAN ORIFICE WCI 3001217 Contact Us For Availability
27
WCI 3001495 WCI 3001495 Contact Us For Availability
28
DUCT-MEAT KEEPER, UPPER WCI 3001441 Contact Us For Availability
28A
INSULATION-MEAT KEEPER, UPPER DUCT WCI 3001442 Contact Us For Availability
28B
DUCT-MEAT KEEPER, LOWER WCI 3001443 Contact Us For Availability
28C
INSULATION-MEAT KEEPER, LOWER DUCT WCI 3001444 Contact Us For Availability
28D
DAMPER-MEAT KEEPER DUCT WCI 3001445 Contact Us For Availability
28E
LABEL-MEAT KEEPER DUCT WCI 3001446 Contact Us For Availability
29
WCI 3001447 WCI 3001447 Contact Us For Availability
29
WCI 3001226 WCI 3001226 Contact Us For Availability
30
COVER-AIR DEFLECTOR WCI 3001448 Contact Us For Availability
30
WCI 3001227 WCI 3001227 Contact Us For Availability
32
SCREW (3) WCI 3001380 Contact Us For Availability
32
CLIP WCI 3001220 Contact Us For Availability
33
COVER-EVAPORATOR WCI 3001503 Contact Us For Availability
34
KNOB-TEMP CONTROL WCI 3001335 Contact Us For Availability
34
BLOCK-EVAPORATOR LS WCI 3001359 Contact Us For Availability
34A
SCREW-SWITCH MTG NO. 6-32 X 1/4 WCI 3001260 Contact Us For Availability
35
WCI 3001263 WCI 3001263 Contact Us For Availability
35
BLOCK-EVAPORATOR RS WCI 3001360 Contact Us For Availability
36
CONTROL WCI 3001336 Contact Us For Availability
36
PLUG-BLOCK WCI 3007287 Contact Us For Availability
37
SOCKET, LIGHT WCI 3001267 Contact Us For Availability
37
WCI 3001464 WCI 3001464 Contact Us For Availability
38
WCI 3001454 WCI 3001454 Contact Us For Availability
38
SLEEVE, VINYL HEAT EXCHANGE WCI 3001365 Contact Us For Availability
38
HEAT EXCHANGER WCI 3001465 Contact Us For Availability
38A
LABEL-CONTROL BOX WCI 3001339 Contact Us For Availability
39
SWITCH, SLIDE WCI 3001338 Contact Us For Availability
40
TROUGH-EVAPORATOR WCI 3001470 Contact Us For Availability
41
TUBE, RUBBER WCI 3001198 Contact Us For Availability
42
SCREW, HINGE WCI 3001368 Contact Us For Availability
43
HINGE-CENTER WCI 3001369 Contact Us For Availability
44
SPACER-MULLION MTG (2) WCI 3200464 Contact Us For Availability
45
HEATER-MULLION WCI 3001467 Contact Us For Availability
46
WCI 3001468 WCI 3001468 Contact Us For Availability
47
WCI 3001469 WCI 3001469 Contact Us For Availability
48A
HARNESS-WIRING DIVIDER WCI 3001383 Contact Us For Availability
49
DIVIDER-STYROFOAM WCI 3001504 Contact Us For Availability
50
BOTTOM-FREEZER WCI 3001505 Contact Us For Availability
51
TOP-REFRIGERATOR WCI 3001506 Contact Us For Availability
52
SUPPORT COIL COVER WCI 3001249 Contact Us For Availability
53
CHANNEL-SHELF MTG. (2) WCI 3001476 Contact Us For Availability
55
BUTTON-PLUG, HINGE HOLE WCI 3001478 Contact Us For Availability
57
WCI 3001286 WCI 3001286 Contact Us For Availability
58
WCI 3001287 WCI 3001287 Contact Us For Availability
59
WCI 3001682 WCI 3001682 Contact Us For Availability
× ![]()
