Model Electrolux 95-1987-00-04 REFRIGERATOR – Common Parts & Diagrams

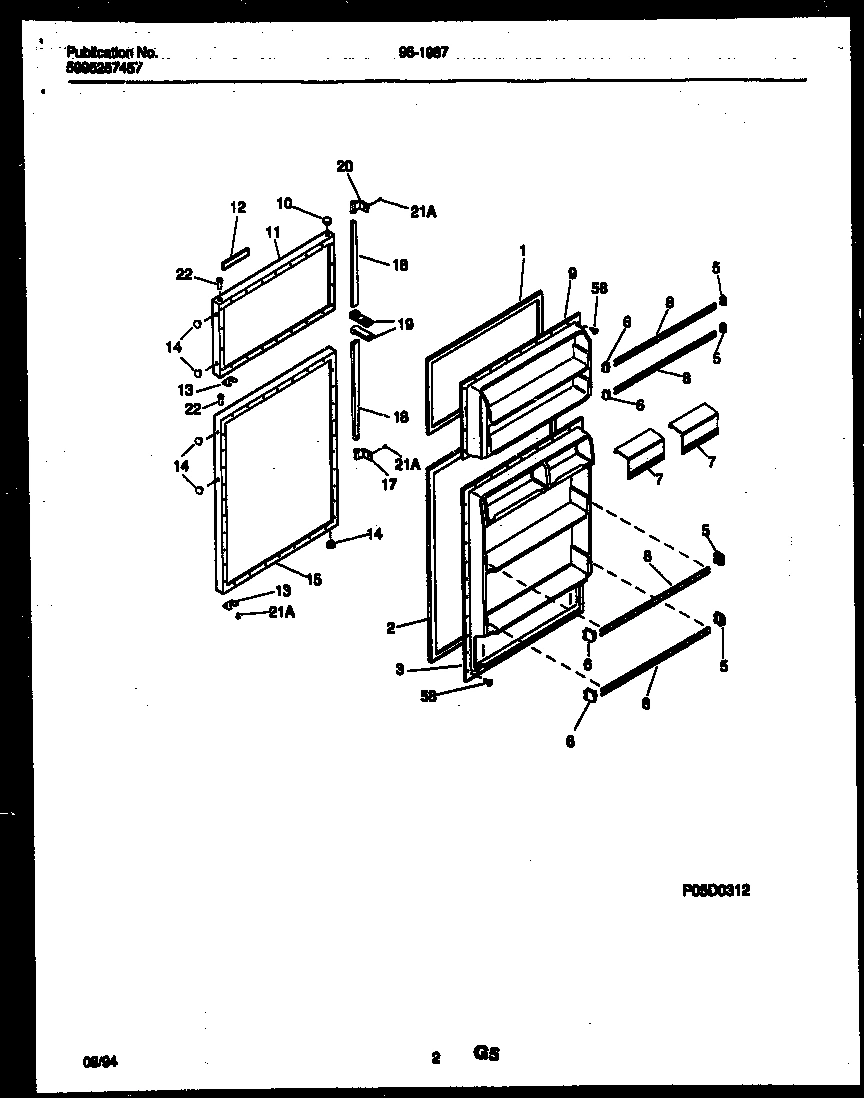

02 - DOOR PARTS

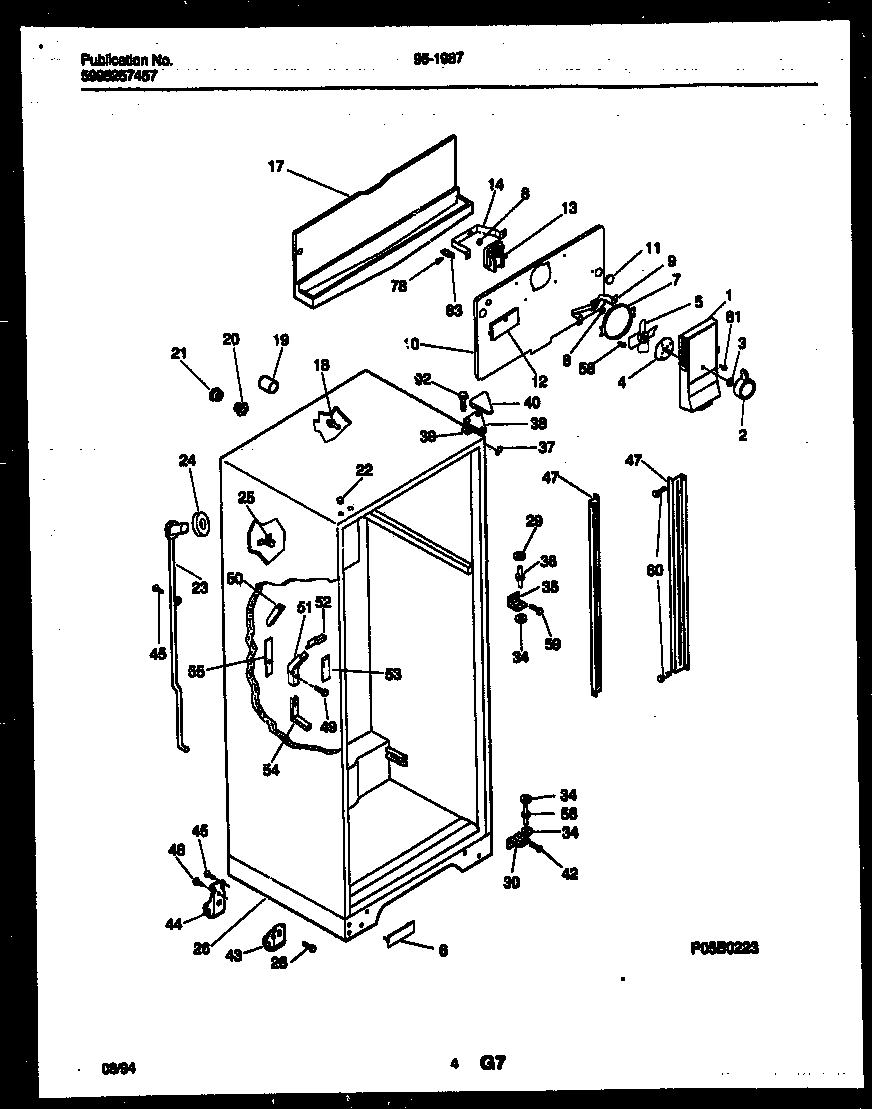

03 - CABINET PARTS

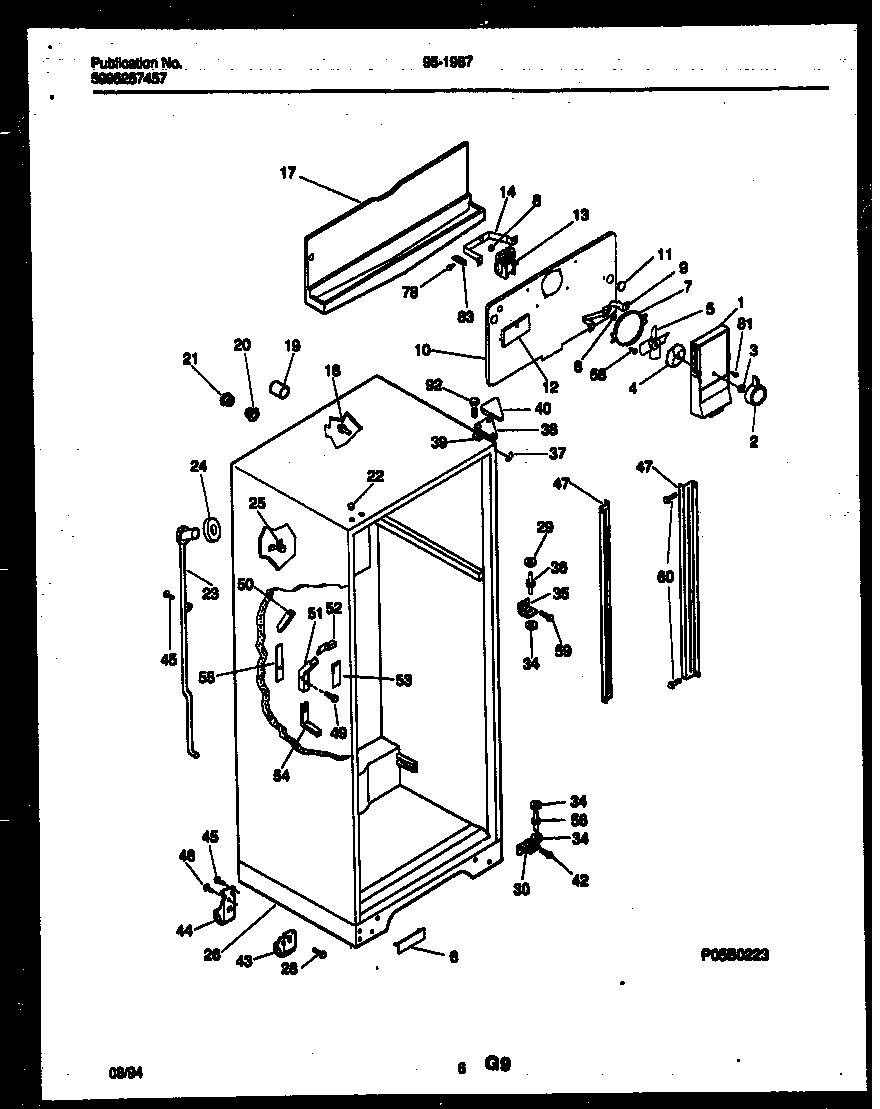

04 - CABINET PARTS

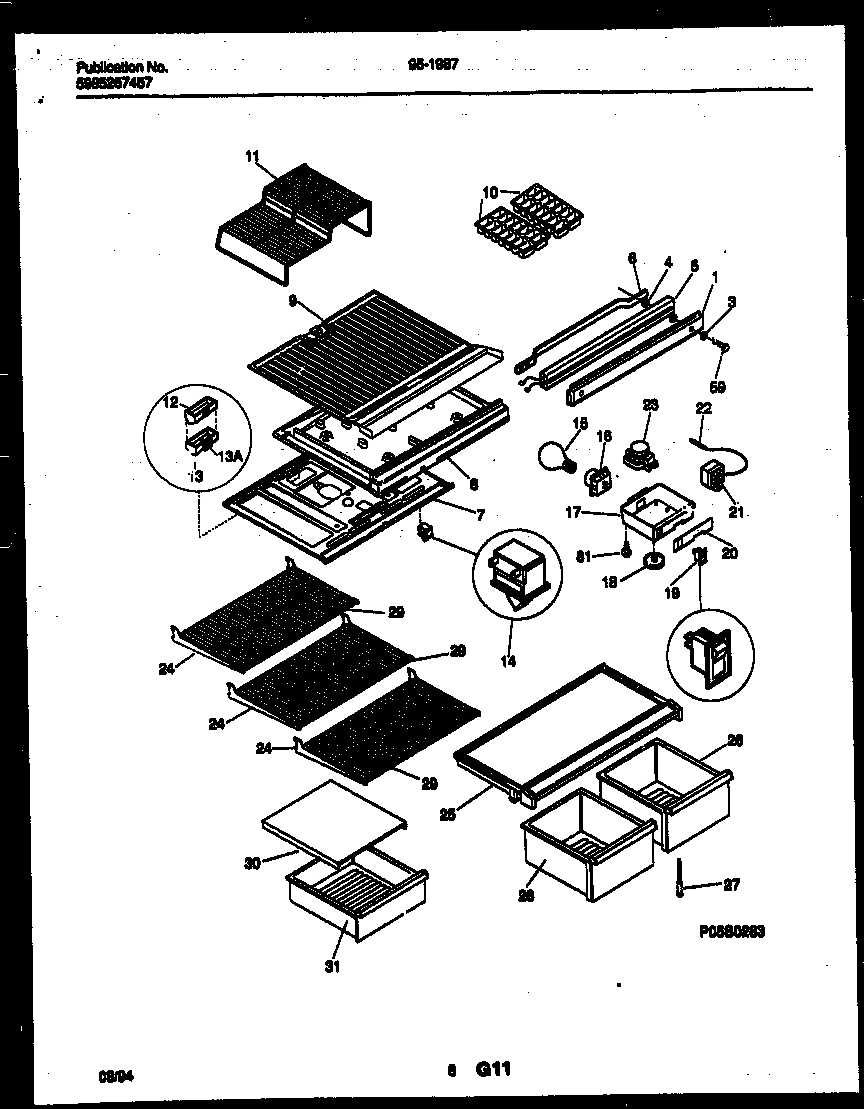

05 - SHELVES AND SUPPORTS

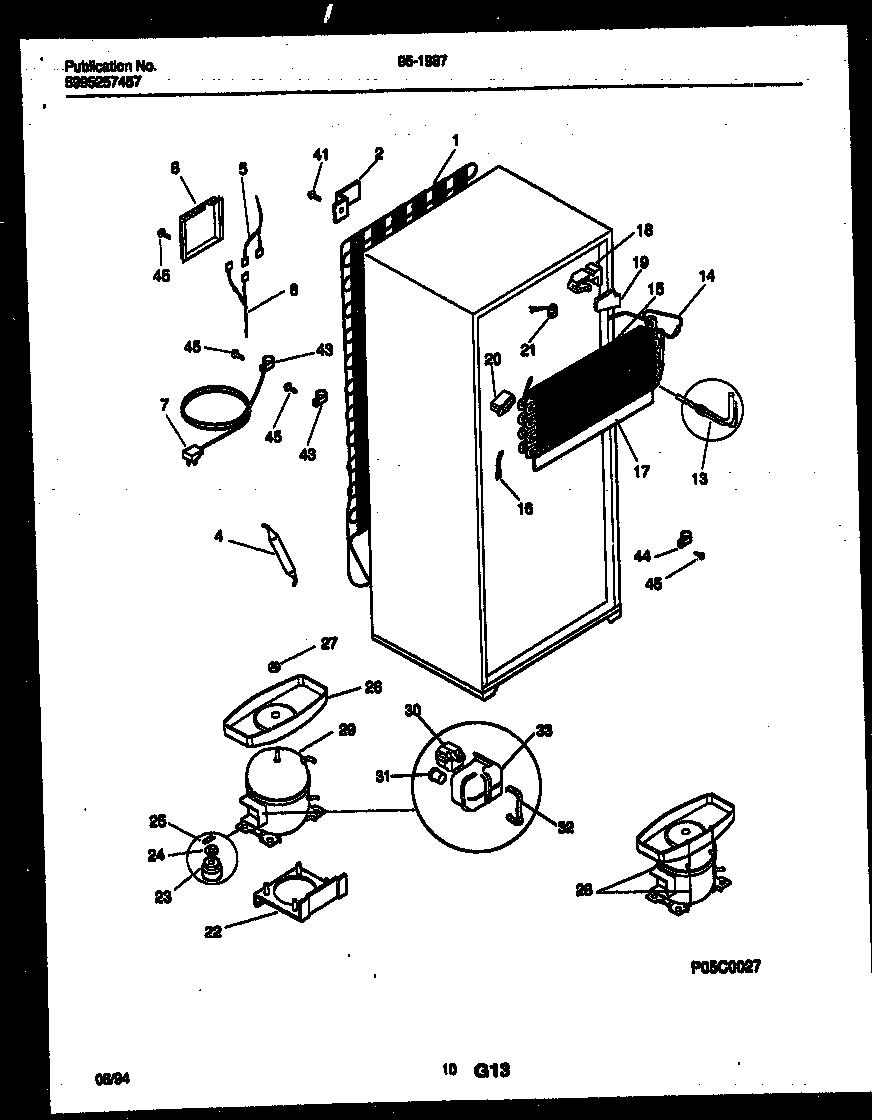

06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux 95-1987-00-04 REFRIGERATOR
*10630
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*10631
NUT-ANCHOR WCI 5308003584 Contact Us For Availability
*10631
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*10631
SHIM-LOWER HINGE BRACKET WCI 5303001323 Contact Us For Availability
*10631
SCREW-LEVELING WCI 5303205540 Contact Us For Availability
*10631
ú SPRING-ROLLER ADJ WCI 5308009790 Contact Us For Availability
*10631
SUPPORT-CABINET BASE WCI 5308013678 Contact Us For Availability
*10633
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
WCI 5303200366 WCI 5303200366 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 5308000296 WCI 5308000296 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
WCI 5303206754 WCI 5303206754 Contact Us For Availability
4
SPACER-MULLION MTG, STEEL WCI 5303200464 Contact Us For Availability
5
WCI 5303270834 WCI 5303270834 Contact Us For Availability
5
HARNESS-WIRING, CONTROL/DIVIDER WCI 3001383 Contact Us For Availability
6
WCI 5308010008 WCI 5308010008 Contact Us For Availability
6
WCI 5303271882 WCI 5303271882 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
TOP PANEL-REFR, W/SNAP BUSHING WCI 5303016367 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
7B
BUSHING, SNAP-IN, PLASTIC (NON-ILLUSTRATED) WCI 5303212518 Contact Us For Availability
8
DIVIDER, STYROFOAM WCI 5303001504 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303211427 WCI 5303211427 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303203044 Contact Us For Availability
11
WCI 3018155 WCI 3018155 Contact Us For Availability
12
WCI 5308013636 WCI 5308013636 Contact Us For Availability
12
WCI 5308014667 WCI 5308014667 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
13A
EXTENSION, AIR DEFLECTOR, WITH INSULATION WCI 5303200590 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
EVAPORATOR COIL WCI 5300162506 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303001470 WCI 5303001470 Contact Us For Availability
17
WCI 3001454 WCI 3001454 Contact Us For Availability
17A
WCI 5308016567 WCI 5308016567 Contact Us For Availability
18
WCI 215245000 WCI 215245000 Contact Us For Availability
18
WCI 5317478101 WCI 5317478101 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
HANDLE-END CAP WCI 5303001296 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 5303001670 WCI 5303001670 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
LABEL-CONTROL BOX WCI 5303001339 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5308015762 WCI 5308015762 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG-BUTTON, WHITE, UPR HINGE HOLES WCI 5303001388 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
SHELF-CANTILEVER, FULL, (3) WCI 5303001491 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
COVER-CRISPER PAN WCI 5303001493 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
WCI 5308010092 WCI 5308010092 Contact Us For Availability
26
PAN-CRISPER, LH WCI 5303001436 Contact Us For Availability
26
PAN-CRISPER, RH WCI 5303001437 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
27
SUPPORT-CRISPER CVR, ADJUSTABLE WCI 5303205987 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
BOLT-ROLLER ADJ, INDT HX HD SEMS, 1/4-28 X 2- WCI 5308009761 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
TRIM-FULL SHELF, (3) WCI 3001492 Contact Us For Availability
29
WCI 5303916411 WCI 5303916411 Contact Us For Availability
30
WCI 5303007171 WCI 5303007171 Contact Us For Availability
30
WCI 5303202834 WCI 5303202834 Contact Us For Availability
30
WCI 3001495 WCI 3001495 Contact Us For Availability
31
WCI 5303001494 WCI 5303001494 Contact Us For Availability
31
WCI 5303007416 WCI 5303007416 Contact Us For Availability
34
WASHER, 5/16 X 5/8 OD WCI 5303001038 Contact Us For Availability
35
BRACKET-CTR HINGE WCI 5303001369 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
37
TRIM-CABINET CORNER, WHITE WCI 5303202336 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38A
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
COVER-UPPER HINGE, WHITE WCI 5308012820 Contact Us For Availability
43
ROLLER ASSY-FRONT, (2) WCI 5308009760 Contact Us For Availability
44
WCI 5308009773 WCI 5308009773 Contact Us For Availability
46
WCI 5308009762 WCI 5308009762 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE, REFR, (2) WCI 5308000302 Contact Us For Availability
49
SCREW-CHAN/AIR DUCT, HEX HEAD, 8AB X 1-1/2 WCI 5308016568 Contact Us For Availability
50
INSULATION-AIR DUCT, UPPER WCI 5308009765 Contact Us For Availability
51
DUCT-MEAT KEEPER (UPPER) WCI 08017510 Contact Us For Availability
52
CONTROL-DAMPER, MEAT KPR DUCT WCI 5303001445 Contact Us For Availability
53
LABEL-MEAT KPR DUCT WCI 3001446 Contact Us For Availability
54
DUCT-MEAT KEEPER, LOWER WCI 5303001443 Contact Us For Availability
55
INSULATION-AIR DUCT, LOWER WCI 5308009764 Contact Us For Availability
56
PIN-LOWER HINGE WCI 5303001321 Contact Us For Availability
59
WCI 5308012258 WCI 5308012258 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
