Model Electrolux 95-1980-00-01 REFRIGERATOR – Common Parts & Diagrams

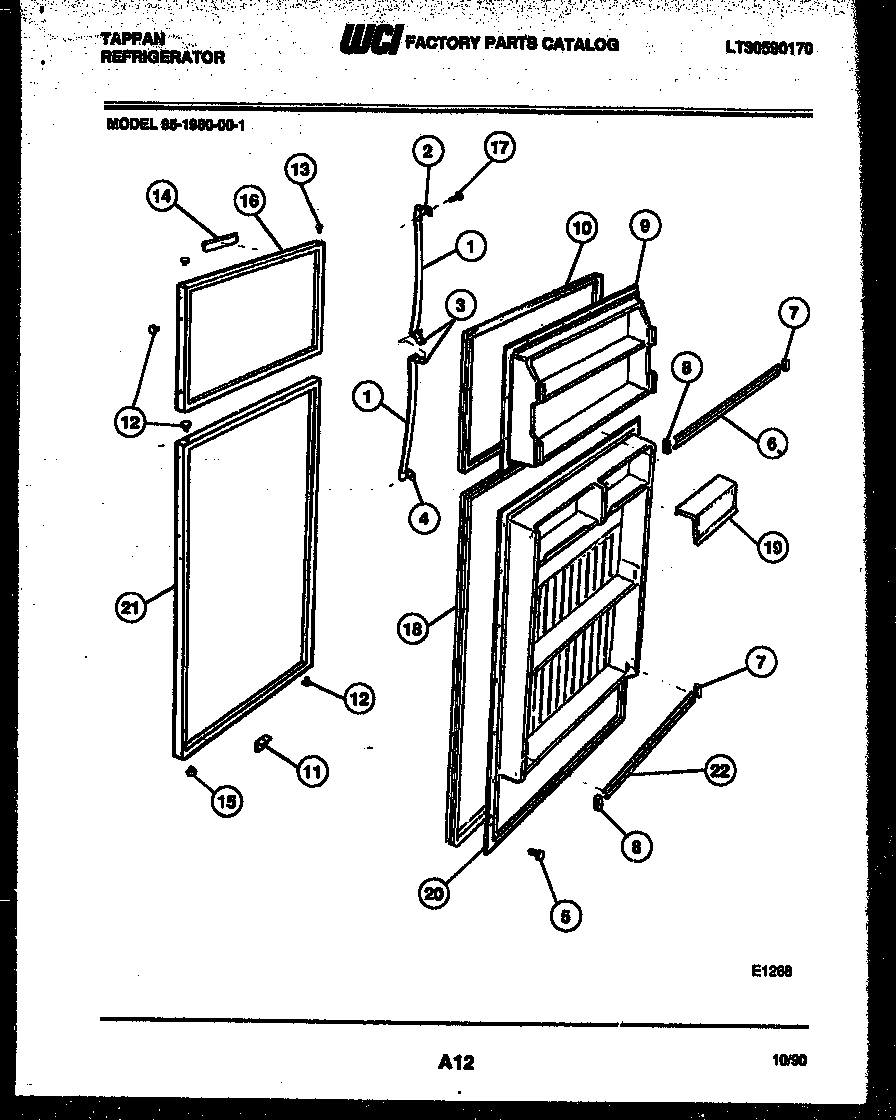

02 - DOOR PARTS

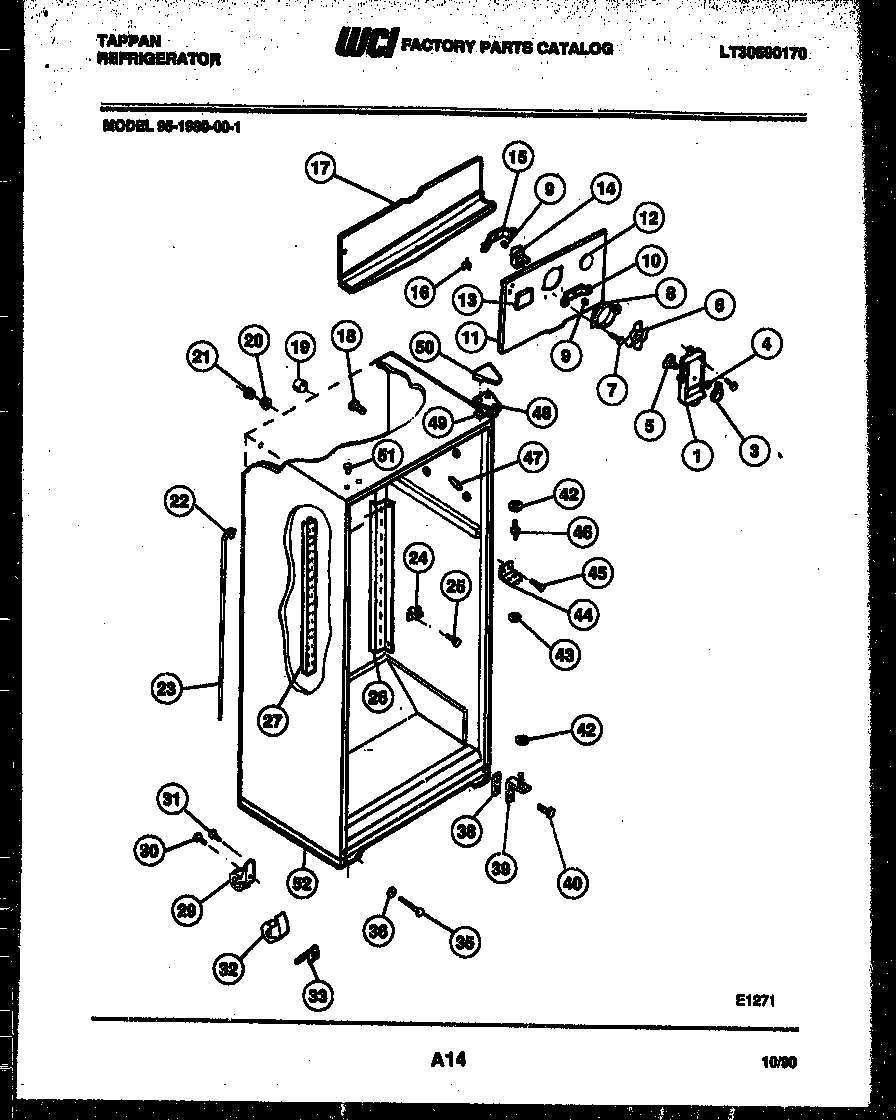

03 - CABINET PARTS

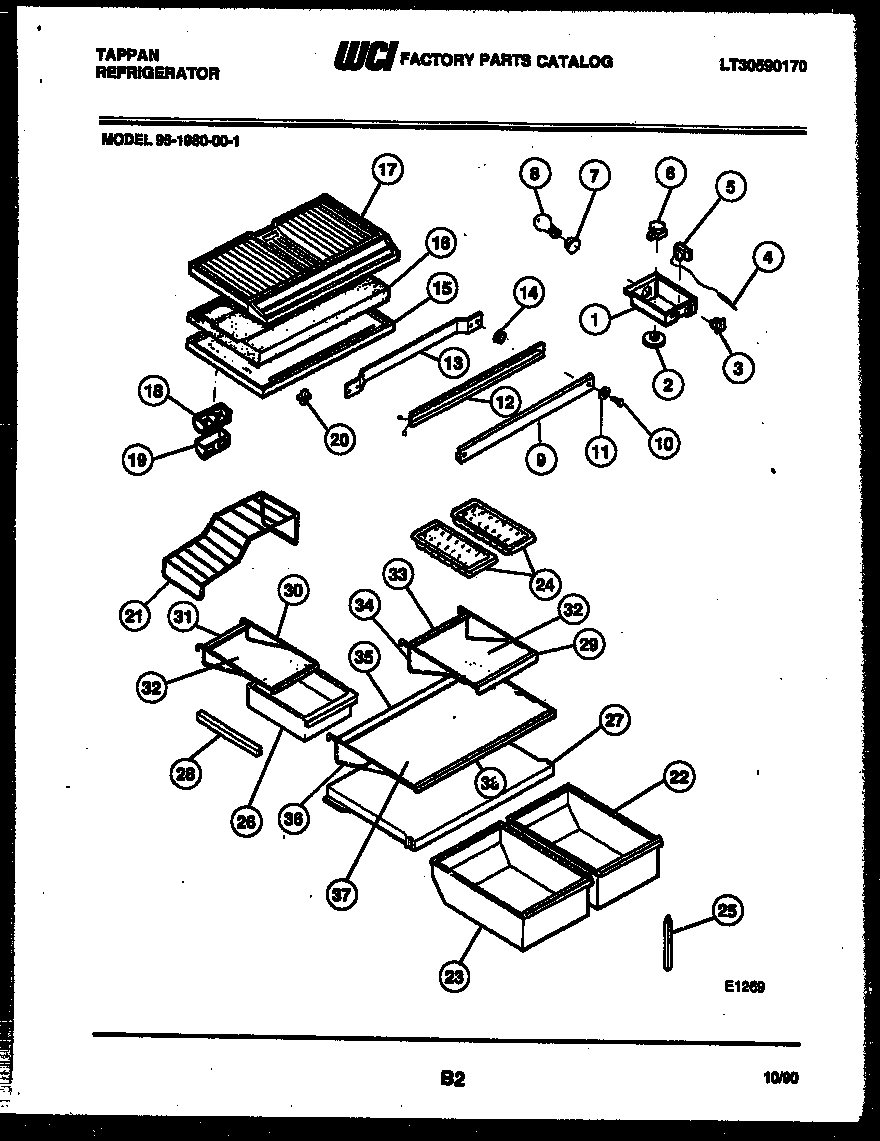

04 - SHELVES AND SUPPORTS

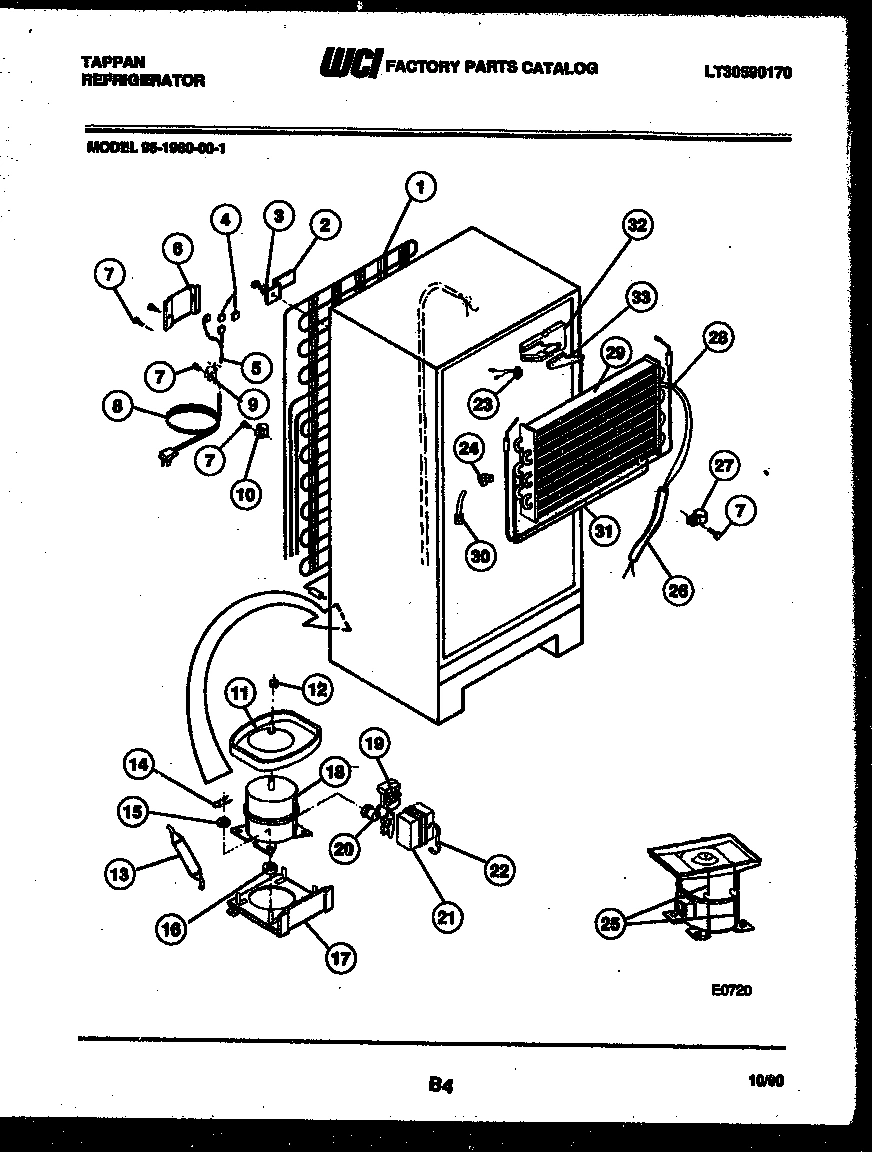

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux 95-1980-00-01 REFRIGERATOR
*41023
PLUG-FREEZER LINER (5) WCI 5308016571 Contact Us For Availability
*41037
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
*41037
CAPACITOR RUN COMPRESSOR WCI 5303916391 Contact Us For Availability
1
CONTROL BOX WCI 3001454 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
1A
WCI 5303001339 WCI 5303001339 Contact Us For Availability
2
KNOB - TEMPERATURE CONTROL WCI 5317478101 Contact Us For Availability
2
BRACKET - COND MOUNTING (4) WCI 5308000296 Contact Us For Availability
2A
SPACER-TUBE (3) (NON-ILLUSTRATED) WCI 5303208866 Contact Us For Availability
2B
WASHER, NO. 10 EXT TOOTH LOCK (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
END-HANDLE (2) WCI 5303001296 Contact Us For Availability
3
WCI 5308011762 WCI 5308011762 Contact Us For Availability
3
WCI 5303001670 WCI 5303001670 Contact Us For Availability
4
WCI 5303001028 WCI 5303001028 Contact Us For Availability
4
WIRING HARNESS-CONTROL WCI 3001383 Contact Us For Availability
5
WCI 5303200810 WCI 5303200810 Contact Us For Availability
5
DAMPER WCI 5303001331 Contact Us For Availability
5
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
5A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
6
WCI 5303001197 WCI 5303001197 Contact Us For Availability
7
LIGHT SOCKET WCI 5308000129 Contact Us For Availability
8
WCI 5308000124 WCI 5308000124 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
9
WCI 5303200366 WCI 5303200366 Contact Us For Availability
9
WCI 5303200368 WCI 5303200368 Contact Us For Availability
9
WCI 5303200370 WCI 5303200370 Contact Us For Availability
10
WCI 5303001226 WCI 5303001226 Contact Us For Availability
10
WCI 5308012258 WCI 5308012258 Contact Us For Availability
11
COVER, EVAPORATOR COIL WCI 5308009771 Contact Us For Availability
11
WASHER-NO. 10 STEEL (2) WCI 5303206754 Contact Us For Availability
11
PAN-DEFROST WCI 5300184715 Contact Us For Availability
11B
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
12
WCI 5303210351 WCI 5303210351 Contact Us For Availability
12
LOCK NUT-PAN MOUNTING WCI 5303001348 Contact Us For Availability
13
BUTTON-PLUG HINGE HOLE-ALMOND WCI 5303001308 Contact Us For Availability
13
BUTTON-PLUG HINGE HOLE-WHITE WCI 5308000134 Contact Us For Availability
13
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
13
STRAP, MULLION MOUNTING WCI 5308010008 Contact Us For Availability
14
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
14
CLIP (4) WCI 5308003596 Contact Us For Availability
15
WCI 5303205119 WCI 5303205119 Contact Us For Availability
15
TOP PANEL-REFRIGERATOR WCI 5303016367 Contact Us For Availability
15
WASHER (4) WCI 5308003633 Contact Us For Availability
15A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
16
WCI 5308000107 WCI 5308000107 Contact Us For Availability
16
DIVIDER, STYROFOAM WCI 5303001504 Contact Us For Availability
17
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
17
BOTTOM PANEL, FREEZER WCI 5303211427 Contact Us For Availability
17
PLATE, COMPRESSOR MOUNTING WCI 5308013663 Contact Us For Availability
18
WCI 5308000071 WCI 5308000071 Contact Us For Availability
18
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
18
COMPRESSOR W/ ELECTRICALS WCI 5303916004 Contact Us For Availability
19
RELAY-TI WCI 5303007173 Contact Us For Availability
19
WCI 5303001546 WCI 5303001546 Contact Us For Availability
19
WCI 5303001198 WCI 5303001198 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
WCI 5303001713 WCI 5303001713 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 3001490 WCI 3001490 Contact Us For Availability
22
WCI 5303207353 WCI 5303207353 Contact Us For Availability
22
PAN-CRISPER, RIGHT SIDE WCI 5303001437 Contact Us For Availability
23
DRAIN TUBE & SEAL RING WCI 5303210377 Contact Us For Availability
23
PAN-CRISPER, LEFT SIDE WCI 5303001436 Contact Us For Availability
24
WCI 5308000056 WCI 5308000056 Contact Us For Availability
24
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
25
SUPPORT - PAN COVER ADJUSTABLE WCI 5303205987 Contact Us For Availability
25
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
25
PUSH-PIN SPOUT (2) WCI 5303001361 Contact Us For Availability
26
CHANNEL-RS & LS WCI 5308000302 Contact Us For Availability
26
WCI 5303015407 WCI 5303015407 Contact Us For Availability
26
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
27
WCI 5303015409 WCI 5303015409 Contact Us For Availability
27
WCI 5303001493 WCI 5303001493 Contact Us For Availability
27A
SCREW-CHANNEL (3) (NON-ILLUSTRATED) WCI 5308016568 Contact Us For Availability
28
HANGER - MEAT PAN LH WCI 5303211236 Contact Us For Availability
28A
HANGER - MEAT PAN RH (NON-ILLUSTRATED) WCI 5303211237 Contact Us For Availability
28B
SCREW-HANGER MOUNTING (2) (NON-ILLUSTRATED) WCI 08014528 Contact Us For Availability
29
ROLLER-REAR (2) WCI 5308009773 Contact Us For Availability
29
WCI 3015408 WCI 3015408 Contact Us For Availability
29
EVAPORATOR COIL WCI 5300162506 Contact Us For Availability
30
BOLT 1/4-28 (2) WCI 5308009762 Contact Us For Availability
30
WCI 3015290 WCI 3015290 Contact Us For Availability
31
WCI 5316651102 WCI 5316651102 Contact Us For Availability
31
WCI 3201126 WCI 3201126 Contact Us For Availability
32
ROLLER, FRONT (2) WCI 5303212490 Contact Us For Availability
32
WCI 3015411 WCI 3015411 Contact Us For Availability
32
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
33
SPRING-ROLLER ADJUSTMENT (2) WCI 5308009790 Contact Us For Availability
33
WCI 3201127 WCI 3201127 Contact Us For Availability
33
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
34
WCI 3015410 WCI 3015410 Contact Us For Availability
35
SCREW - ROLLER ADJUSTMENT WCI 5303212598 Contact Us For Availability
35
WCI 3201129 WCI 3201129 Contact Us For Availability
36
WASHER-NYLON (2) WCI 5308011326 Contact Us For Availability
36
WCI 3015406 WCI 3015406 Contact Us For Availability
37
WCI 3001433 WCI 3001433 Contact Us For Availability
38
WCI 5303212488 WCI 5303212488 Contact Us For Availability
38
TRIM-SHELF FRONT WCI 3001492 Contact Us For Availability
39
WCI 5303212489 WCI 5303212489 Contact Us For Availability
42
WASHER-1/4 NYLON WCI 5308000007 Contact Us For Availability
42A
TAPPING PLATE - LOWER GUSSET LH (NON-ILLUSTRA WCI 5303212596 Contact Us For Availability
42B
TAPPING PLATE - LOWER GUSSET RH (NON-ILLUSTRA WCI 5303212597 Contact Us For Availability
43
WASHER-5/16 NYLON (3) WCI 5308000186 No Longer Available
44
WCI 5303001369 WCI 5303001369 Contact Us For Availability
46
WCI 5308000184 WCI 5308000184 Contact Us For Availability
47
CORNER-TRIM (WHITE) WCI 5303202336 Contact Us For Availability
47
CORNER TRIM, WHEAT WCI 5303202338 Contact Us For Availability
47
CORNER TRIM-ALMOND WCI 5303202340 Contact Us For Availability
48
WCI 5308012843 WCI 5308012843 Contact Us For Availability
48B
PLATE-TAPPING UPPER (2) (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
49
WCI 5303001037 WCI 5303001037 Contact Us For Availability
50
WCI 5303001665 WCI 5303001665 Contact Us For Availability
50
WCI 5308012820 WCI 5308012820 Contact Us For Availability
50
WCI 5308012933 WCI 5308012933 Contact Us For Availability
51
PLUG-ALMOND WCI 5303001389 Contact Us For Availability
51
PLUG, WHITE WCI 5303001388 Contact Us For Availability
51
PLUG, WHEAT WCI 5303001678 Contact Us For Availability
52
CABINET BASE WCI 5303212487 Contact Us For Availability
× ![]()
