Model Electrolux 95-1967-45-04 REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR PARTS
03 - REFRIGERATOR DOOR PARTS

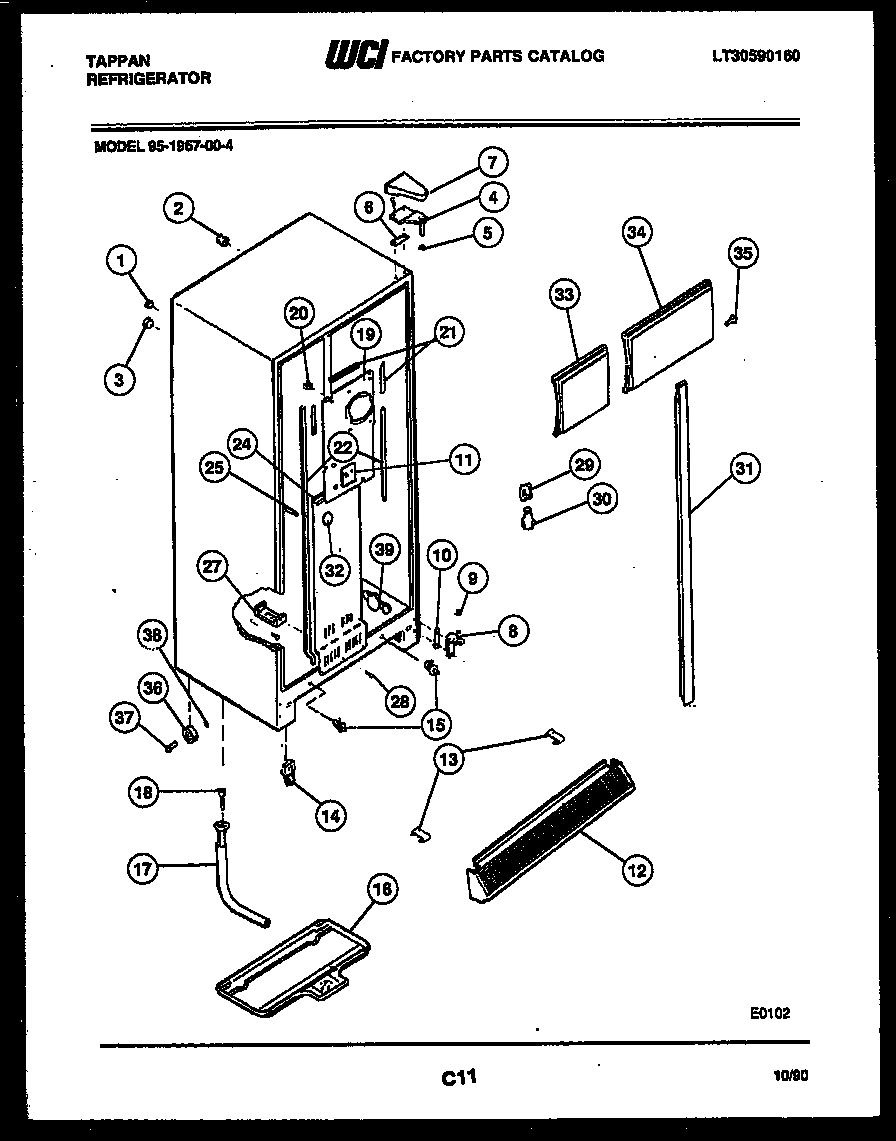

04 - CABINET PARTS

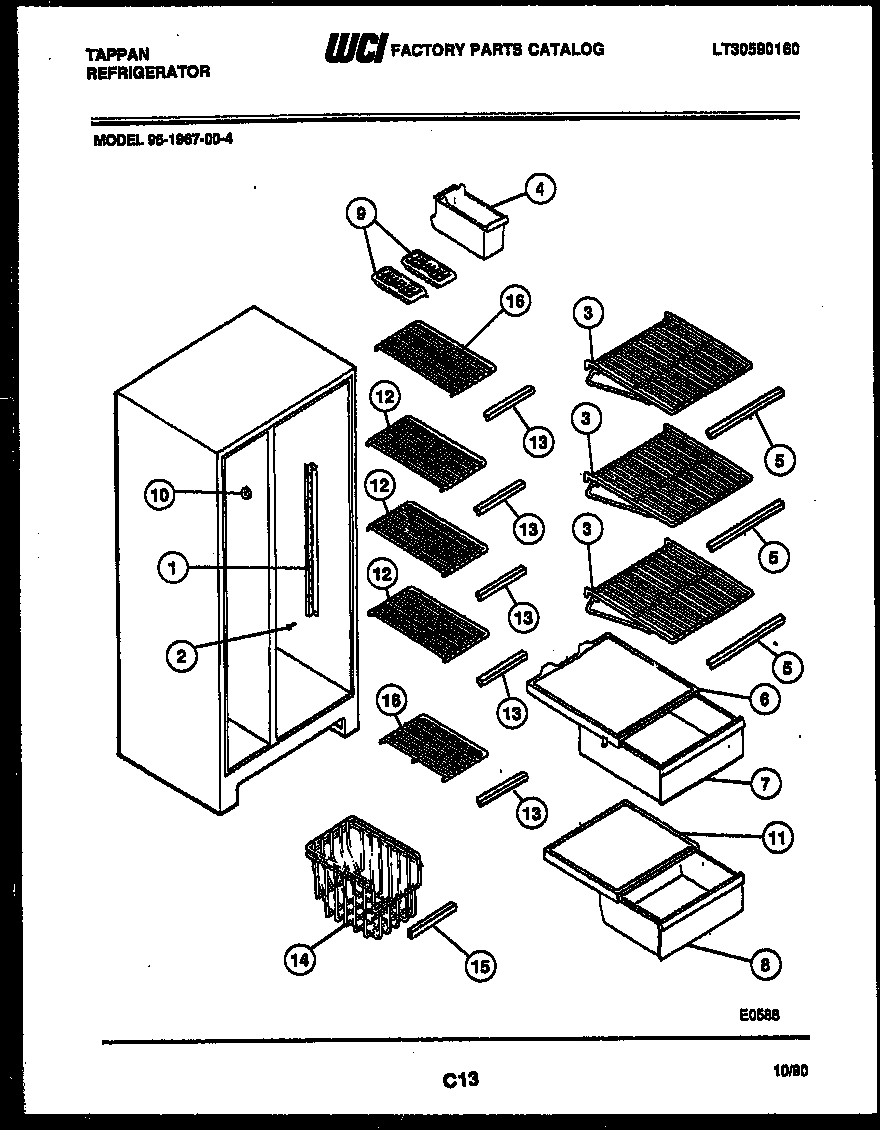

05 - SHELVES AND SUPPORTS

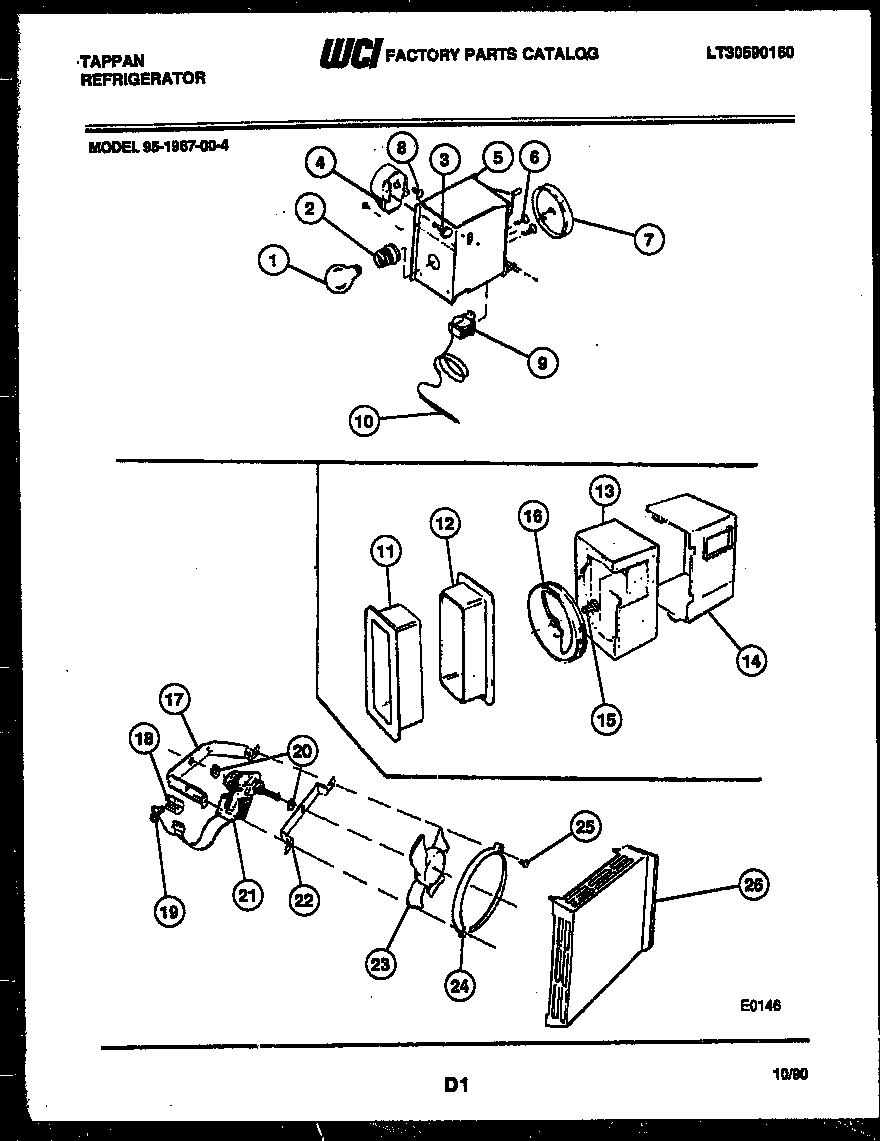

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

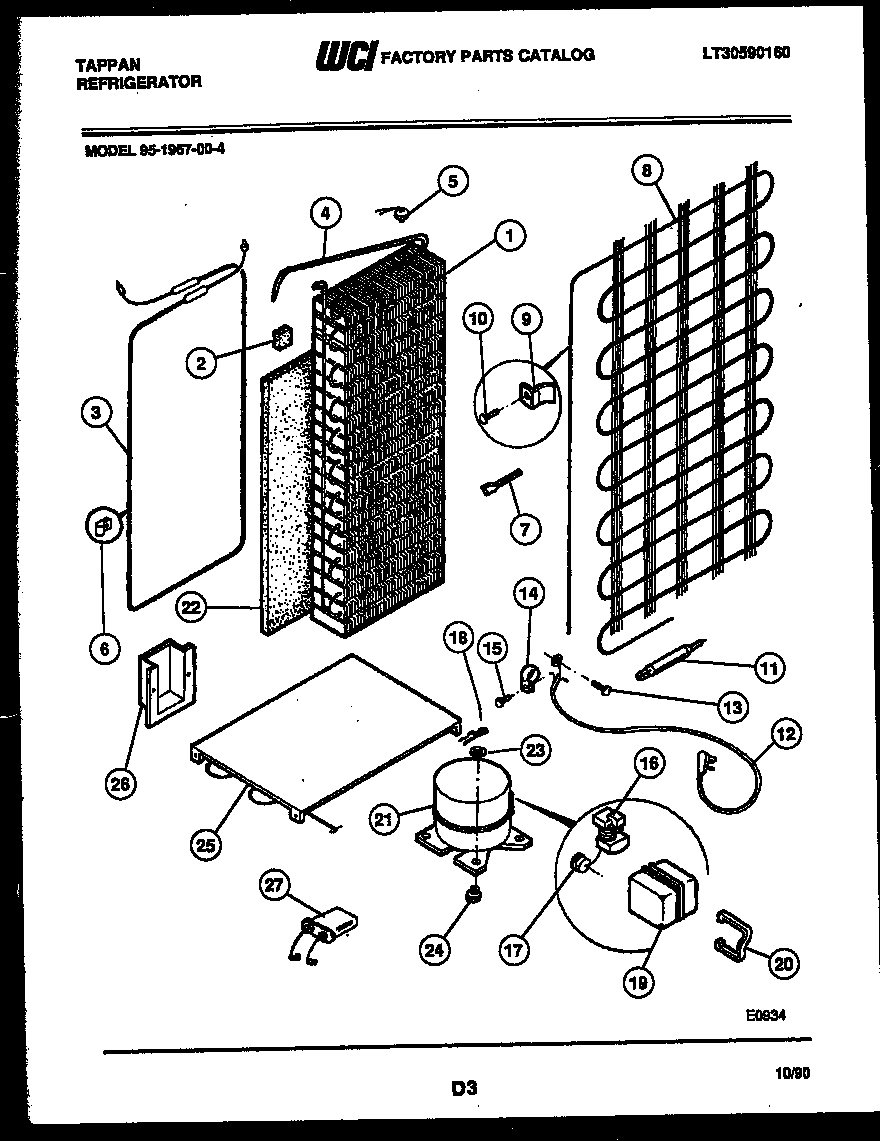

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux 95-1967-45-04 REFRIGERATOR
*40337
PLUG, FREEZER LINER (3) WCI 5308016571 Contact Us For Availability
*40337
WCI 3201957 WCI 3201957 Contact Us For Availability
*40341
WCI 5303015098 WCI 5303015098 Contact Us For Availability
*40342
WCI 5308017046 WCI 5308017046 Contact Us For Availability
1
FERRULE-OUTER (2) WCI 5303001287 Contact Us For Availability
1
WCI 5308002744 WCI 5308002744 Contact Us For Availability
1
WCI 3206421 WCI 3206421 Contact Us For Availability
1A
PLUG - DOOR BOTTOM (NON-ILLUSTRATED) WCI 5315230801 Contact Us For Availability
1A
WCI 3206414 WCI 3206414 Contact Us For Availability
1B
WCI 5308009619 WCI 5308009619 Contact Us For Availability
2
SOCKET - LIGHT - REF WCI 5308000129 Contact Us For Availability
2
NAMEPLATE ASSEMBLY WCI 3001312 Contact Us For Availability
2
TUBE-RUBBER (4) WCI 5303001198 Contact Us For Availability
2
WCI 5308000828 WCI 5308000828 Contact Us For Availability
3
WCI 5303007568 WCI 5303007568 Contact Us For Availability
3
HINGE BEARING - UPPER WCI 5308012007 Contact Us For Availability
3
FERRULE-INNER (2) WCI 5303001286 Contact Us For Availability
3
SHELF-REFRIGERATOR (3) WCI 3001715 Contact Us For Availability
4
HINGE - TOP RH WCI 5308012843 Contact Us For Availability
4
WCI G175666-20 WCI G175666-20 Contact Us For Availability
4
ICE CONTAINER WCI 3016711 Contact Us For Availability
4
WCI 5308017565 WCI 5308017565 Contact Us For Availability
4A
WCI 5303001062 WCI 5303001062 Contact Us For Availability
4C
TAPPING PLATE (2) (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
5
WASHER, HINGE PIN (2) WCI 5308000186 No Longer Available
5
HANDLE - END TOP WCI 5303001014 Contact Us For Availability
5
TRIM - REFRIGERATOR SHELF WCI 3001716 Contact Us For Availability
5
WCI 5300189359 WCI 5300189359 Contact Us For Availability
5A
WCI 5303001280 WCI 5303001280 Contact Us For Availability
6
WCI 5303201811 WCI 5303201811 Contact Us For Availability
6
SHIM, HINGE (2) WCI 5303001037 Contact Us For Availability
6
COVER-UPPER PAN WCI 3016713 Contact Us For Availability
6
WCI 5303001260 WCI 5303001260 Contact Us For Availability
6
WCI 5308002777 WCI 5308002777 Contact Us For Availability
7
INSULATION, BULK WCI 5303007739 Contact Us For Availability
7
HINGE COVER-COFFEE (2) WCI 5303001666 Contact Us For Availability
7
STORAGE PAN-UPPER WCI 3016714 Contact Us For Availability
7
KNOB - TEMPERATURE CONTROL WCI 5303001265 Contact Us For Availability
8
WCI 5303016725 WCI 5303016725 Contact Us For Availability
8
WCI 5303001271 WCI 5303001271 Contact Us For Availability
8
STORAGE PAN-LOWER WCI 3016715 Contact Us For Availability
8
WCI 5308017228 WCI 5308017228 Contact Us For Availability
8A
WCI 5303001041 WCI 5303001041 Contact Us For Availability
8B
WCI 5303001273 WCI 5303001273 Contact Us For Availability
9
WCI 5308000068 WCI 5308000068 Contact Us For Availability
9
DAIRY DOOR WCI 3016724 Contact Us For Availability
9
WASHER - HINGE PIN (2) WCI 5303001038 Contact Us For Availability
9
BRACKET-MOUNTING (4) WCI 5308000296 Contact Us For Availability
10
DOOR RACK (4) WCI 5303016720 Contact Us For Availability
10
WCI 5303001272 WCI 5303001272 Contact Us For Availability
10A
WCI 5308000013 WCI 5308000013 Contact Us For Availability
10A
WASHER-EXT TOOTH LOCK (NON-ILLUSTRATED) WCI 5308009617 Contact Us For Availability
10B
WCI 5300077210 WCI 5300077210 Contact Us For Availability
11
SUPPORT RS (4) WCI 5303016721 Contact Us For Availability
11
DECORATIVE PLUG WCI 3016727 Contact Us For Availability
11
COVER - LOWER PAN WCI 3016716 Contact Us For Availability
11
WCI 5303001276 WCI 5303001276 Contact Us For Availability
12
SUPPORT LS (4) WCI 5316108004 Contact Us For Availability
12
WCI 5303016726 WCI 5303016726 Contact Us For Availability
12
WCI 3016707 WCI 3016707 Contact Us For Availability
12
WCI 5303001277 WCI 5303001277 Contact Us For Availability
12
WCI 5316254901 WCI 5316254901 Contact Us For Availability
12A
WCI 3001269 WCI 3001269 Contact Us For Availability
13
WCI 5308000790 WCI 5308000790 Contact Us For Availability
13
WCI 5308000091 WCI 5308000091 Contact Us For Availability
13
TRIM - FREEZER SHELF (5) WCI 3016712 Contact Us For Availability
13
WCI 5308000771 WCI 5308000771 Contact Us For Availability
14
WCI 5308000118 WCI 5308000118 Contact Us For Availability
14
BASKET-FREEZER WCI 3016717 Contact Us For Availability
14
WCI 5303001252 WCI 5303001252 Contact Us For Availability
14A
WCI 5308017044 WCI 5308017044 Contact Us For Availability
14A
WCI 5303207490 WCI 5303207490 Contact Us For Availability
15
HANDLE - END BOTTOM WCI 5303001015 Contact Us For Availability
15
WCI 3016718 WCI 3016718 Contact Us For Availability
15
WCI 5300185373 WCI 5300185373 Contact Us For Availability
16
WCI 5303007173 WCI 5303007173 Contact Us For Availability
16
WCI 5308011745 WCI 5308011745 Contact Us For Availability
16
WCI 5308000086 WCI 5308000086 Contact Us For Availability
16
WCI 3016708 WCI 3016708 Contact Us For Availability
16
WCI 5308010379 WCI 5308010379 Contact Us For Availability
17
BRACKET-MOTOR REAR WCI 5303205119 Contact Us For Availability
18
WCI 5308000107 WCI 5308000107 Contact Us For Availability
18
WCI 5308000853 WCI 5308000853 Contact Us For Availability
18
CLIP - COMP MOUNTING (4) WCI 5308003596 Contact Us For Availability
19
WCI 5303006543 WCI 5303006543 Contact Us For Availability
19A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI 5308000126 Contact Us For Availability
20
SUPPORT, COVER (2) WCI 5308000097 Contact Us For Availability
20
WCI 5300157666 WCI 5300157666 Contact Us For Availability
21
WCI 5303001219 WCI 5303001219 Contact Us For Availability
21
WCI 5308950223 WCI 5308950223 Contact Us For Availability
22
WCI 5303001233 WCI 5303001233 Contact Us For Availability
22
BRACKET-MOTOR FRONT WCI 5303001226 Contact Us For Availability
22
WCI 5303001235 WCI 5303001235 Contact Us For Availability
23
WASHER - COMPRESSOR MOUNTING (4) WCI 5308003633 Contact Us For Availability
24
RING, ORIFICE WCI 5308000124 Contact Us For Availability
24
WCI 5308017223 WCI 5308017223 Contact Us For Availability
25
WCI 5303001250 WCI 5303001250 Contact Us For Availability
25
WCI 5300188724 WCI 5300188724 Contact Us For Availability
26
WCI 5316465401 WCI 5316465401 Contact Us For Availability
26
WCI 5303001197 WCI 5303001197 Contact Us For Availability
26A
WCI 5303001231 WCI 5303001231 Contact Us For Availability
26B
WCI 5308009616 WCI 5308009616 Contact Us For Availability
26C
WCI 08009775 WCI 08009775 Contact Us For Availability
26D
WCI 5300189379 WCI 5300189379 Contact Us For Availability
27
WCI 5308000738 WCI 5308000738 Contact Us For Availability
27
CAPACITOR-RUN WCI 5303916391 Contact Us For Availability
27B
WCI 5303001230 WCI 5303001230 Contact Us For Availability
28A
WCI 5303001216 WCI 5303001216 Contact Us For Availability
31
WCI 5303916447 WCI 5303916447 Contact Us For Availability
31A
WCI 5300169100 WCI 5300169100 Contact Us For Availability
31A
WCI 5303001281 WCI 5303001281 Contact Us For Availability
33
LIGHT SHIELD-FREEZER WCI 3016709 Contact Us For Availability
34
LIGHT SHIELD - REFRIGERATOR WCI 3016710 Contact Us For Availability
35
WCI 5303001213 WCI 5303001213 Contact Us For Availability
36
WCI 5303001030 WCI 5303001030 Contact Us For Availability
37
WCI 5308000266 WCI 5308000266 Contact Us For Availability
38
PUSH NUT (2) WCI 5303001028 Contact Us For Availability
39
DAMPER, MEAT KEEPER WCI 5316491203 Contact Us For Availability
× ![]()
