Model Electrolux 95-1487-23-1 REFRIGERATOR – Common Parts & Diagrams
02 - FOOD AND FREEZER DOORS
03 - COMPRESSOR, CONDENSER, EVAPORATOR

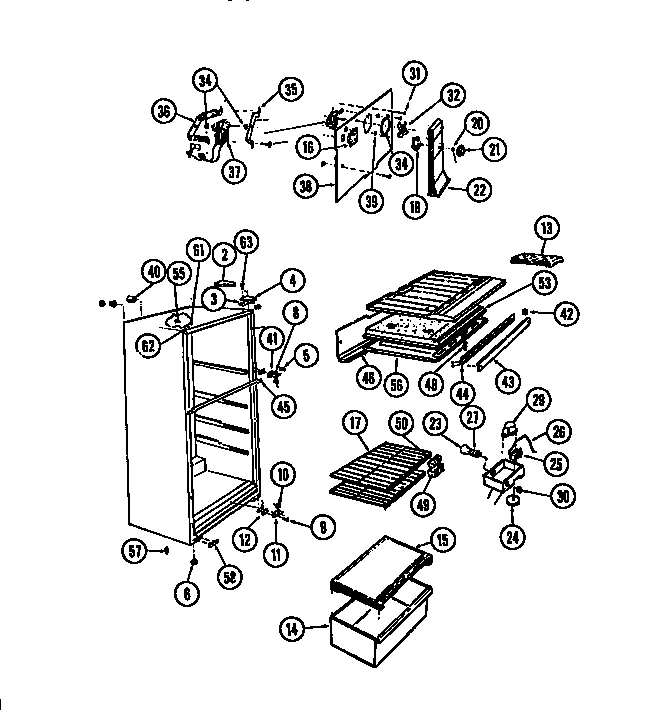

04 - FOOD COMPARTMENT, SHELVES, BLOWER M
Common parts from model Electrolux 95-1487-23-1 REFRIGERATOR
1
BRACKET UPPER HINGE WCI 3001298 Contact Us For Availability
2
PNL. INNER DOOR WCI 3001528 Contact Us For Availability
2
WCI 3001341 WCI 3001341 Contact Us For Availability
2
COVER, HINGE-WHITE WCI 3001035 Contact Us For Availability
3
WCI 3001611 WCI 3001611 Contact Us For Availability
3
BRKT, COND. MTG WCI 3001342 Contact Us For Availability
3
SHIM WCI 3001037 Contact Us For Availability
4
GSK. DOOR UPPER (BEIGE) WCI 3001399 Contact Us For Availability
4
WASHER, NYLON 1/4 X 5/8 WCI 3001299 Contact Us For Availability
5
WASHER, NYLON 5/16 X 5/8 WCI 3001038 Contact Us For Availability
6
WCI 3001197 WCI 3001197 Contact Us For Availability
6
SCREW, LEVELING WCI 3001301 Contact Us For Availability
7
SERVICE CORD WCI 3001200 Contact Us For Availability
7
NUT, LEG ANCHOR WCI 3001412 Contact Us For Availability
8
HARNESS COMPR WIRING (NOT ILLUSTRATED) WCI 3001347 Contact Us For Availability
8
NUT, PAN MTG WCI 3001348 Contact Us For Availability
8
PIN, HINGE WCI 3001313 Contact Us For Availability
9
PAN DEFROST WTR WCI 3001349 Contact Us For Availability
10
CLIP, COMPR. MTG WCI 3001350 Contact Us For Availability
11
BRACKET HINGE WCI 3001322 Contact Us For Availability
12
WASHER, COMPR MTG WCI 3001351 Contact Us For Availability
12
SHIM HINGE WCI 3001323 Contact Us For Availability
13
WCI 3001352 WCI 3001352 Contact Us For Availability
14
WCI 3001353 WCI 3001353 Contact Us For Availability
14
PAN WCI 3001541 Contact Us For Availability
15
WCI 3001354 WCI 3001354 Contact Us For Availability
15
COVER, CRISPER WCI 3001327 Contact Us For Availability
16
WCI 3001355 WCI 3001355 Contact Us For Availability
16
PLUG, DECORT WCI 3001328 Contact Us For Availability
17
WCI 3001356 WCI 3001356 Contact Us For Availability
17
SHELF (2) WCI 3001542 Contact Us For Availability
18
WCI 3001359 WCI 3001359 Contact Us For Availability
18
SCREW, HINGE (4) 10,24 X 7/8 WCI 3001368 Contact Us For Availability
19
BLOCK, EVAP INSUL. R.H. WCI 3001360 Contact Us For Availability
19
WCI 3001331 WCI 3001331 Contact Us For Availability
20
WCI 3001361 WCI 3001361 Contact Us For Availability
20
WCI 3001332 WCI 3001332 Contact Us For Availability
21
HTR. DEFROST WCI 3001362 Contact Us For Availability
21
KNOB, DAMPER CONT. WCI 3001543 Contact Us For Availability
22
WCI 3001544 WCI 3001544 Contact Us For Availability
23
WCI 3001364 WCI 3001364 Contact Us For Availability
24
WCI 3001365 WCI 3001365 Contact Us For Availability
24
WCI 3001335 WCI 3001335 Contact Us For Availability
25
WCI 3001366 WCI 3001366 Contact Us For Availability
25
CONTROL WCI 3001336 Contact Us For Availability
26
WCI 3001263 WCI 3001263 Contact Us For Availability
27
SOCKET, LIGHT WCI 3001267 Contact Us For Availability
28
BOX, CONTROL WCI 3001545 Contact Us For Availability
30
WCI 3001338 WCI 3001338 Contact Us For Availability
30
LABEL, CONTR. BOX (NOT ILLUSTRATED) WCI 3001339 Contact Us For Availability
33
WCI 3001217 WCI 3001217 Contact Us For Availability
35
BRKT. MTR. MTG. FRNT. WCI 3001226 Contact Us For Availability
36
BRKT. MTR. MTG. REAR WCI 3001227 Contact Us For Availability
38
COVER, COIL WCI 3001358 Contact Us For Availability
39
WCI 3001220 WCI 3001220 Contact Us For Availability
40
TUBE, RUBBER WCI 3001198 Contact Us For Availability
41
HINGE, CTR. WCI 3001369 Contact Us For Availability
42
SPACER MULLION WCI 3001370 Contact Us For Availability
43
MULLION (WHITE ONLY) WCI 3001371 Contact Us For Availability
44
WCI 3001372 WCI 3001372 Contact Us For Availability
45
WCI 3001373 WCI 3001373 Contact Us For Availability
46
WCI 3001374 WCI 3001374 Contact Us For Availability
47
INSUL. EVAP. WCI 3001375 Contact Us For Availability
49
COVER, AIR DEFLECTOR WCI 3001546 Contact Us For Availability
50
WCI 3001378 WCI 3001378 Contact Us For Availability
51
BTTM. FREEZER WCI 3001379 Contact Us For Availability
52
SCREW 8 X 1 3/4 (3) WCI 3001380 Contact Us For Availability
53
DIVIDER, STYRO FOAM WCI 3001381 Contact Us For Availability
54
TOP, REFRIG. WCI 3001382 Contact Us For Availability
54
WIRING HARNESS, DIVID. (NOT ILLUSTRATED) WCI 3001383 Contact Us For Availability
55
SUPPORT, COIL COVER (2) WCI 3001249 Contact Us For Availability
56
BTM. PLUG LINER (NOT ILLUSTRATED) WCI 3001288 Contact Us For Availability
56
TRIM CABINET (4) CORN. (WHITE) WCI 3001384 Contact Us For Availability
56
TRIM CABINET (4) CORN. (ALMOND) WCI 3001385 Contact Us For Availability
57
WCI 3001386 WCI 3001386 Contact Us For Availability
58
WCI 3001387 WCI 3001387 Contact Us For Availability
59
WCI 3001286 WCI 3001286 Contact Us For Availability
60
WCI 3001287 WCI 3001287 Contact Us For Availability
61
BUTTON, PLUG, WHITE (2) WCI 3001388 Contact Us For Availability
62
BUTTON, PLUG ALMOND (2) WCI 3001389 Contact Us For Availability
× ![]()
