Model Electrolux 95-1439-00-00 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

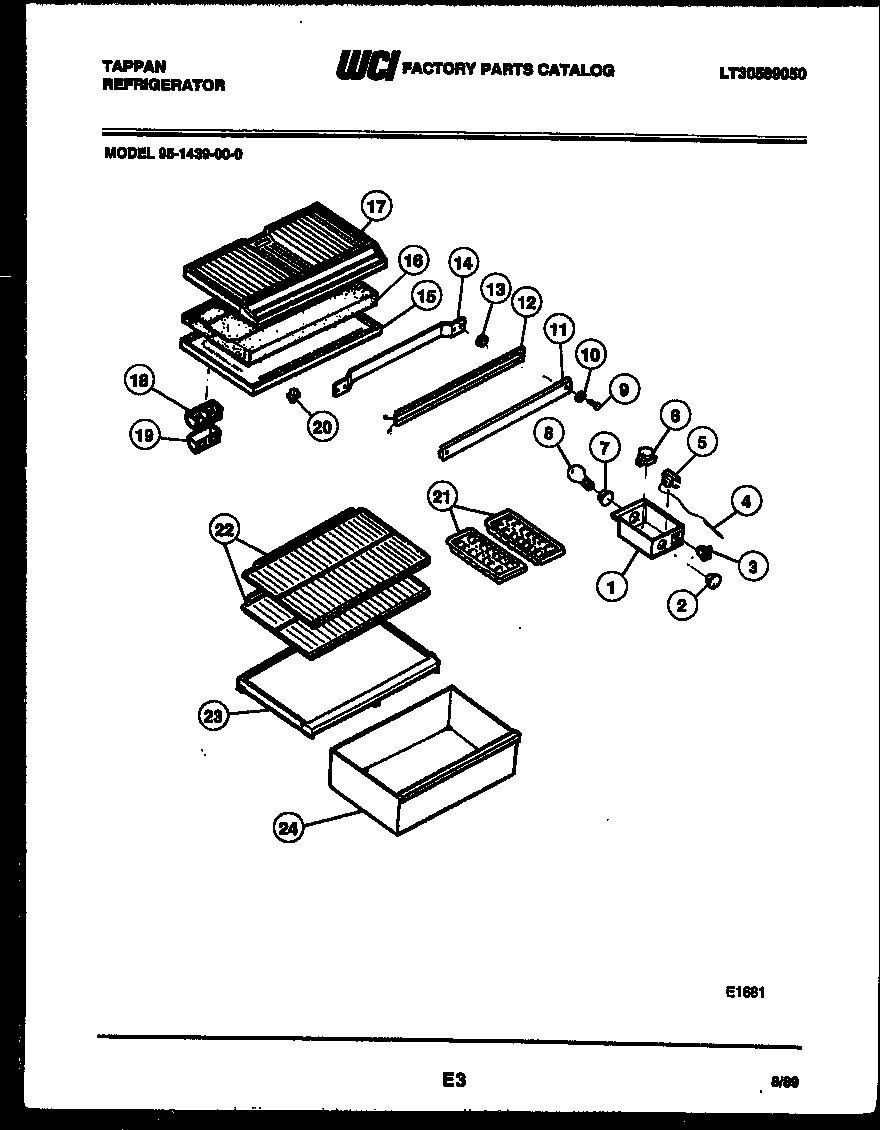

04 - SHELVES AND SUPPORTS

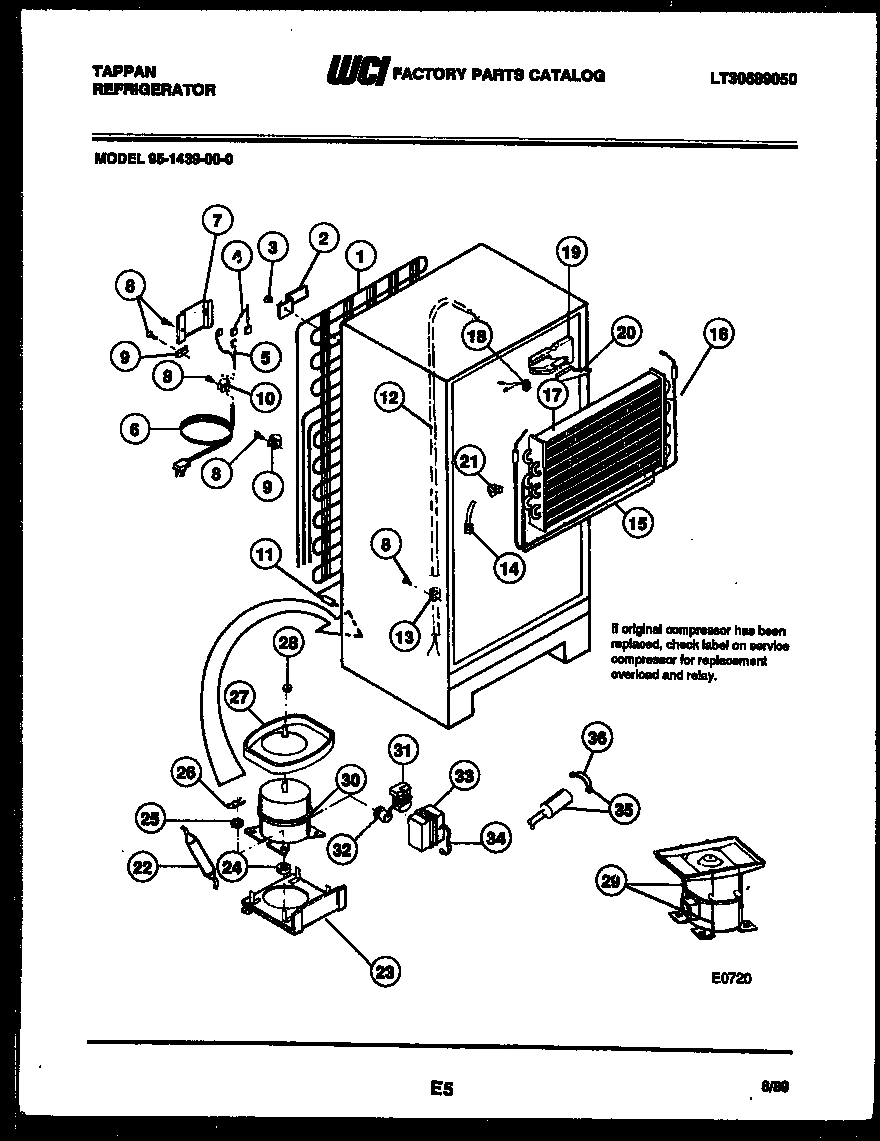

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux 95-1439-00-00 REFRIGERATOR
*28111
WCI 08011745 WCI 08011745 Contact Us For Availability
*28116
WCI G187599 WCI G187599 Contact Us For Availability
*28122
WCI G189377 WCI G189377 Contact Us For Availability
1
WCI G186221 WCI G186221 Contact Us For Availability
1
WCI 3001544 WCI 3001544 Contact Us For Availability
1
WCI 3001545 WCI 3001545 Contact Us For Availability
1
WCI 3001341 WCI 3001341 Contact Us For Availability
1A
LABEL, CONTROL BOX (NON-ILLUSTRATED) WCI 3001339 Contact Us For Availability
2
WCI 3001312 WCI 3001312 Contact Us For Availability
2
KNOB, DAMPER CONT. WCI 3001543 Contact Us For Availability
2
KNOB-TEMP CONTROL WCI 3001335 Contact Us For Availability
2
BRACKET-CONDENSER MTG (4) WCI 3001342 Contact Us For Availability
3
WCI 3007739 WCI 3007739 Contact Us For Availability
3
PUSH NUT WCI 3001028 Contact Us For Availability
3
SWITCH-ENERGY SAVER WCI 3001670 Contact Us For Availability
3A
WCI G164820 WCI G164820 Contact Us For Availability
4
GASKET-FREEZER WCI 3001399 Contact Us For Availability
4
DAMPER-FAN WCI 3001331 Contact Us For Availability
4
WIRING HARNESS-CONTROL WCI 3001383 Contact Us For Availability
5
INNER PANEL-FRZR WCI 3001528 Contact Us For Availability
5
CONTROL-TEMPERATURE WCI 3001336 Contact Us For Availability
5
WCI 3001347 WCI 3001347 Contact Us For Availability
5A
SCREW-CONTROL MTG (2) (NON-ILLUSTRATED) WCI 3001260 Contact Us For Availability
6
SERVICE CORD WCI 3001200 Contact Us For Availability
7
RACK-FRZR DOOR WCI 3001511 Contact Us For Availability
7
ORIFICE RING WCI 3001217 Contact Us For Availability
7
SOCKET-LIGHT BULB WCI 3001267 Contact Us For Availability
7
WCI 3001197 WCI 3001197 Contact Us For Availability
8
DAIRY DOOR WCI 3001538 Contact Us For Availability
9
RACK-REFR DOOR (2) WCI 3001539 Contact Us For Availability
9
WCI 3001226 WCI 3001226 Contact Us For Availability
9
SCREW-MULLION (4) WCI 3001368 Contact Us For Availability
10
INNER PANEL-REFR WCI 3001540 Contact Us For Availability
10
COVER-EVAPORATOR WCI 3001358 Contact Us For Availability
10
WASHER-NO. 10 STEEL (2) WCI 3006446 Contact Us For Availability
10C
WCI 08000126 WCI 08000126 Contact Us For Availability
11
GASKET-REFR DOOR WCI 3001398 Contact Us For Availability
11
WCI 3203044 WCI 3203044 Contact Us For Availability
11
WCI 3200465 WCI 3200465 Contact Us For Availability
12
WCI G186234 WCI G186234 Contact Us For Availability
12
PLUG-ICE MAKER HOLE WCI 3001328 Contact Us For Availability
12
WCI 3007419 WCI 3007419 Contact Us For Availability
12
WCI 3201079 WCI 3201079 Contact Us For Availability
13
WCI 3001021 WCI 3001021 Contact Us For Availability
13
WCI 3001370 WCI 3001370 Contact Us For Availability
14
WCI 3001227 WCI 3001227 Contact Us For Availability
14
STRAP-MULLION MTG WCI 3001373 Contact Us For Availability
15
PLUG-WHITE WCI 3001307 Contact Us For Availability
15
BRACKET-CONNECTOR WCI 3001225 Contact Us For Availability
15
WCI 3015448 WCI 3015448 Contact Us For Availability
15
WCI 3001375 WCI 3001375 Contact Us For Availability
15A
SCREW-TOP MTG (3) (NON-ILLUSTRATED) WCI 3001380 Contact Us For Availability
16
HANDLE END-TOP WCI 3001297 Contact Us For Availability
16
DIVIDER, STYRO FOAM WCI 3001381 Contact Us For Availability
16
WCI 3001362 WCI 3001362 Contact Us For Availability
17
GRIP-HANDLE (2) WCI 3001531 Contact Us For Availability
17
DRAIN TROUGH WCI 3001374 Contact Us For Availability
17
BOTTOM PANEL-FRZR WCI 3001379 Contact Us For Availability
17
EVAPORATOR COIL WCI 3201078 Contact Us For Availability
18
HANDLE END-(2) WCI 3001296 Contact Us For Availability
18
SUPPORT-EVAP COVER WCI 3001249 Contact Us For Availability
18
AIR DEFLECTOR WCI 3001378 Contact Us For Availability
19
HANDLE END-BOTTOM WCI 3001295 Contact Us For Availability
19
WCI 3001198 WCI 3001198 Contact Us For Availability
19
WCI 3001546 WCI 3001546 Contact Us For Availability
19
INSULATION BLOCK RS WCI 3001360 Contact Us For Availability
20
WCI 3001286 WCI 3001286 Contact Us For Availability
20
INSULATION PLUG RS WCI 3007287 Contact Us For Availability
21
WCI 3001287 WCI 3001287 Contact Us For Availability
21
INSULATION BLOCK LS WCI 3001684 Contact Us For Availability
22
PLUG-WHITE (2) WCI 3001388 Contact Us For Availability
22
WCI 3001542 WCI 3001542 Contact Us For Availability
22A
WCI 3201679 WCI 3201679 Contact Us For Availability
23
DRAIN TUBE WCI 3001386 Contact Us For Availability
23
WCI 3001327 WCI 3001327 Contact Us For Availability
23
PLATE, COMPR. MTG. WCI 3001356 Contact Us For Availability
24
WCI 3001298 WCI 3001298 Contact Us For Availability
24
WCI 3001541 WCI 3001541 Contact Us For Availability
24A
WCI G157591 WCI G157591 Contact Us For Availability
25
SHIM-TOP HINGE WCI 3001037 Contact Us For Availability
25
WASHER (3) WCI 3001351 Contact Us For Availability
26
BASE-CABINET WCI 3006086 Contact Us For Availability
26
CLIP (3) WCI 3001350 Contact Us For Availability
27
LEVELING SCREW (2) WCI 3001301 Contact Us For Availability
27
WCI 3001349 WCI 3001349 Contact Us For Availability
27A
WCI G184715 WCI G184715 Contact Us For Availability
28
ANCHOR-NUT (2) WCI 3001412 Contact Us For Availability
28
LOCK NUT-PAN MTG WCI 3001348 Contact Us For Availability
29
WCI 3001478 WCI 3001478 Contact Us For Availability
29
WCI 3916001 WCI 3916001 Contact Us For Availability
30
BRACKET-BOTTOM HINGE WCI 3001322 Contact Us For Availability
30
COMPRESSOR W/ELECTRICALS-SVCE WCI 3916004 Contact Us For Availability
30B
TAPPING PLATE (NON-ILLUSTRATED) WCI 3007090 Contact Us For Availability
31
SHIM-BOTTOM HINGE WCI 3001323 Contact Us For Availability
31
WCI 3007173 WCI 3007173 Contact Us For Availability
32
WCI 3202863 WCI 3202863 Contact Us For Availability
32A
WCI 3202891 WCI 3202891 Contact Us For Availability
33
WASHER-1/4 NYLON (3) WCI 3001299 Contact Us For Availability
33
WCI 08016583 WCI 08016583 Contact Us For Availability
34
WASHER-5/16 NYLON (2) WCI 3001038 Contact Us For Availability
34
WCI 08016584 WCI 08016584 Contact Us For Availability
35
BRACKET-CENTER HINGE WCI 3001369 Contact Us For Availability
35
WCI 3916391 WCI 3916391 Contact Us For Availability
36
PIN-CENTER HINGE WCI 3001313 Contact Us For Availability
36
STRAP-CAPACITOR MTG WCI 3001391 Contact Us For Availability
37
CORNER TRIM-WHITE WCI 3001384 Contact Us For Availability
38
HINGE COVER-WHITE WCI 3001035 Contact Us For Availability
× ![]()
