Model LG 9493-AW1(6BIT) – Common Parts & Diagrams

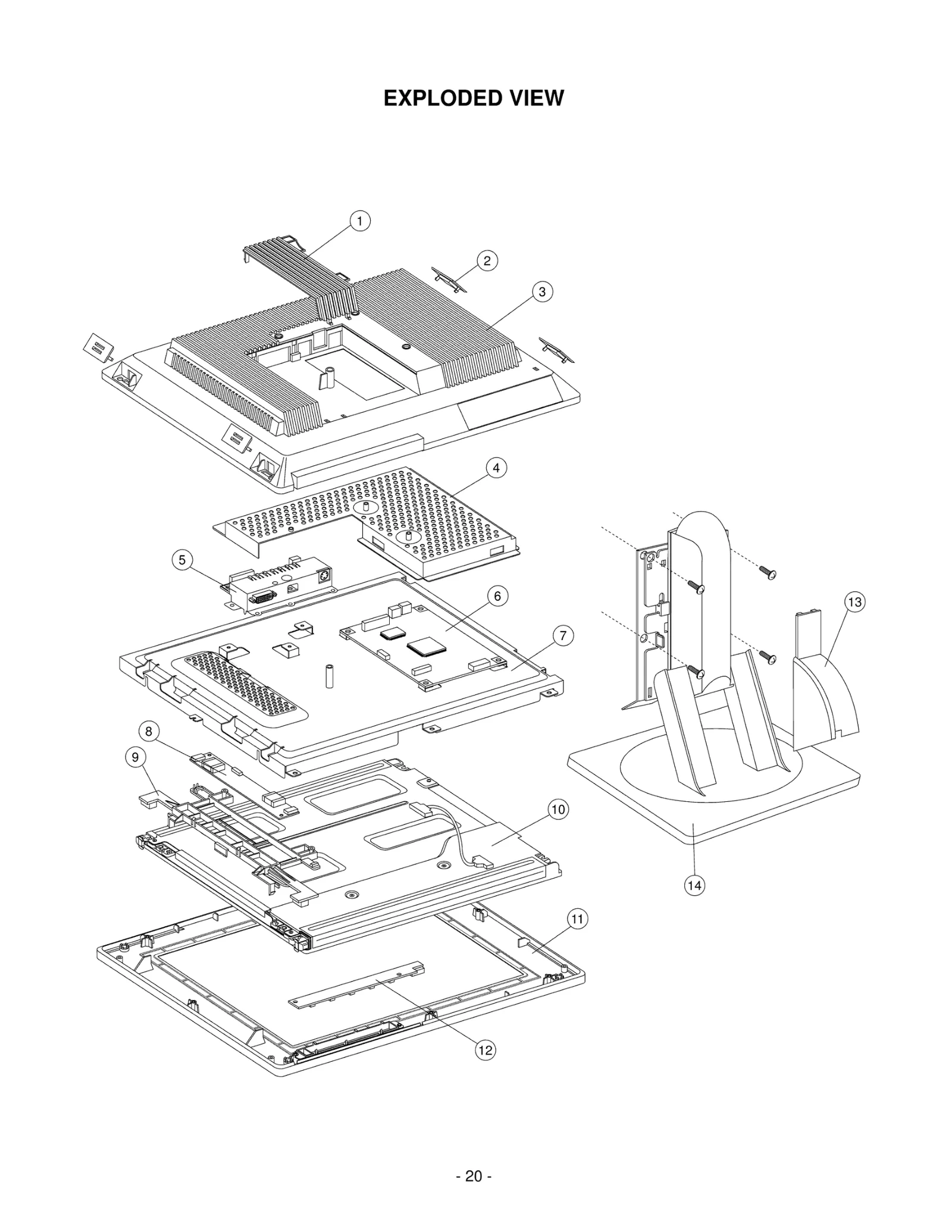

Diagram 0
Common parts from model LG 9493-AW1(6BIT)
C1
Capacitor,TA,Niobium LGE 0CH7476F661 Contact Us For Availability
C13
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6150K416 Contact Us For Availability
C24
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6220K416 Contact Us For Availability
C37
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH3103K516 Contact Us For Availability
C59
LGE 0CH3683K946 LGE 0CH3683K946 Contact Us For Availability
C100
LGE 0CH6100K116 LGE 0CH6100K116 Contact Us For Availability
C125
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6330K416 Contact Us For Availability
C201
Capacitor,AL,Chip LGE 0CH8107J611 Contact Us For Availability
C211
Capacitor,TA,Niobium LGE 0CH7475F621 Contact Us For Availability
C223
Capacitor,TA,Niobium LGE 0CH7106F621 Contact Us For Availability
C232
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH6102K406 Contact Us For Availability
CA12
LGE 0CHZTTA001A LGE 0CHZTTA001A Contact Us For Availability
D4
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D6
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D8
Diode,Schottky LGE 0DS301109AA Contact Us For Availability
LED1
LGE 0DL571300AA LGE 0DL571300AA Contact Us For Availability
Q3
TR,Bipolar LGE 0TR162309CA Contact Us For Availability
R2
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R8
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R17
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R25
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R45
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R59
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R71
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R79
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R80
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R94
RESISTOR CHIP 56K 1/10W 5 D.R LGE 0RH5602D622 Contact Us For Availability
R100
Resistor,Chip LGE 0RH4302D622 Contact Us For Availability
R110
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R117
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R125
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
SW1
SWITCH LGE 140-058E Contact Us For Availability
U1
LGE 0IMR882810B LGE 0IMR882810B Contact Us For Availability
U2
LGE 0IMO386200A LGE 0IMO386200A Contact Us For Availability
U3
LGE 0IMP240800A LGE 0IMP240800A Contact Us For Availability
U4
LGE 0IZZTSZ077A LGE 0IZZTSZ077A Contact Us For Availability
U5
LGE 0IAD988400A LGE 0IAD988400A Contact Us For Availability
U6
LGE 0ICX636165A LGE 0ICX636165A Contact Us For Availability
U10
IC,MICRO CHIP TECHNOLOGY LGE 0IMP240200A Contact Us For Availability
U11
IC,MOTOROLA LGE 0IMO140662A Contact Us For Availability
U12
FET,Array LGE 0TF632509AA Contact Us For Availability
U13
LGE 0INS267450A LGE 0INS267450A Contact Us For Availability
U14
LGE 0IMI523470A LGE 0IMI523470A Contact Us For Availability
U15
IC,Voltage Regulator LGE 0INS259650A Contact Us For Availability
U16
IC,ROHM LGE 0IRH033200A Contact Us For Availability
U17
IC,Inverter LGE 0IMO741420B Contact Us For Availability
U22
IC,SAMSUNG ELECTRONICS LGE 0ISS780500H Contact Us For Availability
X1
CRYSTAL LGE 6202TST001A Contact Us For Availability
ZD5
DIODE,RECTIFIER LGE 0DR190309AA Contact Us For Availability
ZD6
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
__________
SCREW, LGE 1SZZTPC001A Contact Us For Availability
__________
SCREW LGE 332-105A Contact Us For Availability
__________
LGE 339-008H LGE 339-008H Contact Us For Availability
__________
LGE 6631T10002A LGE 6631T10002A Contact Us For Availability
__________
Harness,Single LGE 6631T20010T Contact Us For Availability
__________
LGE 332-110A LGE 332-110A Contact Us For Availability
__________
LGE 332-110B LGE 332-110B Contact Us For Availability
__________
LGE 4951TKS048B LGE 4951TKS048B Contact Us For Availability
__________
PWB(PCB) ASSY,MAIN LGE 6871TMT164A Contact Us For Availability
__________
LGE 1MCC0402423 LGE 1MCC0402423 Contact Us For Availability
__________
SCREW LGE 332-095B Contact Us For Availability
__________
LGE 332-241S LGE 332-241S Contact Us For Availability
__________
LGE 6631T25008F LGE 6631T25008F Contact Us For Availability
__________
LGE 3091TKL013C LGE 3091TKL013C Contact Us For Availability
__________
SCREW LGE 332-095C Contact Us For Availability
__________
LGE 4810TKK120A LGE 4810TKK120A Contact Us For Availability
__________
POWER CORD LGE 6410TUW003B Contact Us For Availability
__________
LGE 6631T10001E LGE 6631T10001E Contact Us For Availability
__________
LGE 6631T20010U LGE 6631T20010U Contact Us For Availability
__________
INVERTER LGE 6633TZA003A Contact Us For Availability
__________
ADAPTER,AC-DC LGE 6634TBZ009A Contact Us For Availability
__________
LGE 6871TST140A LGE 6871TST140A Contact Us For Availability
__________
LGE 3043TKK050E LGE 3043TKK050E Contact Us For Availability
__________
LGE 332-105F LGE 332-105F Contact Us For Availability
__________
LGE 332-102A LGE 332-102A Contact Us For Availability
__________
LGE 4951TKK029B LGE 4951TKK029B Contact Us For Availability
__________
LGE 6866TDV001A LGE 6866TDV001A Contact Us For Availability
__________
LGE 3809TKL009H LGE 3809TKL009H Contact Us For Availability
__________
LGE 6304TLT151H LGE 6304TLT151H Contact Us For Availability
__________
LGE 6871TST143A LGE 6871TST143A Contact Us For Availability
× ![]()
