Model Whirlpool 9475XYB GAS WALL OVEN – Common Parts & Diagrams

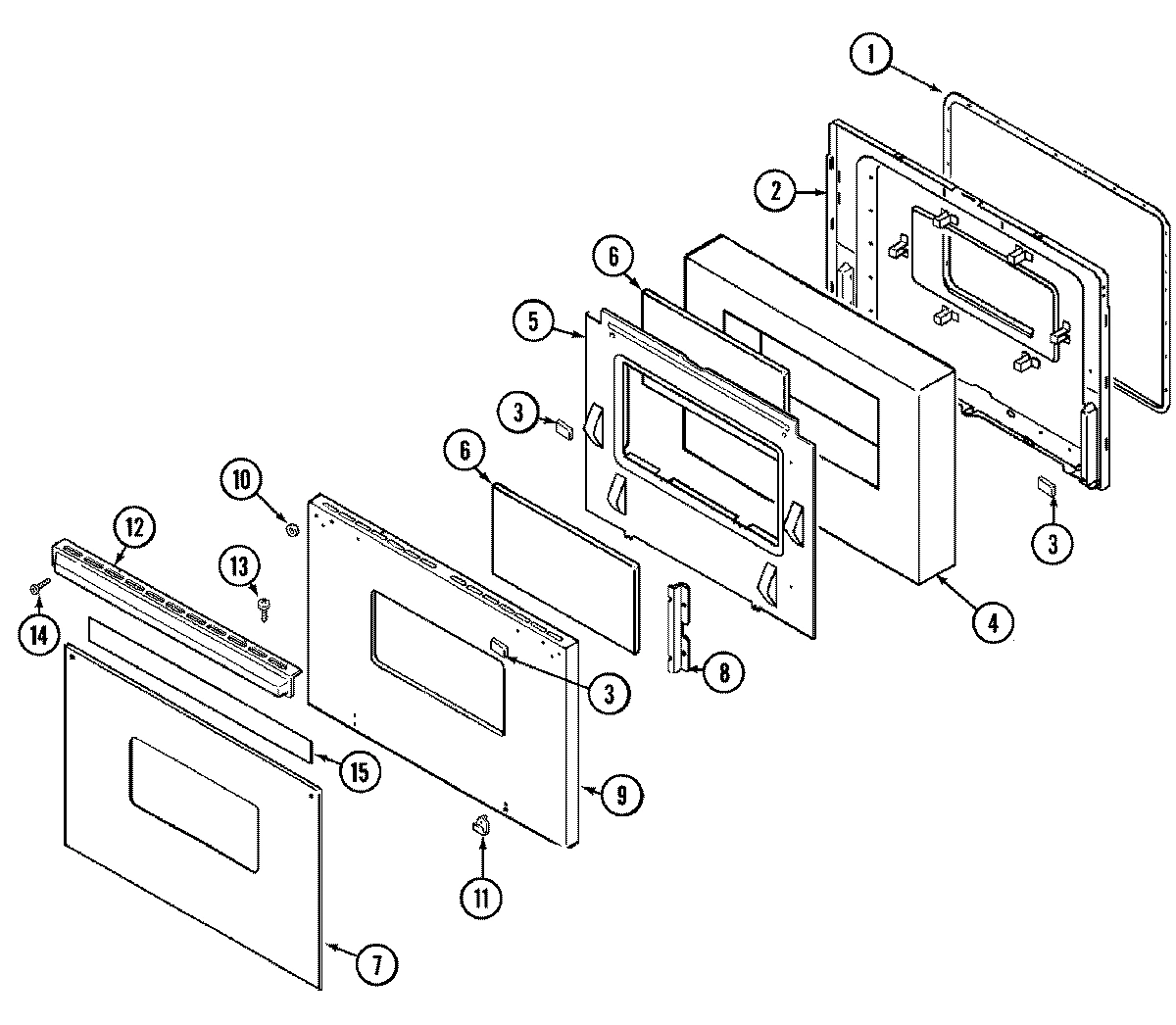

03 - DOOR

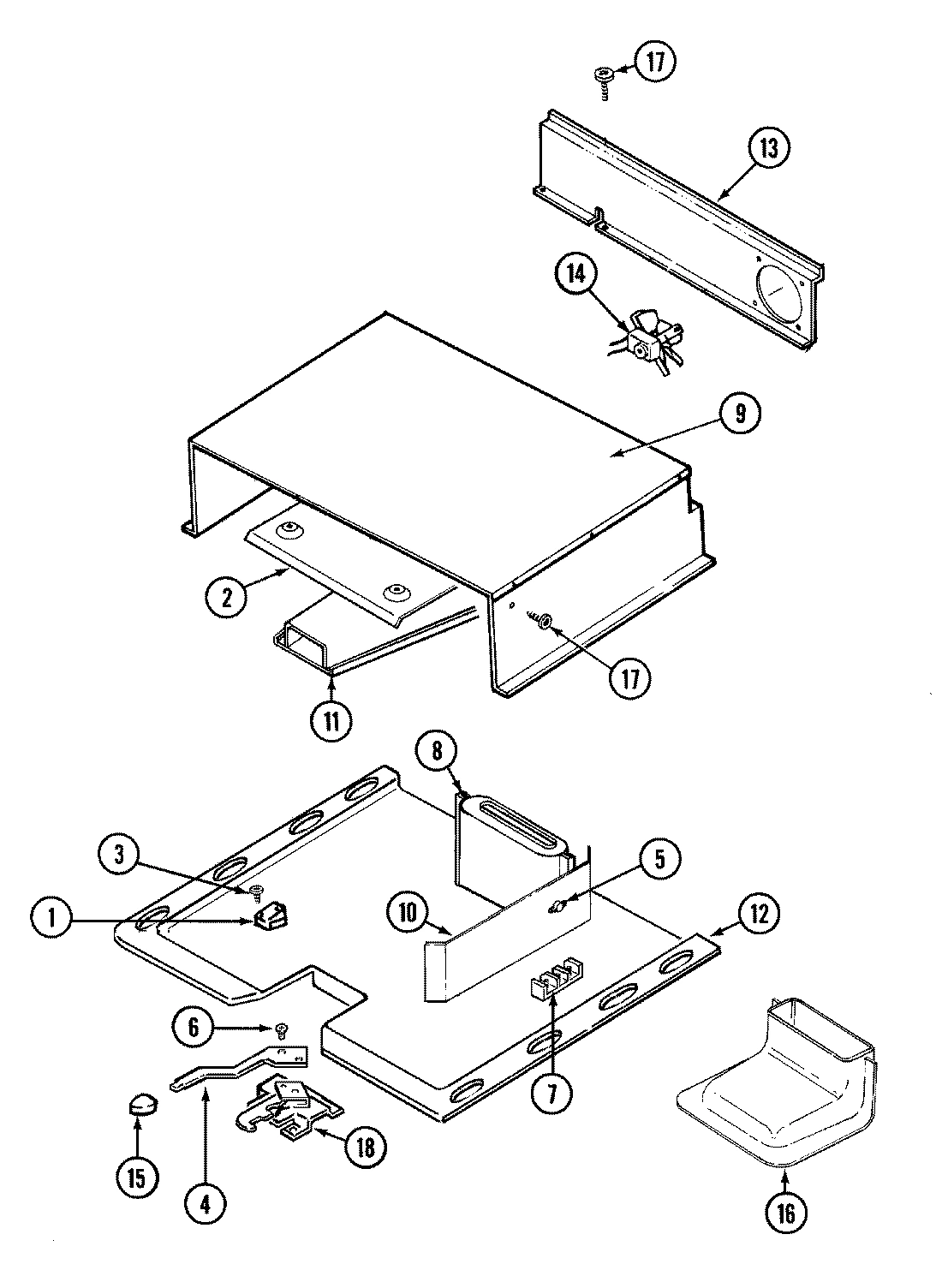

05 - INTERNAL CONTROLS

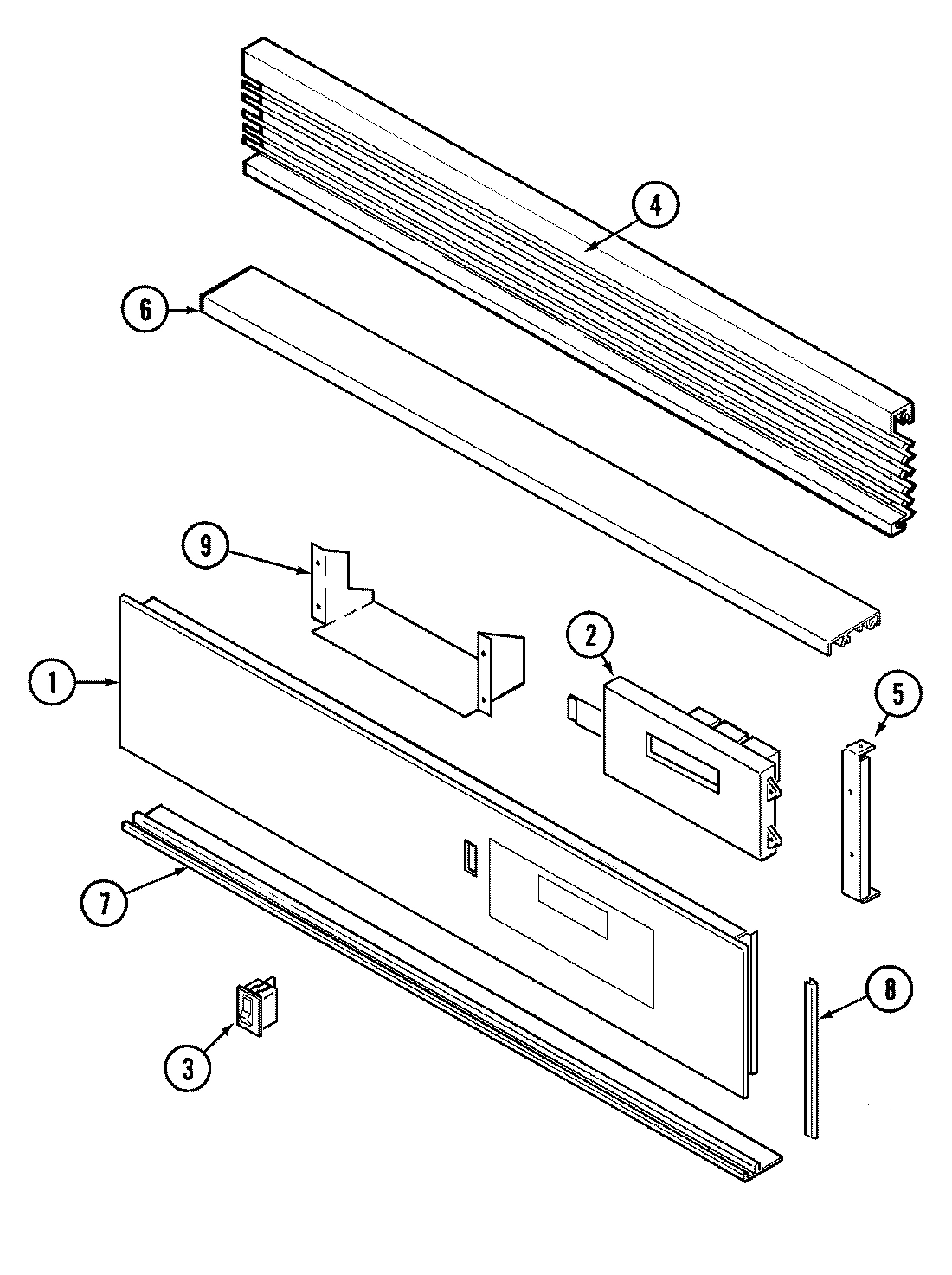

02 - CONTROL PANEL

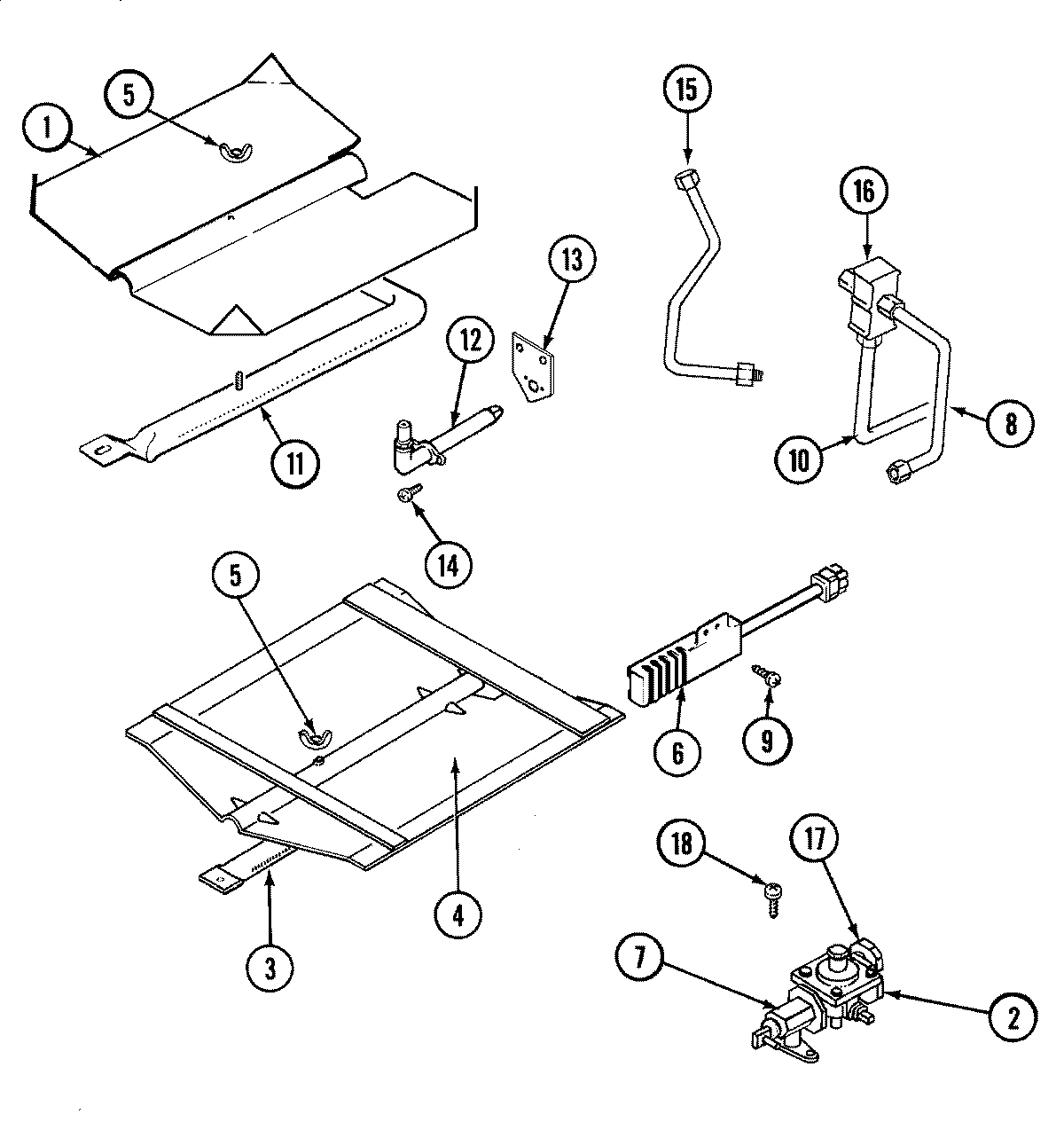

04 - GAS CONTROLS

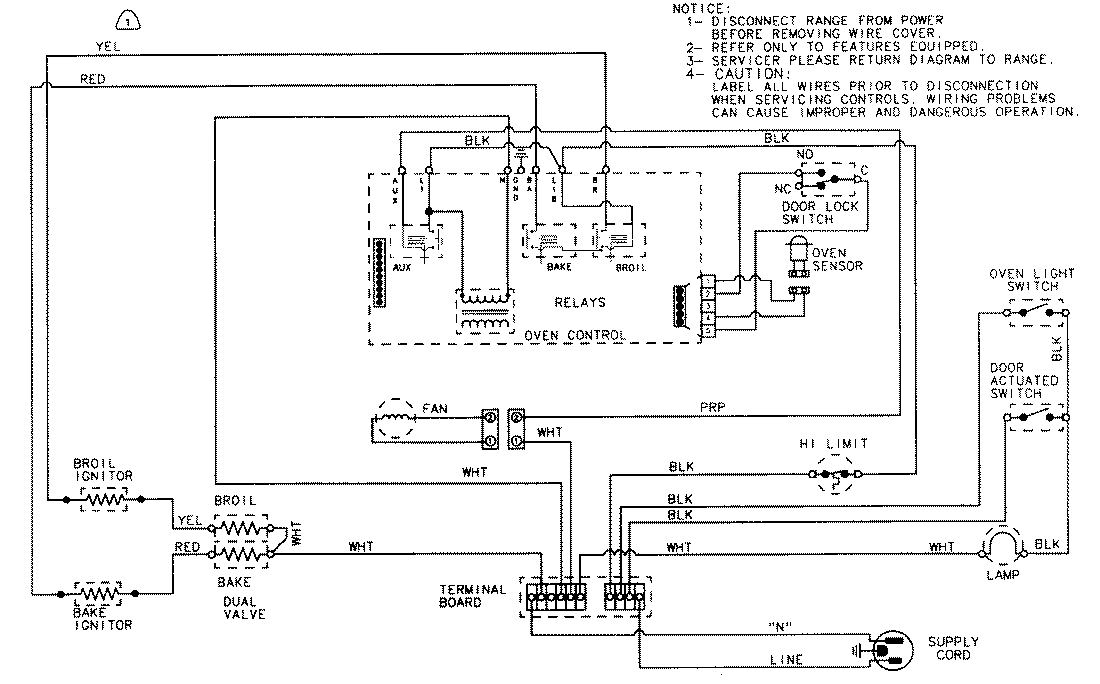

06 - WIRING INFORMATION

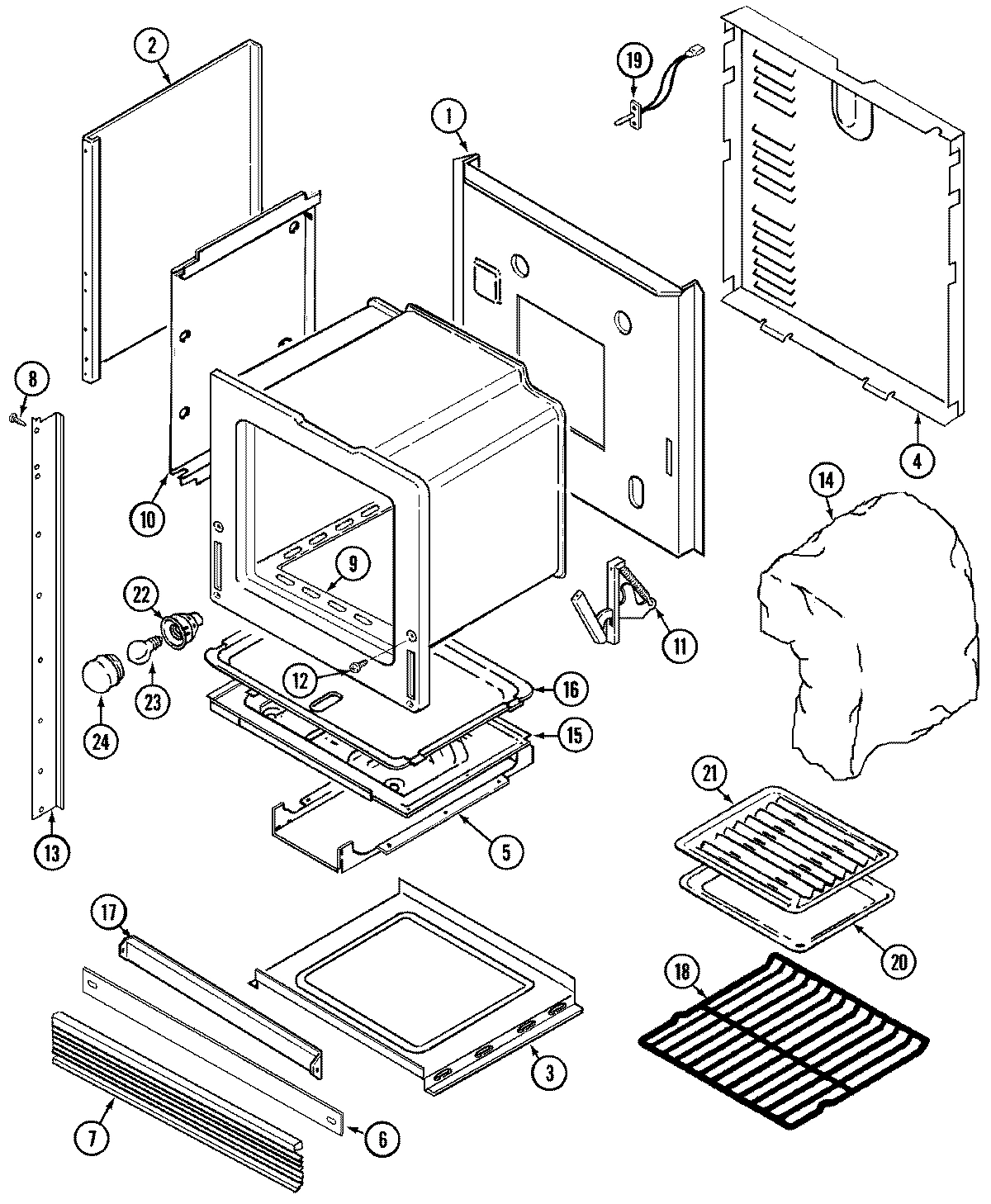

01 - BODY
Common parts from model Whirlpool 9475XYB GAS WALL OVEN
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
SWITCH, DOOR LATCH WPL 7403P36160 Contact Us For Availability
1
PANEL, CONTROL (BLK) WPL 74002930 Contact Us For Availability
1
BAFFLE, BROIL WPL 3601F21745 Contact Us For Availability
1
BACK, MAIN WPL 4002F17151 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
2
LINING, DOOR WPL 74003244 Contact Us For Availability
2
SHIELD, HEAT WPL 3604F16645 Contact Us For Availability
2
OVERLAY, CLOCK (BLK) WPL 74002859 Contact Us For Availability
2
CLOCK (BLK) WPL 74002862 Contact Us For Availability
2
BRACKET, REGULATOR WPL 3801F29051 Contact Us For Availability
2
SCREW WPL 7101P08560 Contact Us For Availability
2
REGULATOR, PRESSURE WPL 7510P04760 Contact Us For Availability
2
PANEL, BODY WPL 2618F08351 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
3
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
3
BURNER, BAKE WPL 3403D03445 Contact Us For Availability
3
BOTTOM, MAIN WPL 4011F19051 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability
4
LEVER, LATCH WPL 8009P02860 Contact Us For Availability
4
EXTRUSION, VENT GRILL (BLK) WPL 7756P08660 Contact Us For Availability
4
BAFFLE, OVEN BOTTOM WPL 3601F23945 Contact Us For Availability
4
COVER, BACK WPL 4005F40551 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
5
SWITCH, HI LIMIT WPL 7403P24960 Contact Us For Availability
5
SUPPORT, CLOCK WPL 74002932 Contact Us For Availability
5
NUT, WING WPL 7103P03060 Contact Us For Availability
5
SUPPORT, CAVITY WPL 3807F42951 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
6
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
6
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
6
STRIP, BOTTOM (BLK) WPL 4005F35470 Contact Us For Availability
7
GLASS, DOOR (BLK)----NA WPL 7902P35060 Contact Us For Availability
7
SCREW WPL 7118P01760 Contact Us For Availability
7
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
7
EXTRUSION, VENT (BTM-BLK) WPL 7756P09760 Contact Us For Availability
7
EXTRUSION, LOWER (BLK) WPL 7756P07760 Contact Us For Availability
7
VALVE, SHUT OFF WPL 7501P04160 Contact Us For Availability
8
RETAINER, GLASS WPL 74001844 Contact Us For Availability
8
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
8
RISER, DUCT ASSY. WPL 4006D12845 Contact Us For Availability
8
TRIM, CONTROL PANEL (BLK) WPL 7720P15160 Contact Us For Availability
8
TUBING, BAKE WPL 7507P09760 Contact Us For Availability
9
PANEL, DOOR (BLK) WPL 2401F12370 Contact Us For Availability
9
COVER, TOP WPL 4005F40251 Contact Us For Availability
9
HARNESS, MAIN WPL 5170D21360 Contact Us For Availability
9
HARNESS, SENSOR/LOCK WPL 5170P20760 Contact Us For Availability
9
INSULATION, FIBERBOARD WPL 7003P05660 Contact Us For Availability
9
SCREW WPL 7101P32860 Contact Us For Availability
9
BOTTOM, OVEN WPL 5504A00321 Contact Us For Availability
10
NUT WPL 7103P03460 Contact Us For Availability
10
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
10
SHIELD, AIR WPL 3604F20051 Contact Us For Availability
10
MANUAL, USE & CARE WPL 74002703 Contact Us For Availability
10
TUBING, REGULATOR (3/8``) WPL 3414F10644 Contact Us For Availability
10
RETAINER, INSULATION (SIDE) WPL 3804F10851 Contact Us For Availability
11
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
11
SUPPORT, DUCT WPL 3807F45251 Contact Us For Availability
11
DUCT ASSY. WPL 4006D10145 Contact Us For Availability
11
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
11
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
11
HINGE----NA WPL 7106P05060 Contact Us For Availability
12
HANDLE, DOOR (BLK) WPL 7701P12060 Contact Us For Availability
12
RETAINER, TOP INSULATION WPL 74001793 Contact Us For Availability
12
FITTING, BROIL BURNER WPL 7507P06760 Contact Us For Availability
12
SCREW WPL 7101P11560 Contact Us For Availability
13
HOUSING, FAN WPL 4001F08351 Contact Us For Availability
13
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
13
EXTRUSION, SIDE (LT-BLK) WPL 7750P09560 Contact Us For Availability
13
EXTRUSION, SIDE (RT-BLK) WPL 7750P09660 Contact Us For Availability
14
SCREW WPL 7101P32460 Contact Us For Availability
14
FAN ASSY. WPL 7427P01060 Contact Us For Availability
14
SCREW, TRIM WPL 7101P25060 Contact Us For Availability
14
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
14
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
15
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
15
HANDLE, DOOR LATCH (BLK) WPL 74001719 Contact Us For Availability
15
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
15
TUBING, BROIL (3/8``) WPL 3414F10744 Contact Us For Availability
15
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
16
BOX, FLUE WPL 4006W11745 Contact Us For Availability
16
VALVE WPL 7501P11660 Contact Us For Availability
16
PAN, BAKE BURNER WPL 3401F02445 Contact Us For Availability
17
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
17
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
18
SCREW WPL 7101P29060 Contact Us For Availability
18
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
18
LATCH ASSY. WPL 8002P02760 Contact Us For Availability
18
RACK WPL 7801P04060 Contact Us For Availability
19
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
20
CORD, POWER WPL 7402P04360 Contact Us For Availability
20
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
21
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
22
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
23
BULB, OVEN WPL 7407P09560 Contact Us For Availability
24
COVER, BULB WPL 7724P04760 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001887 Contact Us For Availability
× ![]()
