Model Whirlpool 9222XUB GAS WALL OVEN – Common Parts & Diagrams

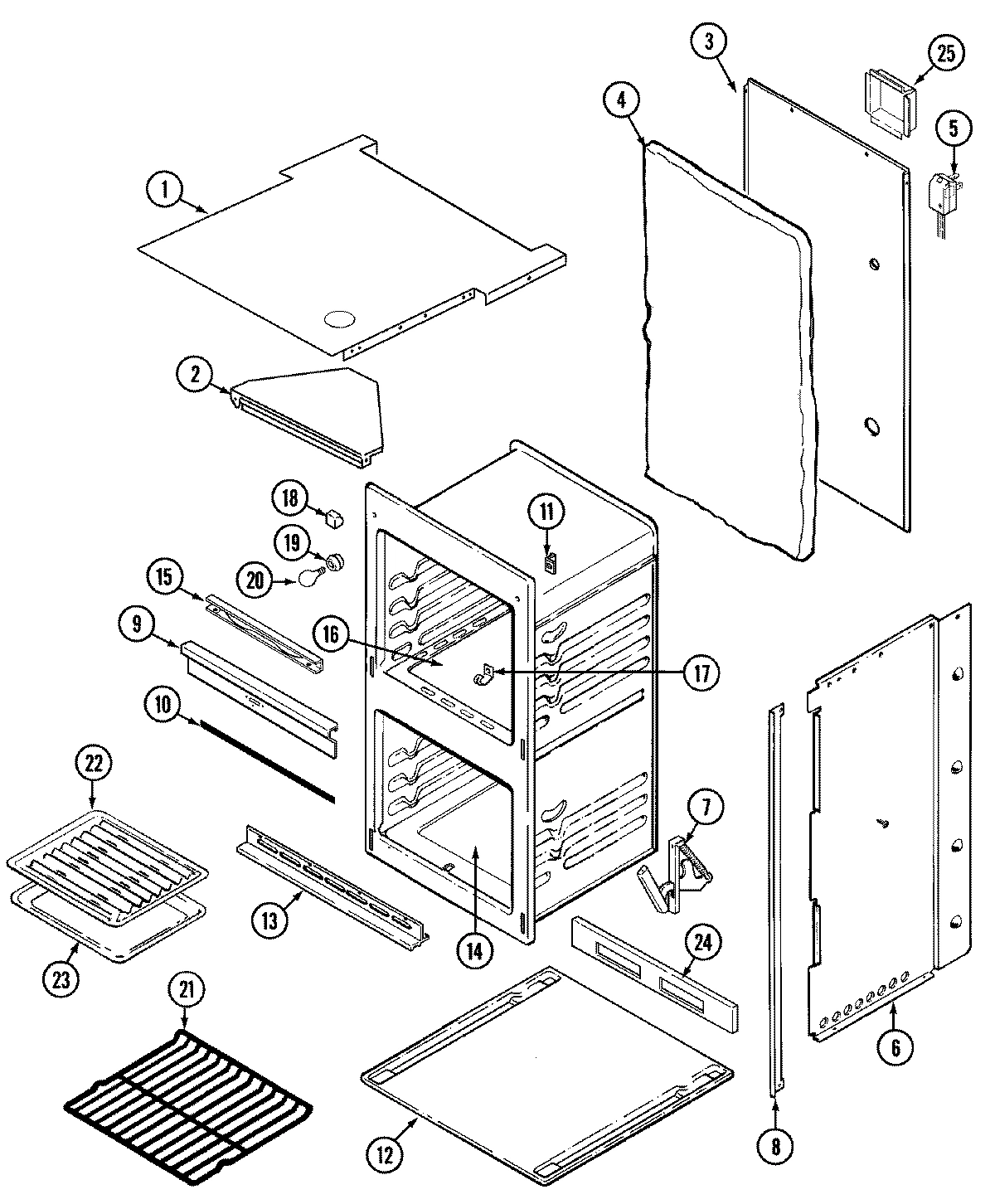

04 - OVEN/BODY

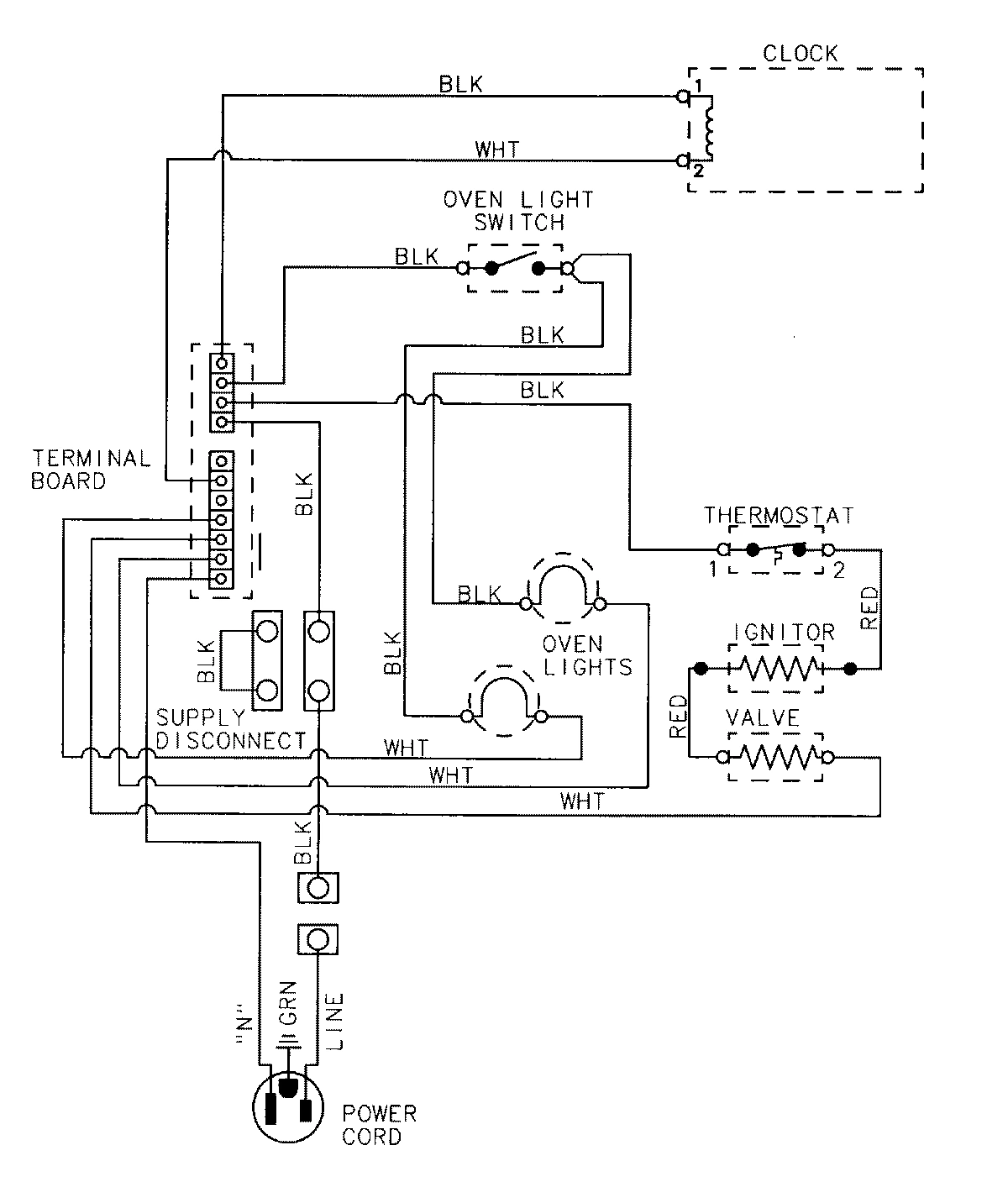

05 - WIRING INFORMATION

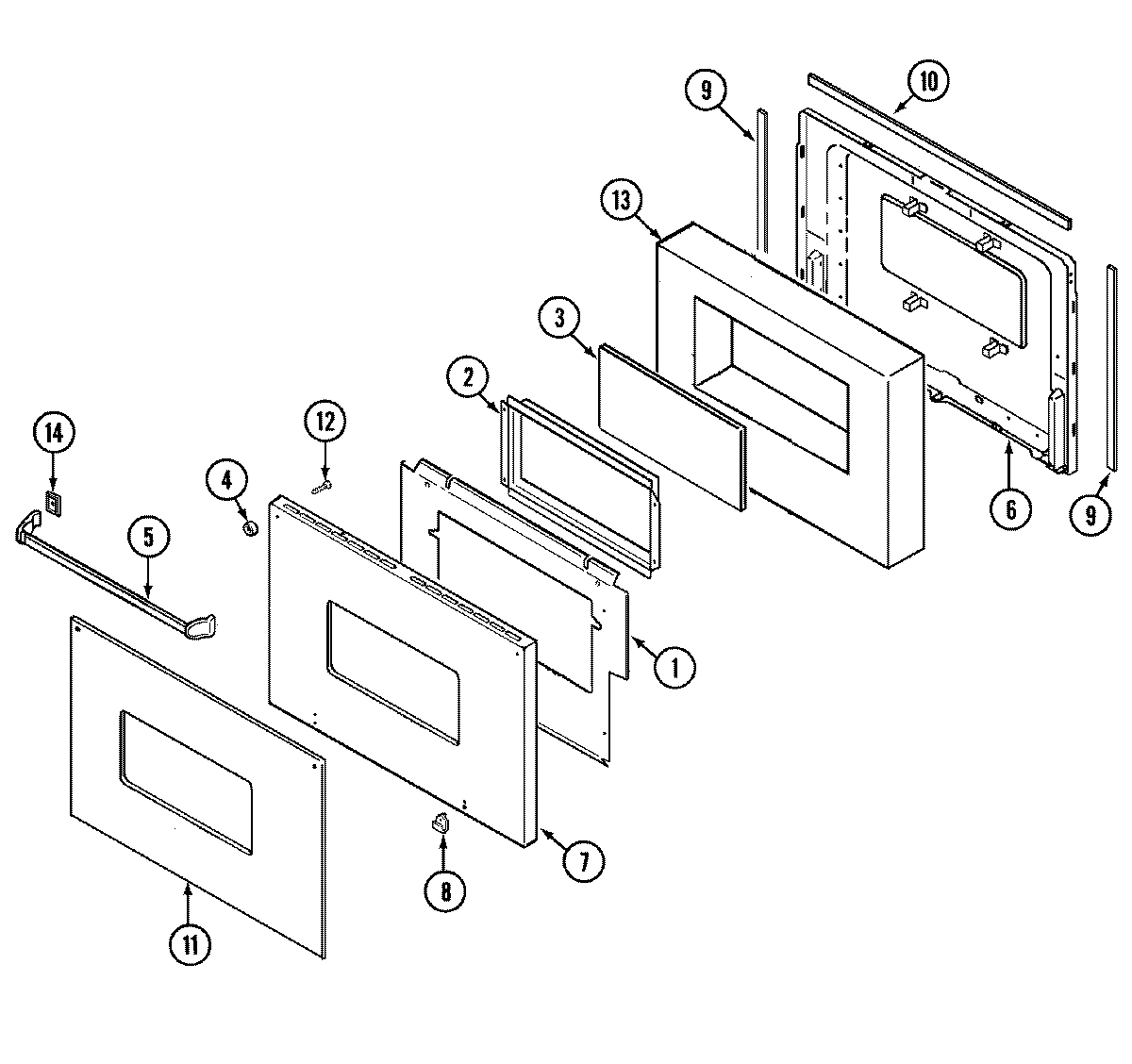

02 - DOOR (UPPER & LOWER)

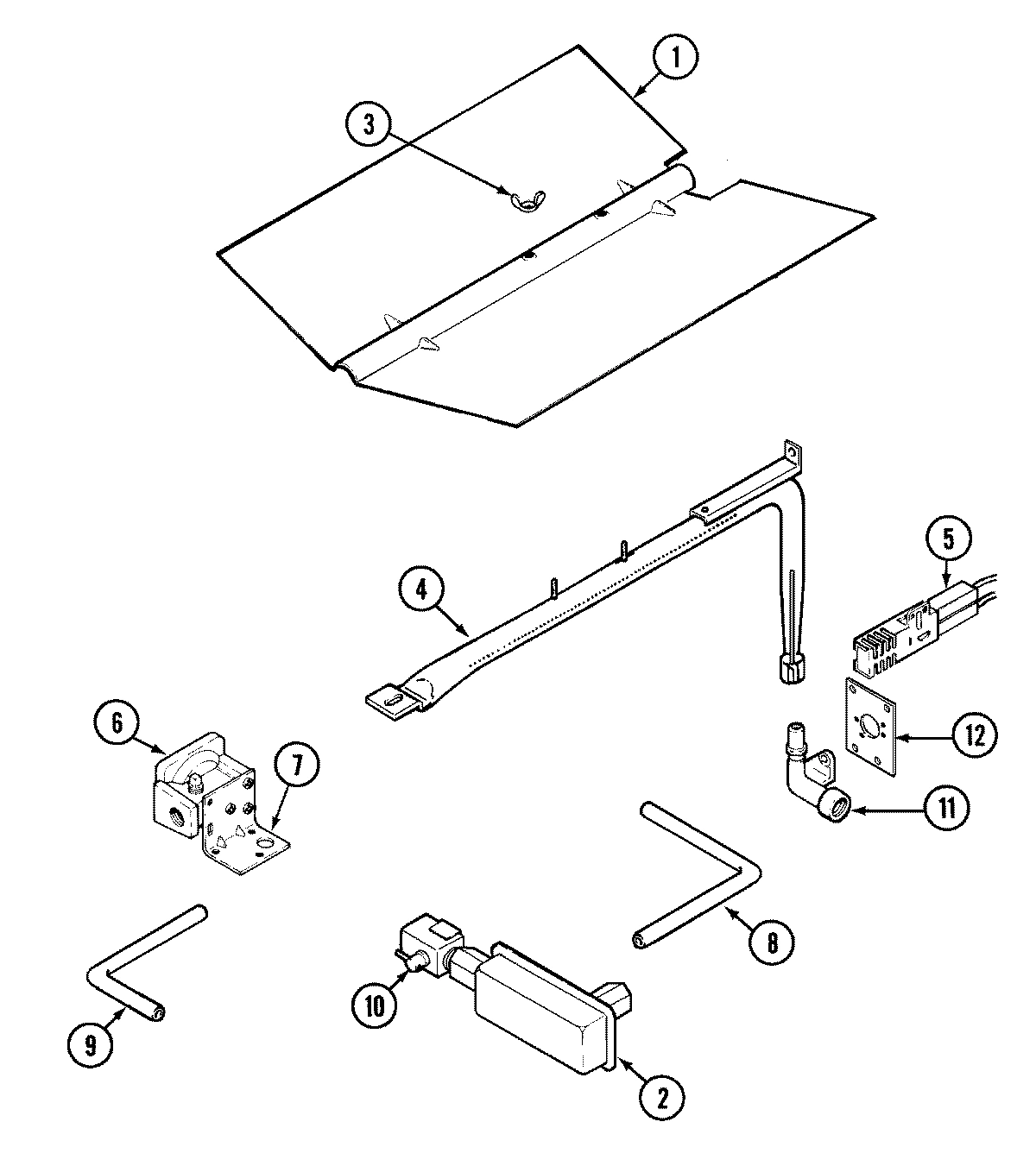

03 - GAS CONTROLS

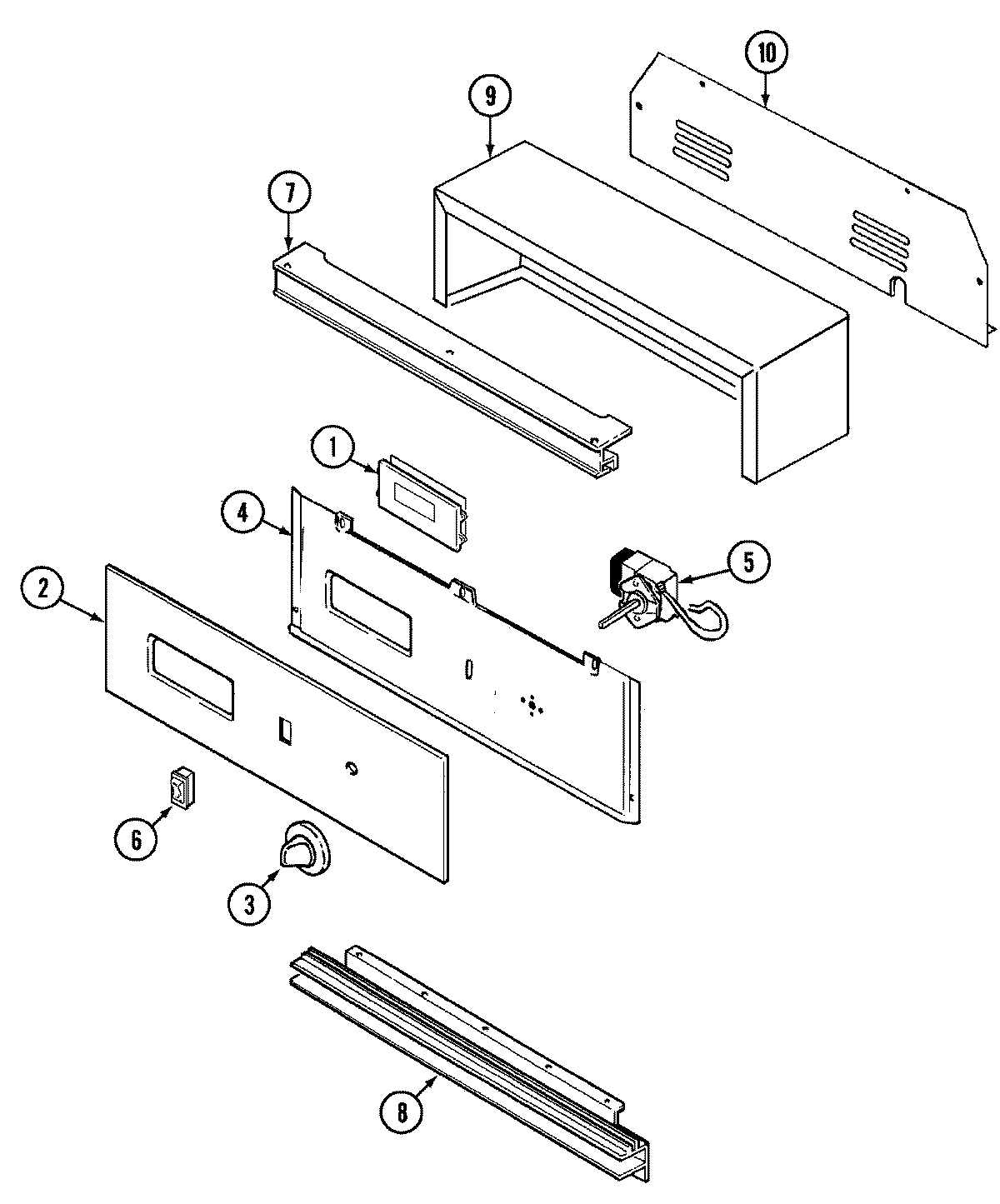

01 - CONTROL PANEL
Common parts from model Whirlpool 9222XUB GAS WALL OVEN
1
COVER BOX WALL OVEN WPL 4005F15251 Contact Us For Availability
1
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
1
GROMMET WPL 8008P00460 Contact Us For Availability
1
BAFFLE, UPPER DOOR WPL 3601F10251 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F10351 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F21545 Contact Us For Availability
1
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
1
CLOCK (BLK) WPL 7602P11860 Contact Us For Availability
2
BOX, FLUE ASSY WPL 4006W07719 Contact Us For Availability
2
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
2
SCREW WPL 7101P07160 Contact Us For Availability
2
SCREW WPL 7101P07260 Contact Us For Availability
2
NUT WPL 7103P03460 Contact Us For Availability
2
VALVE, BAKE WPL 7501P01860 Contact Us For Availability
2
SCREW----NA WPL 7101P31160 Contact Us For Availability
2
PANEL, CONTROL (BLK) WPL 74001910 Contact Us For Availability
3
BACK, MAIN WPL 74001988 Contact Us For Availability
3
GLASS, INNER WPL 7902P38660 Contact Us For Availability
3
NUT, WING WPL 7103P03060 Contact Us For Availability
3
KNOB, THERMOSTAT (CHR) WPL 74001254 Contact Us For Availability
4
INSULATION, WRAPPER WPL 74001850 Contact Us For Availability
4
INSULATION, WRAPPER WPL 74001883 Contact Us For Availability
4
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
4
BURNER ASSY., OVEN WPL 3403D03045 Contact Us For Availability
4
PLATE, SUPPORT WPL 74001837 Contact Us For Availability
5
CORD, POWER WPL 74001926 Contact Us For Availability
5
SCREW WPL 7101P35660 Contact Us For Availability
5
HANDLE, DOOR (BLK) WPL 7701P02460 Contact Us For Availability
5
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
5
SCREW WPL 7101P32860 Contact Us For Availability
5
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
5
SCREW WPL 7101P30960 Contact Us For Availability
5
THERMOSTAT WPL 7404P09860 Contact Us For Availability
6
PANEL, SIDE (RT) WPL 2618F11551 Contact Us For Availability
6
PANEL, SIDE (LT) WPL 2618F11651 Contact Us For Availability
6
LINING, DOOR WPL 74001851 Contact Us For Availability
6
LINING, DOOR WPL 74001905 Contact Us For Availability
6
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
6
SCREW WPL 7101P07460 Contact Us For Availability
6
REGULATOR PRESSURE WPL 7510P03660 Contact Us For Availability
6
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
7
SCREW WPL 7101P11560 Contact Us For Availability
7
PANEL, DOOR (BLK) WPL 2401F10470 Contact Us For Availability
7
SCREW (BLK) WPL 7101P27660 Contact Us For Availability
7
PANEL, DOOR (BLK) WPL 74001862 Contact Us For Availability
7
SUPPORT, REGULATOR WPL 74001932 Contact Us For Availability
7
EXTRUSION, TOP FRONT (BLK) WPL 74001854 Contact Us For Availability
8
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
8
TRIM, SIDE (RT-BLK) WPL 74001902 Contact Us For Availability
8
TRIM, SIDE (LT-BLK) WPL 74001903 Contact Us For Availability
8
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
8
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
8
TUBING, 3/8 X 31 WPL 3414F03944 Contact Us For Availability
8
EXTRUSION VENT WPL 7756P07260 Contact Us For Availability
9
BAFFLE WPL 3601F10945 Contact Us For Availability
9
NUT, TINNERMAN WPL 7103P10060 Contact Us For Availability
9
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
9
SEAL, DOOR (VERTICAL) WPL 7212P00760 Contact Us For Availability
9
TUBING, REGULATOR (3/8``) WPL 3414F09744 Contact Us For Availability
9
COVER, WIRE WPL 4005F15351 Contact Us For Availability
10
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
10
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
10
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
10
COVER, REAR WIRE WPL 74001913 Contact Us For Availability
11
CLIP, OVEN FRONT WPL 7112P02060 Contact Us For Availability
11
GLASS, OUTER (BLK) WPL 7902P33560 Contact Us For Availability
11
GLASS, DOOR (BLK) WPL 7902P35760 Contact Us For Availability
11
FITTING, BAKE BNR. WPL 7507P00860 Contact Us For Availability
11
HARNESS, WIRE (CNTRL PNL) WPL 74001987 Contact Us For Availability
12
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
12
BASE, MAIN WPL 74001925 Contact Us For Availability
12
SCREW WPL 7101P06860 Contact Us For Availability
12
SUPPORT WPL 3807F12234 Contact Us For Availability
12
MANUAL, USE & CARE WPL 74001912 Contact Us For Availability
12
MANUAL, USE & CARE WPL 74002013 Contact Us For Availability
13
EXTRUSION, BOTTOM (BLK) WPL 74001846 Contact Us For Availability
13
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
13
CLAMP, WIRE WPL 7111P00760 Contact Us For Availability
13
INSULATION, DOOR WPL 7002P01560 Contact Us For Availability
13
INSULATION, DOOR LOWER WPL 7002P01960 Contact Us For Availability
13
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
14
BOTTOM, OVEN WPL 2205F00519 Contact Us For Availability
14
SPACER, HANDLE (BLK) WPL 8010P01560 Contact Us For Availability
14
STRAP, WIRE TIE WPL 8019P00460 Contact Us For Availability
15
SCREW WPL 7101P05860 Contact Us For Availability
15
SUPPORT WPL 3807F02980 Contact Us For Availability
15
SUPPORT, OVEN BOTTOM WPL 5720A01123 Contact Us For Availability
16
BOTTOM, OVEN WPL 2205F00819 Contact Us For Availability
17
COVER, CAP HOLE WPL 4005F01135 Contact Us For Availability
17
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
18
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
19
RECEPTACLE, OVEN BULB WPL 7408P03560 Contact Us For Availability
20
BULB-OVEN WPL 7407P10360 Contact Us For Availability
21
RACK WPL 7801P00560 Contact Us For Availability
21
OVEN RACK WPL 7801P03460 Contact Us For Availability
22
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
23
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
24
SUPPORT WPL 3807F13980 Contact Us For Availability
25
COVER WPL 4005F08880 Contact Us For Availability
27
NUT, SNAP (WHT) WPL 7103P04060 Contact Us For Availability
27
NUT, SNAP WPL 7103P05160 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001522 Contact Us For Availability
× ![]()
