Model Whirlpool 91FN-4KLX GAS WALL OVEN – Common Parts & Diagrams

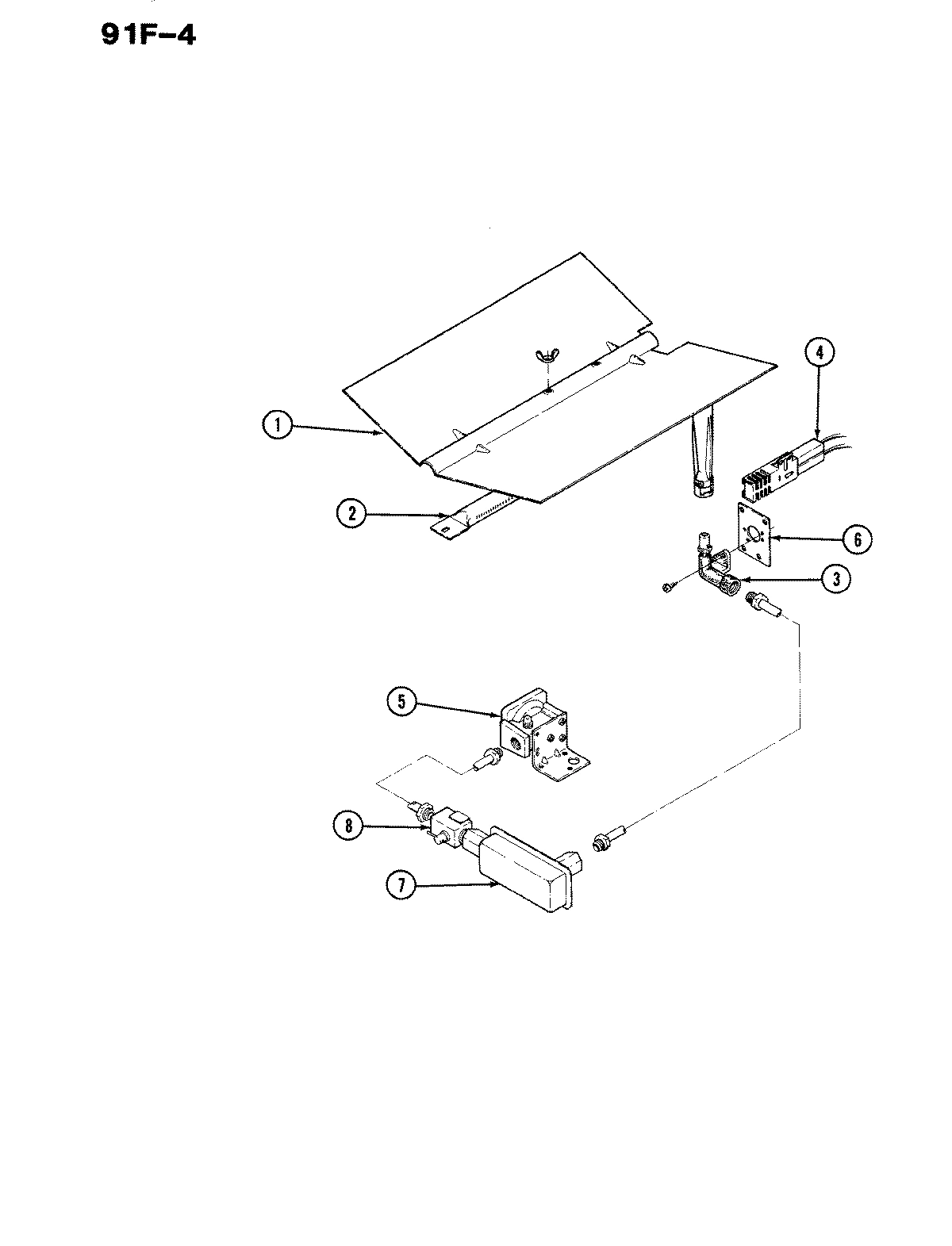

04 - OVEN BURNER ASSEMBLY

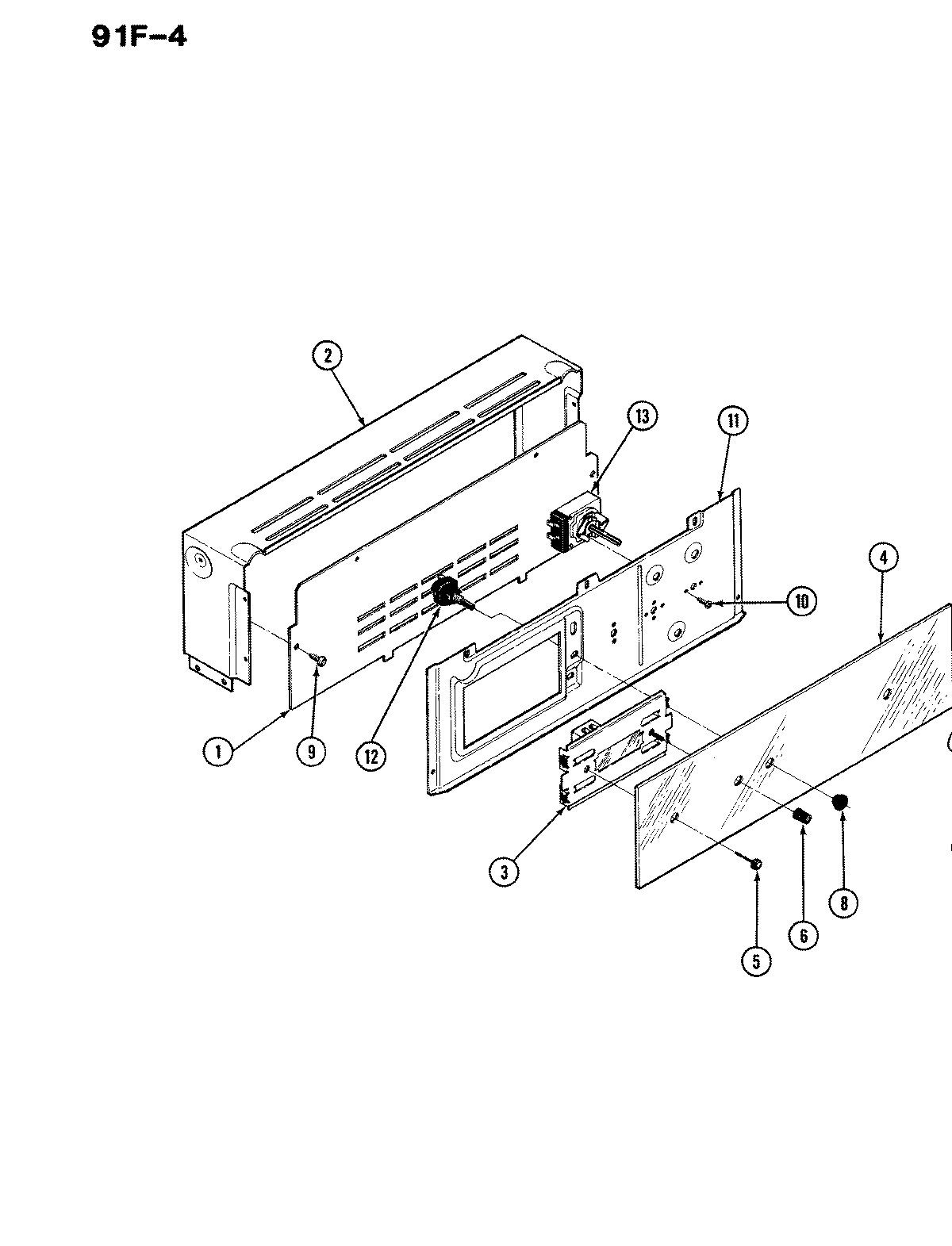

02 - CONTROL PANEL
03 - DOOR (UPPER & LOWER)
01 - BODY
Common parts from model Whirlpool 91FN-4KLX GAS WALL OVEN
1
BAFFLE, OVEN BURNER WPL 3601F10145 Contact Us For Availability
1
COVER, REAR WIRE WPL 4005F15151 Contact Us For Availability
1
BAFFLE, UPPER DOOR WPL 3601F10251 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F10351 Contact Us For Availability
1
BACK, MAIN WPL 4002F04151 Contact Us For Availability
2
BURNER, OVEN WPL 7505P06560 Contact Us For Availability
2
CLIP,GLASS RETAINER (WHT) WPL 3819F01071 Contact Us For Availability
2
BOTTOM, OVEN WPL 2205F00516 Contact Us For Availability
3
FITTING, BAKE BNR. WPL 7507P00860 Contact Us For Availability
3
CLOCK WPL 7602P05760 Contact Us For Availability
3
CLOCK WPL 7602P09760 Contact Us For Availability
3
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
3
BOTTOM, OVEN WPL 2205F00816 Contact Us For Availability
4
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
4
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
4
COVER IGNITOR WIRE WPL 4005F36345 Contact Us For Availability
4
IGNITER, BAKE WPL 7432P05160 Contact Us For Availability
4
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
4
GLASS, CONTROL PANEL WPL 7912P06260 Contact Us For Availability
4
GLASS, OUTER DOOR----NA WPL 7902P30160 Contact Us For Availability
4
GLASS DOOR UPPER WPL 7902P31060 Contact Us For Availability
4
FLUE BOX ASSY WPL 4006W00853 Contact Us For Availability
5
TUBING, 1/2 X 48`` FLEXIBLE WPL 3414F03744 Contact Us For Availability
5
TUBING, REGULATOR (3/8``) WPL 3414F09744 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P01460 Contact Us For Availability
5
REGULATOR PRESSURE WPL 7510P03660 Contact Us For Availability
5
REGULATOR, PRESSURE (NAT) WPL 7510P03760 Contact Us For Availability
5
KNOB, CLOCK (BUTTON-WHT) WPL 7711P42060 Contact Us For Availability
5
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
5
BULB, OVEN WPL 7407P02660 Contact Us For Availability
6
SUPPORT WPL 3807F12234 Contact Us For Availability
6
KNOB, CLOCK (WHT) WPL 7711P41960 Contact Us For Availability
6
HANDLE, DOOR (WHT) WPL 7701P08660 Contact Us For Availability
6
CORD, POWER WPL 7402P01460 Contact Us For Availability
6
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
7
TUBING, 3/8 X 31 WPL 3414F03944 Contact Us For Availability
7
VALVE, BAKE WPL 7501P01860 Contact Us For Availability
7
KNOB, THERMOSTAT WPL 7731P03860 Contact Us For Availability
7
LINING ASSY, OV DR WPL 2402W13217 Contact Us For Availability
7
LINING, DOOR WPL 2402W13317 Contact Us For Availability
7
COVER WPL 4005F08880 Contact Us For Availability
8
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
8
COVER BOX WALL OVEN WPL 4005F15251 Contact Us For Availability
8
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
8
PANEL, DOOR WPL 2401F05471 Contact Us For Availability
8
PANEL, OVEN DOOR UPPER WPL 2401F08471 Contact Us For Availability
9
SEAL, GLASS WPL 7208P00160 Contact Us For Availability
9
EXTRUSION, BOTTOM (CHR) WPL 7706P07560 Contact Us For Availability
10
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
10
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
10
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
11
PLATE, BACKING WPL 3605F11380 Contact Us For Availability
11
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
11
EXTRUSION WPL 7750P01860 Contact Us For Availability
12
SWITCH, PUSH (WHT) WPL 7403P20460 Contact Us For Availability
12
EXTRUSION WPL 7750P01960 Contact Us For Availability
13
CONTROL WPL 7404P02360 Contact Us For Availability
13
THERMOSTAT WPL 7404P05960 Contact Us For Availability
13
EXTRUSION, TOP (WHT) WPL 7706P07860 Contact Us For Availability
14
EXTRUSION, FRONT (TOP) WPL 7756P04060 Contact Us For Availability
14
EXTRUSION, TOP FRONT (WHT) WPL 7756P05760 Contact Us For Availability
15
EXTRUSION, VENT WPL 7756P02660 Contact Us For Availability
16
HINGE, OVEN DOOR WPL 7106A01860 Contact Us For Availability
16
HINGE, OVEN DOOR WPL 7106A02060 Contact Us For Availability
16
HINGE, DOOR WPL 7106P02660 Contact Us For Availability
16
HINGE, DOOR WPL 7106P02860 Contact Us For Availability
17
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
18
PAN, BROIL WPL 3401F00419 Contact Us For Availability
18
INSERT, BROIL PAN WPL 3413F00219 Contact Us For Availability
18
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
18
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
19
PANEL, SIDE RIGHT WPL 2618F05551 Contact Us For Availability
19
PANEL, SIDE-LT WPL 2618F05651 Contact Us For Availability
19
PANEL, SIDE LF. WPL 2618F08851 Contact Us For Availability
19
PANEL, SIDE RIGHT WPL 2618F08951 Contact Us For Availability
20
OVEN RACK WPL 7801P03460 Contact Us For Availability
21
RACK WPL 7801P00560 Contact Us For Availability
22
RECEPT, OVEN LIGHT WPL 7408P00160 Contact Us For Availability
23
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
24
SUPPORT ASSY, OVEN BOTTOM WPL 5720A00215 Contact Us For Availability
25
SCREW WPL 7101P06160 Contact Us For Availability
× ![]()
