Model Whirlpool 9122XPB GAS WALL OVEN – Common Parts & Diagrams
06 - WIRING INFORMATION
03 - DOOR (UPPER)

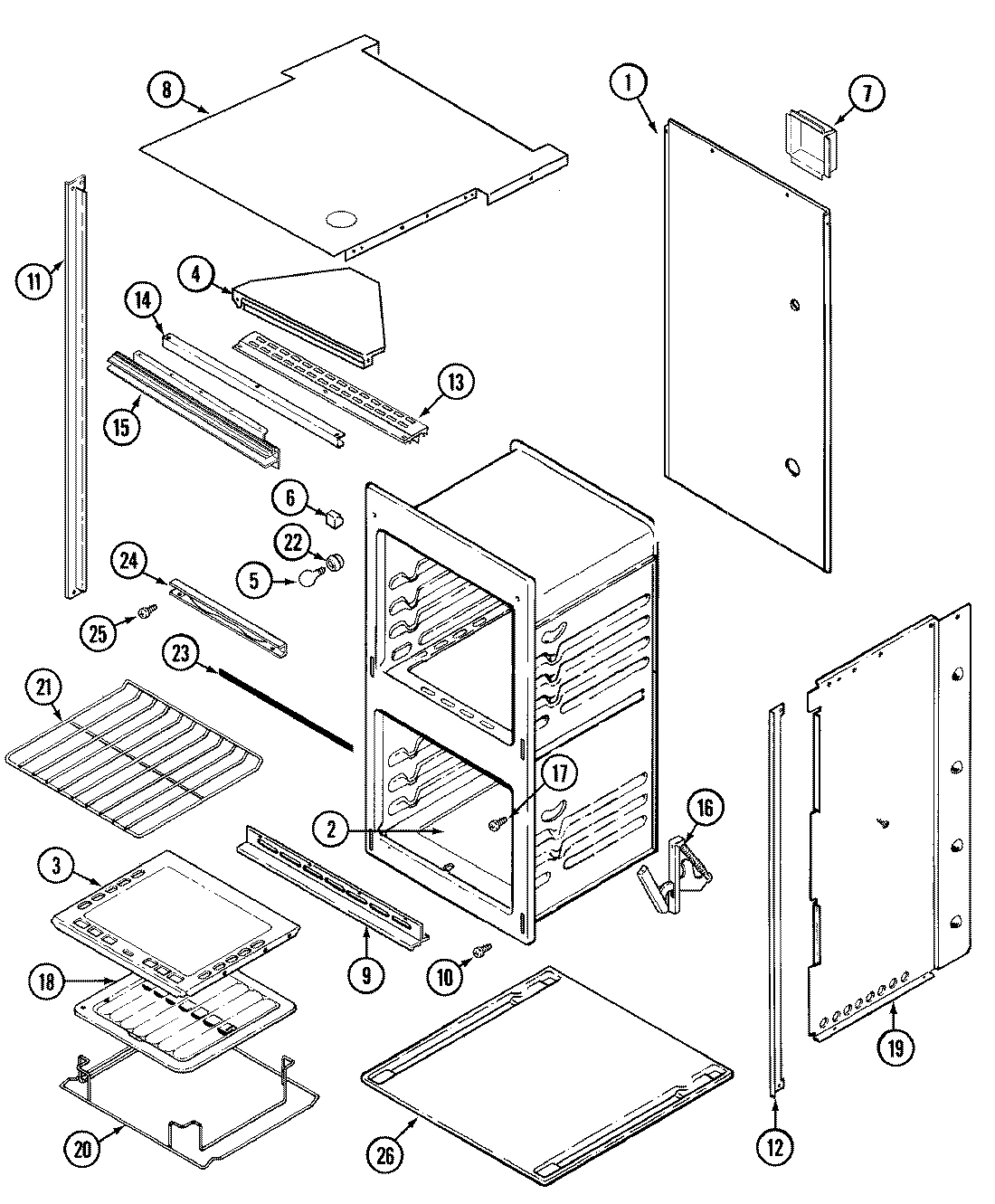

05 - OVEN/BODY

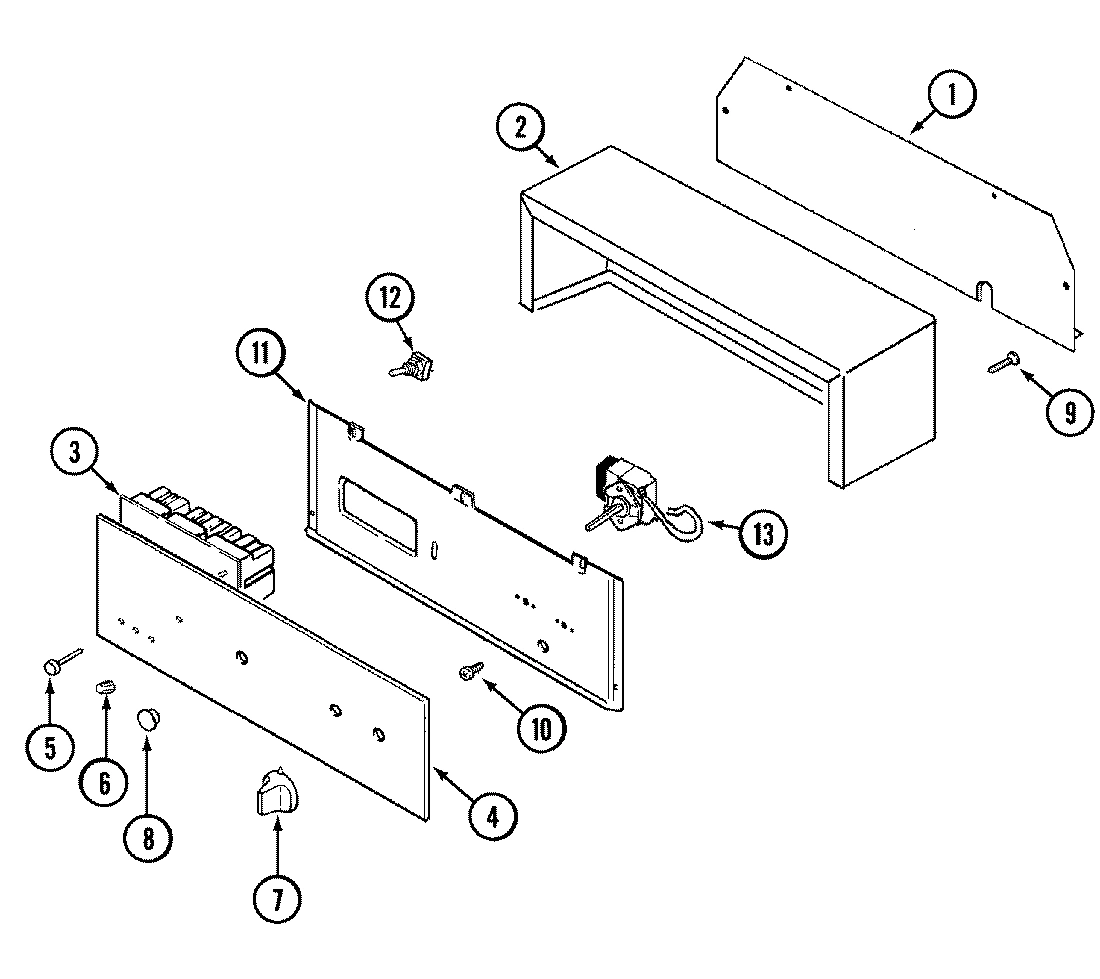

01 - CONTROL PANEL

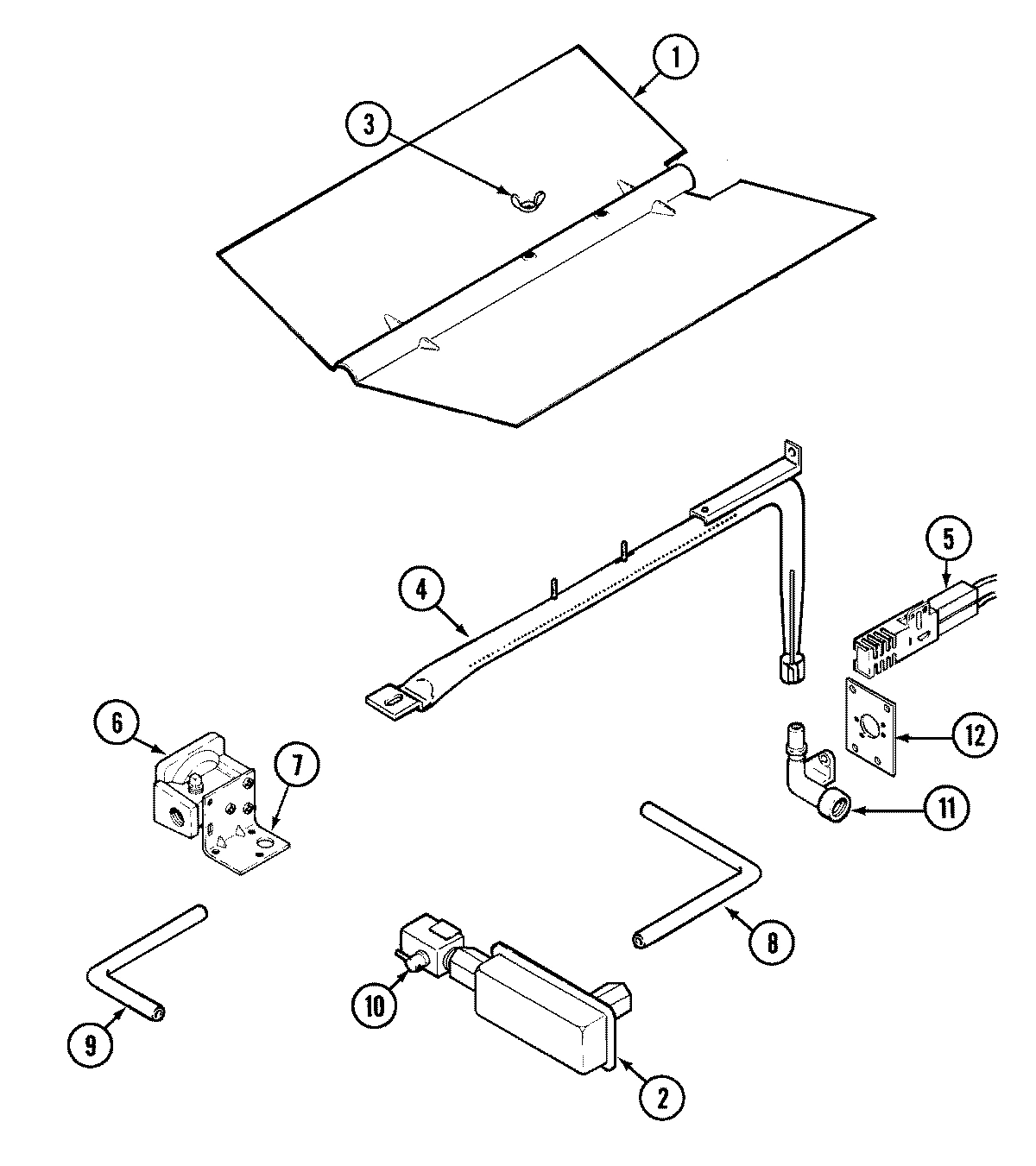

04 - GAS CONTROLS

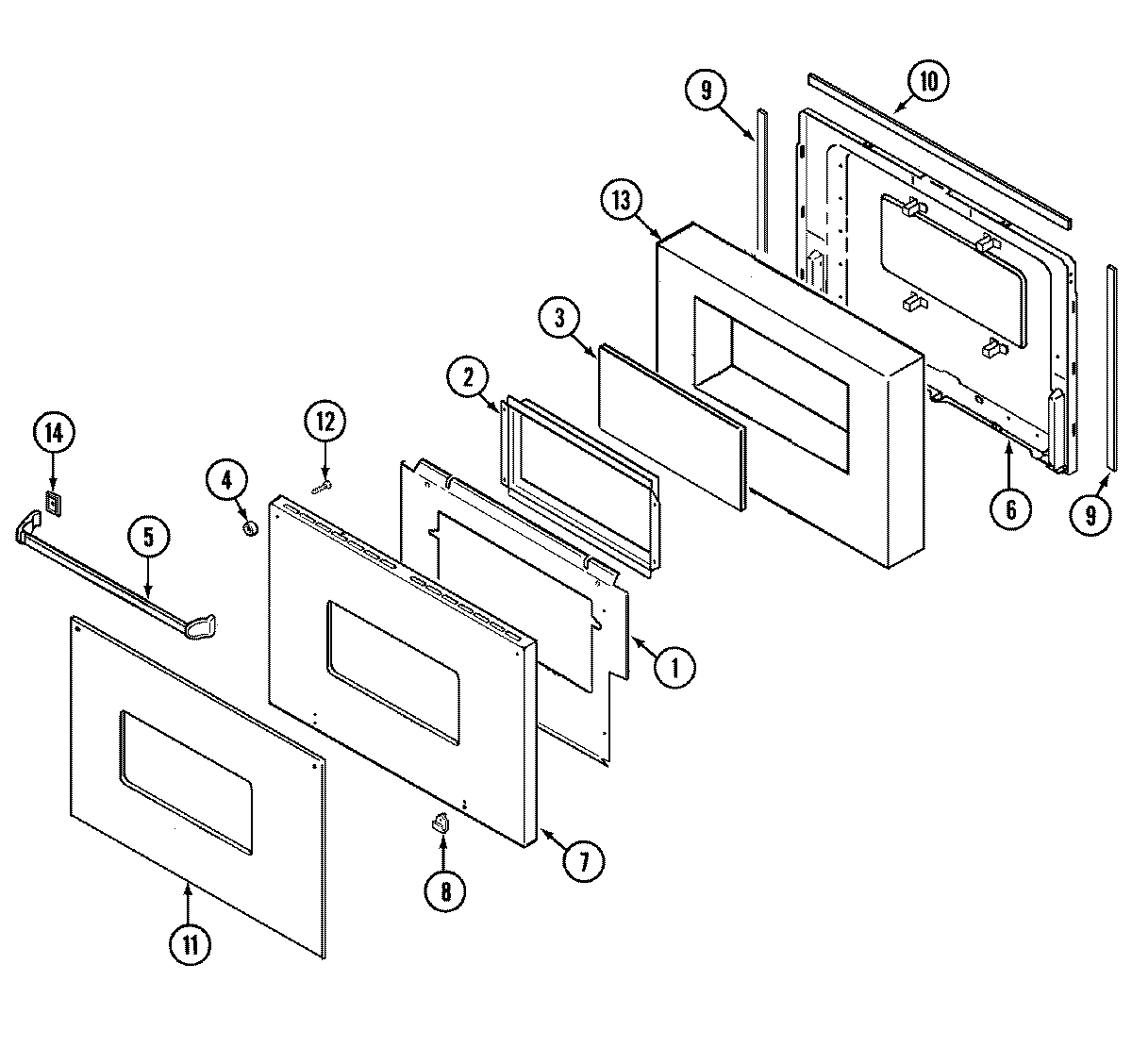

02 - DOOR (LOWER)
Common parts from model Whirlpool 9122XPB GAS WALL OVEN
1
BAFFLE, UPPER DOOR WPL 3601F10251 Contact Us For Availability
1
SCREW WPL 7101P35660 Contact Us For Availability
1
BACK, MAIN WPL 4002F04151 Contact Us For Availability
1
INSULATION, WRAPPER WPL 74001850 Contact Us For Availability
1
COVER, REAR WIRE WPL 4005F15151 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F10145 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F10351 Contact Us For Availability
2
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
2
BOTTOM, OVEN WPL 2205F00523 Contact Us For Availability
2
COVER-WIRE WPL 790006 Contact Us For Availability
2
VALVE, BAKE WPL 7501P01860 Contact Us For Availability
3
GLASS, INNER WPL 7902P38660 Contact Us For Availability
3
BOTTOM, OVEN WPL 2205F00823 Contact Us For Availability
3
CLOCK WPL 7602P09760 Contact Us For Availability
3
NUT, WING WPL 7103P03060 Contact Us For Availability
4
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
4
FLUE BOX ASSY WPL 4006W00853 Contact Us For Availability
4
GLASS, CONTROL PANEL WPL 7912P03160 Contact Us For Availability
4
BURNER, OVEN WPL 7505P06560 Contact Us For Availability
5
HANDLE, DOOR (BLK) WPL 7701P02460 Contact Us For Availability
5
BULB, OVEN WPL 7407P02660 Contact Us For Availability
5
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
5
COVER IGNITOR WIRE WPL 4005F36345 Contact Us For Availability
5
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
6
LINING, DOOR WPL 2402W13319 Contact Us For Availability
6
LINING, DOOR WPL 74001851 Contact Us For Availability
6
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
6
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
6
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
6
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
6
REGULATOR PRESSURE WPL 7510P03660 Contact Us For Availability
6
LINING, DOOR WPL 2402W13219 Contact Us For Availability
6
LINING, DOOR WPL 74001905 Contact Us For Availability
7
PANEL, DOOR (BLK) WPL 2401F11170 Contact Us For Availability
7
SCREW (BLK) WPL 7101P27660 Contact Us For Availability
7
PANEL, DOOR (BLK) WPL 74001862 Contact Us For Availability
7
COVER WPL 4005F08880 Contact Us For Availability
7
KNOB, THERMOSTAT (CHR) WPL 74001254 Contact Us For Availability
7
KNOB WPL 7711P08560 Contact Us For Availability
7
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
7
SUPPORT, REGULATOR WPL 74001932 Contact Us For Availability
7
PANEL, DOOR (BLK) WPL 2401F10470 Contact Us For Availability
8
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
8
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
8
COVER BOX WALL OVEN WPL 4005F15251 Contact Us For Availability
8
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
8
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
8
TUBING, 3/8 X 31 WPL 3414F03944 Contact Us For Availability
9
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
9
EXTRUSION, BOTTOM (BLK) WPL 7706P15360 Contact Us For Availability
9
SCREW WPL 7101P06160 Contact Us For Availability
9
TUBING, REGULATOR (3/8``) WPL 3414F09744 Contact Us For Availability
9
SEAL, DOOR (VERTICAL) WPL 7212P00760 Contact Us For Availability
10
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
10
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
10
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
11
GLASS, DOOR (BLK) WPL 7902P35760 Contact Us For Availability
11
EXTENSION, SIDE (LEFT) WPL 7750P02960 Contact Us For Availability
11
PLATE, BACKING WPL 3605F11380 Contact Us For Availability
11
FITTING, BAKE BNR. WPL 7507P00860 Contact Us For Availability
11
GLASS, OUTER (BLK) WPL 7902P33560 Contact Us For Availability
12
SCREW WPL 7101P06860 Contact Us For Availability
12
EXTENSION, SIDE (RIGHT) WPL 7750P03060 Contact Us For Availability
12
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
12
SUPPORT WPL 3807F12234 Contact Us For Availability
13
INSULATION, DOOR WPL 7002P01560 Contact Us For Availability
13
EXTRUSION, TOP (BLK) WPL 7706P19960 Contact Us For Availability
13
THERMOSTAT WPL 7404P05960 Contact Us For Availability
13
THERMOSTAT WPL 7404P09860 Contact Us For Availability
13
INSULATION, DOOR LOWER WPL 7002P01960 Contact Us For Availability
14
SPACER, HANDLE (BLK) WPL 8010P01560 Contact Us For Availability
14
EXTRUSION, TOP FRONT (BLK) WPL 7756P00960 Contact Us For Availability
14
MANUAL, USE & CARE WPL 8112P06460 Contact Us For Availability
15
EXTRUSION VENT WPL 7756P07260 Contact Us For Availability
15
MANUAL, SERVICE-NO REFUND WPL 16009722 Contact Us For Availability
16
HINGE, DOOR WPL 7106P02660 Contact Us For Availability
16
HINGE, DOOR WPL 7106P02860 Contact Us For Availability
17
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
18
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
18
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
19
PANEL, SIDE LF. WPL 2618F08851 Contact Us For Availability
19
PANEL, SIDE RIGHT WPL 2618F08951 Contact Us For Availability
19
INSULATION, WRAPPER WPL 74001883 Contact Us For Availability
20
RACK, BROIL BRIGHT CHROME WPL 790402 Contact Us For Availability
21
RACK WPL 7801P00560 Contact Us For Availability
21
OVEN RACK WPL 7801P03460 Contact Us For Availability
22
RECEPT, OVEN LIGHT WPL 7408P00160 Contact Us For Availability
23
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
24
SUPPORT ASSY, OVEN BOTTOM WPL 5720A00215 Contact Us For Availability
26
BASE, WALL OVEN WPL 4003F01380 Contact Us For Availability
27
CORD, POWER WPL 7402P01460 Contact Us For Availability
× ![]()
