Model Whirlpool 9112VUV GAS WALL OVEN – Common Parts & Diagrams

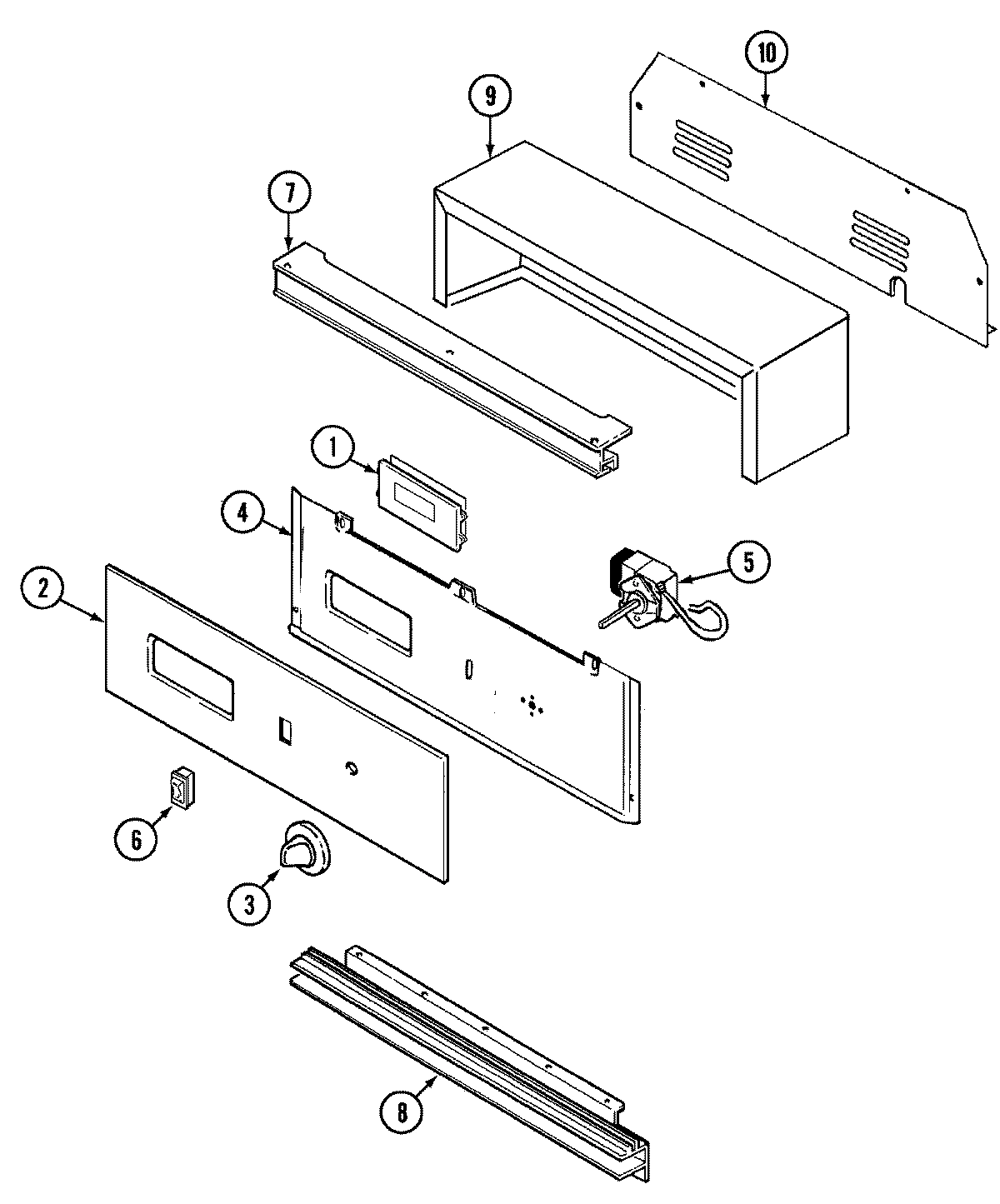

01 - CONTROL PANEL

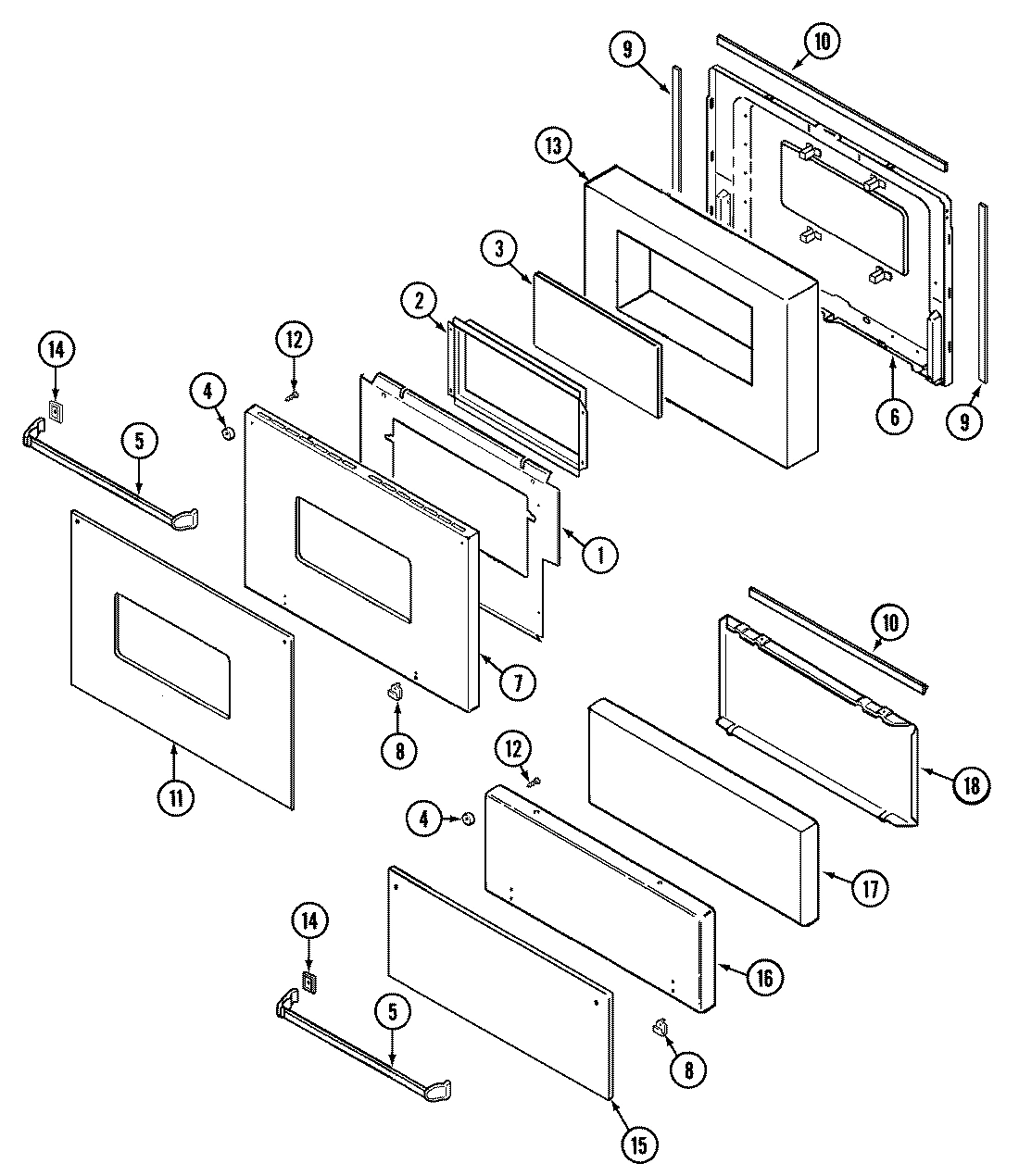

02 - DOOR (UPPER & LOWER)

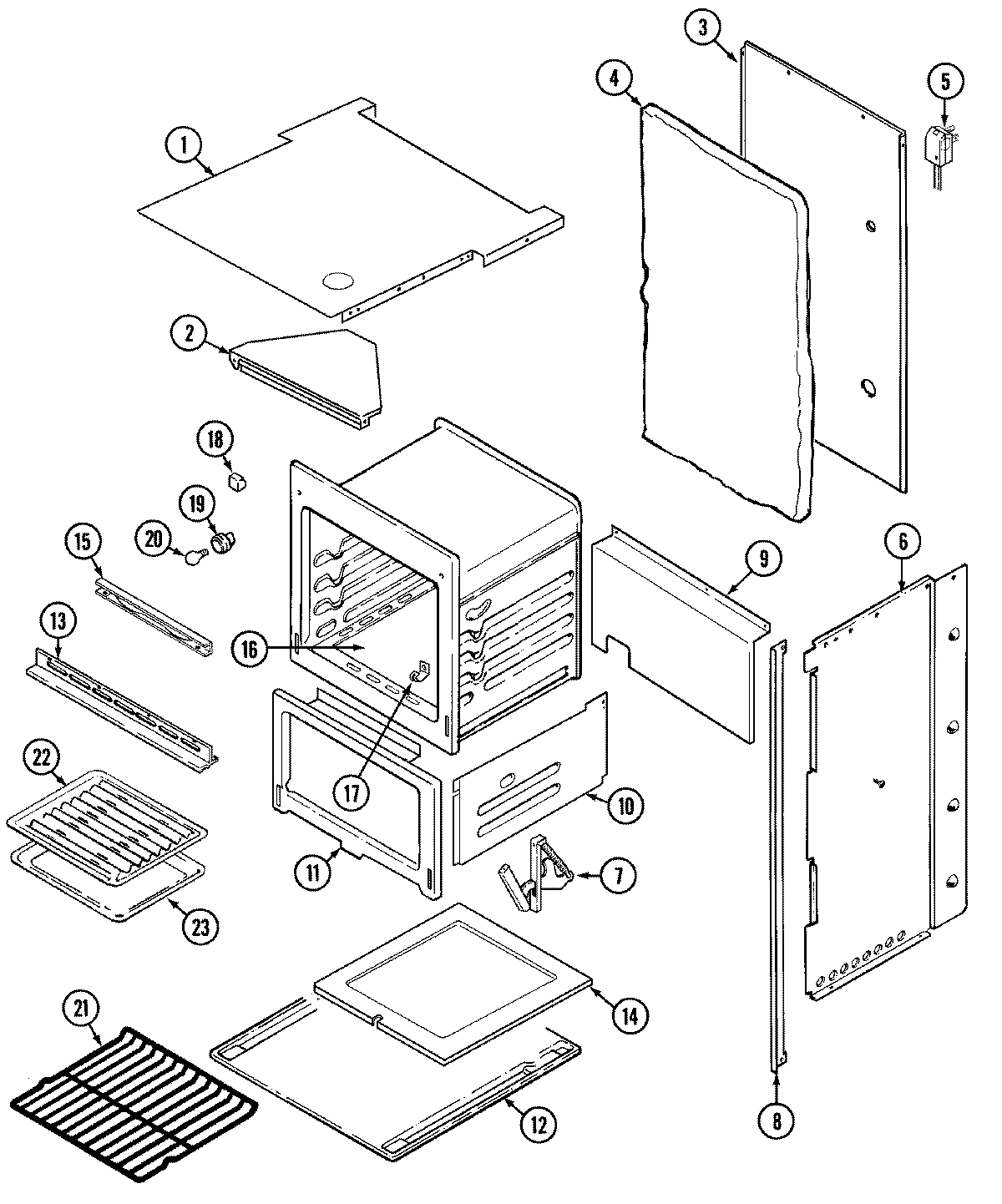

04 - OVEN/BODY

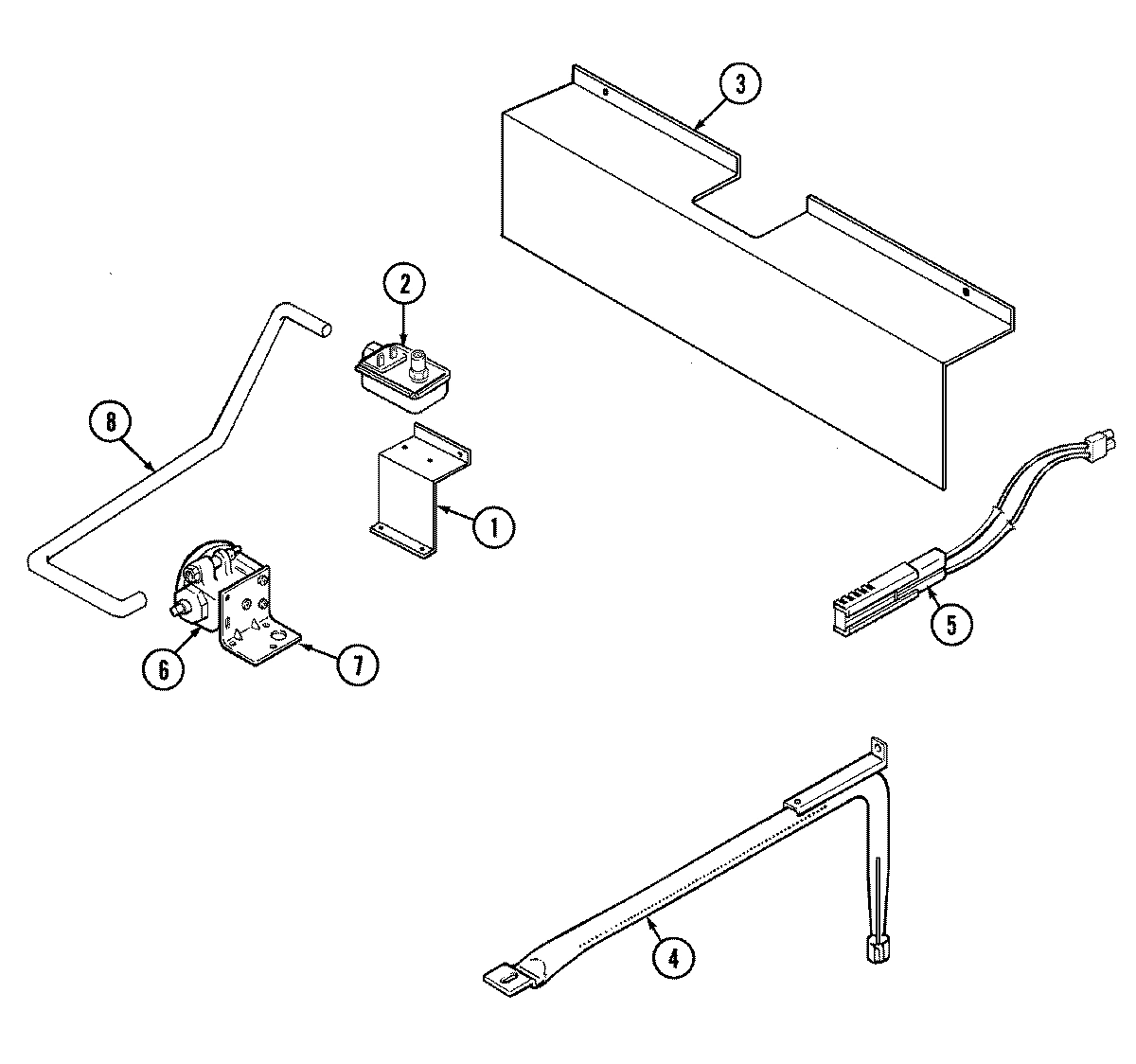

03 - GAS CONTROLS

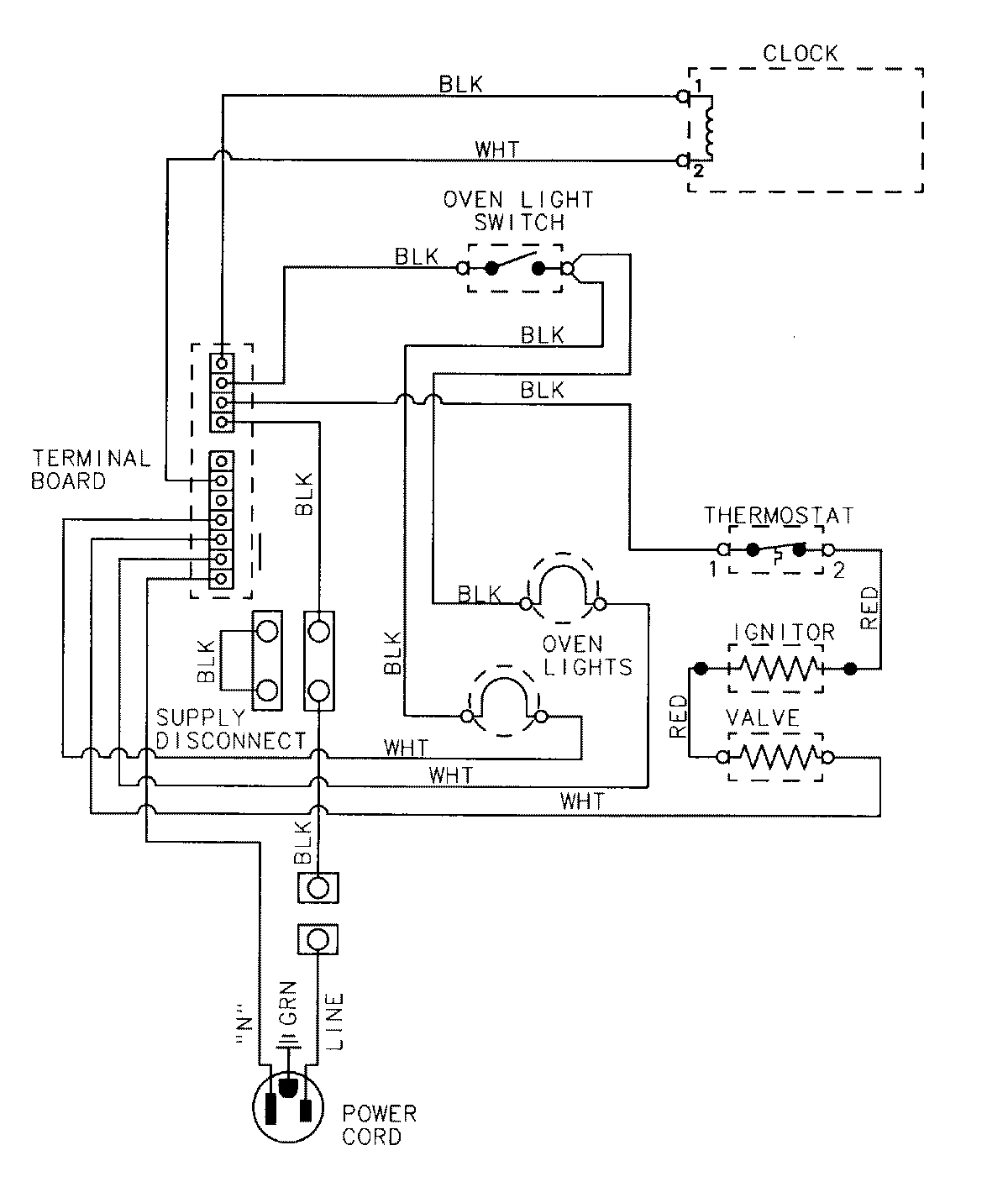

05 - WIRING INFORMATION
Common parts from model Whirlpool 9112VUV GAS WALL OVEN
1
CLOCK (WHT) WPL 7602P11760 Contact Us For Availability
1
BAFFLE, UPPER DOOR WPL 3601F10251 Contact Us For Availability
1
COVER BOX WALL OVEN WPL 4005F15251 Contact Us For Availability
1
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
1
GROMMET WPL 8008P00460 Contact Us For Availability
1
SUPPORT, OVEN VALVE WPL 74001928 Contact Us For Availability
2
SCREW----NA WPL 7101P31160 Contact Us For Availability
2
PANEL, CONTROL (WHT) WPL 74001939 Contact Us For Availability
2
FELT, DISC WPL 8010P05060 Contact Us For Availability
2
SCREW WPL 7101P35660 Contact Us For Availability
2
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
2
BOX, FLUE ASSY WPL 4006W07719 Contact Us For Availability
2
VALVE, OVEN WPL 74001929 Contact Us For Availability
3
KNOB, THERMOSTAT WPL 7731P03860 Contact Us For Availability
3
GLASS, INNER WPL 7902P38660 Contact Us For Availability
3
BACK, MAIN WPL 74001914 Contact Us For Availability
3
COVER, OVEN VALVE WPL 74001930 Contact Us For Availability
4
PLATE, SUPPORT WPL 74001837 Contact Us For Availability
4
SPACER, HANDLE WPL 8010P07360 Contact Us For Availability
4
INSULATION, TOP & BACK WPL 74001849 Contact Us For Availability
4
INSULATION, WRAPPER WPL 74001917 Contact Us For Availability
4
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
5
SCREW WPL 7101P30960 Contact Us For Availability
5
THERMOSTAT WPL 7404P09860 Contact Us For Availability
5
HANDLE, DOOR (WHT) WPL 7701P08660 Contact Us For Availability
5
CORD, POWER WPL 74001926 Contact Us For Availability
5
SCREW WPL 7101P32860 Contact Us For Availability
5
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
6
SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability
6
LINING, DOOR WPL 74001851 Contact Us For Availability
6
PANEL, SIDE (LT) WPL 74001915 Contact Us For Availability
6
PANEL, SIDE (RT) WPL 74001916 Contact Us For Availability
6
LOXIT NUT, 3/8`` (MICRO) WPL 74003034 Contact Us For Availability
6
SCREW WPL 7101P07460 Contact Us For Availability
6
REGULATOR, PRESSURE WPL 74001931 Contact Us For Availability
6
REGULATOR, PRESSURE WPL 74005551 Contact Us For Availability
7
EXTRUSION, TOP FRONT (CHR/GRY) WPL 74001855 Contact Us For Availability
7
EXTRUSION, TOP FRONT (WHT) WPL 74001953 Contact Us For Availability
7
PANEL, DOOR (WHT) WPL 74001942 Contact Us For Availability
7
PANEL, DOOR (WHT) WPL 74004159 Contact Us For Availability
7
SCREW WPL 7101P11560 Contact Us For Availability
7
HINGE, BROILER DOOR WPL 74003894 Contact Us For Availability
7
SUPPORT, REGULATOR WPL 74001932 Contact Us For Availability
8
EXTRUSION, VENT (CHR) WPL 74004046 Contact Us For Availability
8
EXTRUSION, VENT WPL 7756P02660 Contact Us For Availability
8
CLIP, GLASS (WHT) WPL 7112P09460 Contact Us For Availability
8
EXTRUSION, SIDE (RT-CHR) WPL 74001940 Contact Us For Availability
8
EXTRUSION, SIDE (LT-CHR) WPL 74001941 Contact Us For Availability
8
TRIM, SIDE (RT-CHR) WPL 74004055 Contact Us For Availability
8
TRIM, SIDE (LT-CHR) WPL 74004056 Contact Us For Availability
8
TUBING, OVEN VALVE (3/8``)--NA WPL 74001933 Contact Us For Availability
8
TUBING, VALVE/REGULATOR WPL 74005549 Contact Us For Availability
9
COVER, WIRE WPL 4005F15351 Contact Us For Availability
9
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
9
BROILER, BACK WPL 74001921 Contact Us For Availability
9
CLAMP, WIRE WPL 7111P00460 Contact Us For Availability
10
COVER, REAR WIRE WPL 74001913 Contact Us For Availability
10
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
10
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
10
BROILER, SIDE (LT) WPL 74001922 Contact Us For Availability
10
BROILER, SIDE (RT) WPL 74001923 Contact Us For Availability
11
HARNESS, CONTROL PANEL WPL 74001911 Contact Us For Availability
11
GLASS, DOOR (WHT) WPL 74003171 Contact Us For Availability
11
GLASS, DOOR (WHT) WPL 74005579 Contact Us For Availability
11
GLASS, DOOR (WHT) WPL 7902P33260 Contact Us For Availability
11
EXTENSION, OVEN FRONT WPL 74001924 Contact Us For Availability
11
EXTENSION, OVEN FRONT WPL 74003895 Contact Us For Availability
12
MANUAL, USE & CARE WPL 74001912 Contact Us For Availability
12
MANUAL, USE & CARE WPL 74002013 Contact Us For Availability
12
MANUAL, USE & CARE WPL 74004961 Contact Us For Availability
12
MANUAL, USE & CARE WPL 8112P32160 Contact Us For Availability
12
Manual, Use & Care WPL W10169647 Contact Us For Availability
12
SCREW WPL 7101P06860 Contact Us For Availability
12
BASE, MAIN WPL 74001925 Contact Us For Availability
13
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
13
MANUAL, SERVICE-NO REFUND WPL 16009722 Contact Us For Availability
13
INSULATION, DOOR WPL 7002P01560 Contact Us For Availability
13
EXTRUSION, BOTTOM (CHR) WPL 74001859 Contact Us For Availability
14
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
14
SPACER, HANDLE (WHT) WPL 8010P07760 Contact Us For Availability
14
BOTTOM, OVEN WPL 2205F00519 Contact Us For Availability
15
GLASS, DOOR (LWR-WHT) WPL 74001943 Contact Us For Availability
15
GLASS, DOOR (LWR-WHT) WPL 74003170 Contact Us For Availability
15
GLASS, DOOR (LWR-WHT) WPL 74005572 Contact Us For Availability
15
SCREW WPL 7101P26160 Contact Us For Availability
15
SUPPORT, OVEN BOTTOM WPL 5720A01123 Contact Us For Availability
16
TAPE, DBL. SIDED (WHT) WPL 71002092 Contact Us For Availability
16
PANEL, DOOR (LWR-WHT) WPL 74001944 Contact Us For Availability
16
PANEL, DOOR (LWR-WHT) WPL 74003898 Contact Us For Availability
16
PANEL, DOOR (LWR-WHT) WPL 74004161 Contact Us For Availability
16
BOTTOM, OVEN (UPPER) WPL 74001927 Contact Us For Availability
17
INSULATION, BROILER DOOR WPL 7002P06760 Contact Us For Availability
17
COVER, CAP HOLE WPL 4005F01135 Contact Us For Availability
17
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
18
LINING, DOOR (LWR) WPL 74001937 Contact Us For Availability
18
LINING, DOOR (LWR) WPL 74003896 Contact Us For Availability
18
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
19
RECEPTACLE, OVEN BULB WPL 7408P03560 Contact Us For Availability
20
BULB-OVEN WPL 7407P10360 Contact Us For Availability
21
RACK WPL 7801P00560 Contact Us For Availability
22
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
23
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001522 Contact Us For Availability
× ![]()
