Model GE 911.93201890 30" Electric Range (Kenmore 91193201890) – Common Parts & Diagrams

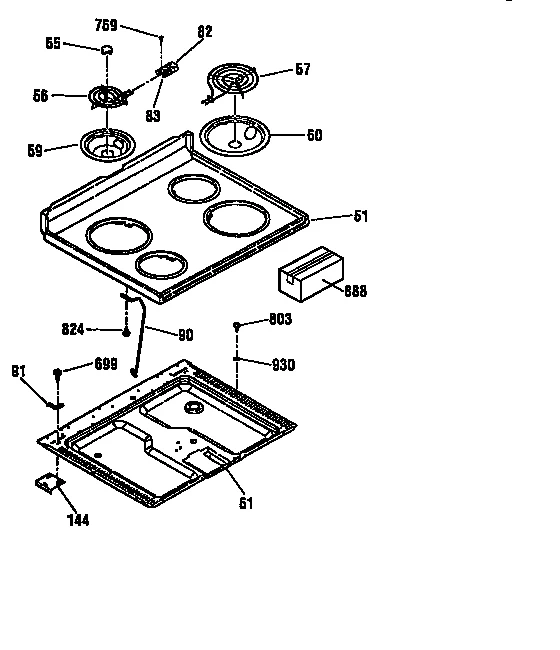

61
Burner Box
Burner Box GEN WB64T10003 Contact Us For Availability
View on Model
83
Terminal Block Clip
Terminal Block Clip GEN WB01K5128 Contact Us For Availability
View on Model
90
Support Rod
Support Rod GEN WB02X9084 Contact Us For Availability
View on Model
91
Hinge
Hinge GEN WB14X0126 Contact Us For Availability
View on Model
91A
Hinge
Hinge GEN WB14X0127 Contact Us For Availability
View on Model
144
Reinforcement Plate
Reinforcement Plate GEN WB02K5316 Contact Us For Availability
View on Model
151
Latch
Latch GEN WB14K5011 Contact Us For Availability
View on Model
161
Range Oven Door Lock Switch
Range Oven Door Lock Switch GEN WB24K5092 Contact Us For Availability
View on Model
167
Retainer
Retainer GEN WB02X9433 Contact Us For Availability
View on Model
171
Insulator Switch
Insulator Switch GEN WB35K5101 Contact Us For Availability
View on Model
175
Lock Cover
Lock Cover GEN WB02X9431 Contact Us For Availability
View on Model
181
Drive Insert Retainer
Drive Insert Retainer GEN WB02K5097 Contact Us For Availability
View on Model
191
Latch Handle
Latch Handle GEN WB02X9434 Contact Us For Availability
View on Model
192
Lock Knob Bl
Lock Knob Bl GEN WB03K5154 Contact Us For Availability
View on Model
193
Knob Clip
Knob Clip GEN WB02X9404 Contact Us For Availability
View on Model
194
Lever Switch
Lever Switch GEN WB02X9432 Contact Us For Availability
View on Model
195
Spring
Spring GEN WB09X0251 Contact Us For Availability
View on Model

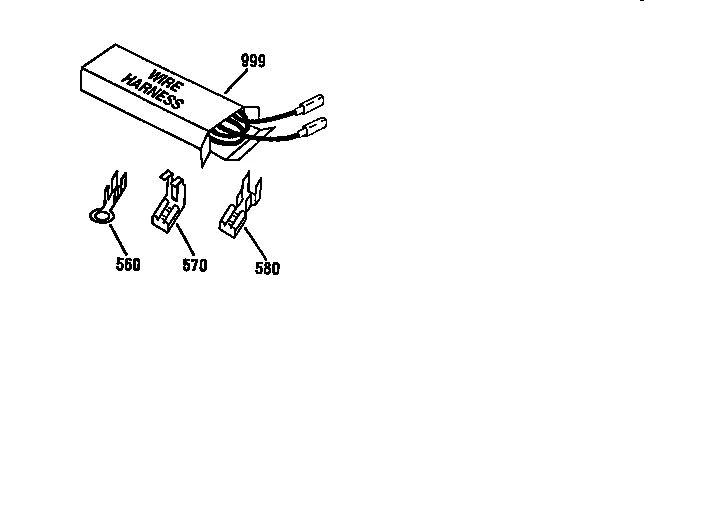

560
Eyelet Terminal
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
View on Model
570
250 Flag
250 Flag GEN STD374251 Contact Us For Availability
View on Model
580
187 Push On
187 Push On GEN STD374180 Contact Us For Availability
View on Model
580A
250 Push On
250 Push On GEN STD374250 Contact Us For Availability
View on Model
697
Screw
Screw GEN WB01X1170 Contact Us For Availability
View on Model
821
Screw
Screw GEN WB01X1265 Contact Us For Availability
View on Model
824
Screw
Screw GEN WB01X1291 Contact Us For Availability
View on Model
888
Range Drip Pan
Range Drip Pan GEN WB31K5042 Contact Us For Availability
View on Model
888A
Range Drip Pan
Range Drip Pan GEN WB31K5043 Contact Us For Availability
View on Model
930
Washer
Washer GEN WB01M0022 Contact Us For Availability
View on Model
974
Hex Nut
Hex Nut GEN WB01X1264 Contact Us For Availability
View on Model
999
Range Wire Harness
Range Wire Harness GEN WB18K5469 Contact Us For Availability
View on Model
999A
Main Wiring Harness
Main Wiring Harness GEN WB18K5475 Contact Us For Availability
View on Model
999B
Lock Switch Harness
Lock Switch Harness GEN WB18K5503 Contact Us For Availability
View on Model
999C
Range Sensor Wire Harness
Range Sensor Wire Harness GEN WB18K5598 Contact Us For Availability
View on Model
