Model GE 911.48369690 Electric Built-In Double Oven (Kenmore 91148369690) – Common Parts & Diagrams
UPPER DOOR SECTION
WIRE HARNESS AND COMPONENTS

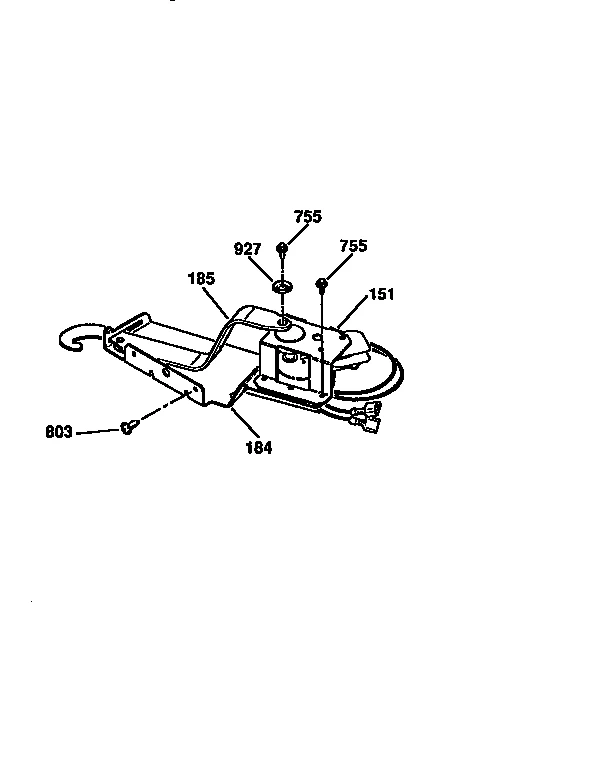

DOOR LOCK

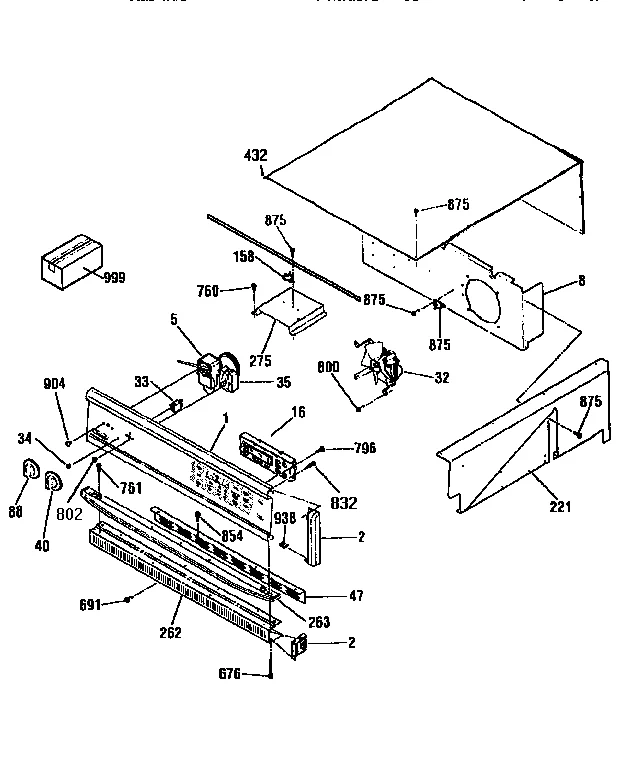

CONTROL SECTION

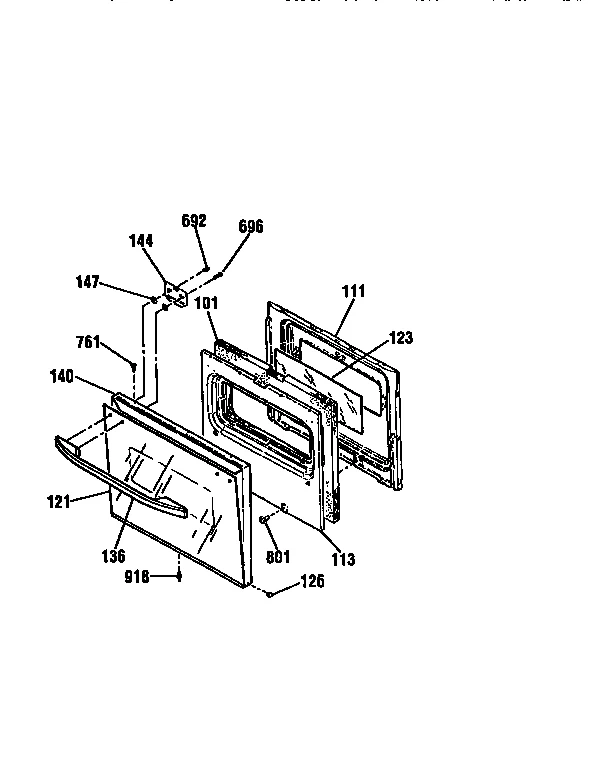

LOWER DOOR SECTION

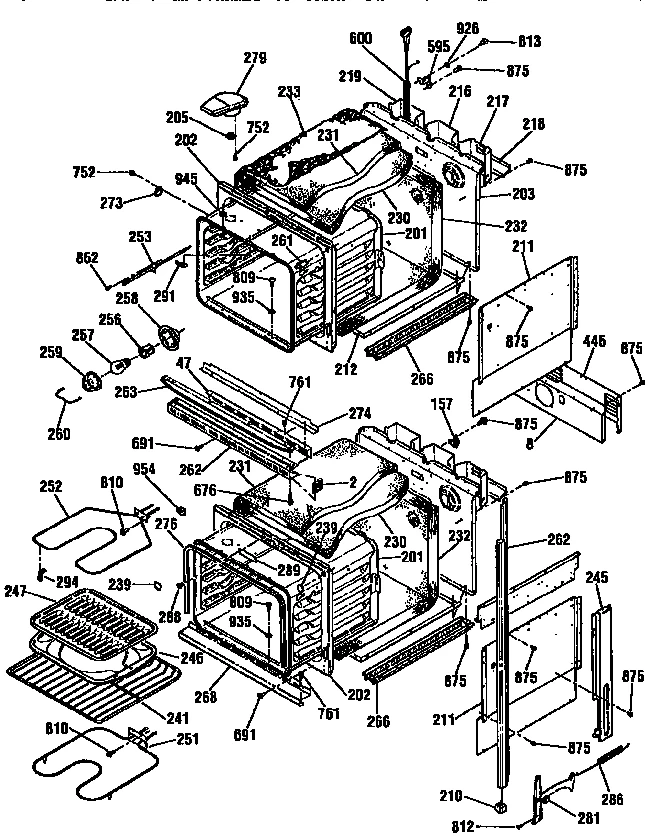

BODY SECTION
All Parts

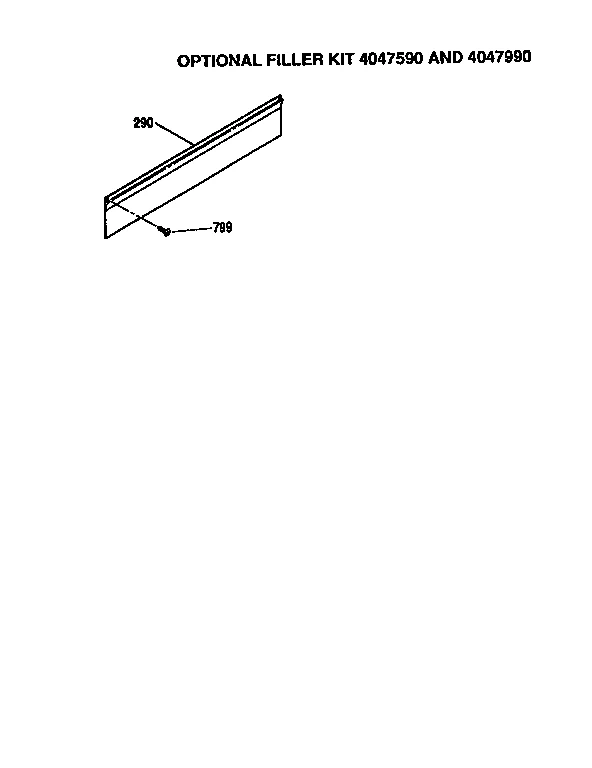

OPTIONAL FILLER KIT 4047590 AND 4047990
Common parts from model GE 911.48369690 Electric Built-In Double Oven (Kenmore 91148369690)
1A
Ctl Pnl+oly GEN WB36K5691 Contact Us For Availability
2
Trim Cap GEN WB07K5442 Contact Us For Availability
2A
End Cap, Right GEN WB36K5642 Contact Us For Availability
2B
End Cap, Left GEN WB36K5641 Contact Us For Availability
2C
End Cap, Right GEN WB36K5638 Contact Us For Availability
2D
End Cap, Left GEN WB36K5639 Contact Us For Availability
5
Thermostat GEN WB20K5011 Contact Us For Availability
8
Fan Support GEN WB02K5257 Contact Us For Availability
8
Fan Supprt L GEN WB02K5137 Contact Us For Availability
16
Oven Clock GEN WB27K5299 Contact Us For Availability
32
Fan GEN WB26K5071 Contact Us For Availability
34
Screw 5mmx12 GEN WB01X1444 Contact Us For Availability
35
Selector Switch GEN WB24K5040 Contact Us For Availability
40
Selectr Knob GEN WB03K5151 Contact Us For Availability
40A
Select Knob GEN WB03K5144 Contact Us For Availability
88
Thermostat Knob GEN WB03K5150 Contact Us For Availability
88A
Thermostat Knob GEN WB03K5143 Contact Us For Availability
111
Ov Dr Lining GEN WB55K5016 Contact Us For Availability
113
Oven Door Insulation Retainer GEN WB02K5127 Contact Us For Availability
121
Door Glass GEN WB57K5311 Contact Us For Availability
121A
Door Glass GEN WB57K5310 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5102 Contact Us For Availability
123
Ov Dr In Gl GEN WB57K5038 Contact Us For Availability
124
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
126
Button Plug GEN WB03K5077 Contact Us For Availability
136
Handl Oven GEN WB15K5117 Contact Us For Availability
136A
Oven Handle GEN WB15K5116 Contact Us For Availability
147
Glass Spacer GEN WB02X9039 Contact Us For Availability
157
Limit Switch GEN WB24K5029 Contact Us For Availability
201
Oven Body GEN WB63K5086 Contact Us For Availability
202
Frame Foot GEN WB63K5084 Contact Us For Availability
210
Trim Cap GEN WB07K5453 Contact Us For Availability
210A
Trim Cap GEN WB07K5454 Contact Us For Availability
210B
Trim Cap GEN WB07K5451 Contact Us For Availability
210C
Trim Cap GEN WB07K5450 Contact Us For Availability
212
Cabinet GEN WB63K5080 Contact Us For Availability
216
COVER WIRE ELEMENT GEN WB34K5069 Contact Us For Availability
217
Cover Wire Light GEN WB34K5070 Contact Us For Availability
218
Wire Cover GEN WB34K5067 Contact Us For Availability
221
Side Extensi GEN WB63K5201 Contact Us For Availability
221
Body Side Ex GEN WB63K5174 Contact Us For Availability
221A
Side Extensi GEN WB63K5200 Contact Us For Availability
231
Insulation GEN WB35K5089 Contact Us For Availability
231A
Insert Out Wrap GEN WB35K5042 Contact Us For Availability
232A
Insert GEN WB35K5040 Contact Us For Availability
233
Heat Reflector GEN WB34K5080 Contact Us For Availability
239
Plug GEN WB02X9587 Contact Us For Availability
245
Vert Sd Supp GEN WB02K5139 Contact Us For Availability
258
Housing GEN WB02X7693 Contact Us For Availability
260
Bail GEN WB02X7694 Contact Us For Availability
261
Jam Switch GEN WB24K5061 Contact Us For Availability
262
Vent Trim GEN WB07K5446 Contact Us For Availability
262A
Vent Trim GEN WB07K5441 Contact Us For Availability
262B
Vert Trm-rt GEN WB07K5464 Contact Us For Availability
262C
Vert Trim-lt GEN WB07K5465 Contact Us For Availability
262D
Vert Trm-rt GEN WB07K5486 Contact Us For Availability
262E
Vert Trim-lt GEN WB07K5487 Contact Us For Availability
263
I-brow Trim GEN WB07K5445 Contact Us For Availability
263
I-brow Trim GEN WB07K5490 Contact Us For Availability
263A
I-brow Trim GEN WB07K5440 Contact Us For Availability
263A
I-brow Trim GEN WB07K5488 Contact Us For Availability
268
Trim GEN WB07K5452 Contact Us For Availability
268A
Trim GEN WB07K5449 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
274
Extension Vent Trim GEN WB07K5485 Contact Us For Availability
274A
Extension Vent Trim GEN WB07K5489 Contact Us For Availability
276
Oven Drive Seal GEN WB32K5019 Contact Us For Availability
279
Vent Box GEN WB38K5028 Contact Us For Availability
281
Oven Drive Hinge GEN WB14K5006 Contact Us For Availability
281A
Wall Oven Door Hinge, Left GEN WB14K5007 Contact Us For Availability
286
Oven Door Spring GEN WB09K5022 Contact Us For Availability
286A
Oven Door Spring GEN WB09K5021 Contact Us For Availability
288
Button Plug GEN WB03K5043 Contact Us For Availability
290
Repl Fill Wh GEN WB36K5228 Contact Us For Availability
290A
Repl Fill Bl GEN WB36K5229 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
432
Cover GEN WB63K5094 Contact Us For Availability
550
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
676
Trim Screw GEN WB01K5207 Contact Us For Availability
676A
Trim Screw GEN WB01K5206 Contact Us For Availability
691
Screw-gray GEN WB01K5223 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
799
Screw GEN WB01K5121 Contact Us For Availability
802
SCREW GEN WB01K5123 Contact Us For Availability
854
Screw (Black) GEN WB01X1164 Contact Us For Availability
854
Screw (Black) GEN WB01X1328 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
904
SCR 8/32 TF FLR 5/16 S GEN WB01X0521 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
954
Clip GEN WB02X9105 Contact Us For Availability
999
Lck Mtr Harn GEN WB18K5617 Contact Us For Availability
999
MINI MANUAL W/WIRE DIAGRAM GEN 31-13325 Contact Us For Availability
999A
Main Wiring Harness GEN WB18K5485 Contact Us For Availability
999A
User's Manual GEN SR10299 Contact Us For Availability
999B
MINI MANUAL W/WIRE DIAG. GEN 31-13326 Contact Us For Availability
999C
Installation Manual GEN 31-10200 Contact Us For Availability
NI
Installation GEN SR10048 Contact Us For Availability
× ![]()
