Model GE 911.48065690 Built-In Double Convection Oven (Kenmore 91148065690) – Common Parts & Diagrams
DOOR LOCK
FILTER KIT 4047590 AND 4047990

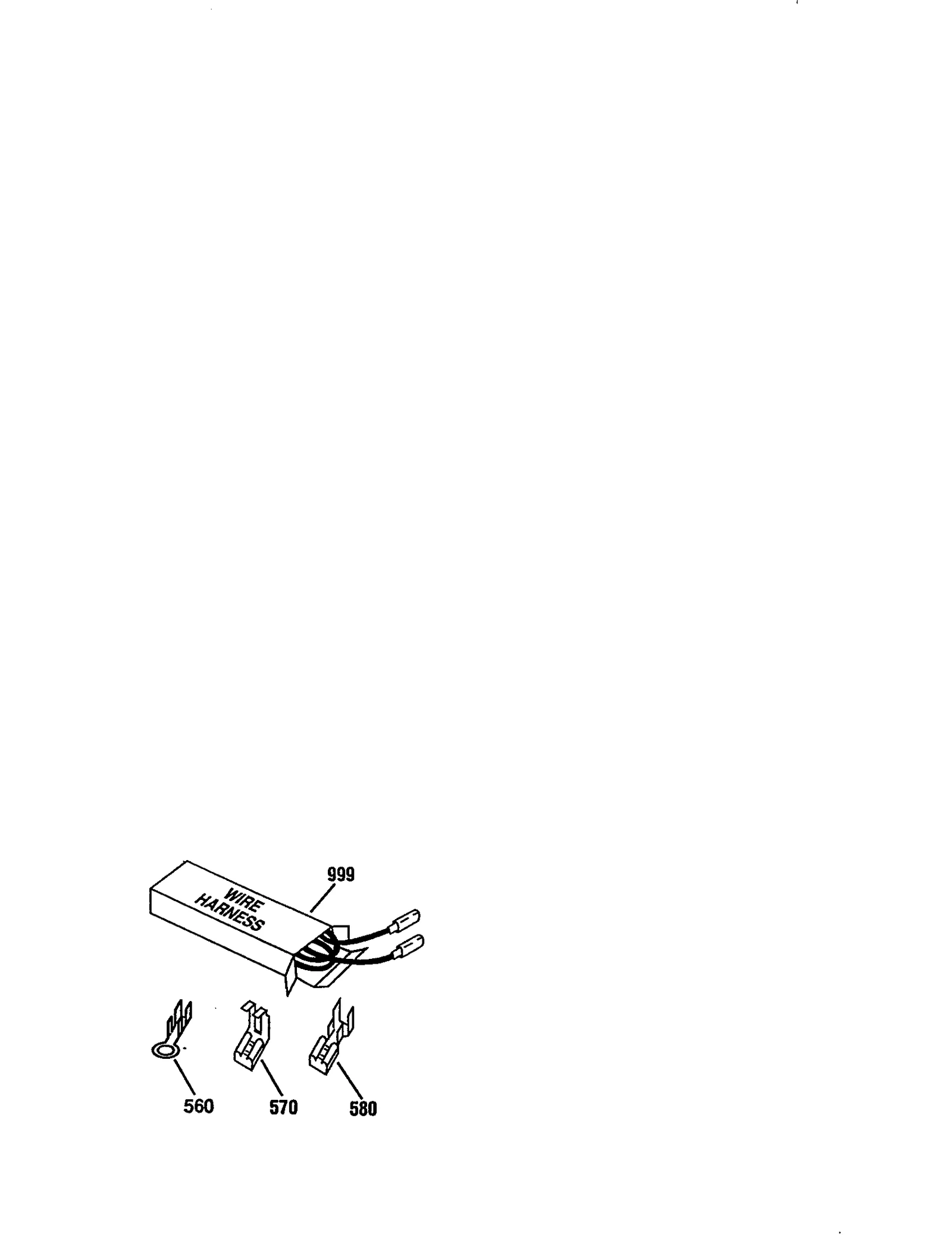

WIRING HARNESS AND COMPONENTS

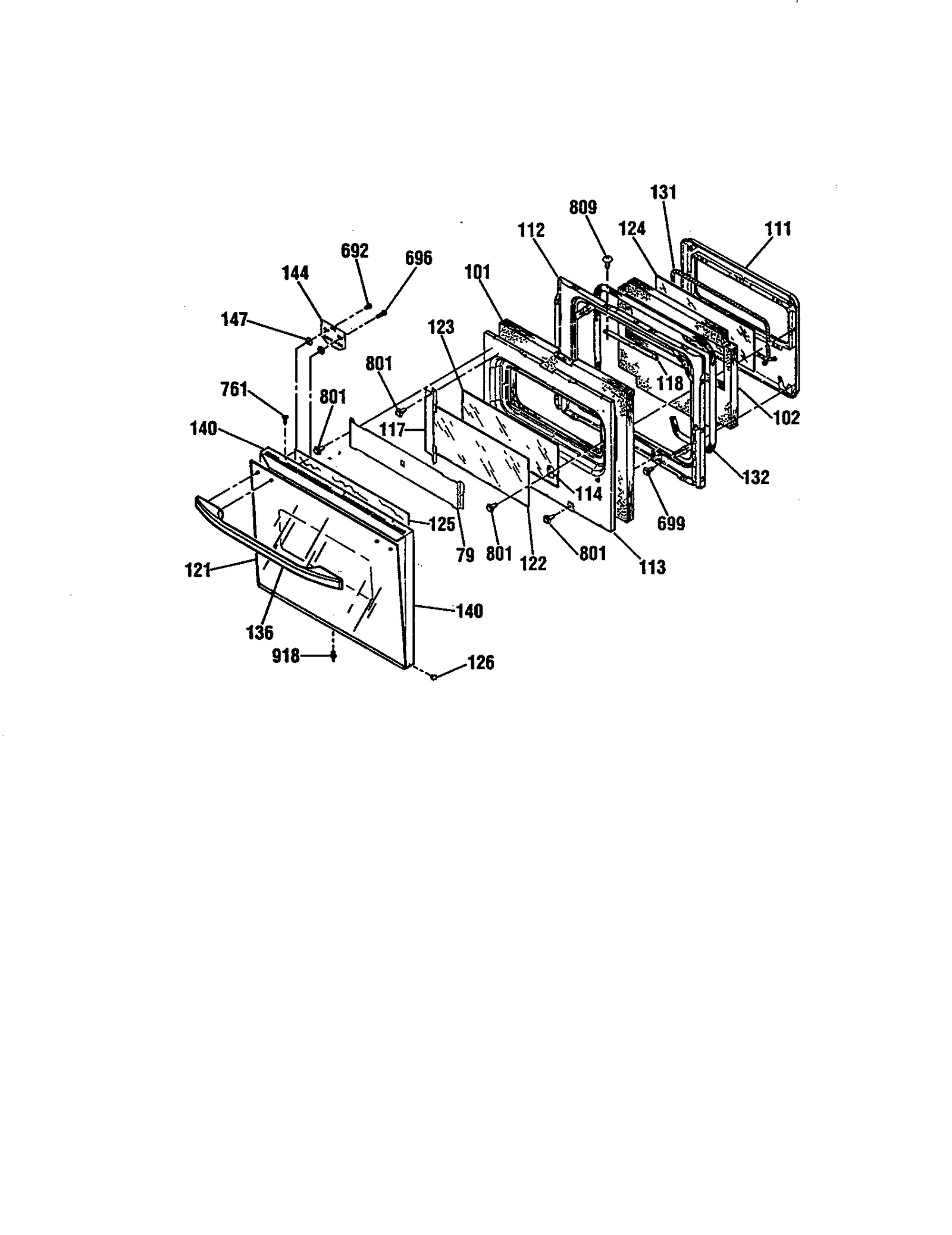

DOOR

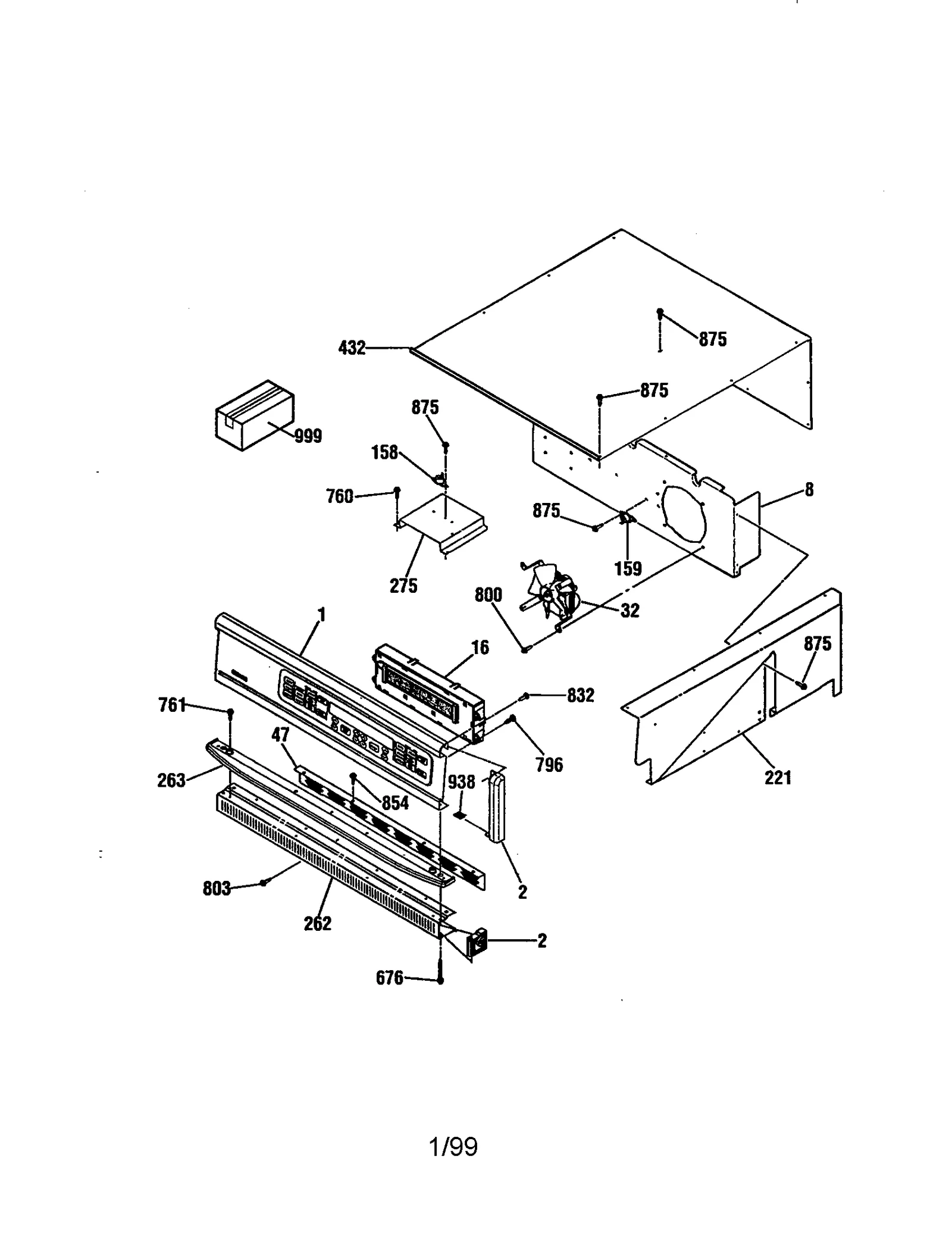

CONTROL

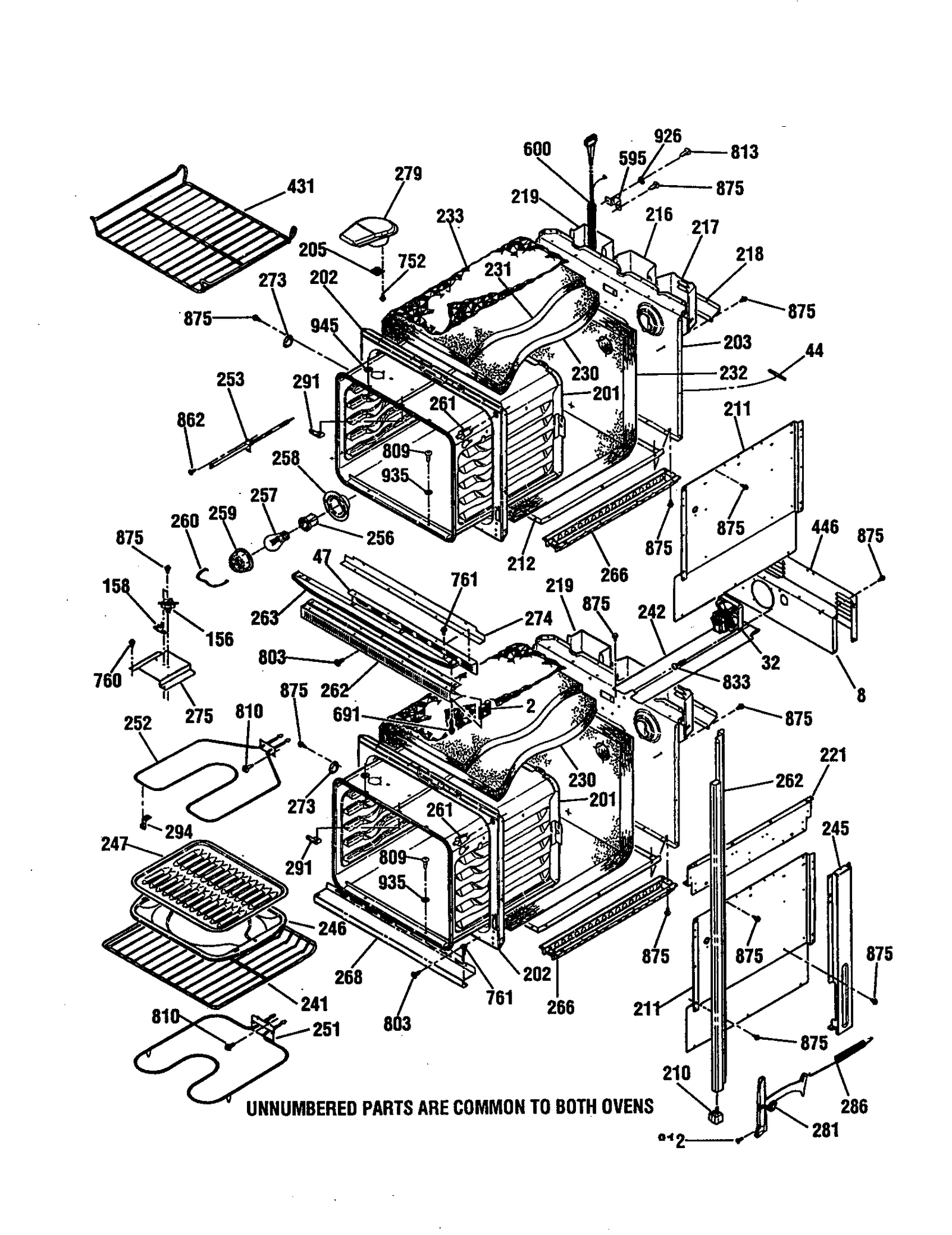

BODY

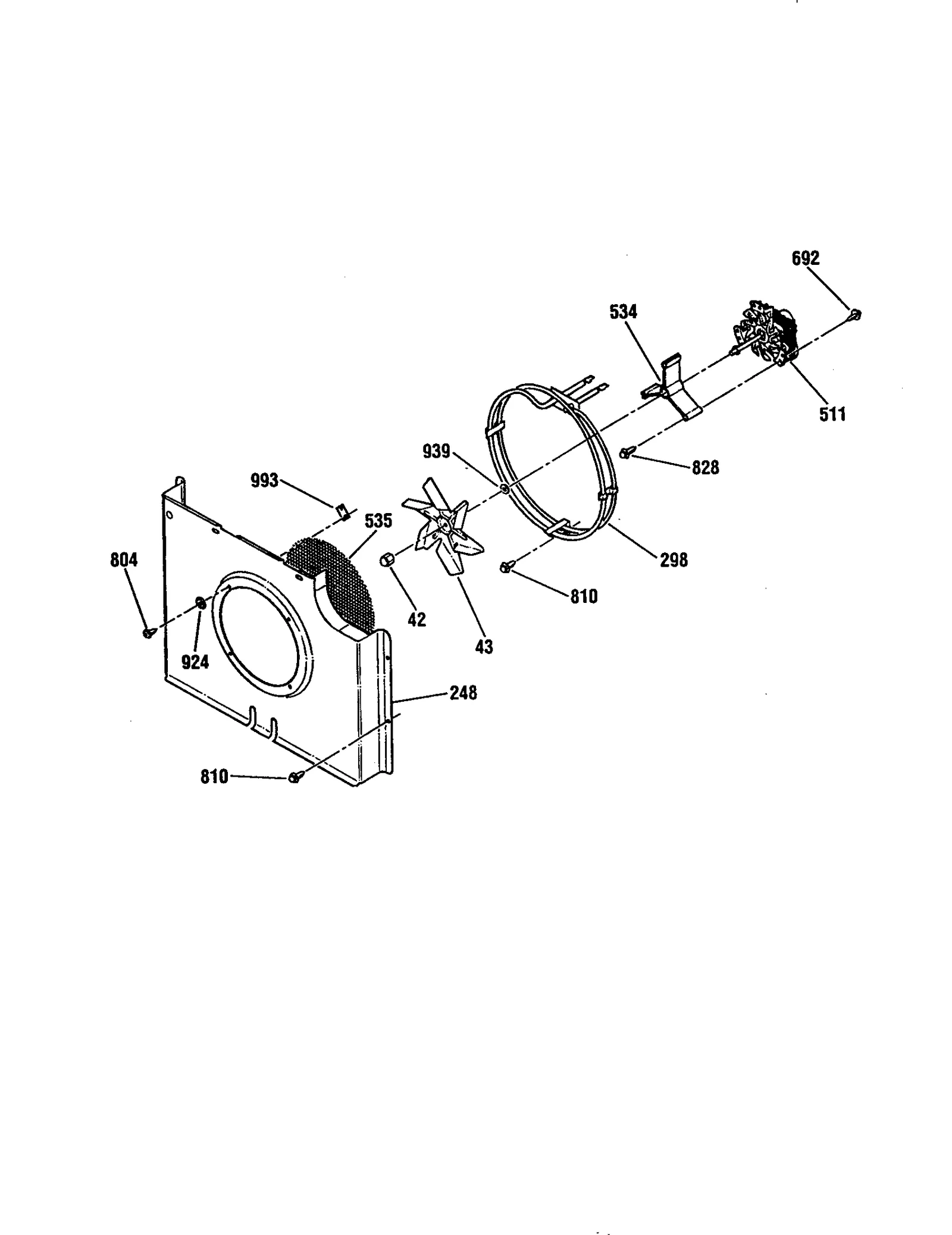

FAN
Common parts from model GE 911.48065690 Built-In Double Convection Oven (Kenmore 91148065690)
1
Cntl Pnl+oly GEN WB36K5711 Contact Us For Availability
1A
Cntl Pnl+oly GEN WB36K5712 Contact Us For Availability
2
Pnl Cntl Scr GEN WB36K5442 Contact Us For Availability
2
Trim Cap GEN WB07K5442 Contact Us For Availability
3
End Cap, Left GEN WB36K5641 Contact Us For Availability
3A
End Cap, Right GEN WB36K5642 Contact Us For Availability
3B
End Cap, Left GEN WB36K5639 Contact Us For Availability
3C
End Cap, Right GEN WB36K5638 Contact Us For Availability
8
Fan Support GEN WB02K5257 Contact Us For Availability
8
Fan Supprt L GEN WB02K5137 Contact Us For Availability
16
Oven Clock GEN WB27K5319 Contact Us For Availability
32
Fan GEN WB26K5071 Contact Us For Availability
44
Grommet Strap GEN WB02K5225 Contact Us For Availability
112
Oven Door Line GEN WB55K5017 Contact Us For Availability
113
Oven Door Insulation Retainer GEN WB02K5127 Contact Us For Availability
114
Glass Retainer GEN WB02M001 Contact Us For Availability
117
Oven Door Glass Retainer GEN WB02K5131 Contact Us For Availability
118
Odr Stif Asm GEN WB02K5215 Contact Us For Availability
121
Door Glass GEN WB57K5311 Contact Us For Availability
121A
Door Glass GEN WB57K5310 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5102 Contact Us For Availability
123
Ov Dr In Gl GEN WB57K5038 Contact Us For Availability
124
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
125
Heat Reflector GEN WB34K5255 Contact Us For Availability
126
Button Plug GEN WB03K5077 Contact Us For Availability
135A
Oven Handle GEN WB15K5116 Contact Us For Availability
136
Handl Oven GEN WB15K5117 Contact Us For Availability
147
Glass Spacer GEN WB02X9039 Contact Us For Availability
201
Oven Body GEN WB63K5166 Contact Us For Availability
201A
Oven Body GEN WB63K5086 Contact Us For Availability
202
Frame Foot GEN WB63K5084 Contact Us For Availability
203
Main GEN WB63K5168 Contact Us For Availability
210
Trim Cap GEN WB07K5454 Contact Us For Availability
210A
Trim Cap GEN WB07K5453 Contact Us For Availability
210B
Trim Cap GEN WB07K5450 Contact Us For Availability
210C
Trim Cap GEN WB07K5451 Contact Us For Availability
212
Cabinet GEN WB63K5080 Contact Us For Availability
216
COVER WIRE ELEMENT GEN WB34K5069 Contact Us For Availability
217
Cover Wire Light GEN WB34K5070 Contact Us For Availability
218
Wire Cover GEN WB34K5067 Contact Us For Availability
221
Side Extensn GEN WB63K5210 Contact Us For Availability
221
Body Side Ex GEN WB63K5174 Contact Us For Availability
221A
Side Extensn GEN WB63K5209 Contact Us For Availability
232
Insulation GEN WB35K5089 Contact Us For Availability
233
Heat Reflector GEN WB34K5080 Contact Us For Availability
241
Range Oven Rack GEN WB48K5009 Contact Us For Availability
245
Vert Sd Supp GEN WB02K5139 Contact Us For Availability
248
Pnl Inov Asm GEN WB63K5137 Contact Us For Availability
258
Housing GEN WB02X7693 Contact Us For Availability
260
Bail GEN WB02X7694 Contact Us For Availability
261
Jam Switch GEN WB24K5061 Contact Us For Availability
262
Vent Trim GEN WB07K5446 Contact Us For Availability
262A
Vent Trim GEN WB07K5441 Contact Us For Availability
262B
Vert Trm-rt GEN WB07K5464 Contact Us For Availability
262C
Vert Trim-lt GEN WB07K5465 Contact Us For Availability
262D
Vert Trm-rt GEN WB07K5486 Contact Us For Availability
262E
Vert Trim-lt GEN WB07K5487 Contact Us For Availability
263
I-brow Trim GEN WB07K5445 Contact Us For Availability
263
I-brow Trim GEN WB07K5490 Contact Us For Availability
263A
I-brow Trim GEN WB07K5440 Contact Us For Availability
263A
I-brow Trim GEN WB07K5488 Contact Us For Availability
268
Trim GEN WB07K5452 Contact Us For Availability
268A
Trim GEN WB07K5449 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
274
Extension Vent Trim GEN WB07K5485 Contact Us For Availability
274A
Extension Vent Trim GEN WB07K5489 Contact Us For Availability
279
VENT BOX ASSEMBLY GEN WB36K5028 Contact Us For Availability
281
Oven Drive Hinge GEN WB14K5006 Contact Us For Availability
281A
Wall Oven Door Hinge, Left GEN WB14K5007 Contact Us For Availability
286
Oven Door Spring GEN WB09K5022 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
298
Convex Element GEN WB44K5029 Contact Us For Availability
431
Wall Oven Rack GEN WB48K5010 Contact Us For Availability
432
Cover GEN WB63K5094 Contact Us For Availability
535
Screen GEN WB26K5042 Contact Us For Availability
600
Control Wire GEN WB18K5215 Contact Us For Availability
676
Trim Screw GEN WB01K5207 Contact Us For Availability
676A
Trim Screw GEN WB01K5206 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
803
Screw GEN WB01K5163 Contact Us For Availability
803A
Screw-almond GEN WB01K5164 Contact Us For Availability
854
Screw (Black) GEN WB01X1328 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
924
Washer GEN WB01K5146 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
939
Washer GEN WB01K5198 Contact Us For Availability
993
Speed Nut Fl GEN WB01K5141 Contact Us For Availability
999
Installation Manual GEN 31-10200 Contact Us For Availability
999A
Wiring Diagram GEN 31-13342 Contact Us For Availability
999B
Owner's Manual GEN SR10301 Contact Us For Availability
999C
Repair Parts List GEN 31-13341 Contact Us For Availability
× ![]()
