Model GE 911.47749201 Electric Range (Kenmore 91147749201) – Common Parts & Diagrams
DOOR
CONTROL PANEL

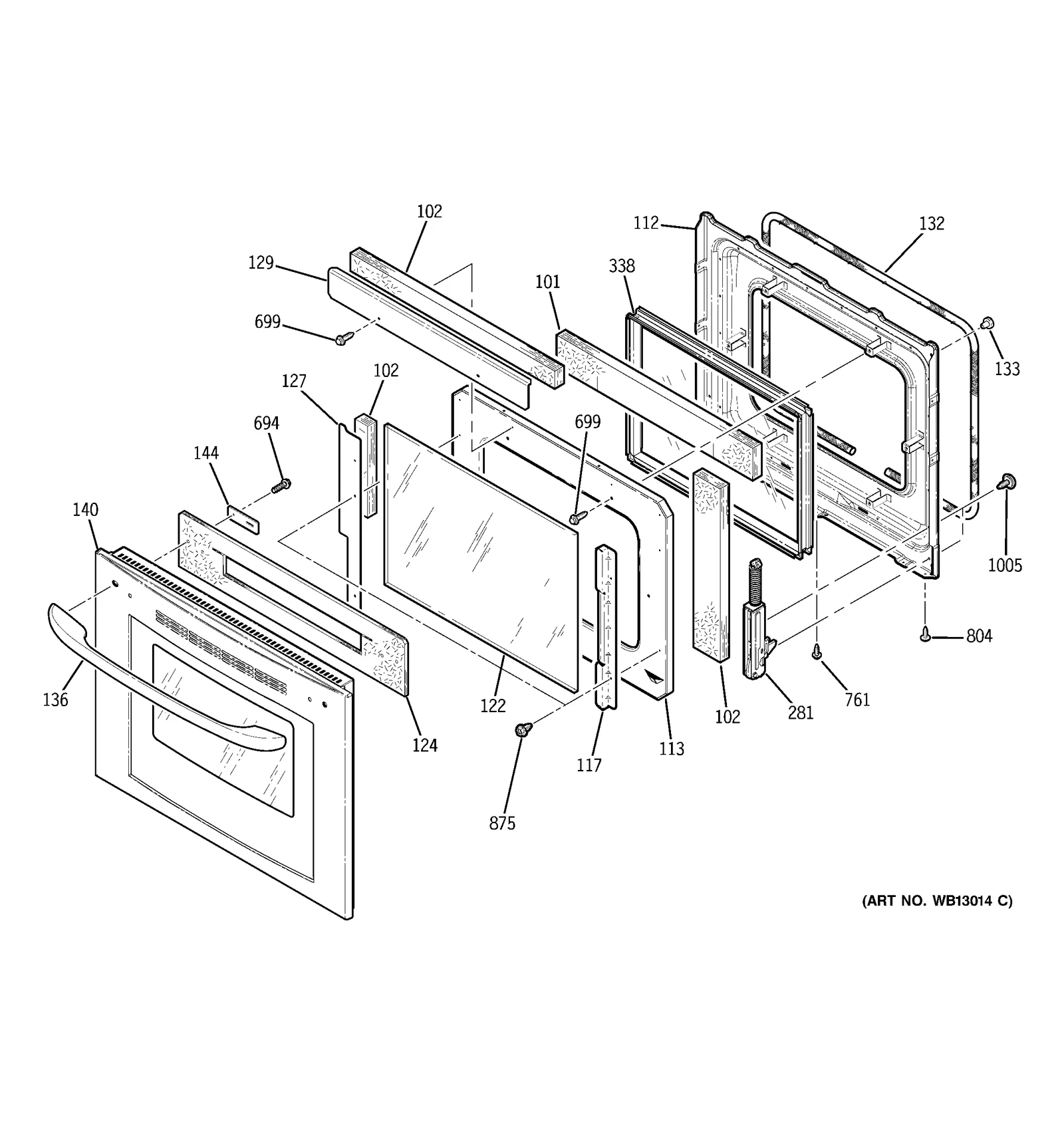

STAINLESS STEEL DOOR

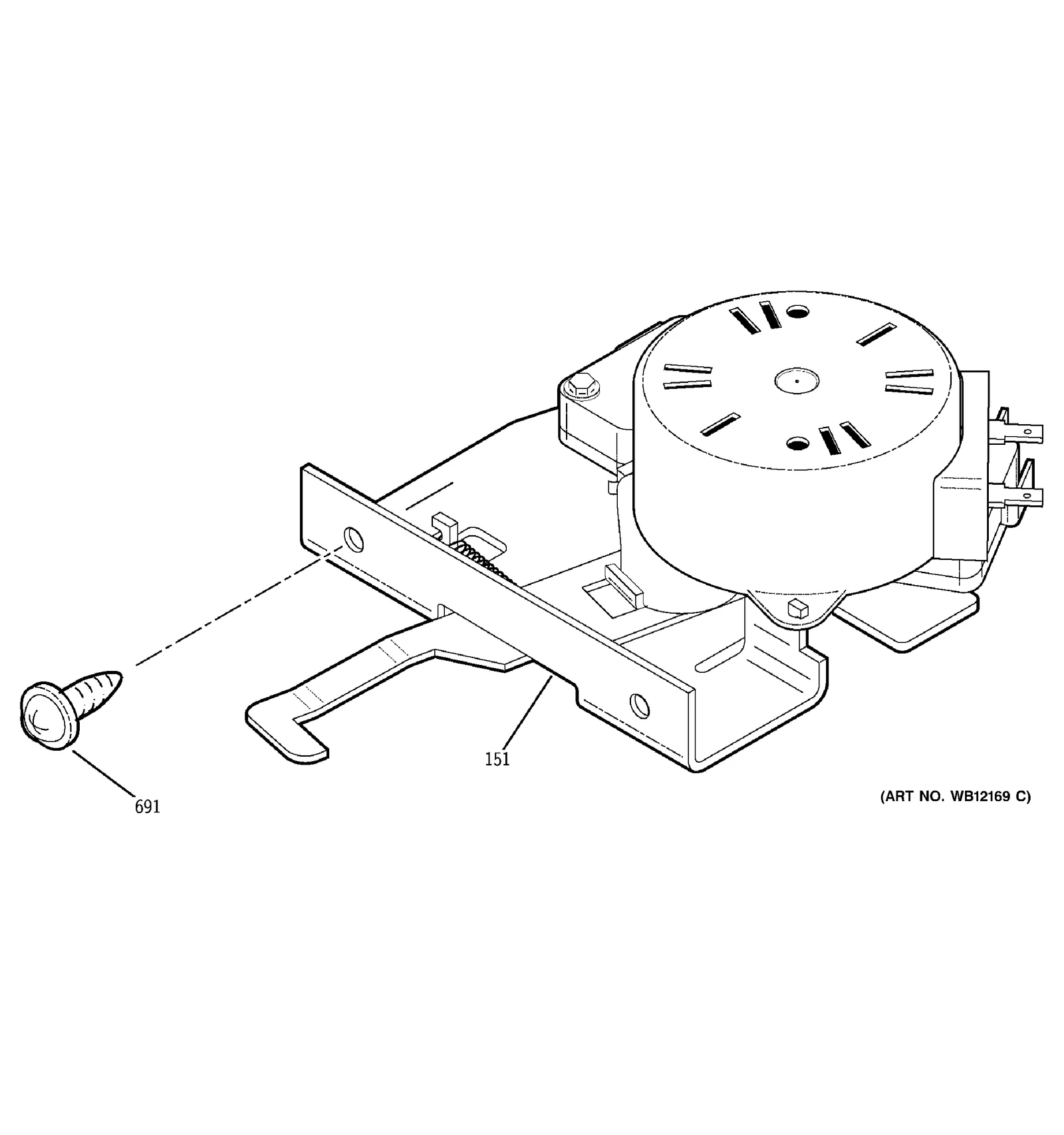

DOOR LOCK

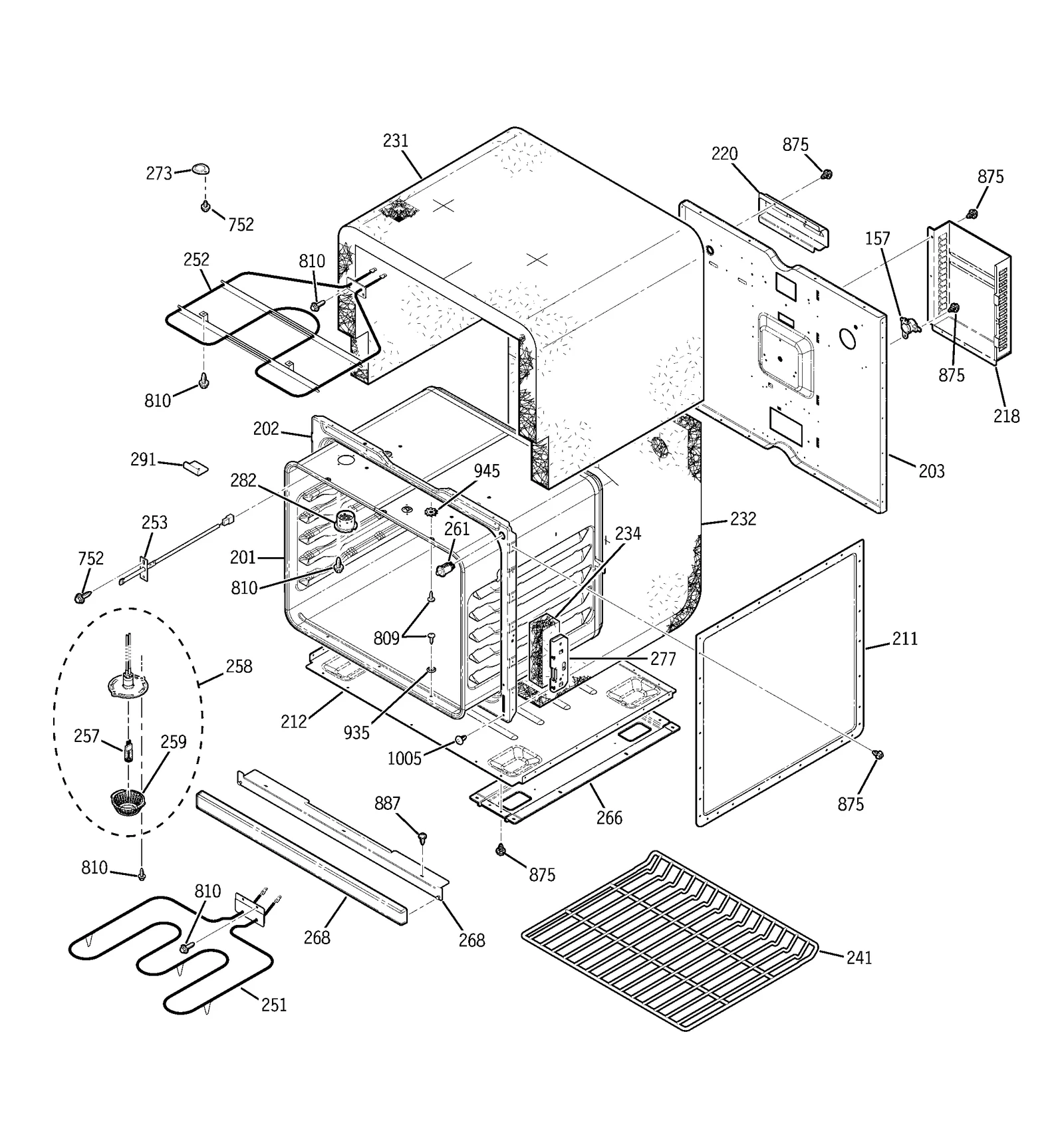

LOWER BODY

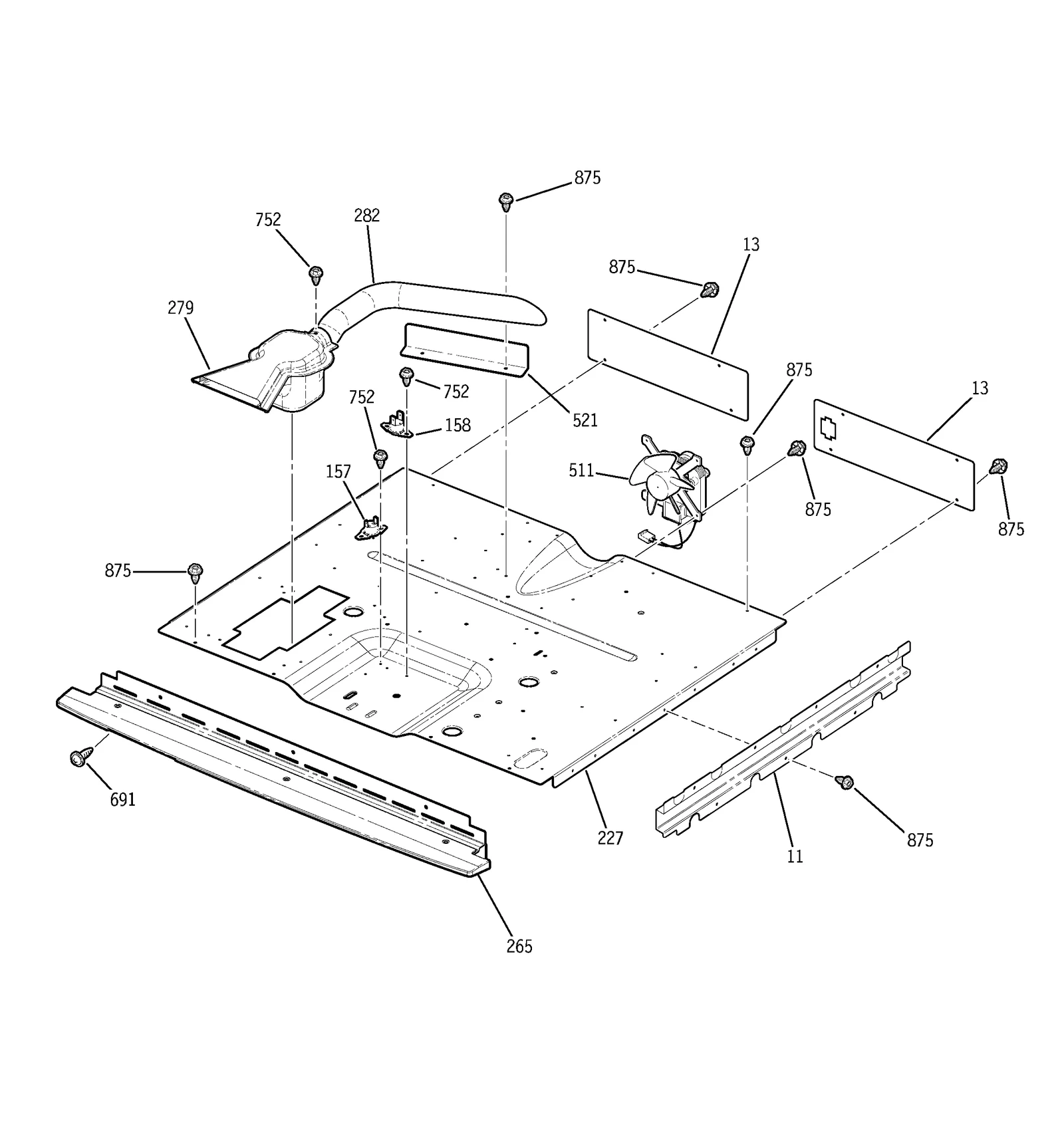

CENTER SPACER

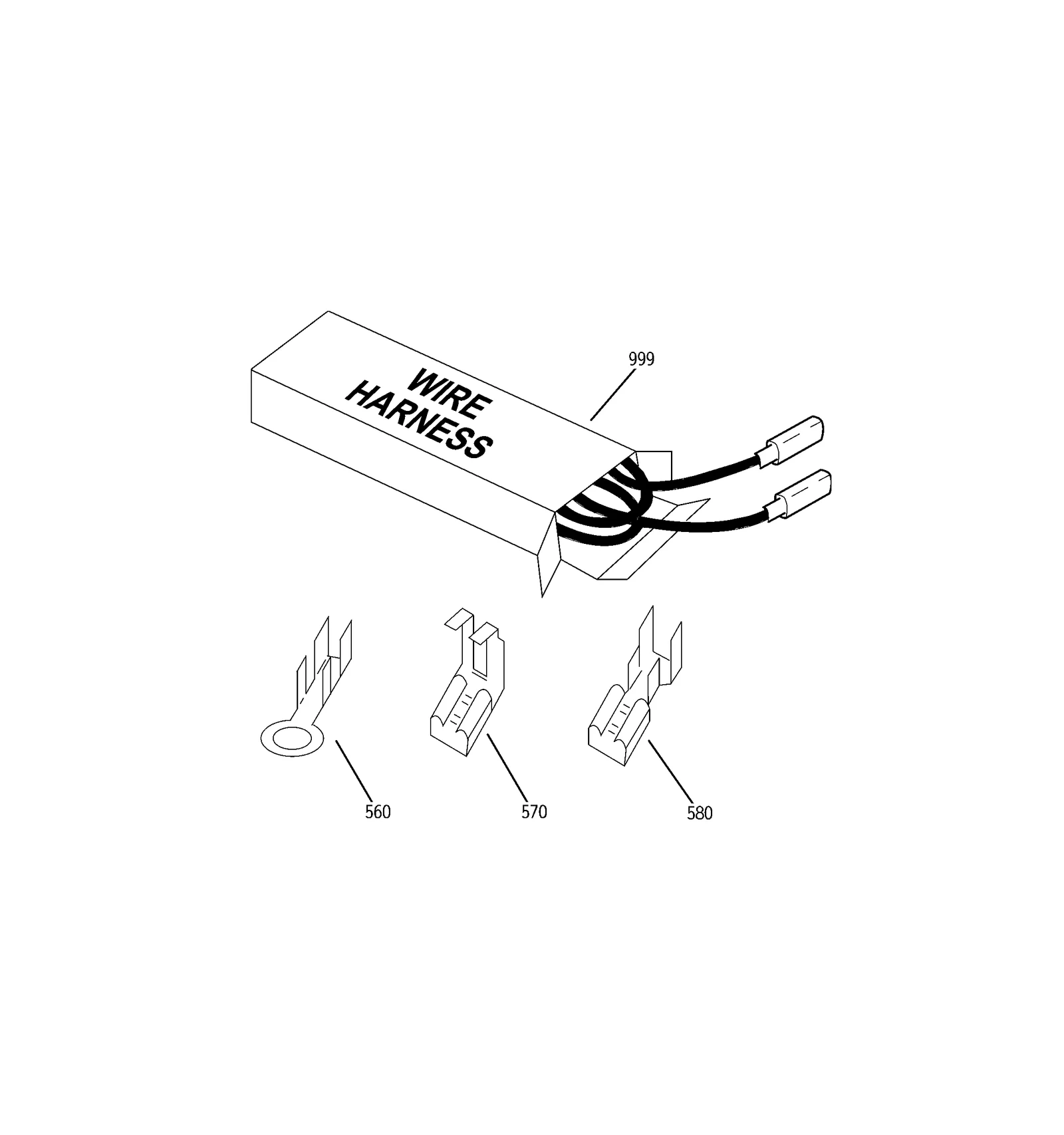

WIRE HARNESS & WIRING COMPONENTS

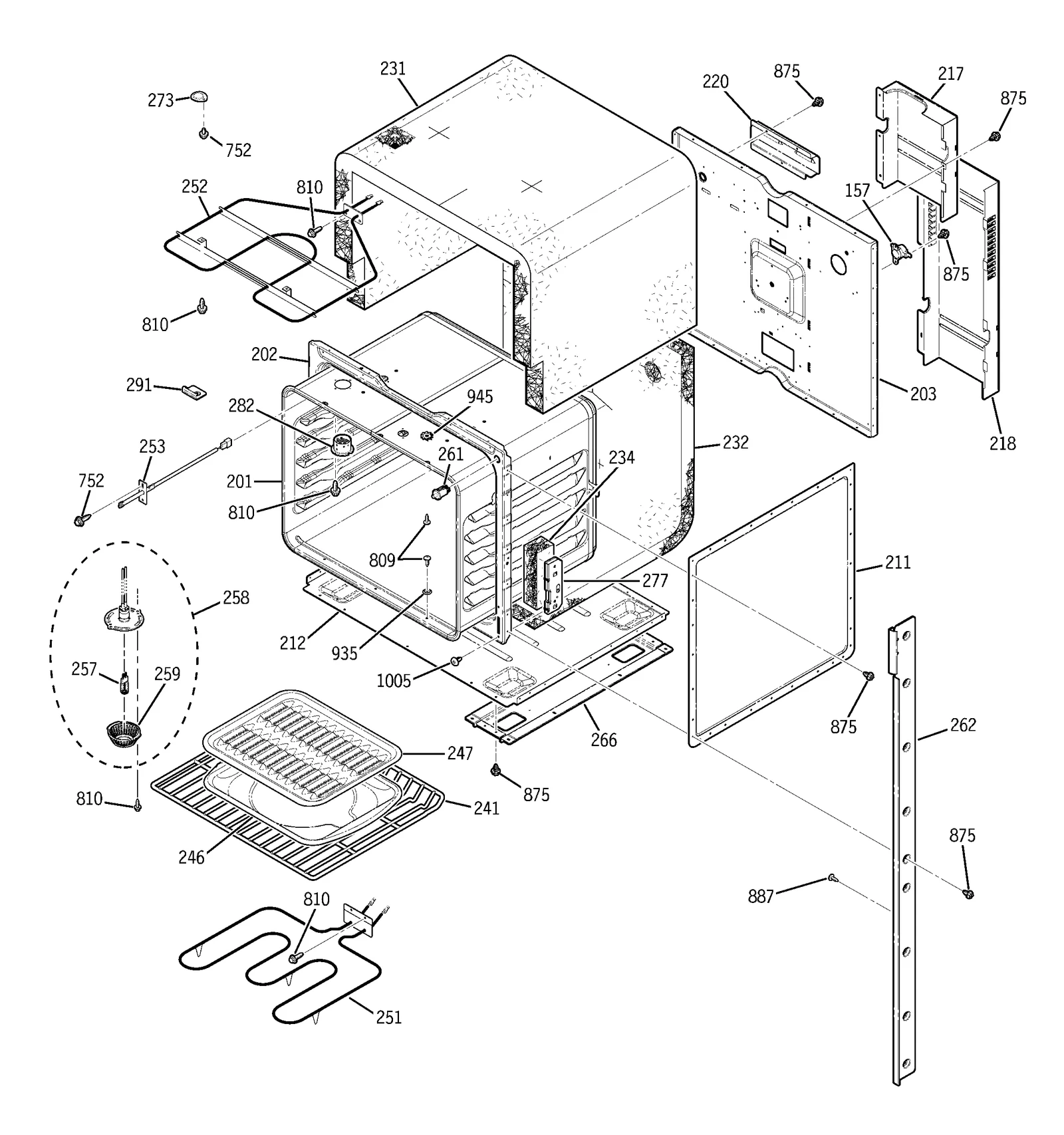

UPPER BODY
Common parts from model GE 911.47749201 Electric Range (Kenmore 91147749201)
11
Side Extensi GEN WB36T10389 Contact Us For Availability
13
Plate GEN WB34T10048 Contact Us For Availability
13
Back Plate D GEN WB34T10070 Contact Us For Availability
101
Oven Door GEN WB35T10062 Contact Us For Availability
102
Oven Door GEN WB35T10061 Contact Us For Availability
112
Oven Door Liner GEN WB55T10088 Contact Us For Availability
122
Wall Oven Door Inner Glass GEN WB57T10195 Contact Us For Availability
122
Wall Oven Door Middle Glass GEN WB57T10185 Contact Us For Availability
124
Insulation GEN WB35T10084 Contact Us For Availability
127
Oven Retainer GEN WB02T10170 Contact Us For Availability
129
Extension Retainer GEN WB02T10178 Contact Us For Availability
136
Handle GEN WB15T10080 Contact Us For Availability
136
Handle GEN WB15T10081 Contact Us For Availability
136
Handle GEN WB15T10082 Contact Us For Availability
140
Wht Door Asm GEN WB57T10217 Contact Us For Availability
140
Outr Dr Assy GEN WB57T10218 Contact Us For Availability
140
Out Door GEN WB57T10219 Contact Us For Availability
140
Door Asm (ot GEN WB57T10220 Contact Us For Availability
144
Wall Oven Door Handle Mounting Bracket GEN WB02T10147 Contact Us For Availability
151
Oven Latch GEN WB30T10082 Contact Us For Availability
151
Oven Latch GEN WB30T10084 Contact Us For Availability
157
Range Oven Temperature Limit Switch GEN WB24T10077 Contact Us For Availability
158
Limit Switch GEN WB24T10076 Contact Us For Availability
201
Oven Wrapper GEN WB63T10088 Contact Us For Availability
202
Frame GEN WB63T10072 Contact Us For Availability
203
Retainer Insert GEN WB63T10087 Contact Us For Availability
211
Retainer Insert GEN WB63T10091 Contact Us For Availability
212
Retainer Insert GEN WB63T10082 Contact Us For Availability
217
Wall Oven Wire Harness Cover, Upper GEN WB34T10062 Contact Us For Availability
218
Cover Wire L GEN WB34T10056 Contact Us For Availability
218
Wall Oven Wire Harness Cover, Center GEN WB34T10063 Contact Us For Availability
220
Wall Oven Temperature Sensor Wire Harness Cov GEN WB34T10061 Contact Us For Availability
227
Retainer Insert GEN WB02T10159 Contact Us For Availability
231
Insulation GEN WB35T10075 Contact Us For Availability
232
Insulation GEN WB35T10076 Contact Us For Availability
234
Insulation H GEN WB10T10016 Contact Us For Availability
241
Range Oven Rack GEN WB48T10025 Contact Us For Availability
258
Wall Oven Halogen Light Assembly GEN WB25T10025 Contact Us For Availability
259
Oven Lamp Lens GEN WB25T10013 Contact Us For Availability
261
Range Oven Door Switch GEN WB24T10065 Contact Us For Availability
262
Trim GEN WB07T10308 Contact Us For Availability
262
Trim GEN WB07T10309 Contact Us For Availability
262
Trim GEN WB07T10311 Contact Us For Availability
262
Trim GEN WB07T10312 Contact Us For Availability
262
Trim GEN WB07T10314 Contact Us For Availability
262
Trim GEN WB07T10315 Contact Us For Availability
265
Trim GEN WB07T10323 Contact Us For Availability
265
Oven Trim GEN WB07T10324 Contact Us For Availability
265
Trim GEN WB07T10325 Contact Us For Availability
265
Trim GEN WB07T10343 Contact Us For Availability
268
Cabinet Trim, Lower GEN WB07T10376 Contact Us For Availability
268
Trim Btm 27 GEN WB07T10320 Contact Us For Availability
268
Trim Btm 27 GEN WB07T10321 Contact Us For Availability
268
Trim Btm 27 GEN WB07T10322 Contact Us For Availability
268
Cabinet Trim, Lower GEN WB07T10377 Contact Us For Availability
268
Trim GEN WB07T10378 Contact Us For Availability
268
Cabinet Trim, Lower GEN WB07T10384 Contact Us For Availability
268
Cabinet Trim, Lower GEN WB07T10385 Contact Us For Availability
268
Cabinet Trim, Lower GEN WB07T10386 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
277
Hinge Receiver GEN WB10T10046 Contact Us For Availability
281
Oven Door Hinge, Right GEN WB10T10047 Contact Us For Availability
281
Oven Door Hinge, Left GEN WB10T10048 Contact Us For Availability
281
Oven Door Hinge, Right GEN WB10T10049 Contact Us For Availability
281
Oven Door Hinge, Left GEN WB10T10050 Contact Us For Availability
282
Duct Vent Inlet GEN WB28T10080 Contact Us For Availability
282
Duct Vent Inlet GEN WB28T10082 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
511
Fan Assembly GEN WB64T10028 Contact Us For Availability
521
Deflector Ai GEN WB34T10064 Contact Us For Availability
887
Screw St 8-1 GEN WB01T10033 Contact Us For Availability
999
Instruction Sheet GEN 31-10514 Contact Us For Availability
999
Install Manl GEN 31-10517 Contact Us For Availability
999
Installation Instructions GEN 31-10551 Contact Us For Availability
999
MANUAL MINI & WD ASM GEN 31-14008 Contact Us For Availability
999
Wall Oven Owner's Manual GEN SR10495 Contact Us For Availability
999
Latch GEN WB18T10224 Contact Us For Availability
999
Oven Latch GEN WB18T10230 Contact Us For Availability
999
Wire Harness GEN WB18T10266 Contact Us For Availability
999
Wall Oven Lower Wire Harness GEN WB18T10278 Contact Us For Availability
× ![]()
