Model GE 911.47729200 Wall Oven (Kenmore 91147729200) – Common Parts & Diagrams
LOCK AND WIRE HARNESSES
UPPER BODY

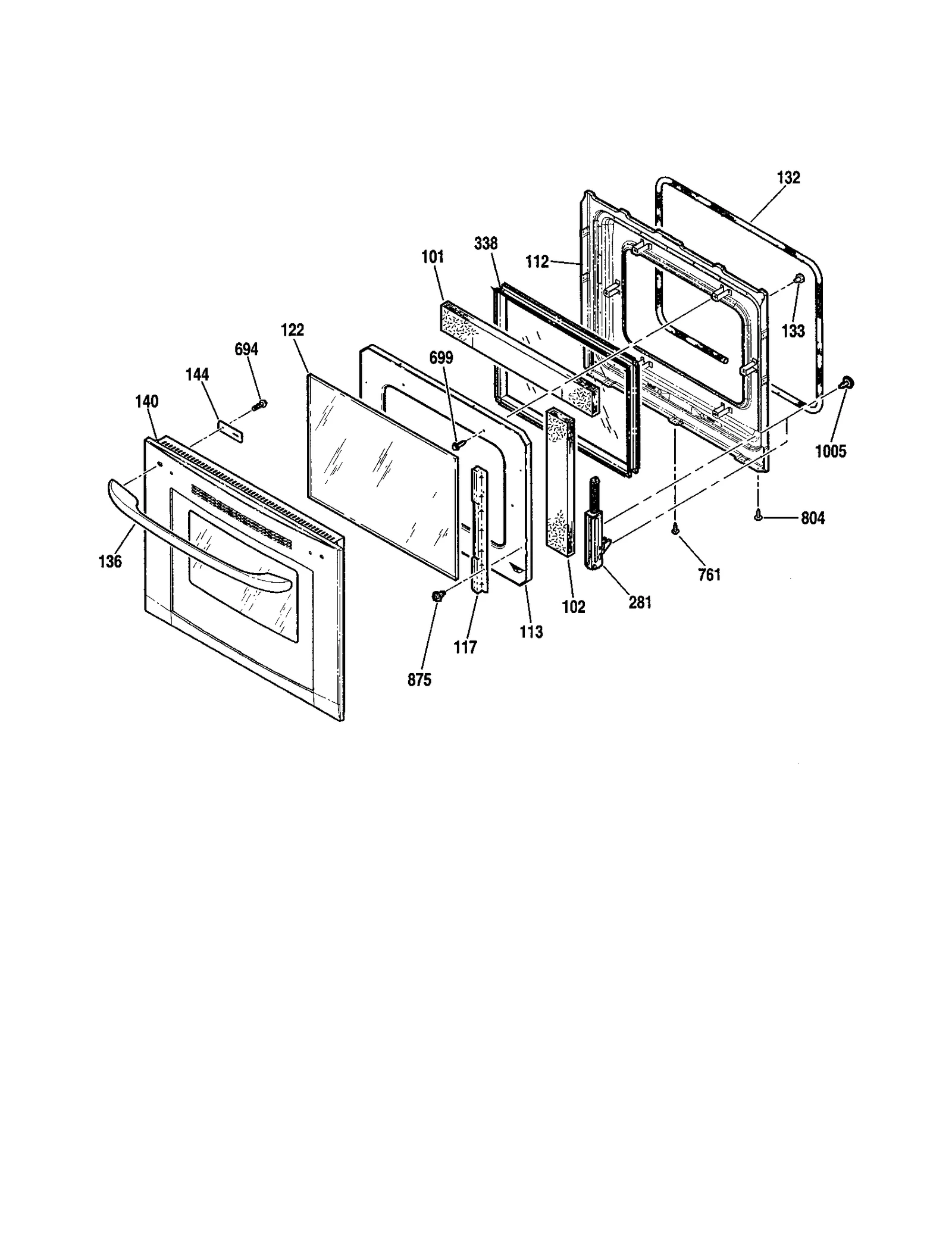

UPPER DOOR

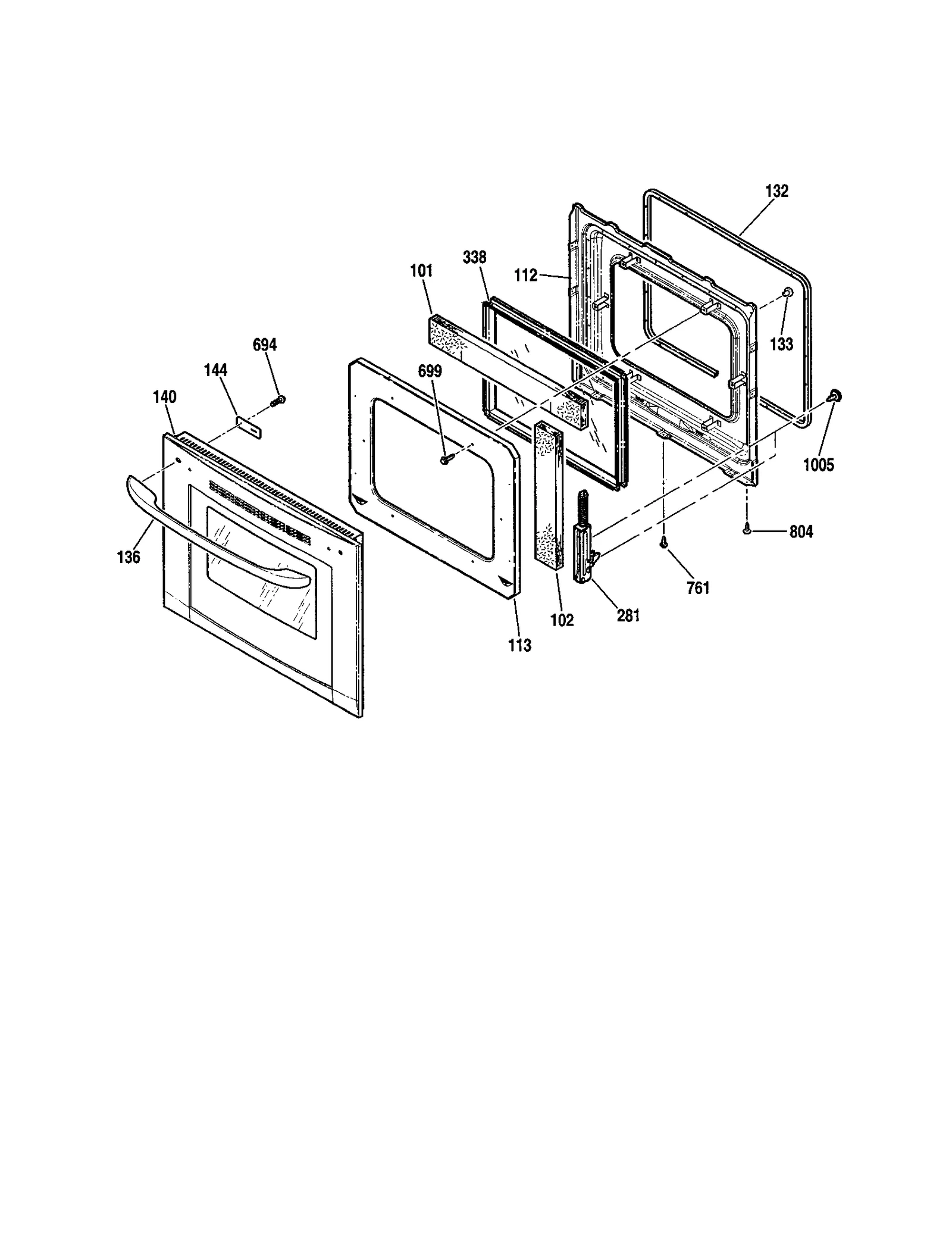

LOWER DOOR

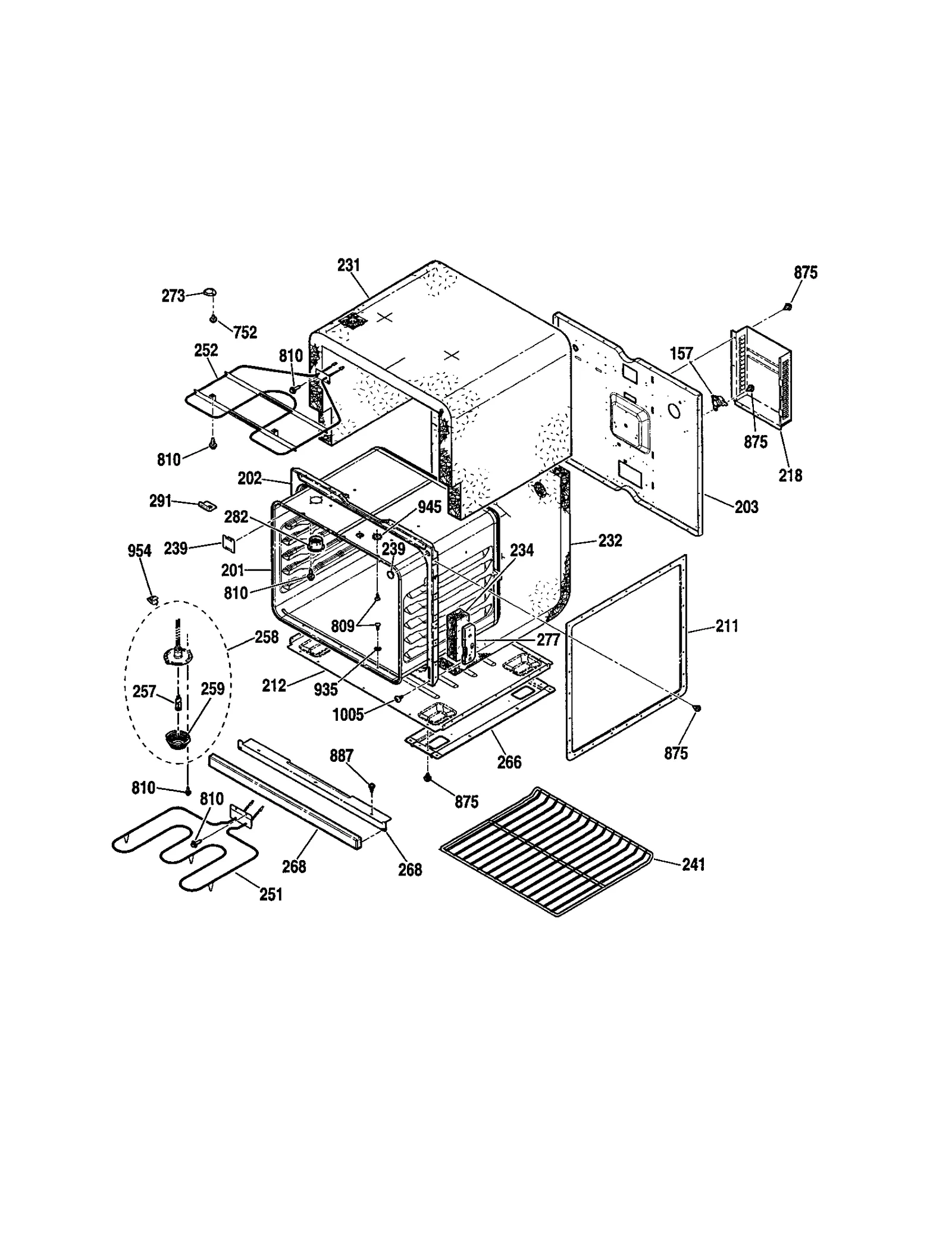

LOWER BODY

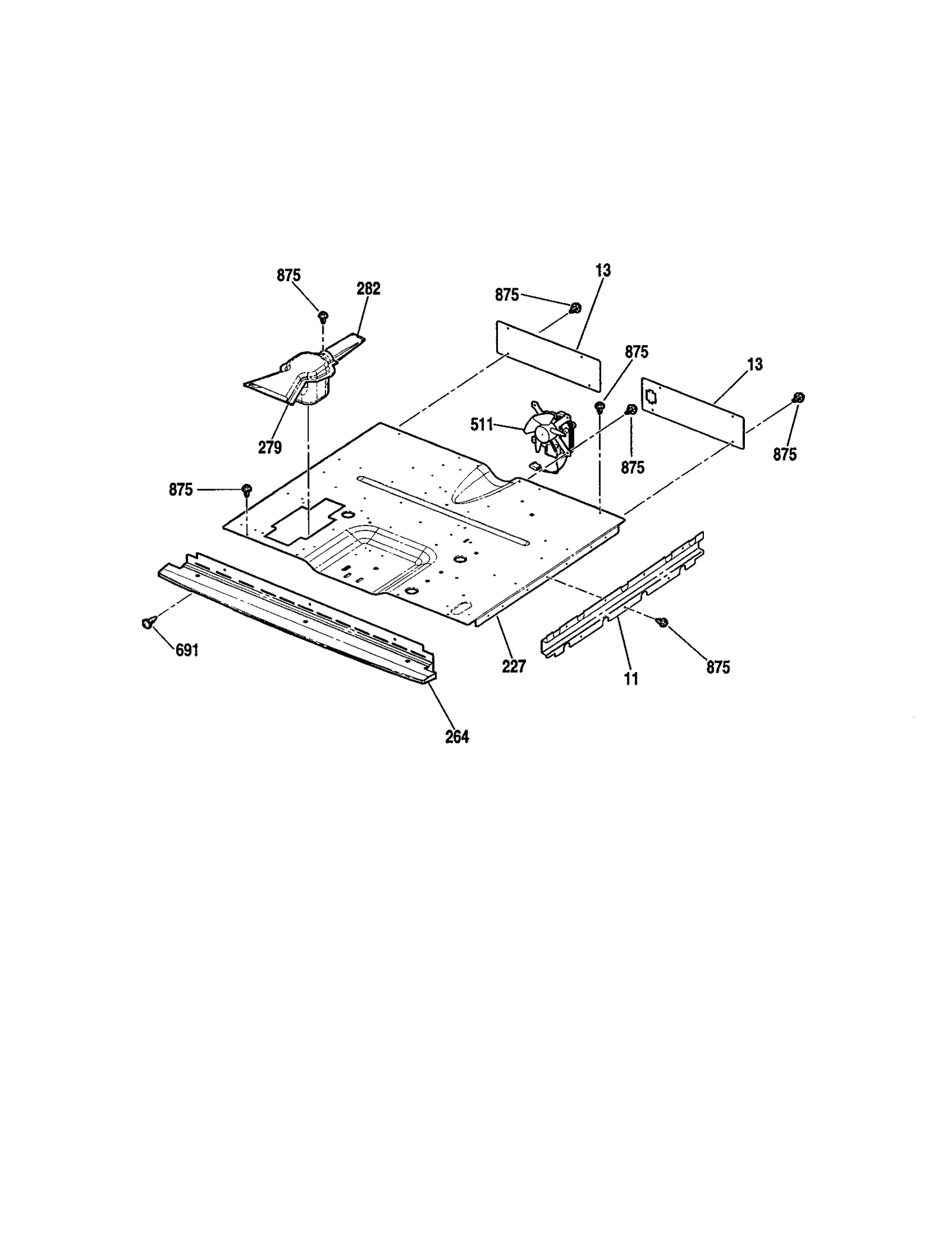

CENTER SPACER

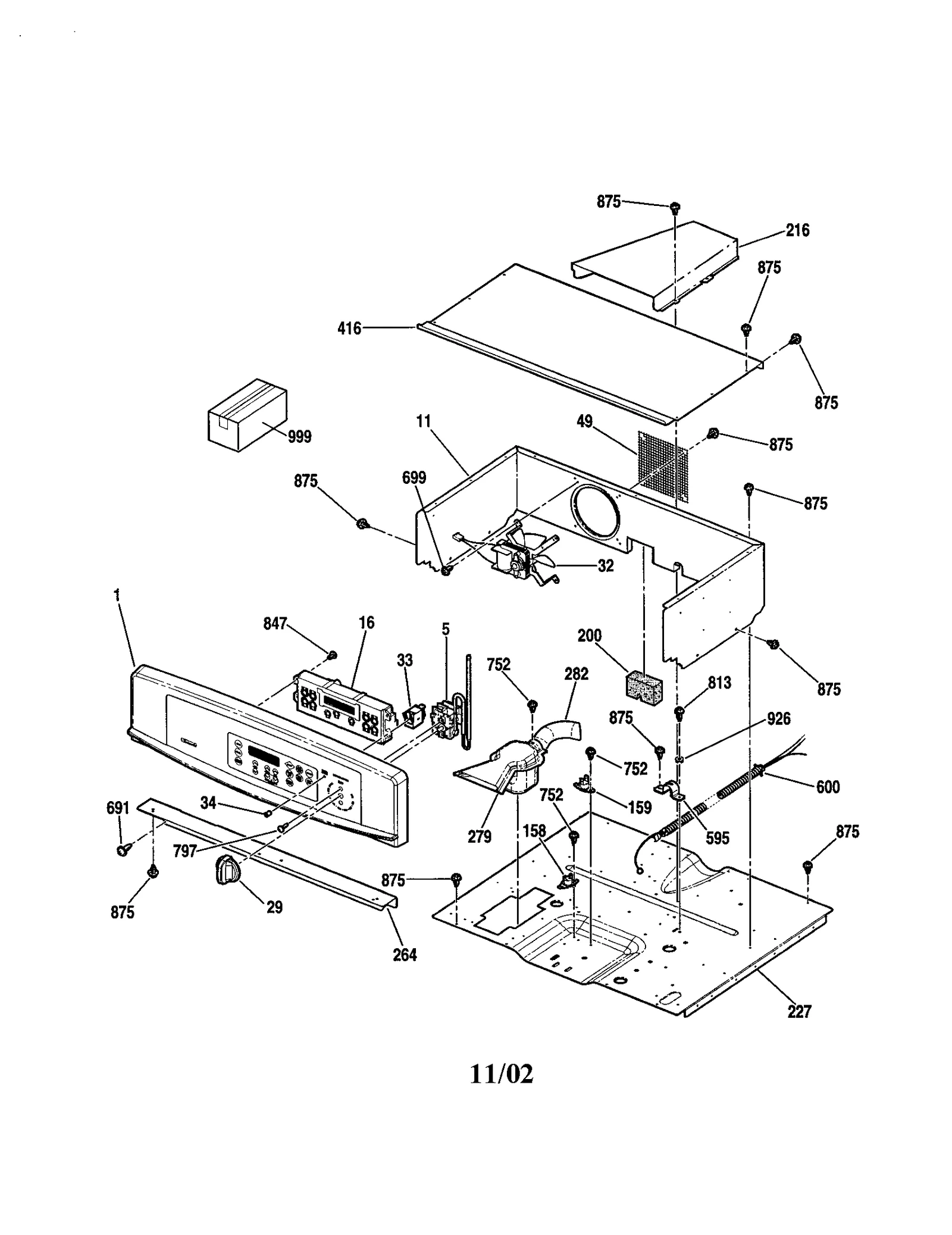

CONTROL PANEL
Common parts from model GE 911.47729200 Wall Oven (Kenmore 91147729200)
1
Control Panel GEN WB36T10591 Contact Us For Availability
1A
Control Panel GEN WB36T10592 Contact Us For Availability
1B
Consol Blk GEN WB36T10593 Contact Us For Availability
5
Wall Oven Control Thermostat GEN WB20T10003 Contact Us For Availability
11
Side Extensi GEN WB36T10389 Contact Us For Availability
11
Fan Housing GEN WB02T10158 Contact Us For Availability
13
Plate GEN WB34T10048 Contact Us For Availability
13A
Back Plate-l GEN WB34T10046 Contact Us For Availability
16
Range Oven Control Board GEN WB27T10410 Contact Us For Availability
29
Oven Thermostat Knob GEN WB03T10043 Contact Us For Availability
29A
Oven Thermostat Knob GEN WB03T10158 Contact Us For Availability
29B
Oven Thermostat Knob GEN WB03T10044 Contact Us For Availability
49
Fan Screen GEN WB34T10043 Contact Us For Availability
101
Oven Door GEN WB35T10062 Contact Us For Availability
102
Oven Door GEN WB35T10061 Contact Us For Availability
112
Oven Door Liner GEN WB55T10088 Contact Us For Availability
112
Oven Door Liner GEN WB55T10085 Contact Us For Availability
122
Wall Oven Door Middle Glass GEN WB57T10185 Contact Us For Availability
132
Oven Door Gasket GEN WB04T10020 Contact Us For Availability
136
Handle GEN WB15T10080 Contact Us For Availability
136A
Handle GEN WB15T10081 Contact Us For Availability
136B
Handle GEN WB15T10082 Contact Us For Availability
140
Wht Door Asm GEN WB57T10217 Contact Us For Availability
140A
Outr Dr Assy GEN WB57T10218 Contact Us For Availability
140B
Out Door GEN WB57T10219 Contact Us For Availability
140B
Door GEN WB56T10219 Contact Us For Availability
144
Wall Oven Door Handle Mounting Bracket GEN WB02T10147 Contact Us For Availability
151
Oven Latch GEN WB30T10082 Contact Us For Availability
158
Limit Switch GEN WB24T10076 Contact Us For Availability
200
Foam Plug GEN WB02T10167 Contact Us For Availability
201
Oven Wrapper GEN WB63T10090 Contact Us For Availability
202
Frame GEN WB63T10072 Contact Us For Availability
203
Retainer Insert GEN WB63T10087 Contact Us For Availability
211
Retainer Insert GEN WB63T10091 Contact Us For Availability
212
Retainer Insert GEN WB63T10082 Contact Us For Availability
216
Wire Cover GEN WB34T10057 Contact Us For Availability
218
Cover Wire L GEN WB34T10056 Contact Us For Availability
227
Retainer Insert GEN WB02T10159 Contact Us For Availability
231
Insulation GEN WB35T10075 Contact Us For Availability
232
Insulation GEN WB35T10076 Contact Us For Availability
234
Insulation H GEN WB10T10016 Contact Us For Availability
239A
Plug GEN WB02X9587 Contact Us For Availability
251
Range Bake Element GEN WB44T10032 Contact Us For Availability
258
Wall Oven Halogen Light Assembly GEN WB25T10025 Contact Us For Availability
264
Trim GEN WB07T10310 Contact Us For Availability
264
Vent Trim GEN WB07T10307 Contact Us For Availability
268
Trim Btm 27 GEN WB07T10320 Contact Us For Availability
268A
Trim Btm 27 GEN WB07T10322 Contact Us For Availability
268B
Trim Btm 27 GEN WB07T10321 Contact Us For Availability
268C
Cabinet Trim, Lower GEN WB28T10077 Contact Us For Availability
268D
Cabinet Trim, Lower GEN WB28T10079 Contact Us For Availability
268E
Cabinet Trim, Lower GEN WB28T10078 Contact Us For Availability
268F
LOWER FRONT FRAME TRIM (W/O RIVET) WHITE GEN WB28T10377 Contact Us For Availability
268G
Cabinet Trim, Lower GEN WB07T10376 Contact Us For Availability
268H
LOWER FRONT FRAME TRIM (W/O RIVET) BISQUE GEN WB28T10378 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
277
Hinge Receiver GEN WB10T10015 Contact Us For Availability
281
Oven Door Hinge, Right GEN WB10T10034 Contact Us For Availability
281
Door Hinge R GEN WB10T10013 Contact Us For Availability
281A
Oven Door Hinge, Left GEN WB10T10035 Contact Us For Availability
281A
Door Hinge L GEN WB10T10014 Contact Us For Availability
282
Duct Vent GEN WB38T10080 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
416
Electronic Cover GEN WB35T10060 Contact Us For Availability
511
Fan Assembly GEN WB64T10028 Contact Us For Availability
691
Range Control Panel Assembly (White) GEN WB36T10171 Contact Us For Availability
691
Screw GEN WB01K5163 Contact Us For Availability
691A
Control Panel GEN WB36T10388 Contact Us For Availability
691A
Screw St 10- GEN WB01T10038 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
887A
Screw St 8-1 GEN WB01T10033 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
954
Clip GEN WB02X9105 Contact Us For Availability
999
Install Manl GEN 31-10517 Contact Us For Availability
999A
Installation Instructions GEN 31-10549 Contact Us For Availability
999B
Mini Manual GEN 31-14009 Contact Us For Availability
999C
Wall Oven Owner's Manual GEN SR10495-2 Contact Us For Availability
999D
Parts List GEN 31-14107 Contact Us For Availability
× ![]()
