GE 911.47703201 Electric Range (Kenmore 91147703201) Parts List

1

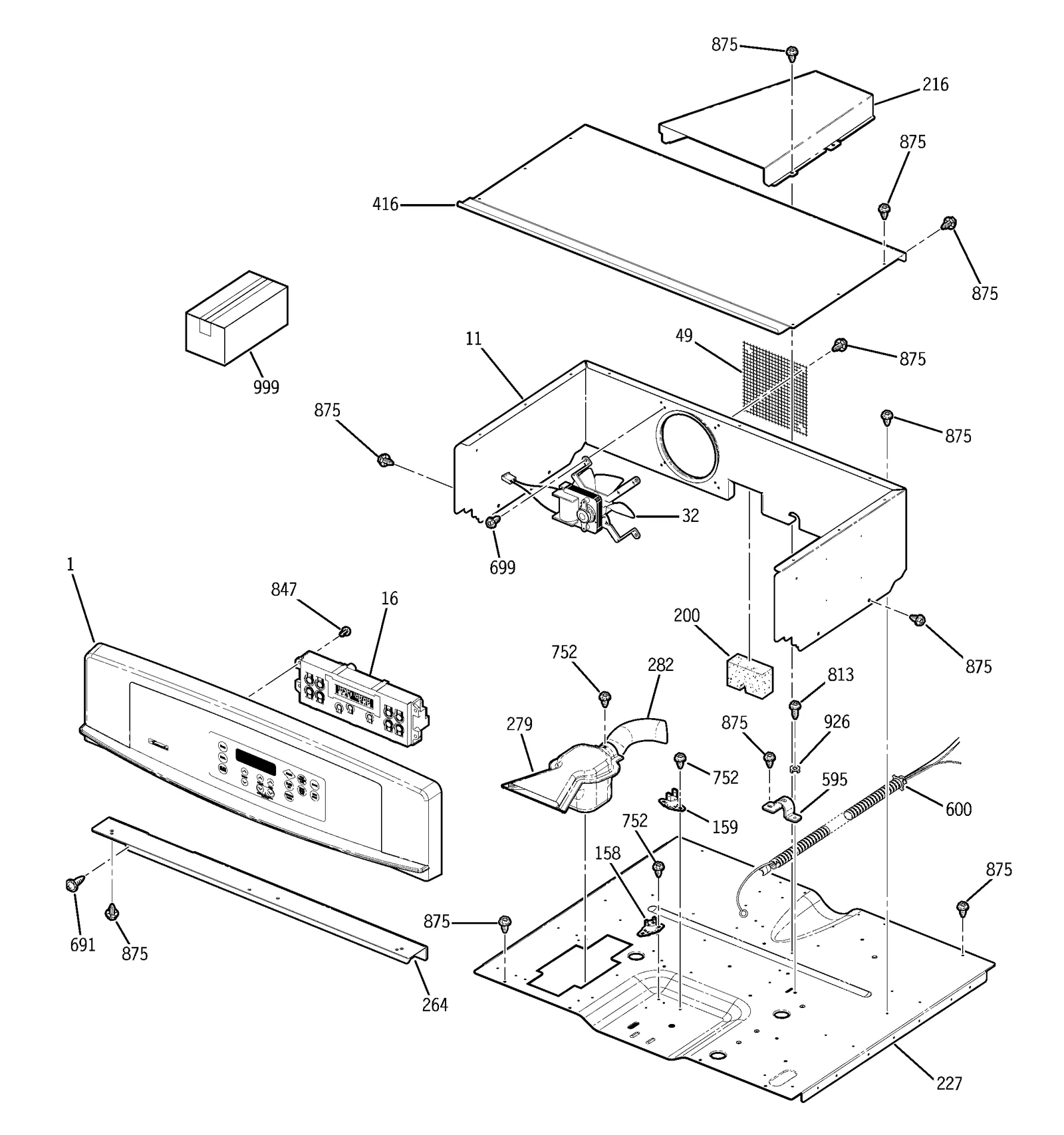

Oven Control Panel GEN WB36T10630 Contact Us For Availability

View on Model

1

Control Panel GEN WB36T10631 Contact Us For Availability

View on Model

1

Control Panel GEN WB36T10632 Contact Us For Availability

View on Model

11

Fan Housing GEN WB02T10158 Contact Us For Availability

View on Model

16

Range Oven Control Board GEN WB27T10410 Contact Us For Availability

View on Model

32

WB26T10018 GE Oven Fan Motor In Stock GEN WB26T10018 $128.78

View on Model

49

Fan Screen GEN WB34T10091 Contact Us For Availability

View on Model

101

Oven Door GEN WB35T10062 Contact Us For Availability

View on Model

102

Oven Door GEN WB35T10061 Contact Us For Availability

View on Model

113

WB56T10133 GE Oven Insulation Retainer Backorder GEN WB56T10133 $40.92

View on Model

122

Wall Oven Door Inner Glass GEN WB57T10195 Contact Us For Availability

View on Model

132

WB32T10010 GE Oven Door Gasket Backorder GEN WB32T10010 $71.43

View on Model

133

WB01T10022 GE Oven Door Bumper Backorder GEN WB01T10022 $5.65

View on Model

133

WB01T10052 GE Oven Foam Tape Backorder GEN WB01T10052 $5.65

View on Model

133

WB03T10156 GE Oven Door Bumper Backorder GEN WB03T10156 $5.28

View on Model

144

Wall Oven Door Handle Mounting Bracket GEN WB02T10147 Contact Us For Availability

View on Model

151

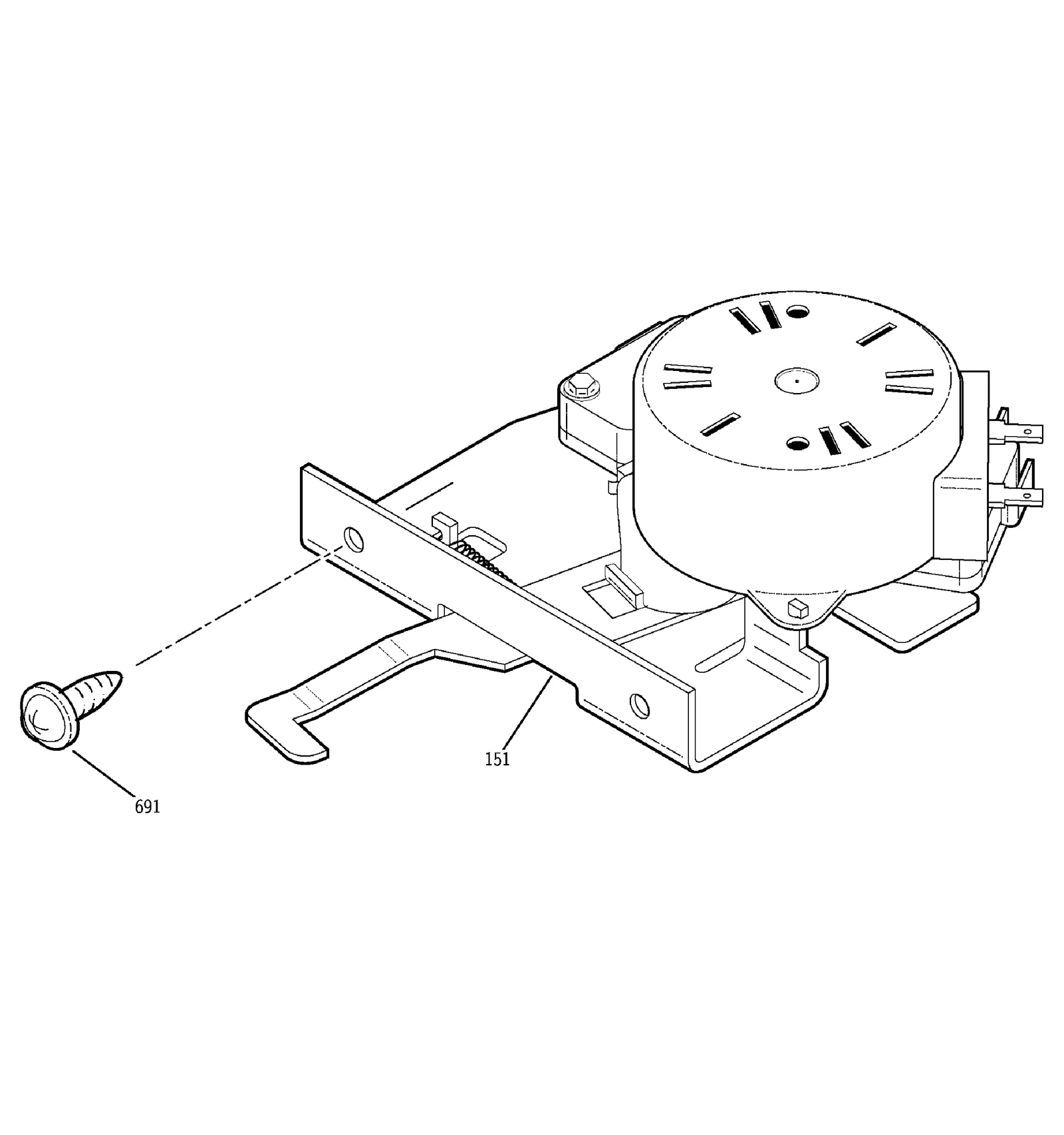

Oven Latch GEN WB30T10082 Contact Us For Availability

View on Model

157

WB24T10081 GE Oven High Limit Thermostat In Stock GEN WB24T10081 $30.69

View on Model

158

Limit Switch GEN WB24T10076 Contact Us For Availability

View on Model

159

WB24T10060 GE Oven Safety Thermostat In Stock GEN WB24T10060 $10.08

View on Model

200

Foam Plug GEN WB02T10168 Contact Us For Availability

View on Model

201

Oven Wrapper GEN WB63T10088 Contact Us For Availability

View on Model

202

Frame GEN WB63T10072 Contact Us For Availability

View on Model

203

Retainer Insert GEN WB63T10087 Contact Us For Availability

View on Model

211

Retainer Insert GEN WB63T10091 Contact Us For Availability

View on Model

212

Retainer Insert GEN WB63T10082 Contact Us For Availability

View on Model

216

Wire Cover GEN WB34T10057 Contact Us For Availability

View on Model

217

Wall Oven Wire Harness Cover, Upper GEN WB34T10062 Contact Us For Availability

View on Model

218

Cover Wire L GEN WB34T10056 Contact Us For Availability

View on Model

220

Wall Oven Temperature Sensor Wire Harness Cov GEN WB34T10061 Contact Us For Availability

View on Model

227

Retainer Insert GEN WB02T10159 Contact Us For Availability

View on Model

231

Insulation GEN WB35T10075 Contact Us For Availability

View on Model

232

Insulation GEN WB35T10076 Contact Us For Availability

View on Model

234

Insulation H GEN WB10T10016 Contact Us For Availability

View on Model

241

Range Oven Rack GEN WB48T10025 Contact Us For Availability

View on Model

246

WB48X10056 GE Broil Pan Set, Large Porcelain In Stock GEN WB48X10056 $18.60

View on Model

251

WB44T10031 GE Oven Bake Element Backorder GEN WB44T10031 $102.93

View on Model

252

WB44T10051 GE Oven Broil Element In Stock GEN WB44T10051 $76.08

View on Model

253

WB21X22134 GE Oven Sensor Assembly In Stock GEN WB21X22134 $16.50

View on Model

257

WB08T10023 GE Oven Halogen Lamp 35W 130V Backorder GEN WB08T10023 $14.82

View on Model

258

Wall Oven Halogen Light Assembly GEN WB25T10025 Contact Us For Availability

View on Model

259

Oven Lamp Lens GEN WB25T10013 Contact Us For Availability

View on Model

261

Range Oven Door Switch GEN WB24T10065 Contact Us For Availability

View on Model

262

Trim GEN WB07T10336 Contact Us For Availability

View on Model

262

Trim GEN WB07T10337 Contact Us For Availability

View on Model

262

Trim GEN WB07T10338 Contact Us For Availability

View on Model

262

Trim GEN WB07T10339 Contact Us For Availability

View on Model

262

Trim GEN WB07T10340 Contact Us For Availability

View on Model

262

Trim GEN WB07T10341 Contact Us For Availability

View on Model

264

Vent Trim GEN WB07T10307 Contact Us For Availability

View on Model

266

WB02K10048 GE Base Rail Backorder GEN WB02K10048 $14.88

View on Model

268

Cabinet Trim, Lower GEN WB07T10376 Contact Us For Availability

View on Model

268

Trim Btm 27 GEN WB07T10320 Contact Us For Availability

View on Model

268

Trim Btm 27 GEN WB07T10321 Contact Us For Availability

View on Model

268

Trim Btm 27 GEN WB07T10322 Contact Us For Availability

View on Model

268

Cabinet Trim, Lower GEN WB07T10377 Contact Us For Availability

View on Model

268

Trim GEN WB07T10378 Contact Us For Availability

View on Model

268

Cabinet Trim, Lower GEN WB07T10384 Contact Us For Availability

View on Model

268

Cabinet Trim, Lower GEN WB07T10385 Contact Us For Availability

View on Model

268

Cabinet Trim, Lower GEN WB07T10386 Contact Us For Availability

View on Model

273

COVER GEN WB02K5365 Contact Us For Availability

View on Model

277

Hinge Receiver GEN WB10T10046 Contact Us For Availability

View on Model

279

WB38T10019 GE Oven Vent Box Assembly Backorder GEN WB38T10019 $33.89

View on Model

281

Oven Door Hinge, Right GEN WB10T10047 Contact Us For Availability

View on Model

281

Oven Door Hinge, Left GEN WB10T10048 Contact Us For Availability

View on Model

281

Oven Door Hinge, Right GEN WB10T10049 Contact Us For Availability

View on Model

281

Oven Door Hinge, Left GEN WB10T10050 Contact Us For Availability

View on Model

282

WB38X33650 GE Vent Tube Backorder GEN WB38X33650 $12.28

View on Model

282

Duct Vent Inlet GEN WB28T10080 Contact Us For Availability

View on Model

291

COVER GEN WB02X9152 Contact Us For Availability

View on Model

338

WB55T10086 GE Oven Window Assembly Backorder GEN WB55T10086 $165.74

View on Model

416

Electronic Cover GEN WB35T10060 Contact Us For Availability

View on Model

595

WB2K5126 GE Oven Condenser Clamp Backorder GEN WB2K5126 $6.70

View on Model

600

Conduit Wire GEN WB18T10221 Contact Us For Availability

View on Model

691

WB1X1141 GE Oven Screw 8-32 Backorder GEN WB1X1141 $5.28

View on Model

694

WB01T10066 GE Oven Screw 10-16 XC02 Backorder GEN WB01T10066 $5.65

View on Model

699

WB1M1 GE Oven Screw Backorder GEN WB1M1 $5.43

View on Model

752

WB1K5200 GE Oven Screw 340531 Backorder GEN WB1K5200 $5.65

View on Model

761

WB1K5029 GE Oven Screw Backorder GEN WB1K5029 $5.65

View on Model

804

WB1X681 GE Oven Screw Backorder GEN WB1X681 $5.65

View on Model

809

WB1X1137 GE Oven Screw Backorder GEN WB1X1137 $5.65

View on Model

810

WB1X1130 GE Oven Screw 10-32 Backorder GEN WB1X1130 $5.65

View on Model

813

WB1X1261 GE Oven Screw Backorder GEN WB1X1261 $5.65

View on Model

847

WB1X1118 GE Oven Screw 6-32T Backorder GEN WB1X1118 $5.65

View on Model

875

WH2X930 GE Screw Backorder GEN WH2X930 $5.65

View on Model

875

WZ4X245D GE Screw Package Backorder GEN WZ4X245D $19.16

View on Model

887

WB1K5172 GE Oven Screw Backorder GEN WB1K5172 $11.53

View on Model

887

WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black Backorder GEN WB1K5173 $5.65

View on Model

887

Screw St 8-1 GEN WB01T10033 Contact Us For Availability

View on Model

926

GROUND WASHER GEN WB01X1260 Contact Us For Availability

View on Model

935

WB1K5174 GE Oven Washer Backorder GEN WB1K5174 $5.65

View on Model

945

WB1K5046 GE Oven Washer Backorder GEN WB1K5046 $5.02

View on Model

999

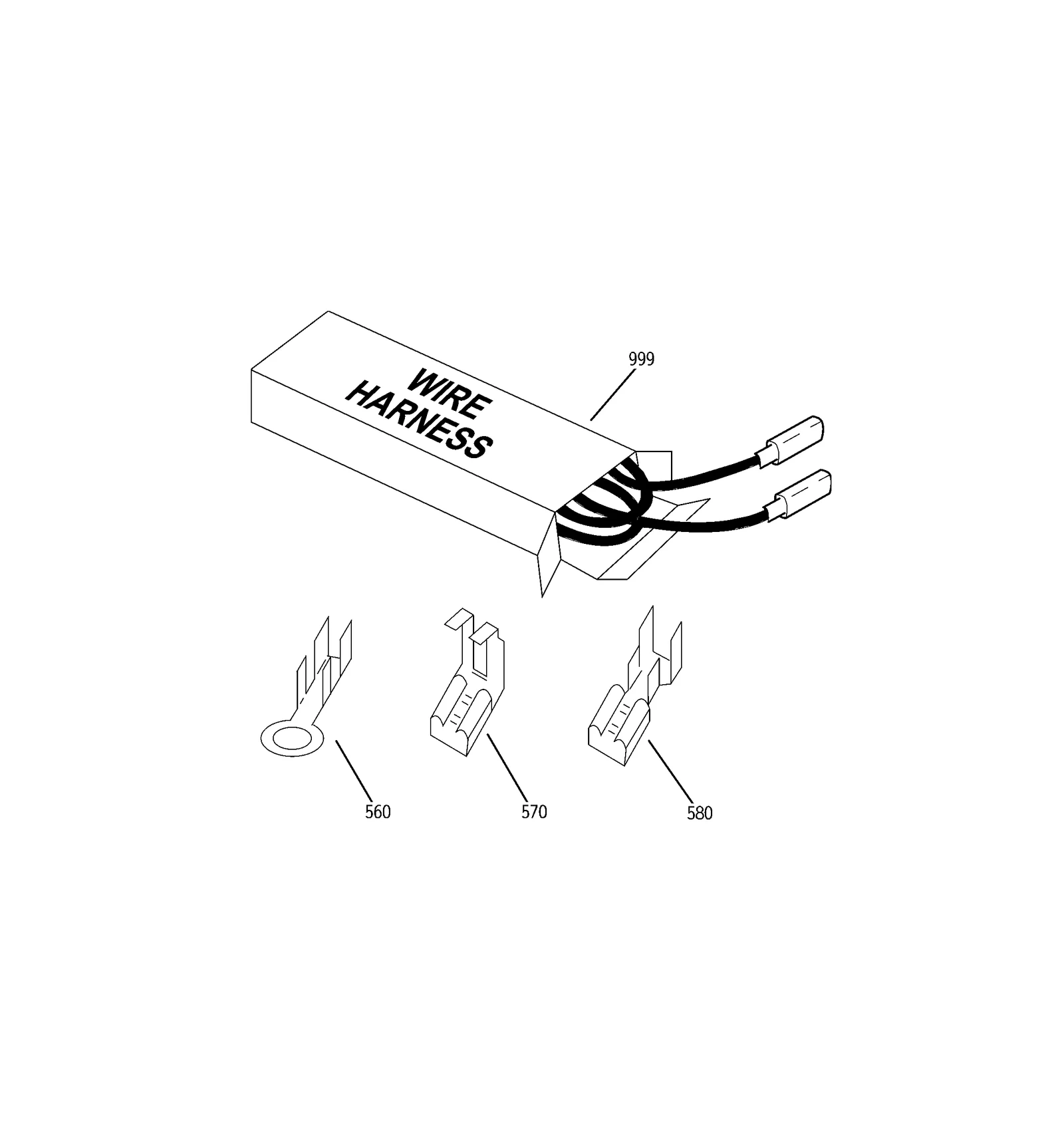

WB18T10223 GE Wire Harness Backorder GEN WB18T10223 $16.74

View on Model

999

Instruction Sheet GEN 31-10514 Contact Us For Availability

View on Model

999

Install Manl GEN 31-10517 Contact Us For Availability

View on Model

999

Installation Instructions GEN 31-10551 Contact Us For Availability

View on Model

999

MANUAL MINI & WD ASM GEN 31-14006 Contact Us For Availability

View on Model

999

Owner's Manual GEN SR10492 Contact Us For Availability

View on Model

999

Latch GEN WB18T10224 Contact Us For Availability

View on Model

999

Wire Harness GEN WB18T10264 Contact Us For Availability

View on Model

1005

WB01T10008 GE Oven Screw 10-32 In Stock GEN WB01T10008 $5.65

View on Model
