Model GE 911.47703200 27" Electric Built-In Oven (Kenmore 91147703200) – Common Parts & Diagrams
DOOR LOCK/WIRE HARNESS

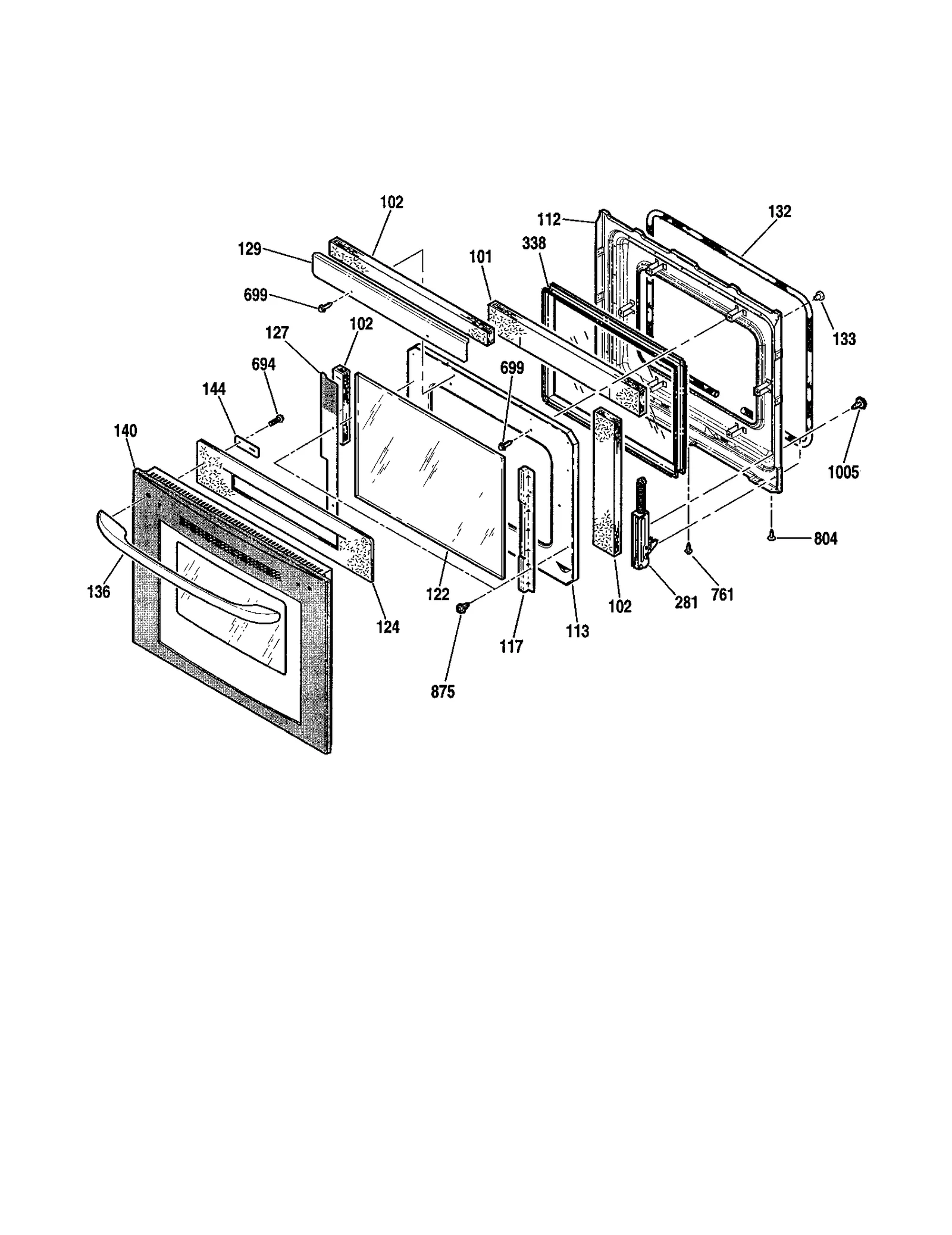

DOOR

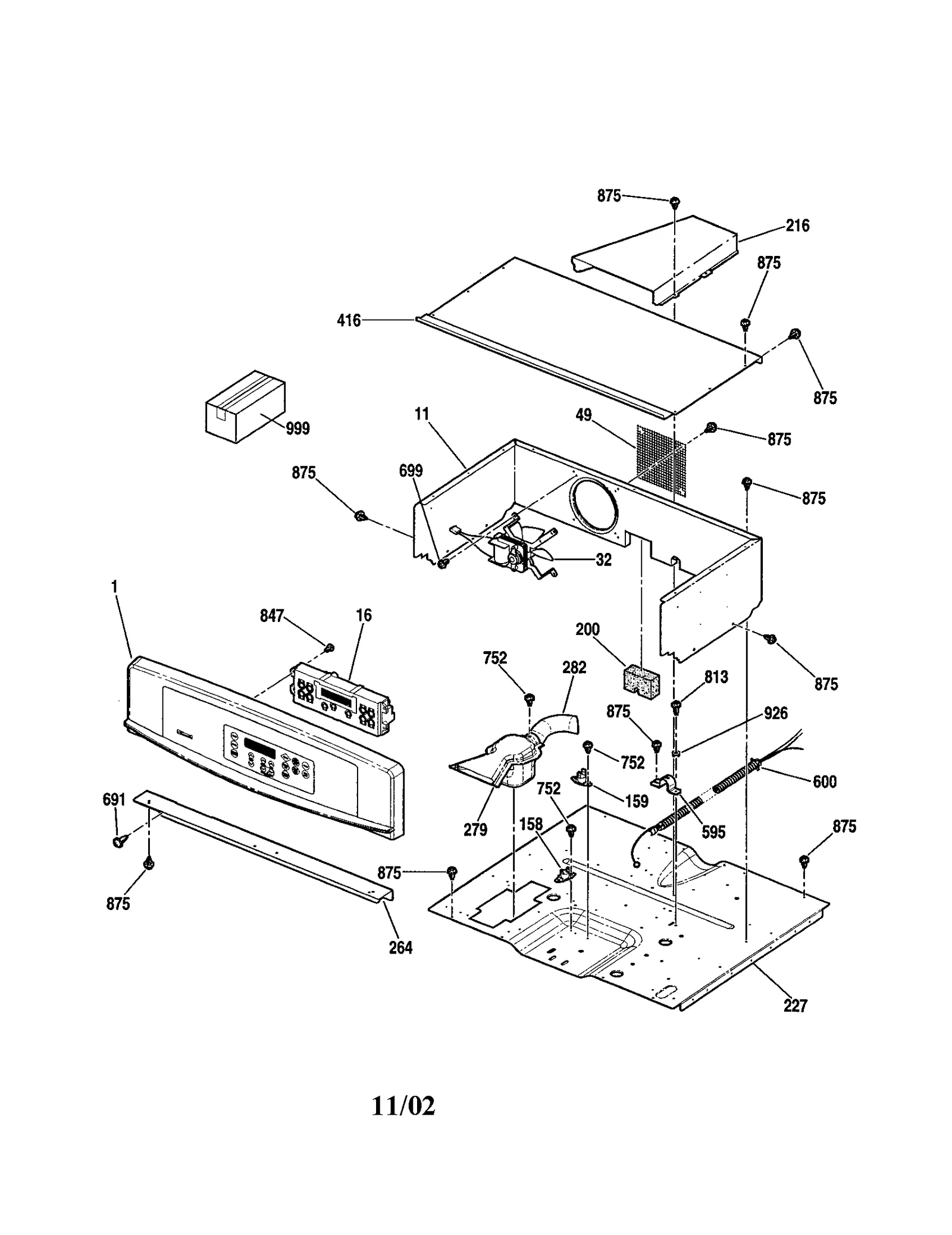

CONTROL PANEL
DOOR

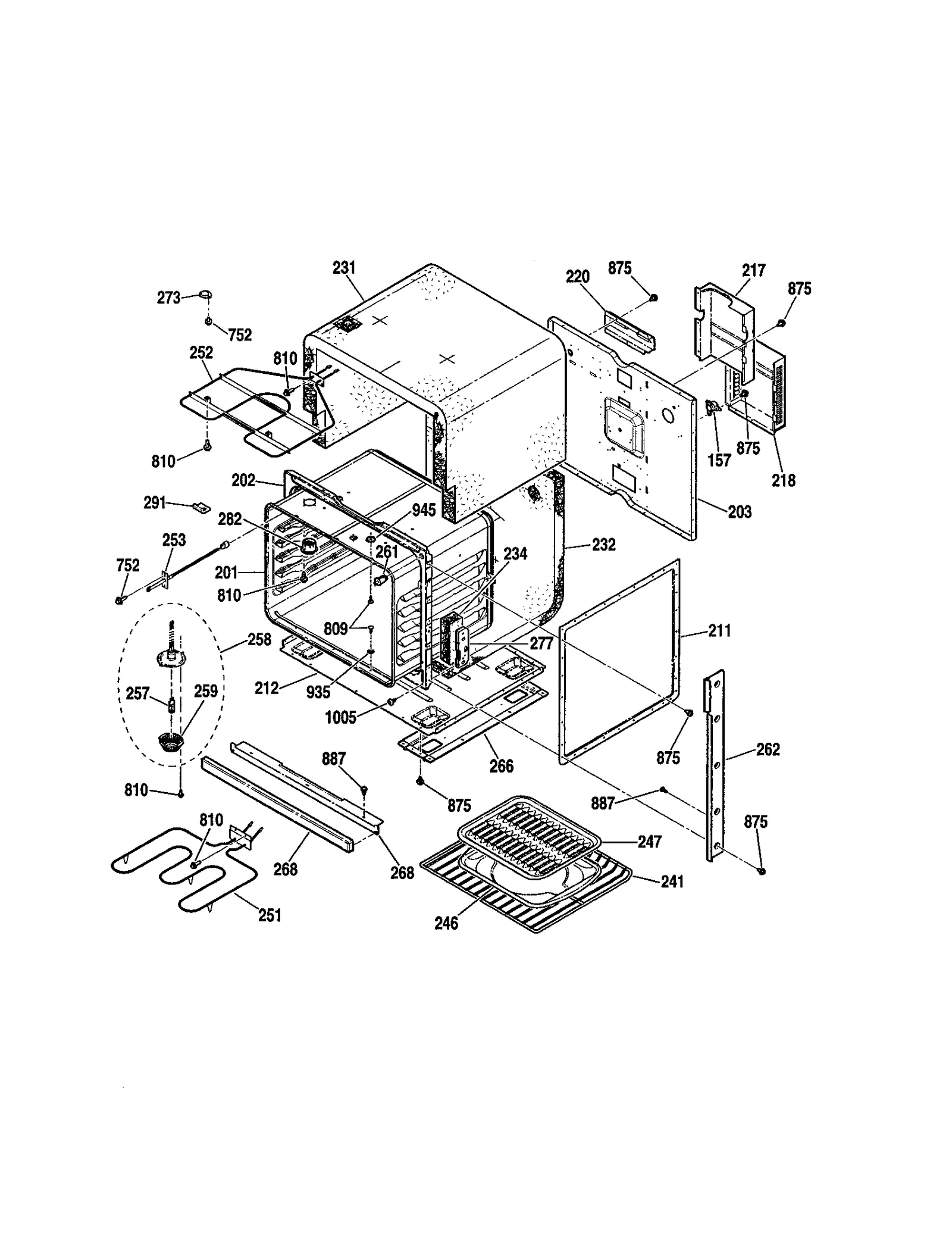

BODY
Common parts from model GE 911.47703200 27" Electric Built-In Oven (Kenmore 91147703200)
16
Range Oven Control Board GEN WB27T10410 Contact Us For Availability
101
Oven Door GEN WB35T10062 Contact Us For Availability
102
Oven Door GEN WB35T10061 Contact Us For Availability
102A
Oven Insulation GEN WB35T10086 Contact Us For Availability
102B
Oven Insulation GEN WB35T10083 Contact Us For Availability
112
Oven Door Liner GEN WB55T10088 Contact Us For Availability
122
Wall Oven Door Middle Glass GEN WB57T10185 Contact Us For Availability
124
Insulation GEN WB35T10084 Contact Us For Availability
127
Oven Retainer GEN WB02T10170 Contact Us For Availability
129
Extension Retainer GEN WB02T10178 Contact Us For Availability
136
Handle GEN WB15T10082 Contact Us For Availability
140
Door Asm (ot GEN WB57T10220 Contact Us For Availability
144
Wall Oven Door Handle Mounting Bracket GEN WB02T10147 Contact Us For Availability
158
Limit Switch GEN WB24T10076 Contact Us For Availability
201
Oven Wrapper GEN WB63T10088 Contact Us For Availability
202
Frame GEN WB63T10072 Contact Us For Availability
203
Retainer Insert GEN WB63T10087 Contact Us For Availability
211
Retainer Insert GEN WB63T10091 Contact Us For Availability
212
Retainer Insert GEN WB63T10082 Contact Us For Availability
216
Wire Cover GEN WB34T10057 Contact Us For Availability
217
Wall Oven Wire Harness Cover, Upper GEN WB34T10062 Contact Us For Availability
218
Cover Wire L GEN WB34T10056 Contact Us For Availability
220
Wall Oven Temperature Sensor Wire Harness Cov GEN WB34T10061 Contact Us For Availability
227
Retainer Insert GEN WB02T10159 Contact Us For Availability
231
Insulation GEN WB35T10075 Contact Us For Availability
232
Insulation GEN WB35T10076 Contact Us For Availability
234
Insulation H GEN WB10T10016 Contact Us For Availability
241
Range Oven Rack GEN WB48T10025 Contact Us For Availability
258
Wall Oven Halogen Light Assembly GEN WB25T10025 Contact Us For Availability
259
Oven Lamp Lens GEN WB25T10013 Contact Us For Availability
261
Range Oven Door Switch GEN WB24T10065 Contact Us For Availability
262
Trim GEN WB07T10340 Contact Us For Availability
262A
Trim GEN WB07T10341 Contact Us For Availability
262B
Trim GEN WB07T10338 Contact Us For Availability
262C
Trim GEN WB07T10339 Contact Us For Availability
262D
Trim GEN WB07T10336 Contact Us For Availability
262E
Trim GEN WB07T10337 Contact Us For Availability
264
Vent Trim GEN WB07T10307 Contact Us For Availability
268
Trim Btm 27 GEN WB07T10320 Contact Us For Availability
268A
Trim Btm 27 GEN WB07T10321 Contact Us For Availability
268B
Trim Btm 27 GEN WB07T10322 Contact Us For Availability
268C
Cabinet Trim, Lower GEN WB28T10077 Contact Us For Availability
268D
Cabinet Trim, Lower GEN WB28T10078 Contact Us For Availability
268E
Cabinet Trim, Lower GEN WB28T10079 Contact Us For Availability
268F
LOWER FRONT FRAME TRIM (W/O RIVET) WHITE GEN WB28T10377 Contact Us For Availability
268G
LOWER FRONT FRAME TRIM (W/O RIVET) BISQUE GEN WB28T10378 Contact Us For Availability
268H
LOWER FRONT FRAME TRIM (W/O RIVET) GEN WB28T10376 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
277
Hinge Receiver GEN WB10T10015 Contact Us For Availability
281
Oven Door Hinge, Right GEN WB10T10034 Contact Us For Availability
281A
Oven Door Hinge, Left GEN WB10T10035 Contact Us For Availability
282
Duct Vent GEN WB38T10080 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
416
Electronic Cover GEN WB35T10060 Contact Us For Availability
600
Conduit Wire GEN WB18T10221 Contact Us For Availability
691
Screw GEN WB01K5163 Contact Us For Availability
691A
Screw St 10- GEN WB01T10038 Contact Us For Availability
887A
Screw St 8-1 GEN WB01T10033 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
999
Install Manl GEN 31-10517 Contact Us For Availability
999A
Installation Instructions GEN 31-10549 Contact Us For Availability
999B
MANUAL MINI & WD ASM GEN 31-14006 Contact Us For Availability
999C
Owner's Manual GEN SR10492 Contact Us For Availability
999D
Parts List GEN 31-14105 Contact Us For Availability
× ![]()
