GE 911.47469791 Wall Oven (Kenmore 91147469791) Parts List

1

Control Panel GEN WB36K5640 Contact Us For Availability

View on Model

1A

Control Panel GEN WB36K5645 Contact Us For Availability

View on Model

1B

Control Panel GEN WB36K5646 Contact Us For Availability

View on Model

2

Trim Cap GEN WB07K5442 Contact Us For Availability

View on Model

2A

End Cap, Left GEN WB36K5641 Contact Us For Availability

View on Model

2B

End Cap, Right GEN WB36K5642 Contact Us For Availability

View on Model

2C

End Cap, Left GEN WB07K5461 Contact Us For Availability

View on Model

2D

End Cap, Right GEN WB07K5460 Contact Us For Availability

View on Model

2E

End Cap, Left GEN WB36K5639 Contact Us For Availability

View on Model

2F

End Cap, Right GEN WB36K5638 Contact Us For Availability

View on Model

8

Fan Support GEN WB02K5257 Contact Us For Availability

View on Model

16

Oven Clock GEN WB27K5299 Contact Us For Availability

View on Model

32

Fan GEN WB26K5071 Contact Us For Availability

View on Model

47

WB38K5058 GE Vent Barrier Backorder GEN WB38K5058 $13.88

View on Model

122

Range Oven Door Middle Glass GEN WB57K5102 Contact Us For Availability

View on Model

124

Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability

View on Model

125

Heat Reflector GEN WB34K5255 Contact Us For Availability

View on Model

126

Button Plug GEN WB03K5077 Contact Us For Availability

View on Model

131

WB2X9168 GE Oven Seal Backorder GEN WB2X9168 $10.97

View on Model

132

WB32K5038 GE Oven Door Gasket Backorder GEN WB32K5038 $125.70

View on Model

136

Handl Oven GEN WB15K5117 Contact Us For Availability

View on Model

136A

Oven Handle GEN WB15K5118 Contact Us For Availability

View on Model

136B

Oven Handle GEN WB15K5116 Contact Us For Availability

View on Model

140

WB56K5159 GE Oven White Door Frame Backorder GEN WB56K5159 $160.02

View on Model

140A

Door Frame GEN WB56K5161 Contact Us For Availability

View on Model

140B

WB56K5158 GE Oven Door Frame Backorder GEN WB56K5158 $136.66

View on Model

144

WB2K5395 GE Oven Reinforcement Plate Backorder GEN WB2K5395 $8.35

View on Model

147

Glass Spacer GEN WB02X9039 Contact Us For Availability

View on Model

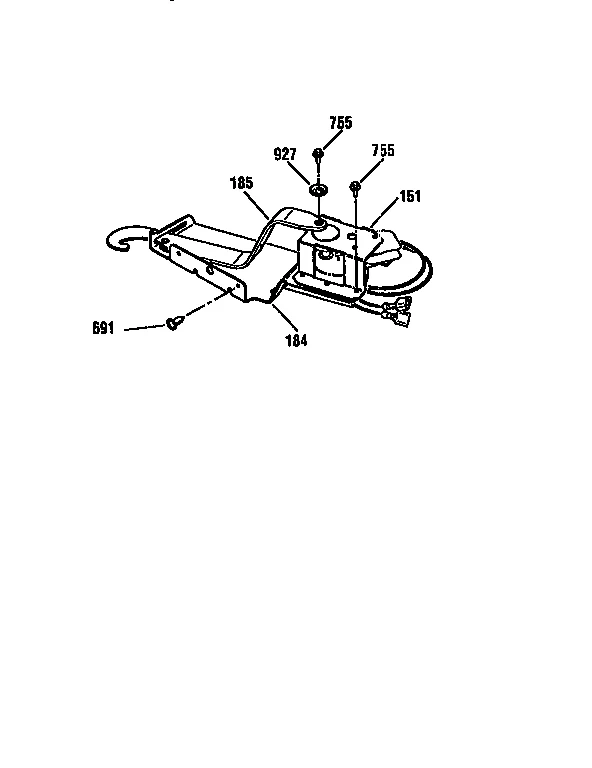

151

WB49T10020 GE Stove Oven Lock Motor Latch Ass In Stock GEN WB49T10020 $131.64

View on Model

158

WB24K5033 GE Oven Limit Switch Backorder GEN WB24K5033 $49.29

View on Model

159

WB24K5085 GE Oven Limit Switch Backorder GEN WB24K5085 $45.09

View on Model

184

WB34K5228 GE Oven Door Lock Plate Backorder GEN WB34K5228 $71.39

View on Model

185

WB15K5016 GE Oven Lock Lever Assembly Backorder GEN WB15K5016 $29.48

View on Model

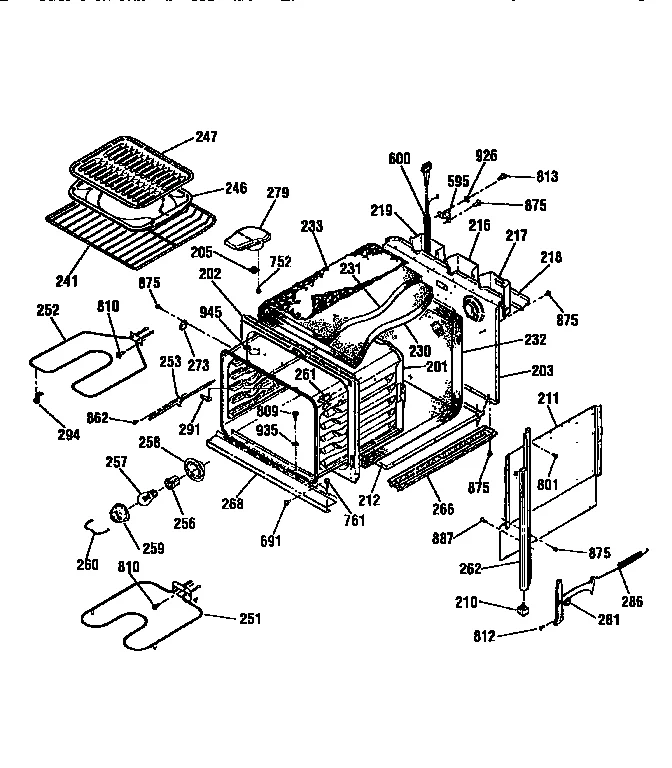

201

Oven Body GEN WB63T10009 Contact Us For Availability

View on Model

202

Frame GEN WB63T10008 Contact Us For Availability

View on Model

203

WB63K5167 GE Back Main Backorder GEN WB63K5167 $41.85

View on Model

205

WB6K5026 GE Range Smoke El Screw Backorder GEN WB6K5026 $20.65

View on Model

210

Trim Cap GEN WB07K5453 Contact Us For Availability

View on Model

210A

Trim Cap GEN WB07K5454 Contact Us For Availability

View on Model

210B

End Cap GEN WB07K5462 Contact Us For Availability

View on Model

210C

Trim Cap GEN WB07K5463 Contact Us For Availability

View on Model

210D

Trim Cap GEN WB07K5451 Contact Us For Availability

View on Model

210E

Trim Cap GEN WB07K5450 Contact Us For Availability

View on Model

211

Cabinet GEN WB63K5080 Contact Us For Availability

View on Model

216

COVER WIRE ELEMENT GEN WB34K5069 Contact Us For Availability

View on Model

217

Cover Wire Light GEN WB34K5070 Contact Us For Availability

View on Model

218

Wire Cover GEN WB34K5067 Contact Us For Availability

View on Model

219

WB34K5082 GE Oven Wire Cover Conduit Backorder GEN WB34K5082 $7.63

View on Model

221

Side Extensn GEN WB63K5210 Contact Us For Availability

View on Model

221A

Side Extensn GEN WB63K5209 Contact Us For Availability

View on Model

230

WB35K5048 GE Inner Wrapper Insulation Backorder GEN WB35K5048 $100.10

View on Model

231

WB35K5068 GE Insulation Wrapper Backorder GEN WB35K5068 $51.54

View on Model

232

Insulation GEN WB35K5089 Contact Us For Availability

View on Model

233

Heat Reflector GEN WB34K5080 Contact Us For Availability

View on Model

241

WB48T10093 GE Oven Range Rack In Stock GEN WB48T10093 $77.89

View on Model

247

WB48X10056 GE Broil Pan Set, Large Porcelain In Stock GEN WB48X10056 $18.60

View on Model

251

WB44K5013 GE Oven Bake Element Range In Stock GEN WB44K5013 $45.14

View on Model

252

WB44K5009 GE Oven Broil Element In Stock GEN WB44K5009 $53.34

View on Model

253

WB21X5301 GE Range Oven Temperature Sensor Pr In Stock GEN WB21X5301 $125.41

View on Model

256

WB8K5029 GE Oven Lamp Holder Backorder GEN WB8K5029 $20.76

View on Model

257

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.37

View on Model

258

Housing GEN WB02X7693 Contact Us For Availability

View on Model

259

WB36X192 GE Oven Light Cover In Stock GEN WB36X192 $10.83

View on Model

260

Bail GEN WB02X7694 Contact Us For Availability

View on Model

261

Jam Switch GEN WB24K5061 Contact Us For Availability

View on Model

262

Vent Trim GEN WB07K5446 Contact Us For Availability

View on Model

262

Side Trim Rt GEN WB07K5443 Contact Us For Availability

View on Model

262A

Vent Trim GEN WB07K5455 Contact Us For Availability

View on Model

262A

Side Trim Lt GEN WB07K5444 Contact Us For Availability

View on Model

262B

Vent Trim GEN WB07K5441 Contact Us For Availability

View on Model

262B

Trim GEN WB07K5456 Contact Us For Availability

View on Model

262C

Trim GEN WB07K5457 Contact Us For Availability

View on Model

262D

Vert Side Tr GEN WB07K5438 Contact Us For Availability

View on Model

262E

Side Trim Rt GEN WB07K5439 Contact Us For Availability

View on Model

263

I-brow Trim GEN WB07K5445 Contact Us For Availability

View on Model

263A

I-brow Trim GEN WB07K5458 Contact Us For Availability

View on Model

263B

I-brow Trim GEN WB07K5440 Contact Us For Availability

View on Model

266

WB63K5079 GE Rail Base Backorder GEN WB63K5079 $30.88

View on Model

268

LOWER FRONT FRAME TRIM, WHITE GEN WB07I5452 Contact Us For Availability

View on Model

268A

Trim GEN WB07K5459 Contact Us For Availability

View on Model

268B

Trim GEN WB07K5449 Contact Us For Availability

View on Model

273

COVER GEN WB02K5365 Contact Us For Availability

View on Model

275

WB34K5078 GE Oven Vent Box Cover Backorder GEN WB34K5078 $4.65

View on Model

279

Vent Box GEN WB38K5028 Contact Us For Availability

View on Model

281

Oven Drive Hinge GEN WB14K5006 Contact Us For Availability

View on Model

281A

Wall Oven Door Hinge, Left GEN WB14K5007 Contact Us For Availability

View on Model

286

Oven Door Spring GEN WB09K5022 Contact Us For Availability

View on Model

291

COVER GEN WB02X9152 Contact Us For Availability

View on Model

294

WB2X9719 GE Oven Support Bracket Clip In Stock GEN WB2X9719 $7.66

View on Model

432

Cover GEN WB63K5094 Contact Us For Availability

View on Model

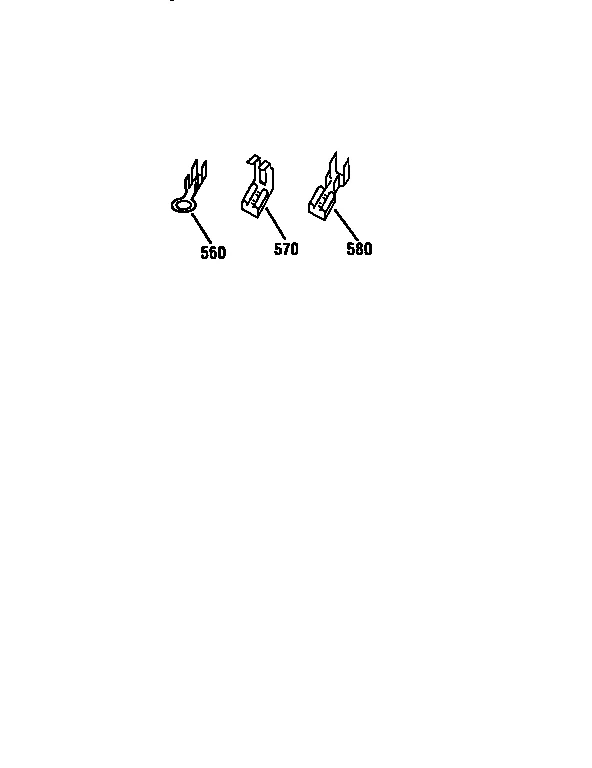

560

Eyelet Terminal GEN WB18M0001 Contact Us For Availability

View on Model

570

250 Flag GEN STD374251 Contact Us For Availability

View on Model

580

187 Push On GEN STD374180 Contact Us For Availability

View on Model

580A

250 Push On GEN STD374250 Contact Us For Availability

View on Model

595

WB2K5126 GE Oven Condenser Clamp Backorder GEN WB2K5126 $6.70

View on Model

600

Control Wire GEN WB18K5364 Contact Us For Availability

View on Model

676

Trim Screw GEN WB01K5207 Contact Us For Availability

View on Model

676A

Trim Screw GEN WB01K5208 Contact Us For Availability

View on Model

676B

Trim Screw GEN WB01K5206 Contact Us For Availability

View on Model

691

Screw-gray GEN WB01K5223 Contact Us For Availability

View on Model

691A

Trim Screw GEN WB01K5176 Contact Us For Availability

View on Model

691B

WB1K5177 GE Range Trim Screw Backorder GEN WB1K5177 $5.02

View on Model

692

Screw GEN WZ04X0416 Contact Us For Availability

View on Model

696

WB1K5156 GE Range Screw Backorder GEN WB1K5156 $5.65

View on Model

752

WB1K5200 GE Oven Screw 340531 Backorder GEN WB1K5200 $5.65

View on Model

755

WZ4X44D GE Screw Package Backorder GEN WZ4X44D $29.26

View on Model

760

WB1X536 GE Oven Screw Backorder GEN WB1X536 $6.90

View on Model

761

Screw (White) GEN WB01K5185 Contact Us For Availability

View on Model

761A

Trim Screw GEN WB01K5211 Contact Us For Availability

View on Model

761B

WB1K5029 GE Oven Screw Backorder GEN WB1K5029 $5.65

View on Model

800

WB1M1 GE Oven Screw Backorder GEN WB1M1 $5.43

View on Model

809

WB1X1137 GE Oven Screw Backorder GEN WB1X1137 $5.65

View on Model

810

WB1X1130 GE Oven Screw 10-32 Backorder GEN WB1X1130 $5.65

View on Model

812

WB1K5191 GE Oven Zinc FL Screw Backorder GEN WB1K5191 $5.65

View on Model

813

WB1X1261 GE Oven Screw Backorder GEN WB1X1261 $5.65

View on Model

862

SCREW GEN WB01X1178 Contact Us For Availability

View on Model

875

WH2X930 GE Screw Backorder GEN WH2X930 $5.65

View on Model

887

WB1K5172 GE Oven Screw Backorder GEN WB1K5172 $11.53

View on Model

887A

Trim Screw GEN WB01K5178 Contact Us For Availability

View on Model

887B

WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black Backorder GEN WB1K5173 $5.65

View on Model

890

WB1X1118 GE Oven Screw 6-32T Backorder GEN WB1X1118 $5.65

View on Model

918

WB1K5071 GE Oven Plastic Rivet Backorder GEN WB1K5071 $5.28

View on Model

926

GROUND WASHER GEN WB01X1260 Contact Us For Availability

View on Model

927

WB1X119D GE Oven Range Washer In Stock GEN WB1X119D $10.25

View on Model

935

WB1K5174 GE Oven Washer Backorder GEN WB1K5174 $5.65

View on Model

938

WB1K5209 GE Oven Clip Backorder GEN WB1K5209 $9.19

View on Model

945

WB1K5046 GE Oven Washer Backorder GEN WB1K5046 $5.02

View on Model

999

Installation Manual GEN 31-10200 Contact Us For Availability

View on Model

999A

MIMI MANUAL W/WIRE DIAG. GEN 31-13323 Contact Us For Availability

View on Model

999B

User's Manual GEN SR10335 Contact Us For Availability

View on Model

999C

Parts List GEN 31-13478 Contact Us For Availability

View on Model
