Model GE 911.47065791 27" Single Built-In Oven (Kenmore 91147065791) – Common Parts & Diagrams
FAN
FILLER TRIM KIT 4047590&4047990

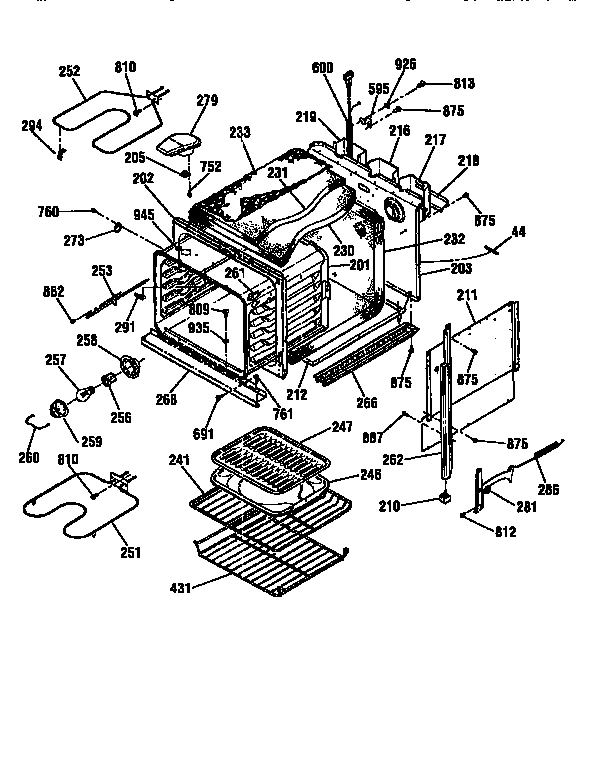

BODY

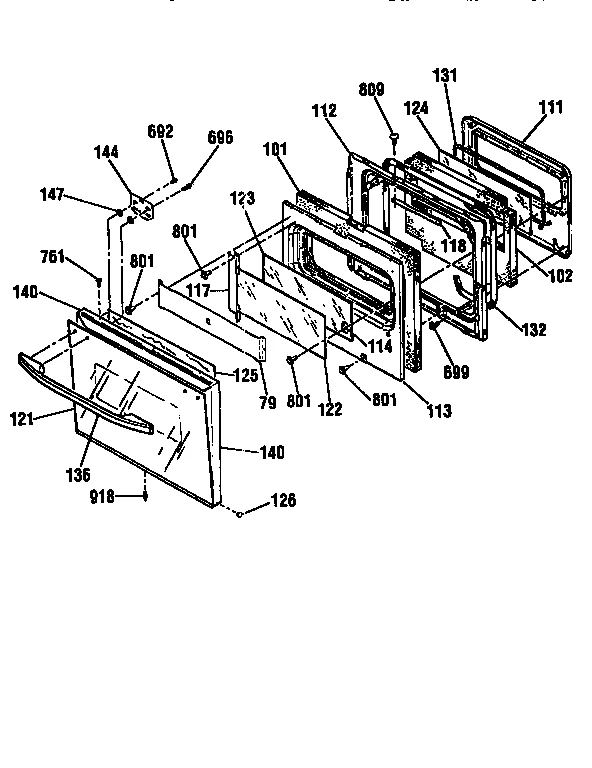

TITLE

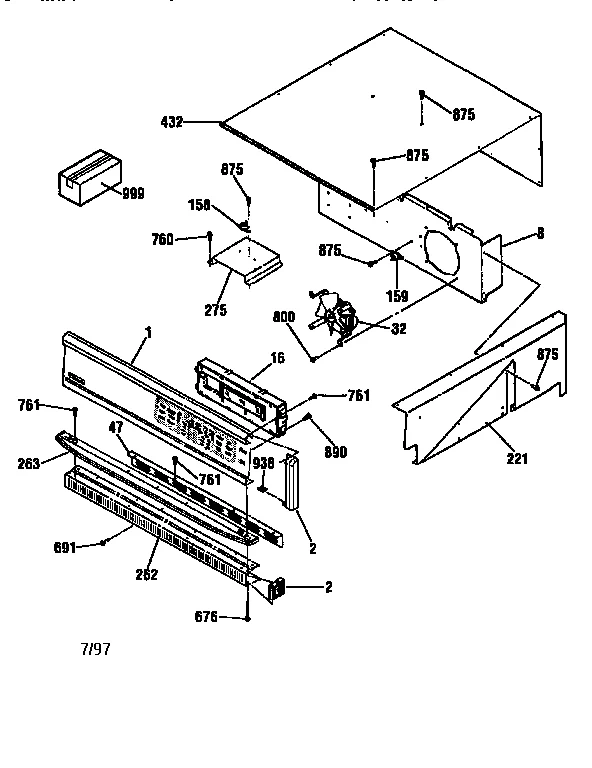

CONTROL
DOOR LOCK

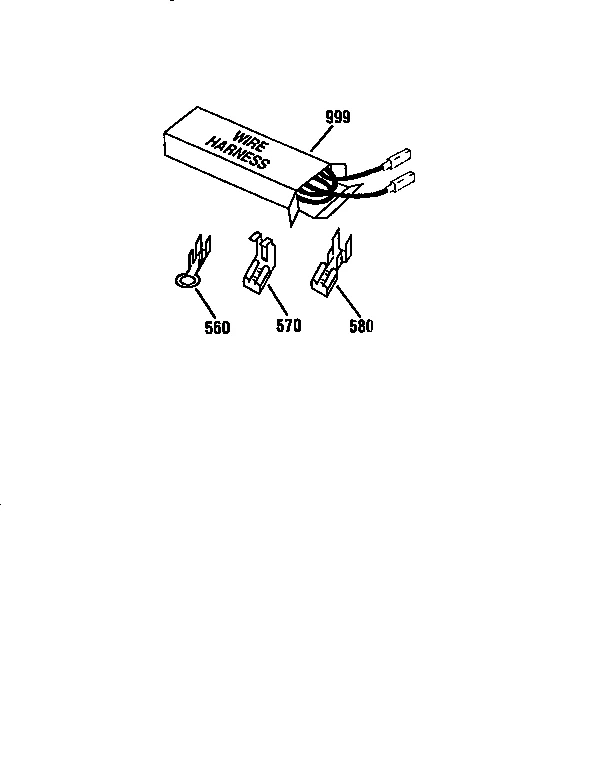

WIRE HARNESS AND COMPONENTS
Common parts from model GE 911.47065791 27" Single Built-In Oven (Kenmore 91147065791)
1
Control Panel GEN WB36K5674 Contact Us For Availability
1A
Control Panel GEN WB36K5673 Contact Us For Availability
2
Trim Cap GEN WB07K5442 Contact Us For Availability
2A
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
2B
End Cap, Left GEN WB36K5641 Contact Us For Availability
2C
End Cap, Right GEN WB36K5642 Contact Us For Availability
2D
End Cap, Left GEN WB36K5639 Contact Us For Availability
2E
End Cap, Right GEN WB36K5638 Contact Us For Availability
8
Fan Support GEN WB02K5257 Contact Us For Availability
16
Oven Clock GEN WB27K5335 Contact Us For Availability
32
Fan GEN WB26K5071 Contact Us For Availability
44
Grommet Strap GEN WB02K5225 Contact Us For Availability
102
Insert Drive Plug GEN WB35K5050 Contact Us For Availability
111
Plug GEN WB55T10007 Contact Us For Availability
112
Door Line GEN WB55T10006 Contact Us For Availability
113
Oven Door Insulation Retainer GEN WB02K5127 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
117
Oven Door Glass Retainer GEN WB02K5131 Contact Us For Availability
118
Odr Lin Stif GEN WB02K5132 Contact Us For Availability
121
Door Glass GEN WB57K5311 Contact Us For Availability
121A
Outer Glass GEN WB57K5324 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5102 Contact Us For Availability
123
Ov Dr In Gl GEN WB57K5038 Contact Us For Availability
124
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
125
Heat Reflector GEN WB34K5255 Contact Us For Availability
126
Button Plug GEN WB03K5077 Contact Us For Availability
136
Handl Oven GEN WB15K5117 Contact Us For Availability
136A
Oven Handle GEN WB15K5116 Contact Us For Availability
147
Glass Spacer GEN WB02X9039 Contact Us For Availability
201
Oven Body GEN WB63T10011 Contact Us For Availability
202
Frame GEN WB63T10008 Contact Us For Availability
203
Main GEN WB63K5168 Contact Us For Availability
210
Trim Cap GEN WB07K5454 Contact Us For Availability
210A
Trim Cap GEN WB07K5453 Contact Us For Availability
210B
Trim Cap GEN WB07K5450 Contact Us For Availability
210C
Trim Cap GEN WB07K5451 Contact Us For Availability
211
Cab Top Ret GEN WB02K5173 Contact Us For Availability
212
Cabinet GEN WB63K5080 Contact Us For Availability
216
COVER WIRE ELEMENT GEN WB34K5069 Contact Us For Availability
217
Cover Wire Light GEN WB34K5070 Contact Us For Availability
218
Wire Cover GEN WB34K5067 Contact Us For Availability
221
Side Extensn GEN WB63K5210 Contact Us For Availability
221A
Side Extensn GEN WB63K5209 Contact Us For Availability
232
Insulation GEN WB35K5089 Contact Us For Availability
241
Range Oven Rack GEN WB48K5009 Contact Us For Availability
258
Housing GEN WB02X7693 Contact Us For Availability
260
Bail GEN WB02X7694 Contact Us For Availability
261
Jam Switch GEN WB24K5061 Contact Us For Availability
262
Side Trim Rt GEN WB07K5443 Contact Us For Availability
262
Vent Trim GEN WB07K5446 Contact Us For Availability
262A
Side Trim Lt GEN WB07K5444 Contact Us For Availability
262A
Vent Trim GEN WB07K5441 Contact Us For Availability
262B
Vert Side Tr GEN WB07K5438 Contact Us For Availability
262C
Side Trim Rt GEN WB07K5439 Contact Us For Availability
263
I-brow Trim GEN WB07K5445 Contact Us For Availability
263A
I-brow Trim GEN WB07K5440 Contact Us For Availability
268
Trim GEN WB07K5452 Contact Us For Availability
268A
Trim GEN WB07K5449 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
279
Vent Box GEN WB38K5028 Contact Us For Availability
281
Oven Drive Hinge GEN WB14K5006 Contact Us For Availability
281A
Wall Oven Door Hinge, Left GEN WB14K5007 Contact Us For Availability
286
Oven Door Spring GEN WB09K5022 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
431
Wall Oven Rack GEN WB48K5010 Contact Us For Availability
432
Cover GEN WB63K5094 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
600
Control Wire GEN WB18K5364 Contact Us For Availability
676
Trim Screw GEN WB01K5207 Contact Us For Availability
676A
Trim Screw GEN WB01K5206 Contact Us For Availability
691
Screw-gray GEN WB01K5223 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761A
Screw (White) GEN WB01K5185 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
999
Installation GEN SR10048 Contact Us For Availability
999
Installation Manual GEN 31-10200 Contact Us For Availability
999
Main Harness GEN WB18K5634 Contact Us For Availability
999A
Mnl W/wiring GEN 31-13305 Contact Us For Availability
999A
Lck Mtr Harn GEN WB18K5617 Contact Us For Availability
999B
User's Manual GEN SR10336 Contact Us For Availability
999C
Parts List GEN 31-13475 Contact Us For Availability
× ![]()
