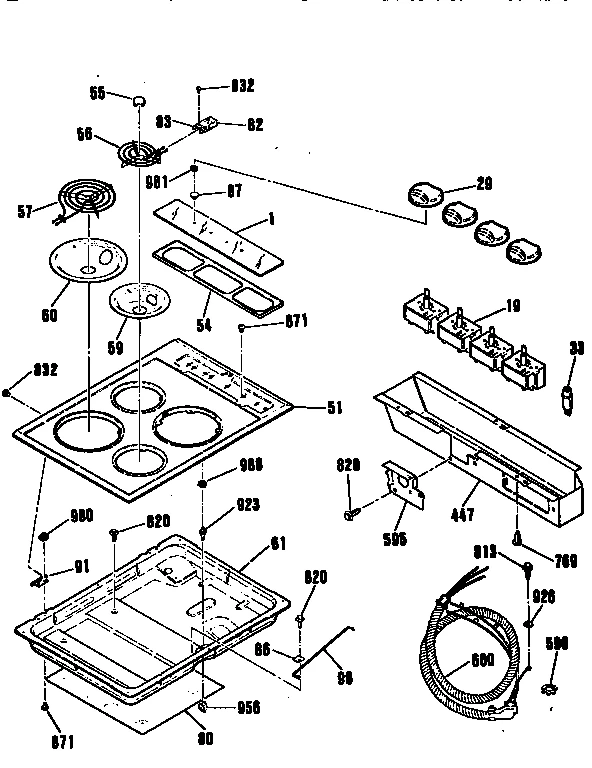

Model GE 911.42456590 30" Electric Counter Unit (Kenmore 91142456590) – Common Parts & Diagrams

Common parts from model GE 911.42456590 30" Electric Counter Unit (Kenmore 91142456590)

All Parts

Print

• This Diagram
• All Diagrams

1A

Glass Control Panel GEN WB57K5298 Contact Us For Availability

View on Model

1B

Glass Control Panel GEN WB57K5288 Contact Us For Availability

View on Model

19

6" Inf Ctrl GEN WB23M0002 Contact Us For Availability

View on Model

19A

8" Inf Ctrl GEN WB23M0001 Contact Us For Availability

View on Model

29

Inf Knob Blk GEN WB03K5132 Contact Us For Availability

View on Model

29A

Infinite Knob GEN WB03K5167 Contact Us For Availability

View on Model

29B

Inf Knob-ad GEN WB03K5260 Contact Us For Availability

View on Model

33

Indicator Light GEN WB25M0001 Contact Us For Availability

View on Model

51

Main Top Assembly GEN WB62K5118 Contact Us For Availability

View on Model

51A

Main Top GEN WB62K5119 Contact Us For Availability

View on Model

51B

Main Top GEN WB62K5129 Contact Us For Availability

View on Model

54

Cooktop Glass Control Panel Seal GEN WB32K5045 Contact Us For Availability

View on Model

54A

Main Tp Seal GEN WB32M0001 Contact Us For Availability

View on Model

54B

Main Top Seal GEN WB32K5026 Contact Us For Availability

View on Model

55

Medallion GEN WB32X0105 Contact Us For Availability

View on Model

56

WB30X254 GE Oven 6" Burner Unit 1250W 240V In Stock GEN WB30X254 View Details $47.58

View on Model

57

WB30X253 GE Oven Burner Surface Unit Element Backorder GEN WB30X253 View Details $43.58

View on Model

59

WB31K5024 GE Stove Range Cooktop 6" Chrome Dr In Stock GEN WB31K5024 View Details $8.65

View on Model

59A

PM32X5040 GE Porcelain Bowl In Stock GEN PM32X5040 View Details $19.72

View on Model

60

WB31K5025 GE Stove Range Cooktop 8" Chrome Dr In Stock GEN WB31K5025 View Details $9.04

View on Model

60A

8" Pan-blk GEN WB31K5041 Contact Us For Availability

View on Model

61

Burner Box GEN WB64K5078 Contact Us For Availability

View on Model

61A

Burner Box GEN WB64K5080 Contact Us For Availability

View on Model

80

Brnr Box Shd GEN WB34K5117 Contact Us For Availability

View on Model

82

WB17X210 GE Oven Cooktop Burner Receptacle Bl In Stock GEN WB17X210 View Details $58.57

View on Model

83

WB17X211 GE Range Terminal Clip Black Backorder GEN WB17X211 View Details $7.42

View on Model

86

Sup Rod Clmp GEN WB02K5186 Contact Us For Availability

View on Model

87

Seal GEN WB02X9972 Contact Us For Availability

View on Model

90

Main Top Support Rod GEN WB02K5185 Contact Us For Availability

View on Model

91

Hinge GEN WB14X0129 Contact Us For Availability

View on Model

447

Wire Cover GEN WB34K5116 Contact Us For Availability

View on Model

590

Lock Nut GEN WB01X1299 Contact Us For Availability

View on Model

595

Conduit Plate GEN WB06X0002 Contact Us For Availability

View on Model

600

Conduit Wiring Harness GEN WB18K5397 Contact Us For Availability

View on Model

769

WB1X500D GE Oven Screw Package Backorder GEN WB1X500D View Details $5.43

View on Model

813

WB1X1261 GE Oven Screw Backorder GEN WB1X1261 View Details $5.65

View on Model

820

WB1X1424D GE Oven Screw Package Backorder GEN WB1X1424D View Details $4.84

View on Model

832

WB1X1118 GE Oven Screw 6-32T Backorder GEN WB1X1118 View Details $5.65

View on Model

871

SCREW GEN WB01K5123 Contact Us For Availability

View on Model

923

Strike GEN WB14X0131 Contact Us For Availability

View on Model

926

GROUND WASHER GEN WB01X1260 Contact Us For Availability

View on Model

956

Drive Stirrer Catch GEN WB02K5326 Contact Us For Availability

View on Model

980

Nut GEN WB01X1129 Contact Us For Availability

View on Model

981

Hex Nut GEN WB01X1308 Contact Us For Availability

View on Model

NI

Wiring Diagram GEN SR13105 Contact Us For Availability

View on Model

NI

Mt Wire Harn GEN WB18K5296 Contact Us For Availability

View on Model

×
