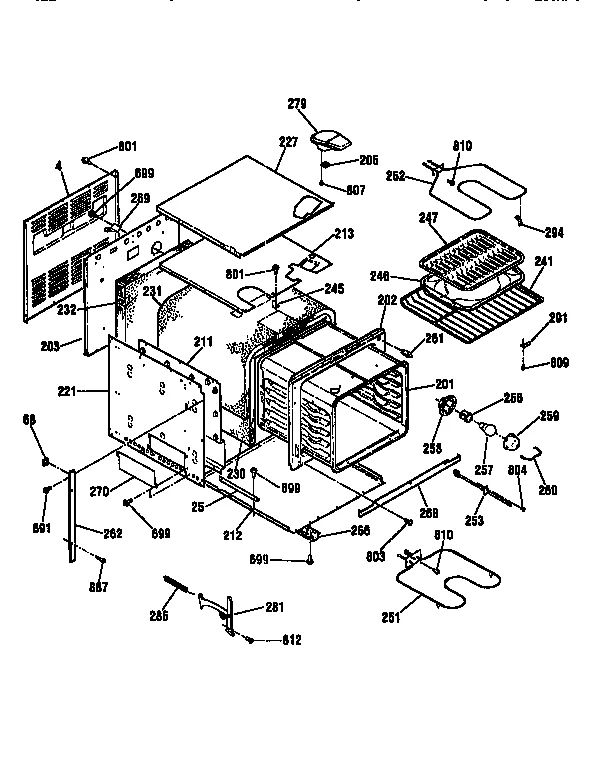

Model GE 911.40469791 24" Electric Wall Oven (Kenmore 91140469791) – Common Parts & Diagrams

16
Oven Clock
Oven Clock GEN WB27K5299 Contact Us For Availability
View on Model
25
Insert Retainer Bracket
Insert Retainer Bracket GEN WB02M0041 Contact Us For Availability
View on Model
42
Heat Shield
Heat Shield GEN WB34K5249 Contact Us For Availability
View on Model
46
Wire Shield
Wire Shield GEN WB34K5099 Contact Us For Availability
View on Model
49
Con Hsg Scrn
Con Hsg Scrn GEN WB07X5016 Contact Us For Availability
View on Model
68
Foot Trim Spacer
Foot Trim Spacer GEN WB02K5177 Contact Us For Availability
View on Model
68A
Ft Tr Spacer
Ft Tr Spacer GEN WB02M0040 Contact Us For Availability
View on Model
158
Limit Switch
Limit Switch GEN WB24K5045 Contact Us For Availability
View on Model
184
Drive Lock Plate
Drive Lock Plate GEN WB34K5200 Contact Us For Availability
View on Model
185
Wall Oven Door Lock Lever
Wall Oven Door Lock Lever GEN WB15K5075 Contact Us For Availability
View on Model
202
Door Frame
Door Frame GEN WB63T10013 Contact Us For Availability
View on Model
203
Main
Main GEN WB63K5118 Contact Us For Availability
View on Model
211
Ovsd Ins Ret
Ovsd Ins Ret GEN WB02K5180 Contact Us For Availability
View on Model
212
Cabinet
Cabinet GEN WB63K5116 Contact Us For Availability
View on Model
213
Insert Retainer
Insert Retainer GEN WB02K5256 Contact Us For Availability
View on Model
221
Cabinet
Cabinet GEN WB63K5117 Contact Us For Availability
View on Model
227
Cab Top Ret
Cab Top Ret GEN WB02K5173 Contact Us For Availability
View on Model
233
Cabinet Insert
Cabinet Insert GEN WB35K5066 Contact Us For Availability
View on Model
245
Scroll Bracket
Scroll Bracket GEN WB02M0030 Contact Us For Availability
View on Model
258
Housing
Housing GEN WB02X7693 Contact Us For Availability
View on Model
260
Bail
Bail GEN WB02X7694 Contact Us For Availability
View on Model
261
Jam Switch
Jam Switch GEN WB24K5061 Contact Us For Availability
View on Model
262A
Vert Sd Trim
Vert Sd Trim GEN WB07K5262 Contact Us For Availability
View on Model
263
I-brow Trm-w
I-brow Trm-w GEN WB07K5494 Contact Us For Availability
View on Model
263A
I-brow Trm-b
I-brow Trm-b GEN WB07K5478 Contact Us For Availability
View on Model
264
Vent Trim Ex
Vent Trim Ex GEN WB07K5121 Contact Us For Availability
View on Model
266
Channel
Channel GEN WB02X9634 Contact Us For Availability
View on Model
268
Lo Ft Frm Tr
Lo Ft Frm Tr GEN WB07K5127 Contact Us For Availability
View on Model
268A
Lo Ft Trim
Lo Ft Trim GEN WB07M0012 Contact Us For Availability
View on Model
270
Cover Plate
Cover Plate GEN WB02X9642 Contact Us For Availability
View on Model
279
Vent Box
Vent Box GEN WB38K5028 Contact Us For Availability
View on Model
281
Oven Drive Hinge
Oven Drive Hinge GEN WB14K5006 Contact Us For Availability
View on Model
281A
Wall Oven Door Hinge, Left
Wall Oven Door Hinge, Left GEN WB14K5007 Contact Us For Availability
View on Model
286
Oven Drive Spring
Oven Drive Spring GEN WB09K5017 Contact Us For Availability
View on Model
291
COVER
COVER GEN WB02X9152 Contact Us For Availability
View on Model
560
Eyelet Terminal
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
View on Model
570
250 Flag
250 Flag GEN STD374251 Contact Us For Availability
View on Model
580
187 Push On
187 Push On GEN STD374180 Contact Us For Availability
View on Model
580A
250 Push On
250 Push On GEN STD374250 Contact Us For Availability
View on Model
600
Control Wire
Control Wire GEN WB18K5364 Contact Us For Availability
View on Model
803
Screw
Screw GEN WB01K5163 Contact Us For Availability
View on Model
805
Screw
Screw GEN WB01X1113 Contact Us For Availability
View on Model
926
GROUND WASHER
GROUND WASHER GEN WB01X1260 Contact Us For Availability
View on Model
999
Installation Instructions
Installation Instructions GEN 31-10118 Contact Us For Availability
View on Model
999A
Mini Manual
Mini Manual GEN 31-13328 Contact Us For Availability
View on Model
999B
Wall Oven Owner's Manual
Wall Oven Owner's Manual GEN SR10346 Contact Us For Availability
View on Model
999C
Parts List
Parts List GEN 31-13484 Contact Us For Availability
View on Model
