GE 911.40469690 24" Electric Wall Oven (Kenmore 91140469690) Parts List

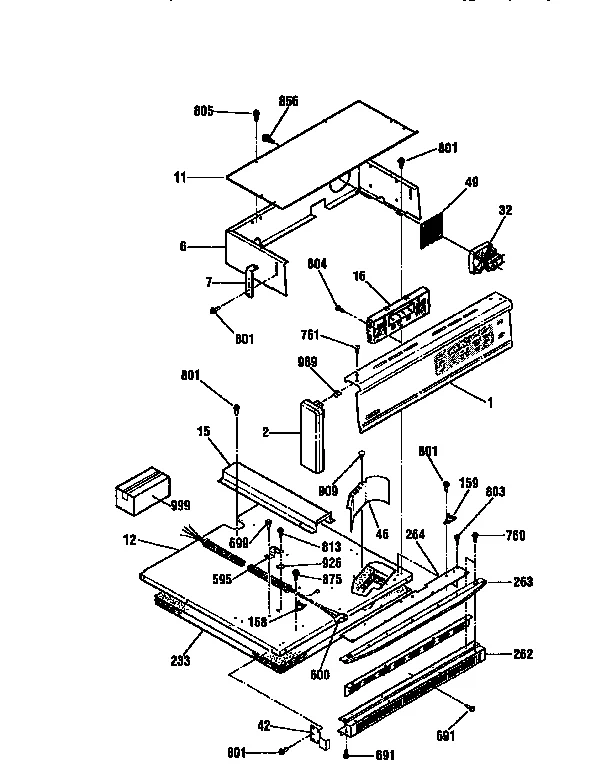

1

Control Panel Keypad GEN WB36K5692 Contact Us For Availability

View on Model

1A

Control Panel Keypad GEN WB36K5698 Contact Us For Availability

View on Model

2

End Cap GEN WB36K5696 Contact Us For Availability

View on Model

2A

End Cap GEN WB36K5697 Contact Us For Availability

View on Model

2B

End Cap GEN WB36K5681 Contact Us For Availability

View on Model

2C

End Cap GEN WB36K5682 Contact Us For Availability

View on Model

4

WB63M45 GE Cabinet Back Backorder GEN WB63M45 $62.74

View on Model

6

WB37K5041 GE Control Housing Backorder GEN WB37K5041 $20.52

View on Model

7

WB2K5406 GE Bracket Backorder GEN WB2K5406 $5.02

View on Model

11

WB37K5040 GE Top Control Housing Backorder GEN WB37K5040 $20.48

View on Model

12

WB63K5120 GE Top Backorder GEN WB63K5120 $62.41

View on Model

15

WB2X9665 GE Wire Cover Backorder GEN WB2X9665 $21.39

View on Model

16

Oven Clock GEN WB27K5299 Contact Us For Availability

View on Model

25

Insert Retainer Bracket GEN WB02M0041 Contact Us For Availability

View on Model

32

WB26K5072 GE Oven Fan Assembly Backorder GEN WB26K5072 $115.32

View on Model

42

Heat Shield GEN WB34K5249 Contact Us For Availability

View on Model

46

Wire Shield GEN WB34K5099 Contact Us For Availability

View on Model

47

WB38K5058 GE Vent Barrier Backorder GEN WB38K5058 $13.88

View on Model

49

Con Hsg Scrn GEN WB07X5016 Contact Us For Availability

View on Model

68

Foot Trim Spacer GEN WB02K5177 Contact Us For Availability

View on Model

68A

Ft Tr Spacer GEN WB02M0040 Contact Us For Availability

View on Model

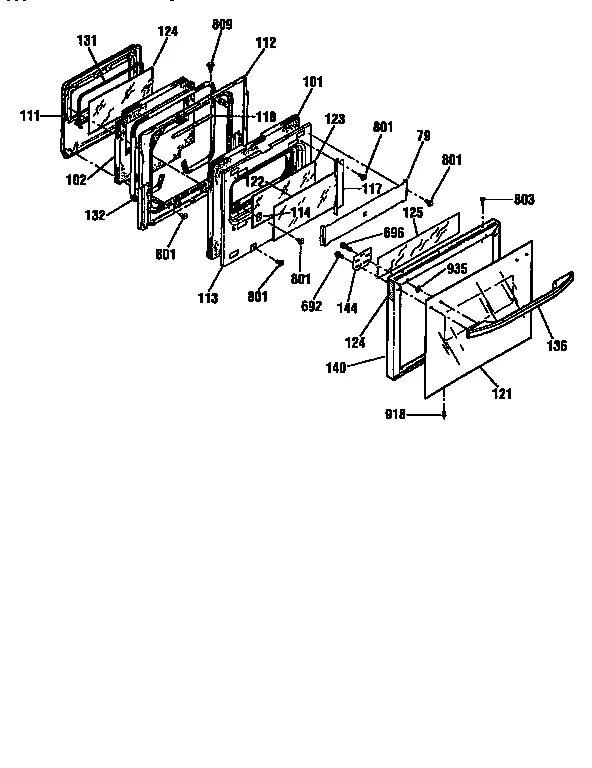

79

WB34K5077 GE Oven Door Baffle Backorder GEN WB34K5077 $15.27

View on Model

101

WB35K5054 GE Oven Door Insulation Backorder GEN WB35K5054 $21.32

View on Model

102

Oven Door Plug Insert GEN WB35K5055 Contact Us For Availability

View on Model

111

Ov Dr L Plug GEN WB55K5014 Contact Us For Availability

View on Model

112

Oven Door Line GEN WB55K5023 Contact Us For Availability

View on Model

113

WB2K5159 GE Oven Door Insulation Backorder GEN WB2K5159 $39.21

View on Model

114

Glass Retainer GEN WB02M0001 Contact Us For Availability

View on Model

117

Oven Door Glass Retainer GEN WB02K5131 Contact Us For Availability

View on Model

118

Odr Lin Stif GEN WB02K5132 Contact Us For Availability

View on Model

121

Wall Oven Door Outer Panel (White) GEN WB57K5326 Contact Us For Availability

View on Model

121A

Wall Oven Door Outer Panel (Black) GEN WB57K5327 Contact Us For Availability

View on Model

122

Ovdr In Glas GEN WB57K5093 Contact Us For Availability

View on Model

123

Glass GEN WB36K0779 Contact Us For Availability

View on Model

124

Oven Door Glass GEN WB57M0022 Contact Us For Availability

View on Model

124A

Frame Insltr GEN WB35K5132 Contact Us For Availability

View on Model

124B

WB35K5133 GE Door Insulator - Black Backorder GEN WB35K5133 $12.28

View on Model

125

WB34X26884 GE Oven Heat Reflector Backorder GEN WB34X26884 $5.65

View on Model

131

WB2X9168 GE Oven Seal Backorder GEN WB2X9168 $10.97

View on Model

132

Wall Oven Door Seal GEN WB32K5037 Contact Us For Availability

View on Model

136

HANDLE WHITE GEN WB15K5124 Contact Us For Availability

View on Model

136A

Door Hndl-bl GEN WB15K5125 Contact Us For Availability

View on Model

140

Frame W/insl GEN WB55K5079 Contact Us For Availability

View on Model

140A

Frame W/insl GEN WB55K5080 Contact Us For Availability

View on Model

144

WB2K5395 GE Oven Reinforcement Plate Backorder GEN WB2K5395 $8.35

View on Model

147

Glass Spacer GEN WB02X9039 Contact Us For Availability

View on Model

158

Limit Switch GEN WB24K5045 Contact Us For Availability

View on Model

159

WB24K5085 GE Oven Limit Switch Backorder GEN WB24K5085 $45.09

View on Model

185

WB15K5016 GE Oven Lock Lever Assembly Backorder GEN WB15K5016 $29.48

View on Model

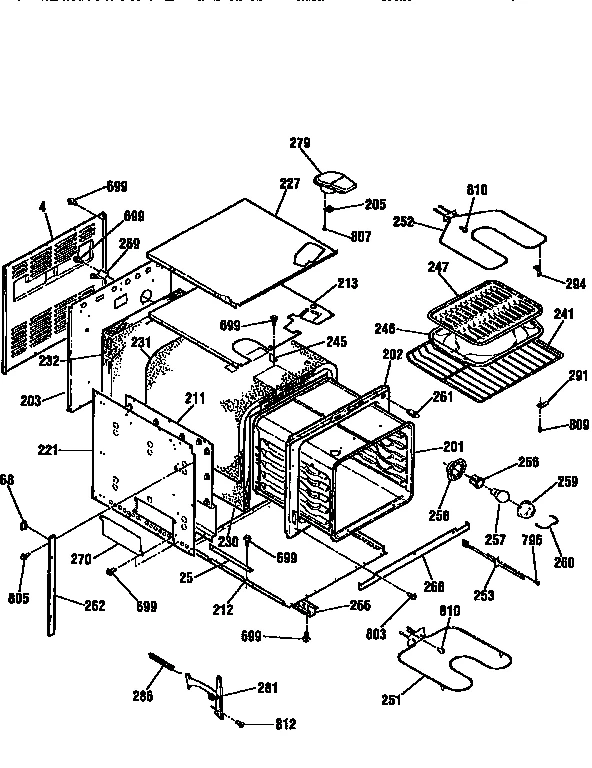

201

Oven Body GEN WB63K5115 Contact Us For Availability

View on Model

202

Frame GEN WB63K5157 Contact Us For Availability

View on Model

203

Main GEN WB63K5118 Contact Us For Availability

View on Model

205

WB6K5026 GE Range Smoke El Screw Backorder GEN WB6K5026 $20.65

View on Model

211

Ovsd Ins Ret GEN WB02K5180 Contact Us For Availability

View on Model

212

Cabinet GEN WB63K5116 Contact Us For Availability

View on Model

213

Insert Retainer GEN WB02K5256 Contact Us For Availability

View on Model

221

Cabinet GEN WB63K5117 Contact Us For Availability

View on Model

227

Cab Top Ret GEN WB02K5173 Contact Us For Availability

View on Model

230

WB35K5048 GE Inner Wrapper Insulation Backorder GEN WB35K5048 $100.10

View on Model

231

WB35K5068 GE Insulation Wrapper Backorder GEN WB35K5068 $51.54

View on Model

232

INSULATION-BACK AND BOTTOM GEN WB335K5057 Contact Us For Availability

View on Model

233

Cabinet Insert GEN WB35K5066 Contact Us For Availability

View on Model

241

WB48T10094 GE Oven Rack Backorder GEN WB48T10094 $30.88

View on Model

245

Scroll Bracket GEN WB02M0030 Contact Us For Availability

View on Model

247

WB48X10056 GE Broil Pan Set, Large Porcelain In Stock GEN WB48X10056 $18.60

View on Model

251

WB44K5013 GE Oven Bake Element Range In Stock GEN WB44K5013 $45.14

View on Model

252

WB44K5009 GE Oven Broil Element In Stock GEN WB44K5009 $53.34

View on Model

253

WB21X5301 GE Range Oven Temperature Sensor Pr In Stock GEN WB21X5301 $125.41

View on Model

256

WB8X303 GE Oven Lamp Holder Backorder GEN WB8X303 $34.65

View on Model

257

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.37

View on Model

258

Housing GEN WB02X7693 Contact Us For Availability

View on Model

259

WB36X192 GE Oven Light Cover In Stock GEN WB36X192 $10.83

View on Model

260

Bail GEN WB02X7694 Contact Us For Availability

View on Model

261

Jam Switch GEN WB24K5061 Contact Us For Availability

View on Model

262

WB7K5125 GE Oven Side Trim Backorder GEN WB7K5125 $34.48

View on Model

262

WB7K5495 GE Vent Trim Stainless Steel Backorder GEN WB7K5495 $83.35

View on Model

262A

WB7K5491 GE Trim Vent Black Backorder GEN WB7K5491 $38.26

View on Model

262A

Vert Sd Trim GEN WB07K5262 Contact Us For Availability

View on Model

263

I-brow Trm-w GEN WB07K5494 Contact Us For Availability

View on Model

263A

I-brow Trm-b GEN WB07K5478 Contact Us For Availability

View on Model

264

Vent Trim Ex GEN WB07K5121 Contact Us For Availability

View on Model

266

Channel GEN WB02X9634 Contact Us For Availability

View on Model

268

Lo Ft Frm Tr GEN WB07K5127 Contact Us For Availability

View on Model

268A

Lo Ft Trim GEN WB07M0012 Contact Us For Availability

View on Model

269

WB2K5164 GE Light Cup Support Backorder GEN WB2K5164 $5.28

View on Model

270

Cover Plate GEN WB02X9642 Contact Us For Availability

View on Model

279

Vent Box GEN WB38K5028 Contact Us For Availability

View on Model

281

Oven Drive Hinge GEN WB14K5006 Contact Us For Availability

View on Model

281A

Wall Oven Door Hinge, Left GEN WB14K5007 Contact Us For Availability

View on Model

286

Oven Drive Spring GEN WB09K5017 Contact Us For Availability

View on Model

291

COVER GEN WB02X9152 Contact Us For Availability

View on Model

294

WB2X9719 GE Oven Support Bracket Clip In Stock GEN WB2X9719 $7.66

View on Model

595

WB2K5126 GE Oven Condenser Clamp Backorder GEN WB2K5126 $6.70

View on Model

600

Control Wire GEN WB18K5364 Contact Us For Availability

View on Model

691

Trim Screw GEN WB01K5192 Contact Us For Availability

View on Model

691A

WB1K5177 GE Range Trim Screw Backorder GEN WB1K5177 $5.02

View on Model

692

Screw GEN WZ04X0416 Contact Us For Availability

View on Model

696

WB1K5156 GE Range Screw Backorder GEN WB1K5156 $5.65

View on Model

699

WB1M1 GE Oven Screw Backorder GEN WB1M1 $5.43

View on Model

760

WB1X536 GE Oven Screw Backorder GEN WB1X536 $6.90

View on Model

761

WB1K5062 GE Oven Screw Backorder GEN WB1K5062 $5.65

View on Model

761A

WB1K5029 GE Oven Screw Backorder GEN WB1K5029 $5.65

View on Model

796

WB1K5116 GE Oven Screw Backorder GEN WB1K5116 $5.65

View on Model

803

WB1X1149 GE Oven Screw Backorder GEN WB1X1149 $5.65

View on Model

803

Screw GEN WB01K5163 Contact Us For Availability

View on Model

803A

WB1K5162 GE Oven Black Screw Backorder GEN WB1K5162 $5.65

View on Model

804

WB1X681 GE Oven Screw Backorder GEN WB1X681 $5.65

View on Model

805

Screw GEN WB01X1113 Contact Us For Availability

View on Model

807

WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI Backorder GEN WB01X32746 $5.65

View on Model

809

WB1X1137 GE Oven Screw Backorder GEN WB1X1137 $5.65

View on Model

810

WB1X1130 GE Oven Screw 10-32 Backorder GEN WB1X1130 $5.65

View on Model

812

WB1K5191 GE Oven Zinc FL Screw Backorder GEN WB1K5191 $5.65

View on Model

813

WB1X1261 GE Oven Screw Backorder GEN WB1X1261 $5.65

View on Model

856

WB1X1293 GE Oven Screw In Stock GEN WB1X1293 $5.65

View on Model

875

WH2X930 GE Screw Backorder GEN WH2X930 $5.65

View on Model

909

WB1X1173 GE Rivet Backorder GEN WB1X1173 $5.02

View on Model

918

WB1K5071 GE Oven Plastic Rivet Backorder GEN WB1K5071 $5.28

View on Model

926

GROUND WASHER GEN WB01X1260 Contact Us For Availability

View on Model

927

WB1X119D GE Oven Range Washer In Stock GEN WB1X119D $10.25

View on Model

935

Washer GEN WB01M0021 Contact Us For Availability

View on Model

989

WB1K5209 GE Oven Clip Backorder GEN WB1K5209 $9.19

View on Model

989

Flat Speed Nut GEN WB01K5084 Contact Us For Availability

View on Model

993

Speed Nut Fl GEN WB01K5141 Contact Us For Availability

View on Model

999

Mini Manual GEN 31-13328 Contact Us For Availability

View on Model

999A

Range Owner's Manual GEN SR10294 Contact Us For Availability

View on Model

999B

Repair Parts List GEN 31-13386 Contact Us For Availability

View on Model

999C

Installation Instructions GEN 31-10118 Contact Us For Availability

View on Model
