Model GE 911.36756590 30" Gas Slide-In Range (Kenmore 91136756590) – Common Parts & Diagrams

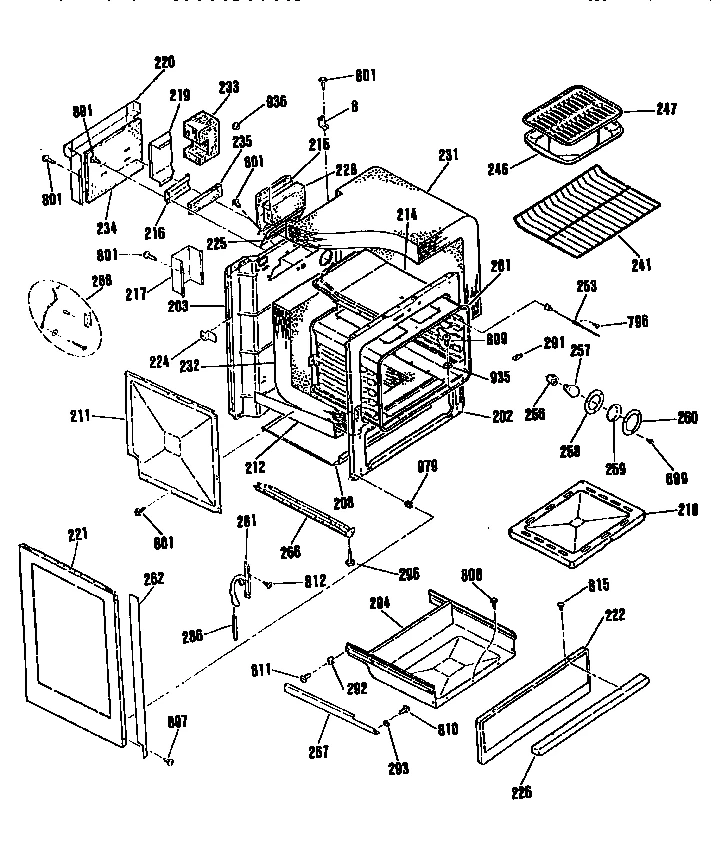

BODY SECTION

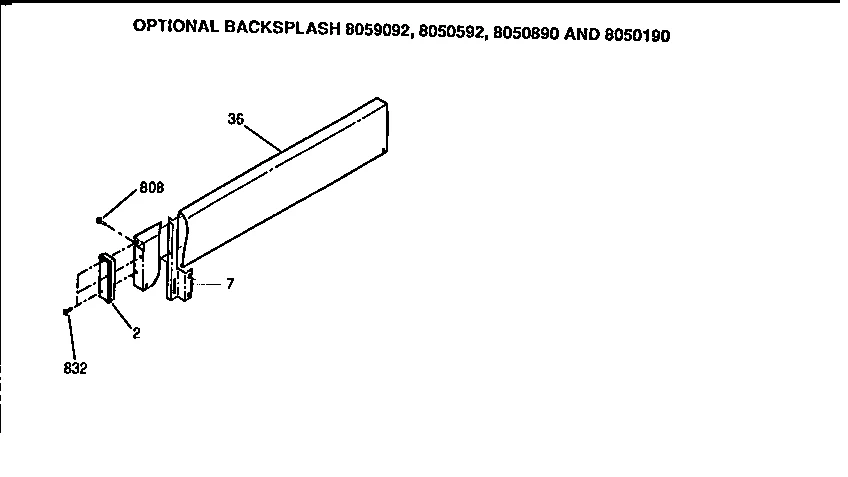

OPTIONAL BACKSPLASH
MAIN TOP SECTION
DOOR SECTION
WIRE HARNESS AND COMPONENTS
OVEN BURNER SECTION
All Parts
TOP BURNER SECTION
DOOR LOCK SECTION
Common parts from model GE 911.36756590 30" Gas Slide-In Range (Kenmore 91136756590)
1
Air Mix Tube GEN WB16K0014 Contact Us For Availability
2
End Cap GEN WB36K5497 Contact Us For Availability
2
End Cap GEN WB54K5411 Contact Us For Availability
2A
End Cap GEN WB36K5498 Contact Us For Availability
2A
End Cap GEN WB54K5410 Contact Us For Availability
2B
End Cap GEN WB36K5378 Contact Us For Availability
2C
Range Control Panel End Cap, Right GEN WB36K5379 Contact Us For Availability
2D
End Cap GEN WB36K5440 Contact Us For Availability
2E
End Cap GEN WB36K5439 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K5095 Contact Us For Availability
3A
Range Surface Burner Orifice GEN WB28K5096 Contact Us For Availability
3B
Orif Spd Rrc GEN WB28K0141 Contact Us For Availability
3C
Range Surface Burner Orifice GEN WB28K5087 Contact Us For Availability
3D
LP Orifice Spud GEN WB28K0145 Contact Us For Availability
3E
Orifice Spud GEN WB28K0146 Contact Us For Availability
4
Air Mix Tube GEN WB16K0013 Contact Us For Availability
7
Backguard Support GEN WB02K5152 Contact Us For Availability
7
Duct Fan GEN WB26M0001 Contact Us For Availability
7A
Backguard Support GEN WB02K5153 Contact Us For Availability
11
Wire Cover GEN WB64K5038 Contact Us For Availability
16
Erc Ii C GEN WB27K5187 Contact Us For Availability
18
Clock Plate GEN WB27K5167 Contact Us For Availability
18A
Range Oven Control Faceplate GEN WB27K5166 Contact Us For Availability
18B
Clock Plate GEN WB27K5225 Contact Us For Availability
20
SWITCH BRACKET GEN WB02K5238 Contact Us For Availability
20A
Trim Bracket GEN WB02M0077 Contact Us For Availability
20B
Bracket Clock GEN WB02M0075 Contact Us For Availability
21A
Light Switch (Black) GEN WB24X0415 Contact Us For Availability
21B
Rocker Switch GEN WB24K5081 Contact Us For Availability
25
Bracket GEN WB02X9131 Contact Us For Availability
29
Gas Valve Knob GEN WB03K5269 Contact Us For Availability
29A
Vlv Knob Blk GEN WB03K5271 Contact Us For Availability
29B
Gas Valve Knob GEN WB03K5270 Contact Us For Availability
32
Fan Motor GEN WB26X0100 Contact Us For Availability
36
Range Backsplash (Black) GEN WB36K5145 Contact Us For Availability
36A
Backsplash (White) GEN WB36K5045 Contact Us For Availability
36B
Bcksplash Ad GEN WB36K5305 Contact Us For Availability
36C
Backsplash GEN WB36K5123 Contact Us For Availability
37
Filler Trim GEN WB07K5398 Contact Us For Availability
37A
Filler Trim GEN WB07K5399 Contact Us For Availability
37B
Filler Trim GEN WB07K5397 Contact Us For Availability
42
Fan Duct Shd GEN WB34K5076 Contact Us For Availability
47
Vent Cover GEN WB38K5053 Contact Us For Availability
47A
Vent Cover GEN WB38K5054 Contact Us For Availability
51
Main GEN WB61K5048 Contact Us For Availability
51A
Main Top GEN WB61K5045 Contact Us For Availability
51B
Glass GEN WB61K5046 Contact Us For Availability
52
Manifold Panel GEN WB36K5479 Contact Us For Availability
52A
Control Panel GEN WB36K5463 Contact Us For Availability
52B
Ctrl Pnl Ad GEN WB36K5591 Contact Us For Availability
60
Range Drip Pan (White) GEN WB31K5079 Contact Us For Availability
60A
Range Drip Pan GEN WB31K5080 Contact Us For Availability
60C
Range Drip Pan (Almond) GEN WB31K5082 Contact Us For Availability
60D
Range Drip Pan GEN WB31K5083 Contact Us For Availability
60E
Burner Bowl GEN WB31K5084 Contact Us For Availability
60H
Range Drip Pan GEN WB31K5078 Contact Us For Availability
61
Burner Box GEN WB64K5092 Contact Us For Availability
63
Stiffner GEN WB02X9110 Contact Us For Availability
63A
Stiffner GEN WB02X9132 Contact Us For Availability
71
Manifold Insert GEN WB35K5107 Contact Us For Availability
72
Acrylic Tape GEN WB06K5014 Contact Us For Availability
93
Wire Cover GEN WB34K5074 Contact Us For Availability
93A
Wire Cover GEN WB34K5075 Contact Us For Availability
94
Moisture Bar GEN WB34K5153 Contact Us For Availability
101
Insulation Vent Trim GEN WB35K5037 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
111
Oven Drive Plug GEN WB55K5037 Contact Us For Availability
112
Ovdr Lining GEN WB55K5038 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
116
Plate GEN WB02X9178 Contact Us For Availability
121
Oven Door Glass GEN WB57K5215 Contact Us For Availability
121A
Door Glass Outer Oven GEN WB57K5216 Contact Us For Availability
121B
Ov Dr Gls Ad GEN WB57K5287 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5141 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
124
Drive Frame Insulation (White) GEN WB35K5104 Contact Us For Availability
124A
Drive Frame Insulation GEN WB35K5103 Contact Us For Availability
124B
Drive Frame Insert GEN WB35K5109 Contact Us For Availability
125
Heat Reflector GEN WB34K5091 Contact Us For Availability
127
Heat Shield GEN WB34K5227 Contact Us For Availability
136
Dr Hndl Blk GEN WB15K5074 Contact Us For Availability
136A
Dr Hndl Wht GEN WB15K5073 Contact Us For Availability
136B
HANDLE, ALMOND GEN WB17K5104 Contact Us For Availability
140
FRAME (INCL. KEY'S 124, 125), WHITE GEN WB5K5055 Contact Us For Availability
140A
Drive Frame Insert GEN WB55K5056 Contact Us For Availability
140B
Oven Door Frame GEN WB55K5064 Contact Us For Availability
146
Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability
146A
Spacer GEN WB02X9640 Contact Us For Availability
146B
Oven Door Spacer GEN WB02K5302 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
151
Burner Cap GEN WB29K0042 Contact Us For Availability
151A
Burner Cap GEN WB29K0045 Contact Us For Availability
151B
Burner Cap GEN WB29K0048 Contact Us For Availability
151C
Burner Cap GEN WB29K0043 Contact Us For Availability
151D
Burner Cap GEN WB29K0046 Contact Us For Availability
151E
Burner Cap GEN WB29K0049 Contact Us For Availability
151F
Burner Cap GEN WB29K0041 Contact Us For Availability
151G
Burner Cap GEN WB29K0044 Contact Us For Availability
151H
Burner Cap GEN WB29K0047 Contact Us For Availability
155
Burner Head GEN WB16K0012 Contact Us For Availability
155A
Burner Head GEN WB16K0011 Contact Us For Availability
155B
Brnr Head Lg GEN WB16K0010 Contact Us For Availability
161
Lock Switch GEN WB24X0416 Contact Us For Availability
166
Lock Box GEN WB02X9126 Contact Us For Availability
168
Electrode Clip GEN WB01K0056 Contact Us For Availability
171
Insulator GEN WB02X9129 Contact Us For Availability
173
Spring GEN WB09X0242 Contact Us For Availability
182
Bracket Door Switch GEN WB06X0007 Contact Us For Availability
183
Lock Pin GEN WB02X9128 Contact Us For Availability
184
Dr Lock Plt GEN WB02K5237 Contact Us For Availability
185
Lock Lever Assembly GEN WB15K5015 Contact Us For Availability
195
Lock Spring GEN WB09X0243 Contact Us For Availability
228
Insulation GEN WB02X9430 Contact Us For Availability
228
Fan Duct Insert GEN WB35K5044 Contact Us For Availability
231
INSULATION-TOP AND SIDES GEN WB0O2X9153 Contact Us For Availability
232
Ins Bk & Bot GEN WB35K5035 Contact Us For Availability
233
Insulation GEN WB02X9140 Contact Us For Availability
234
Ins Flue Def GEN WB35K5077 Contact Us For Availability
235
Insulation GEN WB02X9394 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
258
Gasket GEN WB02X9151 Contact Us For Availability
259
Light Lens GEN WB36X0754 Contact Us For Availability
260
Light Lens GEN WB02K5303 Contact Us For Availability
262
Vert Sd Trim GEN WB07K5343 Contact Us For Availability
262A
Vert Sd Trim GEN WB07K5344 Contact Us For Availability
262B
Vert Sd Trim GEN WB07K5335 Contact Us For Availability
262C
Vert Sd Trim GEN WB07K5336 Contact Us For Availability
262D
Vert Sd Trim GEN WB07K5347 Contact Us For Availability
262E
Vert Sd Trim GEN WB07K5348 Contact Us For Availability
266
Base GEN WB02K5334 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
286
Oven Drive Spring GEN WB09X0244 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Range Level Screw GEN WB01M0018 Contact Us For Availability
301
Tube GEN WB28K5016 Contact Us For Availability
302
Tube GEN WB28K5019 Contact Us For Availability
303
Tube GEN WB28K5025 Contact Us For Availability
303A
Orifice Hood GEN WB13K5043 Contact Us For Availability
304
Tube GEN WB28K5023 Contact Us For Availability
305
Tube Assembly, Left GEN WB28K5070 Contact Us For Availability
305A
Tube Assembly, Right GEN WB28K5071 Contact Us For Availability
306
Tube Assembly, Right GEN WB28K5072 Contact Us For Availability
306A
Tube Assembly, Left GEN WB28K5073 Contact Us For Availability
309
Oven Burner GEN WB28X0089 Contact Us For Availability
310
Bottom GEN WB53X0277 Contact Us For Availability
311
Broil Burner GEN WB28X0088 Contact Us For Availability
312
Pressure Regulator GEN WB19K5020 Contact Us For Availability
314
Range Surface Burner Valve GEN WB19K5027 Contact Us For Availability
314A
Small Gas Valve GEN WB19K5028 Contact Us For Availability
315
Control Valve GEN WB21X0475 Contact Us For Availability
316
Cooktop Burner Igniter GEN WB13K5058 Contact Us For Availability
317A
Bracket GEN WB02X9155 Contact Us For Availability
318
Spark Module GEN WB13K0025 Contact Us For Availability
320
Cover Valve Wire GEN WB34K5146 Contact Us For Availability
321
Wire Cover GEN WB34K5226 Contact Us For Availability
327
Spacer GEN WB06X0100 Contact Us For Availability
330
Clip GEN WB02K5125 Contact Us For Availability
331
Gasket GEN WB06X0091 Contact Us For Availability
334
Burner Support GEN WB02K5361 Contact Us For Availability
338
Str Ell-1/2 GEN WB06X0080 Contact Us For Availability
342
Burner Bx Insulation GEN WB06X0081 Contact Us For Availability
342
Bowl Bracket GEN WB02K5380 Contact Us For Availability
342A
Bowl Bracket GEN WB02K5381 Contact Us For Availability
346
Fitting GEN WB02X9156 Contact Us For Availability
348
Shield GEN WB02X9159 Contact Us For Availability
353
Air Shutter GEN WB02X9014 Contact Us For Availability
366
Screw Gasket GEN WB04K5002 Contact Us For Availability
369
Reg Bracket GEN WB02K5227 Contact Us For Availability
372
Cover Chip GEN WB06K5015 Contact Us For Availability
373
Baffle GEN WB49X0631 Contact Us For Availability
374
Baffle GEN WB49X0629 Contact Us For Availability
374A
Baffle GEN WB49X0630 Contact Us For Availability
382
Wire Cvr Shd GEN WB34K5147 Contact Us For Availability
391
Retainer GEN WB02X9176 Contact Us For Availability
394
Orifice Bracket GEN WB02K5367 Contact Us For Availability
400
Manual Pipe GEN WB28K5008 Contact Us For Availability
551
Switch Wire Harness GEN WB18K5354 Contact Us For Availability
551A
Main Wiring Harness GEN WB18K5375 Contact Us For Availability
551B
Main Wiring Harness GEN WB18K5505 Contact Us For Availability
551C
Electronic Harness GEN WB18K5557 Contact Us For Availability
551D
Mtr W Harn GEN WB18K5376 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
580B
.110 - .020 (SWITCH LEAD) GEN STD374120 Contact Us For Availability
678
Palnut GEN WB01K5196 Contact Us For Availability
691B
Trim Screw GEN WB01K5176 Contact Us For Availability
805
Screw GEN WB01X1113 Contact Us For Availability
807B
Screw-almond GEN WB01K5168 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
812
Screw Black GEN WB01K5160 Contact Us For Availability
812B
Screw-almond GEN WB01K5158 Contact Us For Availability
815
Screw GEN WB01K5139 Contact Us For Availability
817
Screw GEN WB01X1346 Contact Us For Availability
831
Screw-6-32 GEN WB01X1132 Contact Us For Availability
839
Adjustment Screw GEN WB01X1124 Contact Us For Availability
851
Screw GEN WB01X5691 Contact Us For Availability
852
Screw GEN WB01X1179 Contact Us For Availability
854
Screw (Black) GEN WB01X1164 Contact Us For Availability
855
Screw GEN WB01X1295 Contact Us For Availability
861
Screw GEN WB01X1307 Contact Us For Availability
866
Scw8-32x.748 GEN WB01X1428 Contact Us For Availability
932
Speed Nut GEN WB01X1432 Contact Us For Availability
933
Washer GEN WB01X1256 Contact Us For Availability
936
Bushing GEN WB02X9103 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
986
Inverted Nut GEN WB01X1117 Contact Us For Availability
NI
Backguard Kit GEN SR10099 Contact Us For Availability
NI
User's Manual GEN SR10265 Contact Us For Availability
NI
Installation GEN SR10284 Contact Us For Availability
NI
Wiring Diagram GEN SR13561 Contact Us For Availability
NI
Range Parts GEN SR13614 Contact Us For Availability
× ![]()
Login and Registration Form
