Model GE 911.33384101 36" Gas Cooktop (Kenmore 91133384101) – Common Parts & Diagrams
BURNER
WIRE HARNESSES AND COMPONETS

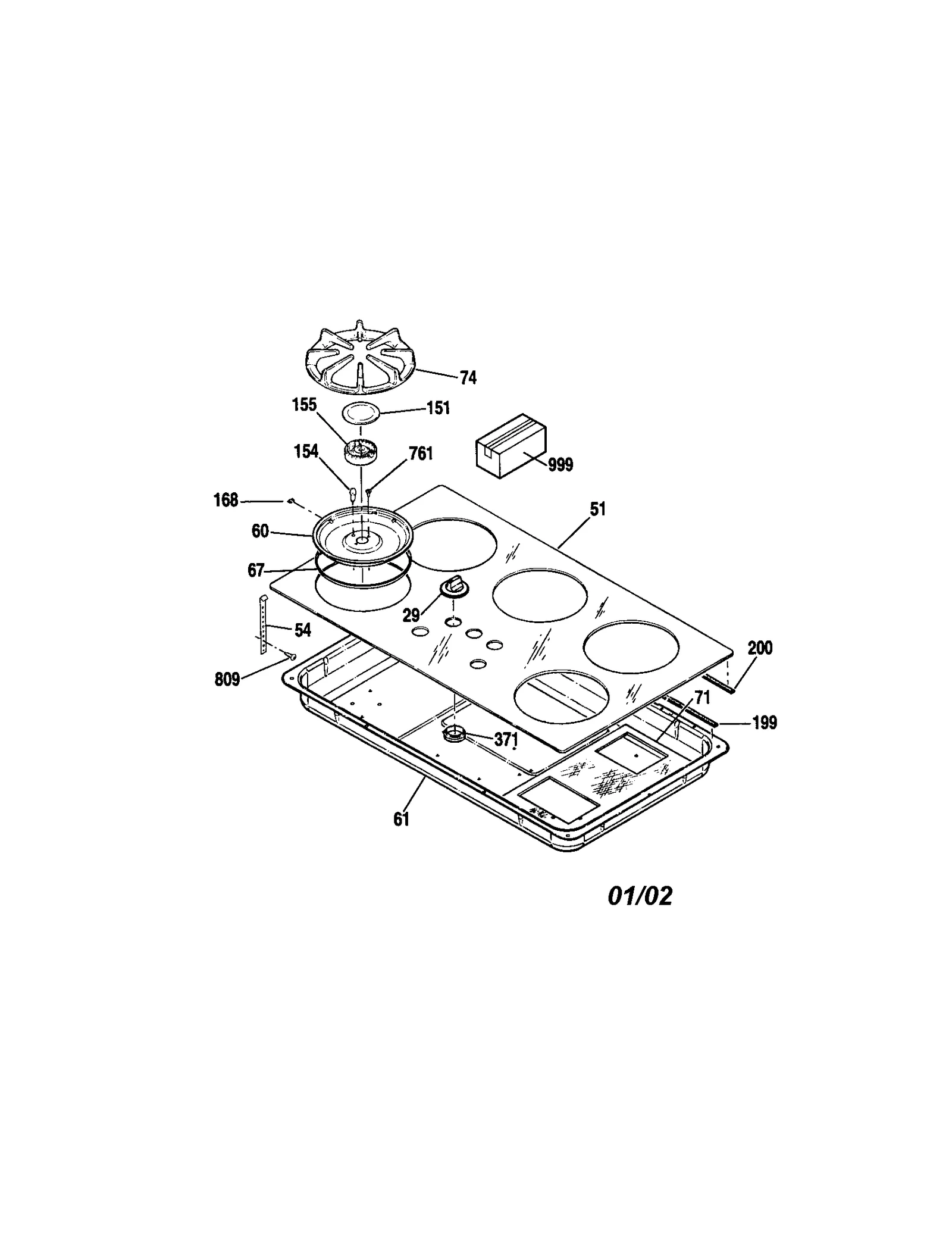

MAINTOP
Common parts from model GE 911.33384101 36" Gas Cooktop (Kenmore 91133384101)
3
Range Surface Burner Orifice GEN WB28K5096 Contact Us For Availability
3E
Range Surface Burner Orifice GEN WB28K5087 Contact Us For Availability
29
Gas Valve Knob GEN WB03T10163 Contact Us For Availability
29A
Gas Valve Knob GEN WB03T10164 Contact Us For Availability
29B
Cooktop Burner Knob GEN WB03T10168 Contact Us For Availability
51
Glass Main Top GEN WB61T10082 Contact Us For Availability
51A
Cooktop Glass Main Top GEN WB61T10017 Contact Us For Availability
51B
Cooktop Glass Main Top GEN WB61T10019 Contact Us For Availability
60
Cooktop Drip Pan GEN WB31T10016 Contact Us For Availability
60A
Range Drip Pan (White) GEN WB31K5079 Contact Us For Availability
60C
Range Drip Pan GEN WB31T10017 Contact Us For Availability
60D
Range Drip Pan GEN WB31K5080 Contact Us For Availability
60F
Range Drip Pan GEN WB31T10018 Contact Us For Availability
60H
Range Drip Pan GEN WB31K5078 Contact Us For Availability
61
Burner GEN WB64T10030 Contact Us For Availability
67
Seal Brnr Bw GEN WB32M0010 Contact Us For Availability
67A
Bur Bowl Sea GEN WB32M0008 Contact Us For Availability
71
Burner Bx Insulation GEN WB35K5086 Contact Us For Availability
74
Cooktop Burner Grate GEN WB31T10008 Contact Us For Availability
151
Burner Cap GEN WB29T10002 Contact Us For Availability
151A
Burner Cap GEN WB29T10003 Contact Us For Availability
151B
Burner Cap GEN WB29T10001 Contact Us For Availability
151C
Burner Cap GEN WB29T10005 Contact Us For Availability
151D
Cooktop Burner Cap GEN WB29T10006 Contact Us For Availability
151E
Burner Cap GEN WB29T10004 Contact Us For Availability
151F
Burner Cap GEN WB29T10008 Contact Us For Availability
151G
Burner Cap GEN WB29T10009 Contact Us For Availability
151H
Burner Cap GEN WB29T10007 Contact Us For Availability
155
Burner Head GEN WB16K0012 Contact Us For Availability
155A
Burner Head GEN WB16K0011 Contact Us For Availability
155B
Brnr Head Lg GEN WB16K0010 Contact Us For Availability
168
Electrode Clip GEN WB01K0056 Contact Us For Availability
199
Foam Tape GEN WB06K5051 Contact Us For Availability
314
Cooktop Burner Valve GEN WB21T10010 Contact Us For Availability
314A
Cooktop Burner Valve, Right Front GEN WB21T10013 Contact Us For Availability
314B
Gas Valve GEN WB21T10011 Contact Us For Availability
314C
Gas Valve GEN WB21T10012 Contact Us For Availability
371
Seal Control GEN WB32K5034 Contact Us For Availability
371A
Seal Control GEN WB04K5004 Contact Us For Availability
371B
Cooktop Gas Valve Shield GEN WB32K5035 Contact Us For Availability
394
Orifice Bracket GEN WB02K5370 Contact Us For Availability
400
Manifold Pipe GEN WB28T10066 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
866
Scw8-32x.748 GEN WB01X1428 Contact Us For Availability
999
Cooktop Wire Harness GEN WB18T10253 Contact Us For Availability
999
MANUAL MINI & WD ASM GEN 31-13960 Contact Us For Availability
999A
Cooktop Owner's Manual GEN SR10421 Contact Us For Availability
999B
Repair Parts List GEN 31-13961 Contact Us For Availability
999C
Installation Instructions GEN 31-10505 Contact Us For Availability
999D
Installation Instructions GEN 31-10506 Contact Us For Availability
× ![]()
