Model GE 911.33355590 Range (Kenmore 91133355590) – Common Parts & Diagrams
All Parts
WIRE HARNESS

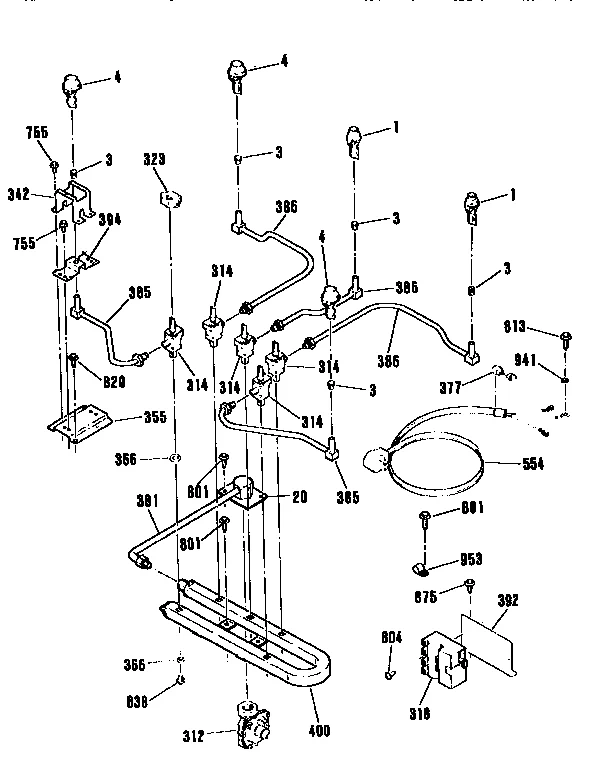

BURNER

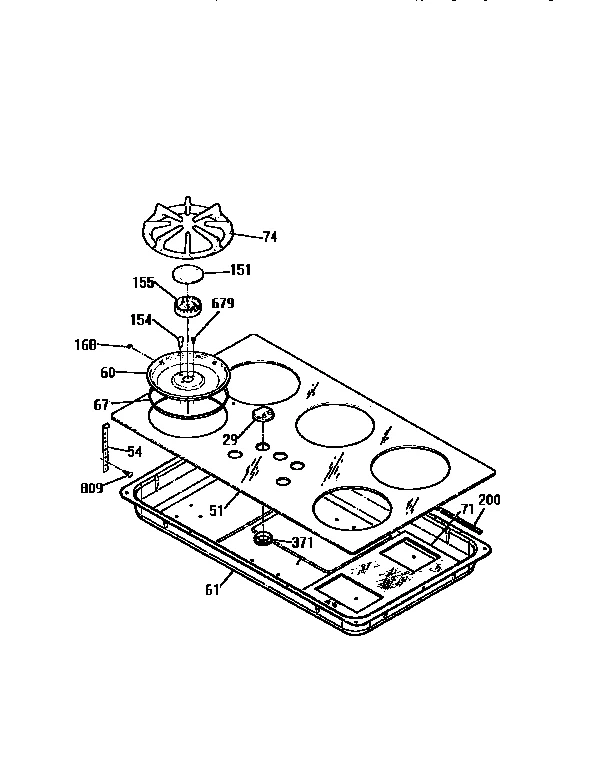

MAIN TOP
Common parts from model GE 911.33355590 Range (Kenmore 91133355590)
3
Range Surface Burner Orifice GEN WB28K5096 Contact Us For Availability
3E
Range Surface Burner Orifice GEN WB28K5087 Contact Us For Availability
20
Retainer Bracket GEN WB02K5327 Contact Us For Availability
29
Knob Lg Brnr GEN WB03K5136 Contact Us For Availability
29A
Small Burner Knob GEN WB03K5137 Contact Us For Availability
29B
Vlv Knob Ad GEN WB03K5279 Contact Us For Availability
51
Glass Main Top GEN WB57K5131 Contact Us For Availability
51A
Glass Main Top GEN WB57K5132 Contact Us For Availability
51B
Glass Main GEN WB61K5039 Contact Us For Availability
60
Range Drip Pan (White) GEN WB31K5079 Contact Us For Availability
60A
Range Drip Pan GEN WB31K5080 Contact Us For Availability
60E
Range Drip Pan GEN WB31K5078 Contact Us For Availability
60F
Range Drip Pan (Almond) GEN WB31K5082 Contact Us For Availability
60G
Range Drip Pan GEN WB31K5083 Contact Us For Availability
60H
Burner Bowl GEN WB31K5084 Contact Us For Availability
61
Burner Box GEN WB64K5088 Contact Us For Availability
61
Burner Box GEN WB64K5095 Contact Us For Availability
66
Module Mounting Plate GEN WB02K5292 Contact Us For Availability
67
Seal Brnr Bw GEN WB32M0010 Contact Us For Availability
67A
Bur Bowl Sea GEN WB32M0008 Contact Us For Availability
71
Burner Bx Insulation GEN WB35K5086 Contact Us For Availability
151
Burner Cap GEN WB29K0048 Contact Us For Availability
151A
Burner Cap GEN WB29K0045 Contact Us For Availability
151B
Burner Cap GEN WB29K0042 Contact Us For Availability
151C
Burner Cap GEN WB29K0041 Contact Us For Availability
151D
Burner Cap GEN WB29K0044 Contact Us For Availability
151E
Burner Cap GEN WB29K0047 Contact Us For Availability
151F
Burner Cap GEN WB29K0043 Contact Us For Availability
151G
Burner Cap GEN WB29K0046 Contact Us For Availability
151H
Burner Cap GEN WB29K0049 Contact Us For Availability
155
Burner Head GEN WB16K0012 Contact Us For Availability
155A
Burner Head GEN WB16K0011 Contact Us For Availability
155B
Brnr Head Lg GEN WB16K0010 Contact Us For Availability
168
Electrode Clip GEN WB01K0056 Contact Us For Availability
314A
Gas Valve GEN WB21K5031 Contact Us For Availability
314B
Gas Valve GEN WB21K5032 Contact Us For Availability
318
Spark Module GEN WB13K5059 Contact Us For Availability
323
Cooktop Burner Igniter Switch GEN WB24K5078 Contact Us For Availability
342
Bowl Bracket GEN WB02K5369 Contact Us For Availability
354
SCREW 8-18 X 3/8" GEN WB01K0536 Contact Us For Availability
355
Orifice Support GEN WB02K5372 Contact Us For Availability
366
Valve Gasket GEN WB02X9011 Contact Us For Availability
366A
Gasket GEN WB02X9092 Contact Us For Availability
371
Seal Control GEN WB32K5034 Contact Us For Availability
371A
Cooktop Gas Valve Shield GEN WB32K5035 Contact Us For Availability
371B
Seal Control GEN WB04K5004 Contact Us For Availability
377
Strain Relef GEN WB02K5275 Contact Us For Availability
381
Manifold Tube GEN WB28K5058 Contact Us For Availability
385
Tube Assembly, Right GEN WB28K5080 Contact Us For Availability
385A
Tube Assembly, Left GEN WB28K5081 Contact Us For Availability
386
Tube Assembly, Right GEN WB28K5082 Contact Us For Availability
386A
Tube Assembly, Left GEN WB28K5083 Contact Us For Availability
386B
Center Tube GEN WB28K5084 Contact Us For Availability
392
Module Bracket GEN WB02K5291 Contact Us For Availability
394
Orifice Bracket GEN WB02K5370 Contact Us For Availability
400
Manifold GEN WB28K5055 Contact Us For Availability
554
Range Cord GEN WB08K5040 Contact Us For Availability
838
Valve Screw GEN WB01X1121 Contact Us For Availability
941
Washer GEN WB01X1399 Contact Us For Availability
953
Clip GEN WB02X9106 Contact Us For Availability
× ![]()
