Model GE 911.33285890 36" Gas Counter Unit (Kenmore 91133285890) – Common Parts & Diagrams
BURNER SECTION
TOP SECTION

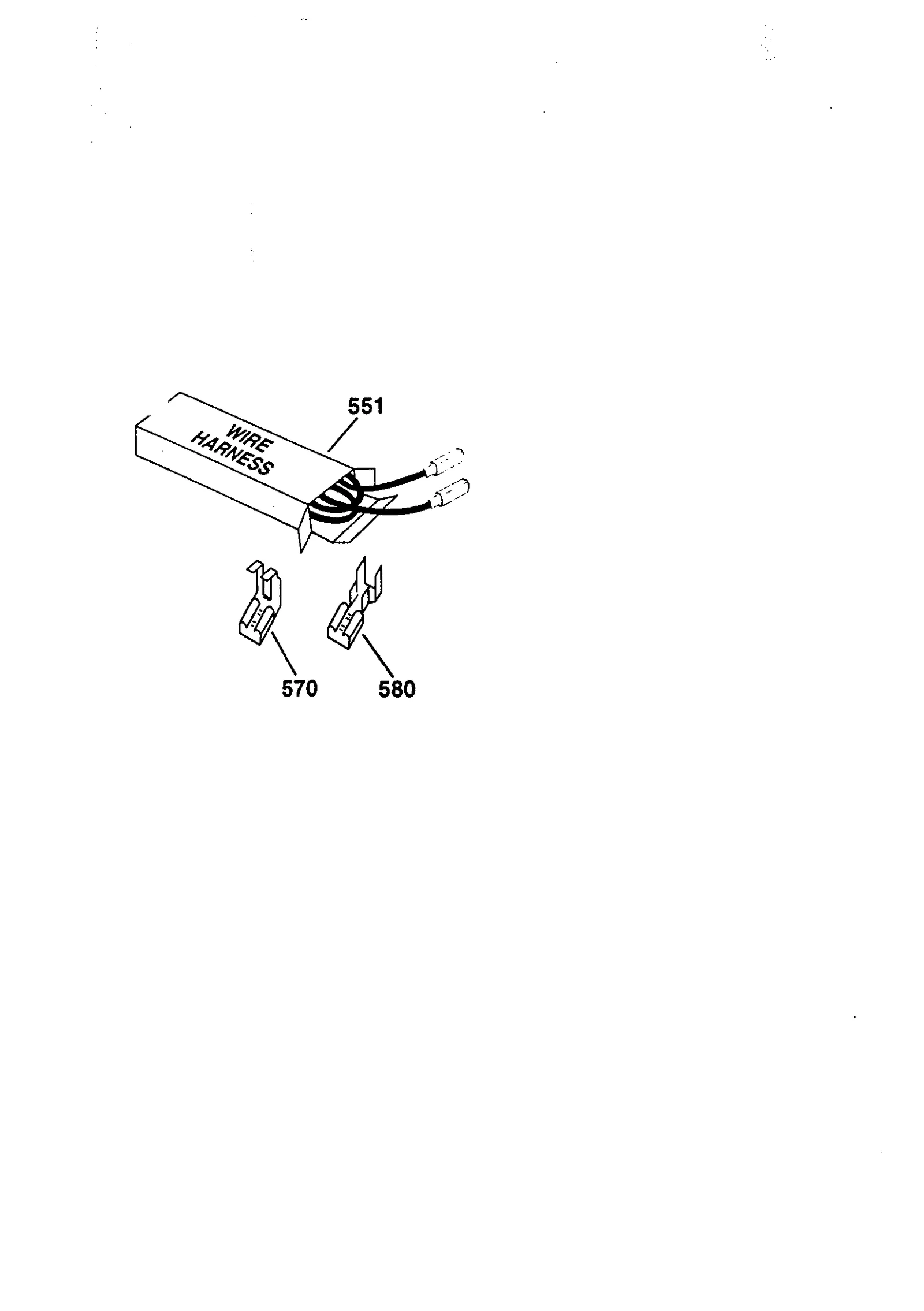

WIRE HARNESS AND CONPONENTS
Common parts from model GE 911.33285890 36" Gas Counter Unit (Kenmore 91133285890)
1
Glass Control Panel GEN WB57T10085 Contact Us For Availability
1A
Glass Control Panel GEN WB57T10084 Contact Us For Availability
3B
Range Surface Burner Orifice GEN WB28K5087 Contact Us For Availability
29
Cooktop Burner Knob GEN WB03T10049 Contact Us For Availability
29A
Range Control Knob GEN WB03T10047 Contact Us For Availability
51
Main Top Wht GEN WB62K5104 Contact Us For Availability
51A
Main Top Blk GEN WB62K5106 Contact Us For Availability
54
Main Top Seal GEN WB32K5047 Contact Us For Availability
54A
Cooktop Main Top Seal GEN WB32K5031 Contact Us For Availability
60A
Range Drip Pan GEN WB31K5091 Contact Us For Availability
60B
Range Drip Pan GEN WB31K5090 Contact Us For Availability
60C
Range Drip Pan GEN WB31K5088 Contact Us For Availability
61
Burner Box GEN WB64K5090 Contact Us For Availability
71
Insulation GEN WB02X9529 Contact Us For Availability
74A
Cooktop Burner Grate GEN WB31T10003 Contact Us For Availability
80
Burner Bx Shield GEN WB34K5188 Contact Us For Availability
91
Main Top Hinge GEN WB10K5010 Contact Us For Availability
151
Burner Cap GEN WB29K0042 Contact Us For Availability
151A
Burner Cap GEN WB29K0045 Contact Us For Availability
151B
Burner Cap GEN WB29K0041 Contact Us For Availability
151C
Burner Cap GEN WB29K0044 Contact Us For Availability
155
Burner Head GEN WB16K0012 Contact Us For Availability
155A
Burner Head GEN WB16K0011 Contact Us For Availability
168
Electrode Clip GEN WB01K0056 Contact Us For Availability
314
Valve GEN WB19K5030 Contact Us For Availability
314A
Gas Valve GEN WB19K5031 Contact Us For Availability
318
Spark Module GEN WB13K0025 Contact Us For Availability
342
Bowl Bracket GEN WB02K5377 Contact Us For Availability
342A
Bowl Bracket GEN WB02K5378 Contact Us For Availability
355
Orifice Support GEN WB02K5379 Contact Us For Availability
366
Valve Gasket GEN WB02X9011 Contact Us For Availability
371
Cooktop Glass Control Panel Seal GEN WB32K5027 Contact Us For Availability
371A
Cooktop Burner Valve Seal (Black) GEN WB32K5032 Contact Us For Availability
377
Strain Relef GEN WB02K5275 Contact Us For Availability
385
Tube Assembly, Right GEN WB28K5088 Contact Us For Availability
385A
Tube Assembly, Right GEN WB28K5091 Contact Us For Availability
386
Tube Asm Lft GEN WB28K5090 Contact Us For Availability
386A
Tube Asm Lft GEN WB28K5089 Contact Us For Availability
390
Manifold Tube GEN WB28K5057 Contact Us For Availability
394
Orifice Bracket GEN WB02K5370 Contact Us For Availability
400
Manual Pipe GEN WB28K5049 Contact Us For Availability
551
Valve Switch Harness GEN WB18K5566 Contact Us For Availability
551A
Cooktop Wire Harness GEN WB18K5567 Contact Us For Availability
554
Range Cord GEN WB08K5040 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
613
Gasket GEN WB02X9008 Contact Us For Availability
838
Valve Screw GEN WB01X1121 Contact Us For Availability
871
Screw GEN WB01K5122 Contact Us For Availability
923
Strike GEN WB14X0131 Contact Us For Availability
932
Felt Washer GEN WB01X1421 Contact Us For Availability
941
Washer GEN WB01X1399 Contact Us For Availability
953
Clip GEN WB02X9106 Contact Us For Availability
956
Drive Stirrer Catch GEN WB02K5326 Contact Us For Availability
980
Nut GEN WB01X1129 Contact Us For Availability
987
Speed Nut GEN WB01X1311 Contact Us For Availability
999
Owner's Manual GEN SR10420 Contact Us For Availability
999A
Installation GEN SR10276 Contact Us For Availability
999B
Repair Parts List GEN 31-13627 Contact Us For Availability
999C
MINI MANUAL W/WIRE DIAG. GEN 31-13233 Contact Us For Availability
× ![]()
