Model GE 911.32385890 30" Gas Counter Unit (Kenmore 91132385890) – Common Parts & Diagrams
BURNER
WIRE HARNESSES AND COMPONENTS

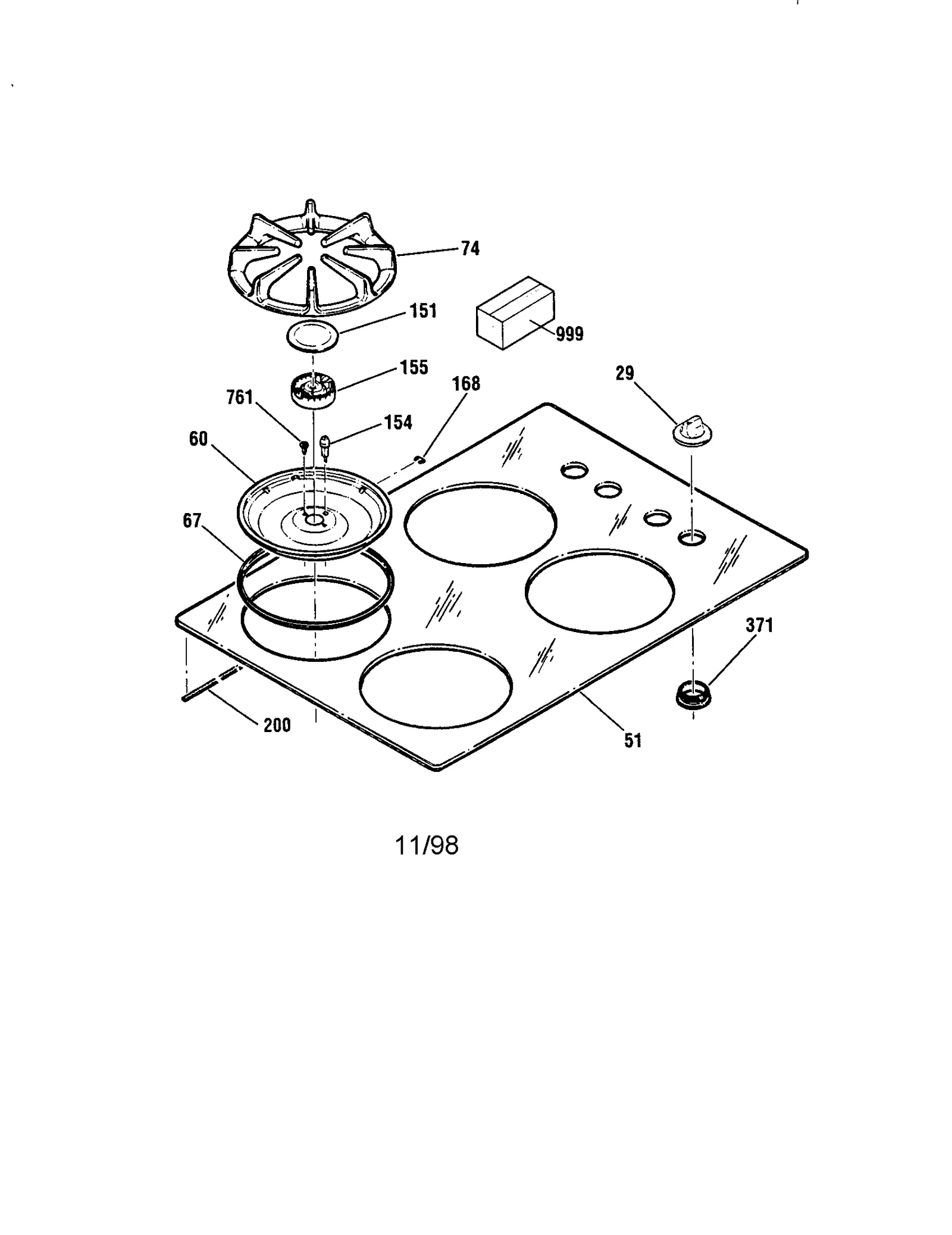

MAIN TOP
Common parts from model GE 911.32385890 30" Gas Counter Unit (Kenmore 91132385890)
3
Range Surface Burner Orifice GEN WB28K5096 Contact Us For Availability
3E
Range Surface Burner Orifice GEN WB28K5087 Contact Us For Availability
29
Cooktop Burner Knob GEN WB03T10052 Contact Us For Availability
29A
Gas Valve Knob GEN WB03T10053 Contact Us For Availability
29B
Cooktop Burner Knob GEN WB03T10054 Contact Us For Availability
51
Cooktop Glass Main Top GEN WB61T10020 Contact Us For Availability
51A
Cooktop Glass Main Top GEN WB61T10021 Contact Us For Availability
51B
Glass GEN WB61T10022 Contact Us For Availability
60
Range Drip Pan (White) GEN WB31K5079 Contact Us For Availability
60A
Range Drip Pan GEN WB31K5080 Contact Us For Availability
60E
Range Drip Pan GEN WB31K5078 Contact Us For Availability
67
Seal Brnr Bw GEN WB32M0010 Contact Us For Availability
151
Burner Cap GEN WB29K0047 Contact Us For Availability
151A
Burner Cap GEN WB29K0044 Contact Us For Availability
151B
Burner Cap GEN WB29K0041 Contact Us For Availability
155
Burner Head GEN WB16K0012 Contact Us For Availability
155A
Burner Head GEN WB16K0011 Contact Us For Availability
155B
Brnr Head Lg GEN WB16K0010 Contact Us For Availability
168
Electrode Clip GEN WB01K0056 Contact Us For Availability
314A
Cooktop Burner Valve, Small GEN WB21K5029 Contact Us For Availability
342
Bowl Bracket GEN WB02K5375 Contact Us For Availability
342A
Bowl Bracket GEN WB02K5376 Contact Us For Availability
366
Gasket GEN WB06X0091 Contact Us For Availability
371
Seal Control GEN WB32K5034 Contact Us For Availability
376
Module Cover GEN WB34K5127 Contact Us For Availability
377
Strain Relef GEN WB02K5275 Contact Us For Availability
385
Tube Assembly, Right GEN WB28K5076 Contact Us For Availability
385B
Cooktop Burner Supply Tube GEN WB28K5093 Contact Us For Availability
386
Tube Assembly, Left GEN WB28K5078 Contact Us For Availability
386A
Cooktop Burner Tube and Orifice, Left Rear GEN WB28K5079 Contact Us For Availability
394
Orifice Bracket GEN WB02K5370 Contact Us For Availability
398
Seal Retainer GEN WB02X9487 Contact Us For Availability
399
Manifold Seal GEN WB32M0007 Contact Us For Availability
400
Manifold Pipe GEN WB28K5075 Contact Us For Availability
554
Range Cord GEN WB08K5040 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
941
Washer GEN WB01X1399 Contact Us For Availability
953
Clip GEN WB02X9106 Contact Us For Availability
999
Cooktop Wire Harness GEN WB18K5559 Contact Us For Availability
999
Wiring Diagram GEN 31-13228 Contact Us For Availability
999A
Cooktop Igniter Switch and Harness Assembly GEN WB18K5558 Contact Us For Availability
999A
Cooktop Owner's Manual GEN SR10421 Contact Us For Availability
999B
Range Parts GEN 31-13631 Contact Us For Availability
999C
Installation GEN SR10275 Contact Us For Availability
× ![]()
