Model GE 911.32355591 30" Gas Counter Unit (Kenmore 91132355591) – Common Parts & Diagrams

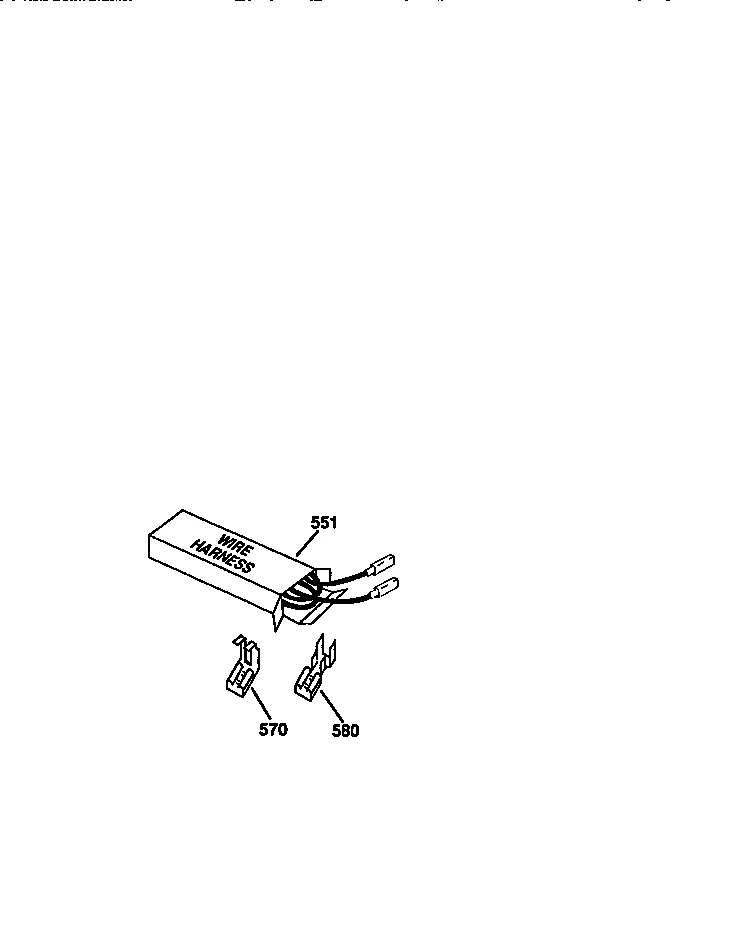

WIRE HARNESS AND COMPONENTS

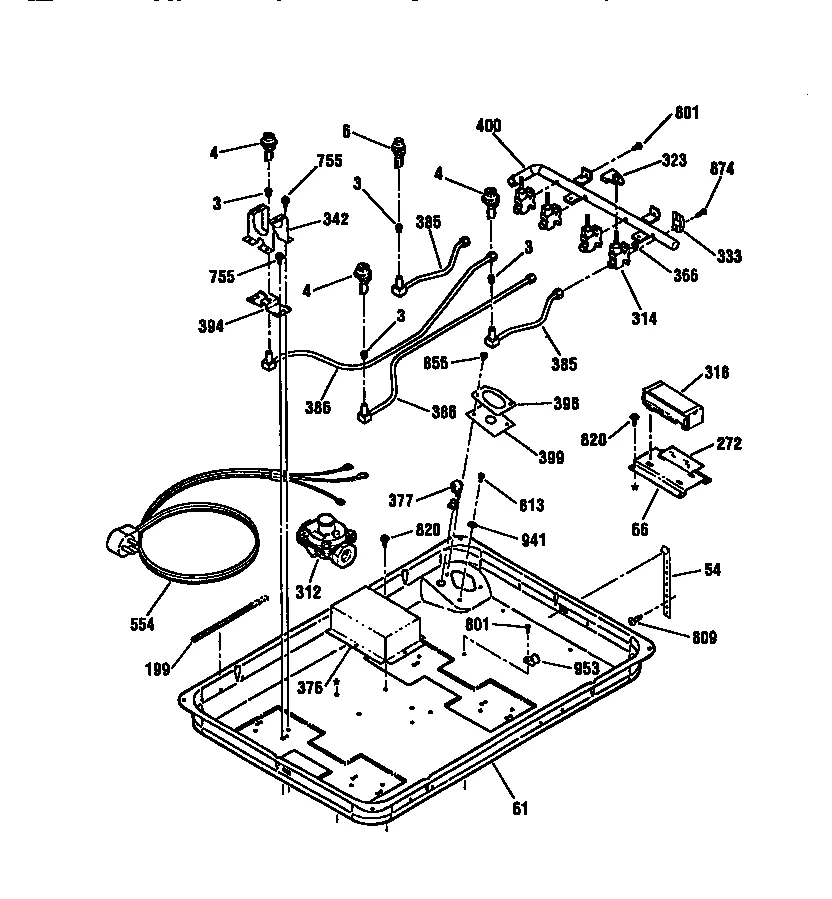

BURNER SECTION

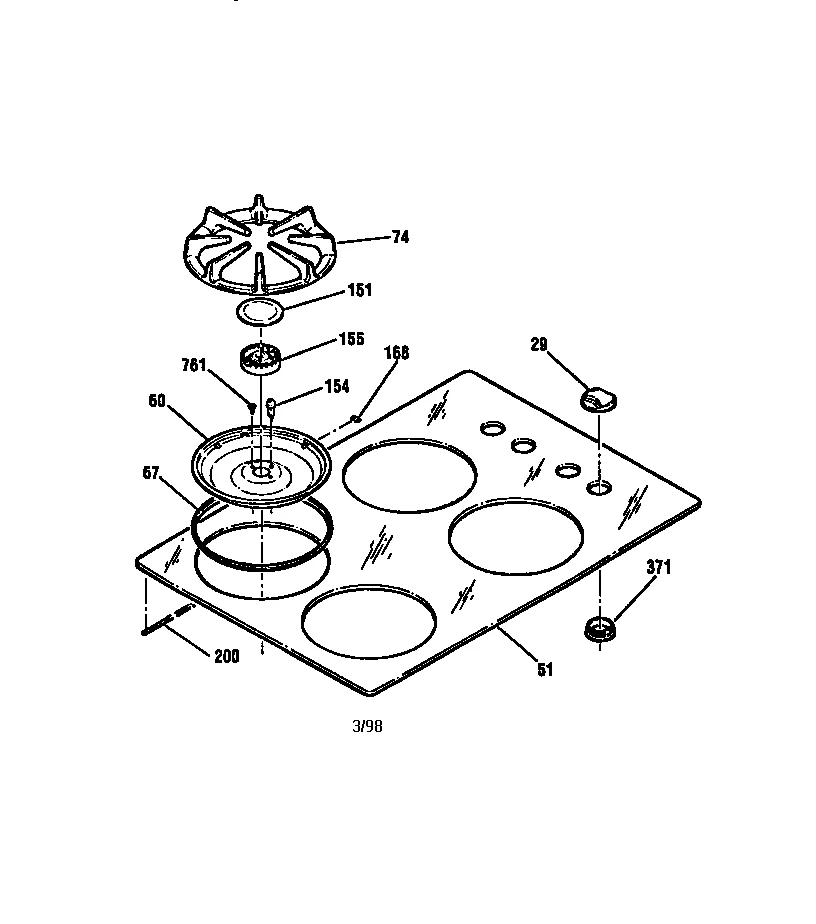

MAIN TOP SECTION
All Parts
Common parts from model GE 911.32355591 30" Gas Counter Unit (Kenmore 91132355591)
3
Range Surface Burner Orifice GEN WB28K5096 Contact Us For Availability
3E
Range Surface Burner Orifice GEN WB28K5087 Contact Us For Availability
29
Knob GEN WB03K5116 Contact Us For Availability
29A
Vlv Knob-ad GEN WB03K5276 Contact Us For Availability
29B
Vlv Knob-blk GEN WB03K5275 Contact Us For Availability
51
Gls Mntp-ad GEN WB57K5317 Contact Us For Availability
51A
Gls Mntop-wh GEN WB57K5316 Contact Us For Availability
51B
Gls Mntp-blk GEN WB57K5318 Contact Us For Availability
60
Range Drip Pan (White) GEN WB31K5079 Contact Us For Availability
60A
Range Drip Pan GEN WB31K5080 Contact Us For Availability
60C
Range Drip Pan (Almond) GEN WB31K5082 Contact Us For Availability
60D
Range Drip Pan GEN WB31K5083 Contact Us For Availability
60E
Burner Bowl GEN WB31K5084 Contact Us For Availability
60H
Range Drip Pan GEN WB31K5078 Contact Us For Availability
67
Seal Brnr Bw GEN WB32M0010 Contact Us For Availability
67A
Bur Bowl Sea GEN WB32M0008 Contact Us For Availability
74A
BURNER GRATE, TAUPE GEN WB31710008 Contact Us For Availability
151
Burner Cap GEN WB29K0048 Contact Us For Availability
151A
Burner Cap GEN WB29K0045 Contact Us For Availability
151B
Burner Cap GEN WB29K0042 Contact Us For Availability
151C
Burner Cap GEN WB29K0043 Contact Us For Availability
151D
Burner Cap GEN WB29K0046 Contact Us For Availability
151E
Burner Cap GEN WB29K0049 Contact Us For Availability
151F
Burner Cap GEN WB29K0041 Contact Us For Availability
151G
Burner Cap GEN WB29K0044 Contact Us For Availability
151H
Burner Cap GEN WB29K0047 Contact Us For Availability
155
Burner Head GEN WB16K0012 Contact Us For Availability
155A
Burner Head GEN WB16K0011 Contact Us For Availability
155B
Brnr Head Lg GEN WB16K0010 Contact Us For Availability
168
Electrode Clip GEN WB01K0056 Contact Us For Availability
314A
Cooktop Burner Valve, Small GEN WB21K5029 Contact Us For Availability
342
Bowl Bracket GEN WB02K5375 Contact Us For Availability
342A
Bowl Bracket GEN WB02K5376 Contact Us For Availability
366
Gasket GEN WB06X0091 Contact Us For Availability
371
Seal Control GEN WB32K5034 Contact Us For Availability
371A
Seal Control GEN WB04K5004 Contact Us For Availability
371B
Cooktop Gas Valve Shield GEN WB32K5035 Contact Us For Availability
376
Module Cover GEN WB34K5127 Contact Us For Availability
377
Strain Relef GEN WB02K5275 Contact Us For Availability
385
Tube Assembly, Right GEN WB28K5076 Contact Us For Availability
385A
Cooktop Burner Supply Tube GEN WB28K5093 Contact Us For Availability
386
Tube Assembly, Left GEN WB28K5078 Contact Us For Availability
386A
Cooktop Burner Tube and Orifice, Left Rear GEN WB28K5079 Contact Us For Availability
394
Orifice Bracket GEN WB02K5370 Contact Us For Availability
398
Seal Retainer GEN WB02X9487 Contact Us For Availability
399
Manifold Seal GEN WB32M0007 Contact Us For Availability
400
Manifold Pipe GEN WB28K5075 Contact Us For Availability
551
Cooktop Wire Harness GEN WB18K5559 Contact Us For Availability
551A
Cooktop Igniter Switch and Harness Assembly GEN WB18K5558 Contact Us For Availability
554
Range Cord GEN WB08K5040 Contact Us For Availability
941
Washer GEN WB01X1399 Contact Us For Availability
953
Clip GEN WB02X9106 Contact Us For Availability
NI
Wiring Diagram GEN 31-13228 Contact Us For Availability
NI
Repair Parts List GEN 31-13307 Contact Us For Availability
NI
User's Manual GEN SR10274 Contact Us For Availability
NI
Installation GEN SR10275 Contact Us For Availability
× ![]()
