Model GE 911.32219100 Cooktop (Kenmore 91132219100) – Common Parts & Diagrams

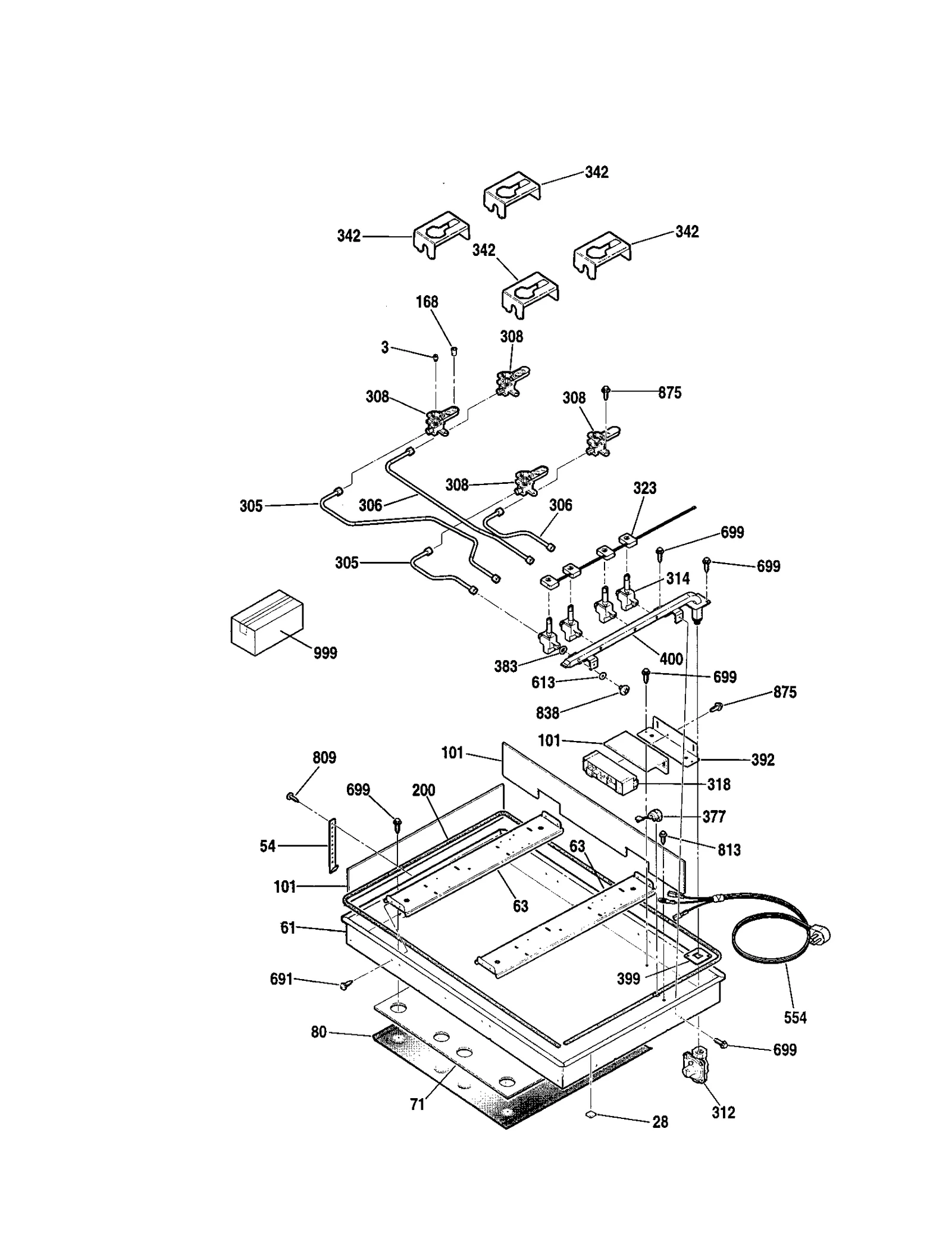

BURNER

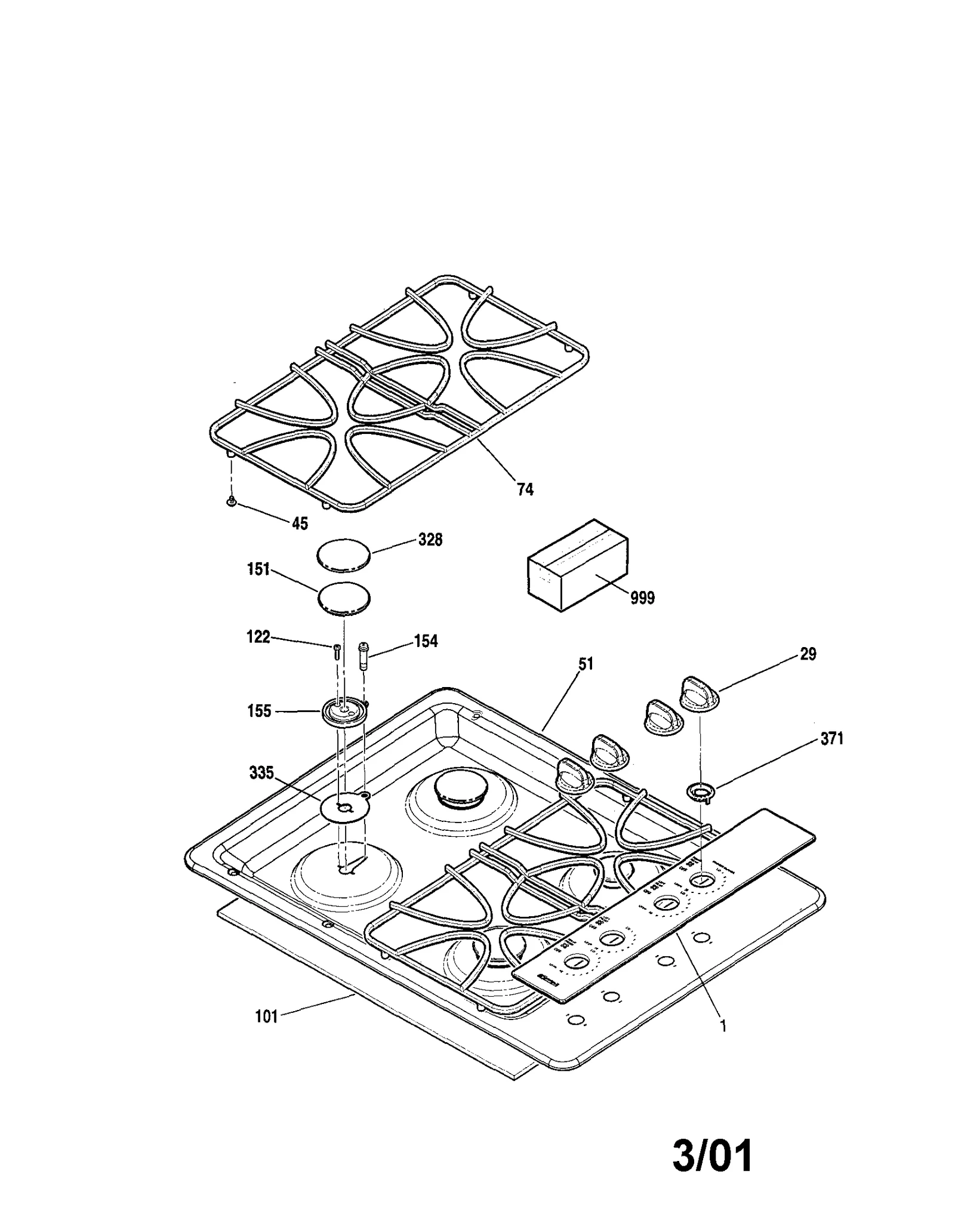

MAIN TOP
Common parts from model GE 911.32219100 Cooktop (Kenmore 91132219100)
1
Cooktop Control Panel GEN WB57T10156 Contact Us For Availability
1A
Glass Control Panel GEN WB36T10355 Contact Us For Availability
1B
Glass Cnt Pl GEN WB57T10176 Contact Us For Availability
29
Cooktop Burner Knob GEN WB03T10049 Contact Us For Availability
29A
Gas Valve Knob GEN WB36T10356 Contact Us For Availability
29B
Range Control Knob GEN WB03T10047 Contact Us For Availability
51
Cooktop Main Top (White) GEN WB62T10110 Contact Us For Availability
51A
Main Top GEN WB57T10175 Contact Us For Availability
51B
Cooktop Main Top Assembly GEN WB62T10112 Contact Us For Availability
101
Insulation Maintop GEN WB35T10052 Contact Us For Availability
308
Burner Injet GEN WB28T10010 Contact Us For Availability
308A
Range Surface Burner Orifice Holder, Left Fro GEN WB28T10031 Contact Us For Availability
314
Small Gas Valve GEN WB19T10007 Contact Us For Availability
314A
Gas Valve GEN WB19T10008 Contact Us For Availability
318
Spark Module GEN WB13K0025 Contact Us For Availability
323
Cooktop Igniter Switch and Harness Assembly GEN WB18T10176 Contact Us For Availability
328
Cooktop Burner Cap (Gray) GEN WB13T10026 Contact Us For Availability
328A
Cooktop Burner Cap (Almond) GEN WB13T10025 Contact Us For Availability
328B
Range Surface Burner Cap GEN WB13T10023 Contact Us For Availability
328C
Range Surface Burner Cap GEN WB13T10027 Contact Us For Availability
328D
BURNER CAP - SMALL BISQUE GEN WB13T10137 Contact Us For Availability
328E
Cooktop Burner Cap, Small (Black) GEN WB13T10024 Contact Us For Availability
335
Range Surface Burner Seal GEN WB04T10011 Contact Us For Availability
335A
Cooktop Burner Seal GEN WB16T10011 Contact Us For Availability
342
Cooktop Main Top Support Bracket GEN WB02T10104 Contact Us For Availability
371
Cooktop Burner Valve Seal (Black) GEN WB32K5032 Contact Us For Availability
377
Strain Relef GEN WB02K5275 Contact Us For Availability
383
Valve Gasket GEN WB04K5003 Contact Us For Availability
392
Module Bracket GEN WB02T10097 Contact Us For Availability
399
Manifold Sea GEN WB04T10018 Contact Us For Availability
400
Pipe Manif A GEN WB28T10034 Contact Us For Availability
554
Range Cord GEN WB08K5040 Contact Us For Availability
613
Gasket GEN WB02X9008 Contact Us For Availability
691
Trim Screw GEN WB01K5192 Contact Us For Availability
838
Valve Screw GEN WB01X1121 Contact Us For Availability
999
Owner's Manual GEN SR10460 Contact Us For Availability
999A
Repair Parts List GEN 31-13839 Contact Us For Availability
999B
Cleaner Grat GEN WB31T10009 Contact Us For Availability
999C
Cooktop Wire Harness GEN WB18T10077 Contact Us For Availability
999F
MINI MANUAL W/ WIRE DIAG GEN 31-13826 Contact Us For Availability
999G
Instructions GEN 31-10443 Contact Us For Availability
999H
Installation Instructions GEN 31-10456 Contact Us For Availability
× ![]()
