Model GE 911.32212101 30" Gas Cooktop (Kenmore 91132212101) – Common Parts & Diagrams

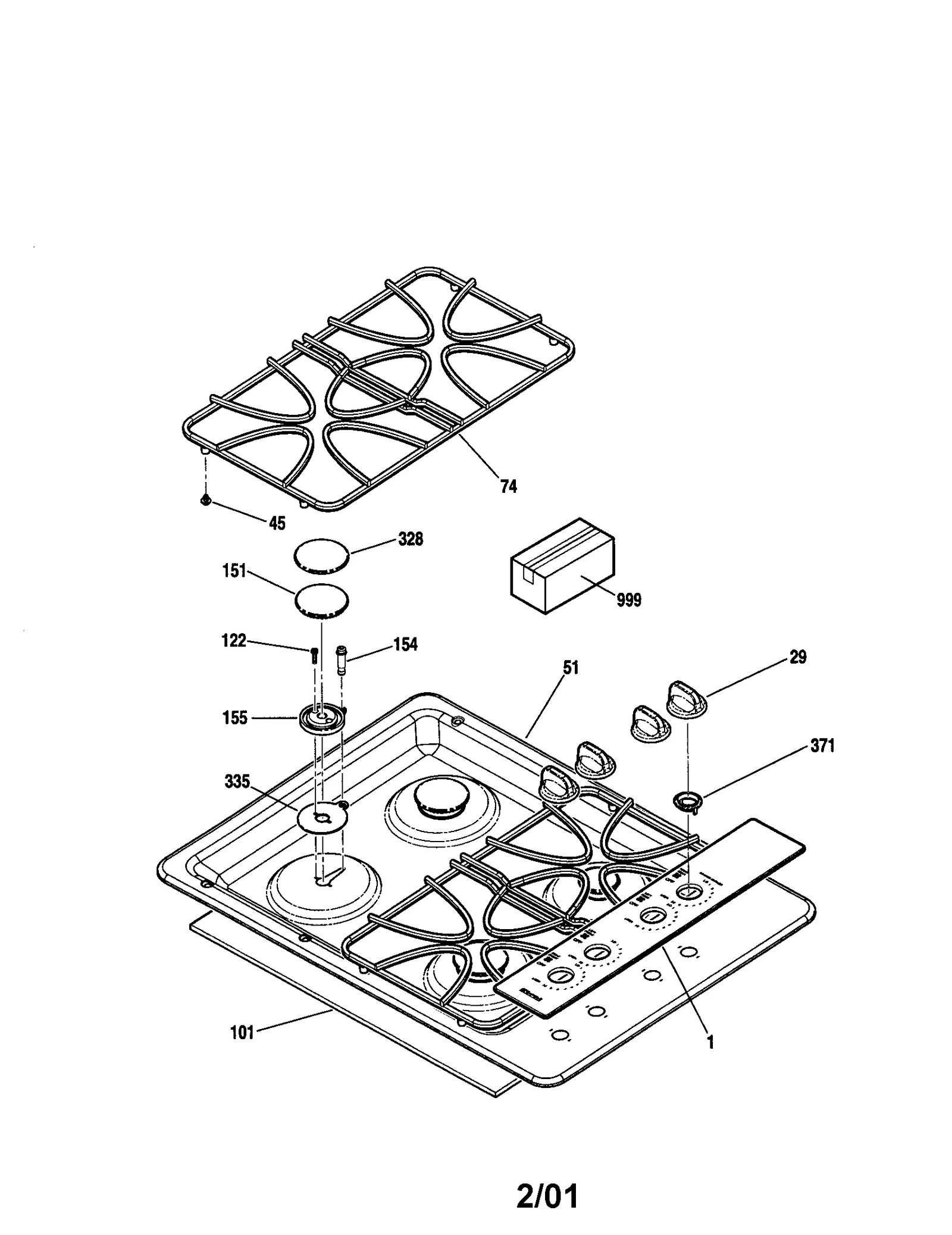

MAINTOP

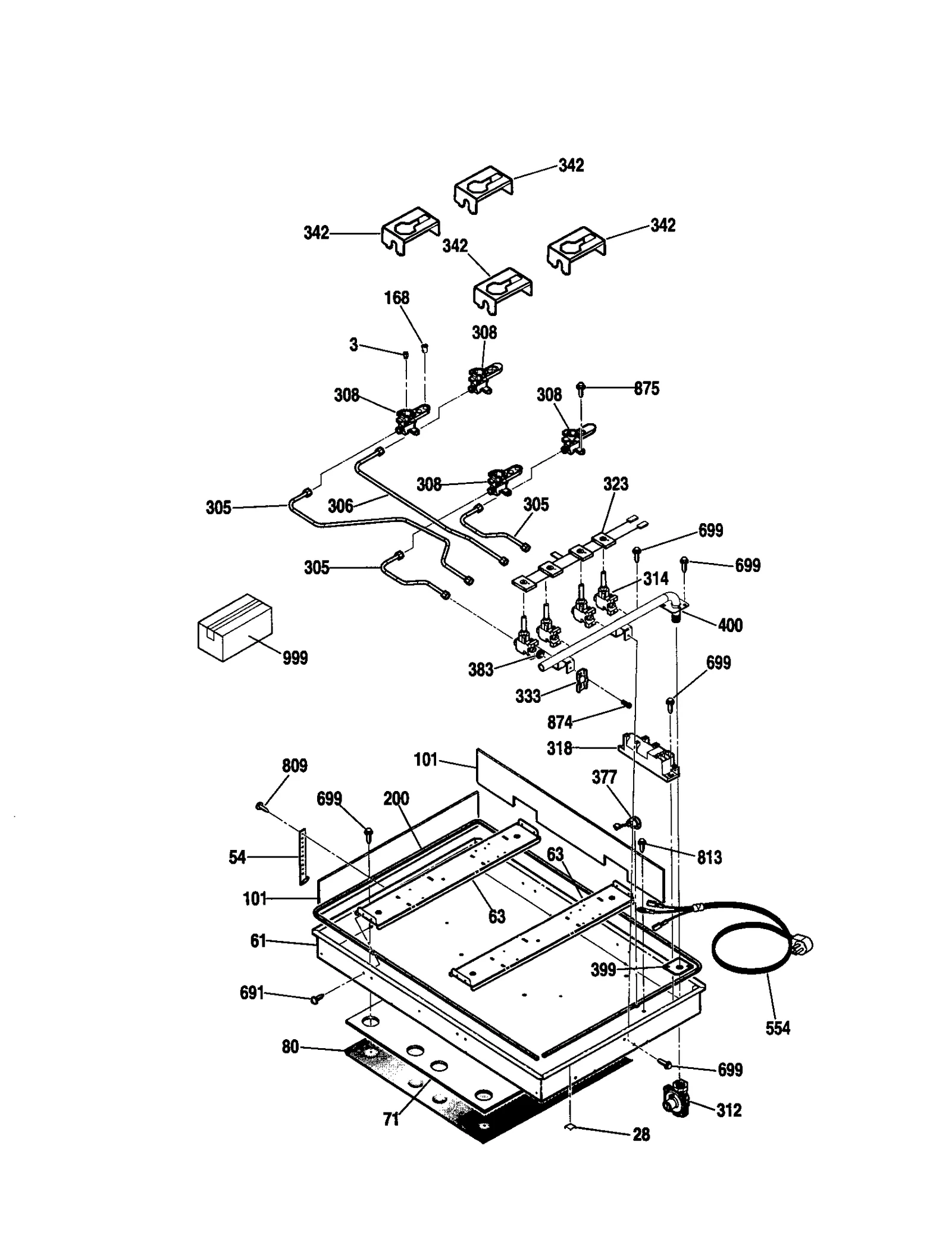

BURNER
Common parts from model GE 911.32212101 30" Gas Cooktop (Kenmore 91132212101)
29A
Gas Valve Knob GEN WB03T10152 Contact Us For Availability
61
Burner GEN WB64T10027 Contact Us For Availability
63
Burner Bracket GEN WB02T10105 Contact Us For Availability
71
Burner Box I GEN WB35T10048 Contact Us For Availability
80
Burner Shield GEN WB34T10025 Contact Us For Availability
101
Insulation GEN WB35T10050 Contact Us For Availability
101A
Insulation GEN WB35T10051 Contact Us For Availability
200
Cooktop Main Top Seal GEN WB06T10009 Contact Us For Availability
305
Burner Tube GEN WB28T10052 Contact Us For Availability
305A
Burner Tube GEN WB28T10051 Contact Us For Availability
305B
Cooktop Wire Harness GEN WB18T10151 Contact Us For Availability
306
Burner Tube GEN WB28T10053 Contact Us For Availability
308
Burner Injet GEN WB28T10010 Contact Us For Availability
308A
Range Surface Burner Orifice Holder, Left Fro GEN WB28T10031 Contact Us For Availability
314
Cooktop Burner Valve GEN WB19T10020 Contact Us For Availability
314A
Valve Gas 27 GEN WB19T10021 Contact Us For Availability
323
Switch Harness GEN WB18T10219 Contact Us For Availability
328
Cooktop Burner Cap (Gray) GEN WB13T10026 Contact Us For Availability
328B
Range Surface Burner Cap GEN WB13T10023 Contact Us For Availability
328C
Range Surface Burner Cap GEN WB13T10027 Contact Us For Availability
328D
Cooktop Burner Cap (Bisque) GEN WB03T10137 Contact Us For Availability
335
Range Surface Burner Seal GEN WB04T10011 Contact Us For Availability
335A
Cooktop Burner Seal GEN WB16T10011 Contact Us For Availability
342
Cooktop Main Top Support Bracket GEN WB02T10104 Contact Us For Availability
371
Cooktop Glass Control Panel Seal GEN WB32K5027 Contact Us For Availability
377
Strain Relef GEN WB02K5275 Contact Us For Availability
383
Valve Gasket GEN WB04K5003 Contact Us For Availability
399
Manifold Sea GEN WB04T10019 Contact Us For Availability
400
Manifold Pipe GEN WB28T10050 Contact Us For Availability
554
Range Cord GEN WB08K5040 Contact Us For Availability
613
Gasket GEN WB02X9008 Contact Us For Availability
691
Trim Screw GEN WB01K5192 Contact Us For Availability
999G
Instructions GEN 31-10443 Contact Us For Availability
999H
Installation Instructions GEN 31-10490 Contact Us For Availability
× ![]()
