Model GE 911.30169792 24" Gas Built-In Oven (Kenmore 91130169792) – Common Parts & Diagrams
DOOR #91130169792
CONTROL

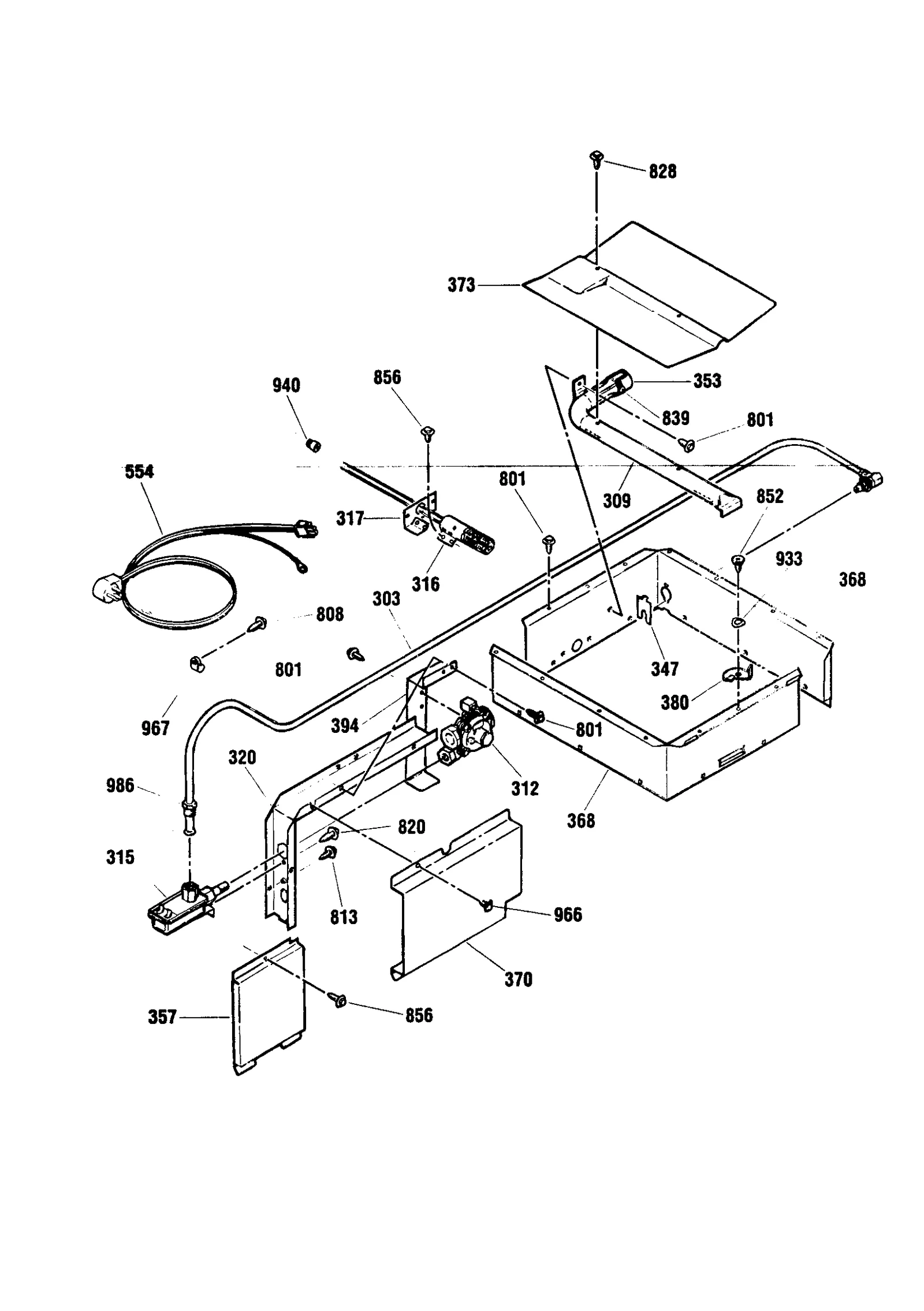

BURNER

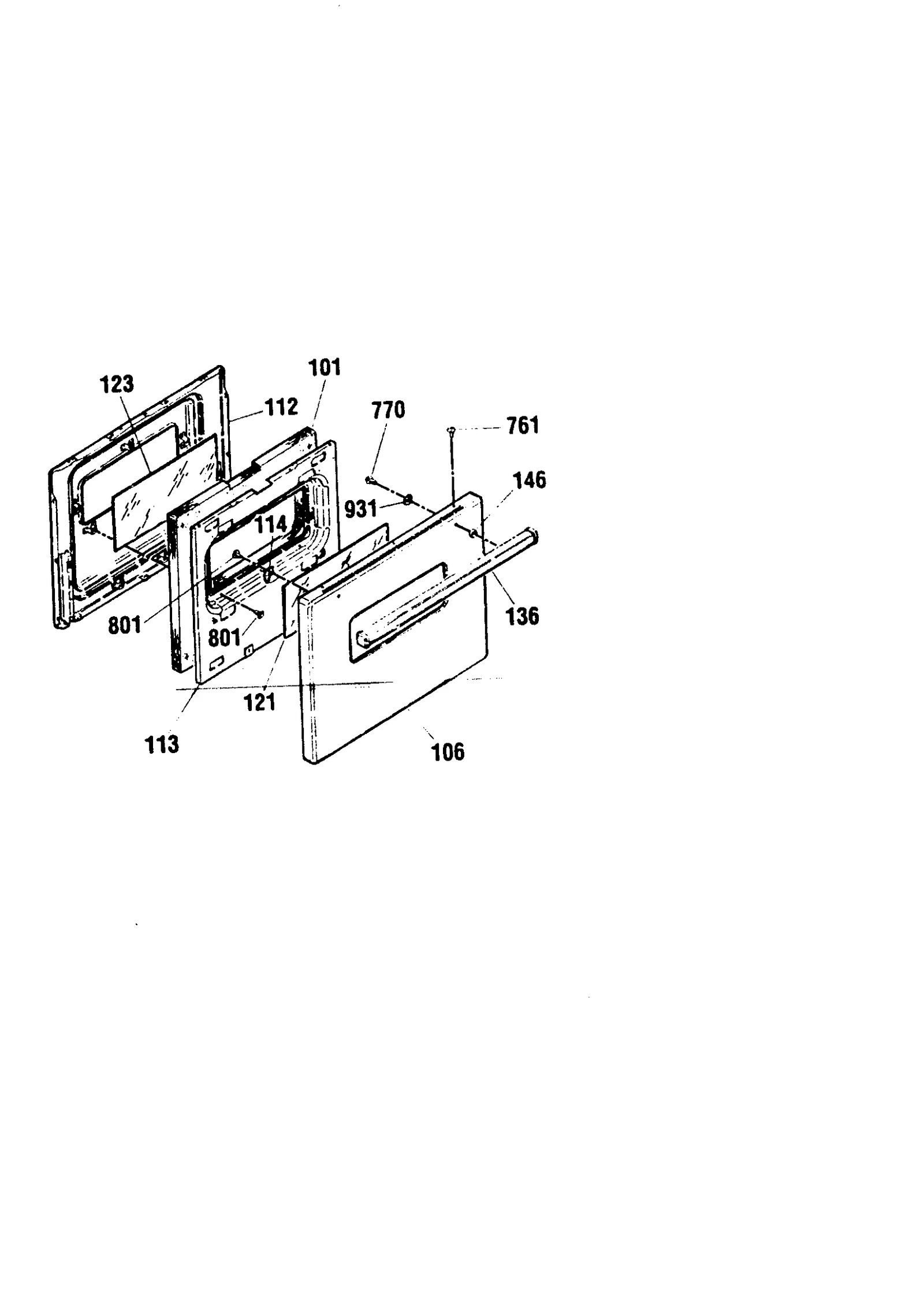

DOOR #91130168792

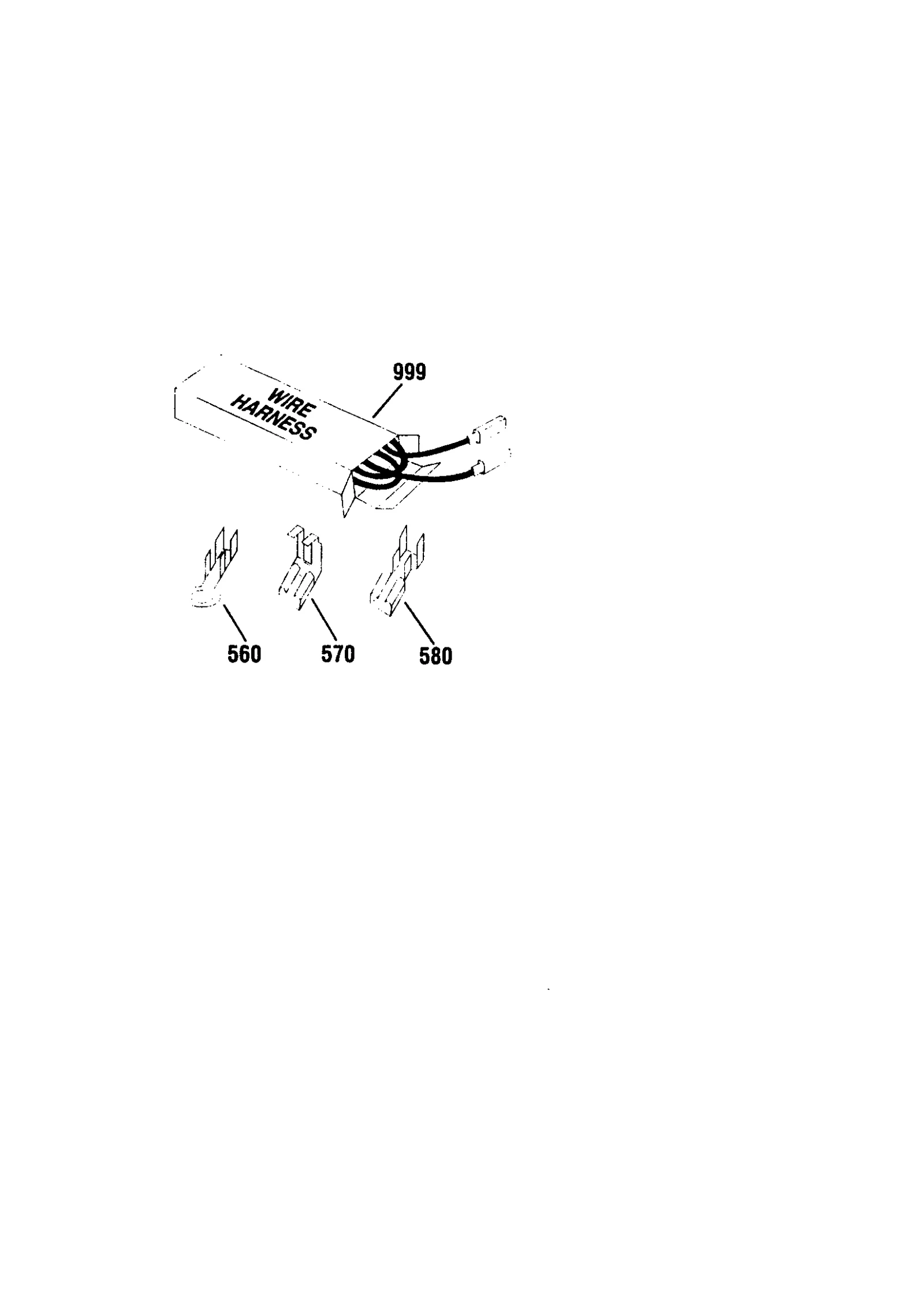

WIRE HARNESSES/WIRING COMPONENTS

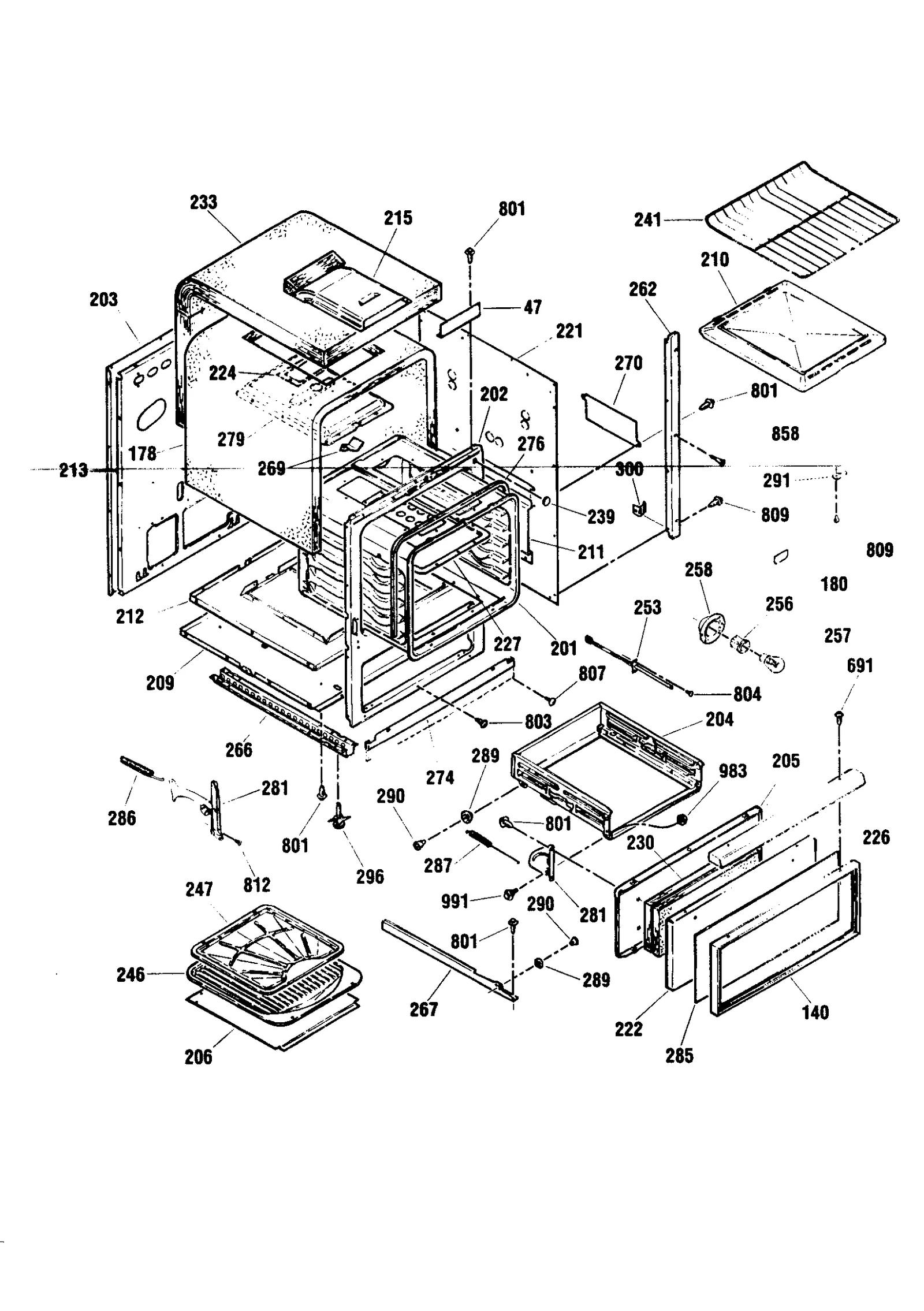

BODY
Common parts from model GE 911.30169792 24" Gas Built-In Oven (Kenmore 91130169792)
16
Range Oven Control Board GEN WB27T10268 Contact Us For Availability
42
Heat Shield GEN WB34K5249 Contact Us For Availability
47
Barrier GEN WB38K5036 Contact Us For Availability
49
Con Hsg Scrn GEN WB07X5016 Contact Us For Availability
71
Insulation GEN WB35K5130 Contact Us For Availability
106
Foot Panel GEN WB56K5101 Contact Us For Availability
112
Door Lining GEN WB55T10010 Contact Us For Availability
114
Retainer GEN WB02X9192 Contact Us For Availability
121
Outer Glass GEN WB56K5197 Contact Us For Availability
136
Door Handle (Black) GEN WB15K5120 Contact Us For Availability
140
Oven Door Frame GEN WB55K5075 Contact Us For Availability
140
Frame Frt Pn GEN WB56T10007 Contact Us For Availability
146
Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability
178
Oven Body Insert GEN WB35K5059 Contact Us For Availability
180
Lock Lever Cover GEN WB02K5364 Contact Us For Availability
201
Oven Body GEN WB63T10018 Contact Us For Availability
202
Frame GEN WB63T10017 Contact Us For Availability
204
Drawer Broil GEN WB58T10001 Contact Us For Availability
205
Oven Broiler Door GEN WB55T10014 Contact Us For Availability
206
Bottom Bro D GEN WB49T10001 Contact Us For Availability
211
Ins Side Ret GEN WB02K5168 Contact Us For Availability
212
Ovbt Ins Ret GEN WB02K5166 Contact Us For Availability
215
Flue Deflect GEN WB38T10003 Contact Us For Availability
221
Body GEN WB63K5099 Contact Us For Availability
222
Panel Frt Lw GEN WB56T10009 Contact Us For Availability
222A
Panel Frt Lw GEN WB56T10008 Contact Us For Availability
227
Oven Top Cover GEN WB63T10016 Contact Us For Availability
230
Cabinet Insert GEN WB35K5066 Contact Us For Availability
230
Insulation GEN WB02X9032 Contact Us For Availability
233
Insul Top/bk GEN WB35K5065 Contact Us For Availability
239
Plug GEN WB02X9587 Contact Us For Availability
246
Range Broil Pan GEN WB49T10002 Contact Us For Availability
247
Range Broil Pan Insert GEN WB49T10003 Contact Us For Availability
257
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
258
Housing GEN WB02X7693 Contact Us For Availability
262
Vent Trim-bl GEN WB07K5477 Contact Us For Availability
263
I-brow Trm-b GEN WB07K5478 Contact Us For Availability
266
Channel GEN WB02X9634 Contact Us For Availability
267
Drwr Gd Asm GEN WB39M0004 Contact Us For Availability
270
Cover Plate GEN WB02X9642 Contact Us For Availability
274
Lo Ft F Trim GEN WB07K5019 Contact Us For Availability
274A
LOWER FRONT FRAME TRIM 2 1/2" GEN WB07M00003 Contact Us For Availability
276
Wall Oven Door Seal GEN WB32K5050 Contact Us For Availability
281
Oven Drive Hinge GEN WB14K5006 Contact Us For Availability
281
Oven Broiler Drawer Hinge GEN WB14K5019 Contact Us For Availability
281A
Wall Oven Door Hinge, Left GEN WB14K5007 Contact Us For Availability
281A
Oven Broiler Drawer Hinge GEN WB14K5018 Contact Us For Availability
285
Lo Pnl Ovrly GEN WB56K5042 Contact Us For Availability
286
Oven Door Spring GEN WB09K5018 Contact Us For Availability
287
Spring GEN WB09X0240 Contact Us For Availability
289
Roller Kit GEN WB02X9638 Contact Us For Availability
290
Roller Kit GEN WB01X1331 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
296
Leveling Leg GEN WB02X9635 Contact Us For Availability
300
Spacer (Black) GEN WB02X9641 Contact Us For Availability
309
Wall Oven Bake Burner GEN WB16K5014 Contact Us For Availability
347
Orif Fit Plt GEN WB02K5165 Contact Us For Availability
353
Air Shutter GEN WB02X9014 Contact Us For Availability
357
Valve Cover GEN WB34K5096 Contact Us For Availability
368
Ovbrn Box Sd GEN WB64K5035 Contact Us For Availability
368A
Ovbrn Box Sd GEN WB64K5036 Contact Us For Availability
370
Regulator Cover GEN WB34K5181 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
761
Trim Screw GEN WB01K5211 Contact Us For Availability
839
Adjustment Screw GEN WB01X1124 Contact Us For Availability
852
Screw GEN WB01X1179 Contact Us For Availability
858
Hinge Bolt GEN WB01X1418 Contact Us For Availability
931
Lock Washer GEN WB01K5151 Contact Us For Availability
933
Washer GEN WB01X1256 Contact Us For Availability
967
Clamp GEN WB02X1422 Contact Us For Availability
967A
Clip GEN WB02X9020 Contact Us For Availability
983
Hex Nut GEN WB01X1153 Contact Us For Availability
986
Inverted Nut GEN WB01X1117 Contact Us For Availability
991
Bolt GEN WB01X1156 Contact Us For Availability
999
Installation Instructions GEN 31-10250 Contact Us For Availability
999
Range Wire Harness GEN WB18K5632 Contact Us For Availability
999A
MINI MANUAL W/WIRE DIAG. GEN 31-13314 Contact Us For Availability
999B
Oven Owner's Manual GEN SR10347 Contact Us For Availability
999C
Parts List GEN 31-13505 Contact Us For Availability
× ![]()
