GE 911.30168690 24" Gas Built-In Oven (Kenmore 91130168690) Parts List

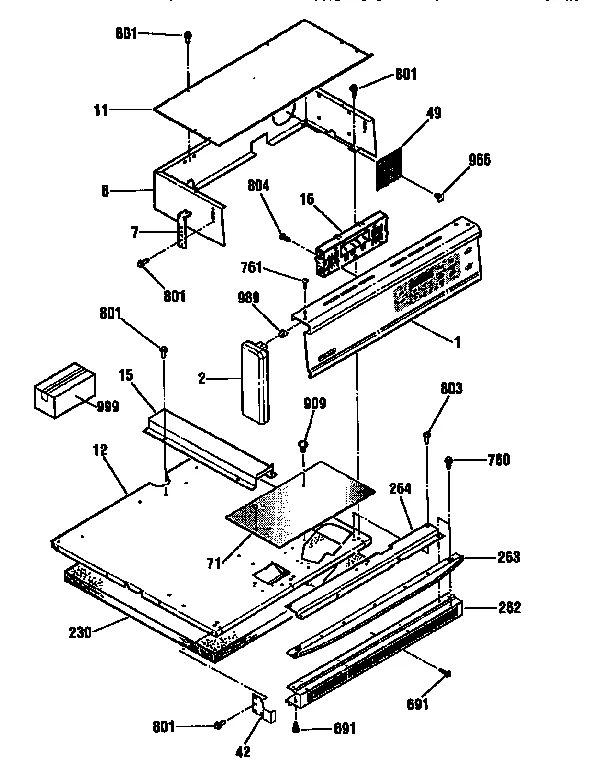

1

Control Panel Keypad GEN WB36K5680 Contact Us For Availability

View on Model

2

End Cap GEN WB36K5682 Contact Us For Availability

View on Model

2A

End Cap GEN WB36K5681 Contact Us For Availability

View on Model

6

WB37K5041 GE Control Housing Backorder GEN WB37K5041 $20.52

View on Model

7

WB2K5406 GE Bracket Backorder GEN WB2K5406 $5.02

View on Model

11

WB37K5040 GE Top Control Housing Backorder GEN WB37K5040 $20.48

View on Model

12

WB63K5198 GE Oven Cabinet Top Backorder GEN WB63K5198 $40.18

View on Model

15

WB2X9665 GE Wire Cover Backorder GEN WB2X9665 $21.39

View on Model

16

Clock Control GEN WB27K5344 Contact Us For Availability

View on Model

42

Heat Shield GEN WB34K5249 Contact Us For Availability

View on Model

47

Barrier GEN WB38K5036 Contact Us For Availability

View on Model

49

Con Hsg Scrn GEN WB07X5016 Contact Us For Availability

View on Model

71

Insulation GEN WB35K5130 Contact Us For Availability

View on Model

101

WB35K5054 GE Oven Door Insulation Backorder GEN WB35K5054 $21.32

View on Model

106

Foot Panel GEN WB56K5101 Contact Us For Availability

View on Model

112

Ovdr Lining GEN WB55K5026 Contact Us For Availability

View on Model

113

WB2K5159 GE Oven Door Insulation Backorder GEN WB2K5159 $39.21

View on Model

114

Retainer GEN WB02X9192 Contact Us For Availability

View on Model

121

Range Oven Door Outer Panel GEN WB57K5197 Contact Us For Availability

View on Model

123

WB36X779 GE Oven Glass Center Backorder GEN WB36X779 $92.00

View on Model

136

Door Handle (Black) GEN WB15K5120 Contact Us For Availability

View on Model

140

Foot Panel Frame GEN WB56K5118 Contact Us For Availability

View on Model

146

Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability

View on Model

180

Lock Lever Cover GEN WB02K5364 Contact Us For Availability

View on Model

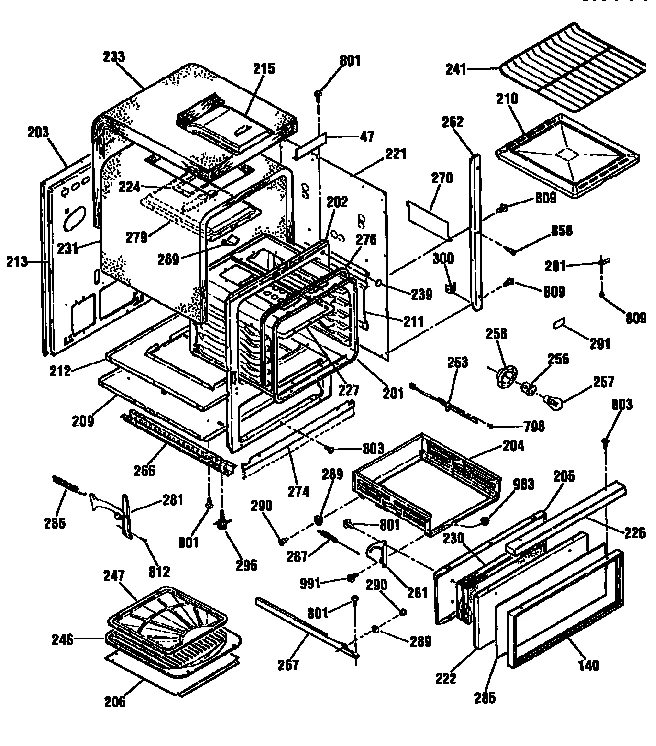

201

Oven Body GEN WB63K5404 Contact Us For Availability

View on Model

202

Frame GEN WB63K5164 Contact Us For Availability

View on Model

203

WB63K5095 GE Main Back Backorder GEN WB63K5095 $82.80

View on Model

204

Oven Broiler Drawer GEN WB58K5004 Contact Us For Availability

View on Model

205

Drive Line Broil GEN WB55K5025 Contact Us For Availability

View on Model

206

Drawer GEN WB49X0625 Contact Us For Availability

View on Model

209

WB63T10038 GE Main Bottom Backorder GEN WB63T10038 $41.22

View on Model

210

Oven GEN WB63K5097 Contact Us For Availability

View on Model

211

Ins Side Ret GEN WB02K5168 Contact Us For Availability

View on Model

212

Ovbt Ins Ret GEN WB02K5166 Contact Us For Availability

View on Model

213

Insul Ret R GEN WB02K5167 Contact Us For Availability

View on Model

215

Deflector Fl GEN WB38K5063 Contact Us For Availability

View on Model

221

Body GEN WB63K5099 Contact Us For Availability

View on Model

222

Lo Frt Panel GEN WB56K5120 Contact Us For Availability

View on Model

222A

Lo Frt Panel GEN WB56K5046 Contact Us For Availability

View on Model

224

WB4K5005 GE Flue Gasket Backorder GEN WB4K5005 $9.86

View on Model

226

WB15K5027 GE Front Panel Handle, Black Backorder GEN WB15K5027 $85.98

View on Model

227

Ov Top Cover GEN WB63K5106 Contact Us For Availability

View on Model

230

Cabinet Insert GEN WB35K5066 Contact Us For Availability

View on Model

230

Insulation GEN WB02X9032 Contact Us For Availability

View on Model

231

Oven Body Insert GEN WB35K5059 Contact Us For Availability

View on Model

233

Insul Top/bk GEN WB35K5065 Contact Us For Availability

View on Model

239

Plug GEN WB02X9587 Contact Us For Availability

View on Model

241

WB48T10094 GE Oven Rack Backorder GEN WB48T10094 $30.88

View on Model

246

Oven Broiler Pan GEN WB49X0619 Contact Us For Availability

View on Model

247

Grid Broiler Pan GEN WB49X0620 Contact Us For Availability

View on Model

253

WB21X5301 GE Range Oven Temperature Sensor Pr In Stock GEN WB21X5301 $125.41

View on Model

256

WB8X303 GE Oven Lamp Holder Backorder GEN WB8X303 $34.65

View on Model

257

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.37

View on Model

258

Housing GEN WB02X7693 Contact Us For Availability

View on Model

262

WB7K5278 GE Vertical Side Trim Backorder GEN WB7K5278 $67.62

View on Model

262

Vent Trim-bl GEN WB07K5477 Contact Us For Availability

View on Model

263

I-brow Trm-b GEN WB07K5478 Contact Us For Availability

View on Model

266

Channel GEN WB02X9634 Contact Us For Availability

View on Model

267

WB39M3 GE Range Drawer Assembly Backorder GEN WB39M3 $21.09

View on Model

267A

Drwr Gd Asm GEN WB39M0004 Contact Us For Availability

View on Model

269

WB2K5164 GE Light Cup Support Backorder GEN WB2K5164 $5.28

View on Model

270

Cover Plate GEN WB02X9642 Contact Us For Availability

View on Model

274

Lo Ft F Trim GEN WB07K5019 Contact Us For Availability

View on Model

274A

Lwr Frt Trim GEN WB07M0003 Contact Us For Availability

View on Model

276

Wall Oven Door Seal GEN WB32K5050 Contact Us For Availability

View on Model

279

WB38K5041 GE Vent Box Backorder GEN WB38K5041 $16.00

View on Model

281

Oven Broiler Drawer Hinge GEN WB14K5019 Contact Us For Availability

View on Model

281A

Oven Broiler Drawer Hinge GEN WB14K5018 Contact Us For Availability

View on Model

281B

Oven Drive Hinge GEN WB14K5006 Contact Us For Availability

View on Model

281C

Wall Oven Door Hinge, Left GEN WB14K5007 Contact Us For Availability

View on Model

285

Lo Pnl Ovrly GEN WB56K5042 Contact Us For Availability

View on Model

286

Oven Door Spring GEN WB09K5018 Contact Us For Availability

View on Model

287

Spring GEN WB09X0240 Contact Us For Availability

View on Model

289

Roller Kit GEN WB02X9638 Contact Us For Availability

View on Model

290

Roller Kit GEN WB01X1331 Contact Us For Availability

View on Model

291

COVER GEN WB02X9152 Contact Us For Availability

View on Model

296

Leveling Leg GEN WB02X9635 Contact Us For Availability

View on Model

300

Spacer (Black) GEN WB02X9641 Contact Us For Availability

View on Model

303

WB28K5026 GE Oven Tube Assembly Backorder GEN WB28K5026 $109.37

View on Model

309

Wall Oven Bake Burner GEN WB16K5014 Contact Us For Availability

View on Model

315

WB21K5009 GE Oven Control Valve Backorder GEN WB21K5009 $212.53

View on Model

373

WB34X38846 GE Broil Burner Baffle Backorder GEN WB34X38846 $50.42

View on Model

380

WB14X115 GE Oven Latch Backorder GEN WB14X115 $27.55

View on Model

394

WB2K5343 GE Regulator Support Backorder GEN WB2K5343 $8.93

View on Model

554

WB8K5039 GE Range Power Cord Backorder GEN WB8K5039 $60.39

View on Model

560

Eyelet Terminal GEN WB18M0001 Contact Us For Availability

View on Model

570

250 Flag GEN STD374251 Contact Us For Availability

View on Model

580

187 Push On GEN STD374180 Contact Us For Availability

View on Model

580A

250 Push On GEN STD374250 Contact Us For Availability

View on Model

691

WB1K5177 GE Range Trim Screw Backorder GEN WB1K5177 $5.02

View on Model

760

WB1X536 GE Oven Screw Backorder GEN WB1X536 $6.90

View on Model

761

WB1K5029 GE Oven Screw Backorder GEN WB1K5029 $5.65

View on Model

761

Trim Screw GEN WB01K5211 Contact Us For Availability

View on Model

770

WB1K5072 GE Oven Screw Backorder GEN WB1K5072 $5.65

View on Model

796

WB1K5116 GE Oven Screw Backorder GEN WB1K5116 $5.65

View on Model

801

WB1M1 GE Oven Screw Backorder GEN WB1M1 $5.43

View on Model

803

WB1K5162 GE Oven Black Screw Backorder GEN WB1K5162 $5.65

View on Model

804

WB1X681 GE Oven Screw Backorder GEN WB1X681 $5.65

View on Model

808

WB1X1116 GE Oven Screw Backorder GEN WB1X1116 $5.65

View on Model

809

WB1X1137 GE Oven Screw Backorder GEN WB1X1137 $5.65

View on Model

812

WB1K5191 GE Oven Zinc FL Screw Backorder GEN WB1K5191 $5.65

View on Model

813

WB1X1261 GE Oven Screw Backorder GEN WB1X1261 $5.65

View on Model

820

WB1X1424D GE Oven Screw Package Backorder GEN WB1X1424D $4.84

View on Model

828

WB1X1141 GE Oven Screw 8-32 Backorder GEN WB1X1141 $5.28

View on Model

839

Adjustment Screw GEN WB01X1124 Contact Us For Availability

View on Model

852

Screw GEN WB01X1179 Contact Us For Availability

View on Model

856

WB1X1293 GE Oven Screw In Stock GEN WB1X1293 $5.65

View on Model

909

WB1X1173 GE Rivet Backorder GEN WB1X1173 $5.02

View on Model

931

Lock Washer GEN WB01K5151 Contact Us For Availability

View on Model

933

Washer GEN WB01X1256 Contact Us For Availability

View on Model

940

WB1X371D GE Package of 12 Ceramic Wire Connec In Stock GEN WB1X371D $12.54

View on Model

966

WB2X9573 GE Oven Clip Backorder GEN WB2X9573 $5.65

View on Model

967

Clamp GEN WB02X1422 Contact Us For Availability

View on Model

983

Hex Nut GEN WB01X1153 Contact Us For Availability

View on Model

986

Inverted Nut GEN WB01X1117 Contact Us For Availability

View on Model

989

WB1K5209 GE Oven Clip Backorder GEN WB1K5209 $9.19

View on Model

991

Bolt GEN WB01X1156 Contact Us For Availability

View on Model

999

Installation GEN SR10254 Contact Us For Availability

View on Model

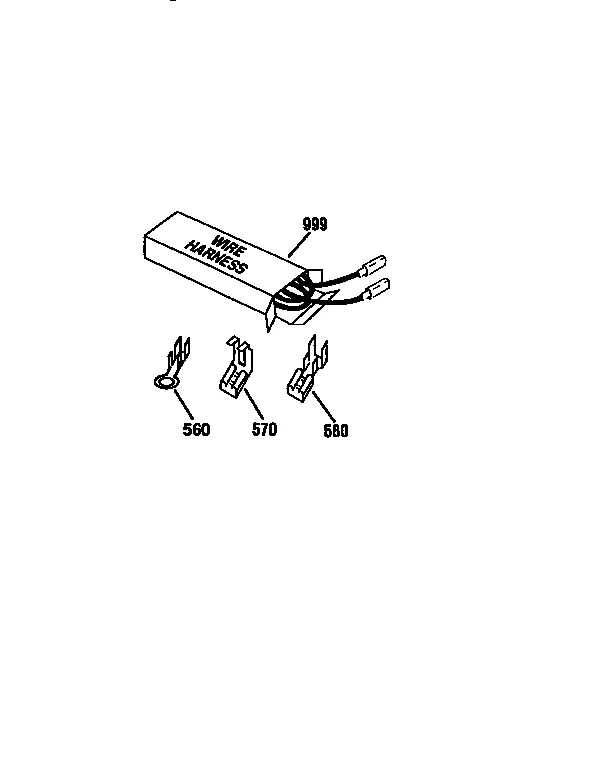

999

Range Wire Harness GEN WB18K5632 Contact Us For Availability

View on Model

999A

MINI MANUAL W/WIRE DIAG. GEN 31-13314 Contact Us For Availability

View on Model

999B

Range Owner's Manual GEN SR10291 Contact Us For Availability

View on Model

999C

Repair Parts List GEN 31-13315 Contact Us For Availability

View on Model
