Model GE 911.30158590 24" Gas Built-In Oven (Kenmore 91130158590) – Common Parts & Diagrams
All Parts

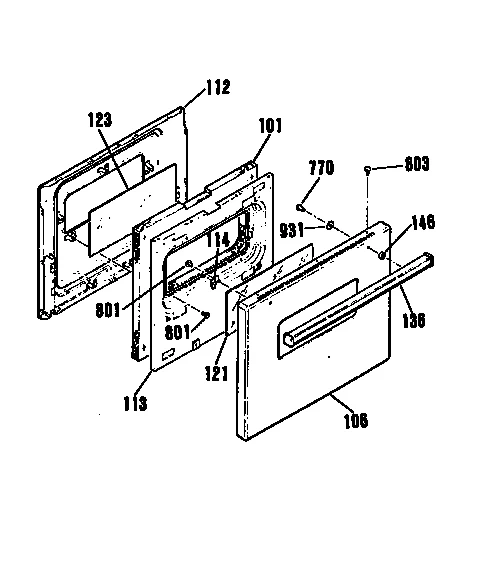

DOOR SECTION

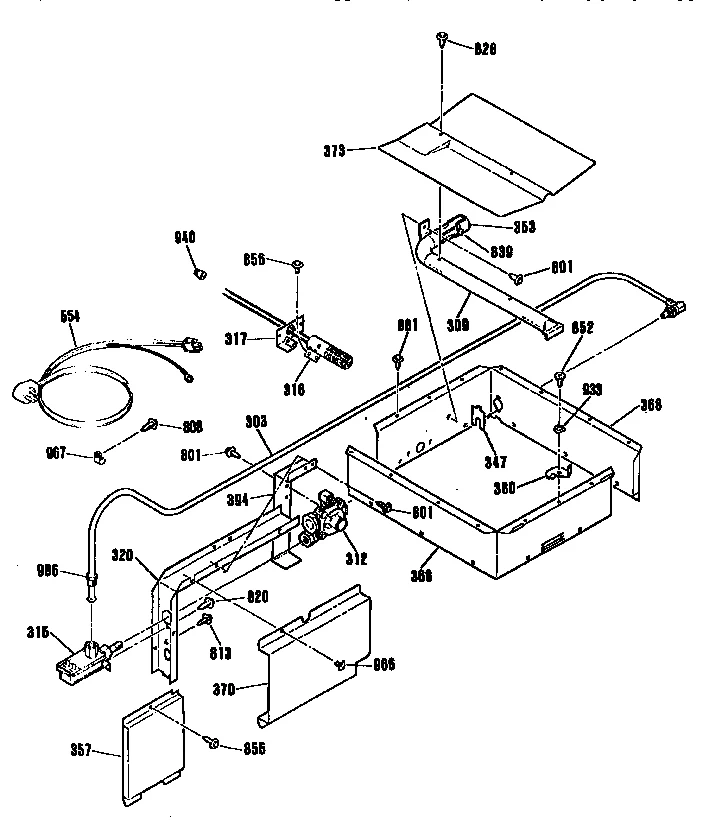

BURNER SECTION

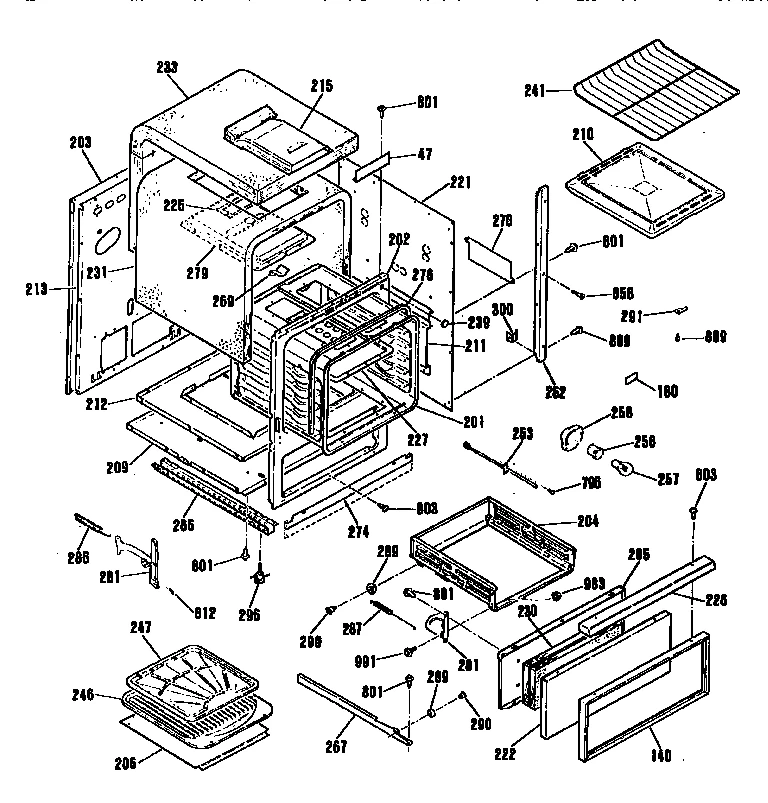

BODY SECTION

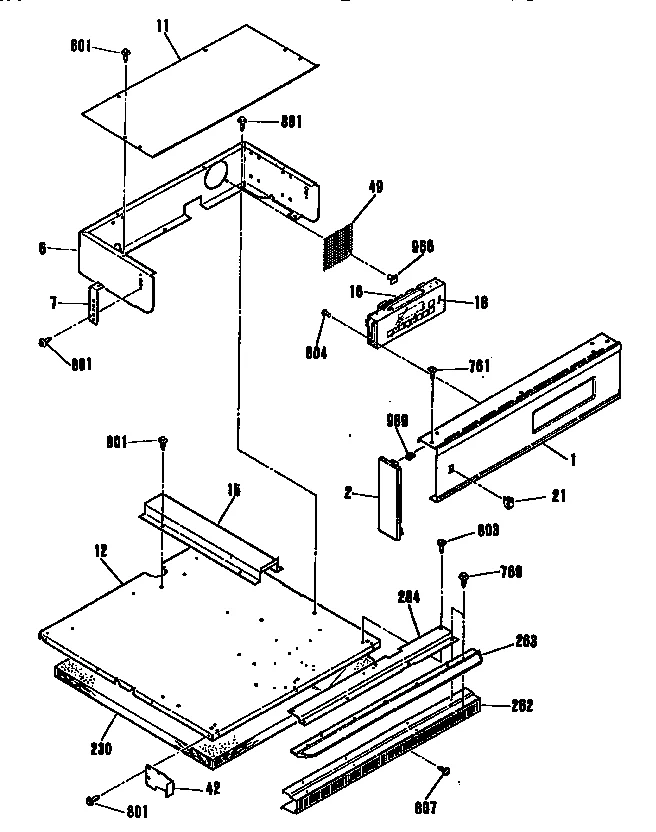

CONTROLS

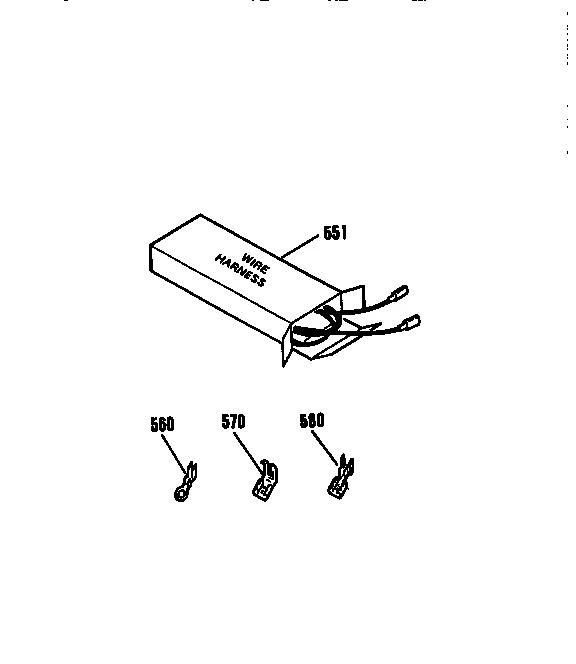

WIRING HARNESS
Common parts from model GE 911.30158590 24" Gas Built-In Oven (Kenmore 91130158590)
1
Wall Oven Control Panel GEN WB36K5279 Contact Us For Availability
2
End Cap Panel GEN WB36K5129 Contact Us For Availability
2A
End Cap Panel GEN WB36K5128 Contact Us For Availability
6
Control Housing GEN WB37K5013 Contact Us For Availability
7
Bracket GEN WB02X9658 Contact Us For Availability
11
Control Housing GEN WB37K5014 Contact Us For Availability
16
Erc Ii C GEN WB27K5201 Contact Us For Availability
18
Clock Plate GEN WB27K5184 Contact Us For Availability
42
Heat Shield GEN WB34K5101 Contact Us For Availability
42A
Heat Shield GEN WB34K5102 Contact Us For Availability
47
Barrier GEN WB38K5036 Contact Us For Availability
49
Con Hsg Scrn GEN WB07X5016 Contact Us For Availability
140
Foot Panel Frame GEN WB56K5118 Contact Us For Availability
146
Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability
180
Lock Lever Cover GEN WB02K5364 Contact Us For Availability
201
Oven Body GEN WB63K5404 Contact Us For Availability
202
Frame GEN WB63K5164 Contact Us For Availability
204
Oven Broiler Drawer GEN WB58K5004 Contact Us For Availability
205
Drive Line Broil GEN WB55K5025 Contact Us For Availability
206
Drawer GEN WB49X0625 Contact Us For Availability
209
Btm Tr E Cap GEN WB36K5159 Contact Us For Availability
210
Oven GEN WB63K5097 Contact Us For Availability
211
Ins Side Ret GEN WB02K5168 Contact Us For Availability
212
Ovbt Ins Ret GEN WB02K5166 Contact Us For Availability
213
Insul Ret R GEN WB02K5167 Contact Us For Availability
215
Flue Deflect GEN WB38X0118 Contact Us For Availability
221
Body GEN WB63K5099 Contact Us For Availability
222
Lo Frt Panel GEN WB56K5120 Contact Us For Availability
225
Flue Deflect GEN WB02X9644 Contact Us For Availability
227
Top Cover GEN WB63K2106 Contact Us For Availability
230
Rubber-105mm GEN WB02X9065 Contact Us For Availability
230
Cabinet Insert GEN WB35K5066 Contact Us For Availability
231
Oven Body Insert GEN WB35K5059 Contact Us For Availability
233
Insul Top/bk GEN WB35K5065 Contact Us For Availability
239
Plug GEN WB02X9587 Contact Us For Availability
246
Oven Broiler Pan GEN WB49X0619 Contact Us For Availability
247
Grid Broiler Pan GEN WB49X0620 Contact Us For Availability
258
Housing GEN WB02X7693 Contact Us For Availability
262
Vent Trim Bl GEN WB07K5207 Contact Us For Availability
263
I-BROW TRIM GEN WB05K5109 Contact Us For Availability
266
Channel GEN WB02X9634 Contact Us For Availability
267
Drwr Gd Asm GEN WB39M0004 Contact Us For Availability
270
Cover Plate GEN WB02X9642 Contact Us For Availability
274
Lo Ft F Trim GEN WB07K5019 Contact Us For Availability
274A
Lwr Frt Trim GEN WB07M0003 Contact Us For Availability
276
Oven Drive Seal GEN WB32K5019 Contact Us For Availability
279
Flue Box GEN WB38K5043 Contact Us For Availability
281
Oven Broiler Drawer Hinge GEN WB14K5019 Contact Us For Availability
281A
Oven Broiler Drawer Hinge GEN WB14K5018 Contact Us For Availability
281B
Oven Drive Hinge GEN WB14K5006 Contact Us For Availability
281C
Wall Oven Door Hinge, Left GEN WB14K5007 Contact Us For Availability
286
Oven Door Spring GEN WB09K5018 Contact Us For Availability
287
Spring GEN WB09X0240 Contact Us For Availability
289
Roller Kit GEN WB02X9638 Contact Us For Availability
290
Roller Kit GEN WB01X1331 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
296
Spacer (Black) GEN WB02X9641 Contact Us For Availability
309
Wall Oven Bake Burner GEN WB16K5014 Contact Us For Availability
312
Pres Reg Con GEN WB19K5021 Contact Us For Availability
347
Orif Fit Plt GEN WB02K5165 Contact Us For Availability
353
Air Shutter GEN WB02X9014 Contact Us For Availability
357
Valve Cover GEN WB34K5096 Contact Us For Availability
368
Ovbrn Box Sd GEN WB64K5035 Contact Us For Availability
368A
Ovbrn Box Sd GEN WB64K5036 Contact Us For Availability
370
Regulator Cover GEN WB34K5181 Contact Us For Availability
551
Main Wiring Harness GEN WB18K5508 Contact Us For Availability
551A
Control Valve Harness GEN WB18K5242 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
803
Screw (Black) GEN WB01X1176 Contact Us For Availability
804
SCREW 6AB X 3/8" GEN WB01K1127 Contact Us For Availability
839
Adjustment Screw GEN WB01X1124 Contact Us For Availability
851
Screw GEN WB01X5691 Contact Us For Availability
852
Screw GEN WB01X1179 Contact Us For Availability
931
Lock Washer GEN WB01K5151 Contact Us For Availability
933
Washer GEN WB01X1256 Contact Us For Availability
967
Clamp GEN WB02X1422 Contact Us For Availability
983
Hex Nut GEN WB01X1153 Contact Us For Availability
986
Inverted Nut GEN WB01X1117 Contact Us For Availability
991
Bolt GEN WB01X1156 Contact Us For Availability
× ![]()
