Model Whirlpool 90FN-3KLX GAS WALL OVEN – Common Parts & Diagrams

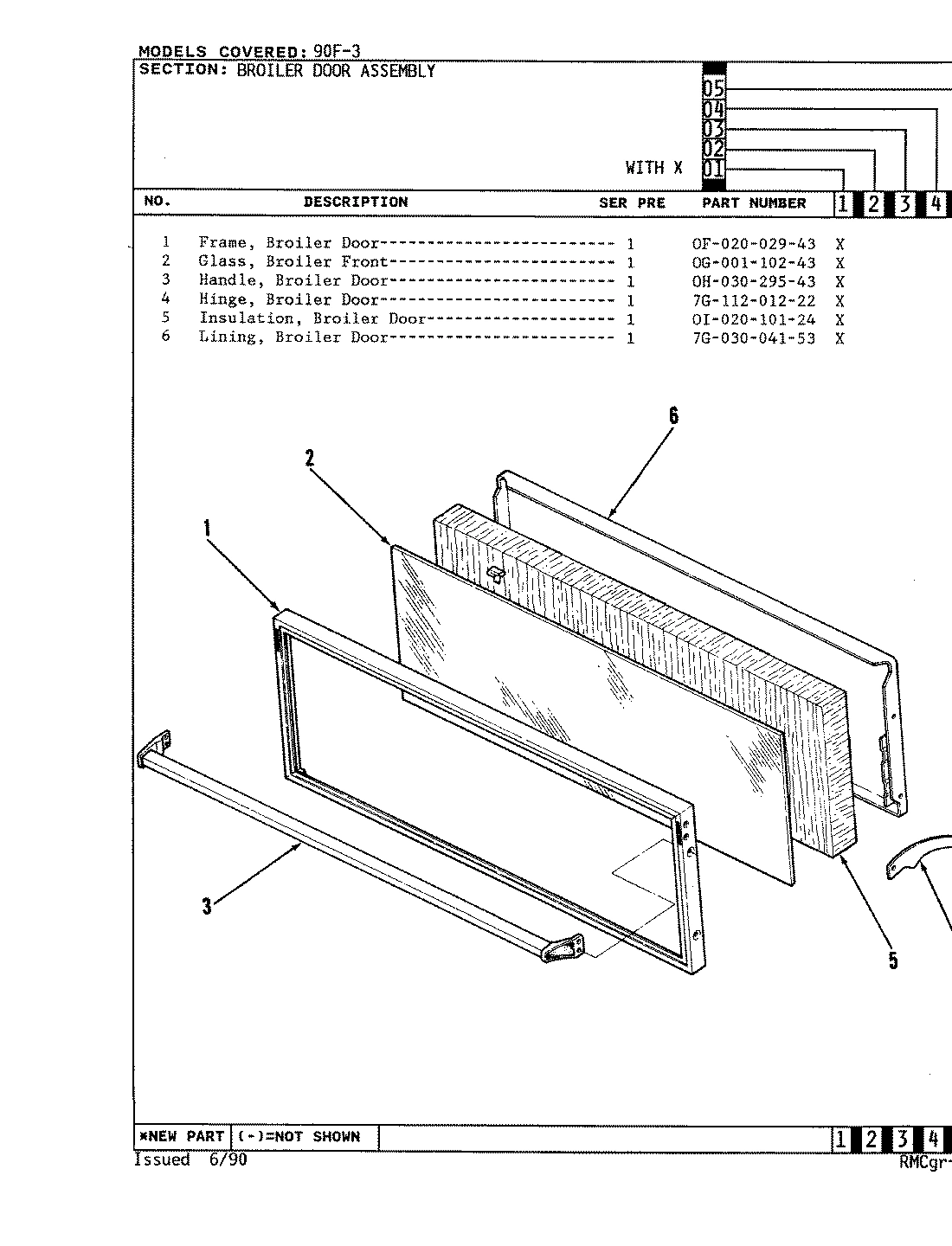

04 - DRAWER

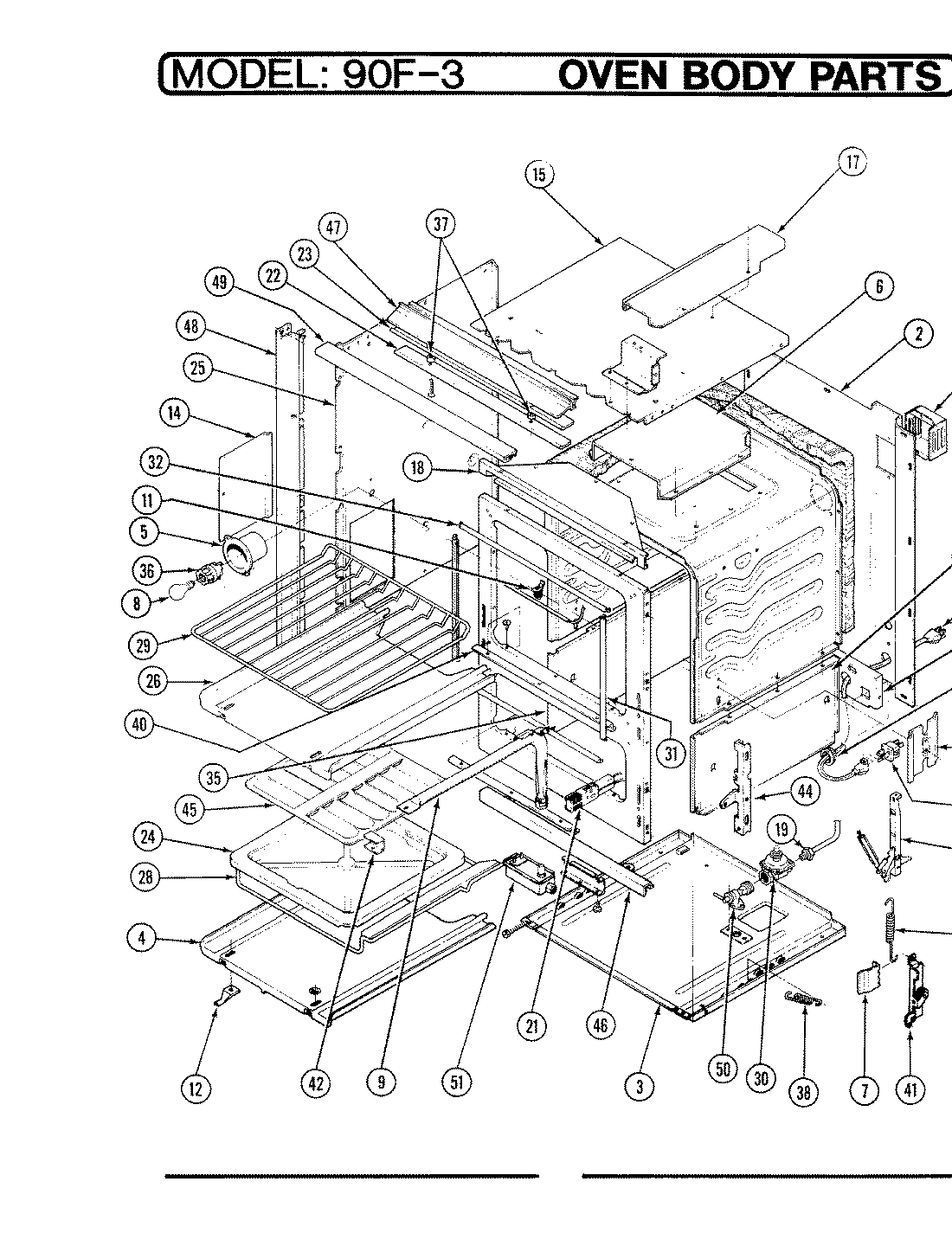

01 - BODY

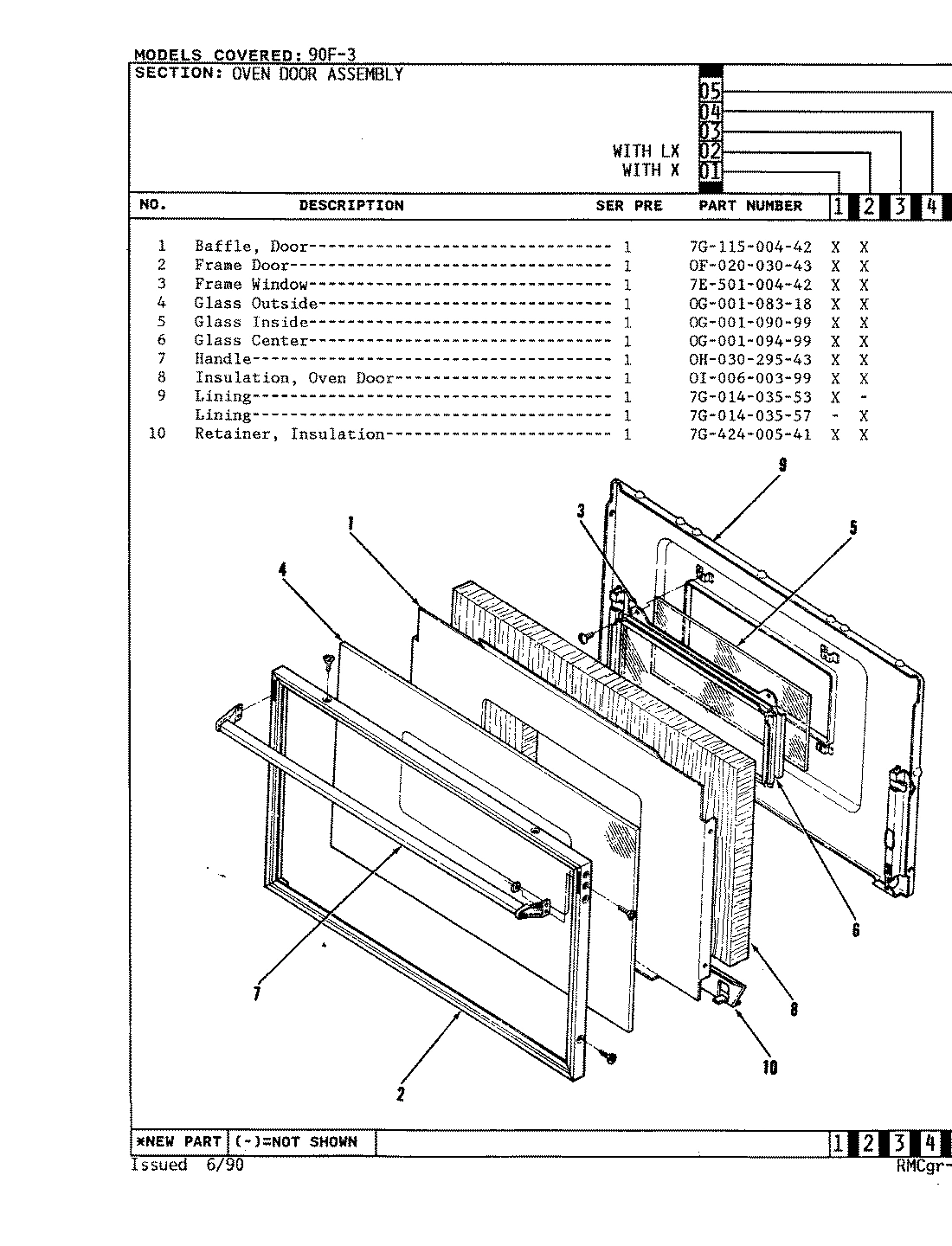

03 - DOOR

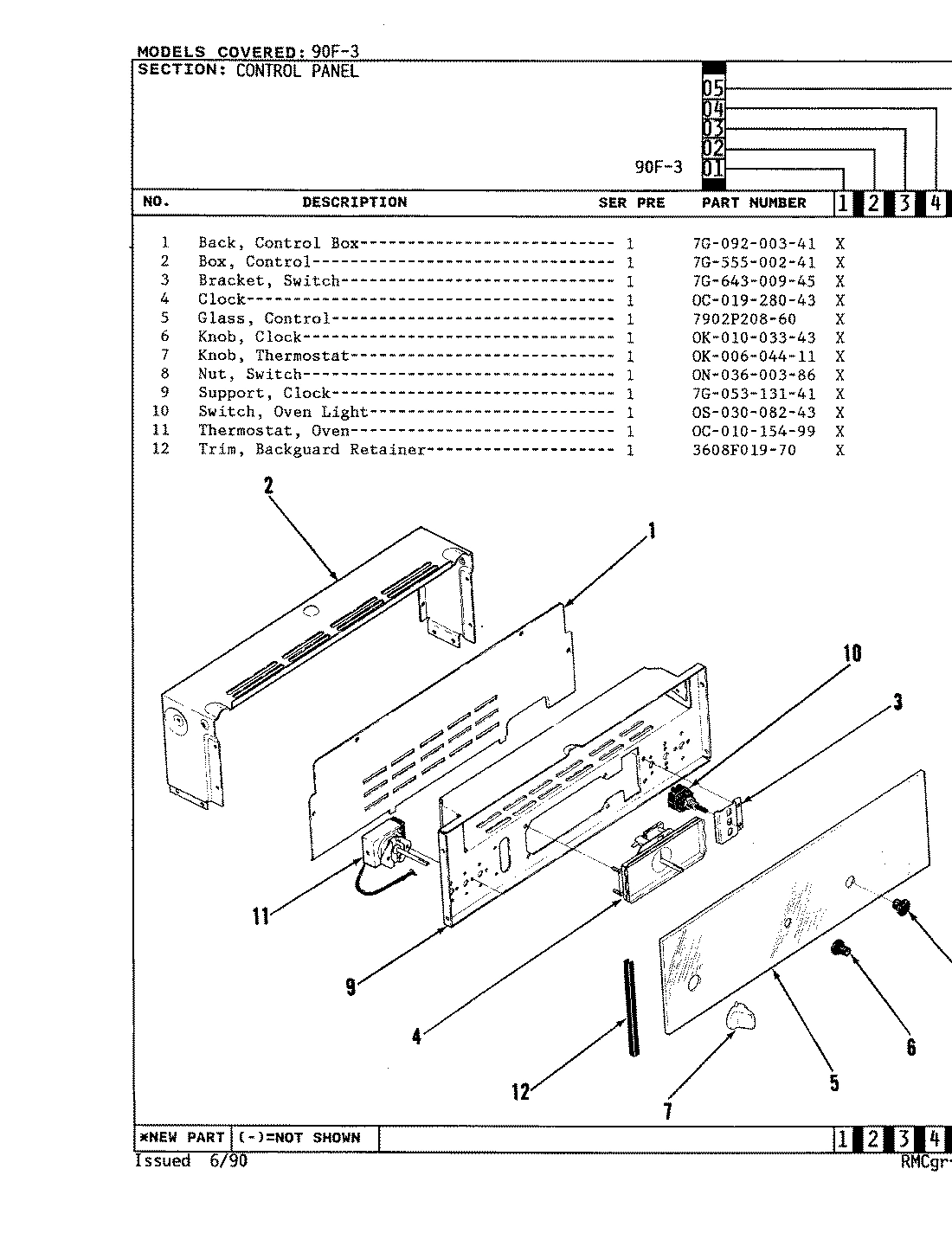

02 - CONTROL PANEL
Common parts from model Whirlpool 90FN-3KLX GAS WALL OVEN
1
FRAME, DOOR WPL 0F02002943 Contact Us For Availability
1
ADAPTER, VENT WPL 7G41300342 Contact Us For Availability
1
BACK, BROILER COMPAR WPL 7G51800553 Contact Us For Availability
1
BAFFLE DOOR WPL 7G11500442 Contact Us For Availability
1
BACK CONTROL BOX WPL 7G09200341 Contact Us For Availability
2
GLASS, BROILER DOOR WPL 0G00110243 Contact Us For Availability
2
BACK, MAIN WPL 7G10009541 Contact Us For Availability
2
FRAME, DOOR WPL 0F02003043 Contact Us For Availability
2
BOX CONTROL WPL 7G55500241 Contact Us For Availability
3
BASE, MAIN ASSEMBLY WPL 7G10202841 Contact Us For Availability
3
FRAME, WINDOW WPL 7E50100442 Contact Us For Availability
3
BRACKET, SWITCH MTG WPL 7G64300945 Contact Us For Availability
4
HINGE, BROILER DOOR WPL 7G11201222 Contact Us For Availability
4
BOTTOM BROILER COMP WPL 7G18600153 Contact Us For Availability
4
GLASS, OVEN DOOR OUT WPL Y0G00108318 Contact Us For Availability
4
CLOCK, REGULATOR WPL 0C01928043 Contact Us For Availability
5
INSULATION BROILER D WPL 0I02010124 Contact Us For Availability
5
BOX, OVEN LIGHT WPL 0B03500116 Contact Us For Availability
5
GLASS, OVEN DOOR INS WPL Y0G00109099 Contact Us For Availability
5
GLASS, CONTROL PANEL WPL 7902P20860 Contact Us For Availability
6
LINING, BROILER DOOR WPL 7G03004153 Contact Us For Availability
6
BOX, VENT WPL 7G35801441 Contact Us For Availability
6
BOX VENT ASSEMBLY WPL 7G35801541 Contact Us For Availability
6
GLASS, OVEN DOOR CEN WPL 0G00109499 Contact Us For Availability
6
KNOB, CLOCK WPL Y0K01003343 Contact Us For Availability
7
HANDLE, DOOR WPL 0H03029543 Contact Us For Availability
7
BRACKET, OVEN DOOR S WPL 7G03602541 Contact Us For Availability
7
KNOB, OVEN CONTROL WPL 0K00604411 Contact Us For Availability
8
INSULATION, OVEN DOO WPL 0I00600399 Contact Us For Availability
8
NUT, SWITCH WPL Y0N03600386 Contact Us For Availability
9
BURNER, OVEN WPL 7G27501819 Contact Us For Availability
9
LINING OVEN DOOR WPL 7G01403557 Contact Us For Availability
9
SUPPORT, CLOCK WPL 7G05313141 Contact Us For Availability
10
BUSHING, SNAP WPL Y0B01000543 Contact Us For Availability
10
RETAINER, INSULATION WPL 7G42400541 Contact Us For Availability
10
SWITCH, OVEN LIGHT WPL Y0S03008243 Contact Us For Availability
11
CLIP, CAPILLARY WPL Y0C00102229 Contact Us For Availability
11
CONTROL, OVEN WPL Y0C01015499 Contact Us For Availability
12
CLIP OVEN BOTTOM PL WPL 7G12000299 Contact Us For Availability
12
TRIM, BKGD. GLASS WPL 3608F01970 Contact Us For Availability
13
CORD, EXTENSION WPL 0C03001499 Contact Us For Availability
14
COVER, HINGE WPL 7G15203041 Contact Us For Availability
15
COVER INSULATION WPL 7G52202341 Contact Us For Availability
15
COVER, INSULATION WPL 7G52202441 Contact Us For Availability
16
COVER, LIGHT SOCKET WPL 7G53700341 Contact Us For Availability
17
COVER WIRE TOP WPL 7G27200641 Contact Us For Availability
18
EXTENSION, VENT (OUTSIDE) WPL 3826W00290 Contact Us For Availability
18
EXTENSION, VENT BOX WPL 7G65700745 Contact Us For Availability
19
FITTING, 1/2`` NPT X WPL Y0F00300321 Contact Us For Availability
20
HINGE 703 WPL 9G10706522 Contact Us For Availability
21
IGNITOR, OVEN BURNER WPL Y0I00504199 Contact Us For Availability
22
LOUVER VENT BOTTOM WPL 0L00700416 Contact Us For Availability
23
LOUVER, VENT CENTER WPL 0L00700316 Contact Us For Availability
25
PANEL, END-LT WPL 7G06003741 Contact Us For Availability
25
PANEL, END-RT WPL 7G06003841 Contact Us For Availability
26
PLATE, OVEN BOTTOM (K) WPL 3605F12217 Contact Us For Availability
27
PLUG MALE RECEPTACLE WPL 0P01301043 Contact Us For Availability
28
RACK, BROILER PAN WPL Y0R00900311 Contact Us For Availability
29
RACK OVEN WPL Y0R01001811 Contact Us For Availability
30
RUNNER, BROILER RACK WPL 0R01806511 Contact Us For Availability
30
REGULATOR PRESSURE WPL Y0R00301416 Contact Us For Availability
31
SEAL, OVEN DOOR WPL Y0S00643599 Contact Us For Availability
33
SHUTTER OVEN BURNER WPL 4G12401322 Contact Us For Availability
33
SHIELD, INSULATION WPL 7G36700999 Contact Us For Availability
34
SIDE, BROILER-RT WPL 7G65900453 Contact Us For Availability
35
SIDE, BROILER-LT WPL 7G65900353 Contact Us For Availability
36
SOCKET, OVEN LIGHT WPL Y0S04000499 Contact Us For Availability
37
SPACER DOOR HANDLE WPL Y0S02100543 Contact Us For Availability
38
SPRING, BROILER DOOR WPL Y0S01000399 Contact Us For Availability
39
SPRING OVEN DOOR WPL 0S00100399 Contact Us For Availability
40
SUPPORT, BOTTOM PLATE WPL 3807F25553 Contact Us For Availability
41
SUPPORT, BROILER DR WPL 7G42700522 Contact Us For Availability
41
SUPPORT, BROILER DR WPL 7G42700622 Contact Us For Availability
42
SUPPORT, OVEN BRNR-F WPL 7G12501841 Contact Us For Availability
43
SUPPORT, OVEN IGNITO WPL 9G55404619 Contact Us For Availability
44
SUPPORT, HINGE (LT) WPL 3807A29234 Contact Us For Availability
44
SUPPORT, HINGE (RT) WPL 3807A29334 Contact Us For Availability
46
TRIM, BOTTOM WPL 0T09902416 Contact Us For Availability
47
TRIM, CONT PANEL BOT WPL 0T00500416 Contact Us For Availability
48
TRIM, SIDE LT WPL 0T09903316 Contact Us For Availability
48
TRIM, SIDE RT WPL 0T09903416 Contact Us For Availability
49
WPL 0T09902316 WPL 0T09902316 Contact Us For Availability
49
WPL 7G42204316 WPL 7G42204316 Contact Us For Availability
50
WPL Y0V03010721 WPL Y0V03010721 Contact Us For Availability
51
WPL Y0V03431099 WPL Y0V03431099 Contact Us For Availability
× ![]()
